AZ00134048

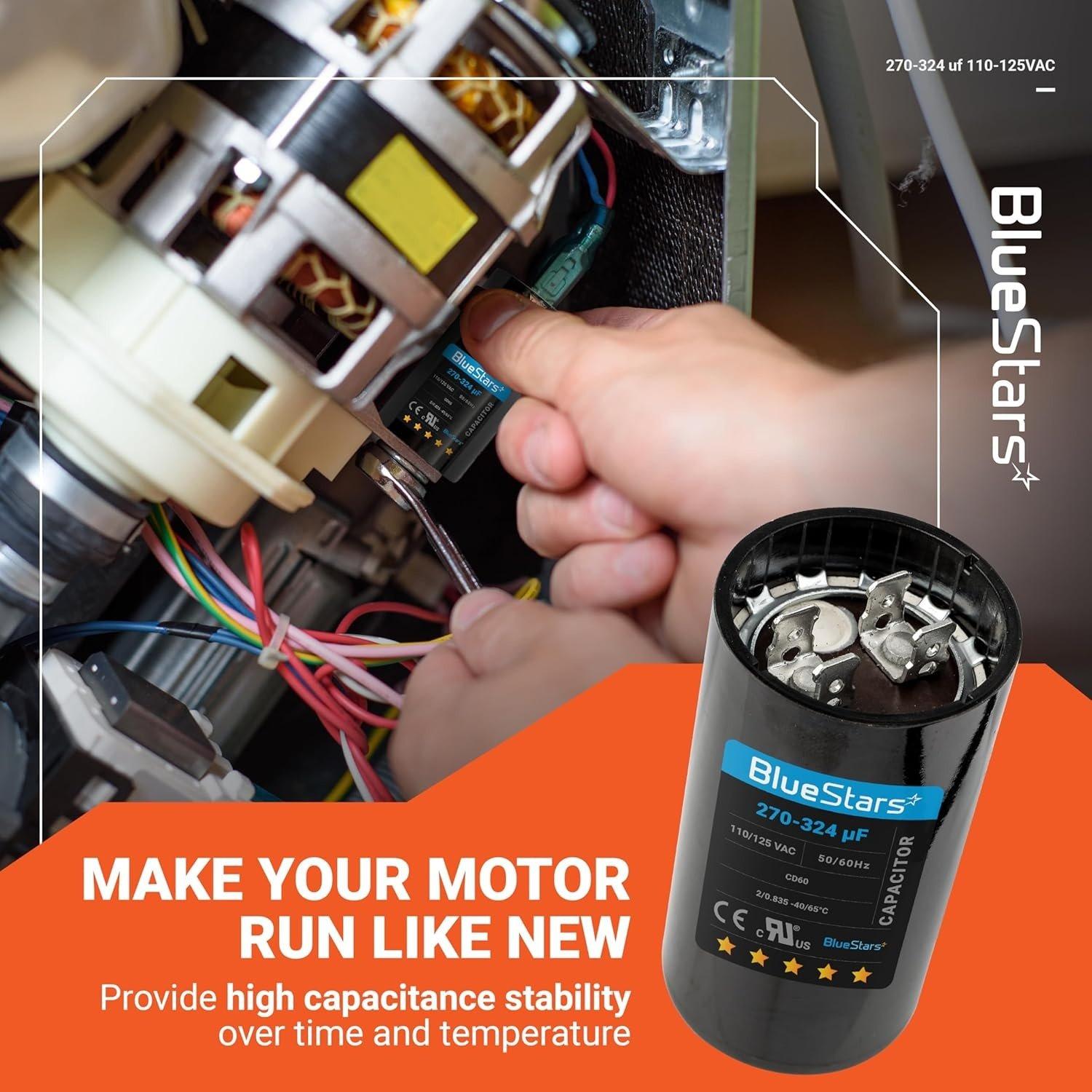

270-324 uF/MFD 110-125 VAC Round Motor Start Capacitor - Pack of 2
Sold 528
Easy
More than 30 minutes
$24.03
$26.69
Save $2.66
In Stock
Fast delivery
Confirm the fit for your model
Find your model number and check it here to see if the part fits.
Description
Description

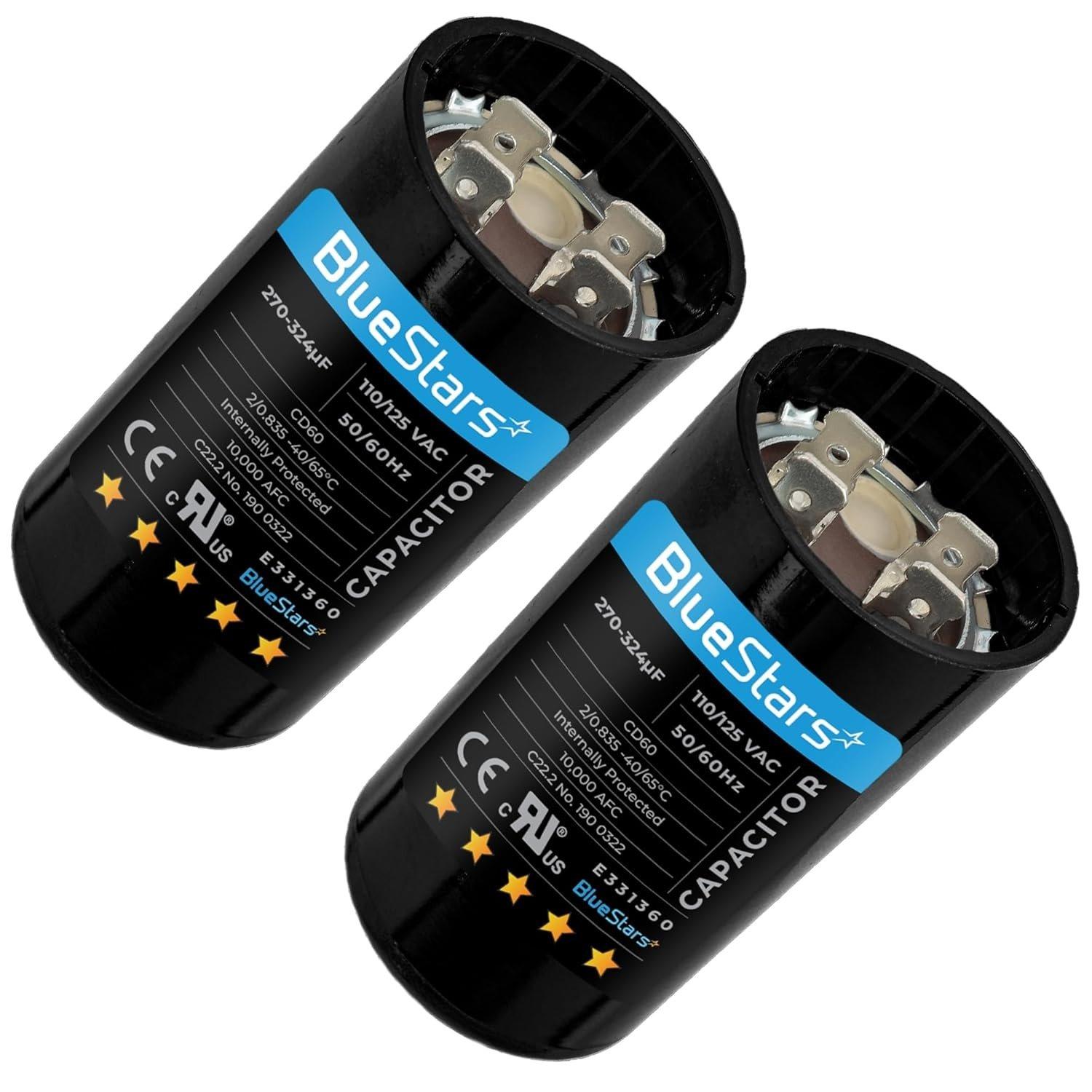

270-324 uF/MFD 110-125 VAC Round Motor Start Capacitor - Pack of 2

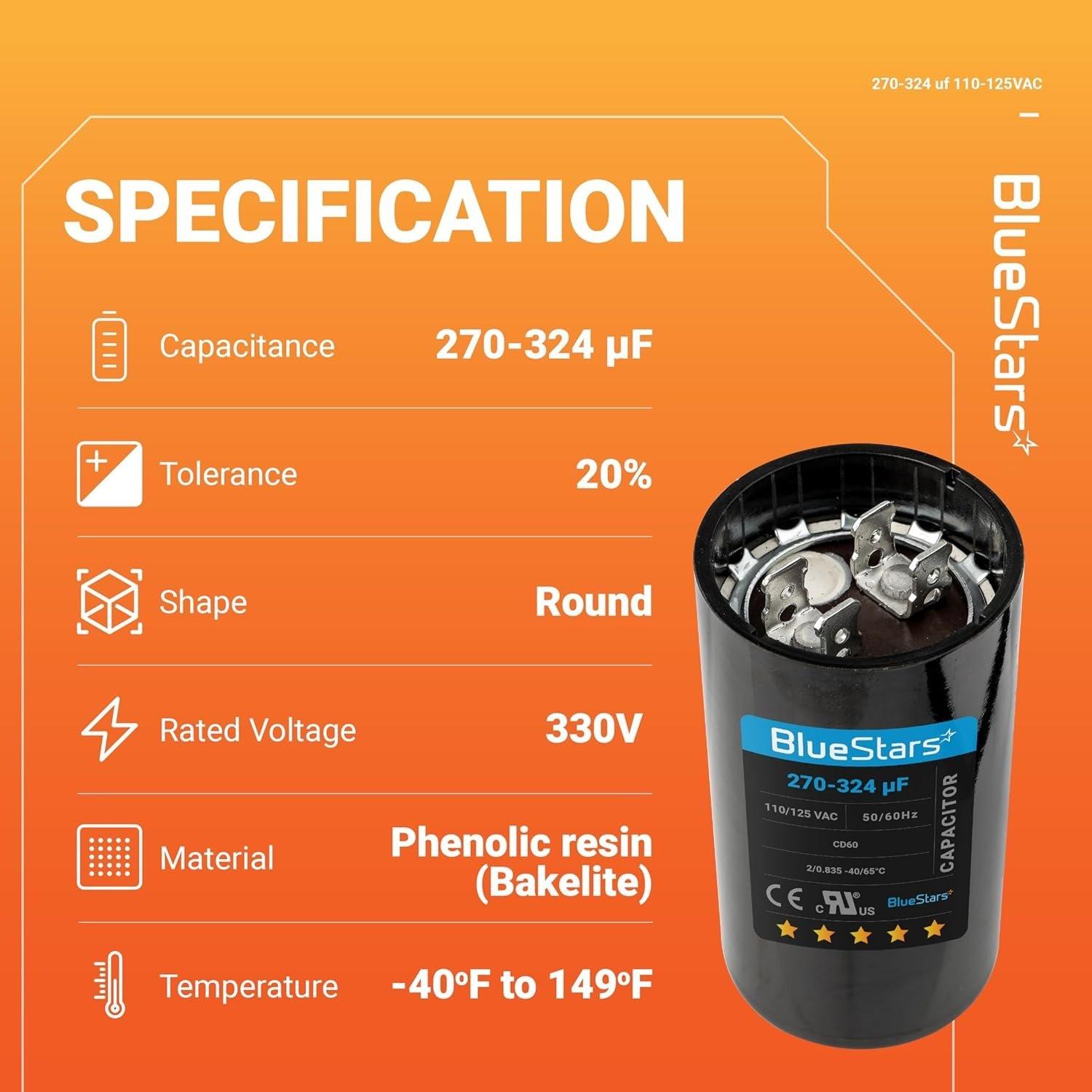

Key Features
- Capacitance: 270-324 Microfarad (uF/MFD)
- Voltage Rating: 110-125 Volts AC
- Frequency: 50/60 Hz
- Shape: Round

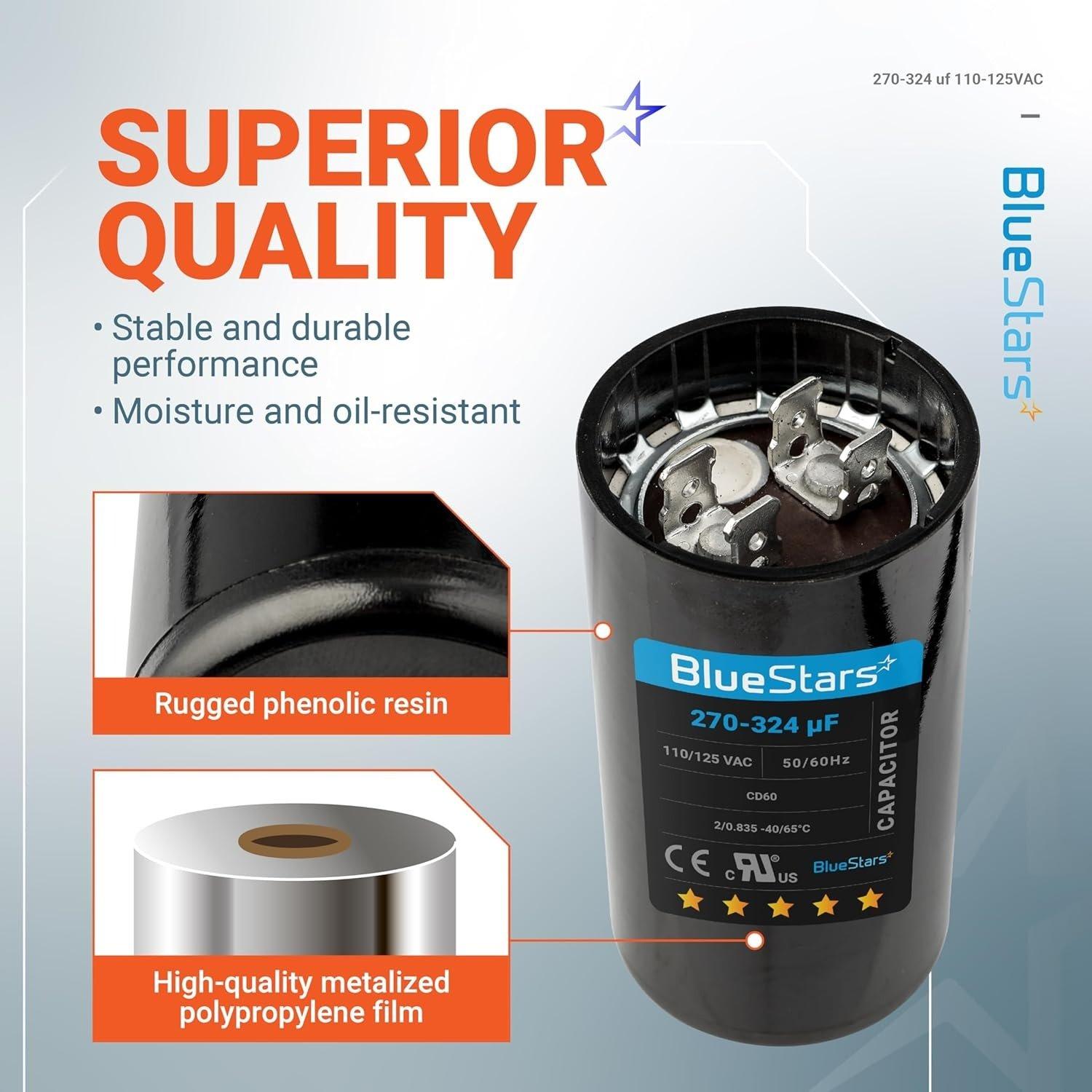

- Case Material: Moisture and oil-resistant plastic

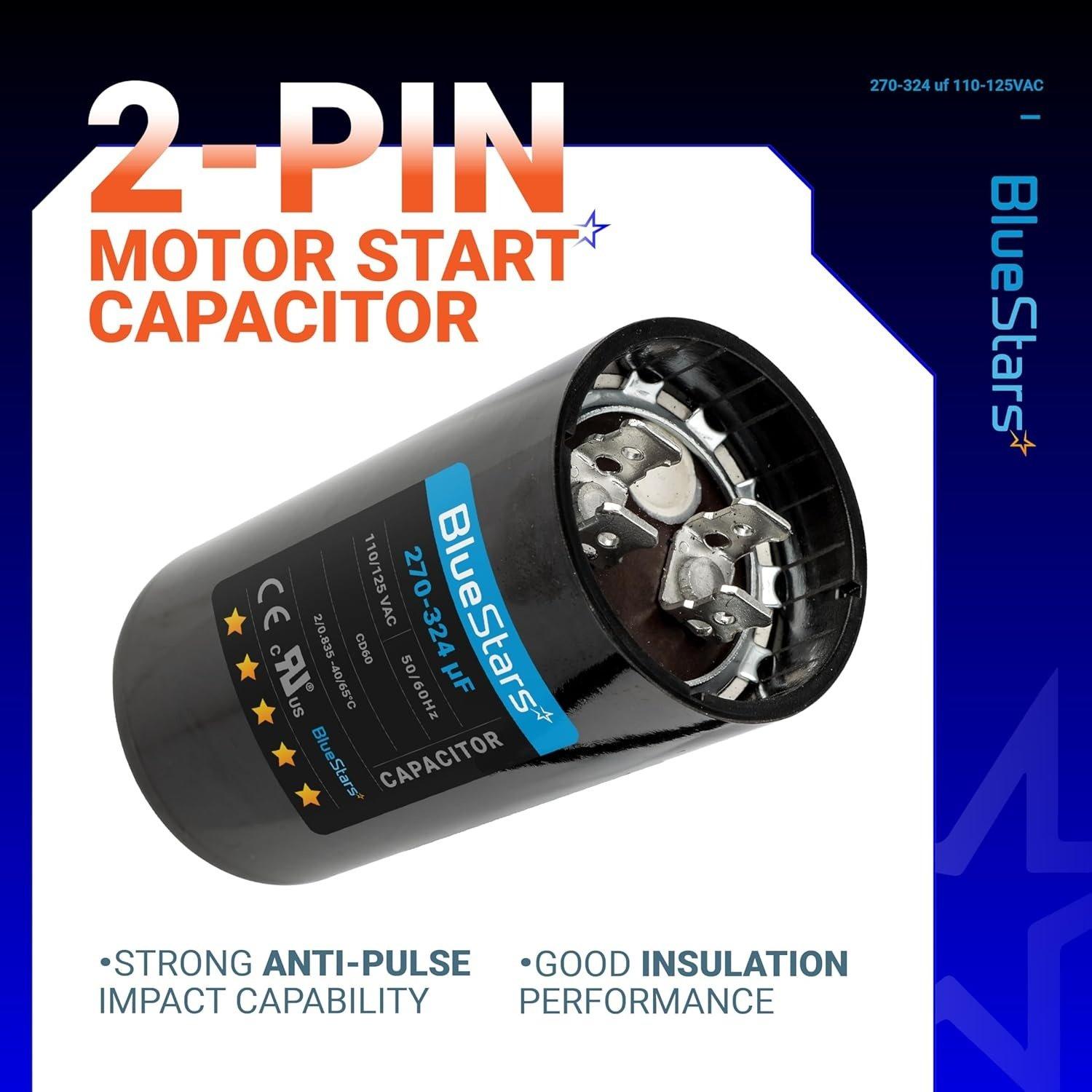

- Terminals: 1/4 inch male quick-connect

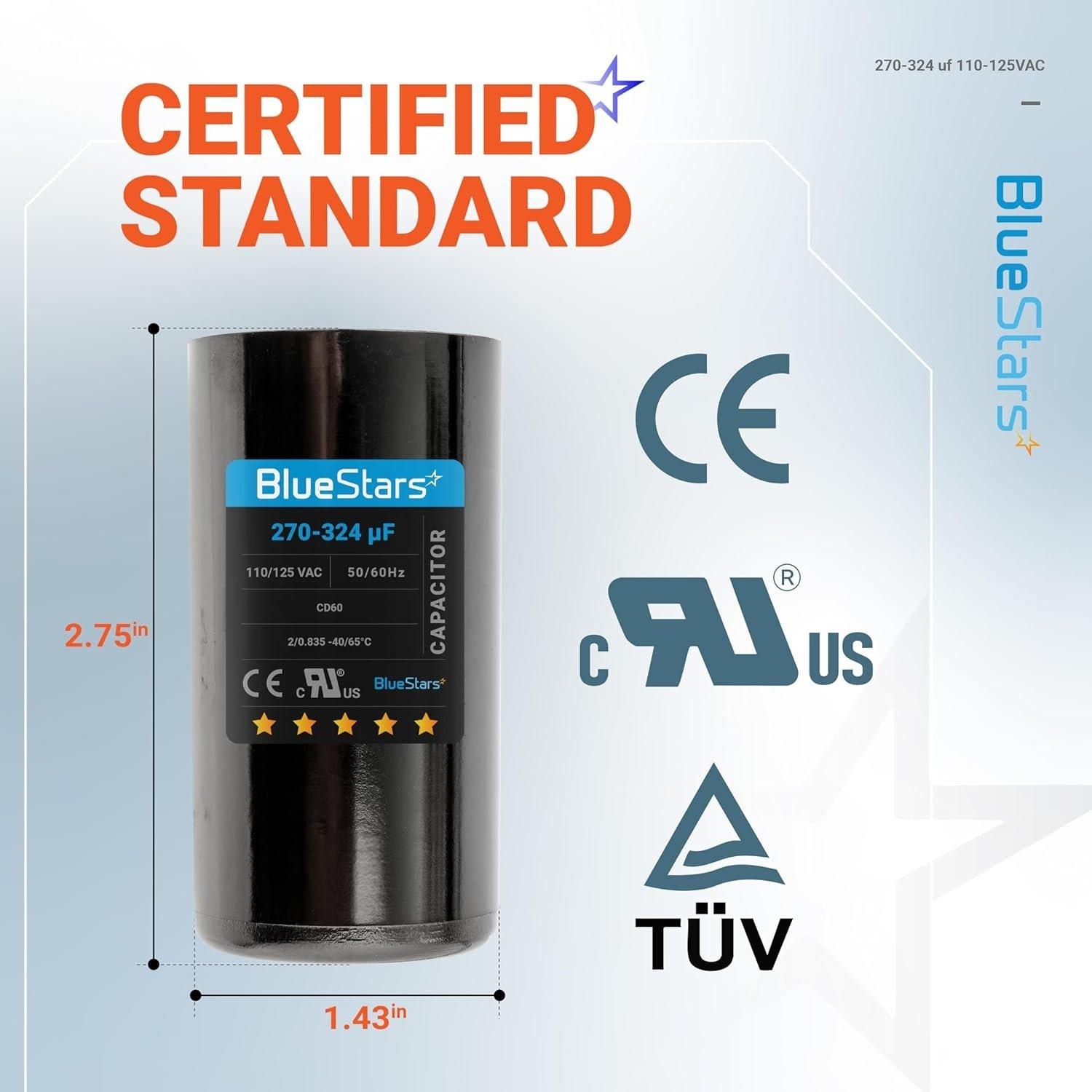

- Dimensions: 1-7/16 in. Diameter x 2-3/4 in. Height
- Quantity: Two (2) capacitors included
Replaces / Cross-Reference Part Numbers
- Packard TMJ270
- Replaces any start capacitor with the same capacitance and voltage ratings.
Compatibility & Fitment
- Designed for single-phase AC electric motors.
- Common applications include HVAC units, air compressors, well pumps, refrigeration systems, and other motor-driven equipment.
- Fits any application requiring a motor start capacitor with matching electrical specifications and physical dimensions.
When to Replace
- Motor hums but fails to start or struggles to turn over.
- Start-up is slow or hesitant.
- Circuit breaker trips repeatedly when the motor attempts to start.
- Capacitor case is physically swollen, cracked, or leaking fluid.
- Capacitance measures outside the specified 270-324 uF range when tested.
Installation Tips
- Disconnect all electrical power to the equipment before beginning work.
- Carefully discharge the existing capacitor by shorting the two terminals with an insulated tool.

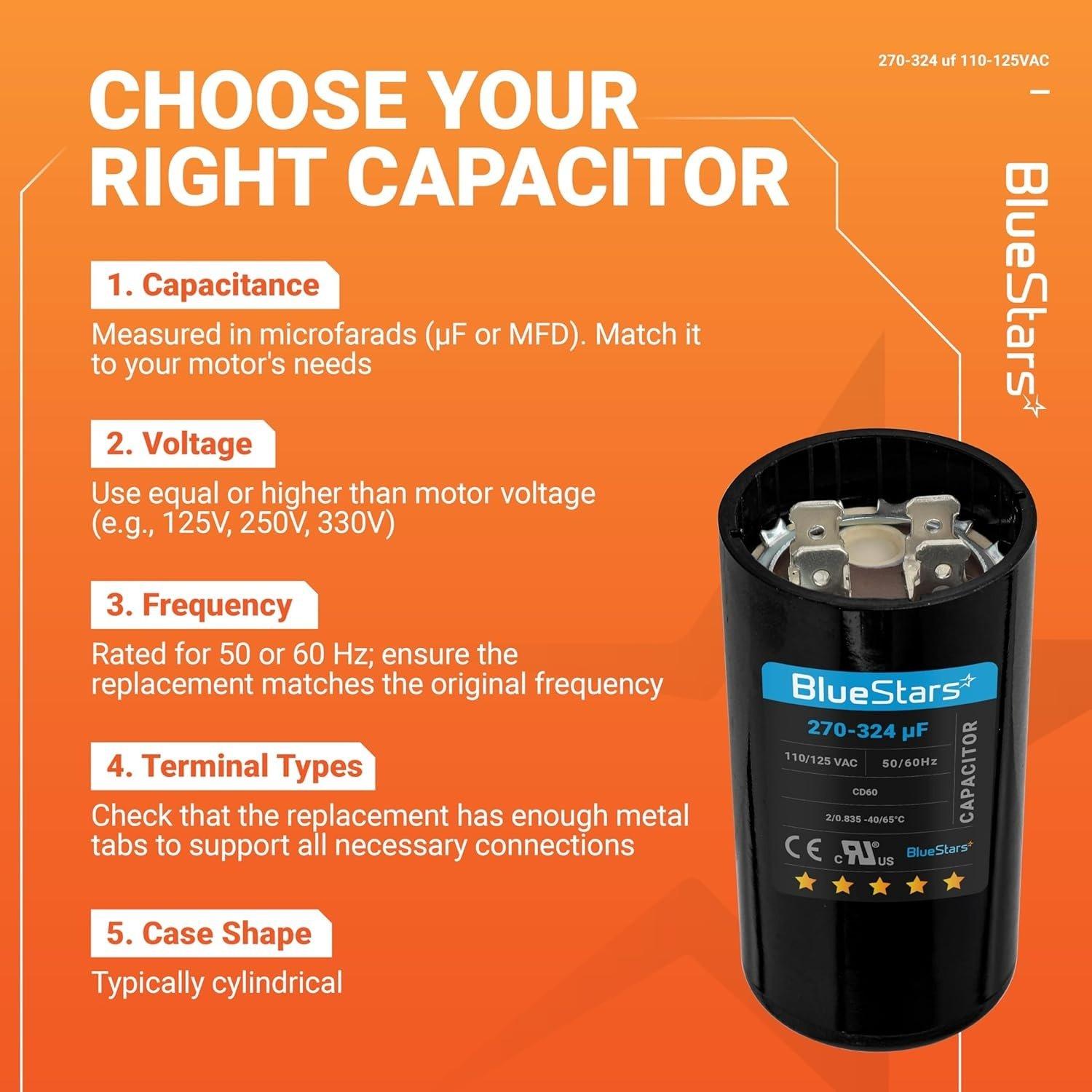

- Confirm the uF/MFD and VAC ratings of the new capacitor match the original part's specifications.
- Secure the capacitor in the mounting bracket to prevent vibration.
- Connect the wires to the terminals. Polarity does not matter for AC start capacitors.
