30.9 inches DG94-00540A Surface Burner Igniter for Samsung Gas Range - Spark Electrode Replacement - Replaces DG94-00539A DG94-00541A DG94-00602A DG94-00633A - Fits NX58F NX58H

30.9 inches DG94-00540A Surface Burner Igniter for Samsung Gas Range - Spark Electrode Replacement - Replaces DG94-00539A DG94-00541A DG94-00602A DG94-00633A - Fits NX58F NX58H

Key Features

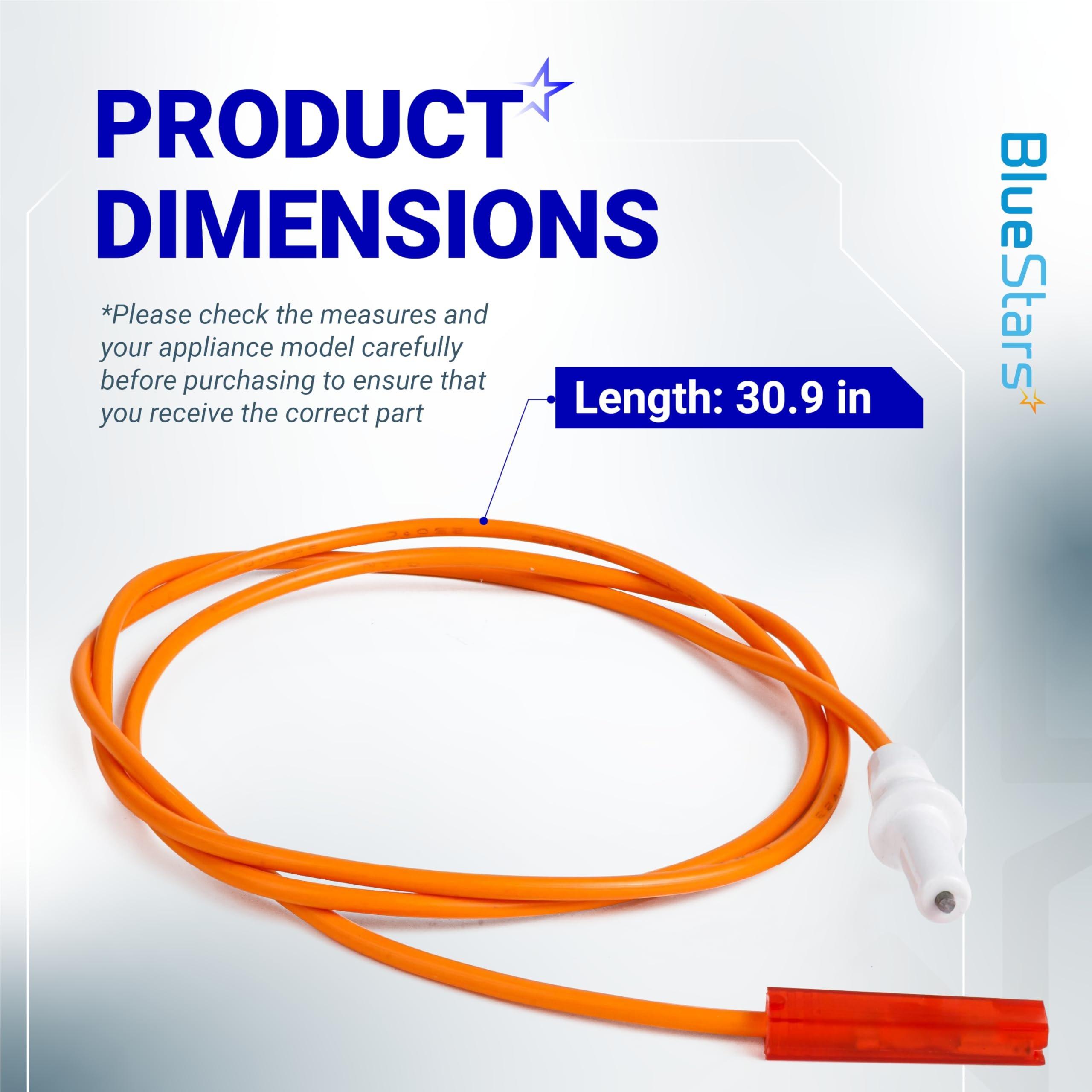

• Total Length: 30.9 inches
• Function: Generates spark to ignite gas for surface burners

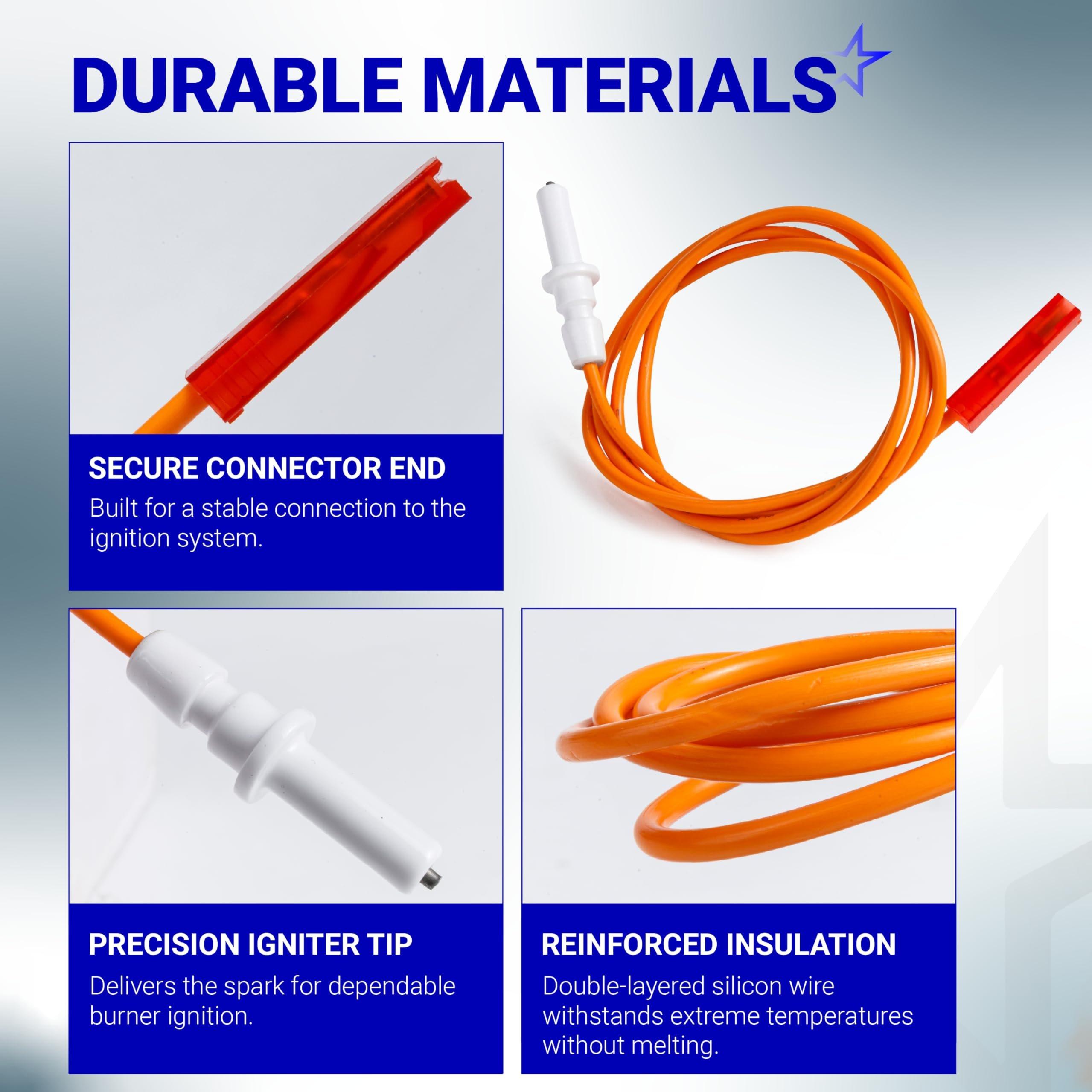

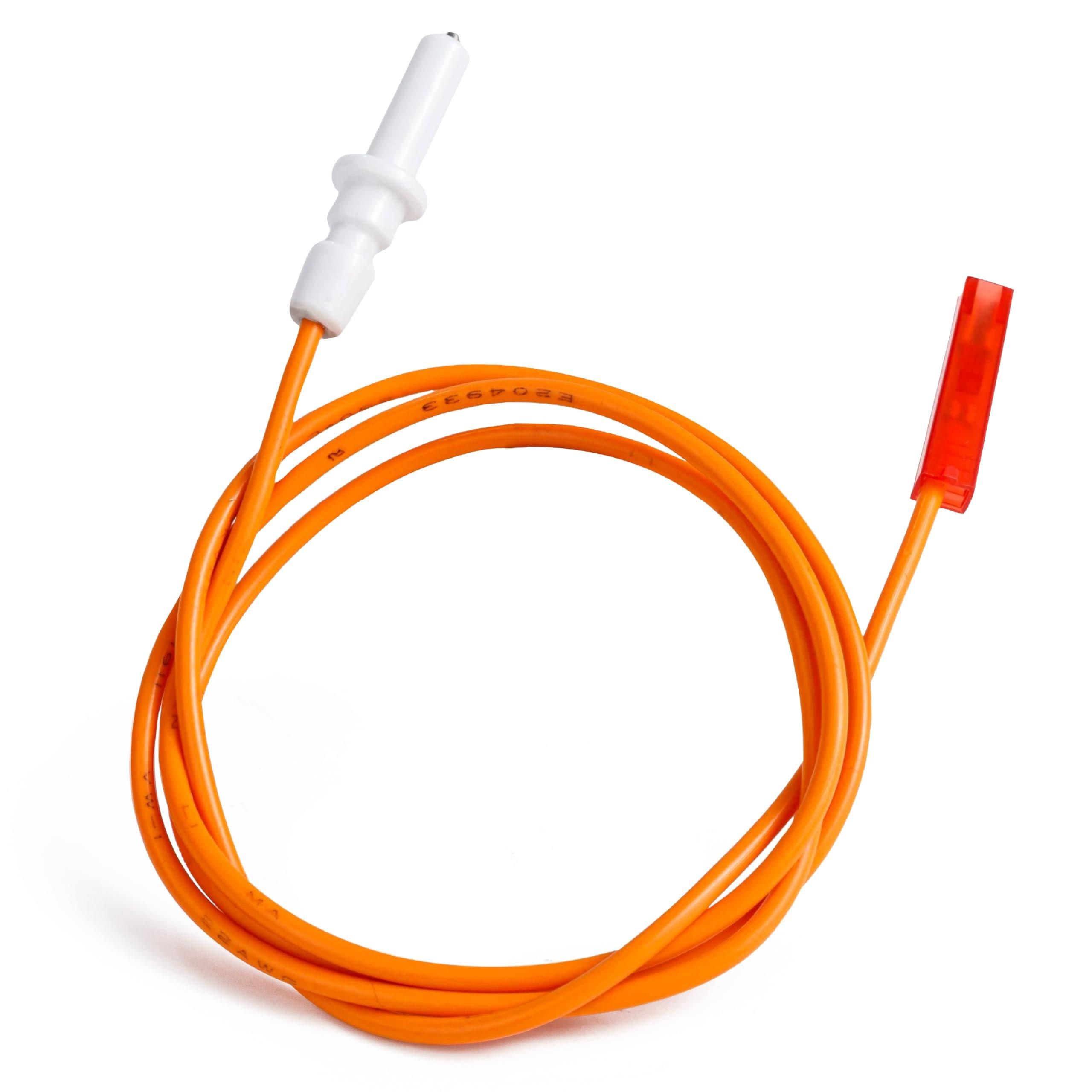

• Component Type: Spark electrode with wire and connector

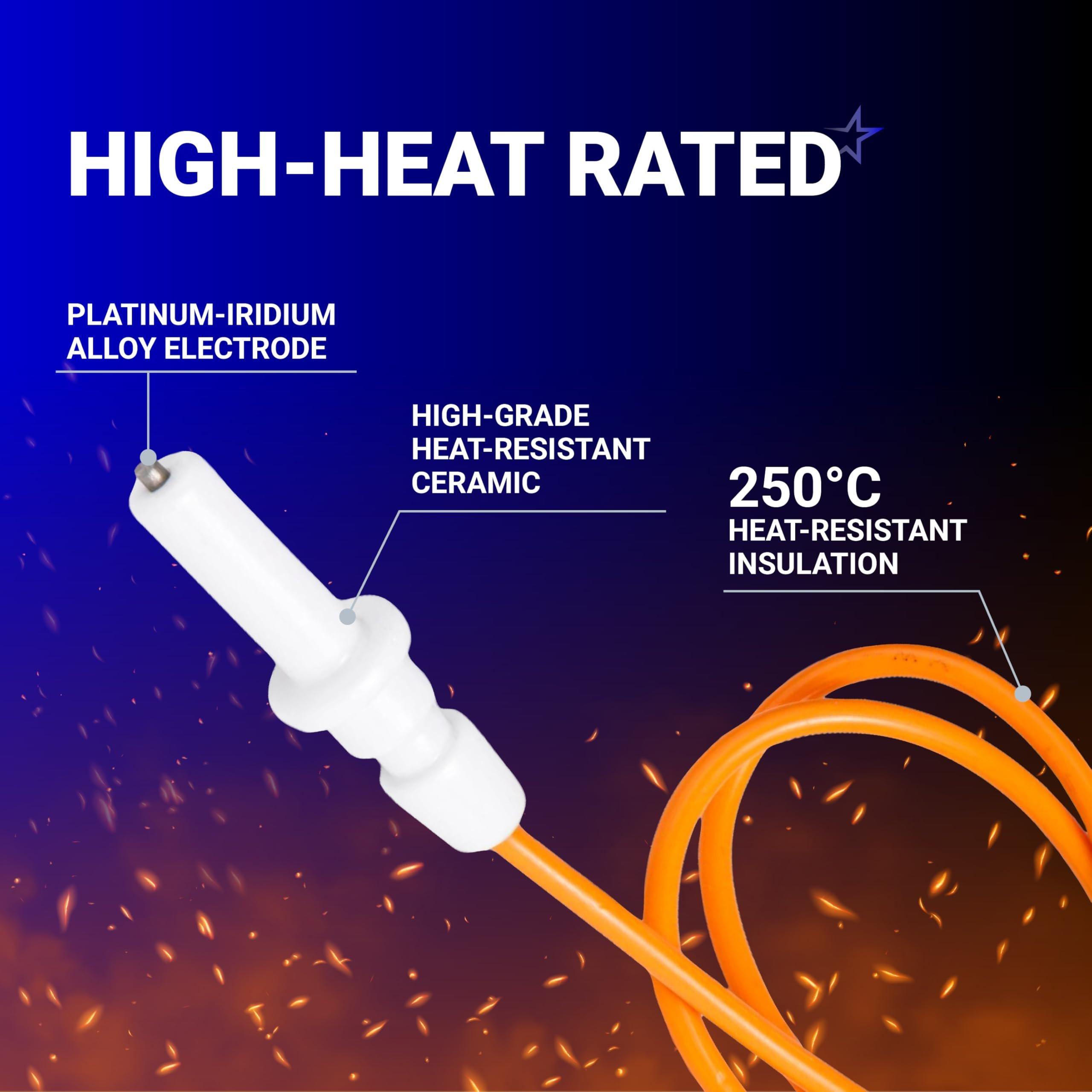

• Material: Constructed with a high-temperature resistant ceramic insulator and metal electrode

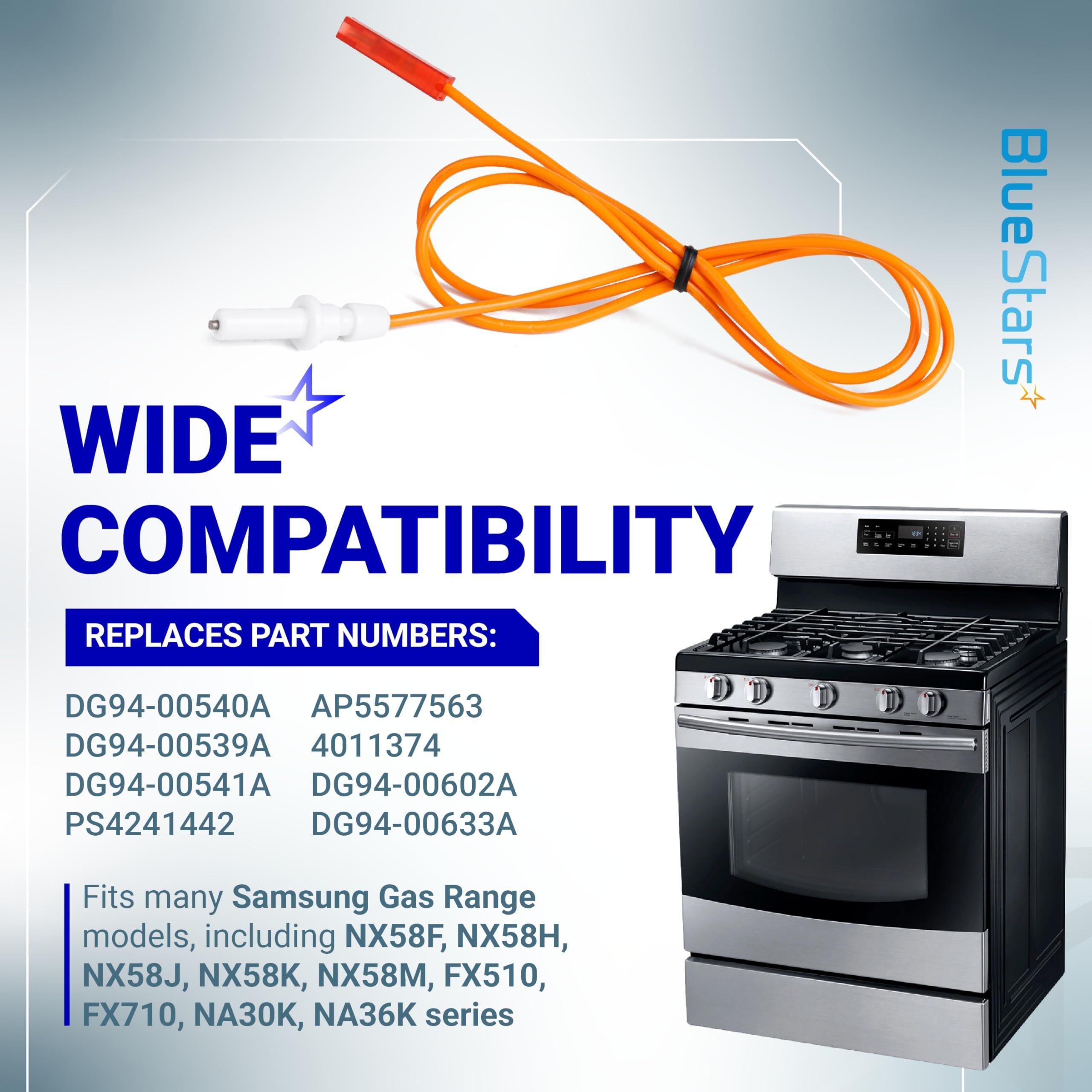

Replaces / Cross-Reference Part Numbers

• DG94-00540A
• DG94-00539A
• DG94-00541A
• DG94-00602A
• DG94-00633A

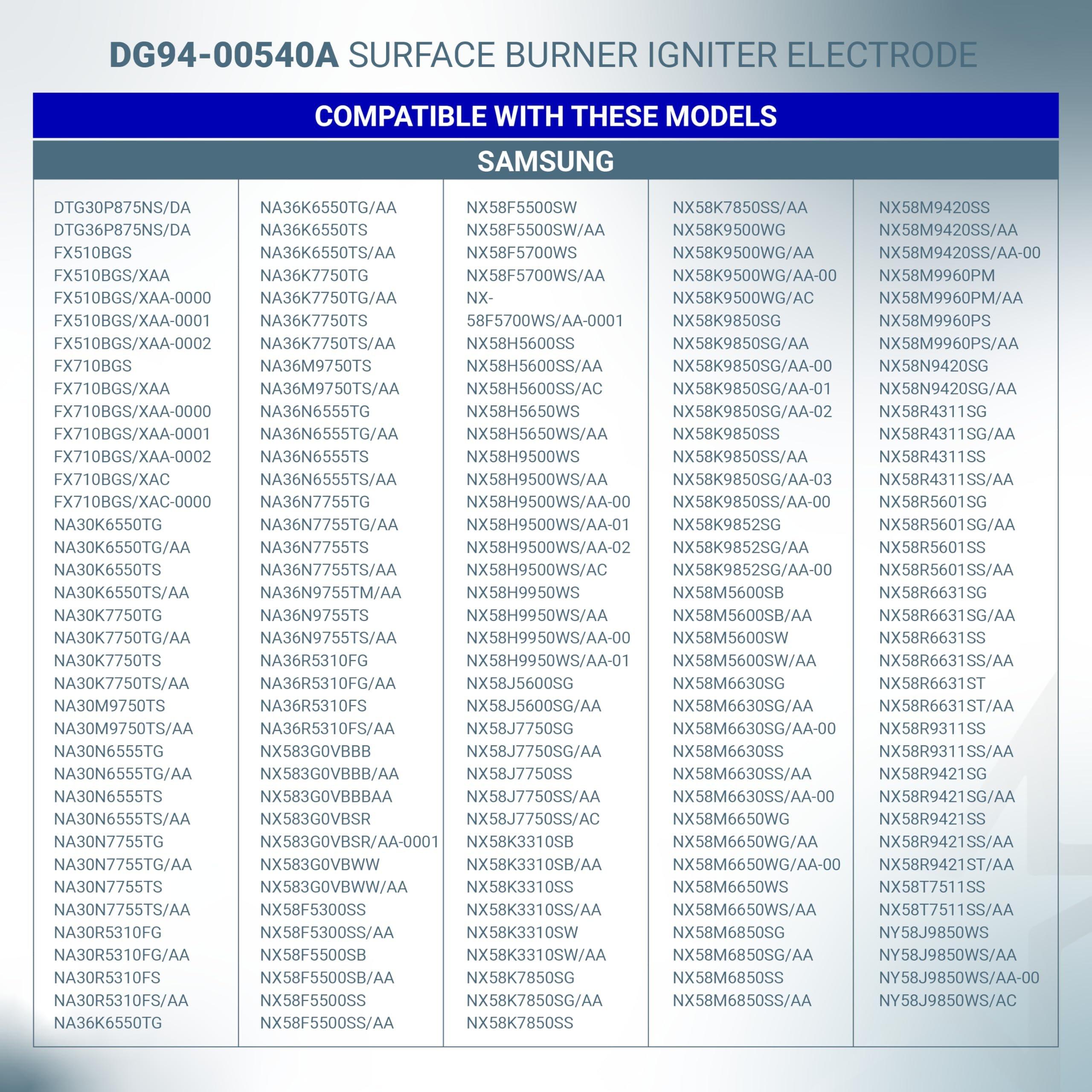

Compatibility & Fitment

• Brand: Samsung
• Appliance Type: Gas Range / Cooktop
• Fits select Samsung models, including but not limited to:
• Note: Verify compatibility by checking your appliance's original part number.

When to Replace

• The surface burner clicks but fails to ignite.
• Ignition is intermittent or weak.
• The spark electrode is visibly cracked, burned, or broken.
• There is no clicking sound and no spark when the burner is turned on.

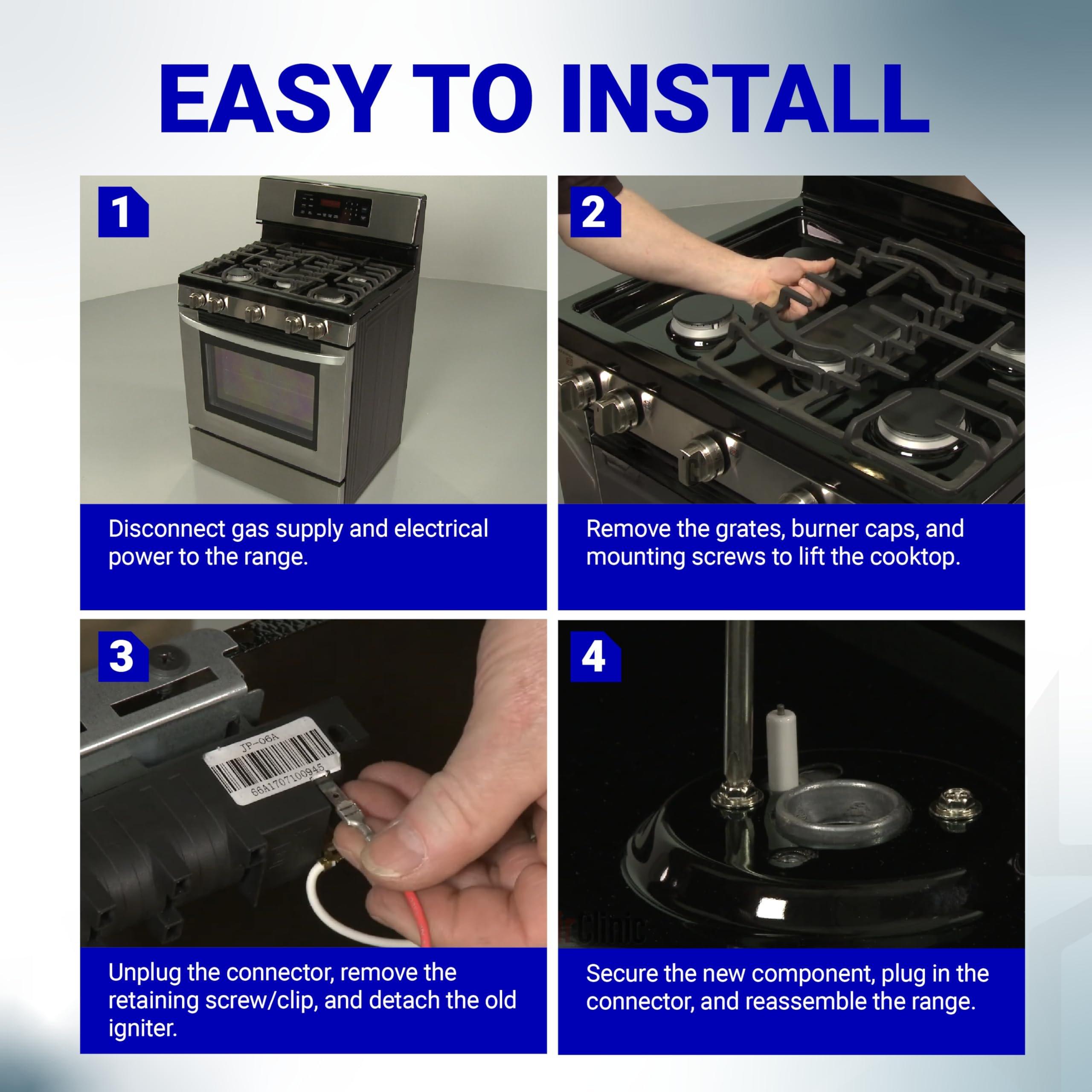

Installation Tips

• Before installation, disconnect the range from its power source and shut off the gas supply valve.
• Access the igniter by removing the burner grate, cap, and base. You may need to lift the main cooktop.
• Carefully detach the wire connector from the old igniter.
• Remove the old igniter from its mounting bracket or clip.
• Install the new igniter, ensuring the electrode tip is properly positioned over the burner holes.
• Reconnect the wire and reassemble the cooktop components.
