192507 Starter Solenoid for Husqvarna Poulan 532192507 582042802 582042801 Craftsman LT2000 YS4500 YT3000 Trombetta 862-1241-211-12 Ariens 21546294 Riding Lawn Mower Tractor 12V 4 Post Parts
Normal
15 - 20 minutes
Out of Stock
Confirm the fit for your model
Find your model number and check it here to see if the part fits.
Description
Description

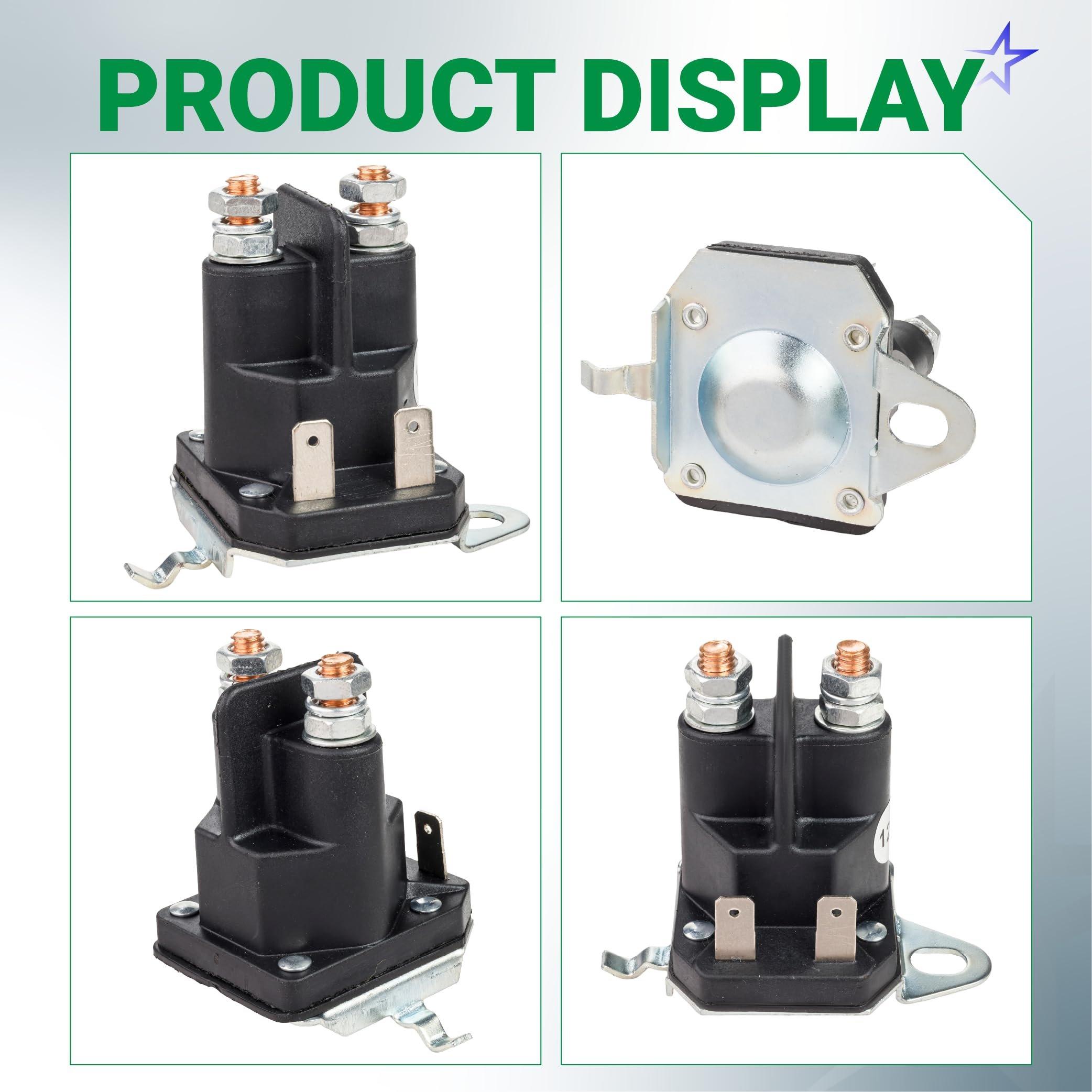

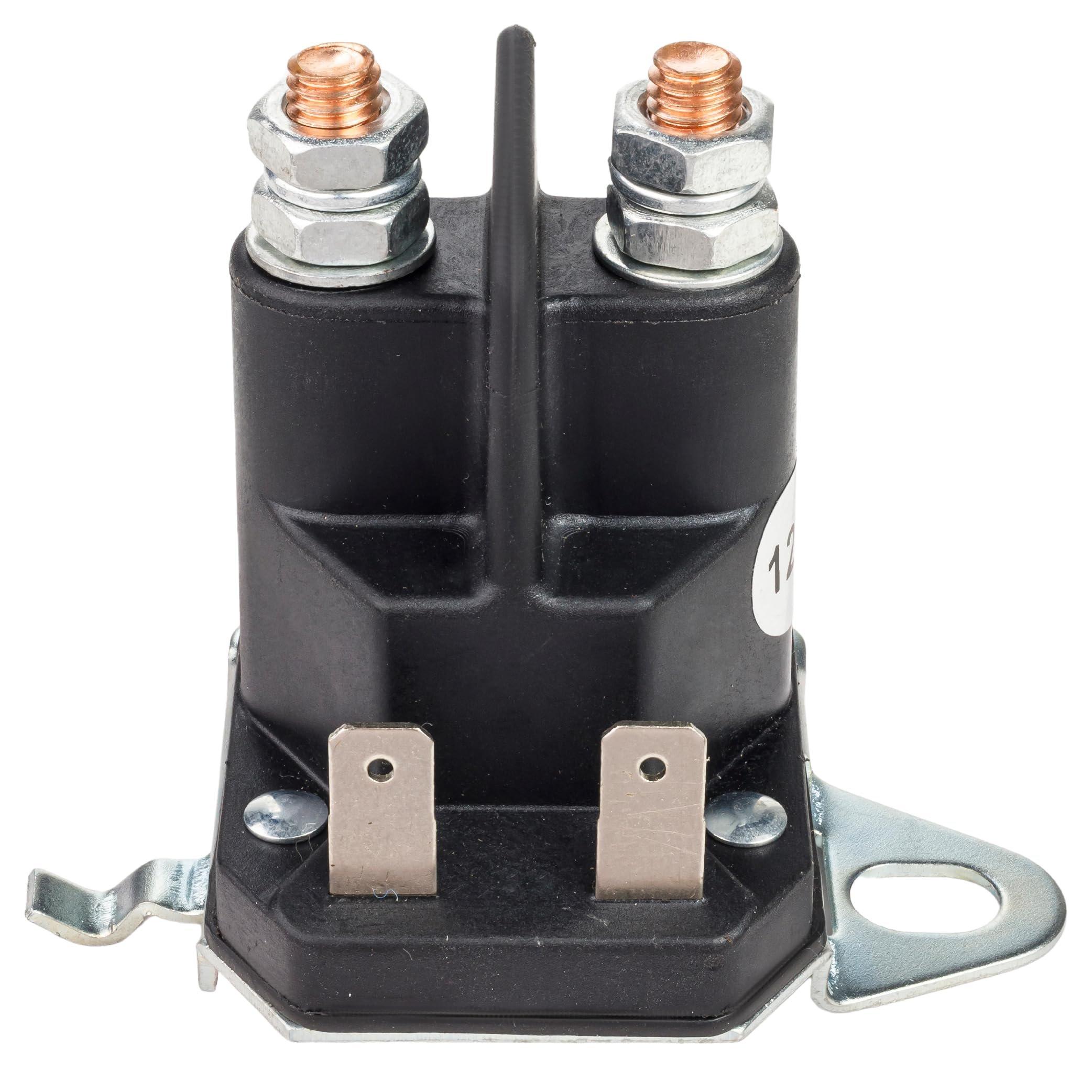

192507 12V 4-Terminal Starter Solenoid
Key Features
- 12V DC starter solenoid for riding lawn mowers and lawn tractors.

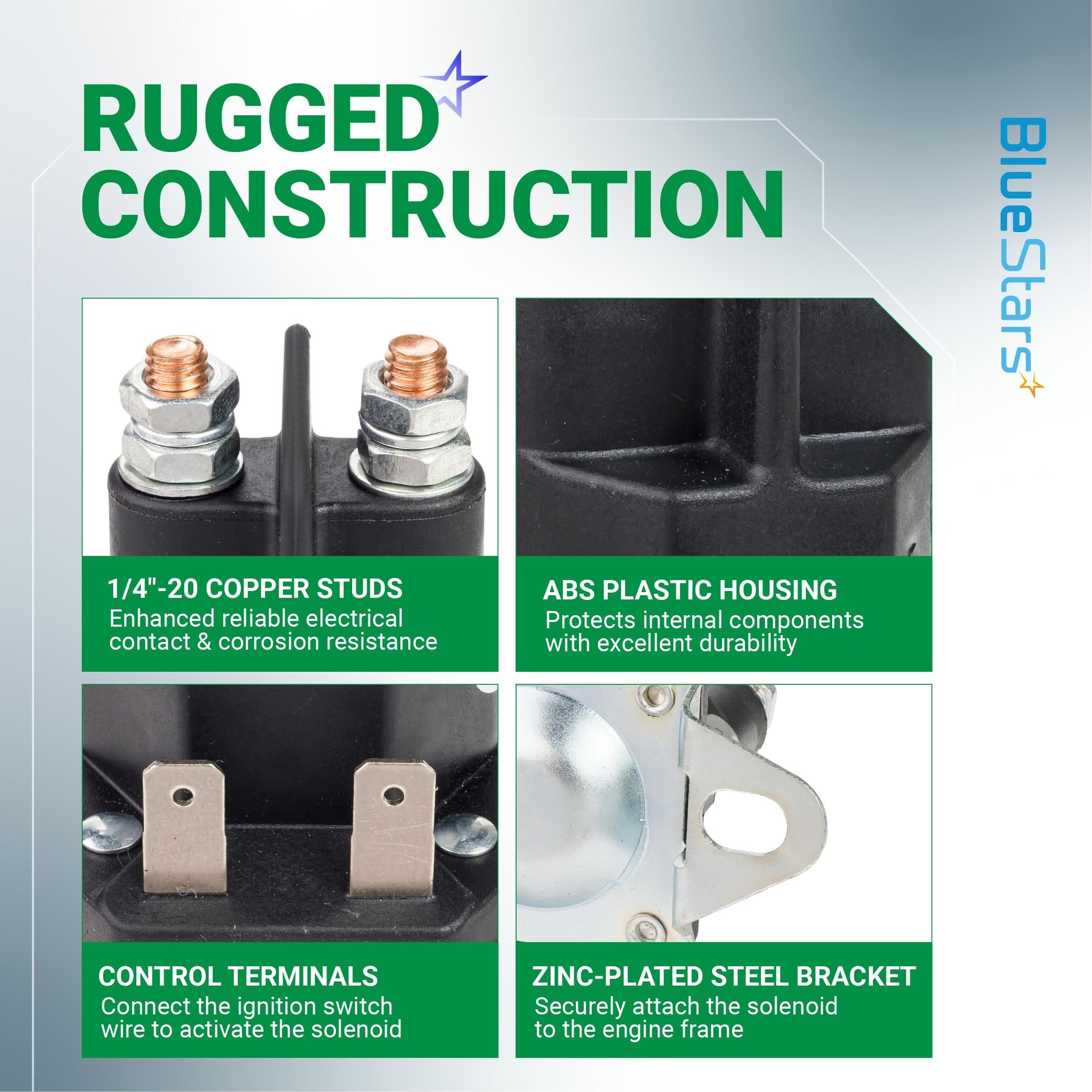

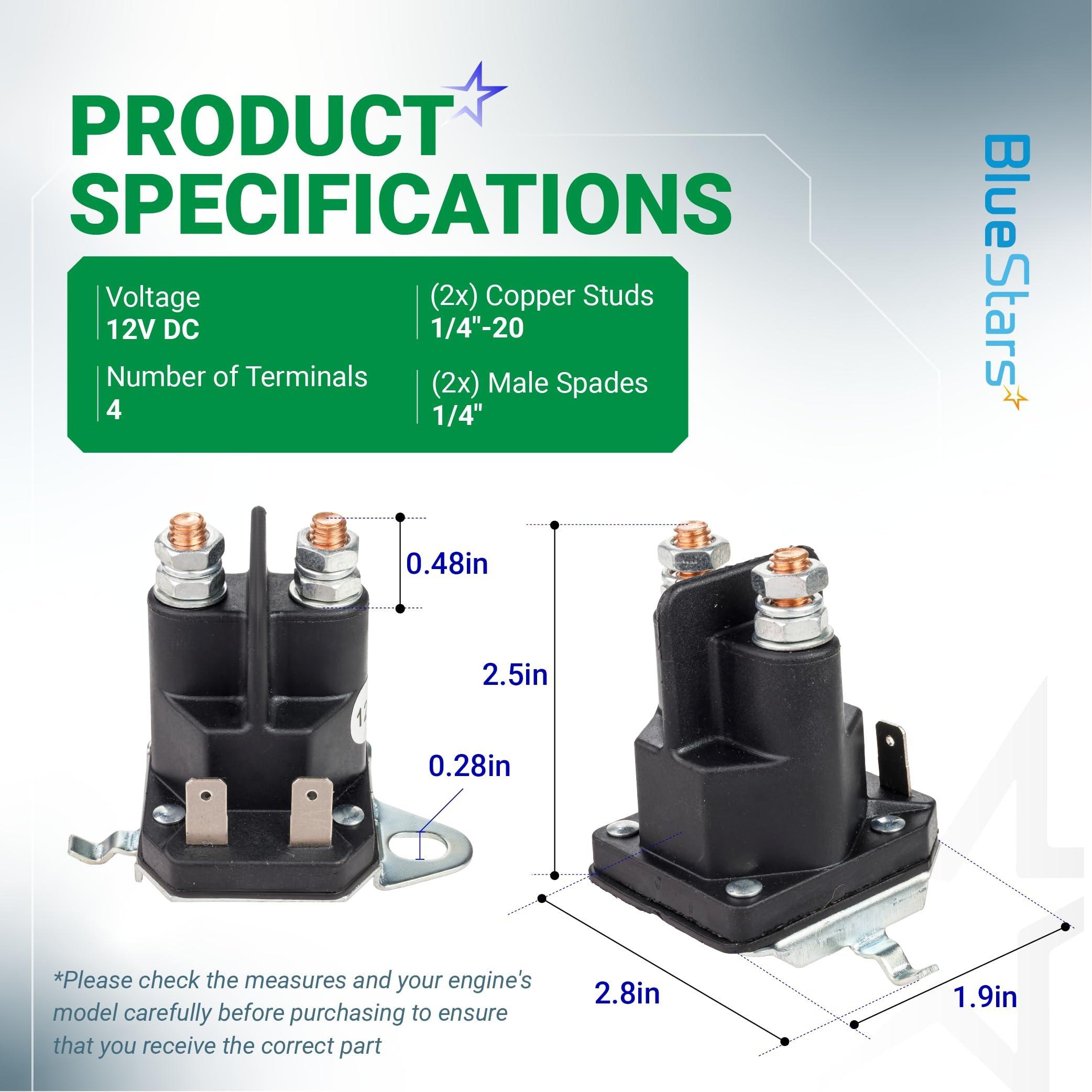

- 4-terminal design with two top 1/4-20 copper studs and two bottom 1/4-inch male spade terminals.

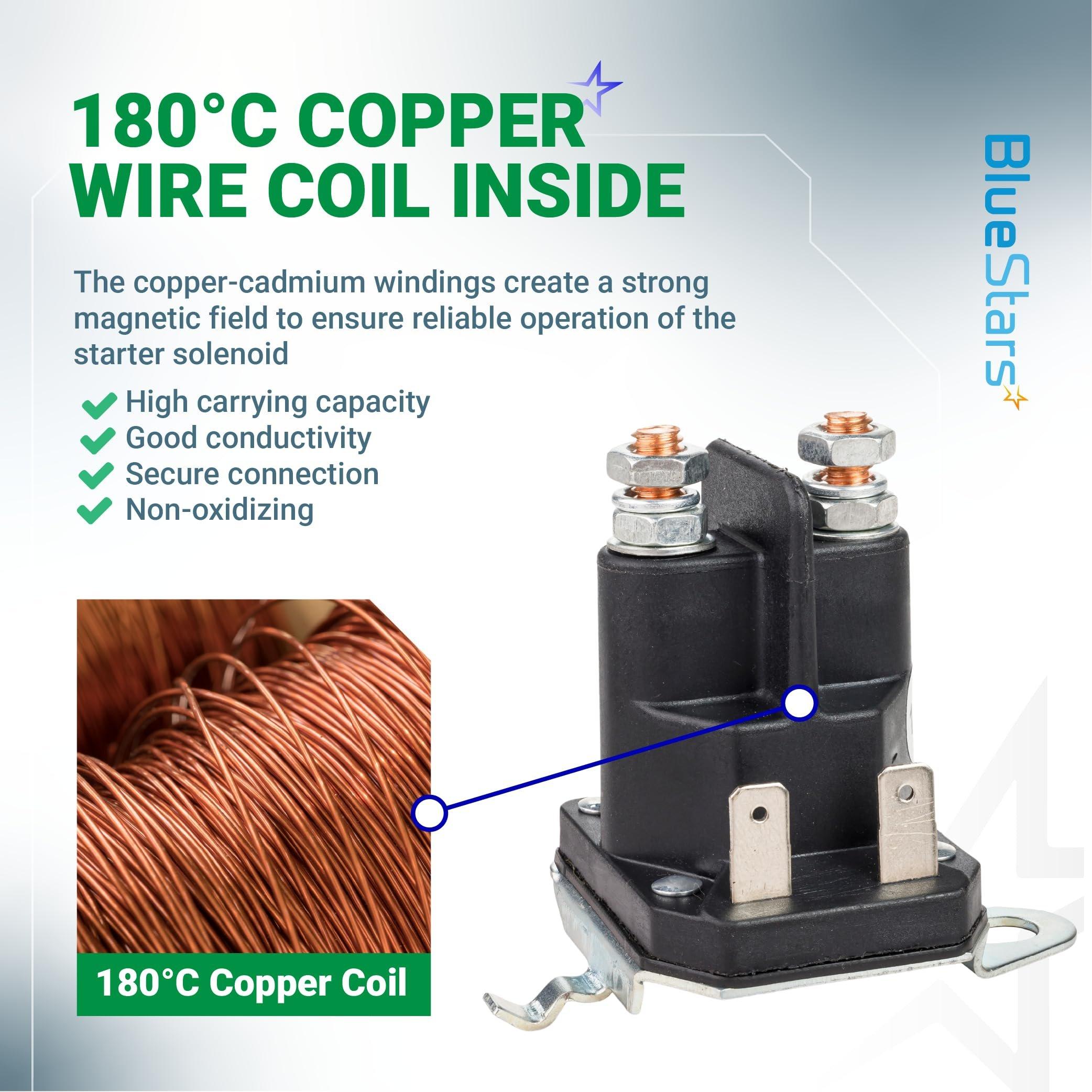

- Copper contact material and copper internal windings rated to 180°C.
- ABS plastic housing resists wear, impact, and common outdoor operating conditions.
- Minimum switching voltage: 12V DC.
- One solenoid included.
Replaces
This solenoid replaces the 192507 starter solenoid used on selected Husqvarna, Craftsman, Poulan, AYP, Ariens, Trombetta, and Snapper riding mower and tractor applications. Confirm the original solenoid's terminal arrangement, bracket shape, and part number before ordering.

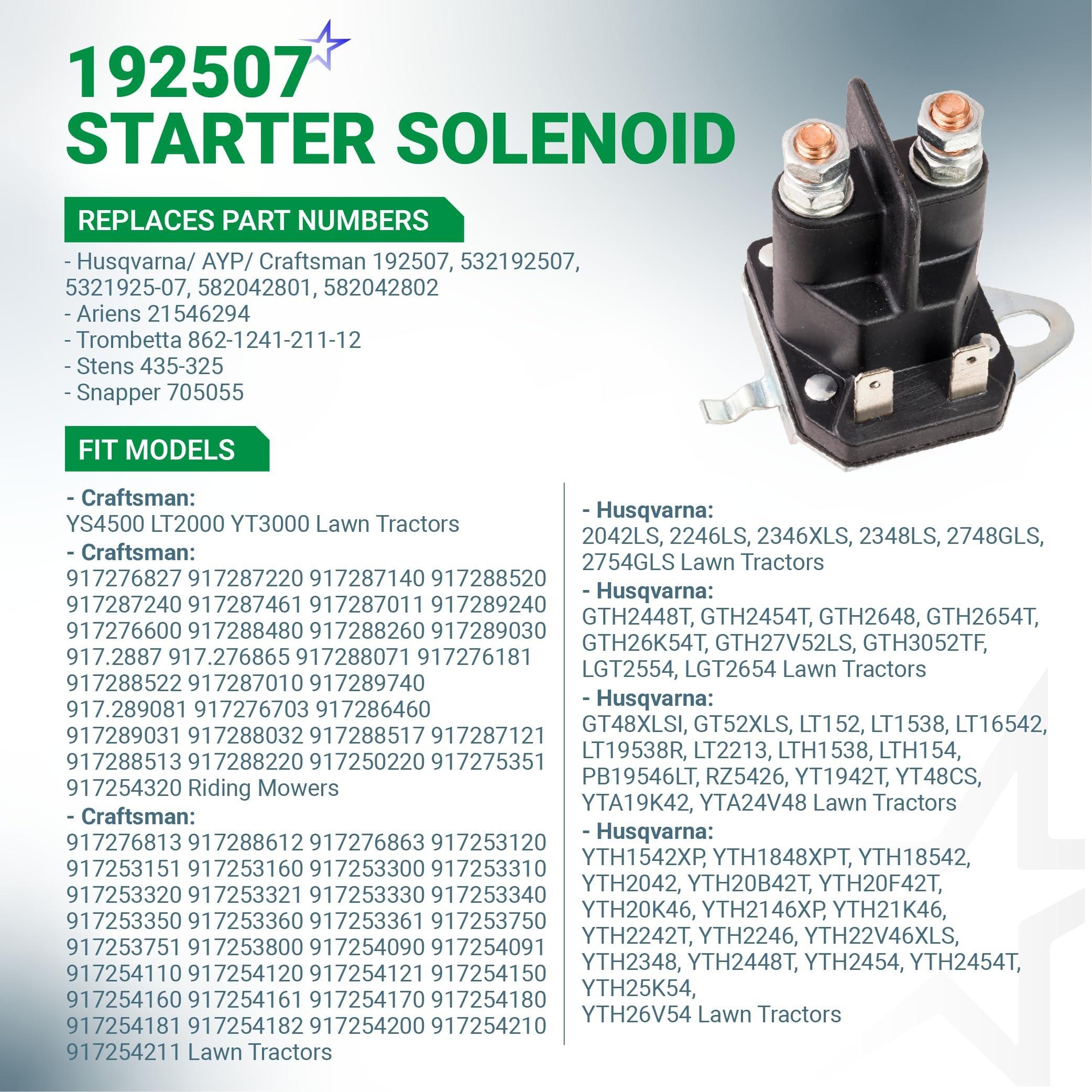

Cross-Reference Part Numbers
- 192507
- 532192507
- 582042802
- 582042801
- Trombetta 862-1241-211-12
- Ariens 21546294
- Ariens 435-325
- Snapper 705055
Compatibility & Fitment
Compatible with selected Husqvarna YTH1842 and YTH22V46 models, Craftsman LT, YT, and YS series including LT2000, YS4500, and YT3000, and the following listed applications:
- Craftsman:917276827, 917287220, 917287140, 917288520, 917287240, 917287461, 917287011, 917289240, 917276600, 917288480, 917288260, 917289030, 917.2887, 917.276865, 917288071, 917276181, 917288522, 917287010, 917289740, 917.289081, 917276703, 917286460, 917289031, 917288032, 917288517, 917287121, 917288513, 917288220, 917250220, 917275351, 917254320, 917276813, 917288612, 917276863, 917253120, 917253151, 917253160, 917253300, 917253310, 917253320, 917253321, 917253330, 917253340
- Husqvarna:GTH2448T, GTH2454T, GTH2648, GTH2654T, GTH26K54T, GTH27V52LS, GTH3052TF, LGT2554, LGT2654, GT48XLSI, GT52XLS, LT152, LT1538, LT16542, LT19538R, LT2213, LTH1538, LTH154, PB19546LT, RZ5426, YT1942T, YT48CS, YTA19K42, YTA24V48, YTH1542XP, YTH1848XPT, YTH18542, YTH2042, YTH20B42T, YTH20F42T, YTH20K46, YTH2146XP, YTH21K46, YTH2242T, YTH2246, YTH22V46XLS, YTH2348, YTH2448T, YTH2454, YTH2454T, YTH25K54, YTH26V54, 2042LS, 2246LS, 2346XLS, 2348LS, 2748GLS, 2754GLS
Do not use this part for a 3-terminal solenoid. A different bracket or terminal layout indicates a different application. Verify the engine or mower model and the original part number before purchase.
When to Replace
A failed starter solenoid can cause a no-crank condition, a click without starter engagement, intermittent starting, or no voltage reaching the starter. Common causes include worn contacts, corrosion, a weak connection, overload, or a short circuit. Inspect the battery, cables, terminals, and wiring before replacing the solenoid.
Installation Tips
- Disconnect the battery negative terminal before servicing to reduce the risk of an accidental short circuit.
- Photograph or label the wiring before removal and follow the tractor wiring diagram during installation.

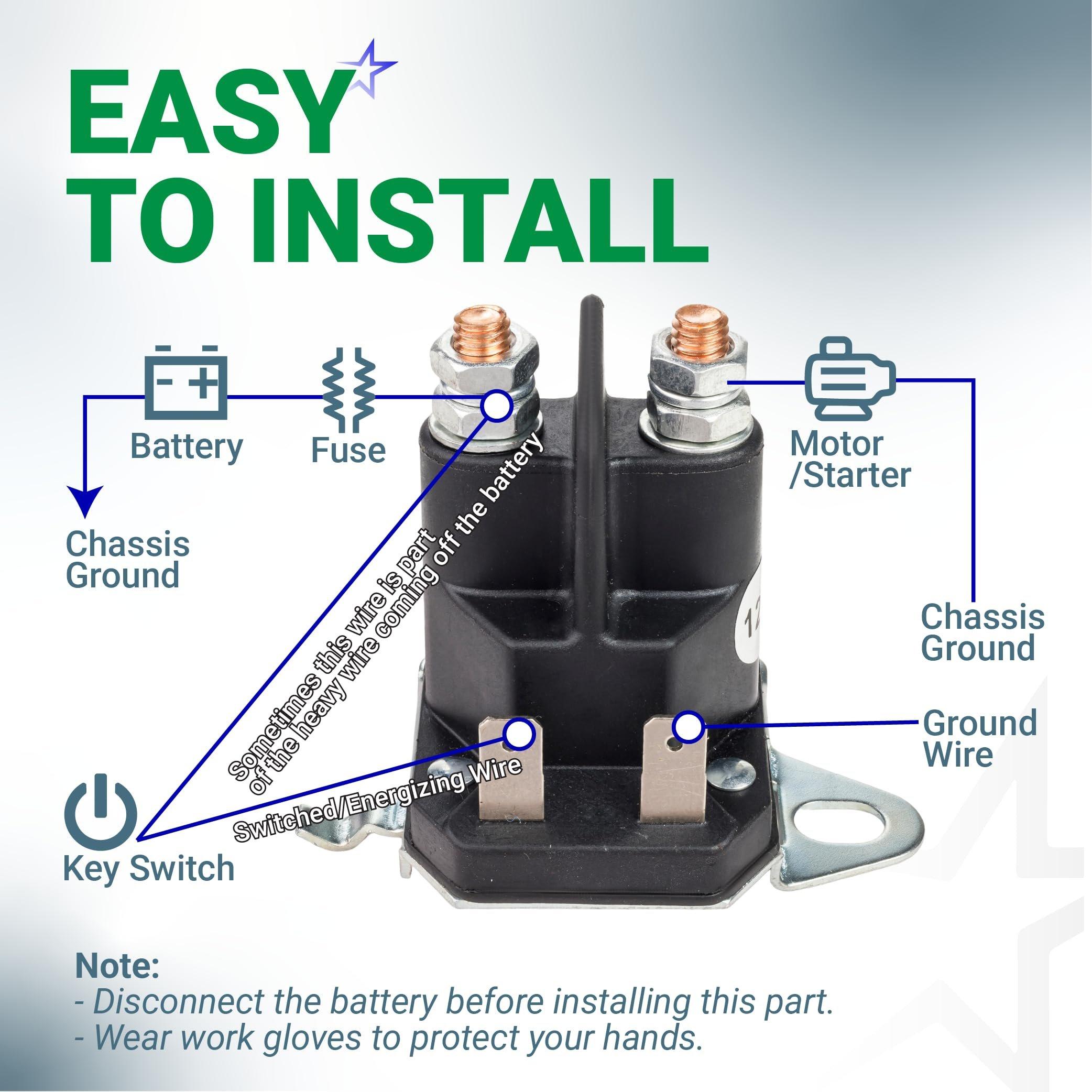

- Match the two top stud connections and two bottom spade connections to the original layout. Incorrect wiring or reverse polarity can damage the component.
- Clean and tighten all connections. Poor connections, overload, and short circuits can cause premature failure.
- Installation generally takes a few minutes when the replacement matches the original bracket and terminal arrangement.
Product coverage is provided for defects or issues under the stated lifetime protection policy.
Contact Material
Copper
Coil Voltage
12 (dc)
Minimum Switching Voltage
12 (dc)
Unit Count
1.0 Count
Model
192507
Part Number
192507 862-1241-211-12
Number Of Packs
1.0
