[Lifetime Warranty] 5304519906 Dishwasher Pump and Motor Assembly - Compatible with Frigidaire, IKEA, White-Westinghouse Dishwashers - Replaces AP6840161 PS12712308 EAP12712308

Sold 147

Difficulty Icon: Normal
Normal
15 - 20 minutes
Out of Stock
This item is no longer available. Please contact our customer service for more information
puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.

Description

5304519906 Dishwasher Pump and Motor Assembly

Key Features

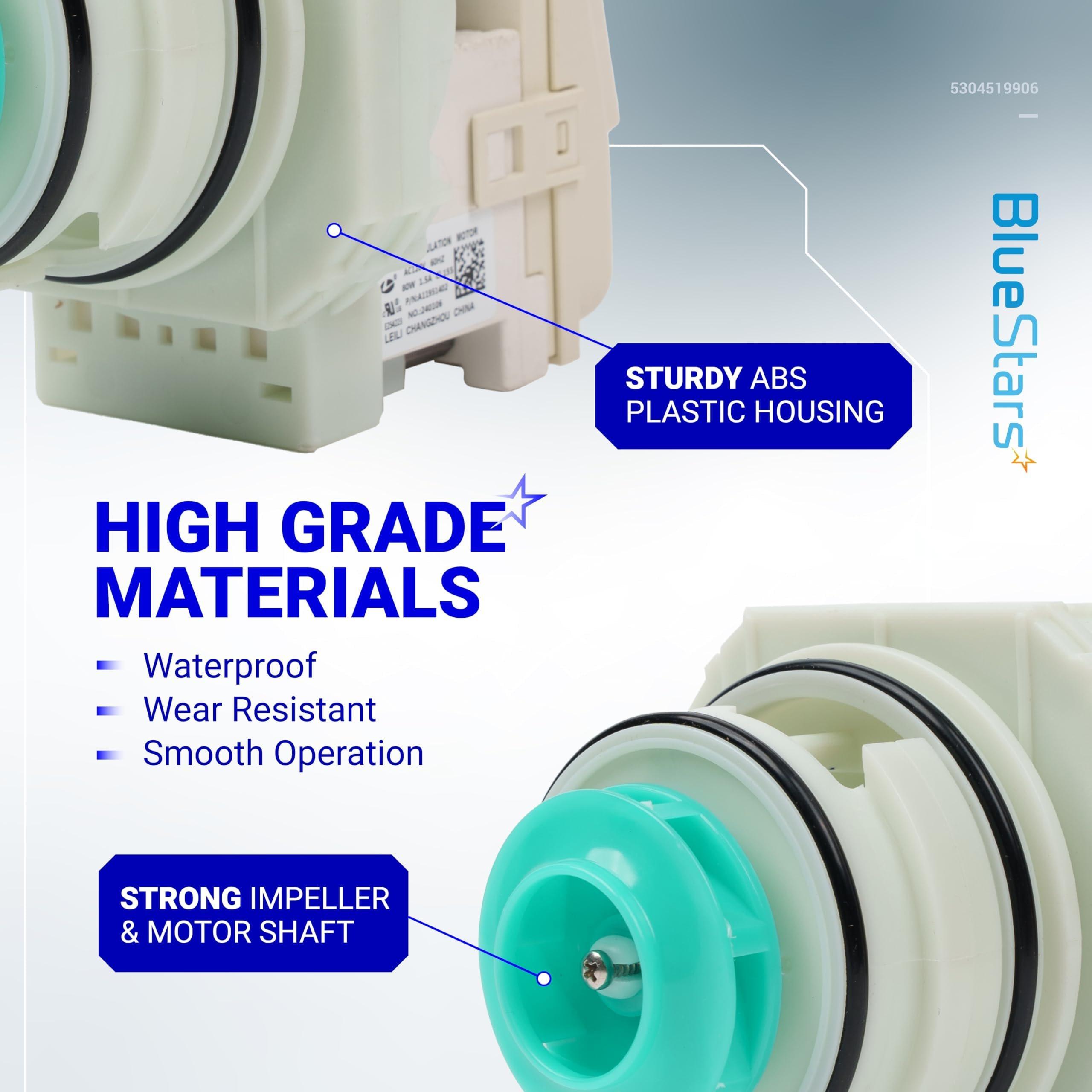

  • Complete pump and motor unit for dishwasher water circulation.

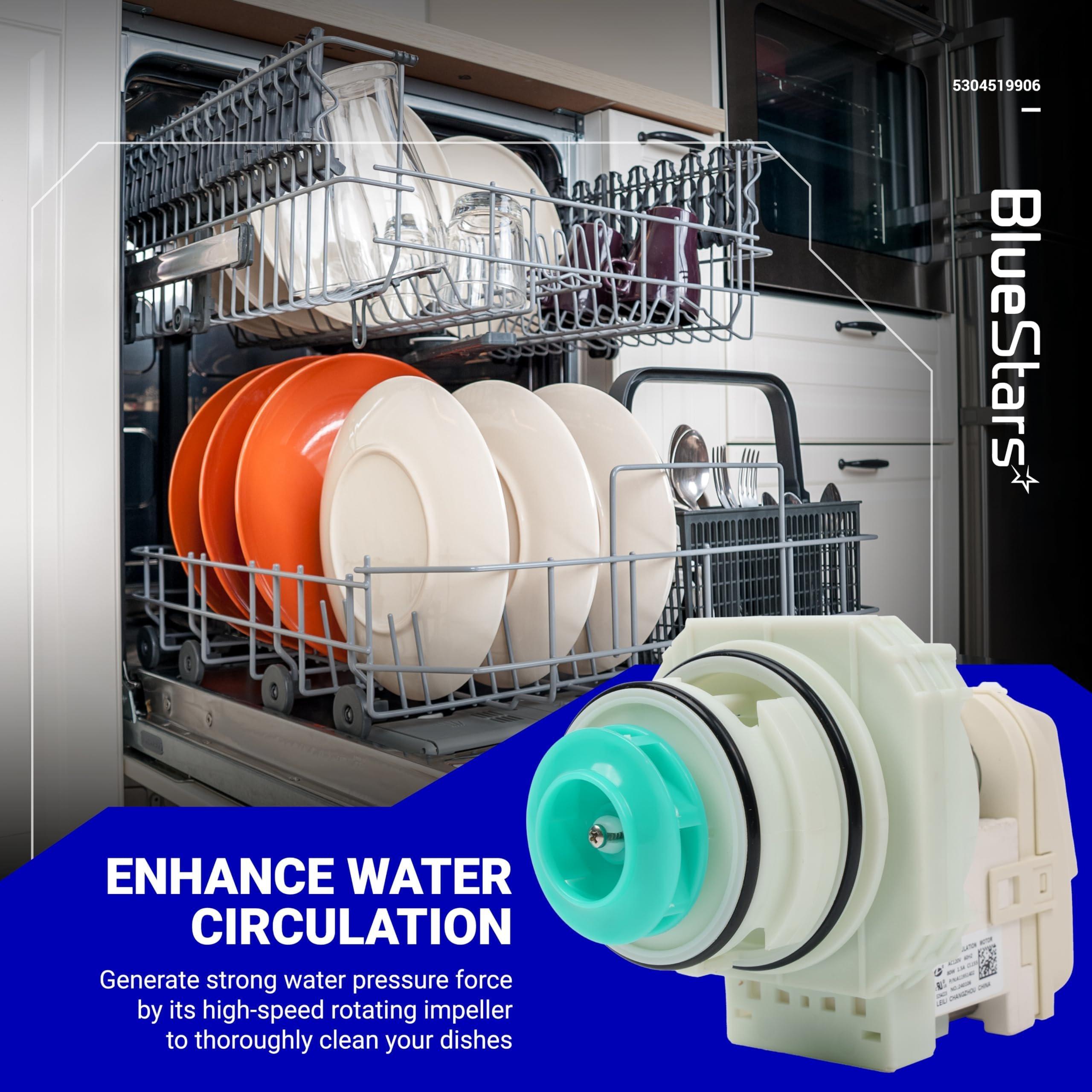

  • Drives water through the spray arms to clean dishes.
  • Electrical specifications: 120V, 80W, 1.5A.
  • Direct replacement for the original manufacturer part.

Replaces / Cross-Reference Part Numbers

  • 5304519906
  • 154843901
  • AP6840161
  • DW9906

Compatibility & Fitment

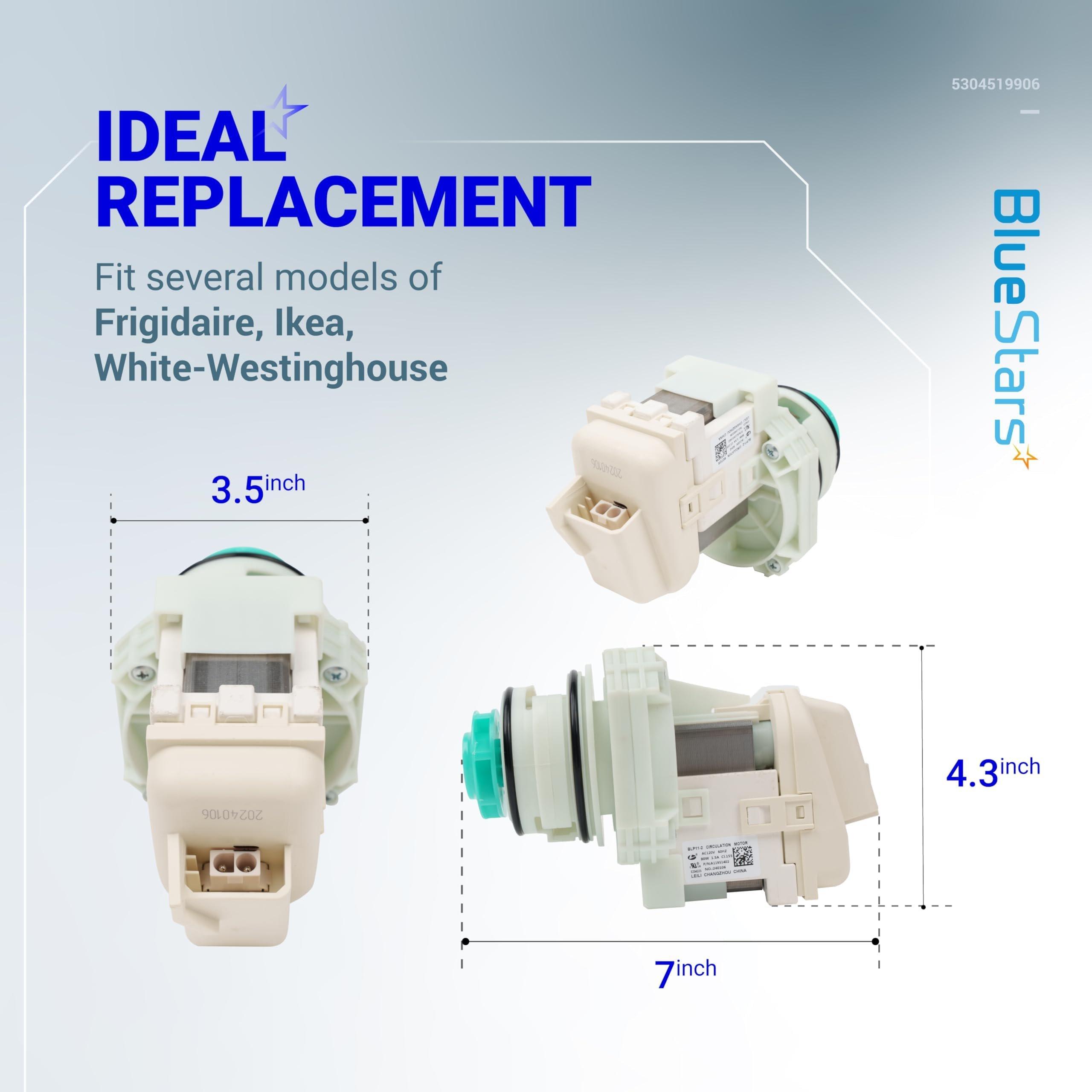

Fits select dishwasher models from brands including:
  • Crosley
  • Electrolux
  • Frigidaire
  • Ikea
  • Kenmore
  • White-Westinghouse
Always verify fitment with your specific dishwasher model number before ordering.

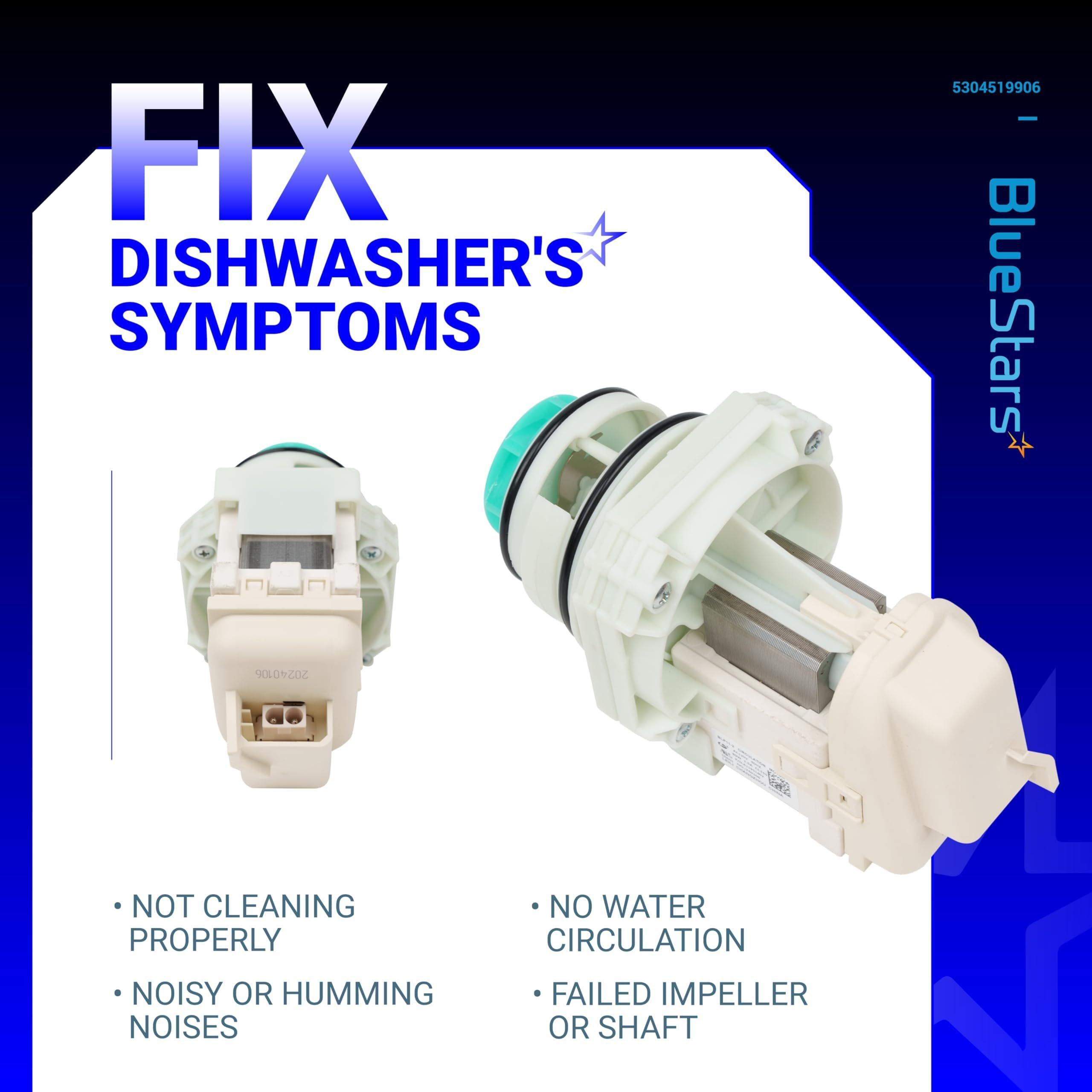

When to Replace

Consider replacing this part if you observe the following symptoms:
  • Dishes are not being cleaned properly.
  • Unusual noises such as humming, grinding, or buzzing during the wash cycle.
  • Water is not circulating or spray arms are not spinning.
  • The dishwasher stops mid-cycle or displays an error code related to water circulation.
  • Leaks are visible from the pump and motor area.

Installation Tips

  • Disconnect the dishwasher from both power and water supplies before beginning the repair.
  • Place towels under the unit to absorb any residual water from hoses.
  • Inspect hoses and clamps for wear or damage and replace them if necessary.
  • Ensure all electrical connections and hose clamps are secure after installing the new part.
Model Name
Pump and Motor Assembly
Material
Plastic
Item Model Number
53045199060
