[Lifetime Warranty] Recoil Starter Rope 10-Meter (Diameter: 3.0mm) Pull Cord with 4 Pieces Starter Handle
Easy
15 - 20 minutes
$9.36
$10.39
Save $1.03
In Stock
Fast delivery
Confirm the fit for your model
Find your model number and check it here to see if the part fits.
Description
Description
Recoil Starter Rope 10-Meter (Diameter: 3.0mm) Pull Cord with 4 Pieces Starter Handle
Key Features

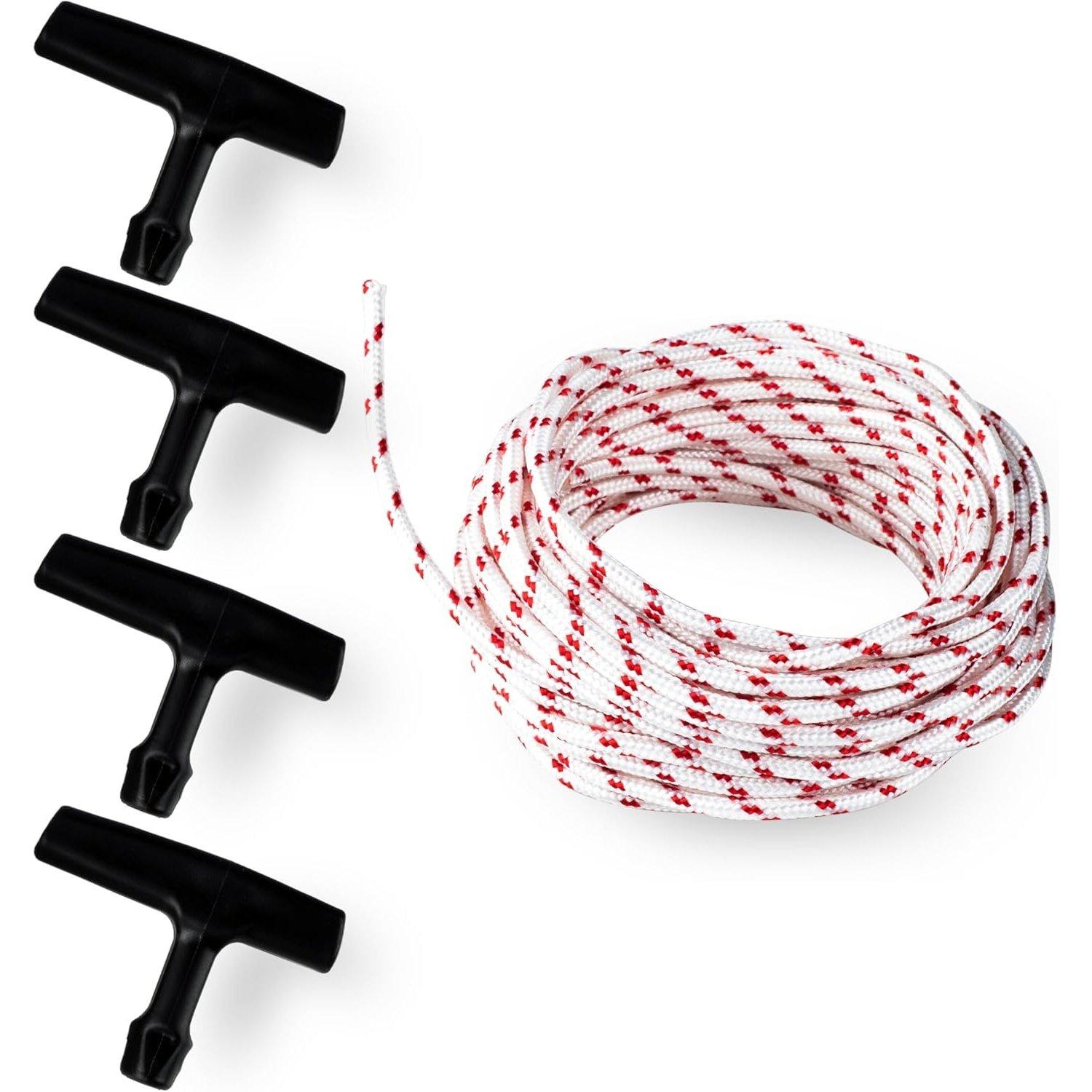

- Package Includes: 1 x 10-meter recoil starter rope, 4 x black starter handles.

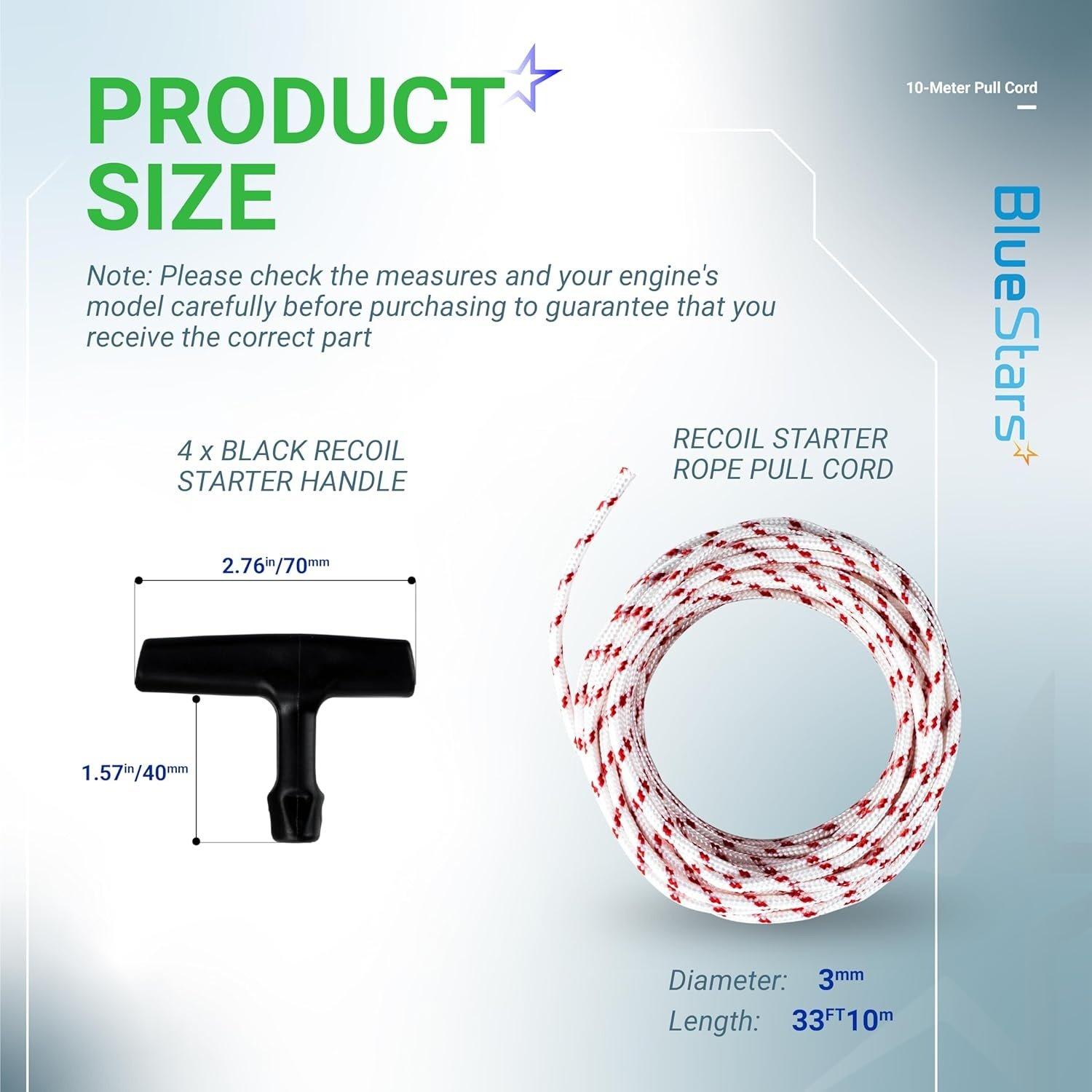

- Rope Specifications: 10 meters (32.8 feet) in length, 3.0mm (0.12 inches) in diameter.

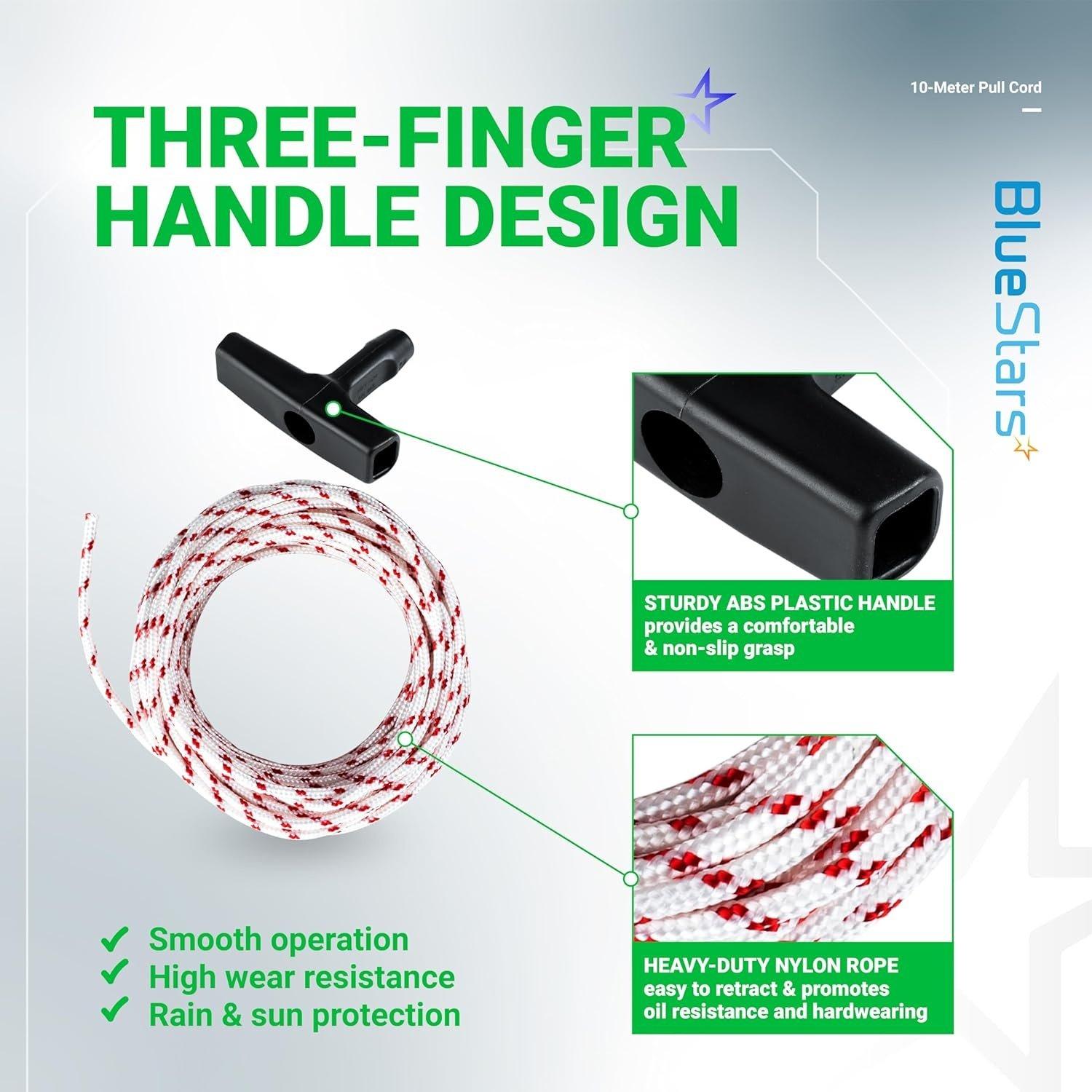

- Handle Specifications: 7 cm (2.75 inches) in length, designed for a secure three-finger grip.
- Material Construction: Braided cord designed for high tensile strength and resistance to abrasion, fuel, and oil.
Replaces / Cross-Reference Part Numbers
- This is a universal replacement part.
- Replaces any standard starter rope with a 3.0mm diameter.
Compatibility & Fitment
- Fits most small gasoline engines requiring a 3.0mm diameter pull cord.
- Common Applications: Chainsaws, string trimmers, lawn mowers, generators, edgers, and brush cutters.
- Compatible with many models from brands including Husqvarna, STIHL, Craftsman, Poulan, Homelite, and Echo.

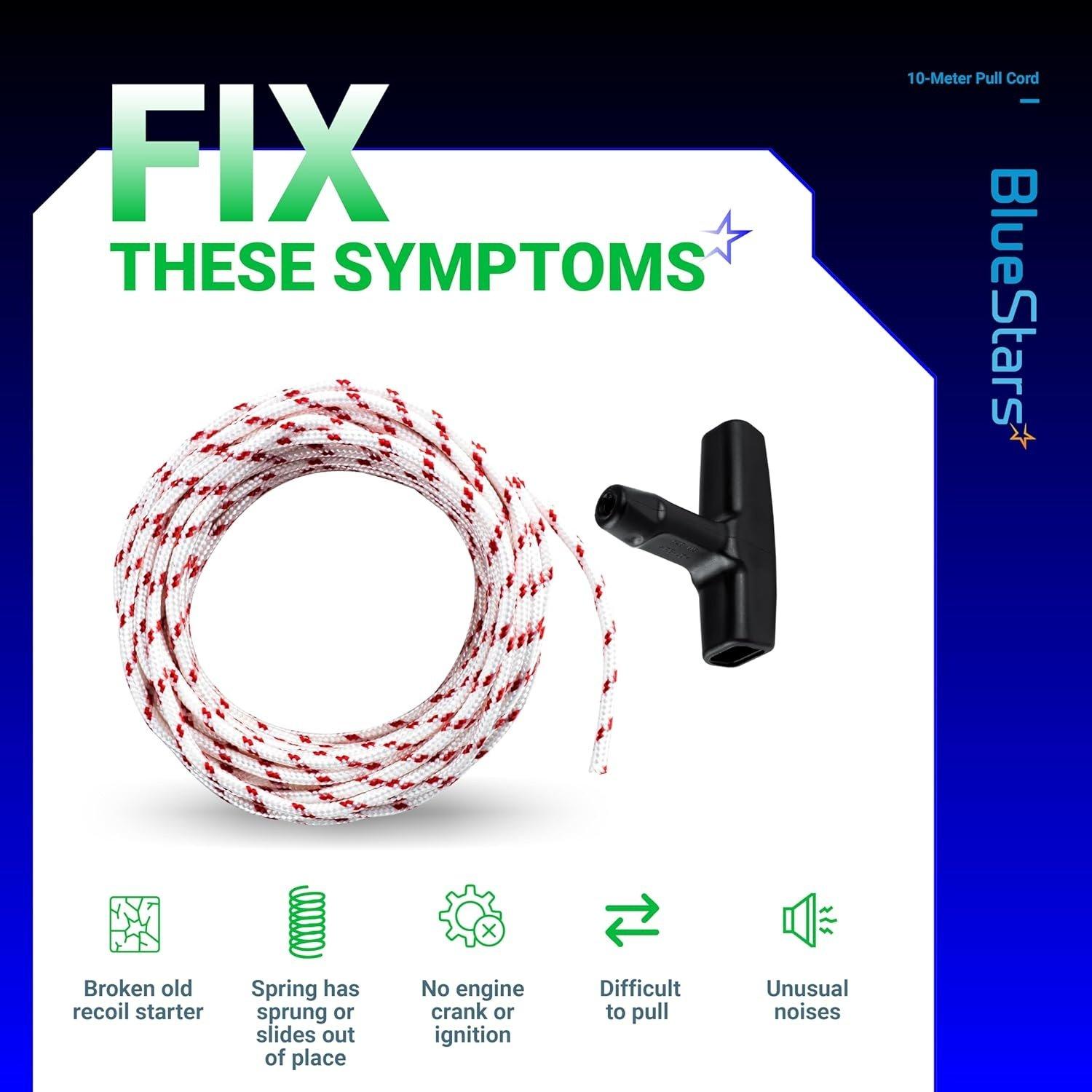

When to Replace
- The existing starter rope is frayed, worn, or broken.
- The cord fails to retract properly into the starter housing.
- Increased effort or binding is felt when pulling the cord.
- The starter handle is cracked, broken, or missing.
Installation Tips
- Before disassembly, carefully note the original rope's winding direction on the pulley.
- Ensure the recoil spring is properly tensioned before installing the new rope. Wind the pulley to add tension, typically 3-4 full rotations.
- Thread the new rope through the pulley and housing eyelet.
- Securely tie a stopper knot (e.g., a figure-eight knot) inside the pulley to prevent the rope from pulling through.
- Attach the handle with a secure knot and test the recoil action before re-installing the housing.
