[Lifetime Warranty] 2188874 4-Pin 115V 60HZ Refrigerator Condenser Motor - Compatible with Whirlpool Kenmore KitchenAid Refrigerators - Replaces 2188875 WP2188874 PS11739140 AP6006075

2188874 4-Pin 115V 60HZ Refrigerator Condenser Motor

Key Features

• Electrical Rating: 115V, 60Hz, 4.1W

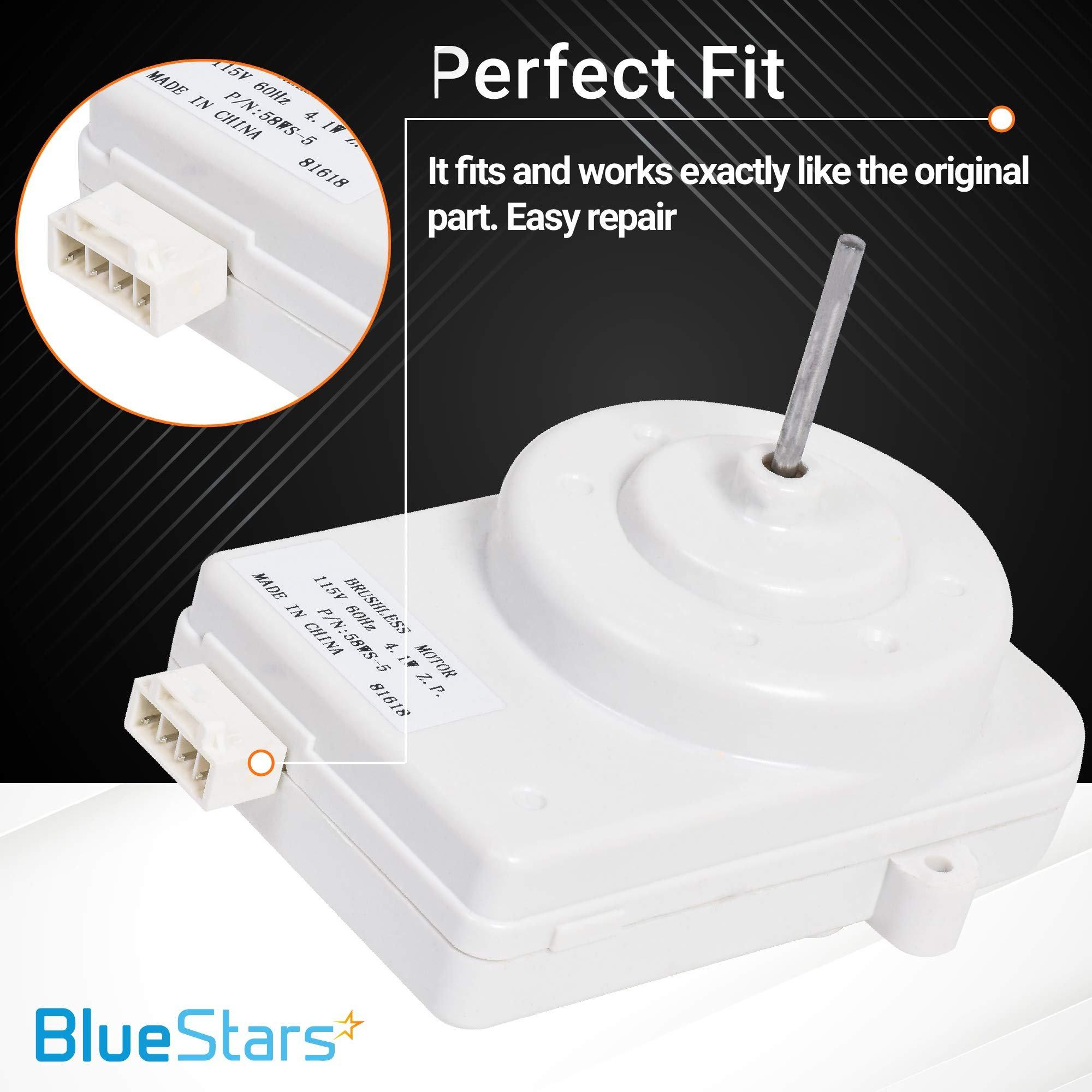

• Connector Type: 4-pin

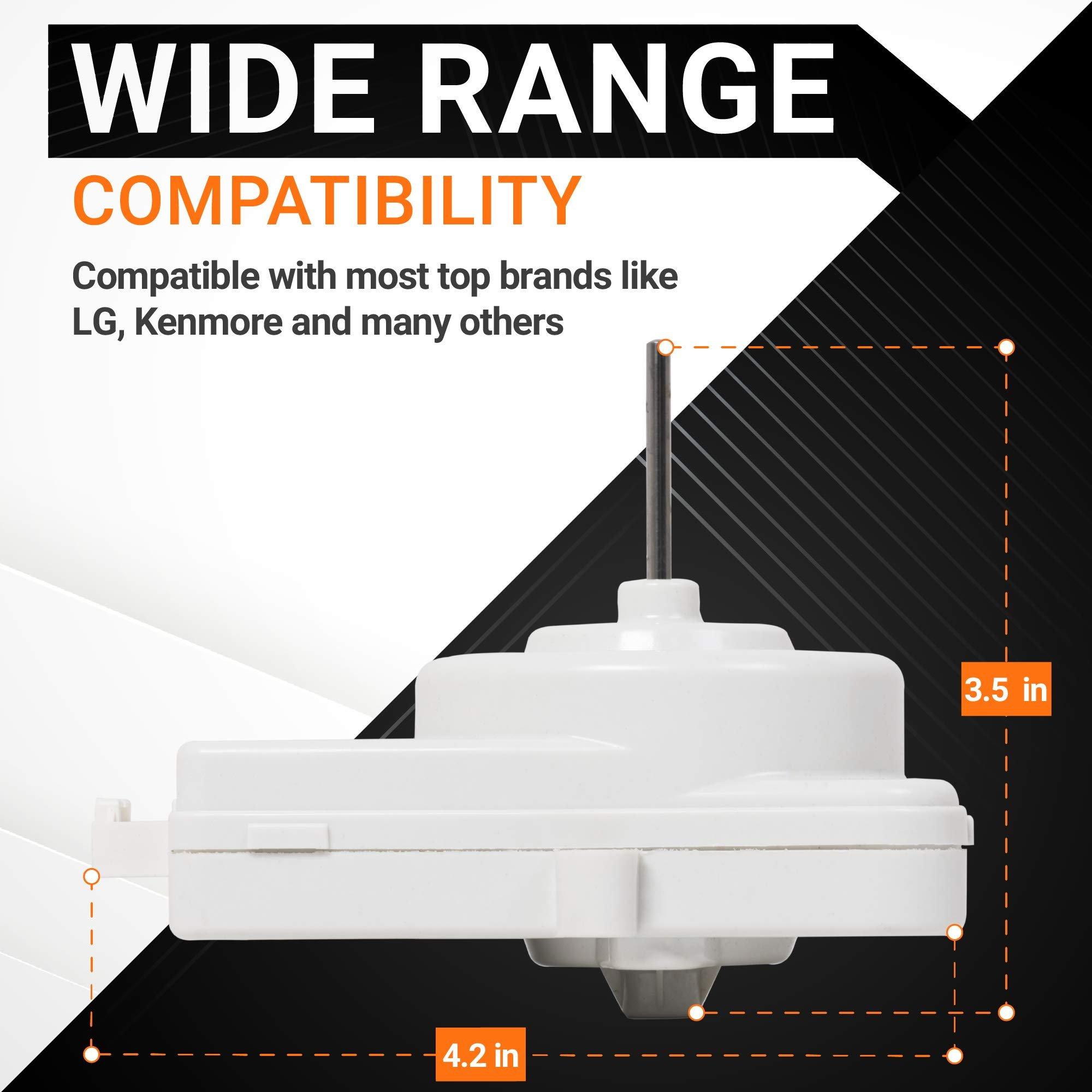

• Shaft Length: 1.25 inches (1-1/4")
• Function: Circulates air over condenser coils and compressor to dissipate heat.

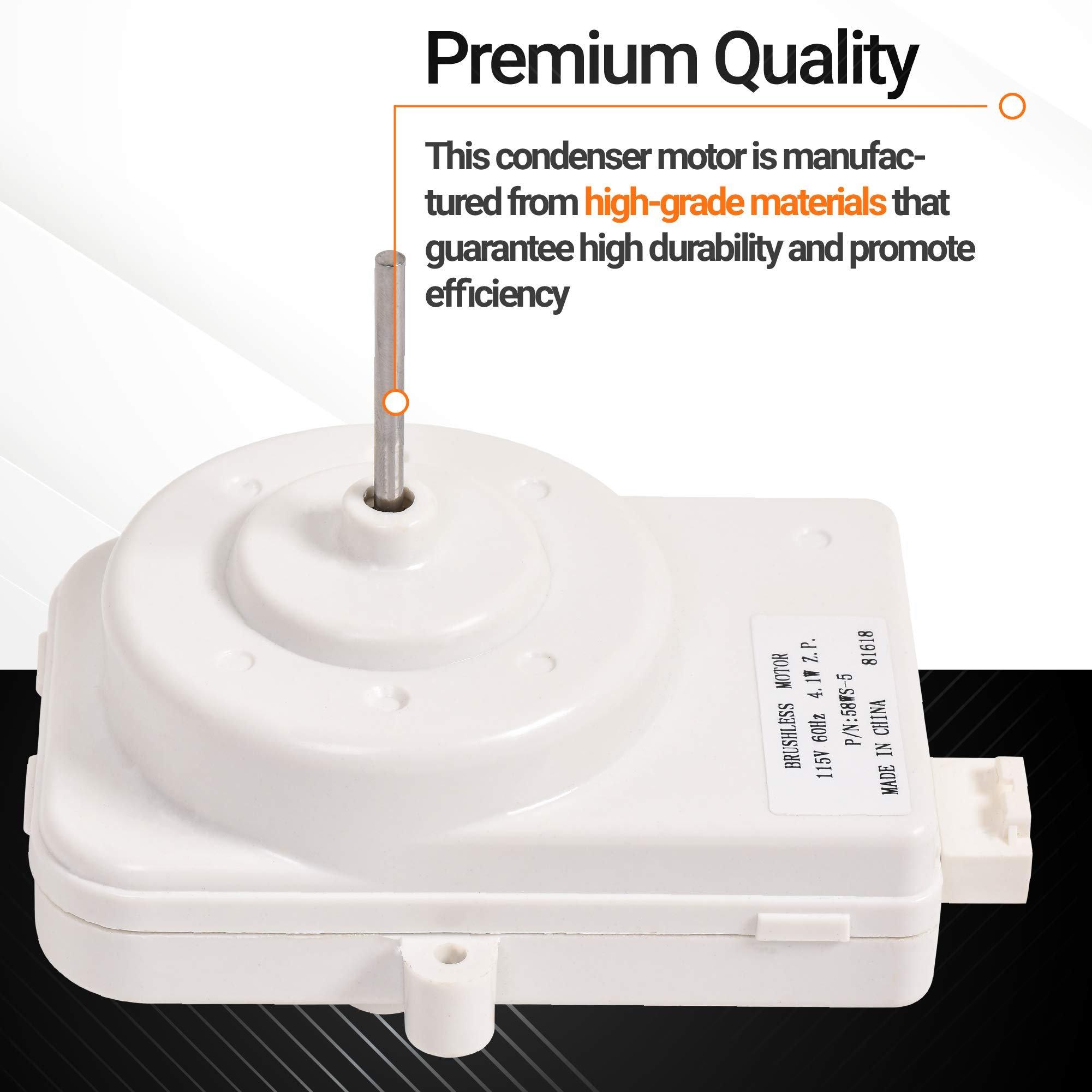

• Construction: Plastic and metal housing

Replaces / Cross-Reference Part Numbers

• WP2188874
• 2169123
• 2188727
• 2188728
• 2188732
• 2220300
• 2315558
• W10124096
• AP6006063
• PS11739132

Compatibility & Fitment

• Fits select refrigerator models from brands including Whirlpool and Kenmore.
• Direct replacement for motors with a 4-pin electrical connector.
• Note: If the original motor has 3 pins, use part number W10204250 instead.

When to Replace

• Refrigerator or freezer compartment is too warm.
• Motor is noisy, humming, or vibrating excessively.
• Motor blades do not turn when the compressor is running.
• Compressor is overheating.

Installation Tips

• Disconnect the refrigerator from the power source before beginning installation.
• Confirm your original motor uses a 4-pin connector before ordering.
• The motor is typically located in the rear, bottom service compartment of the refrigerator.
• Take a photograph of the original wiring connections for reference during reassembly.
