[Lifetime Warranty] 37561R.S Belt for 7FT Garage Door

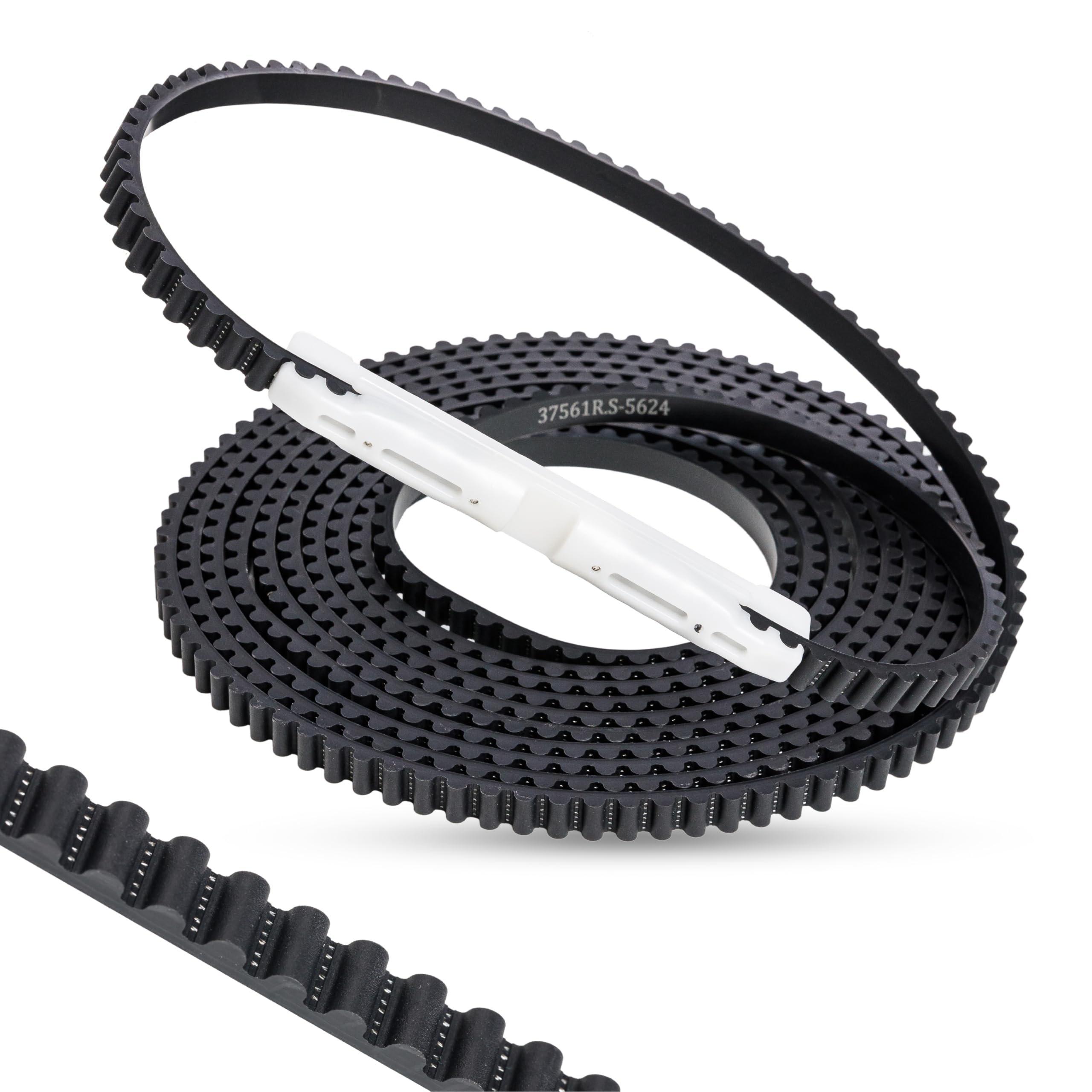

37561R.S Belt for 7FT Garage Door

Key Features

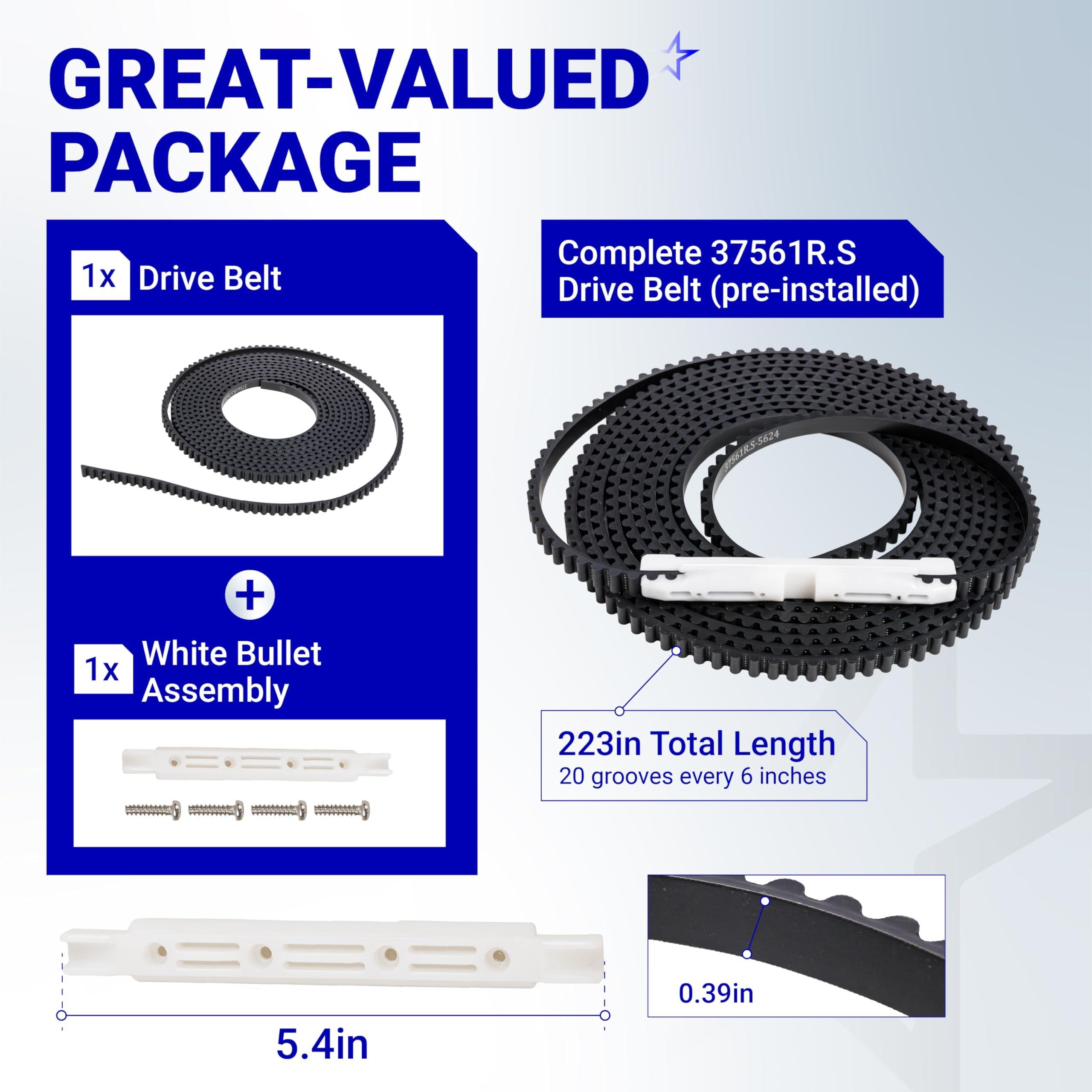

• Total Length: 223 inches

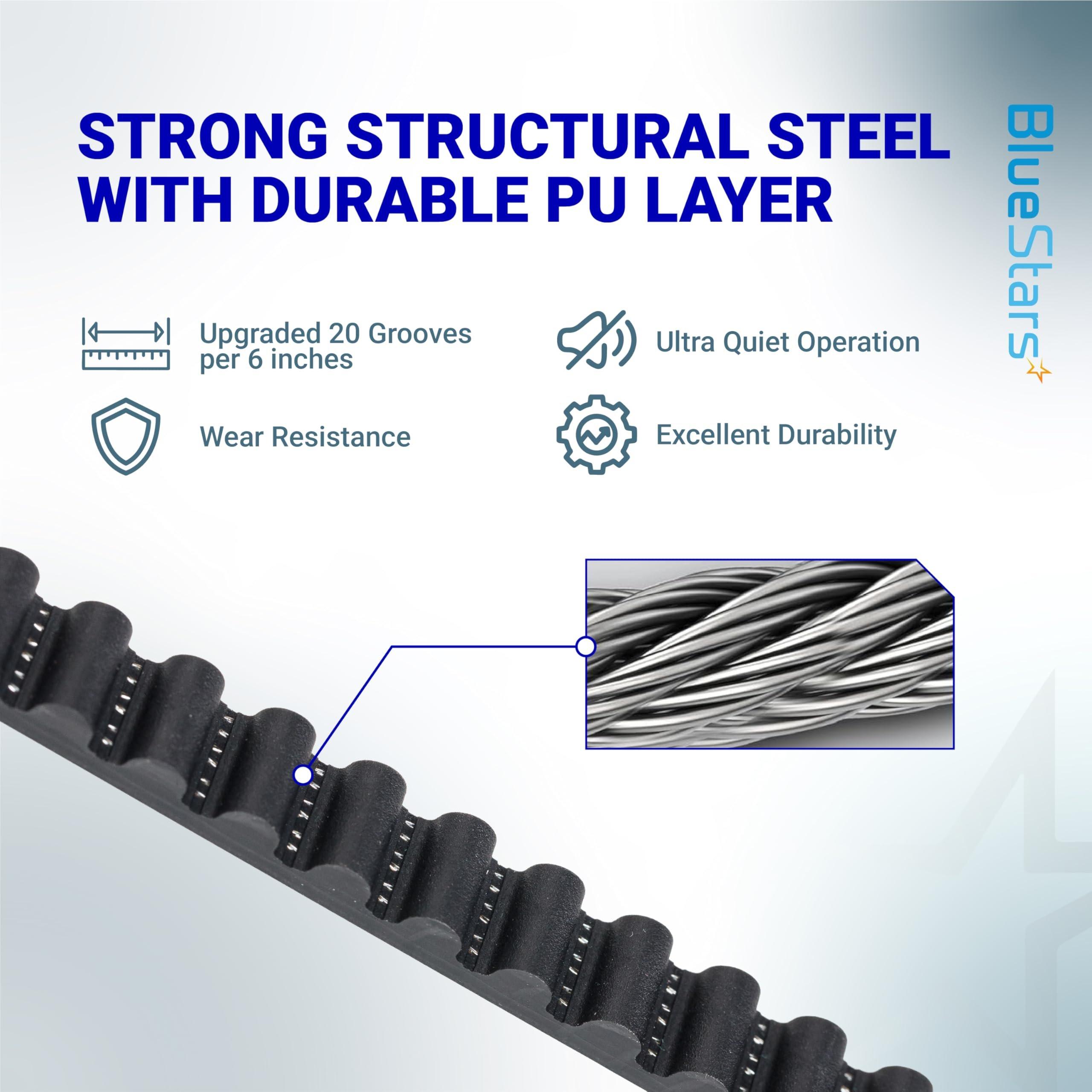

• Design: 20 grooves per 6 inches for reduced operational noise
• Application: For belt-drive garage door openers

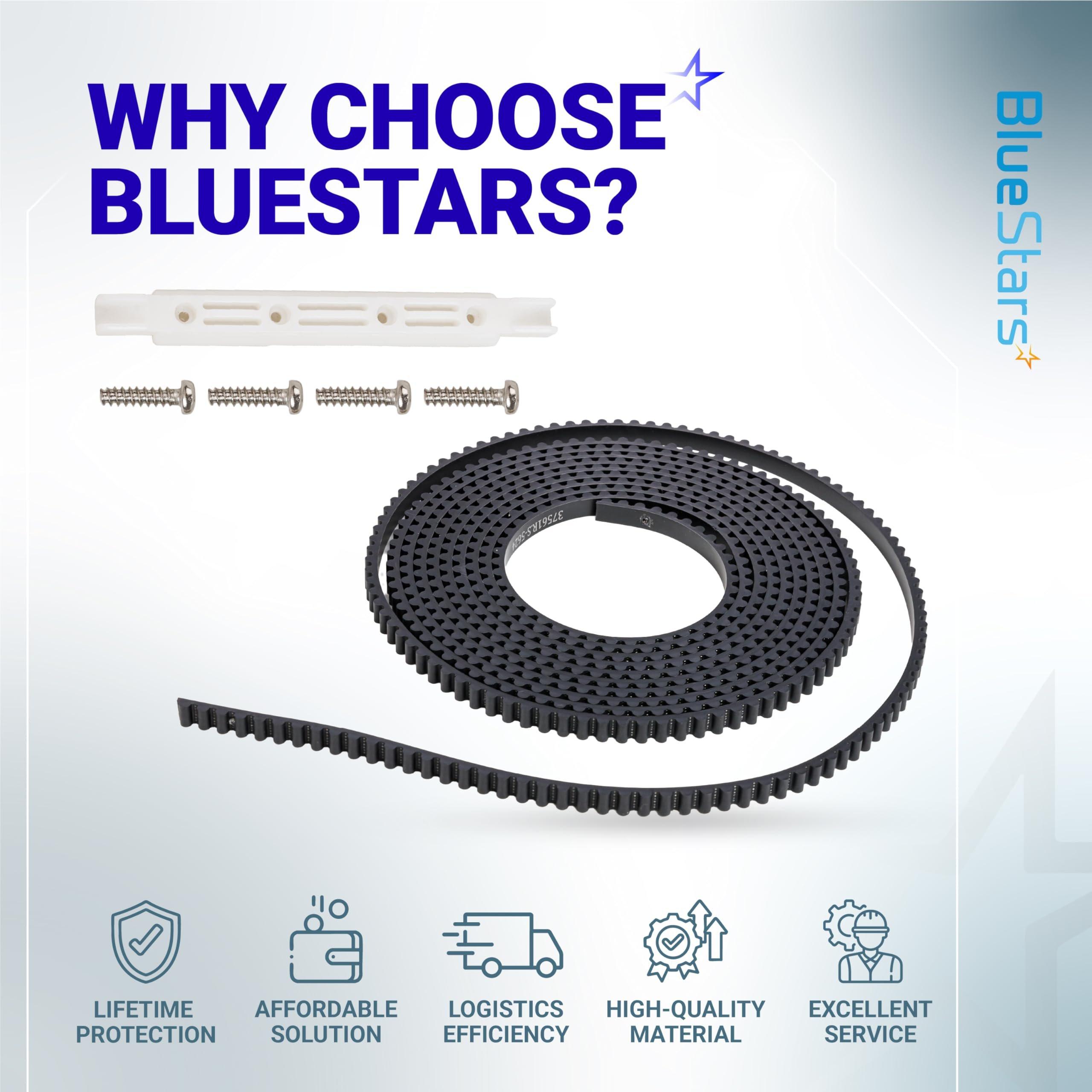

• Includes: 1 drive belt with pre-installed bullet assembly

Replaces / Cross-Reference Part Numbers

• 37561R.S

Compatibility & Fitment

• Door Height: Standard 7-foot residential garage doors
• Rail Type: C-Channel belt drive rails
• Brand: Genie
• Genie Models: 1028, 1128, 2028, 2128, 3020, 3024, 3042, 3120, 4024, 4042
• Genie Series: SilentMax 1000, SilentMax 1200, IntelliG 1000, IntelliG 1200

When to Replace

• Visible damage such as fraying, cracking, or missing teeth on the belt
• Opener motor runs but the door does not move or moves erratically
• Excessive slack or stretching in the belt, causing slipping
• Increased noise, grinding, or slapping sounds during operation

Installation Tips

• Disconnect all power to the garage door opener before beginning service.
• Release the door from the opener carriage to move it manually.
• Loosen the belt tensioner to provide slack for removing the old belt.
• Ensure the bullet assembly is correctly seated in the traveler/shuttle mechanism.
• Adjust the tension of the new belt according to the manufacturer's specifications.
