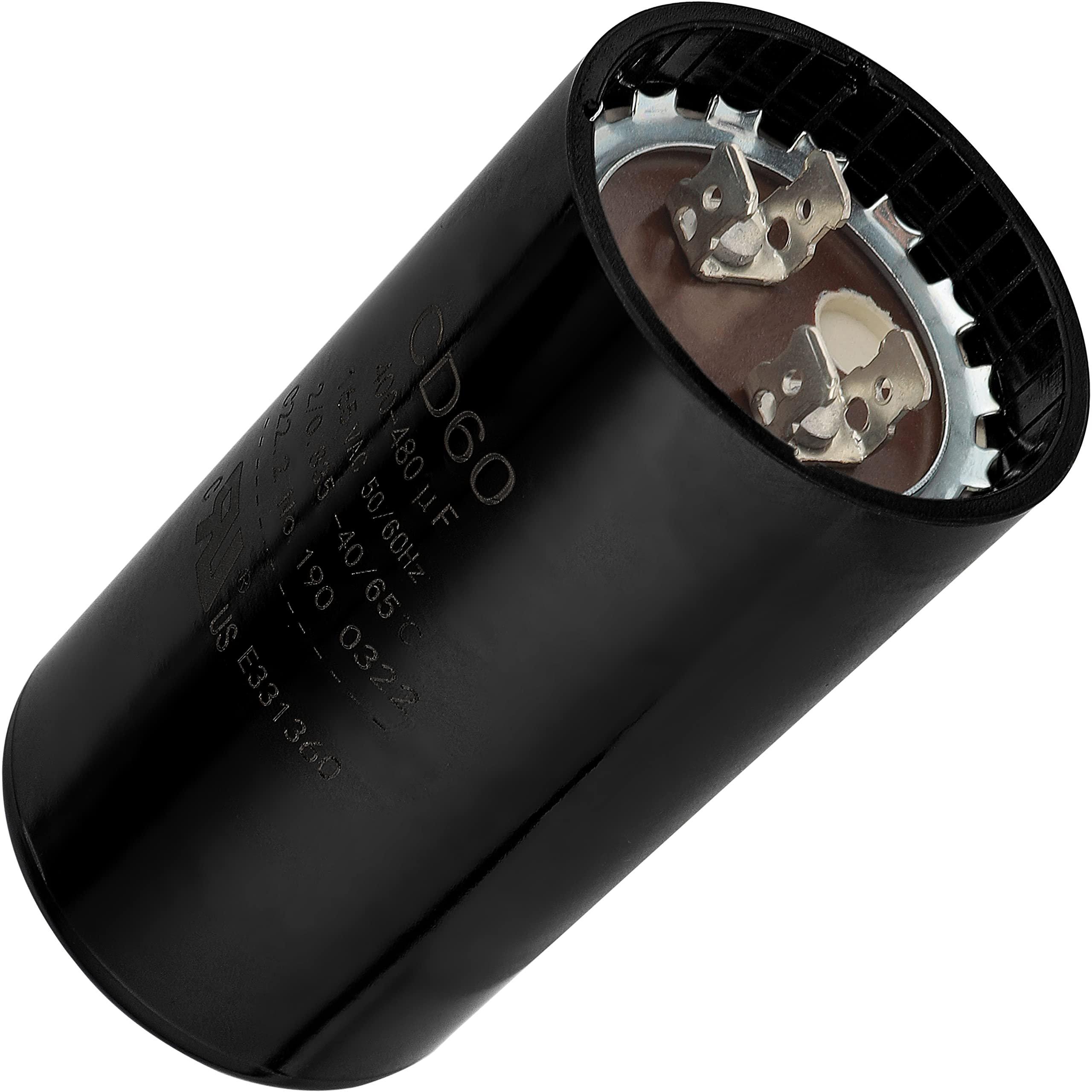

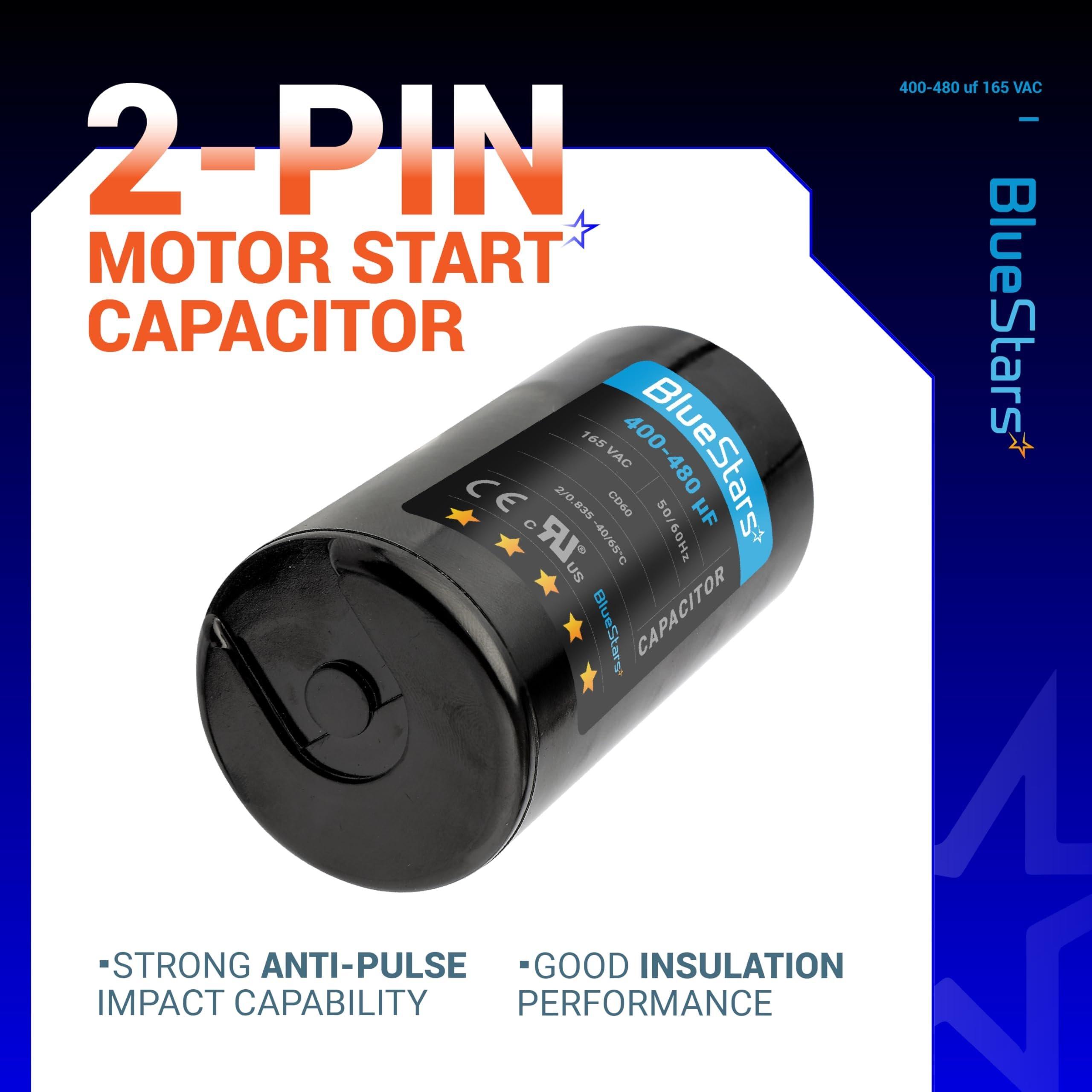

[Lifetime Warranty] 400-480 uF MFD 165 VAC CD60 Universal Round Motor Start Capacitor 50/60 Hz - Replacement for AC Electric Motor

400-480 uf/MFD 165 VAC Round Motor Start Capacitor

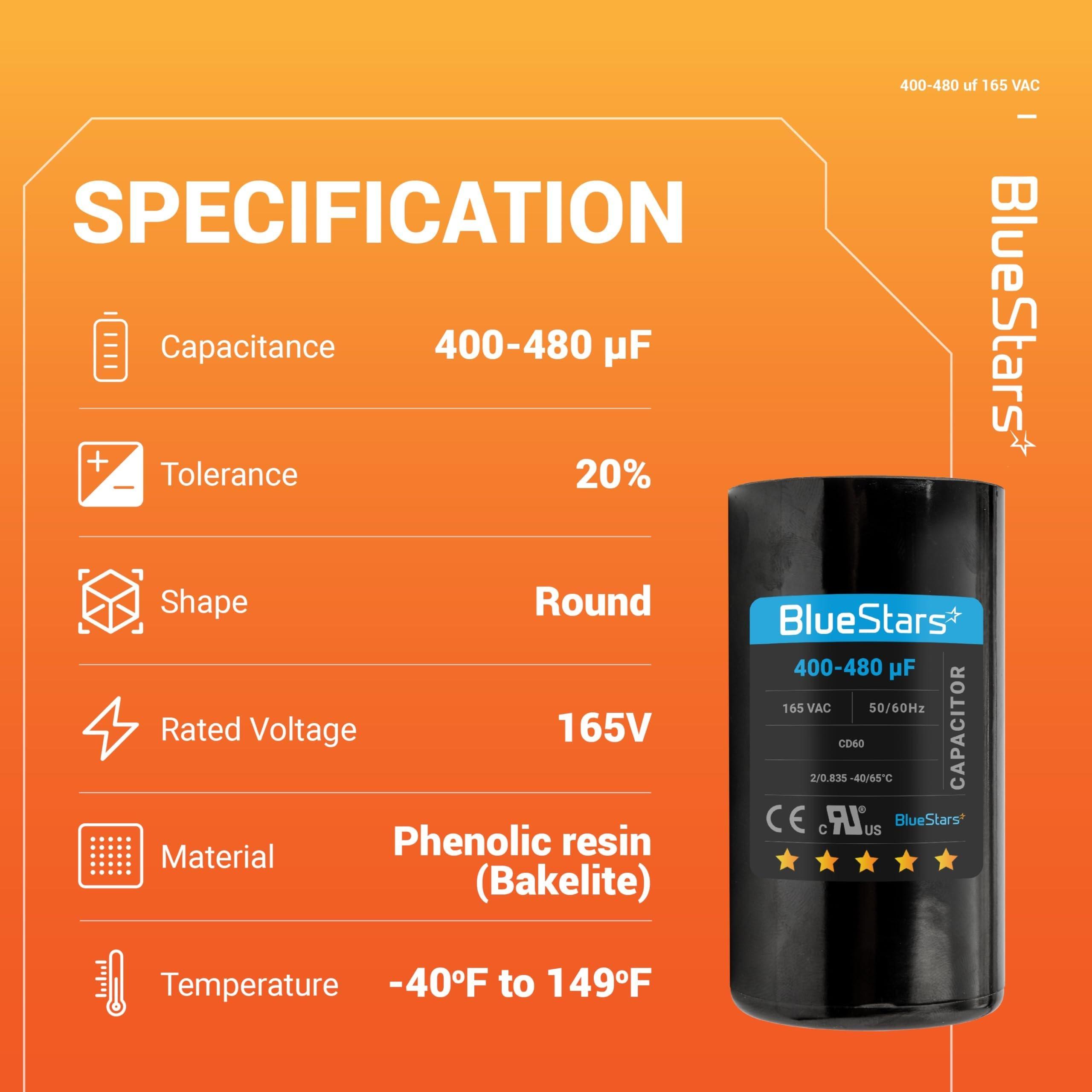

Key Features

• Capacitance: 400-480 uF/MFD
• Voltage Rating: 165 VAC
• Frequency: 50/60 Hz
• Operating Temperature: -40° C to +65° C (-40° F to +149° F)
• Shape: Round

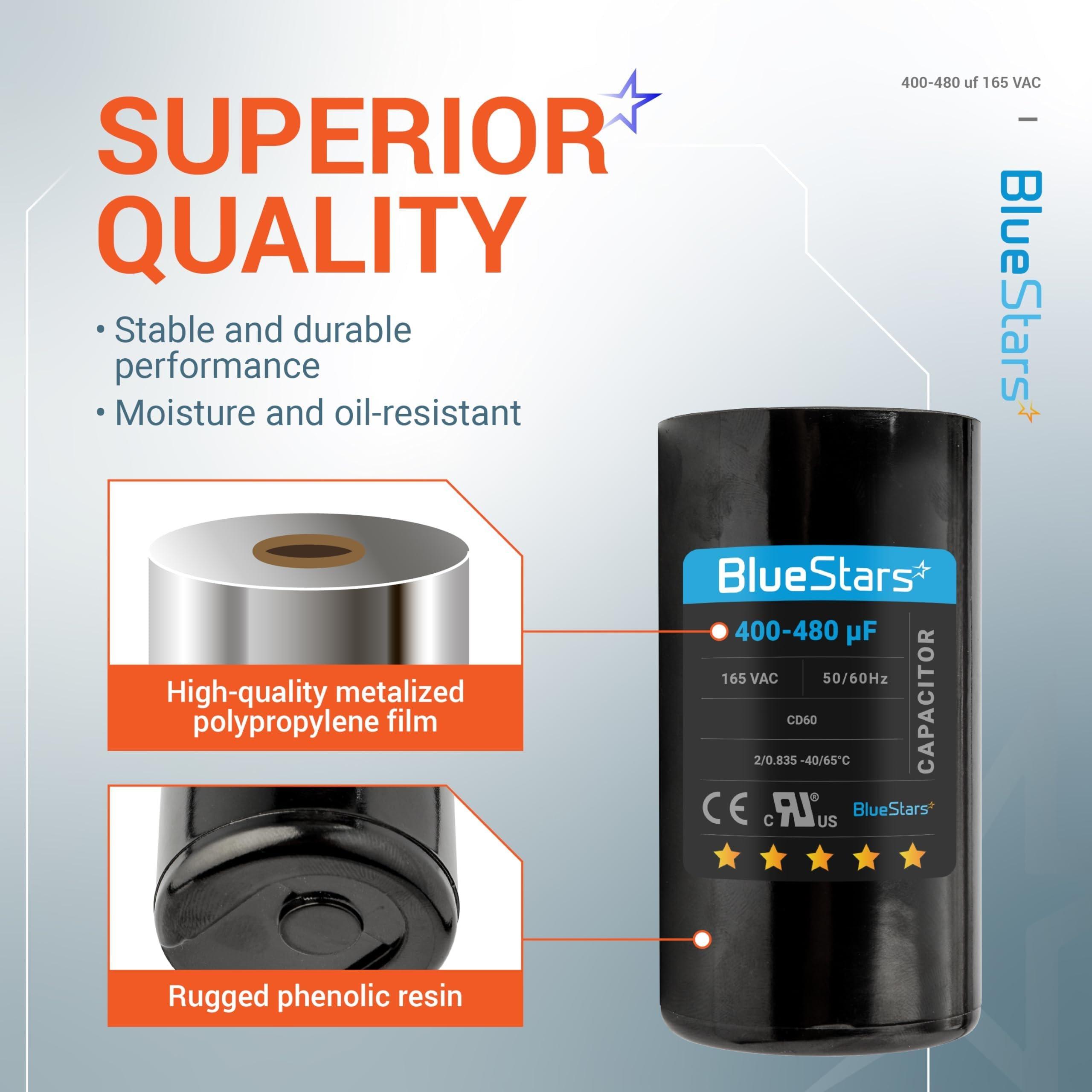

• Case Material: Phenolic Resin
• Terminals: 1/4 inch male quick-connect

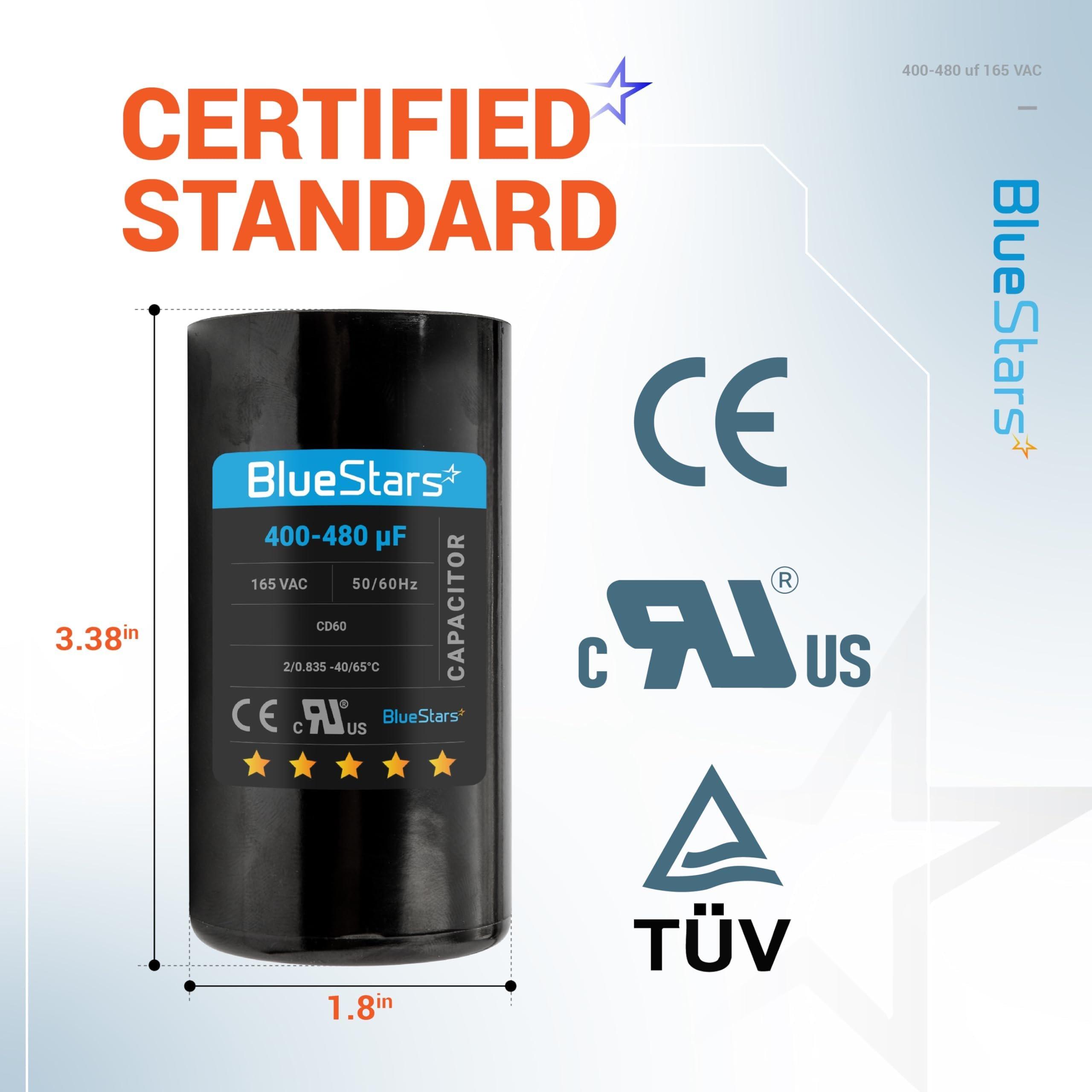

• Dimensions: 1.78 in. Diameter x 3.33 in. Height

Replaces / Cross-Reference Part Numbers

• Packard PSMJ400
• 092A400B165BD4A
• BC-400M-165

Compatibility & Fitment

• Designed for intermittent duty in AC motor starting circuits
• Used for starting fractional horsepower, single-phase electric motors
• Suitable as a replacement for original equipment manufacturer (OEM) motor capacitors with matching specifications

When to Replace

• Motor hums but fails to start
• Motor requires manual assistance to start
• Capacitor case is bulging, cracked, or leaking fluid
• Capacitor tests outside its rated capacitance range when measured with a multimeter

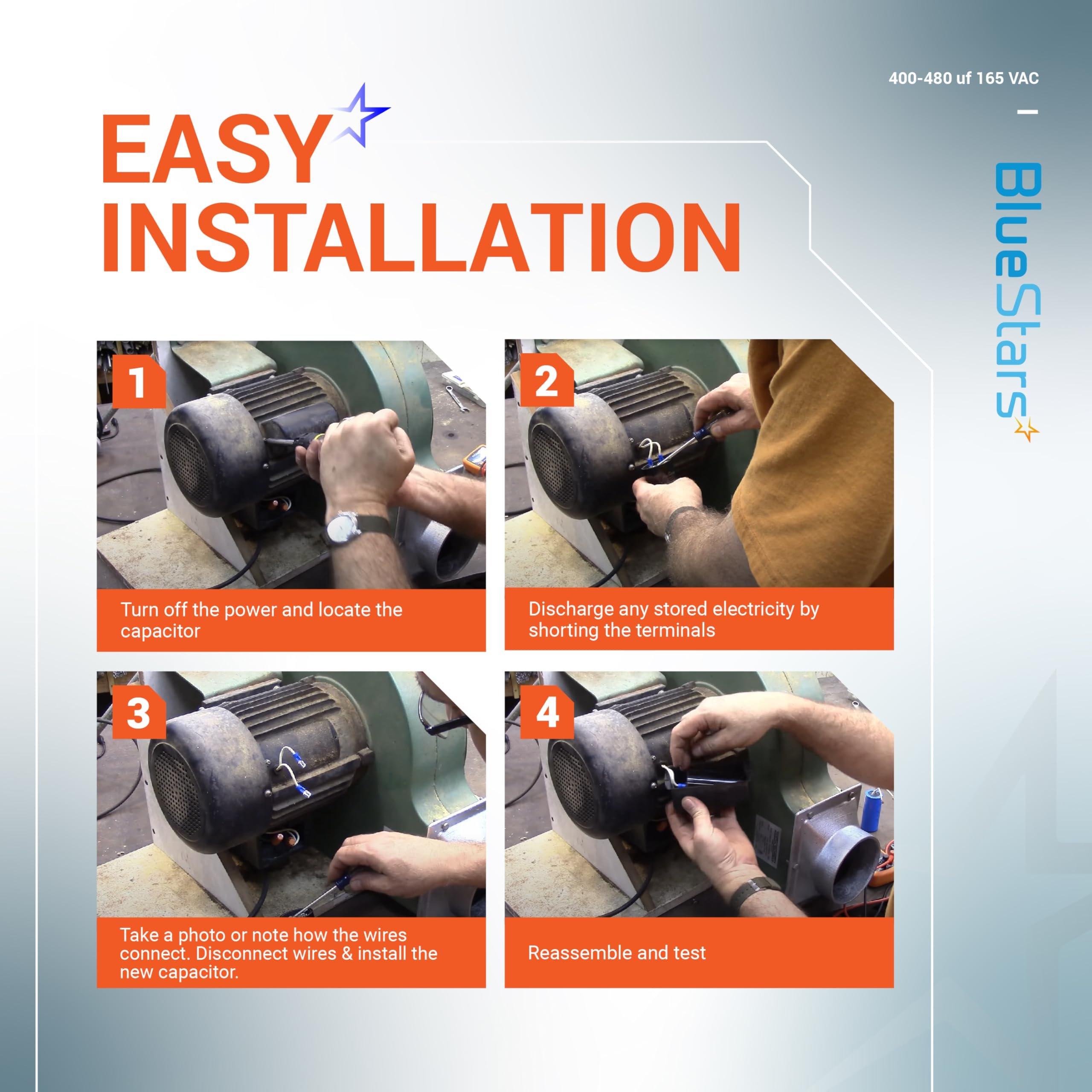

Installation Tips

• Disconnect all electrical power to the equipment before installation
• Safely discharge the old capacitor by shorting its terminals with a resistor or an insulated tool
• Confirm that the voltage (VAC) and capacitance (uF/MFD) ratings match the original part's specifications
• Ensure terminals are connected securely
