AZ00147408
[Lifetime Warranty] Bathroom Exhaust Fan Motor Assembly S0504B000
Sold 188
Easy
15 - 20 minutes
$36.27
$40.29
Save $4.02
In Stock
Fast delivery
Confirm the fit for your model
Find your model number and check it here to see if the part fits.
Description
Description

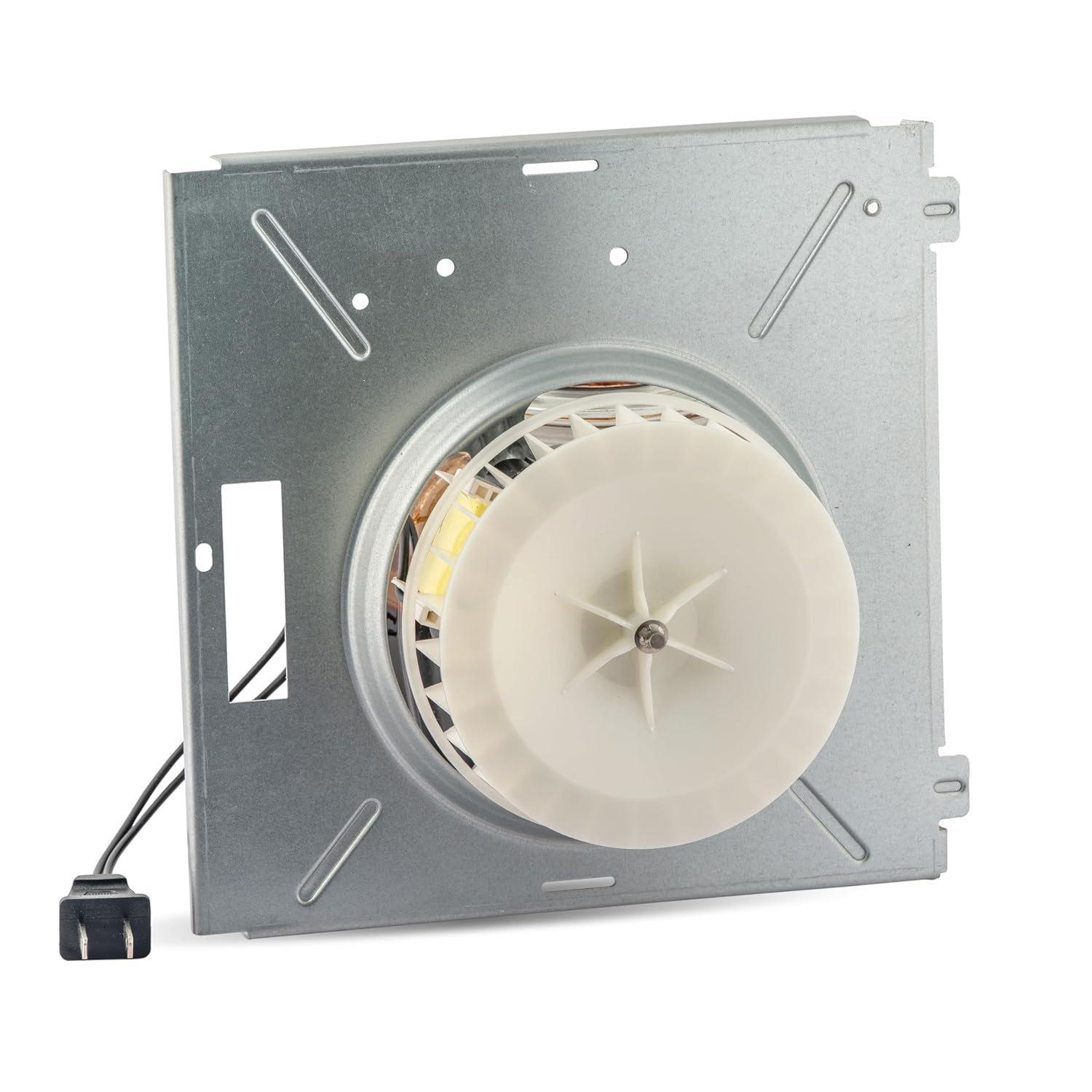

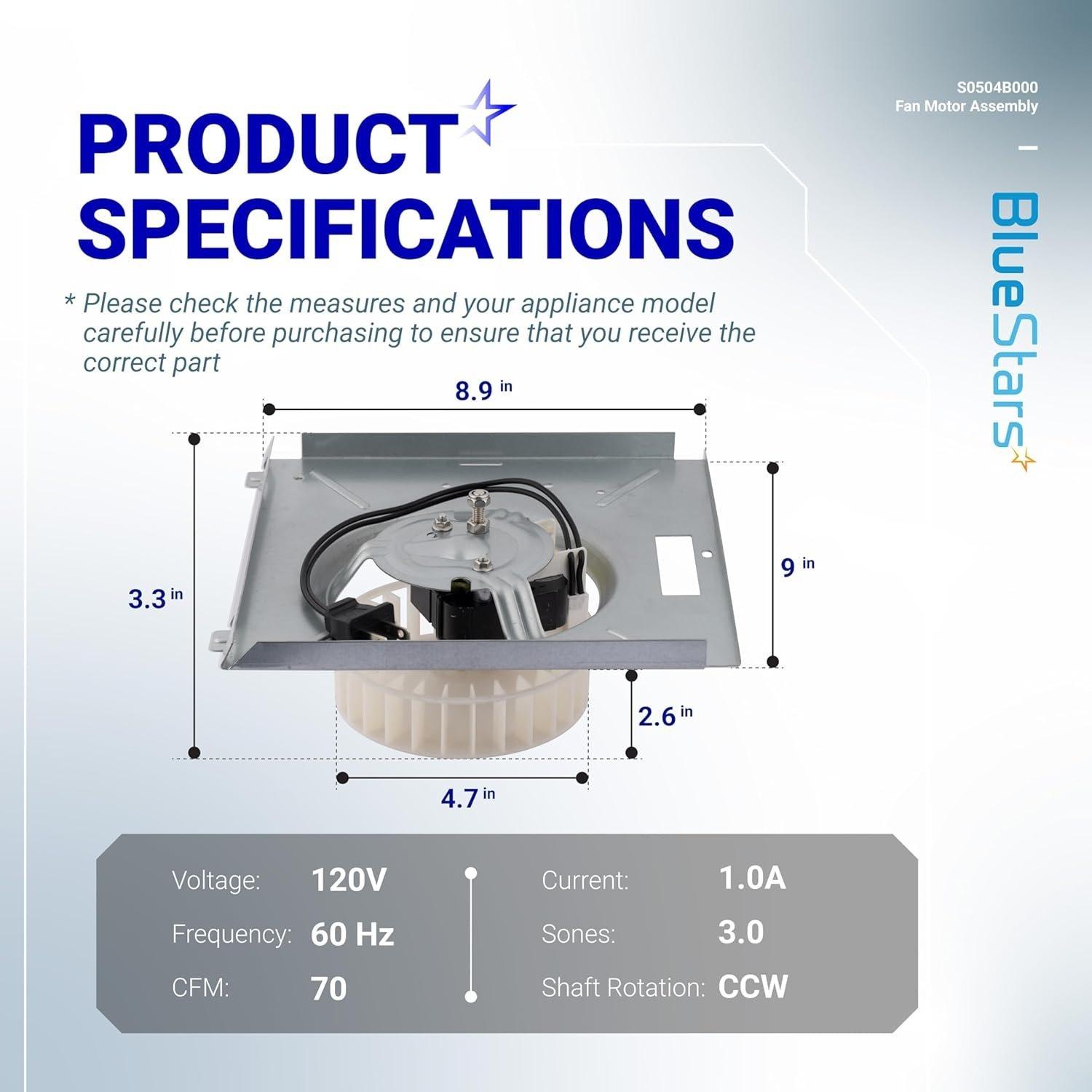

Bathroom Exhaust Fan Motor Assembly S0504B000

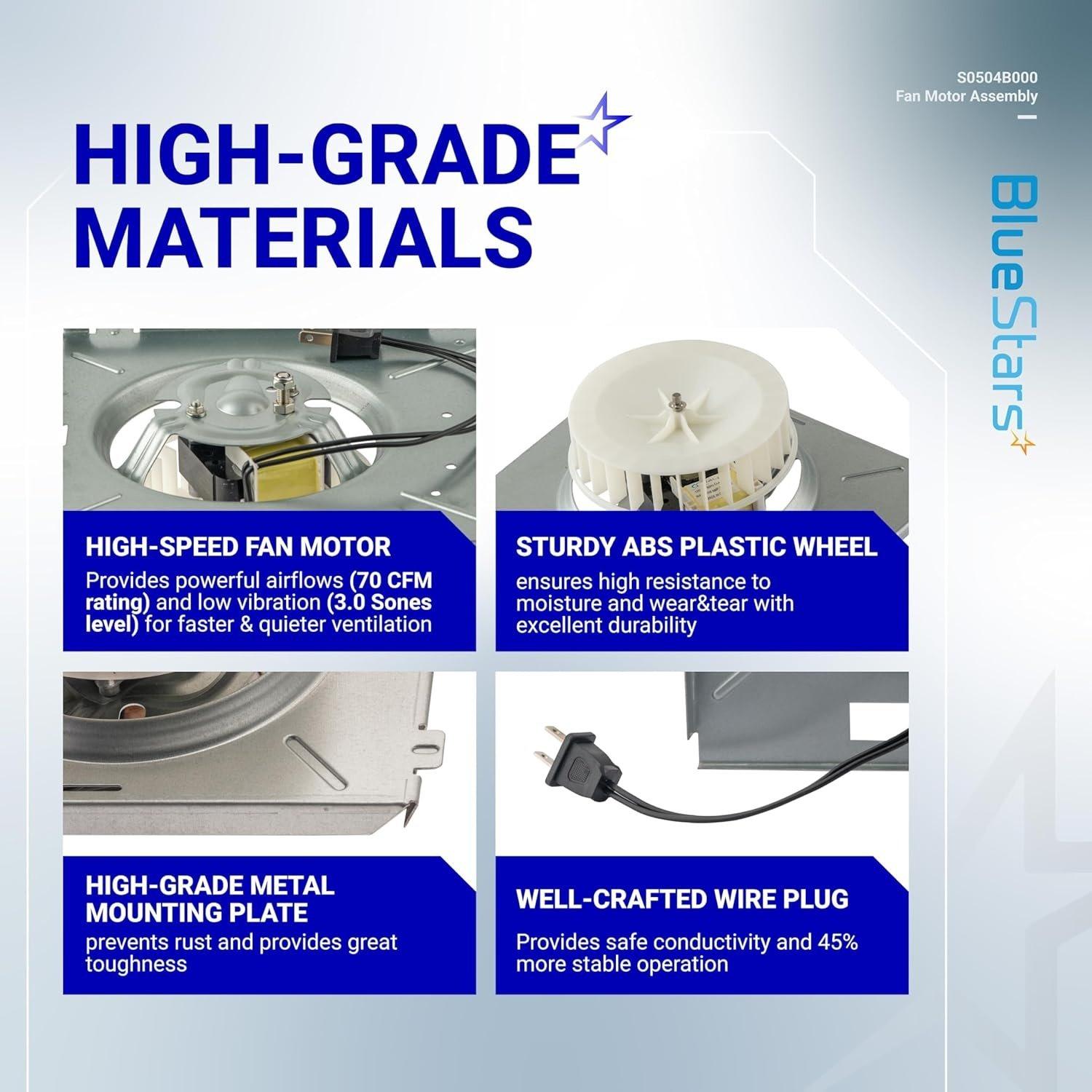

Key Features
- Complete, pre-assembled unit includes motor, blower wheel, and mounting plate
- Airflow Rating: 70 CFM
- Electrical Rating: 120V, 1.0A
- Power Connector: 2-prong plug
- Cooling Method: Air-cooled

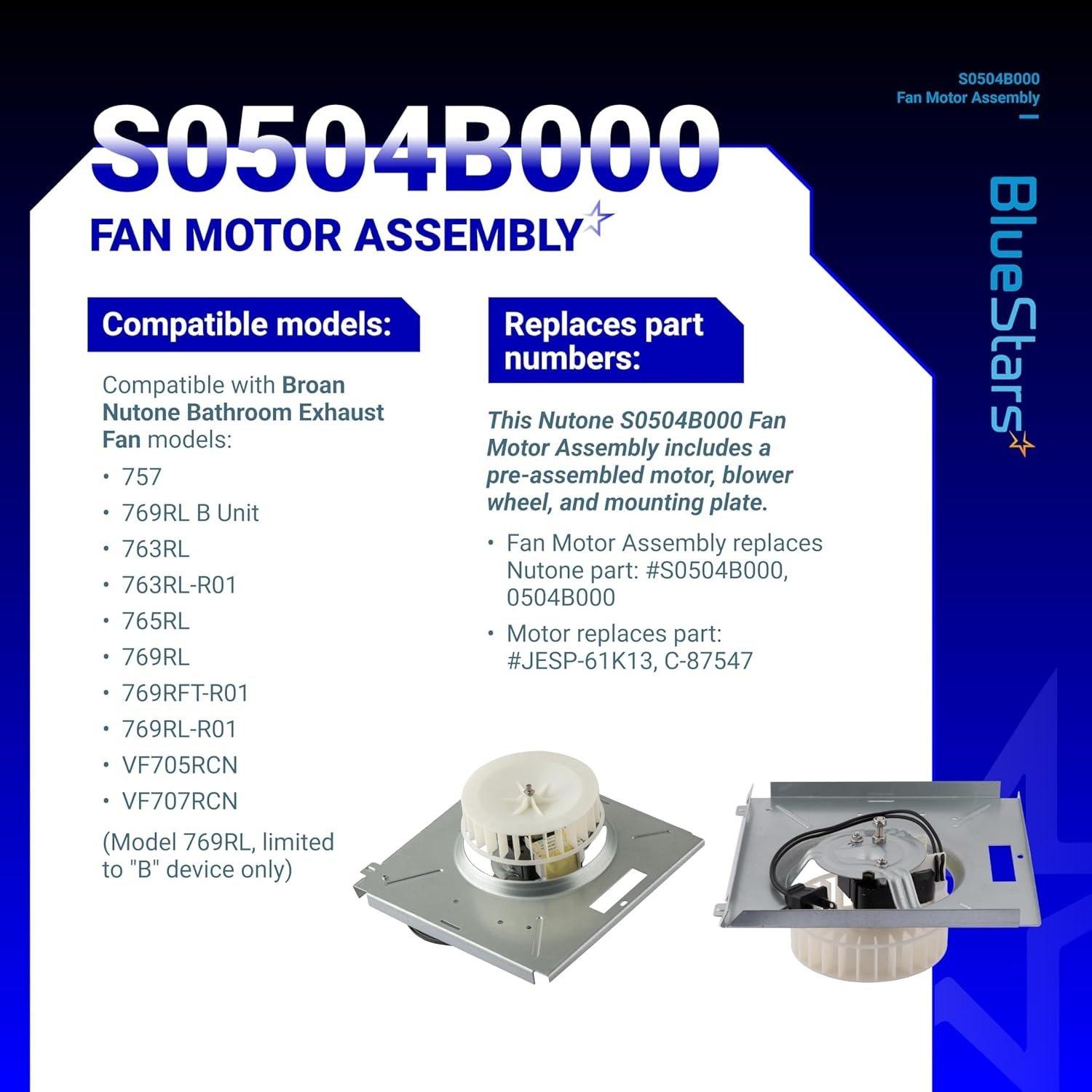

Replaces / Cross-Reference Part Numbers
- S0504B000
- JESP-61K13
- C-87547
Compatibility & Fitment
- Designed for Broan-NuTone ventilation fans
- Fits Models: 757, 763RLN, 765RL, 769RFT-R01, 769RL, 769RL-R01, VF707RCN

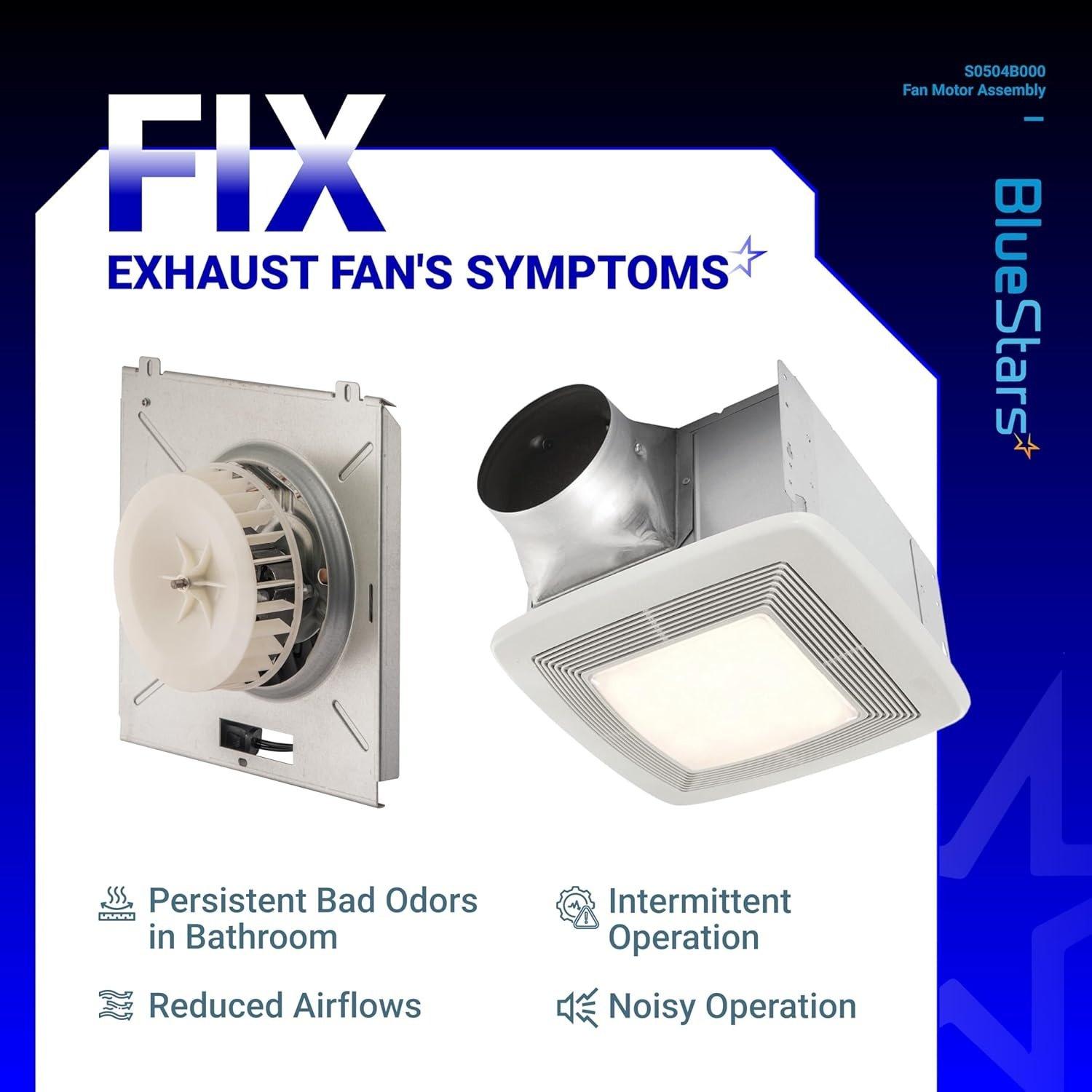

When to Replace
- Fan motor is humming, grinding, or making excessive noise
- Blower wheel is damaged or unbalanced
- Fan fails to turn on or spins too slowly
- Airflow is noticeably reduced
Installation Tips
- Disconnect power at the circuit breaker before beginning installation
- Confirm compatibility by checking the model number on your existing fan housing
- Clean the fan housing and duct of any dust or debris before installing the new assembly
- Ensure the blower wheel spins freely without obstruction after installation
