[Lifetime Warranty] 5304518927 Lower Spray Arm - Compatible with Frigidaire, Kenmore, Electrolux Dishwashers - Replaces 154567702, 5304507175, AP6810011, 154567701

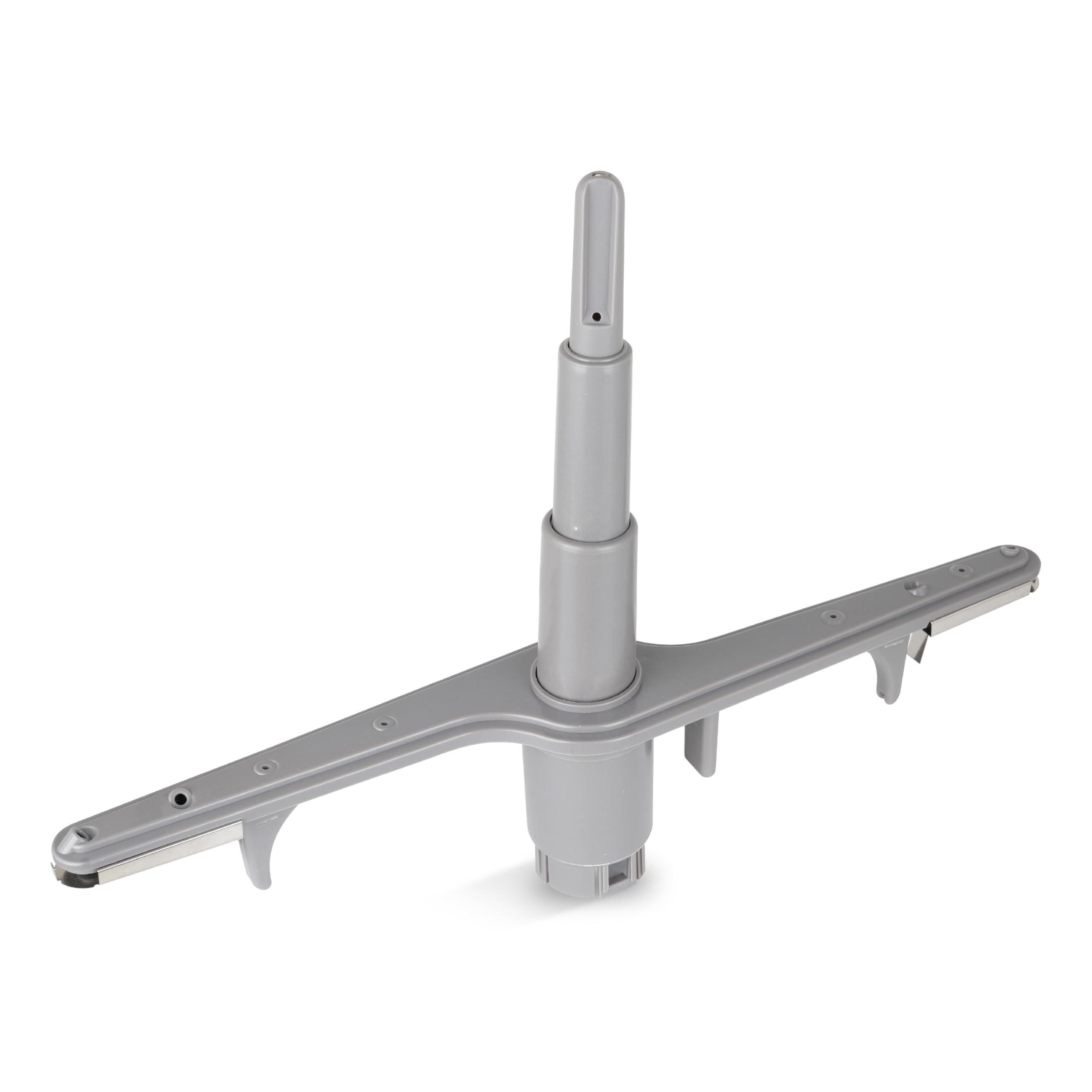

5304518927 Lower Spray Arm

Key Features

• Direct replacement lower wash arm assembly.
• Constructed from durable plastic for longevity.
• Features integrated heat shields to prevent damage from the heating element.
• Includes a center tower that rises with water pressure to clean items on the upper rack.

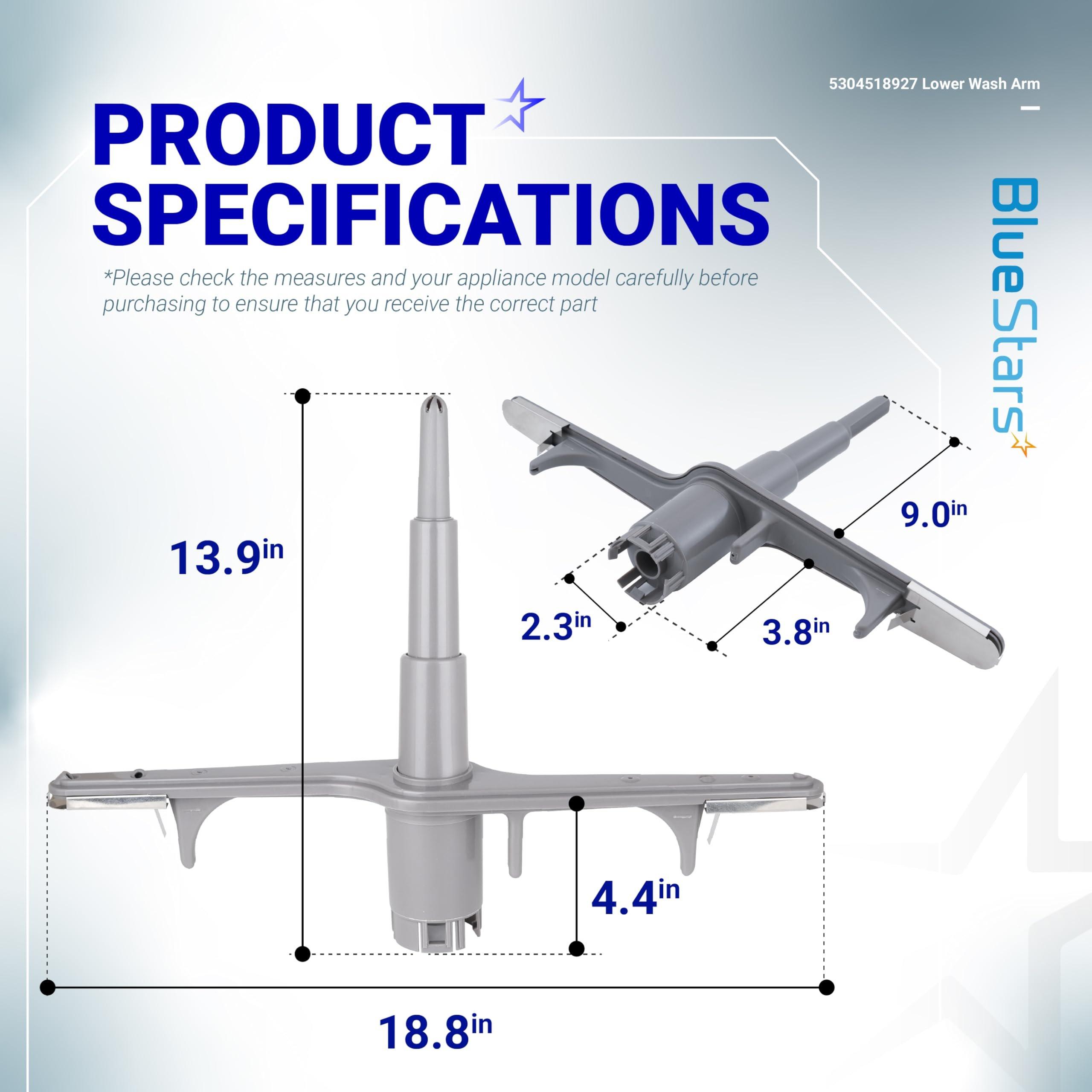

• Approximate length: 20 inches.

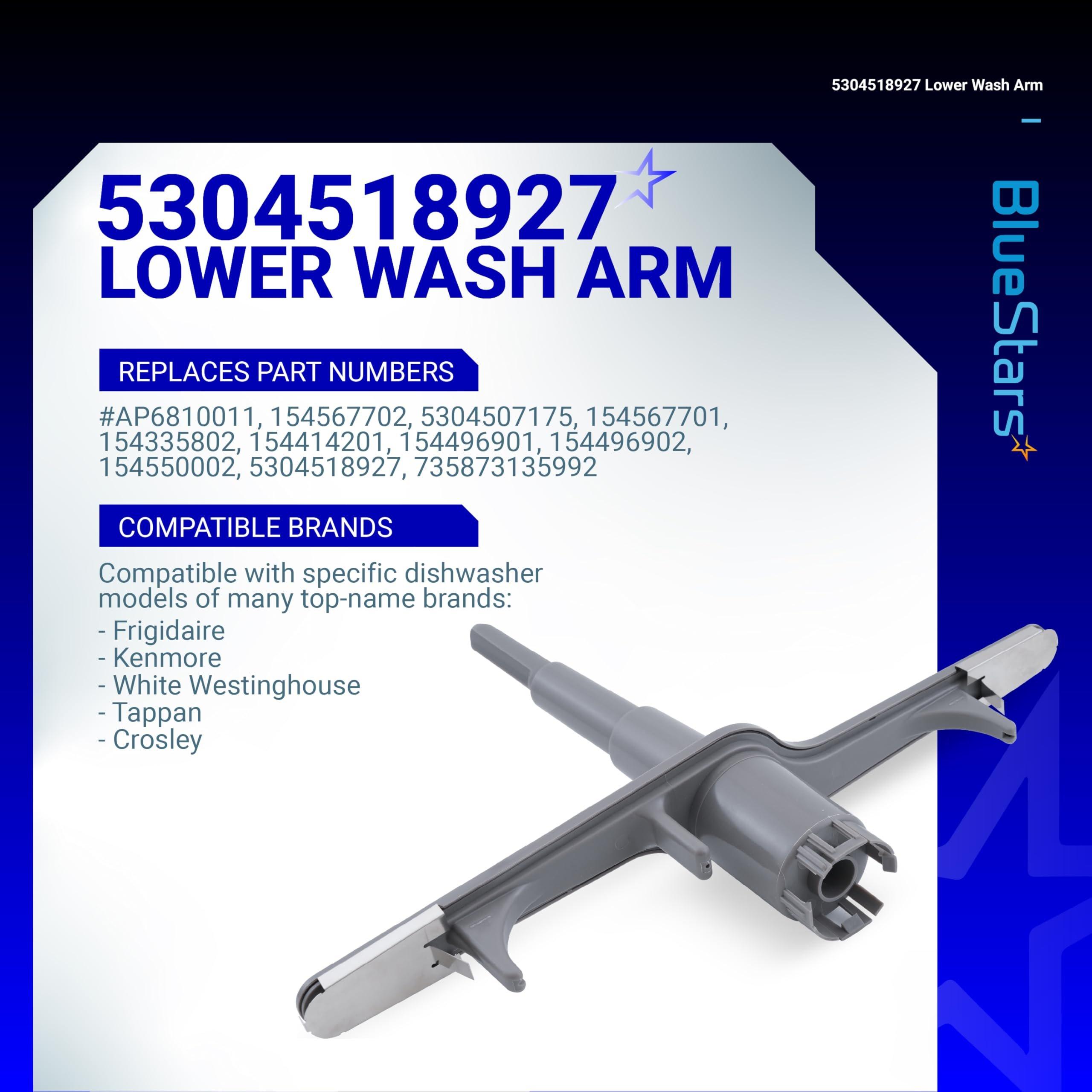

Replaces / Cross-Reference Part Numbers

• 5304518927
• 5304507175
• 154567702
• 154567701
• 154568001
• 154250901
• 154250801
• AP6810011

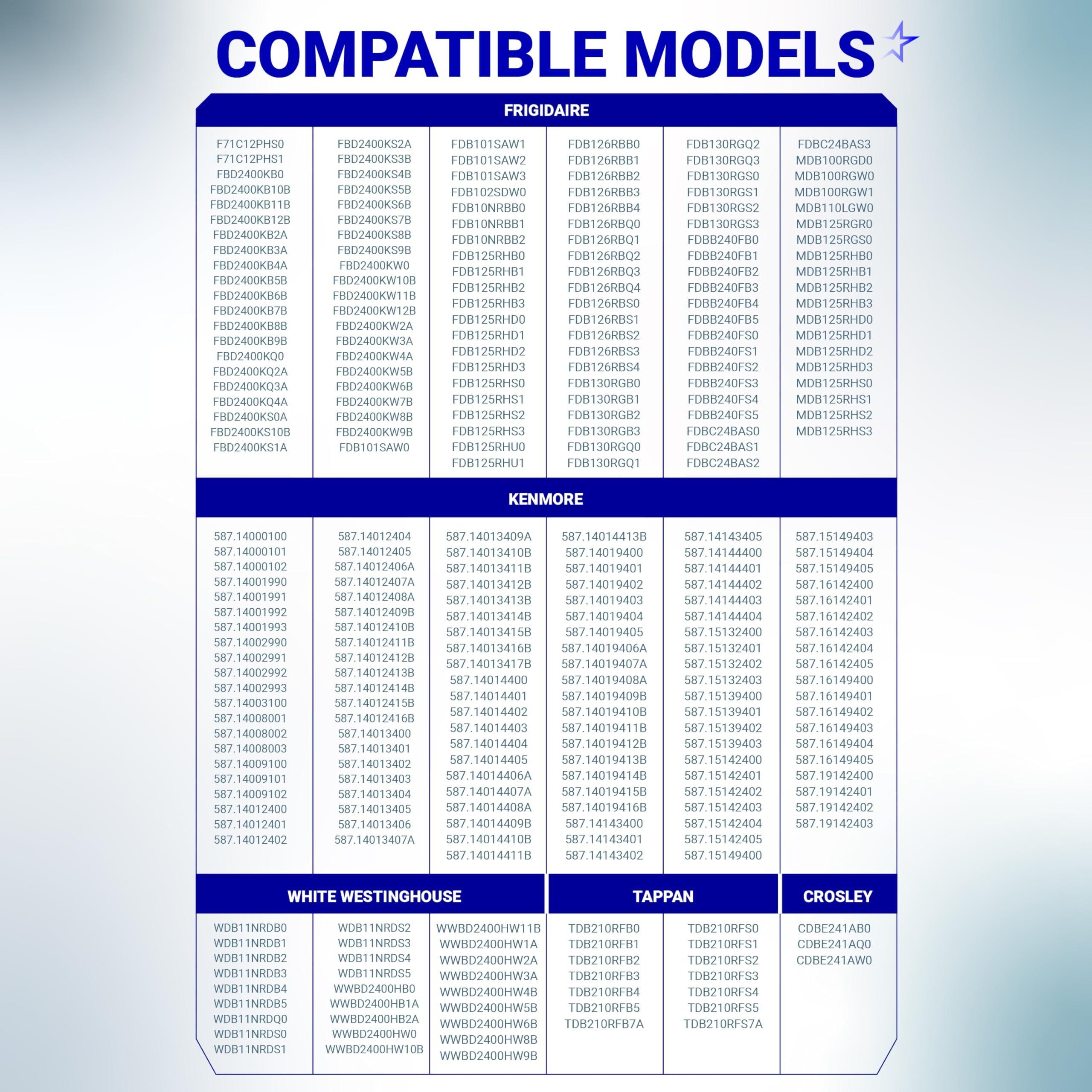

Compatibility & Fitment

• Crosley
• Electrolux
• Frigidaire
• Galaxy
• Gibson
• Kelvinator
• Kenmore
• Tappan
• White-Westinghouse

When to Replace

• Dishes on the lower rack are consistently dirty after a wash cycle.
• The spray arm is visibly cracked, warped, melted, or otherwise damaged.
• Spray arm nozzles are clogged and cannot be cleared.
• The arm does not rotate freely during operation.

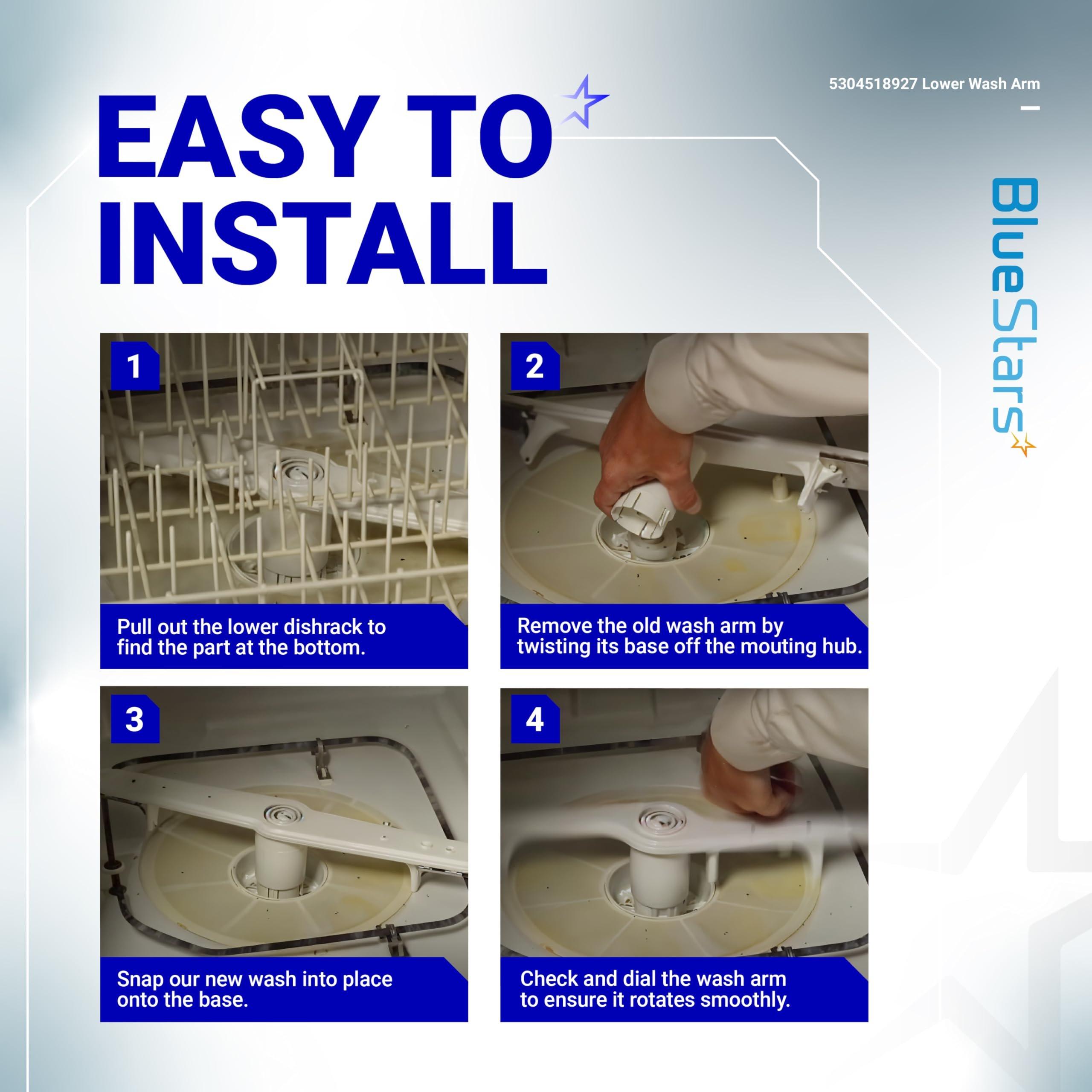

Installation Tips

• Disconnect the dishwasher from power and water sources before servicing.
• Remove the lower dish rack to access the spray arm assembly.
• The original arm is removed by unsnapping or unscrewing it from the water feed tube.
• After installing the new part, confirm it spins freely without obstruction.
• When upgrading from certain older spray arm designs, a corresponding water supply tube may also be required for proper connection.
