[Lifetime Warranty] DC64-00828B Dryer Door Switch - Compatible with Samsung and Kenmore Dryer - Replaces DC64-00828A 2071595 AP4578931 PS4210965 EAP4210965 PD00028436

DC64-00828B Dryer Door Switch

Key Features

• Direct OEM replacement part for Samsung dryers
• Senses door closure to enable the start of a drying cycle
• Operating Voltage: 250V
• Contact Type: Normally Open
• Prevents the appliance from operating when the door is ajar

Replaces / Cross-Reference Part Numbers

• DC64-00828A
• AP4203276
• 2071595
• PS4204550
• EAP4204550

Compatibility & Fitment

• Designed for a wide range of Samsung brand clothes dryers.
• Confirm fitment by cross-referencing your appliance's model number or the part number on the original switch.

When to Replace

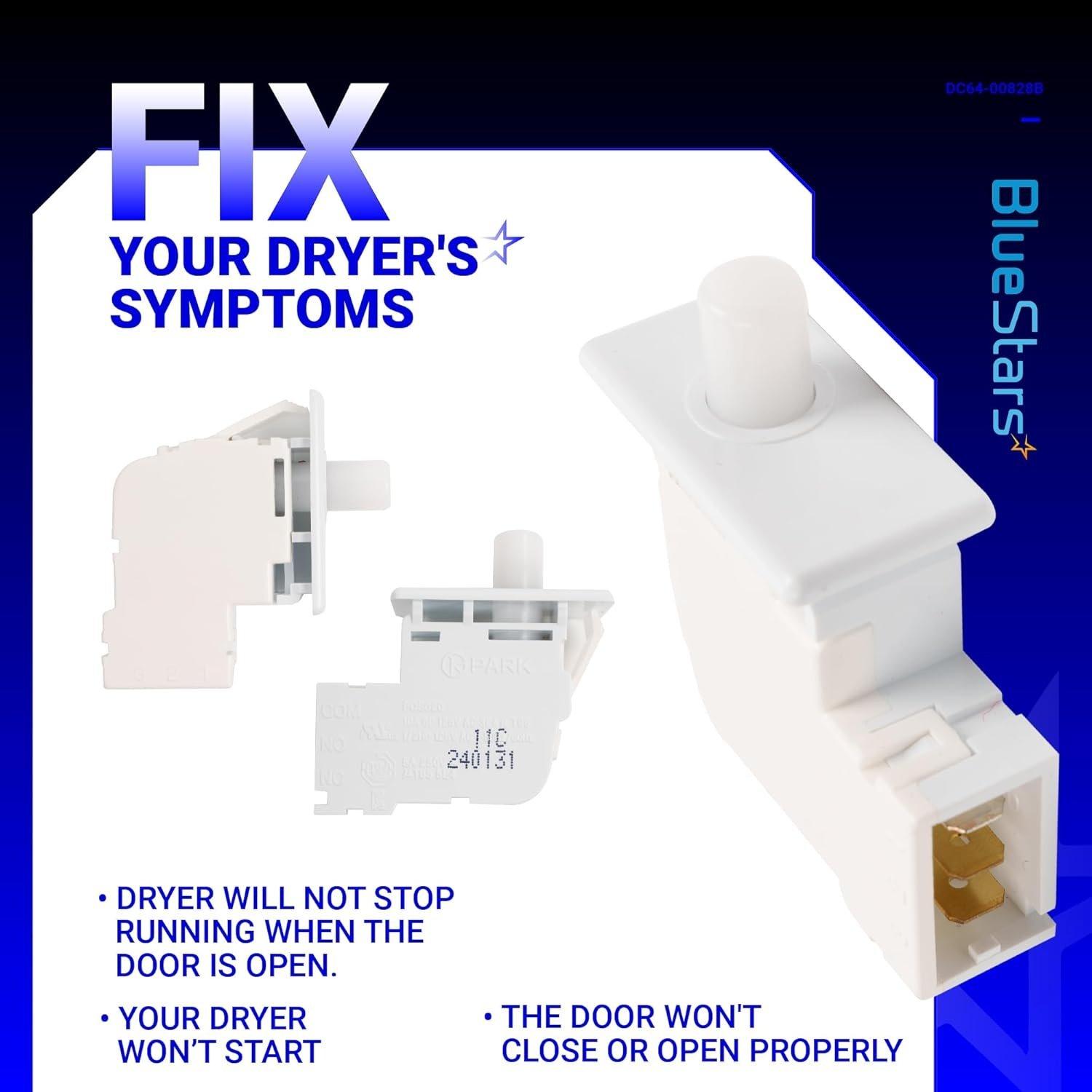

• Dryer will not start or turn on.
• Dryer stops running when the start button is released.
• Appliance displays door-related error codes such as dC, dE, dF, or d0.
• Drum light stays on when the door is closed or does not turn on when the door is opened.

Installation Tips

• Disconnect the dryer from its power source before starting the installation.
• Access to the switch typically requires removing the dryer's top panel.
• Take a photograph of the wire connections before removing the original part to ensure correct reassembly.
• Ensure the new switch is securely mounted and that the actuator aligns properly with the door pin.
