Description
Description

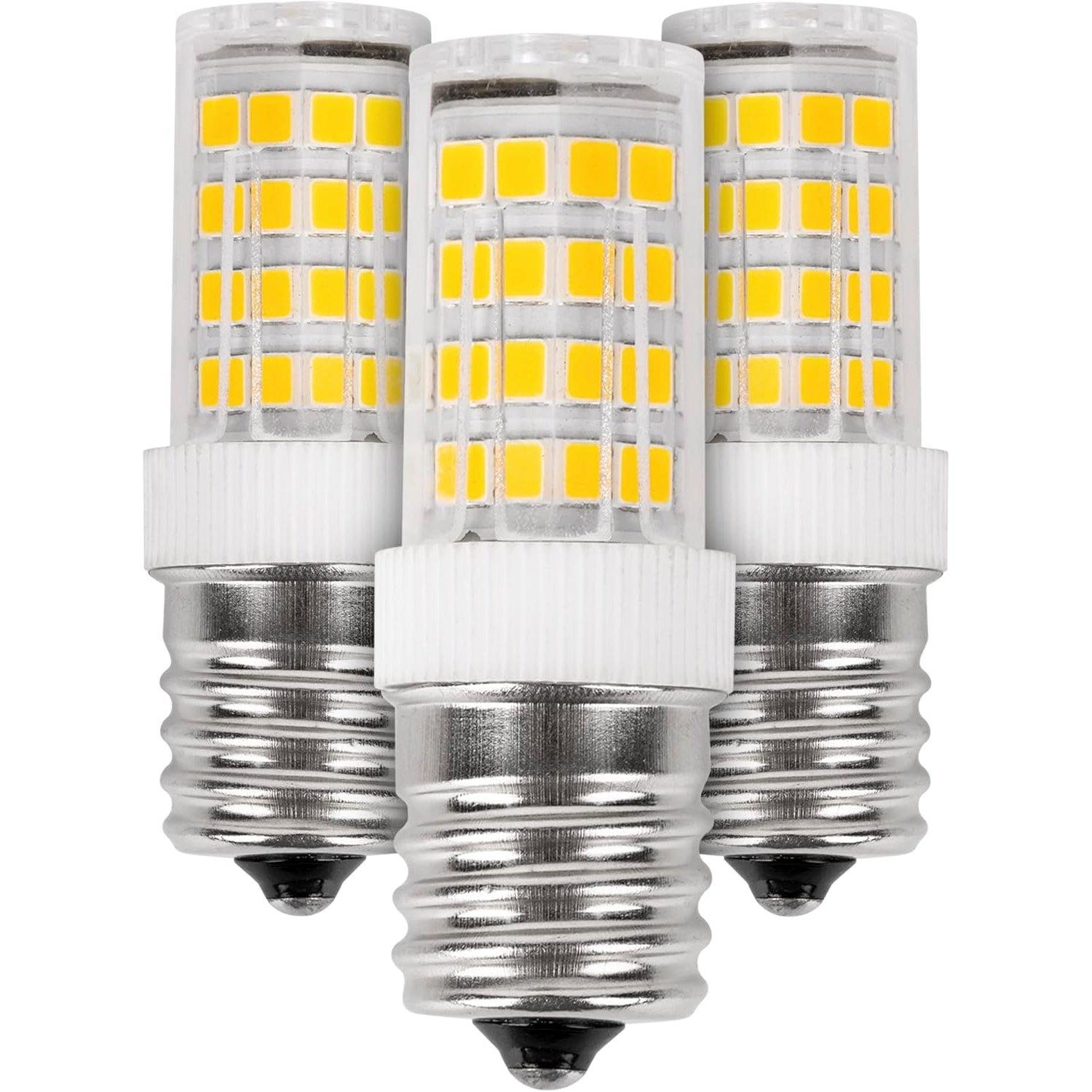

8206232A Dimmable LED Bulb 5W 6000K - Pack of 3

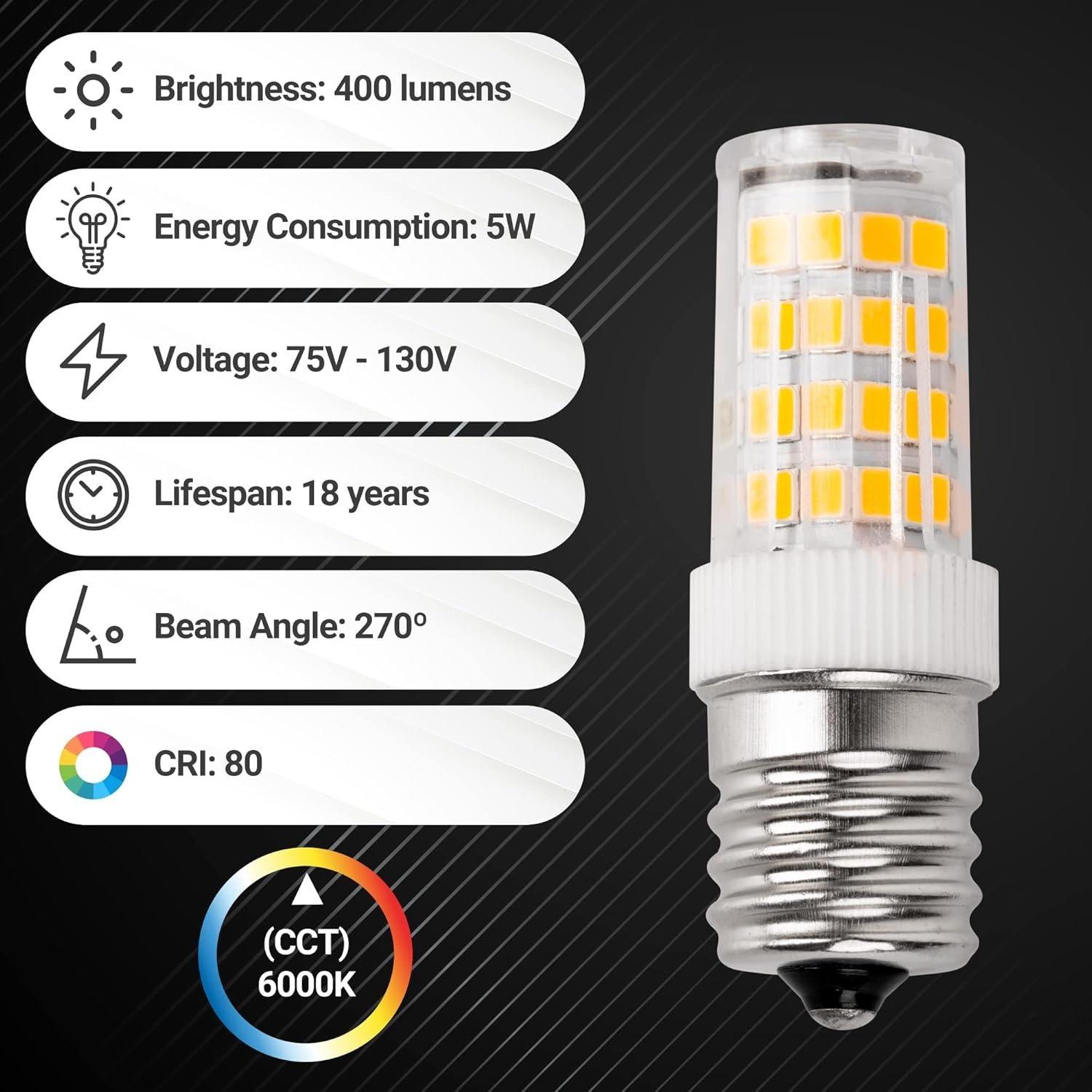

Key Features
- Quantity: 3 bulbs
- Model: 8206232A
- Power Consumption: 5W LED
- Incandescent Equivalent: 40W

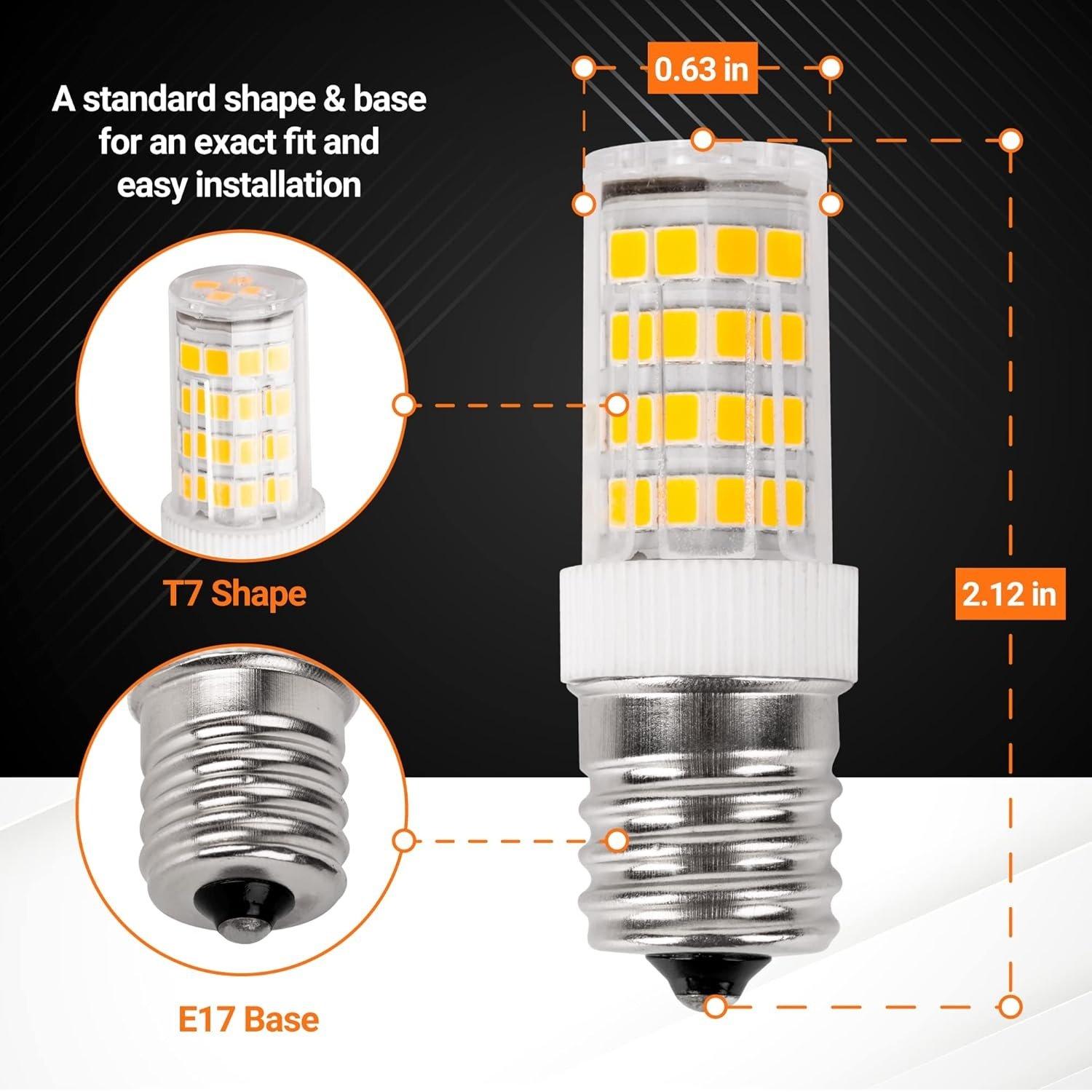

- Base Type: E17 Intermediate Base
- Voltage: 75V - 130V
- Color Temperature: 6000K (Daylight White)
- Dimmable: Yes
- Beam Angle: 270 degrees
Replaces / Cross-Reference Part Numbers
- 8206232A
Compatibility & Fitment
- Fits various over-the-range microwave models from brands including Whirlpool, GE, Maytag, and Amana.
- Designed for use as an exterior surface light to illuminate the cooktop below the microwave.
- Verify compatibility by checking your appliance's manual for part number 8206232A and E17 base requirement.
When to Replace
- The existing bulb is burned out or does not illuminate.
- Light is dim, flickering, or inconsistent.
- The bulb is physically broken or damaged.
Installation Tips
- Disconnect the microwave from the power source before beginning installation.
- Allow the old bulb to cool completely before touching and removing it.
- Handle the new LED bulb by its base to avoid touching the glass or LED components with bare hands.
- Screw the new bulb in securely until it is snug, but do not overtighten.
- Reconnect power and test the new bulb's functionality, including dimming features if applicable.
