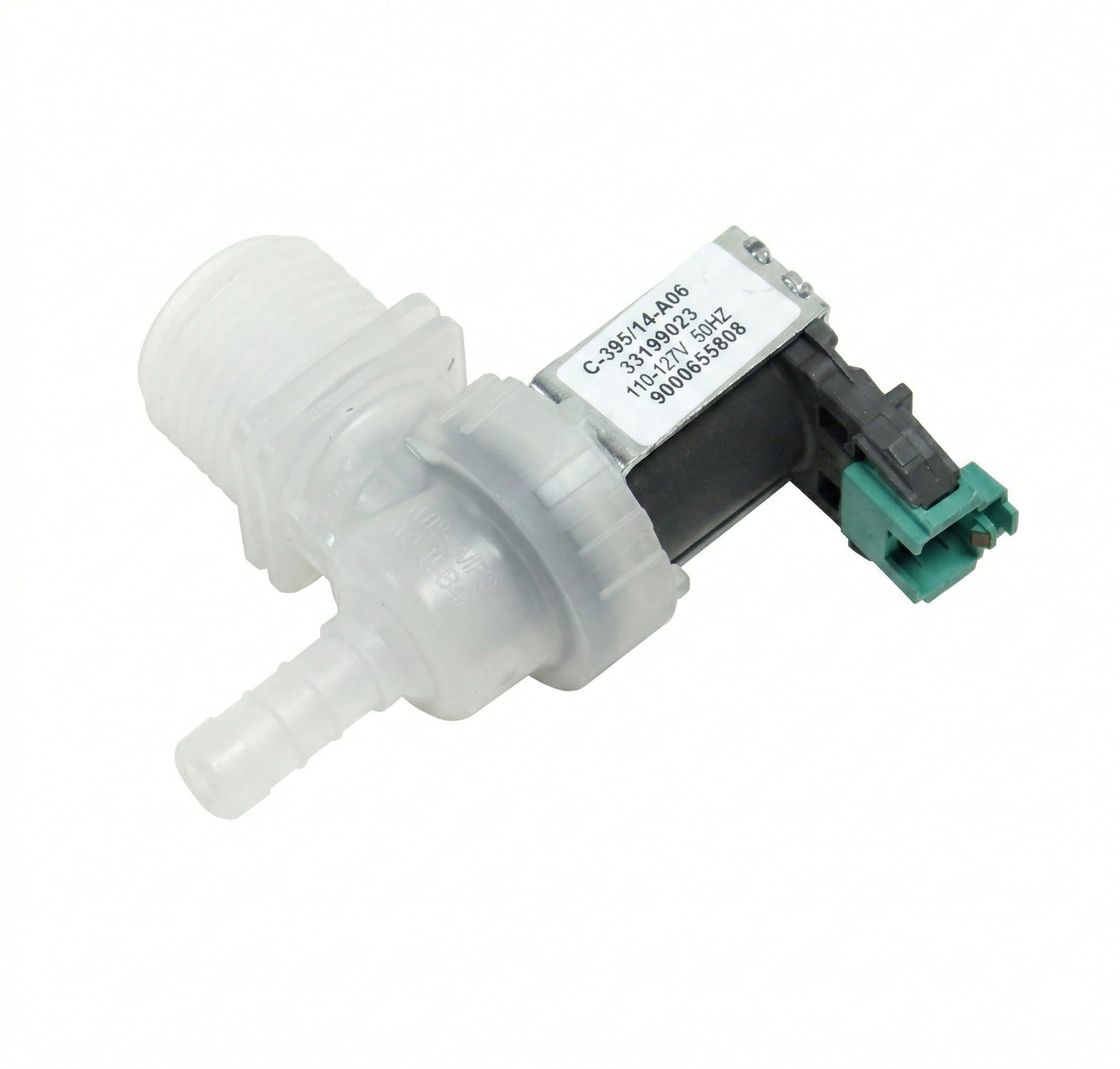

[Lifetime Warranty] 00628334 10023852 Dishwasher Water Inlet Valve - Compatible for Bosch, Thermador, Gaggenau Dishwashers, Replaces 628334, AP7193108, PS8729241, 3278459

00628334 10023852 Dishwasher Water Inlet Valve

Key Features

• Precise Flow Control:Regulates the volume of water entering the dishwasher tub during the fill cycle to prevent overfilling or underfilling.
• High-Durability Solenoid:Features an electromagnetic coil designed for rapid response and long-term cycling reliability.
• Standard Connection:Built with a 3/4-inch threaded inlet for standard garden hose-style water supply lines.
• Integrated Mesh Filter:Includes a fine-mesh screen to prevent sediment and debris from entering the internal valve mechanism.

Replaces / Cross-Reference Part Numbers

• 00628334
• 10023852
• 628334
• AP7193108
• PS8729241
• 3278459
• EAP8729241

Compatibility & Fitment

• Bosch:Compatible with many SHE, SHX, SHP, and SHV series models, including the 300, 500, and 800 series.
• Thermador:Fits select Emerald, Topaz, Sapphire, and Star-Sapphire series dishwasher models.
• Gaggenau:Compatible with various DF and DI series high-end dishwasher units.
• Kenmore/Kenmore Elite:Fits select models starting with prefix 100. manufactured by Bosch.

When to Replace

• No Water Fill:The dishwasher cycles through the start sequence but the tub remains dry.
• Slow Filling:The fill cycle times out or the water level is too low for effective cleaning, often due to a clogged internal screen.
• Continuous Filling:Water continues to enter the tub even when the dishwasher is powered off or during the wash cycle, potentially leading to leaks.
• Leaking Valve:Visible water dripping from the valve body or the electrical solenoid housing.
• Humming Noise:A loud humming or buzzing sound during the fill cycle without water flow, indicating a seized solenoid.

Installation Tips

• Safety First:Disconnect the dishwasher from the power source and turn off the water supply line before starting the repair.
• Accessibility:This valve is typically located behind the lower kickplate/toe panel on the front left or right side of the unit.
• Terminal Identification:Note the orientation of the two electrical wire leads before disconnecting them from the solenoid.
• Thread Sealant:Use caution when tightening the water supply line; do not overtighten, as this can crack the plastic valve housing.
• Leak Test:After installation, turn on the water supply and run a short rinse cycle to check all connections for drips.
