[Lifetime Warranty] 241509402 Refrigerator Evaporator Fan Motor - Compatible with Frigidaire Electrolux Kenmore Refrigerators - Replaces 241509401 AP3958808 PS1526073 AH1526073 EA1526073 7241509402

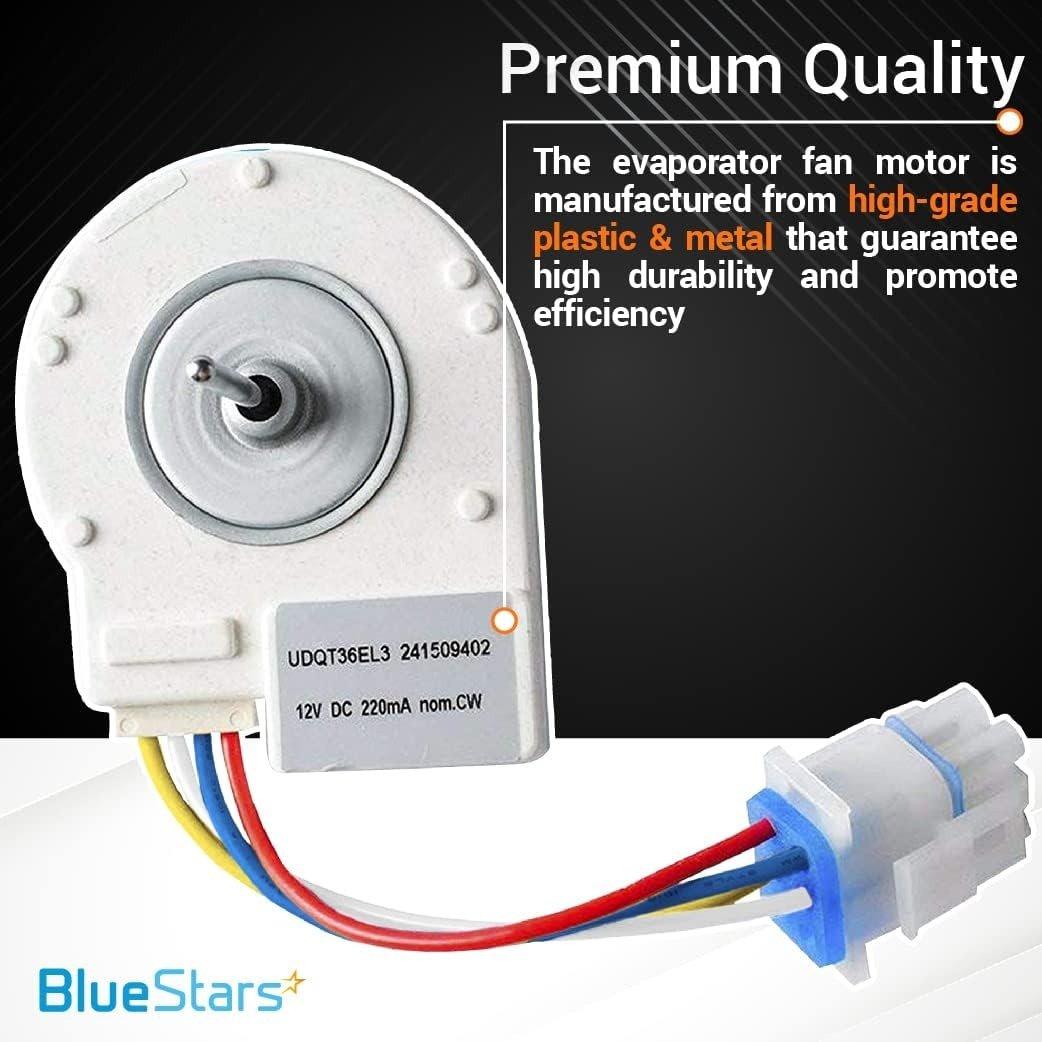

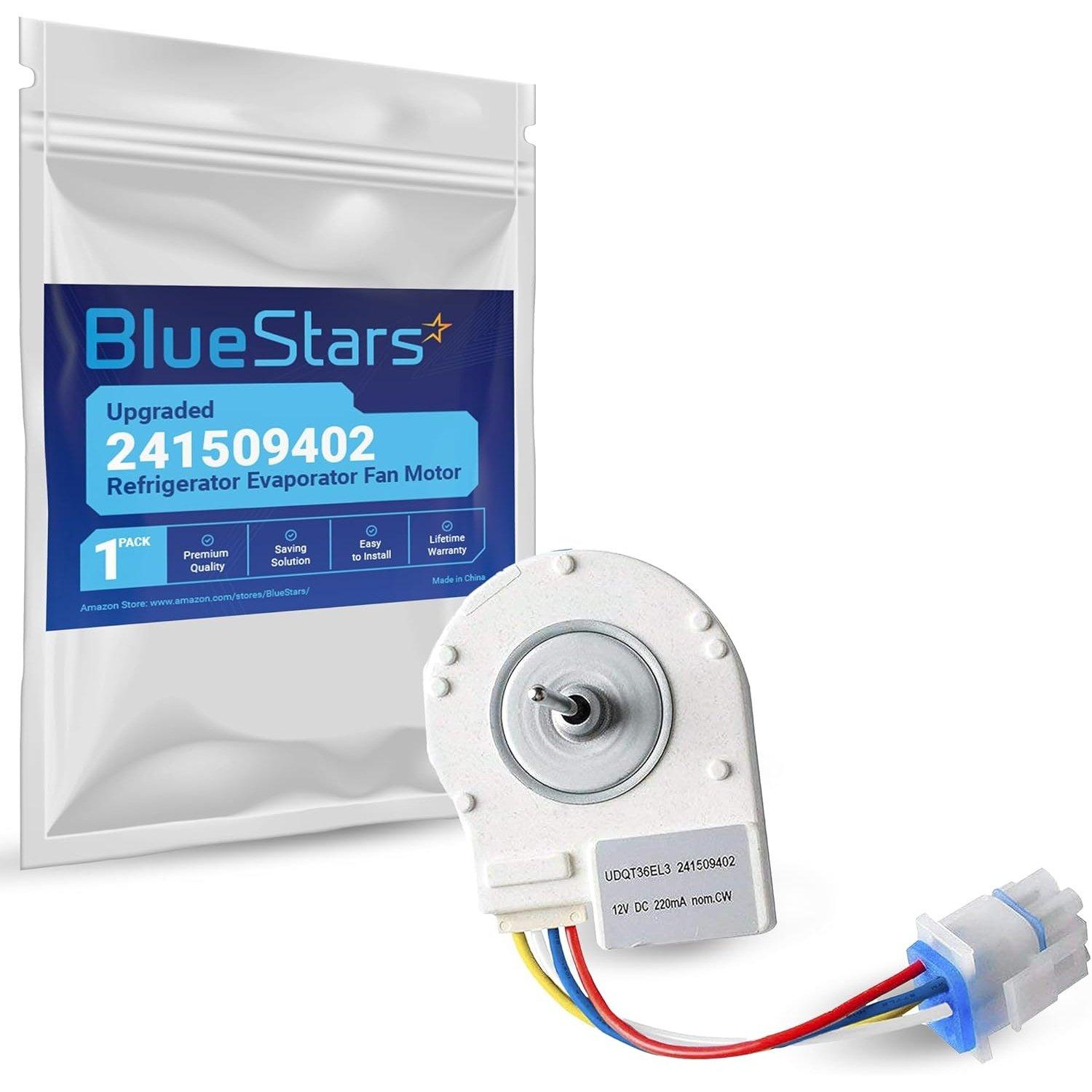

241509402 Evaporator Fan Motor

Key Features

• Circulates air through the freezer compartment for efficient cooling.

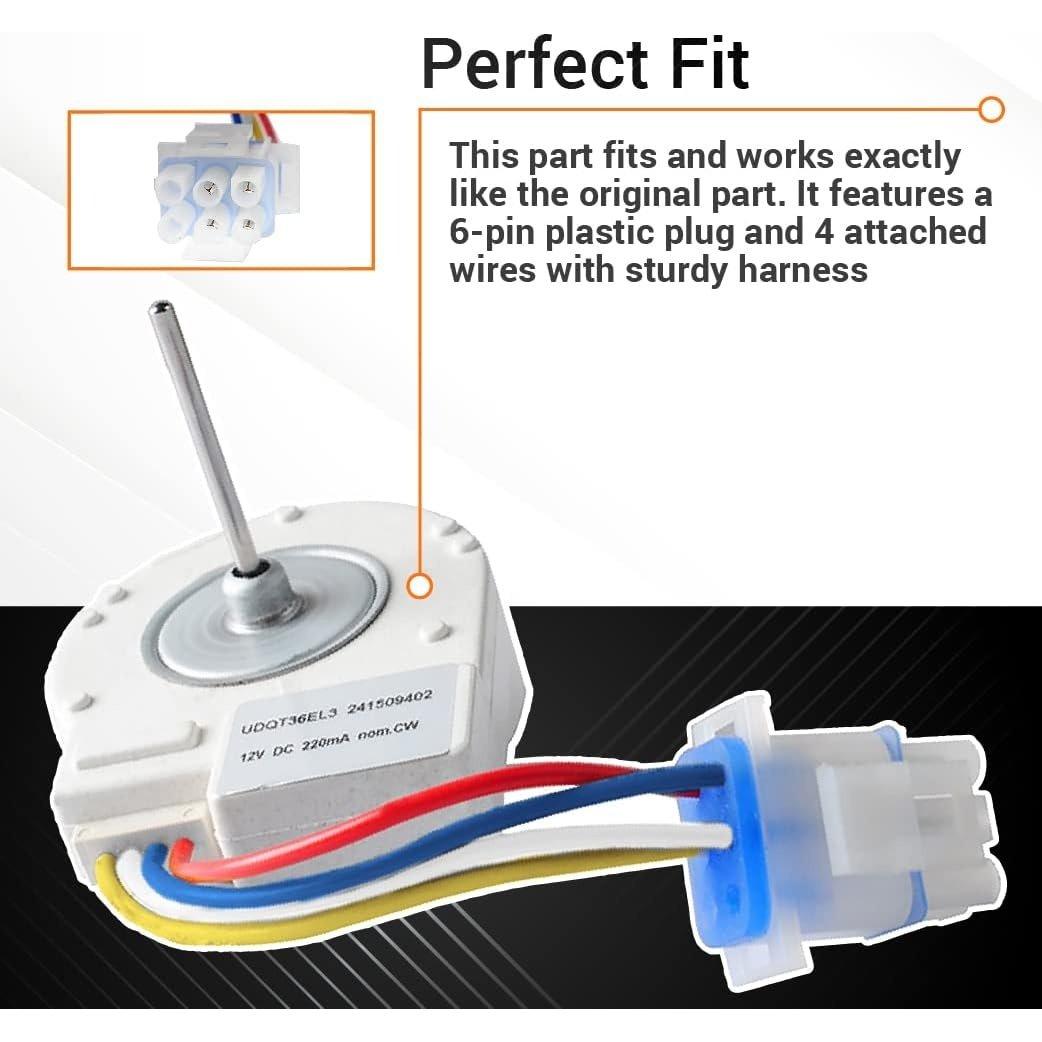

• Connects via a six-prong plug with four attached wires.
• Features a 1/8 inch diameter motor shaft.
• Engineered to meet original equipment manufacturer specifications.

Replaces / Cross-Reference Part Numbers

• 241509402
• 809069220
• SM9402

Compatibility & Fitment

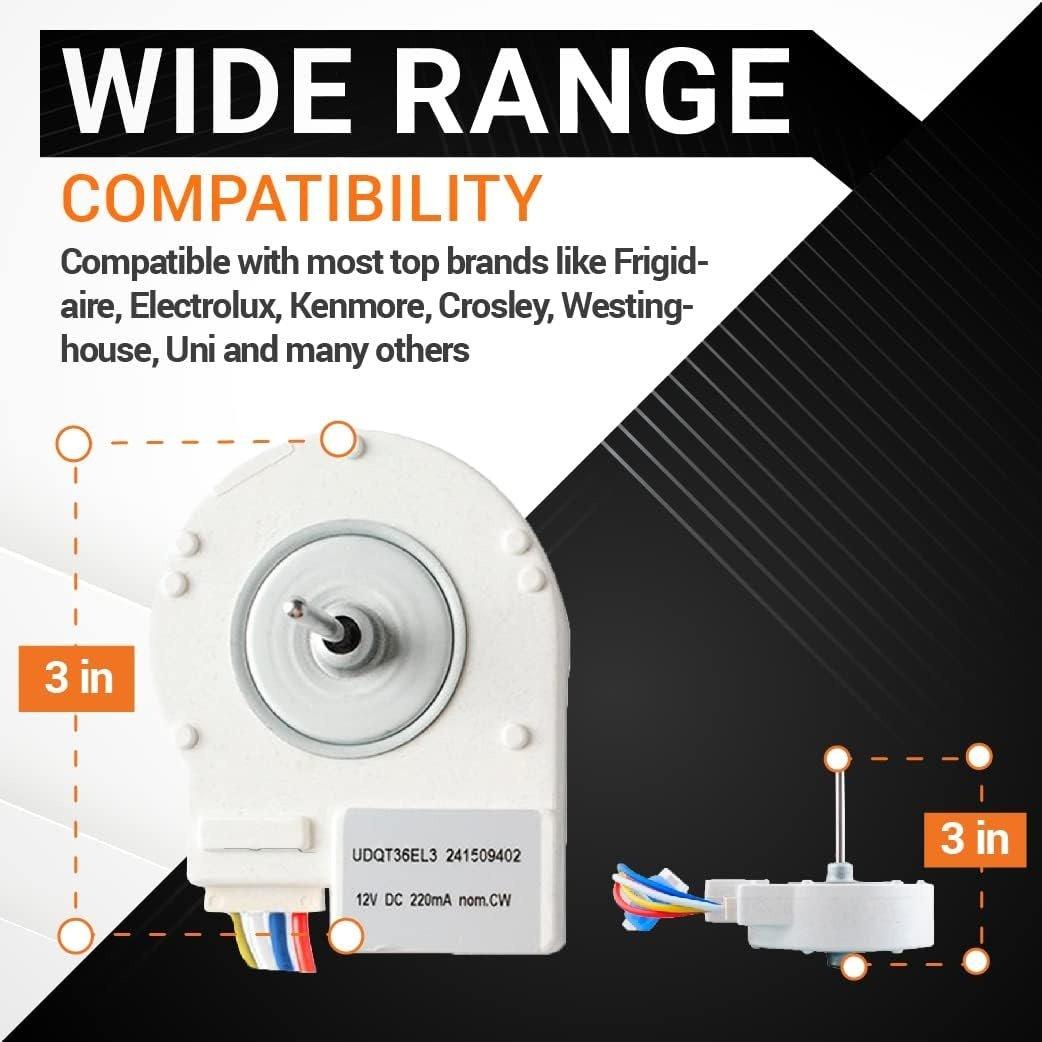

• Designed for specific refrigerator models from brands including Frigidaire, Electrolux, Kenmore, and Crosley.
• Always verify compatibility with your appliance's model number before ordering.

When to Replace

• The refrigerator or freezer section is warm.
• Loud or unusual noises are coming from the freezer area.
• The fan blade is not spinning when the compressor is running.
• Excessive frost buildup on the evaporator coils.

Installation Tips

• Disconnect the appliance from its power source before beginning the repair.
• Access the motor by removing the panel at the back of the freezer interior.
• Remove shelves, ice maker, and other components as needed to reach the fan assembly.
• Transfer the fan blade from the old motor to the new one, ensuring it is securely attached.
