AZ00157547
[Lifetime Warranty] DC31-00054A Washer Drain Pump Motor Assembly - Compatible with Samsung Maytag Kenmore Washing Machines - Replaces AP4202690 DC31-00016A 1534541 PS4204638 62902090
Easy
More than 30 minutes
$23.76
$26.39
Save $2.63
In Stock
Fast delivery
Confirm the fit for your model
Find your model number and check it here to see if the part fits.
Description
Description

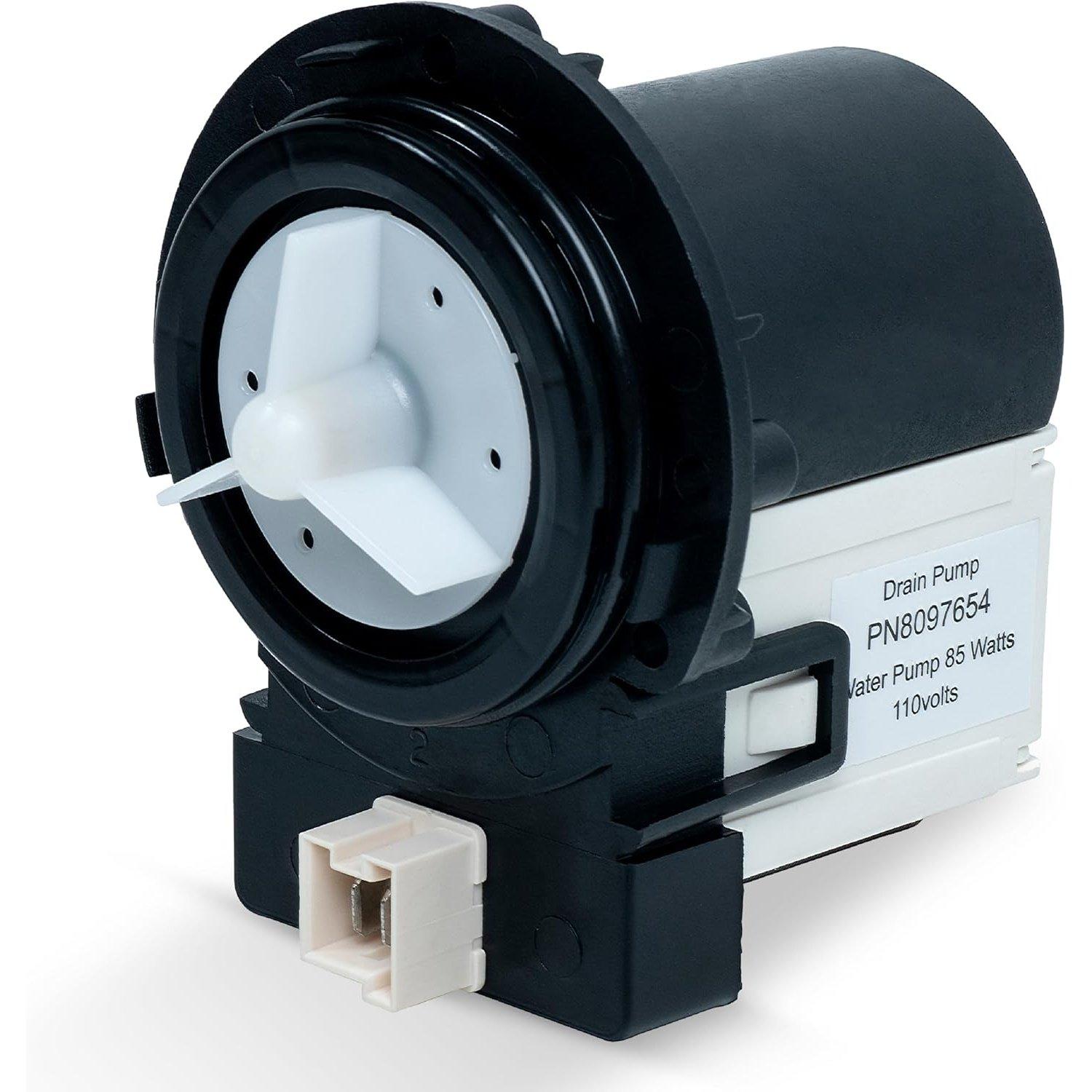

DC31-00054A Washer Drain Pump Motor Assembly
Upgrade your washing machine with the reliable and efficient DC31-00054A Washer Drain Pump Motor Assembly. Designed for easy installation and compatibility with top brands, this motor assembly is the perfect solution for your laundry needs.

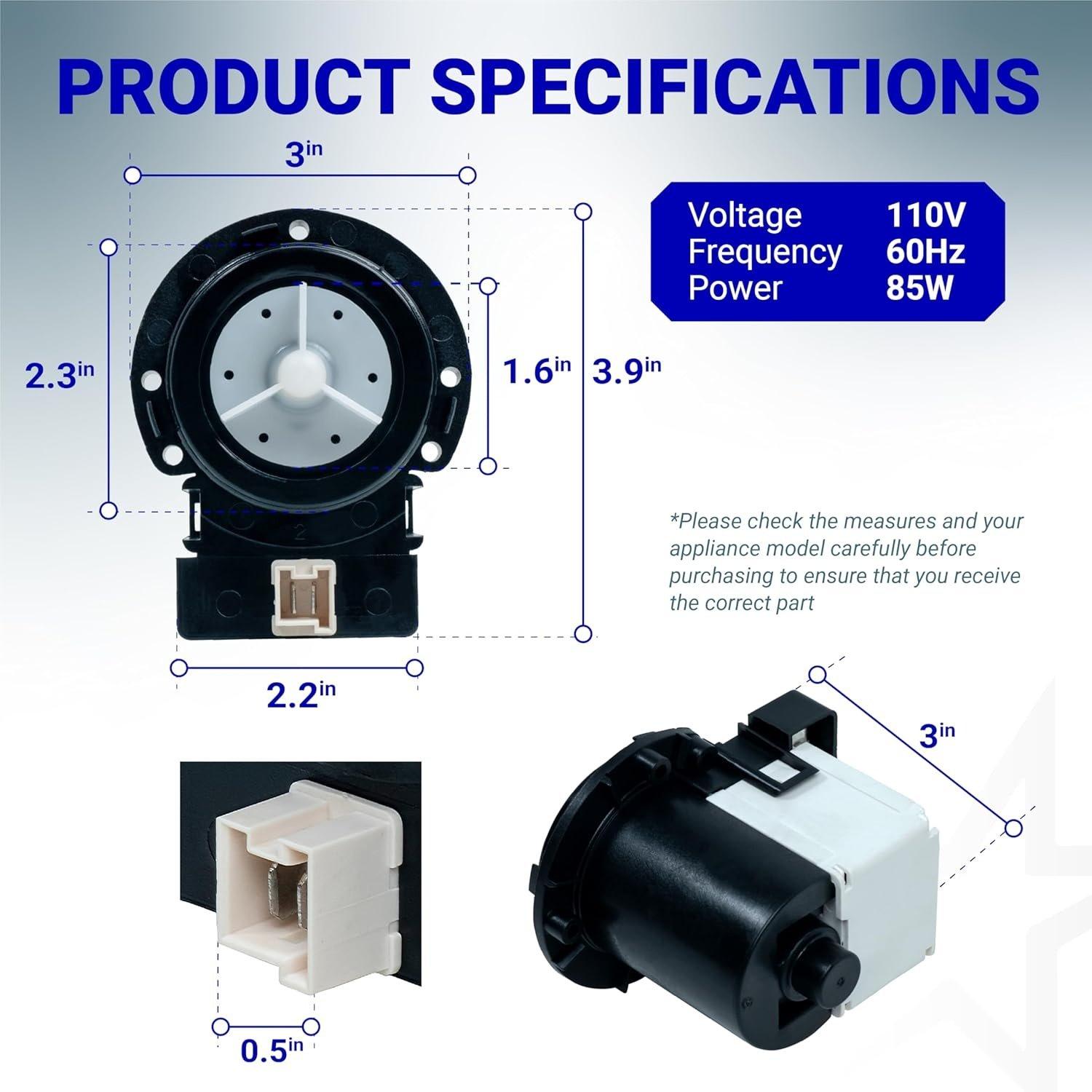

Product Specifications
- Model Number: DC31-00054A
- Frequency: 60Hz
- Power: 85W
- Voltage: 110V
Compatibility
This motor assembly is made to fit most top name brands, including:
- Samsung
- Maytag
- Kenmore
Compatible models include:
- WA5451ANW/XAA
- WF203ANS/XAX
- WF206ANS/XAA
- WF206ANS/XAC
- WF206BNW/XAC
- WF209ANW/XAA
- WF210ANW/XAA
- WF218ANB/XAA
- WF218ANW/XAA
- WF219ANB/XAA
- WF219ANW/XAA
- WF306BHW
- WF306BHW/XAA
- WF306LAW
- WF306LAW/XAA
- WF316BAC
- WF316BAC/XAA
- WF316BAW

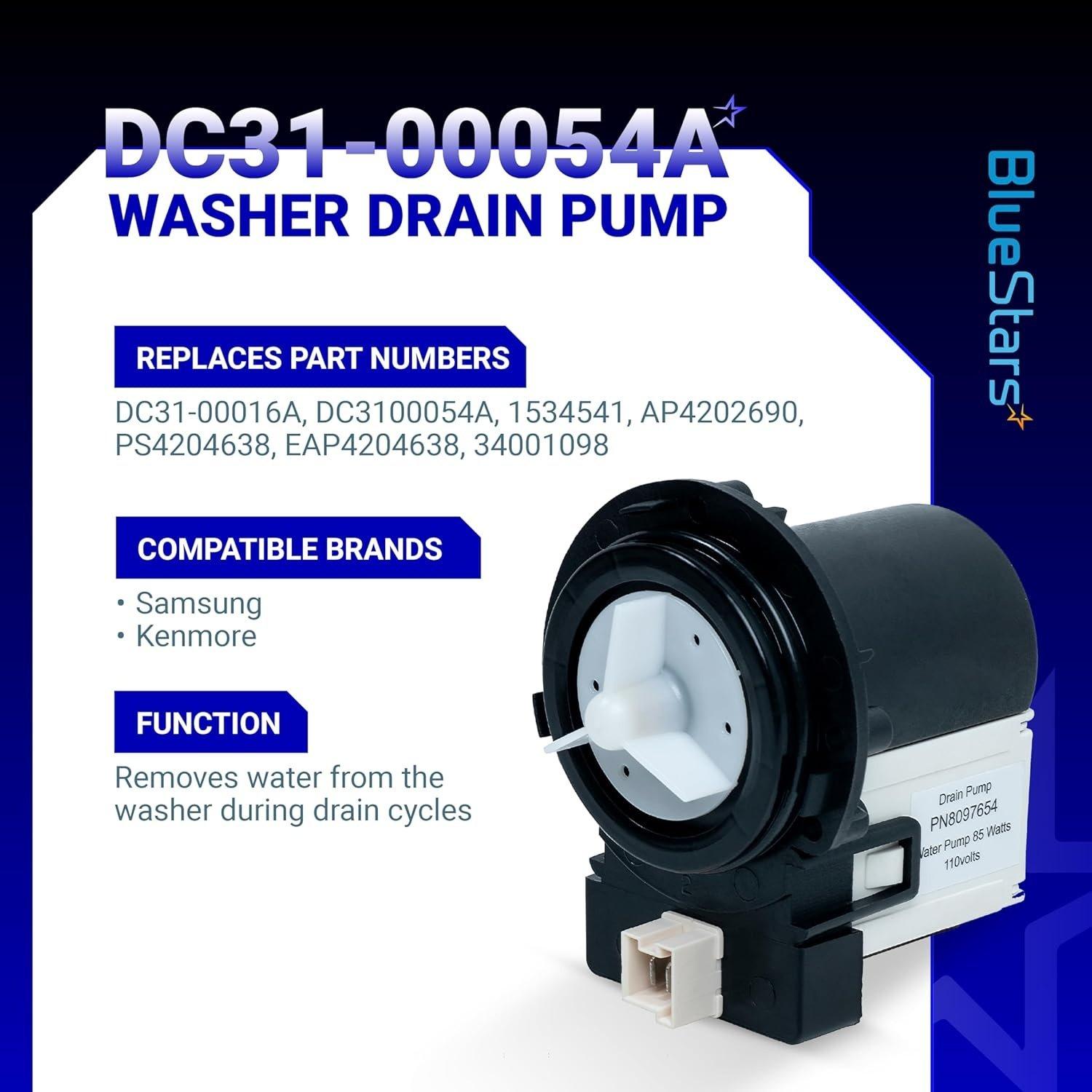

Replacement Part Numbers
This assembly replaces the following part numbers:
- DC31-00016A
- PS4204638
- AP420269
- 34001098
- B008KFDVUI
- 1534541
Benefits
- Cost-effective solution for washer repairs
- Easy installation process
- Helps save time and money on laundry maintenance

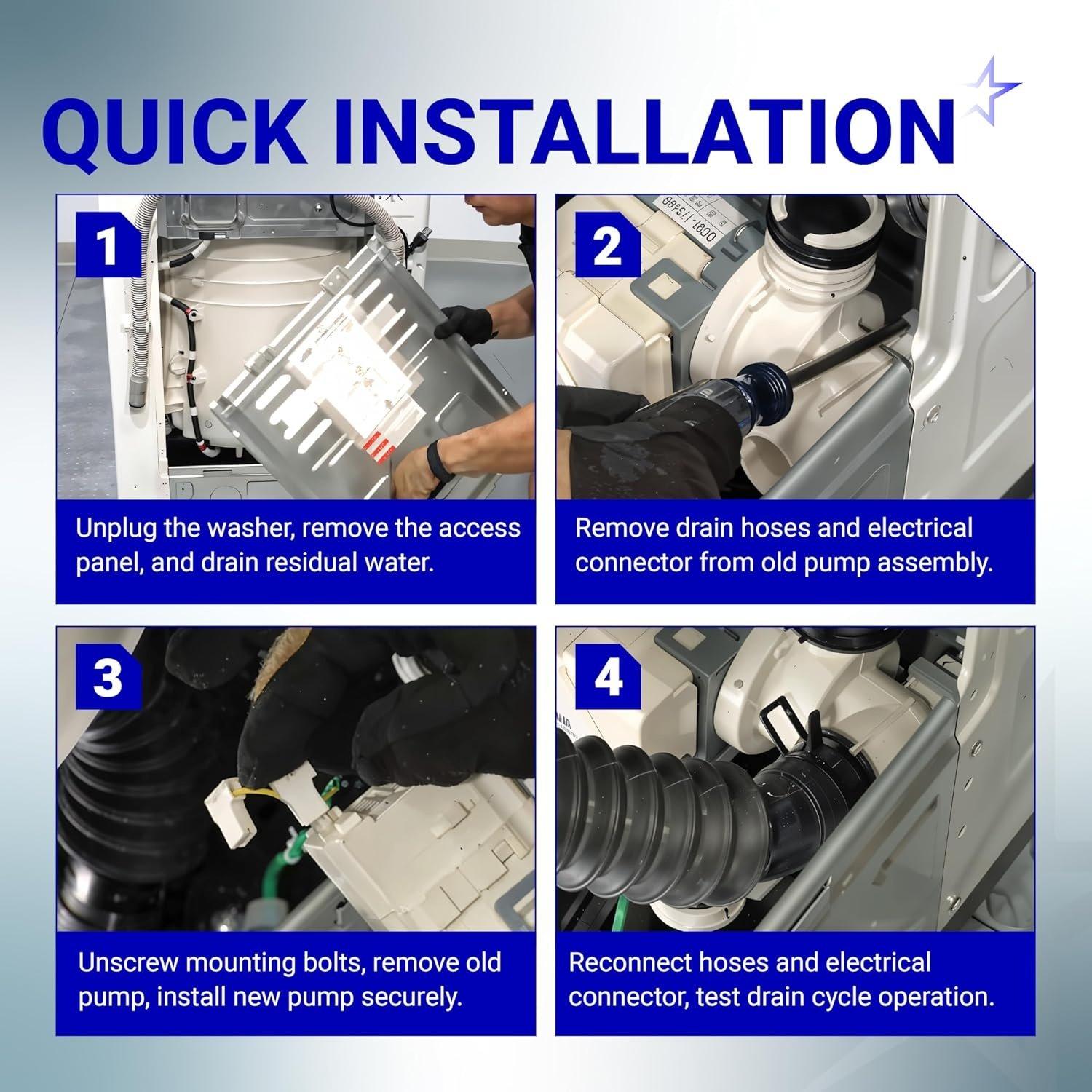

Installation Instructions
Before starting the repair, ensure to disconnect the water supply and power to your appliance. The pump motor is located at the rear
