AZ00160600

[Lifetime Warranty] RB-100 Carburetor Rebuild Kit with Primer Bulb

Difficulty Icon: Normal
Normal
More than 30 minutes

Out of Stock
This item is no longer available. Please contact our customer service for more information
puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

RB-100 Carburetor Rebuild Kit with Primer Bulb - Compatible with Zama C1Q-S serires STHIL HS45 FS55 FS38 BG45 MM55 & Mini Tiller 4137 EMU Trimmer

Key Features

  • Complete kit to overhaul and restore carburetor performance.

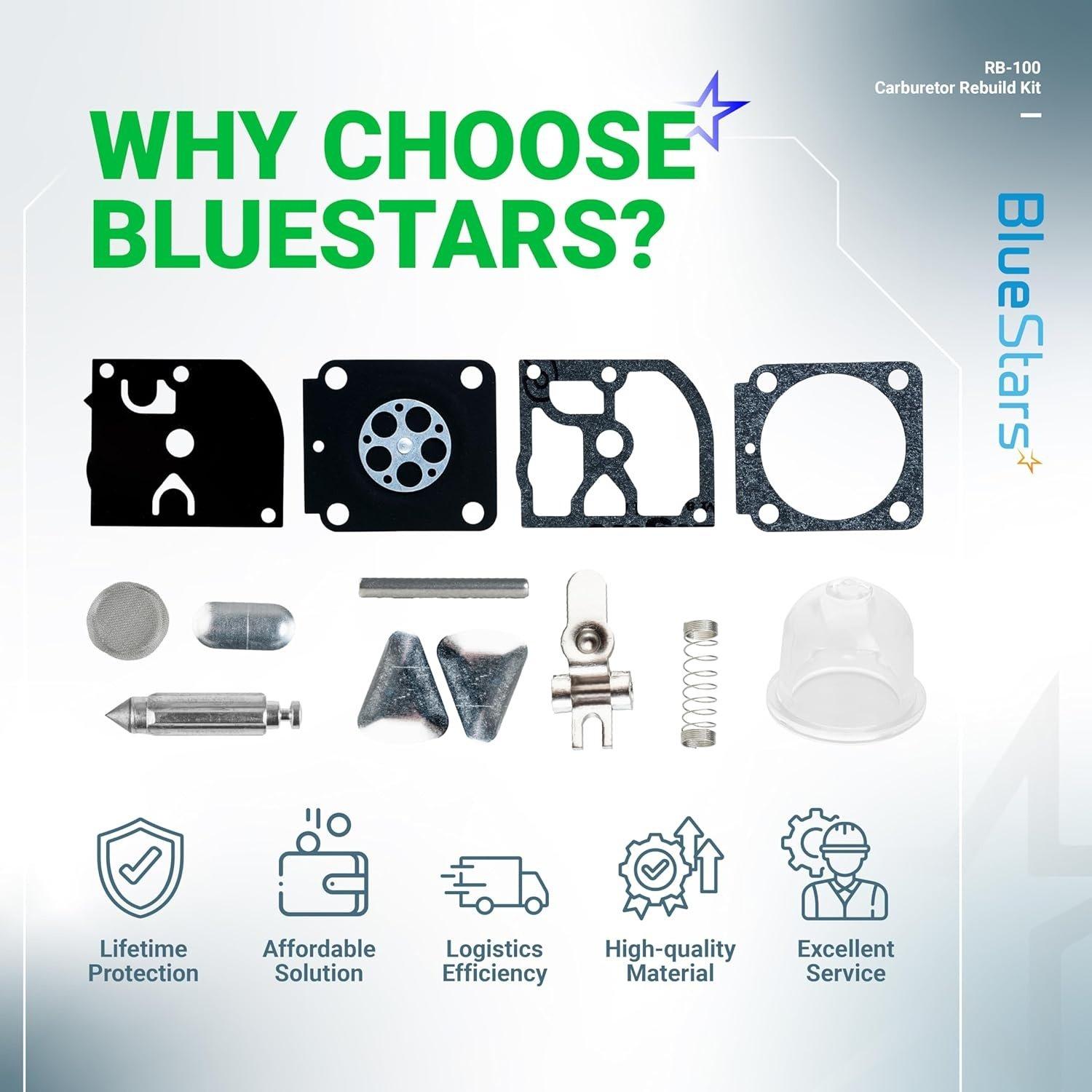

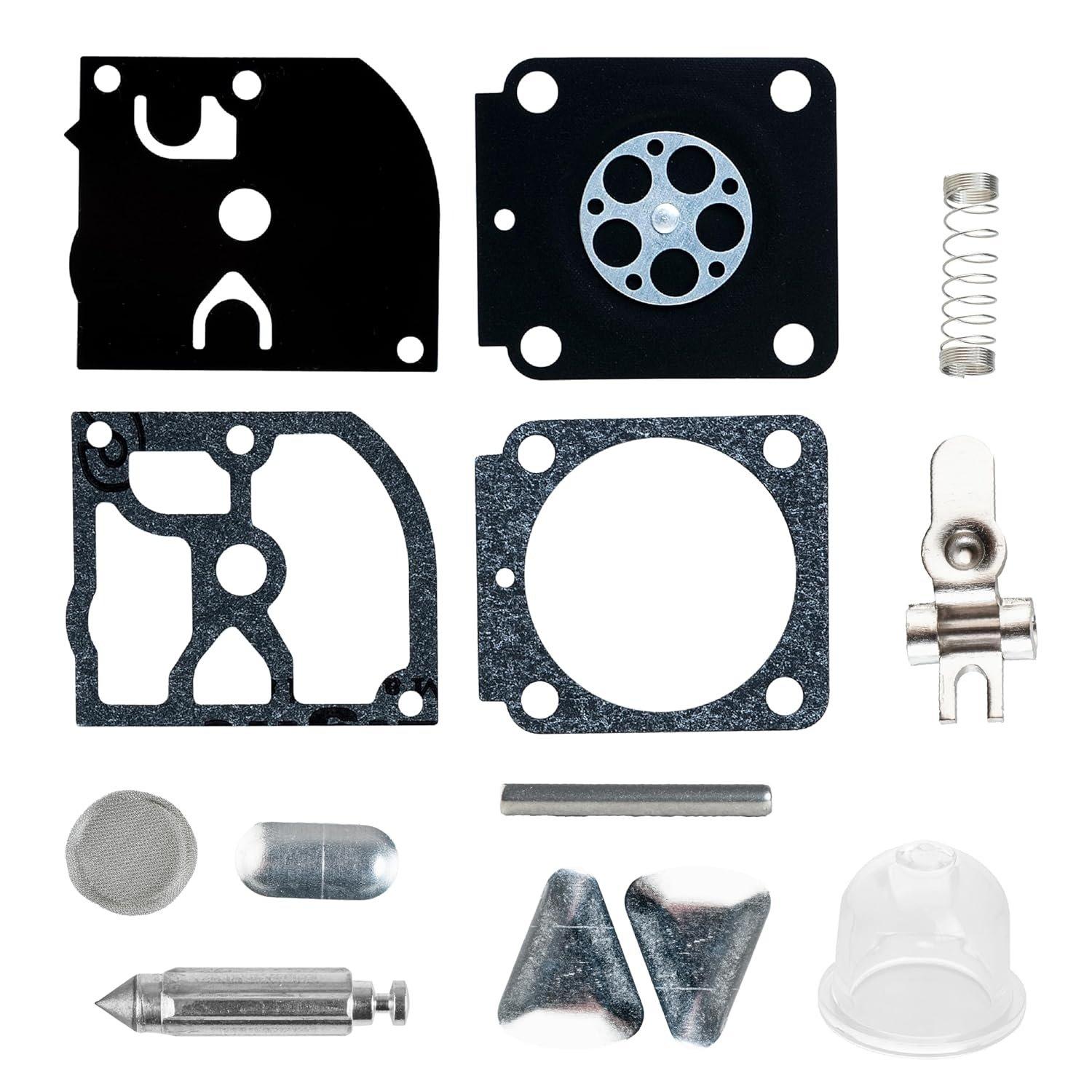

  • Includes precision-cut gaskets, diaphragms, metal components, and a primer bulb.
  • Restores proper fuel and air mixture for improved starting and running.
  • Direct replacement for original components.

Replaces / Cross-Reference Part Numbers

  • Zama: RB-100, RB-96

Compatibility & Fitment

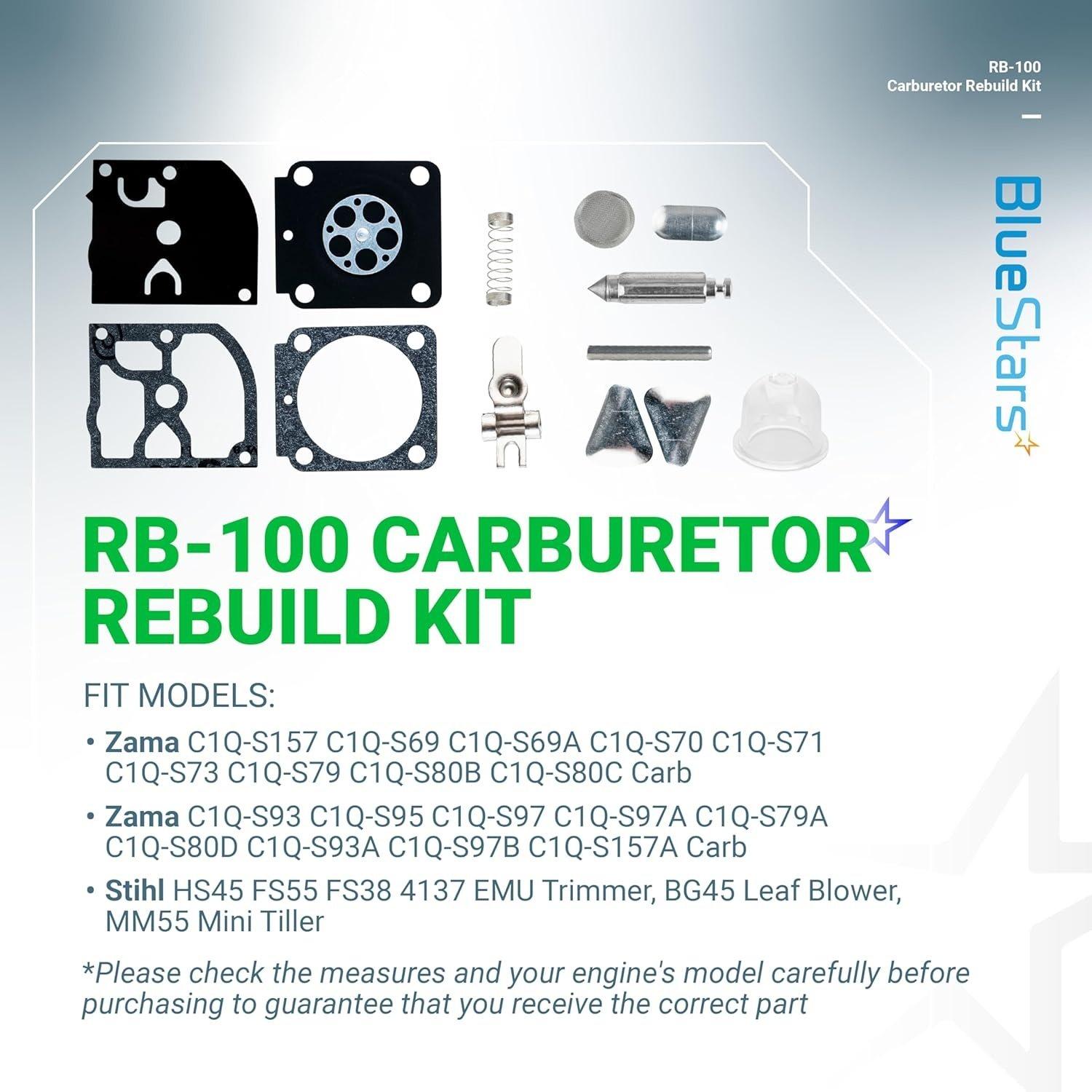

  • For Zama Carburetor Models:C1Q-S66C1Q-S71C1Q-S97, C1Q-S97AC1Q-S143C1Q-S153C1Q-S186
  • For STIHL Equipment Models:Trimmers/Brushcutters: FS38, FS55Hedge Trimmers: HS45Blowers: BG45, BG85Multi-Purpose Engines/Tillers: MM55Wood Augers: BT454137 Series Trimmers

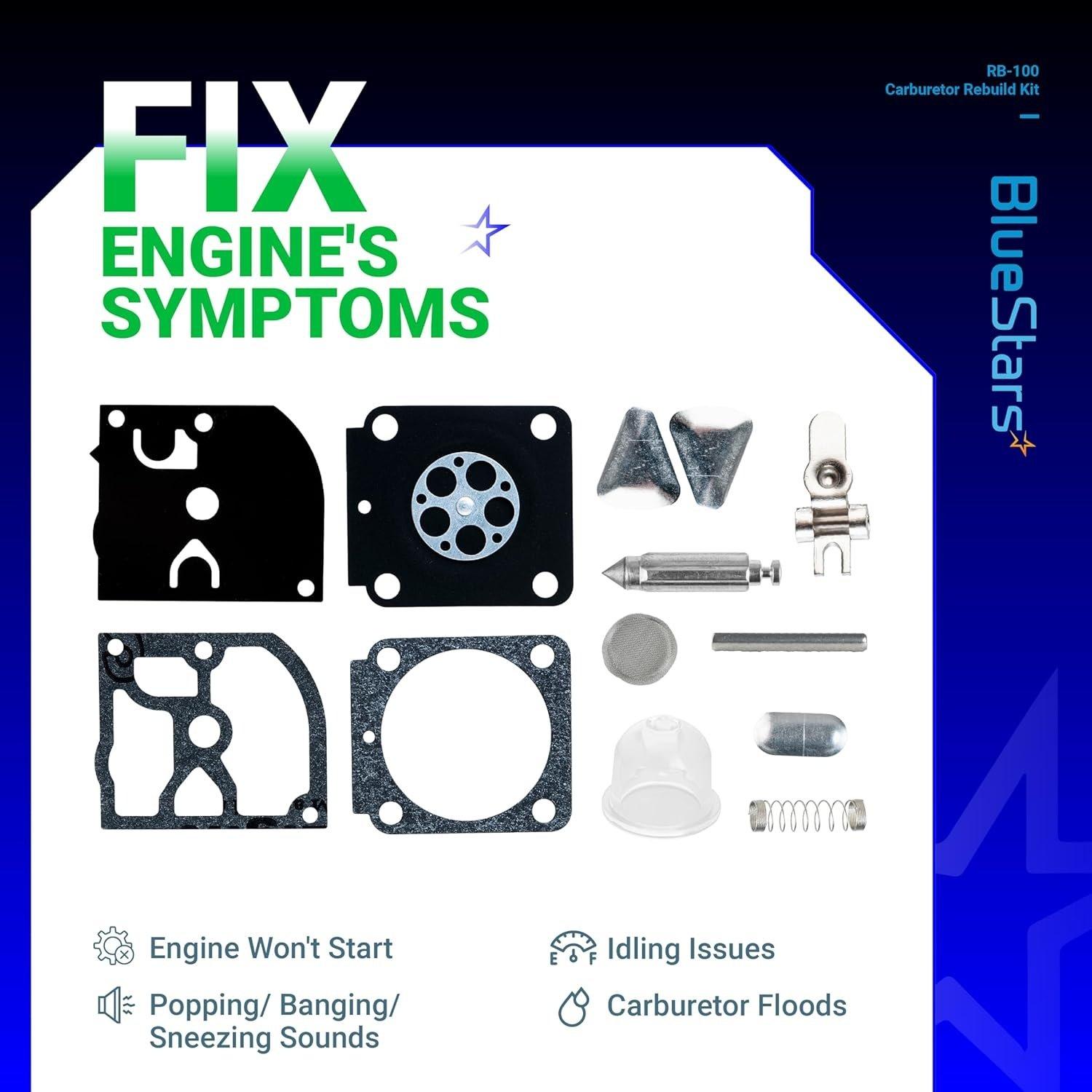

When to Replace

  • Engine fails to start or is difficult to start.
  • Engine stalls at idle or runs rough.
  • Fuel is leaking from the carburetor.
  • Noticeable loss of engine power.
  • Primer bulb is cracked, hazy, or no longer returns to shape.

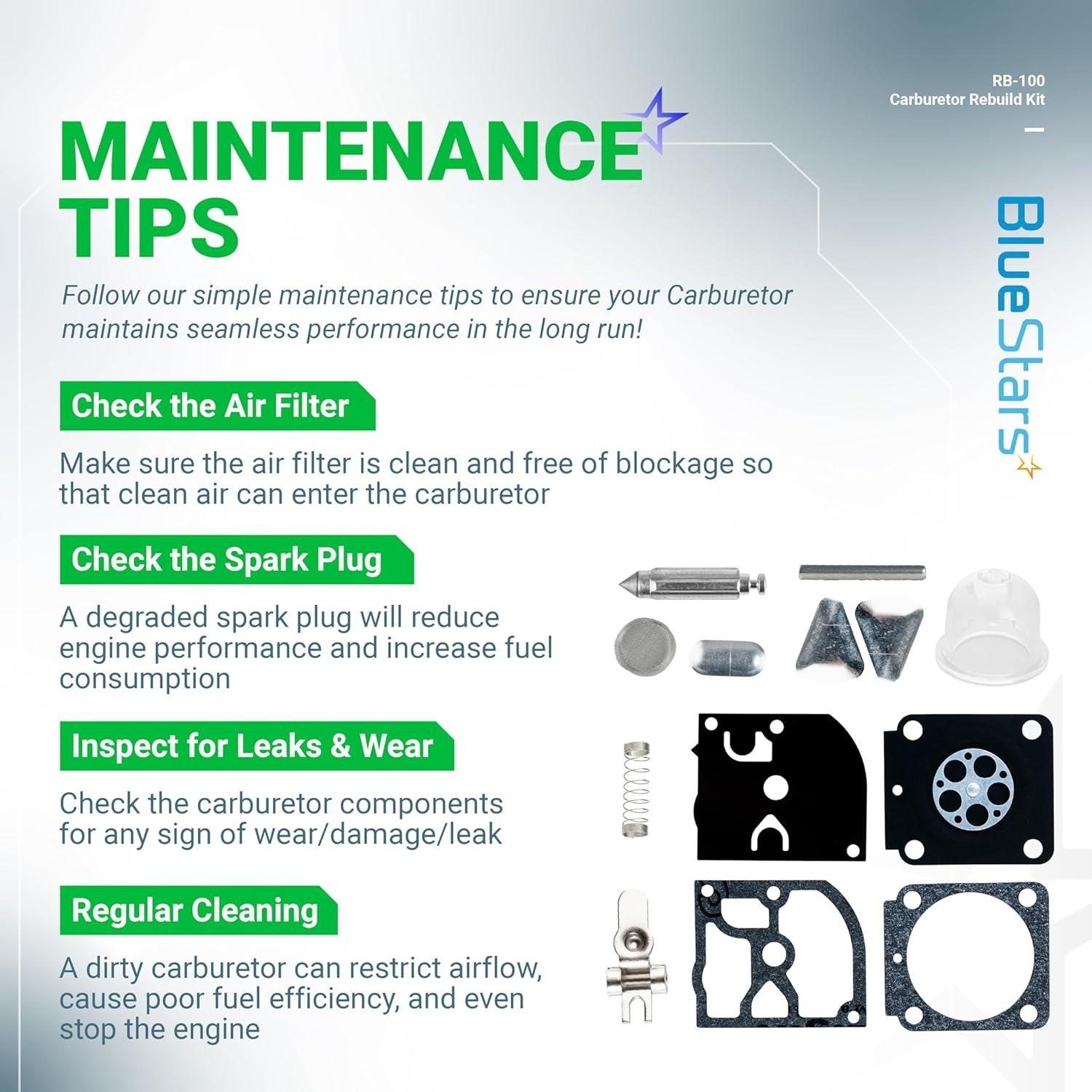

Installation Tips

  • Disassemble the carburetor in a clean, well-lit area.
  • Note the order and orientation of all gaskets and diaphragms as you remove them.
  • Thoroughly clean all metal parts and passages with a carburetor cleaner before installing new components.
  • Ensure gasket surfaces on the carburetor body are clean and free of old material.
  • Do not overtighten screws during reassembly to avoid warping components.
  • Consider replacing fuel lines and the fuel filter at the same time if they are aged or clogged.

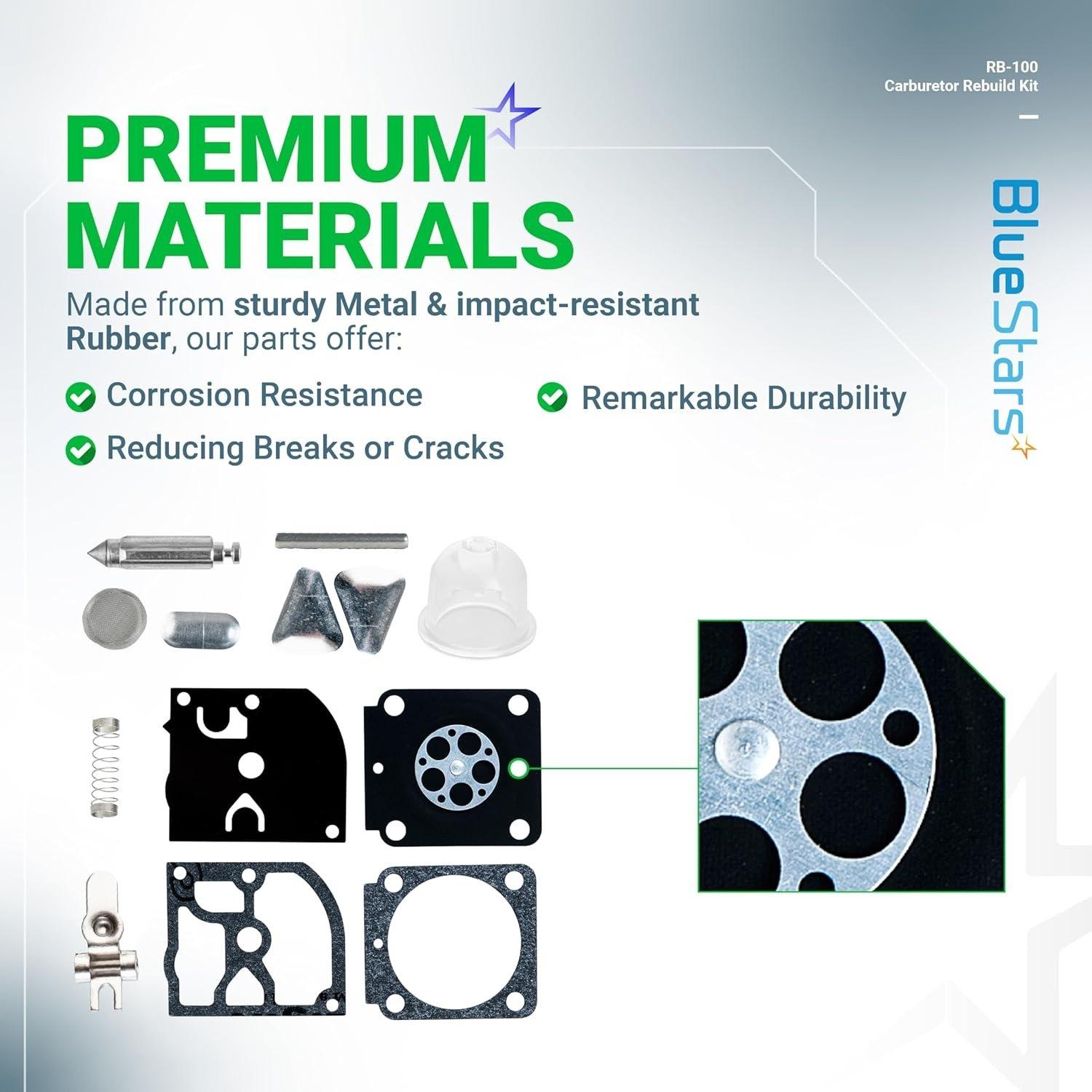

Material
Metal

Color
As Pictured

Shape
Round

Item Model Number
RB-100 Carburetor Rebuild Kit
