[Lifetime Warranty] 5300622034 Heating Element Restring Coil - For Frigidaire Kenmore Gibson Dryers FDE436RBS2 WDE846RBW0 AEQ6000 FEX831C DBL333EB1 DSXH43E 131475320 131475320 131505700 131553900

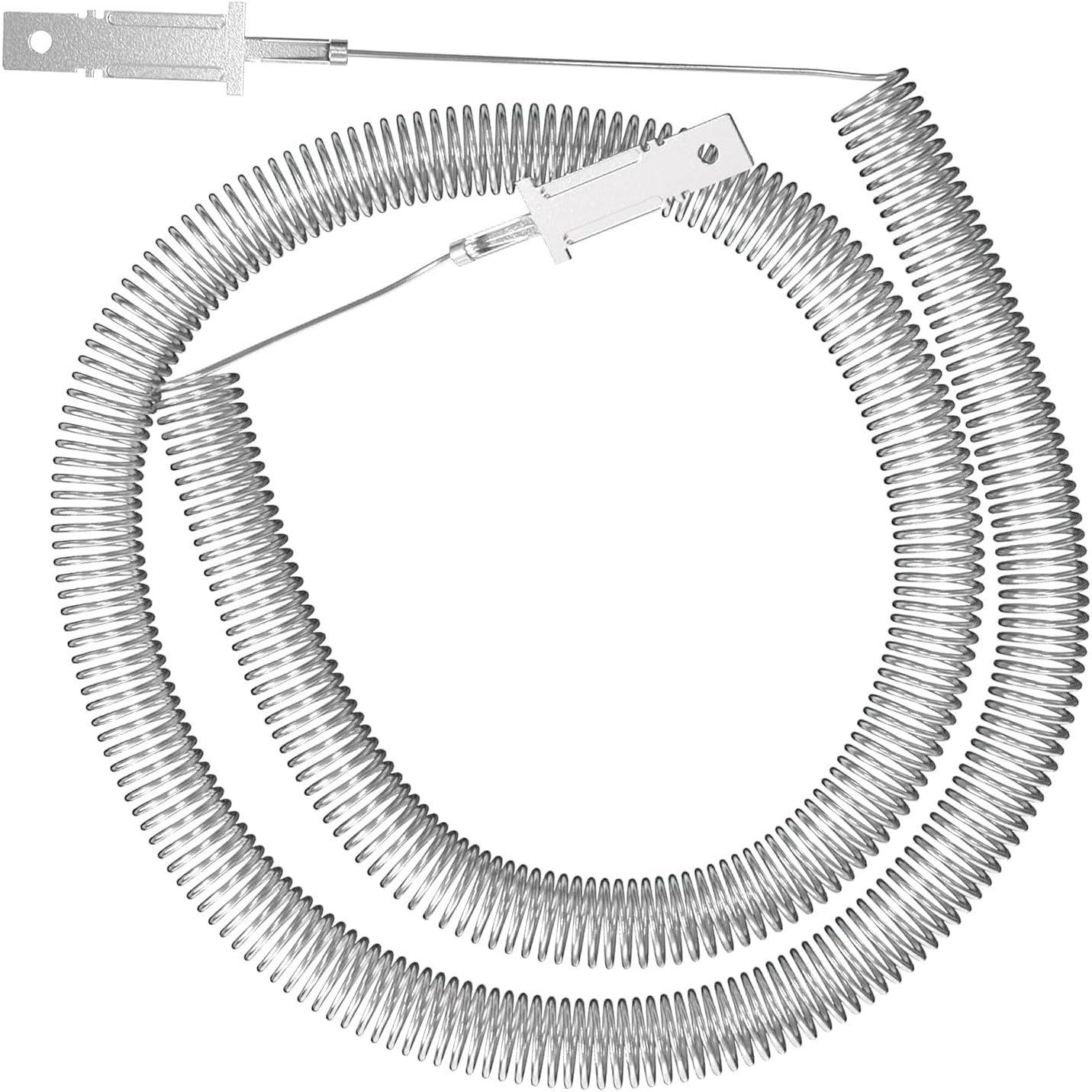

5300622034 Dryer Heating Element Restring Coil

Key Features

• Restring coil for electric dryer heating element assemblies
• Power Rating: 4600 Watts at 240 Volts

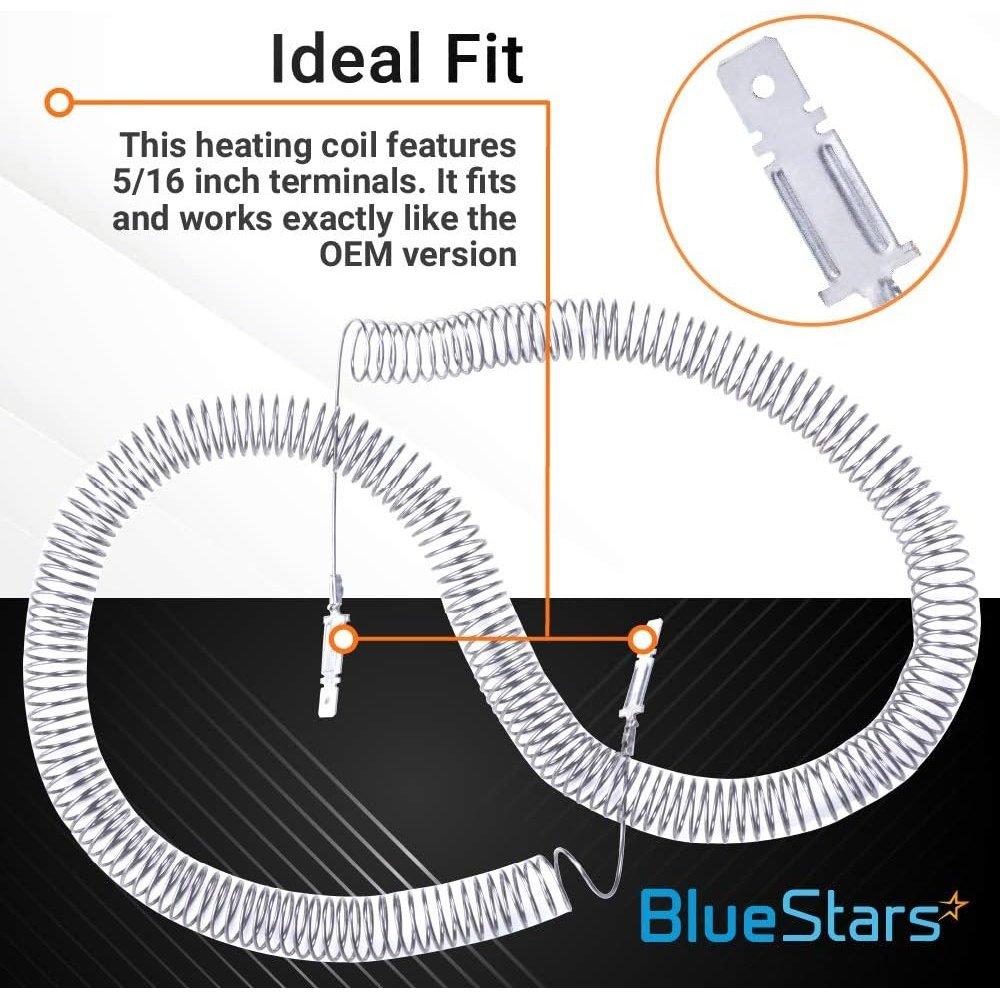

• Terminal Size: 5/16 inch male spade terminals

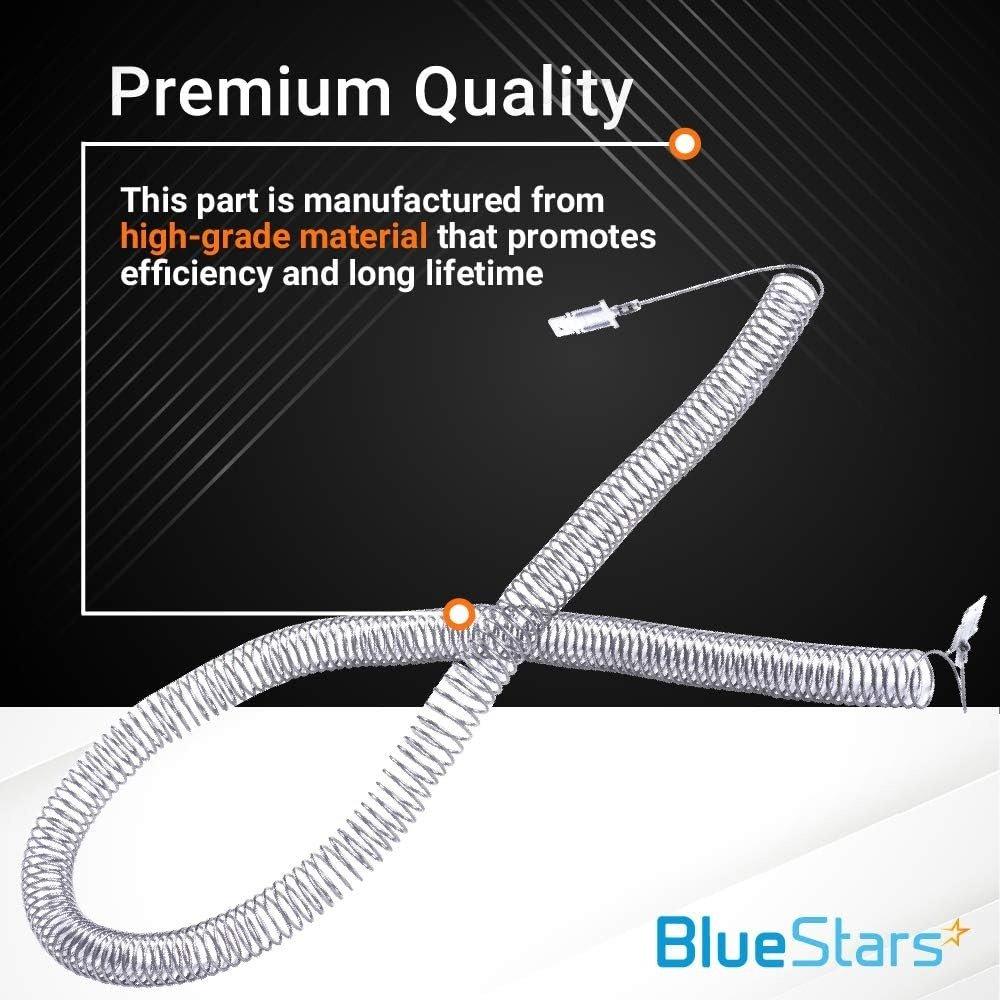

• Constructed from a durable metal alloy for consistent heat generation

Replaces / Cross-Reference Part Numbers

• 5300622034
• AP2135128
• PS451032

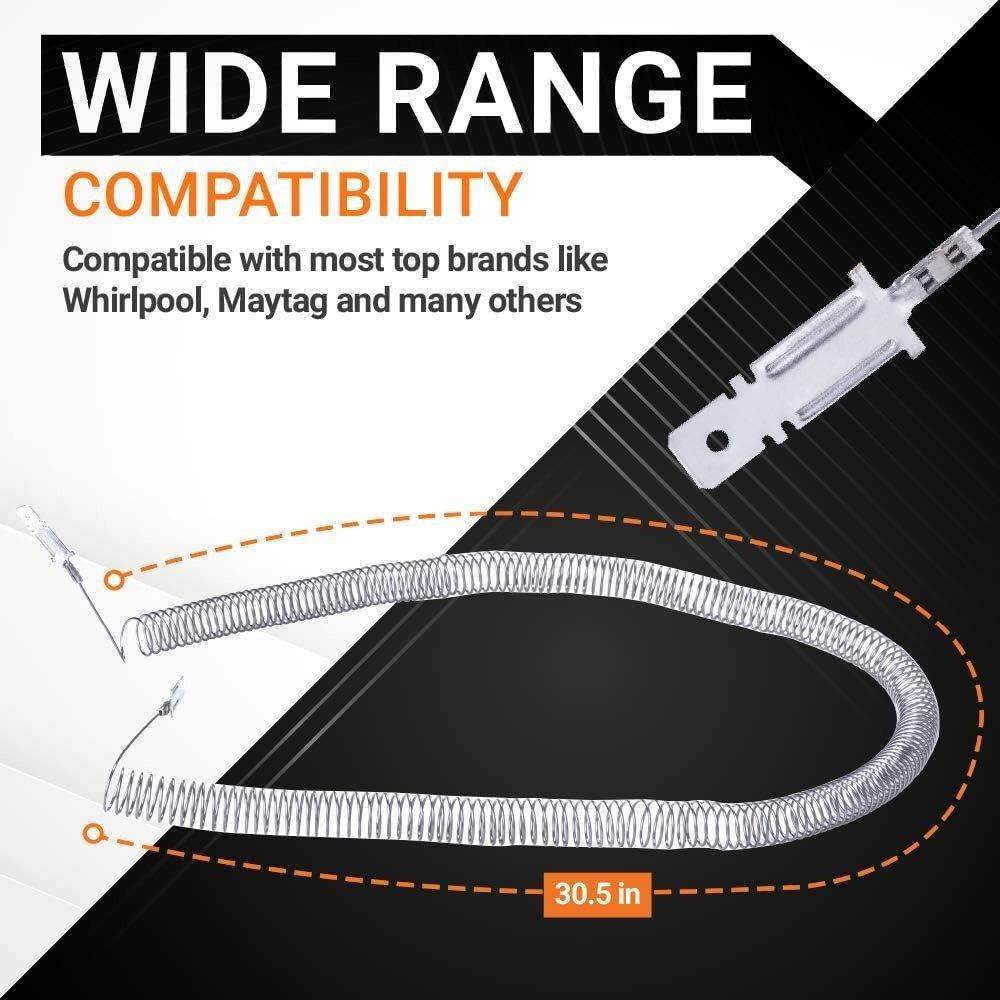

Compatibility & Fitment

• Fits various electric dryer models, including those from Frigidaire, Kenmore, and General Electric (GE)
• Designed for use in specific dryers manufactured from 1996 to the present
• Confirm your original part number and terminal size before ordering

When to Replace

• Dryer drum tumbles, but no heat is produced
• Drying cycles are excessively long
• Clothes remain damp after a complete cycle
• Visible breaks or burn spots on the existing heating coil

Installation Tips

• Disconnect the dryer from the electrical outlet before beginning installation
• Wear gloves to prevent skin oils from contaminating the new coil, which can cause premature failure
• Carefully thread the new coil onto the ceramic insulators, ensuring it does not touch the metal housing or overlap itself
• Ensure all electrical connections are tight and secure
• Test the new coil for continuity with a multimeter before reassembling the dryer
