[Lifetime Warranty] 6602-001655 Dryer Drum Belt - Compatible with Samsung Kenmore Dryers - Replaces 5ph2337 6602-001314 PS413382 AP4373659 DV42H5200EP/A3 DV40J3000EW/A2 DV45H7000EW/A2

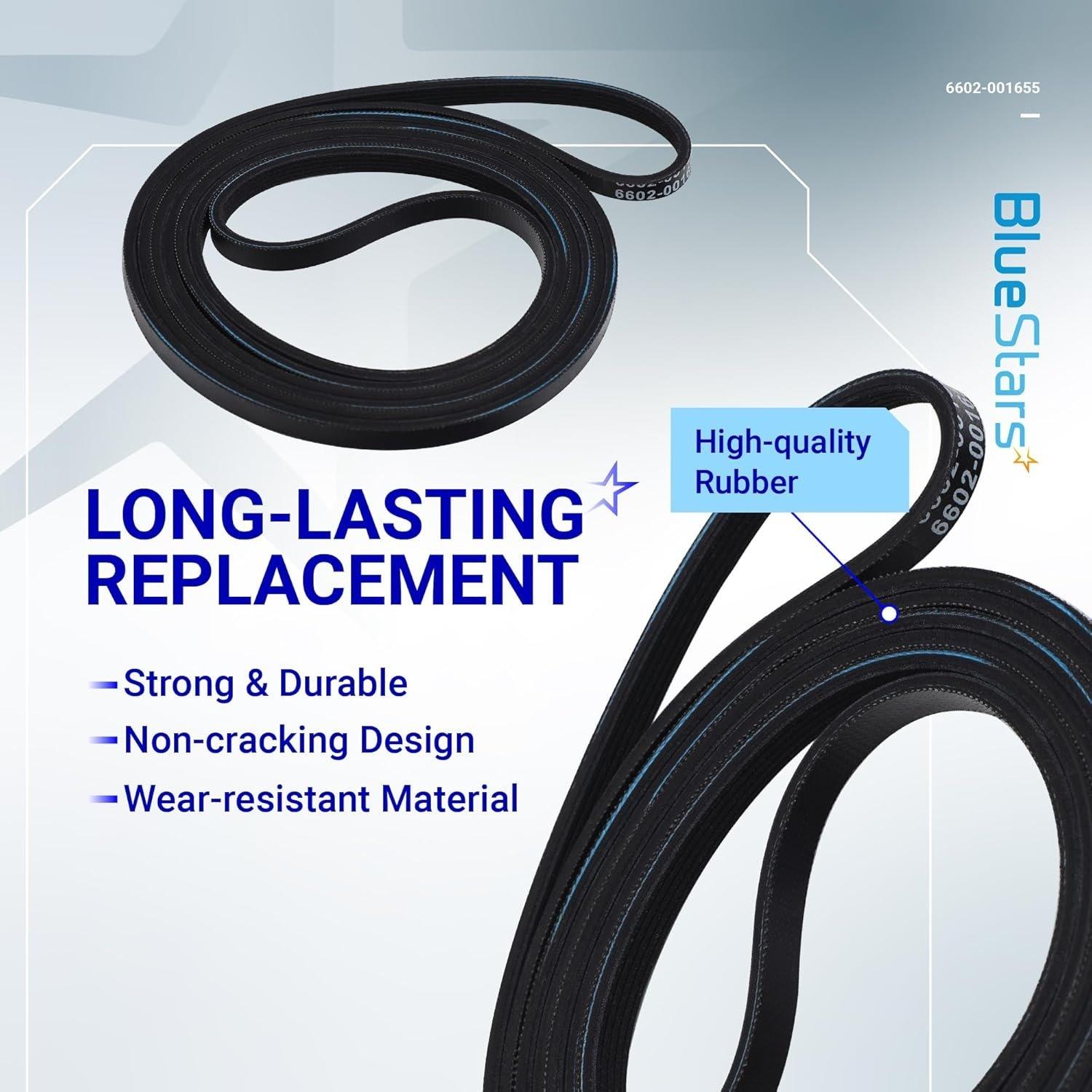

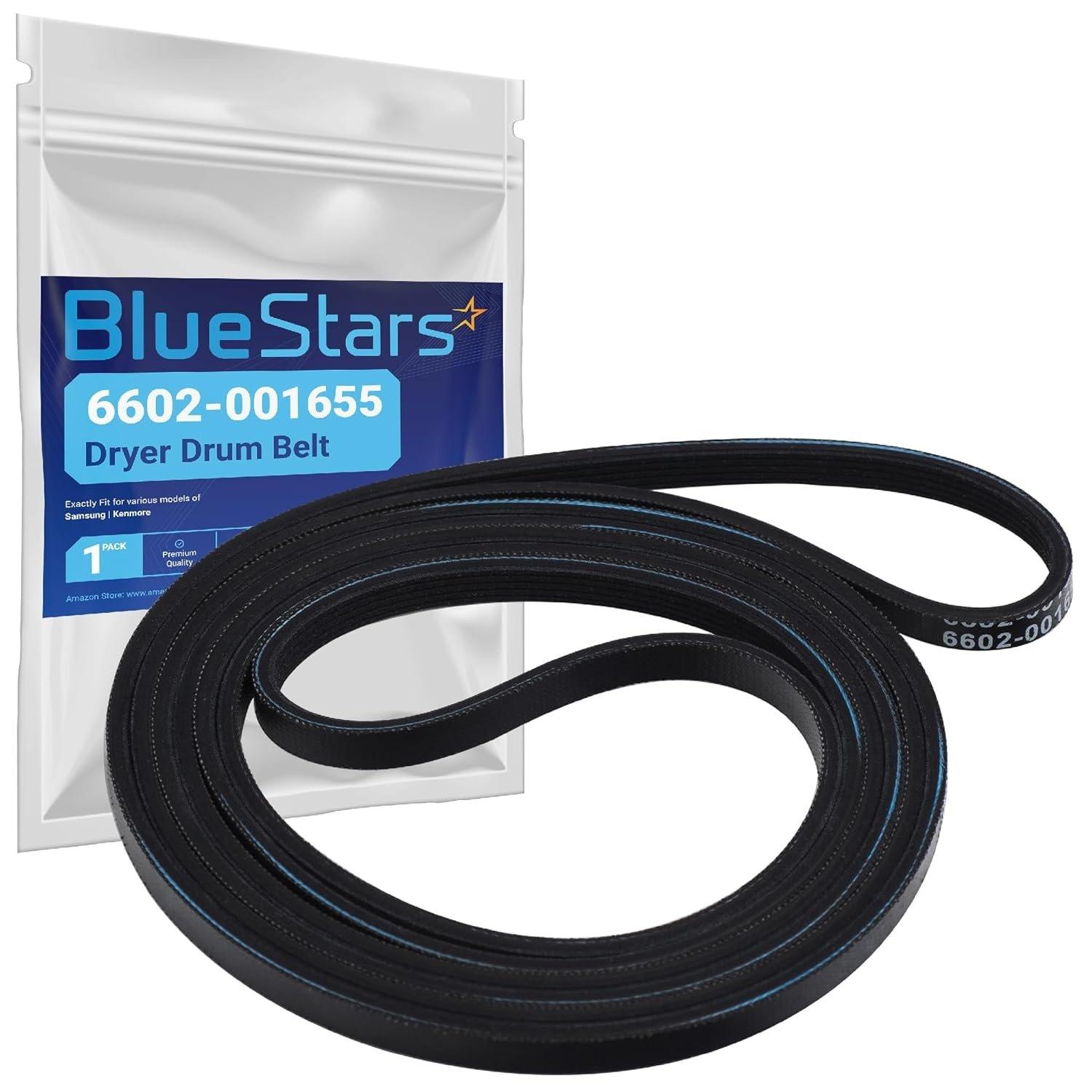

6602-001655 Dryer Drum Belt

Key Features

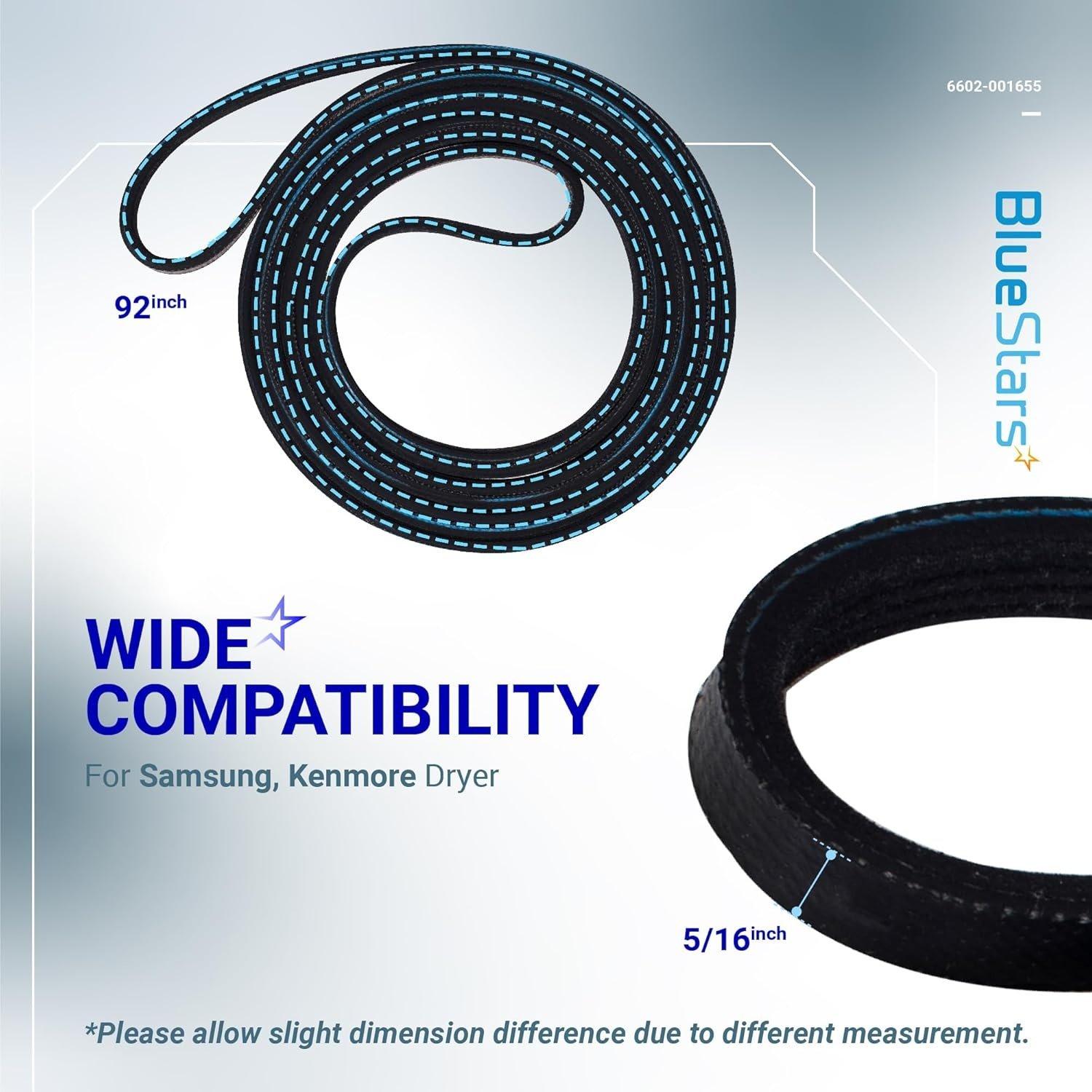

• Dimensions: 92 inches (Length) x 5/16 inches (Width)

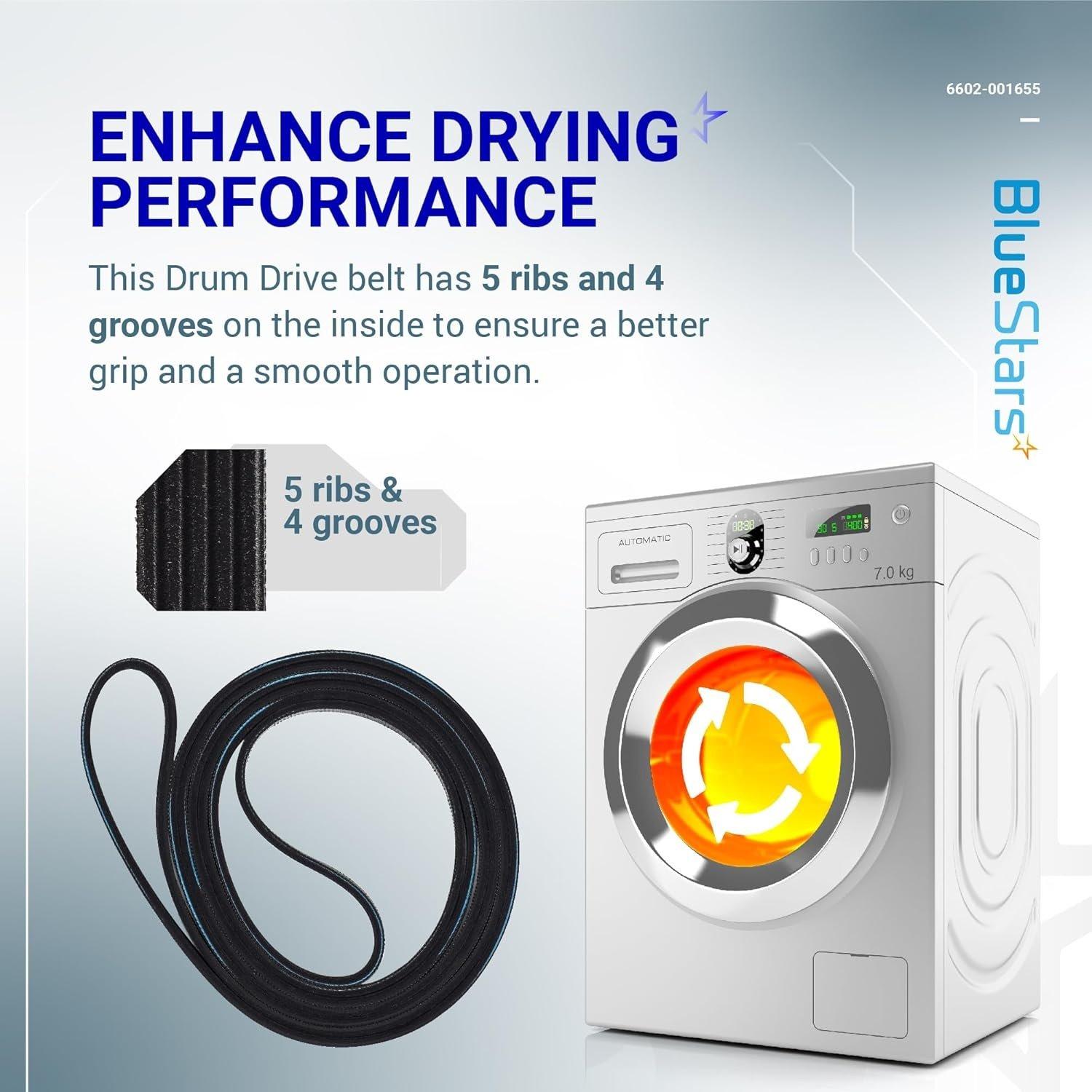

• Construction: 5 ribs and 4 grooves
• Function: Connects the drive motor to the dryer drum, enabling it to tumble

Replaces / Cross-Reference Part Numbers

• 6602-001655
• AP4373659
• PS4133825
• Q-D0014

Compatibility & Fitment

• Designed for specific Samsung manufactured dryer models
• May fit select models from other brands
• Verify compatibility with your appliance's model number before ordering

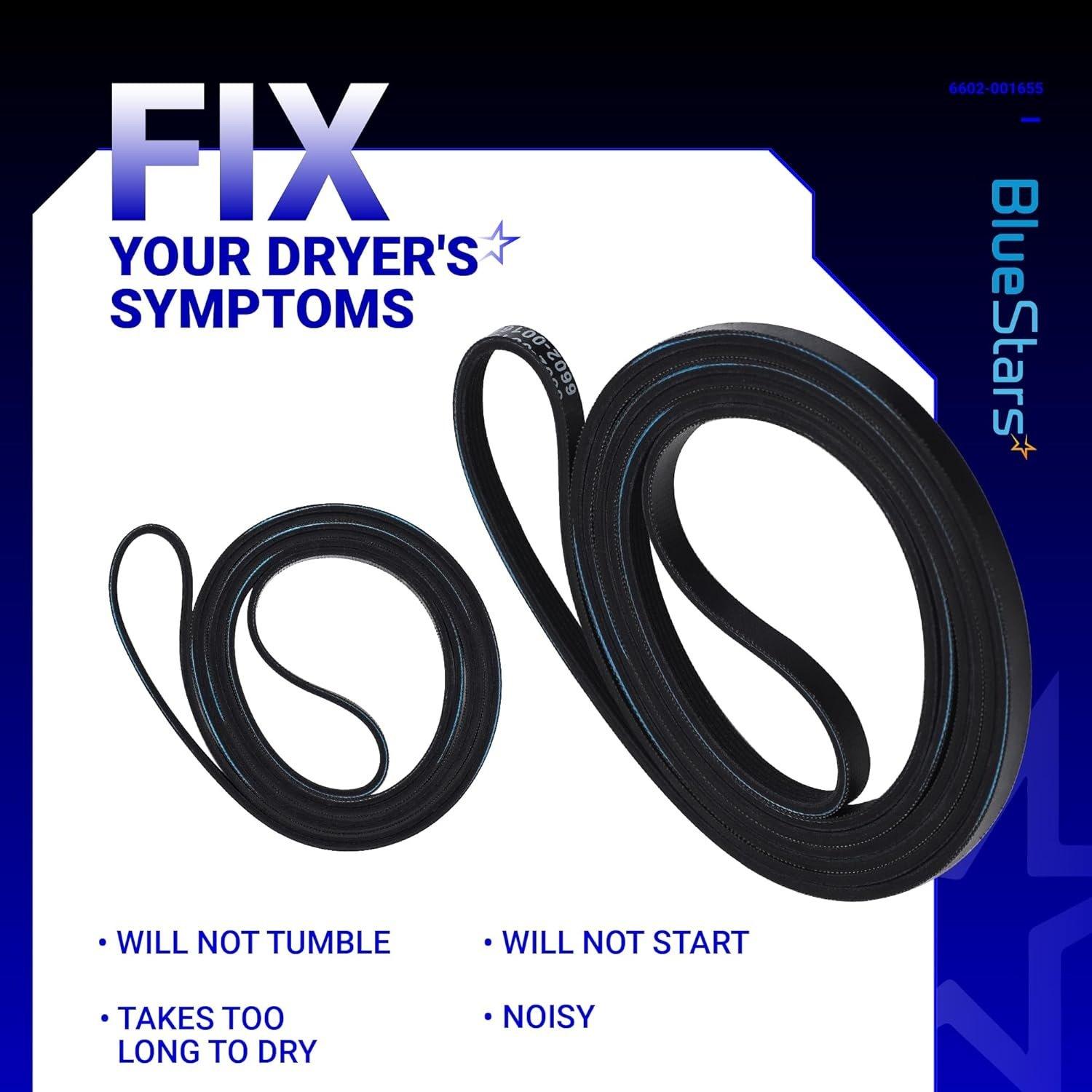

When to Replace

• Dryer drum does not turn, but the motor can be heard running
• Loud thumping or squealing noises during the cycle
• Visible signs of fraying, cracking, or breakage on the existing belt

Installation Tips

• Disconnect the dryer from its power source before beginning repair
• Ensure the ribbed side of the belt makes contact with the drum and motor pulley
• Note the routing of the old belt around the idler pulley and drum before removal
• Inspect drum support rollers and the idler pulley for wear and replace if necessary
