[Lifetime Warranty] 3977456 WP3977456 Dryer Start Switch for Kenmore, Whirlpool, Maytag, Amana Dryers - Replaces AP6009036, PS11742178, EAP11742178, 898073

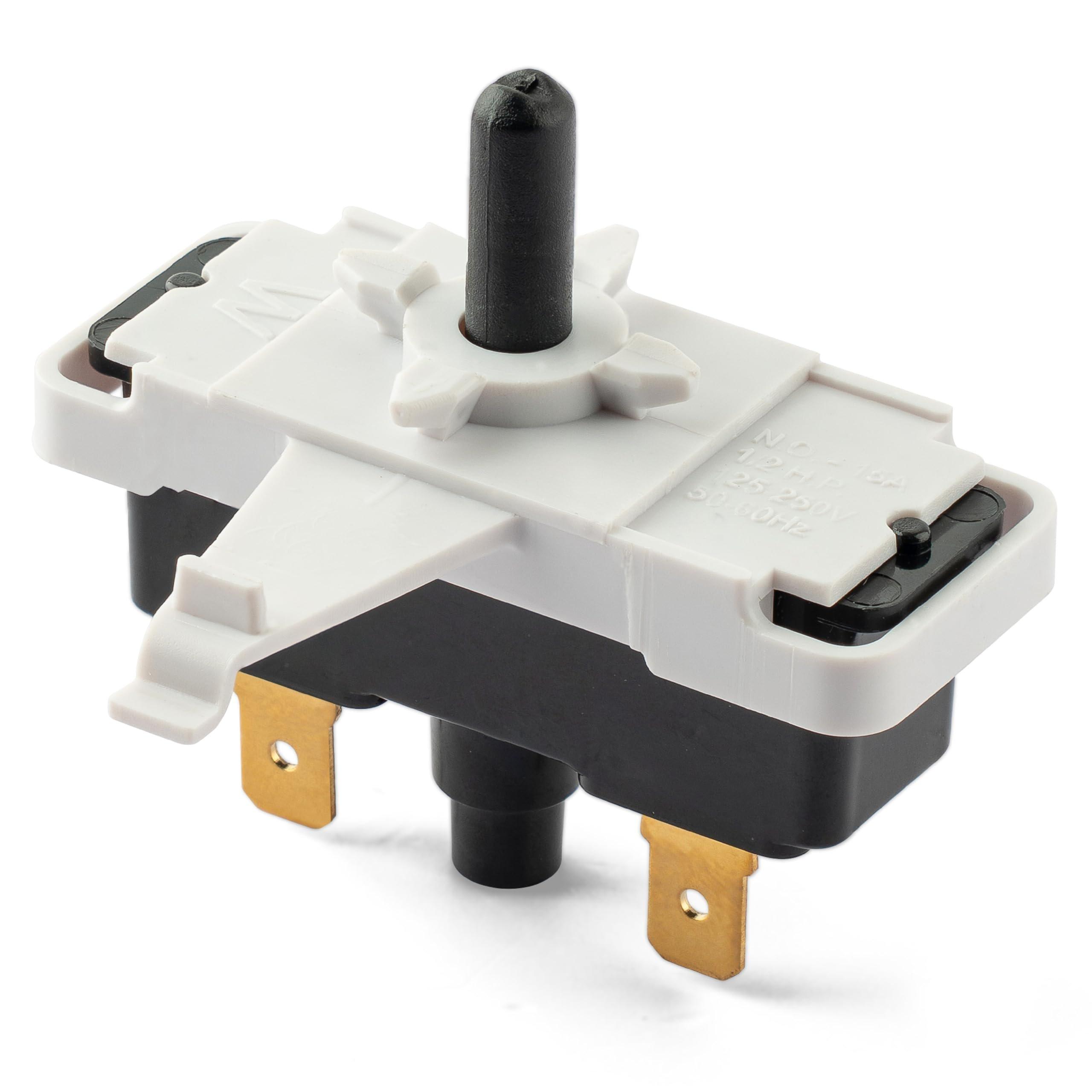

3977456 WP3977456 Dryer Start Switch

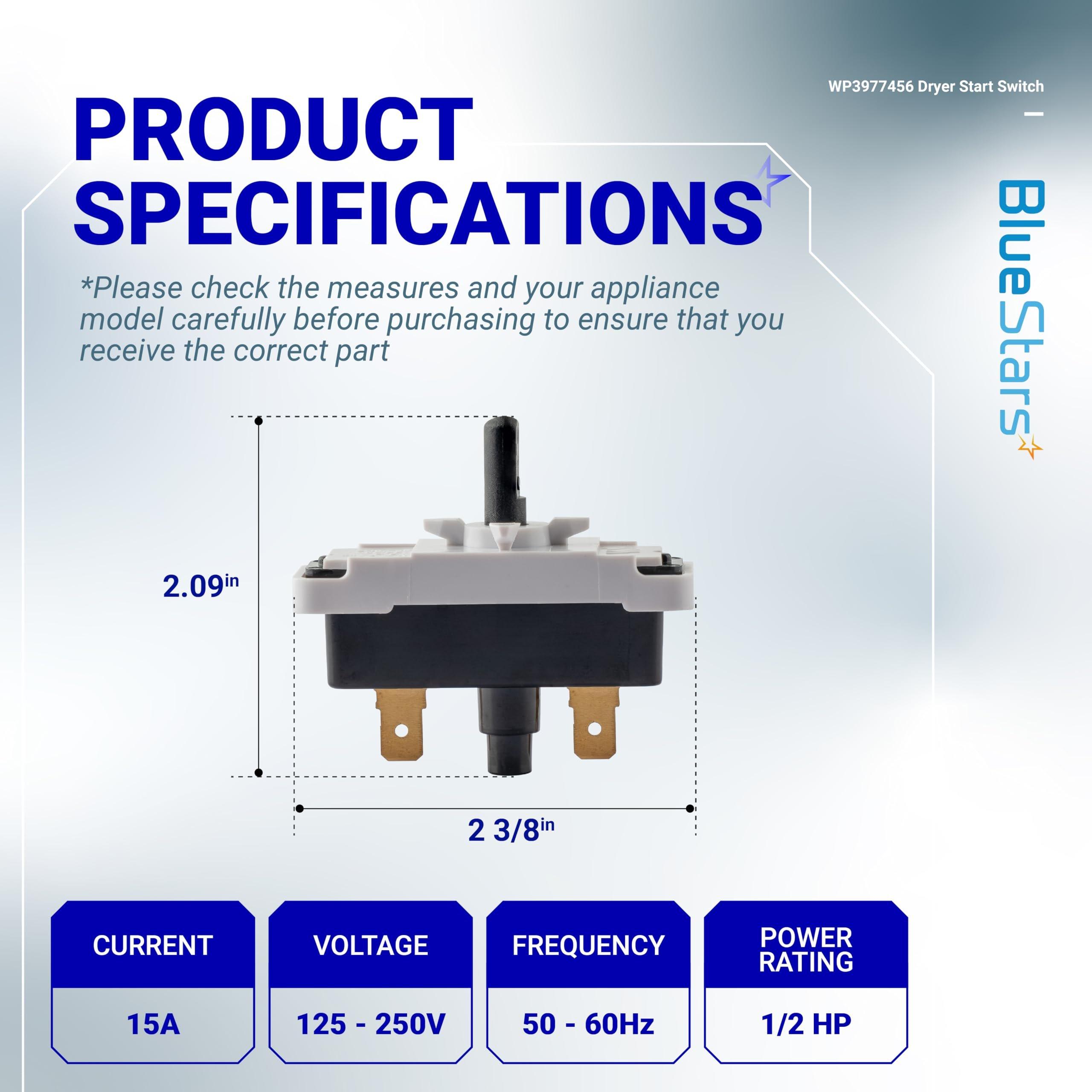

Key Features

• Operation Mode: Manual, push-to-start
• Function: Initiates the dryer's start-up sequence
• Contact Type: Normally Open
• Terminals: 2
• Connector Type: Screw
• Color: White
• Dimensions: 1 inch

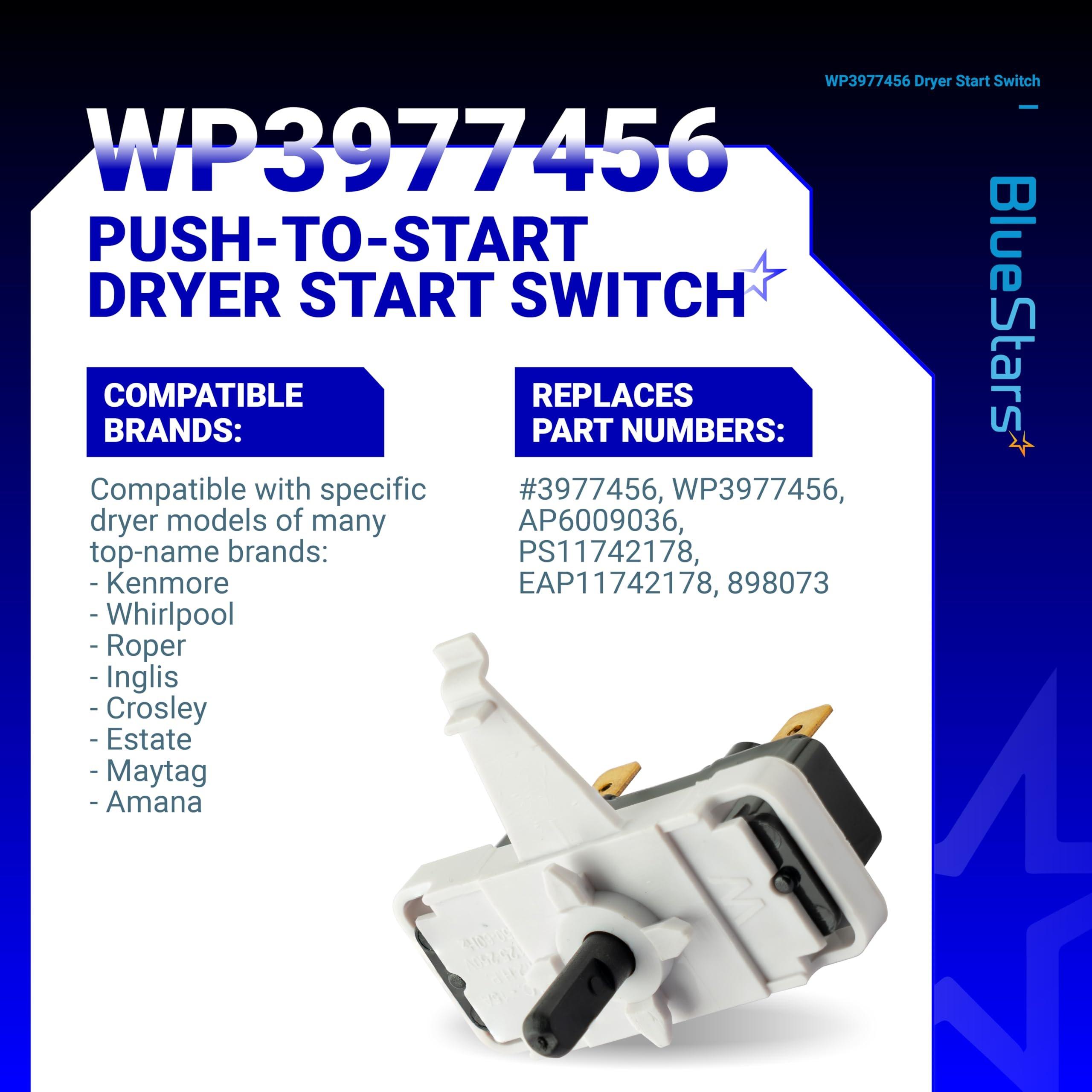

Replaces / Cross-Reference Part Numbers

• 3977456
• WP3977456

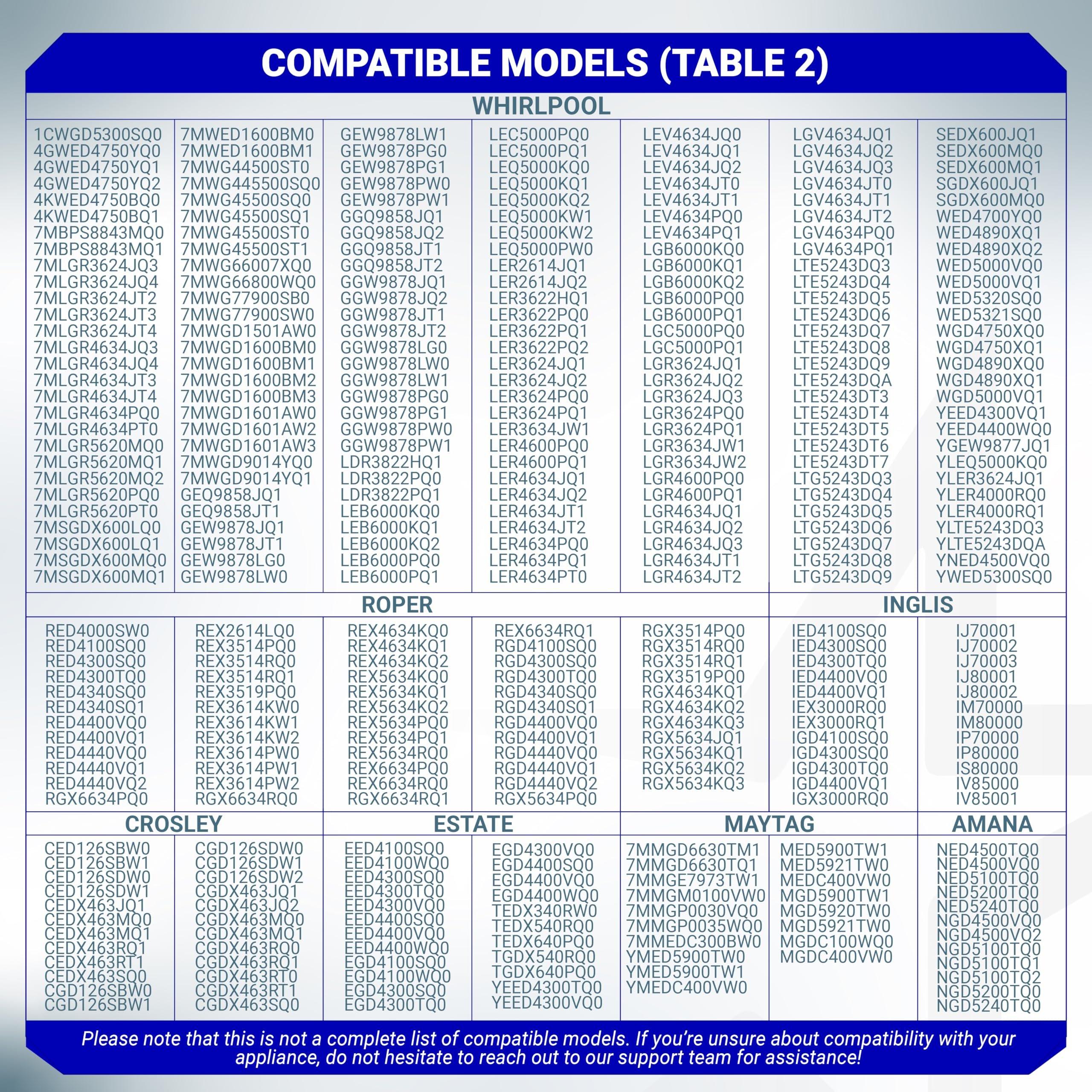

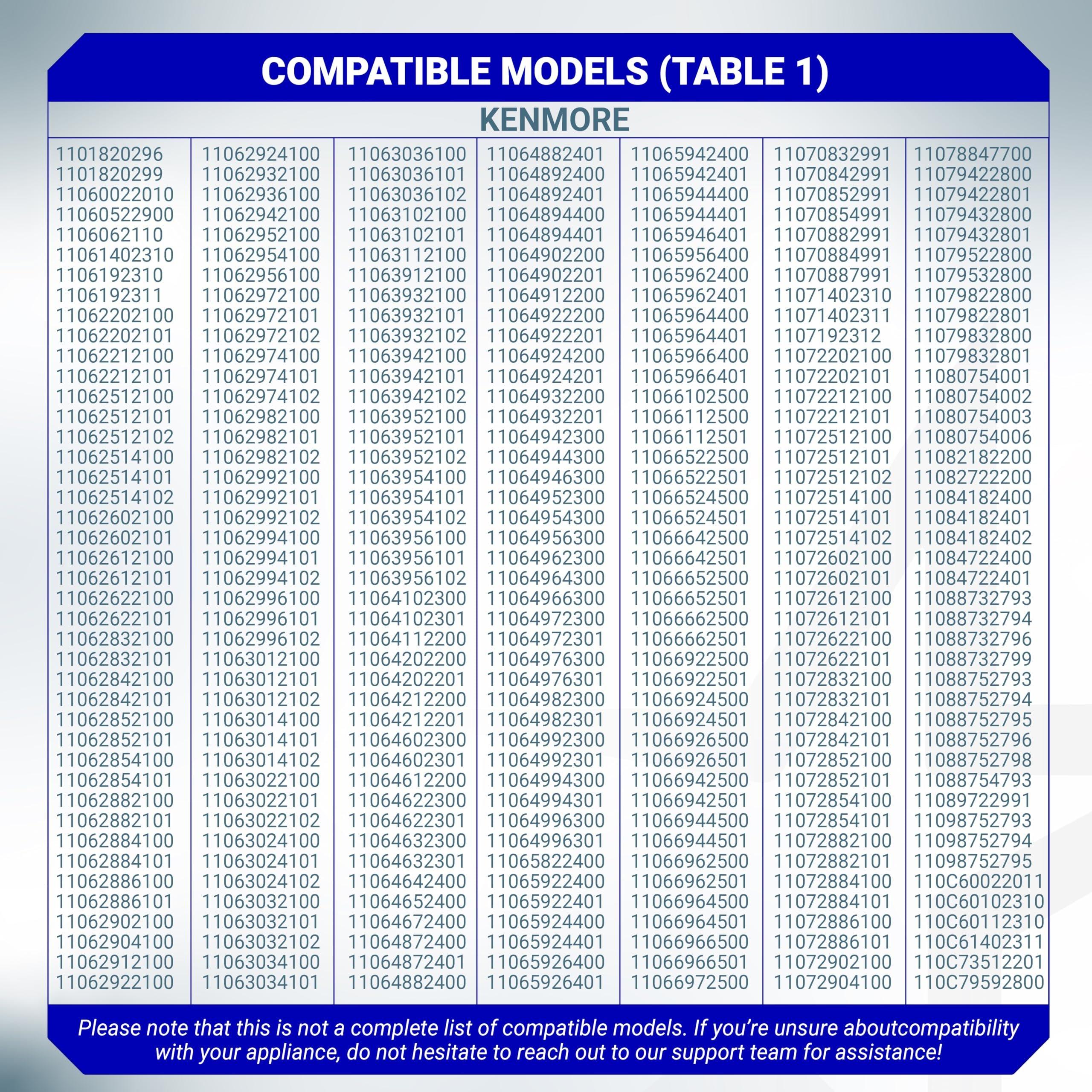

Compatibility & Fitment

• Amana
• Estate
• Kenmore
• KitchenAid
• Maytag
• Roper
• Whirlpool

When to Replace

• Dryer does not start when the button is pressed.
• The start button is physically broken, stuck, or does not spring back.
• An audible click is heard from the switch, but the motor does not engage.
• The dryer starts intermittently when the button is pushed multiple times.

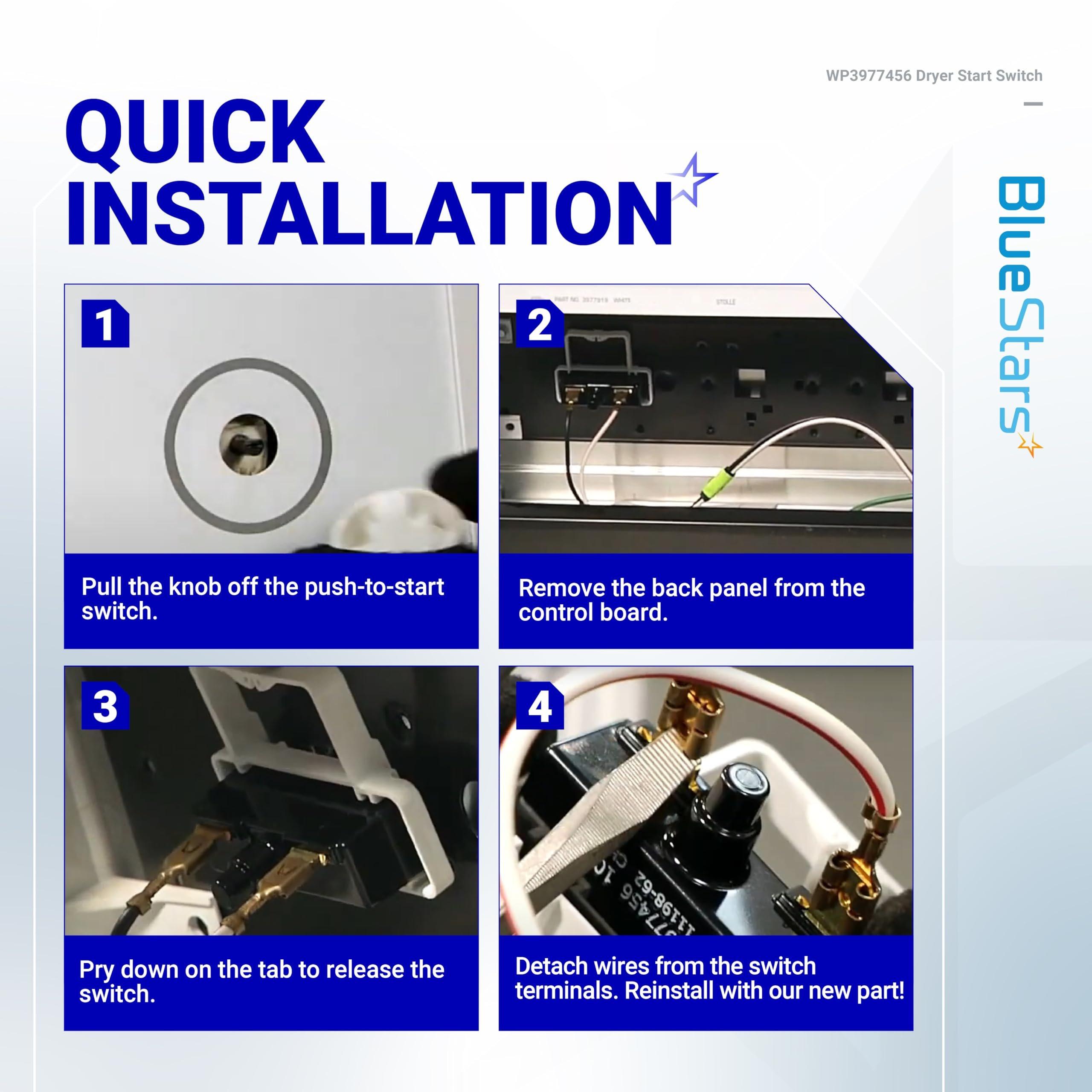

Installation Tips

• Disconnect the dryer from its power source and gas supply before beginning the installation.
• The start switch is typically located on the control panel.
• Access may require removing the top or front panels of the appliance.
• Document or label the wire connections before removing the old switch.
• Use a compatible screwdriver to loosen and tighten the terminal screws.
• Ensure the new switch is securely seated in the control panel before reassembling the dryer.
