[Lifetime Warranty] 320 PCS 20-Value Aluminum Electrolytic Capacitor Kit with 320PCS

320 PCS 20-Value Aluminum Electrolytic Capacitor Kit with 320PCS

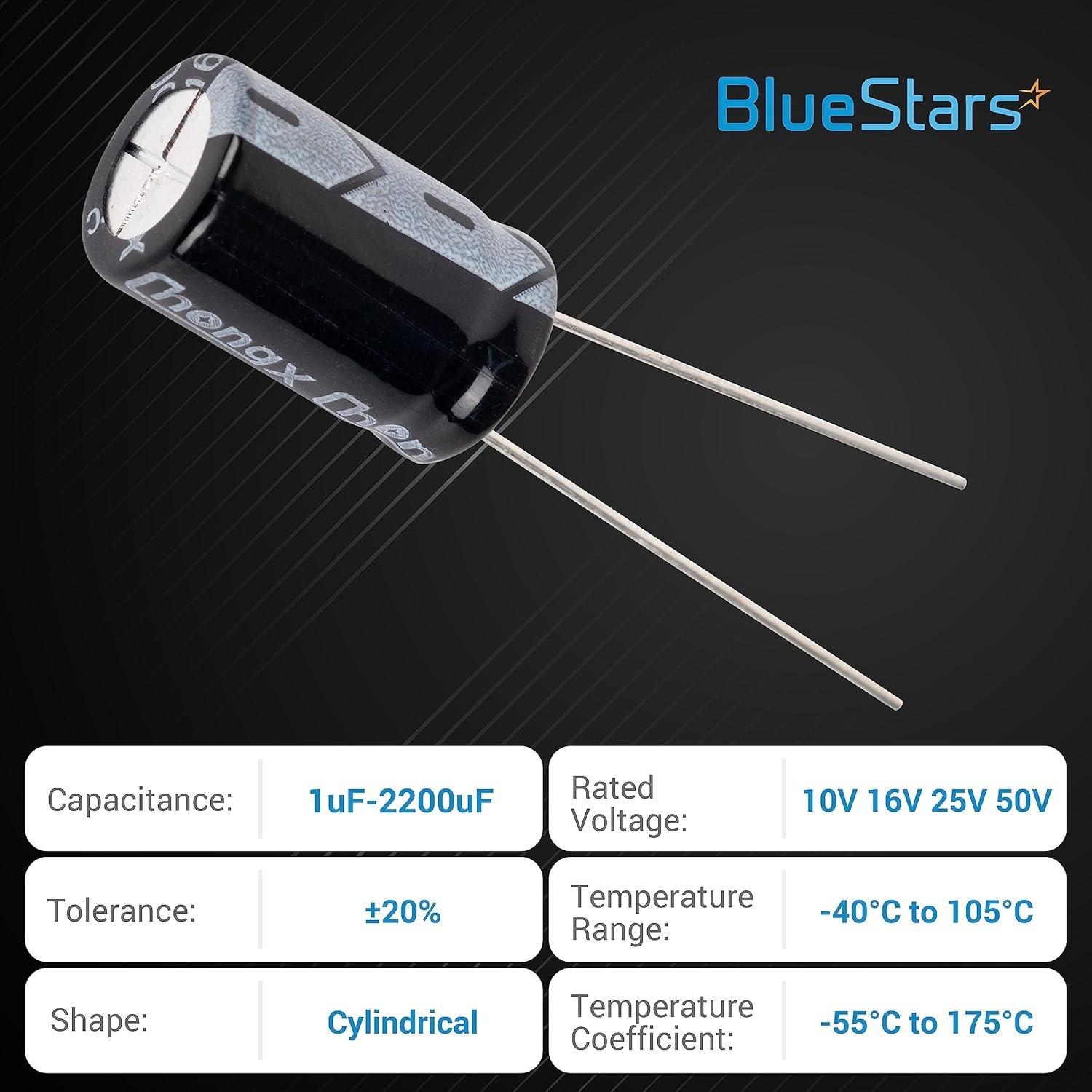

Key Features

• Total quantity: 320 pieces
• Type: Aluminum Electrolytic Capacitor
• Values: 20 distinct capacitance/voltage combinations
• Capacitance Range: 1uF to 2200uF
• Voltage Range: 10V to 50V
• Operating Temperature: -40°C to +105°C

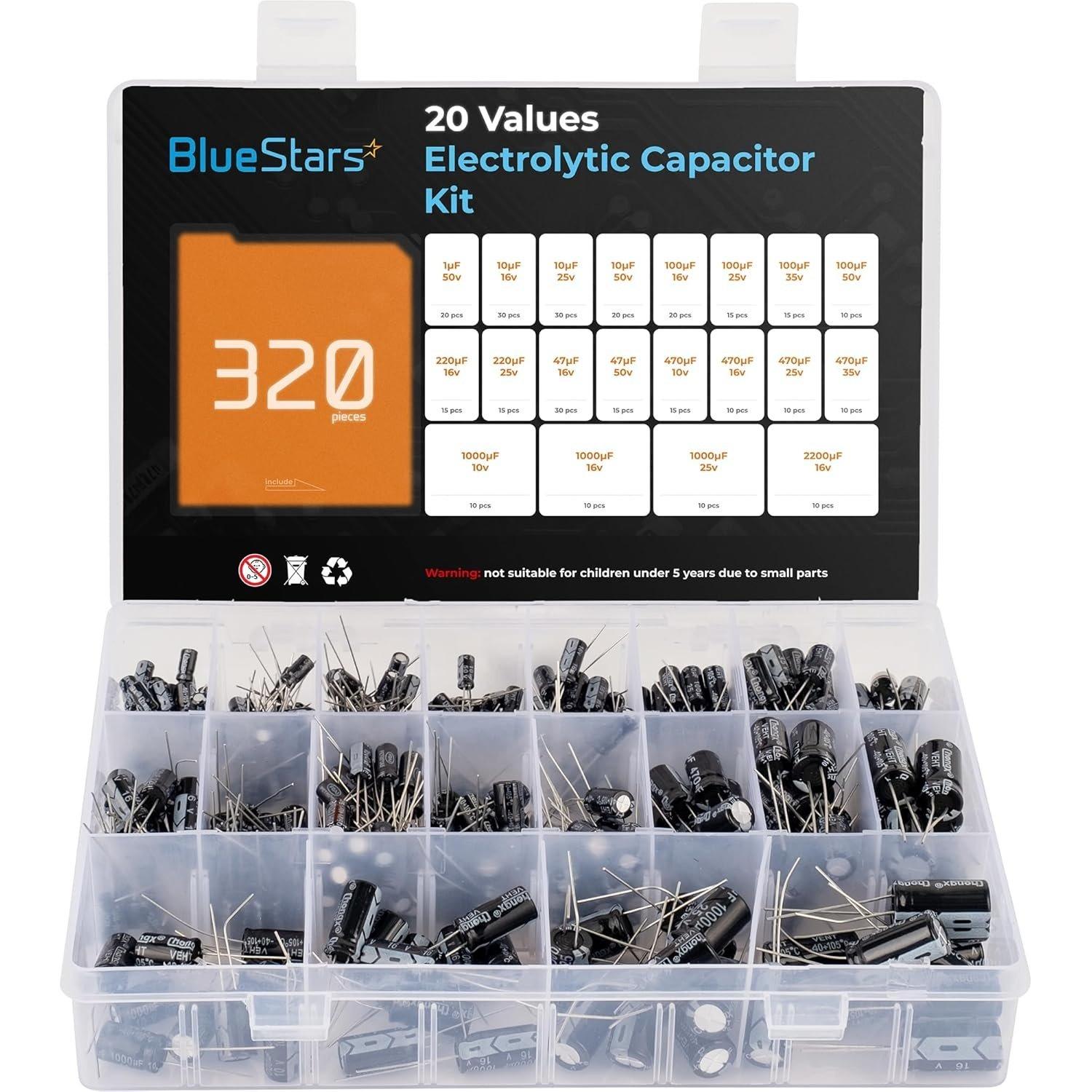

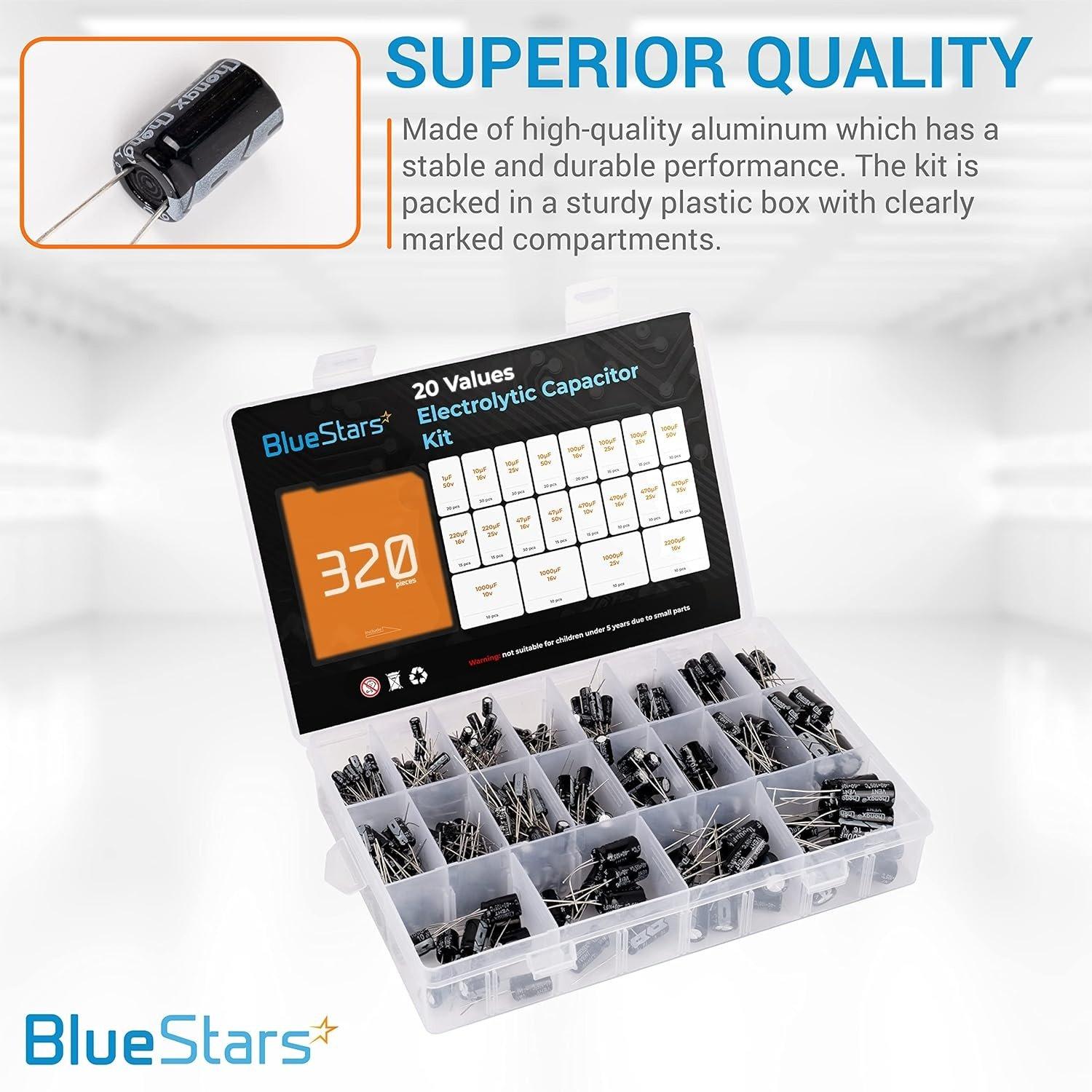

• Packaging: Organized in a multi-compartment plastic case
• Kit Contents:

Replaces / Cross-Reference Part Numbers

• This is a general-purpose assortment kit for electronic projects and repairs.
• Can be used to replace any through-hole electrolytic capacitor with matching capacitance, voltage, and temperature specifications.

Compatibility & Fitment

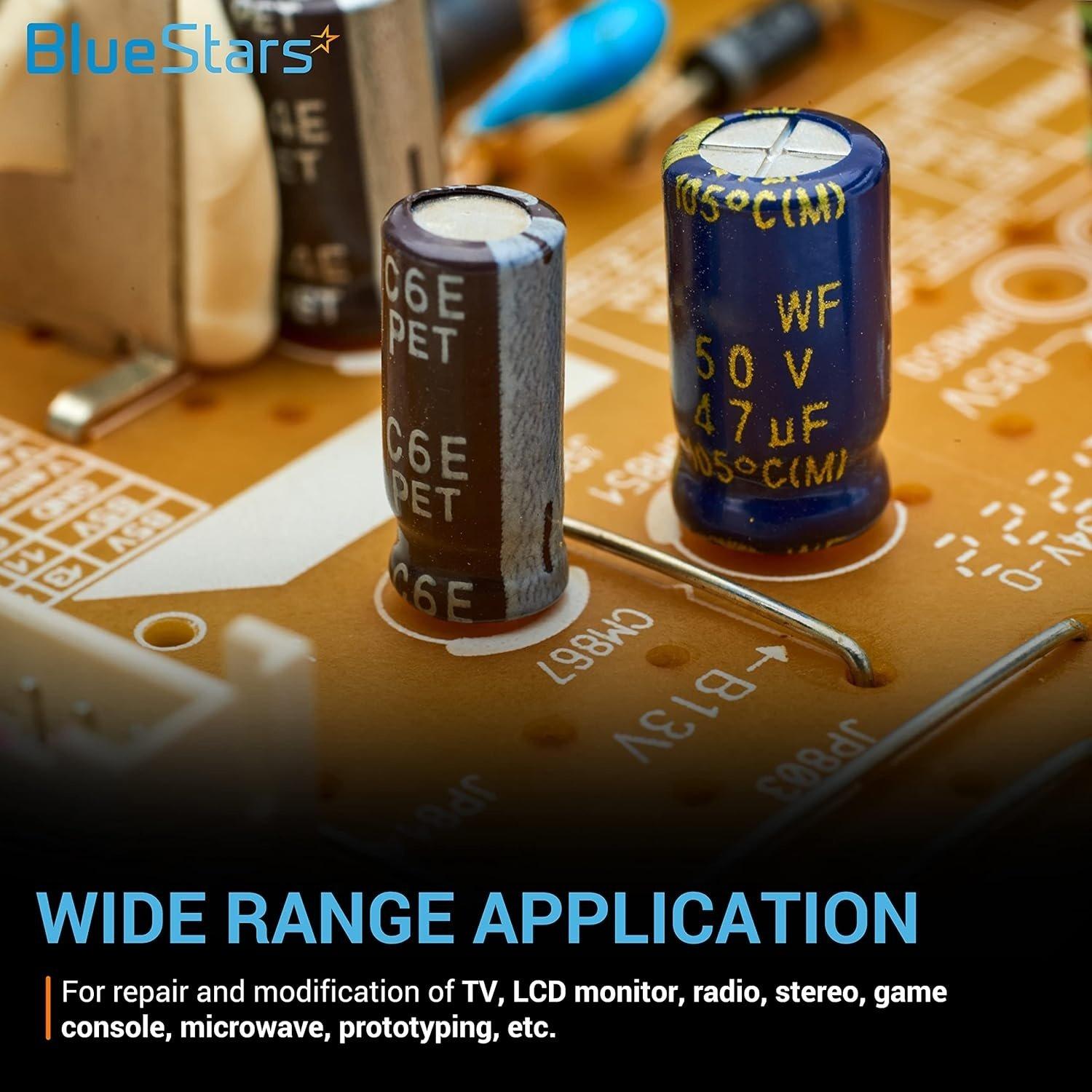

• Suitable for a wide range of applications including DIY electronics, circuit prototyping, and equipment repair.
• Commonly used for power supply filtering, signal coupling and decoupling, timing circuits, and energy storage.

When to Replace

• Visible signs of failure: Bulging top, leaking electrolyte, or physical damage to the casing.
• Circuit malfunction: Device fails to power on, operates intermittently, or produces audible humming or buzzing sounds.
• Use for new builds and projects requiring specified capacitor values.

Installation Tips

• Verify polarity before installation. The negative lead is indicated by a stripe on the capacitor's body and is the shorter of the two leads.
• Ensure the replacement capacitor's voltage rating is equal to or higher than the original part's rating.
• Discharge the circuit completely before removing old components to prevent electrical shock.
• Use appropriate soldering techniques to avoid overheating and damaging the capacitor or circuit board.
