[Lifetime Warranty] 5304506660 Dishwasher Lower Spray Arm LFID2426TF5A FFID2426TS1A - Compatible with Several Frigidaire Dishwashers Wash Arm - Replaces 5304496886 5304496936 5304506532 AP6038456

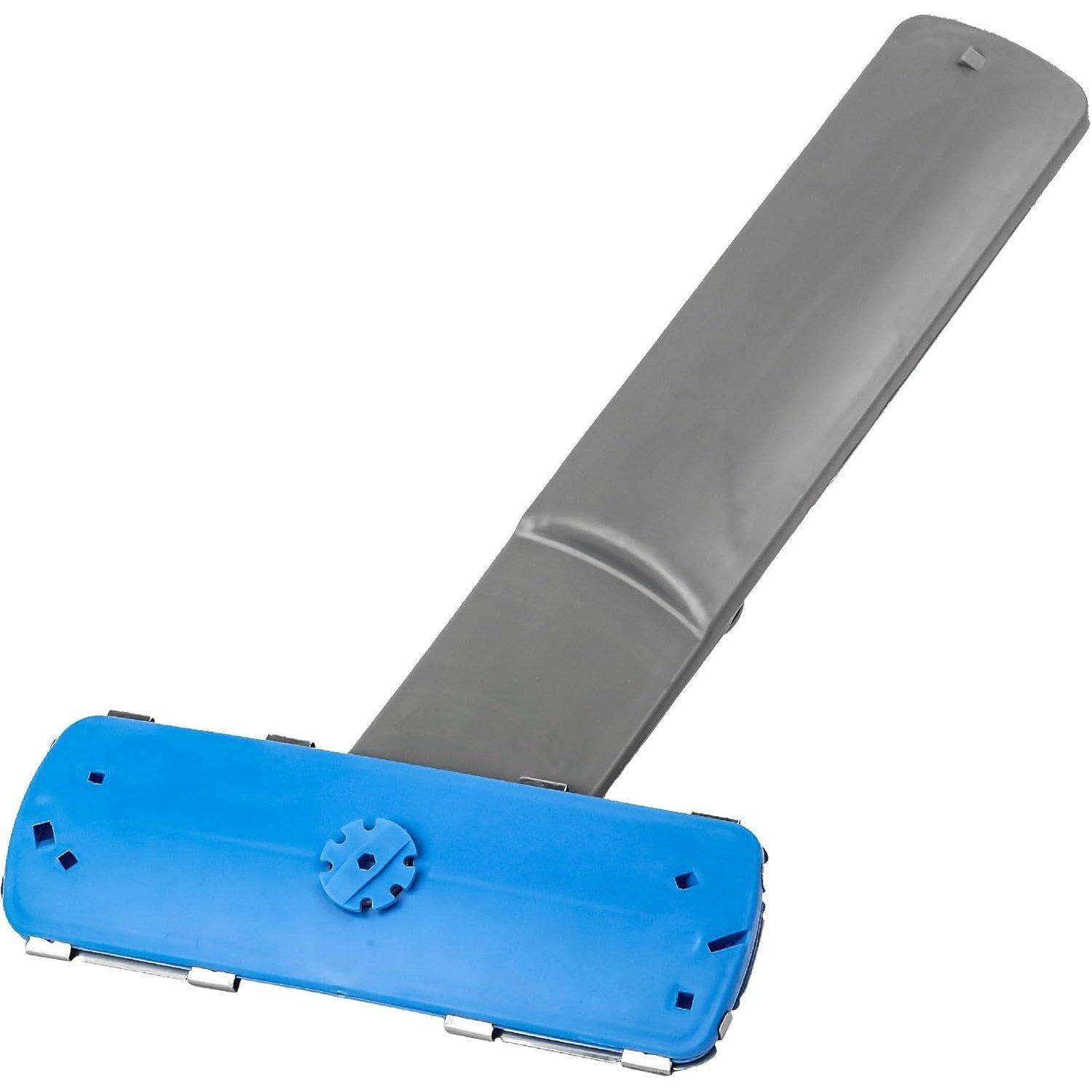

5304506660 Dishwasher Lower Spray Arm Assembly

Key Features

• Multi-Angle Spray Pattern:Features precision-engineered nozzles designed to rotate and distribute high-pressure water across the entire lower rack for maximum soil removal.

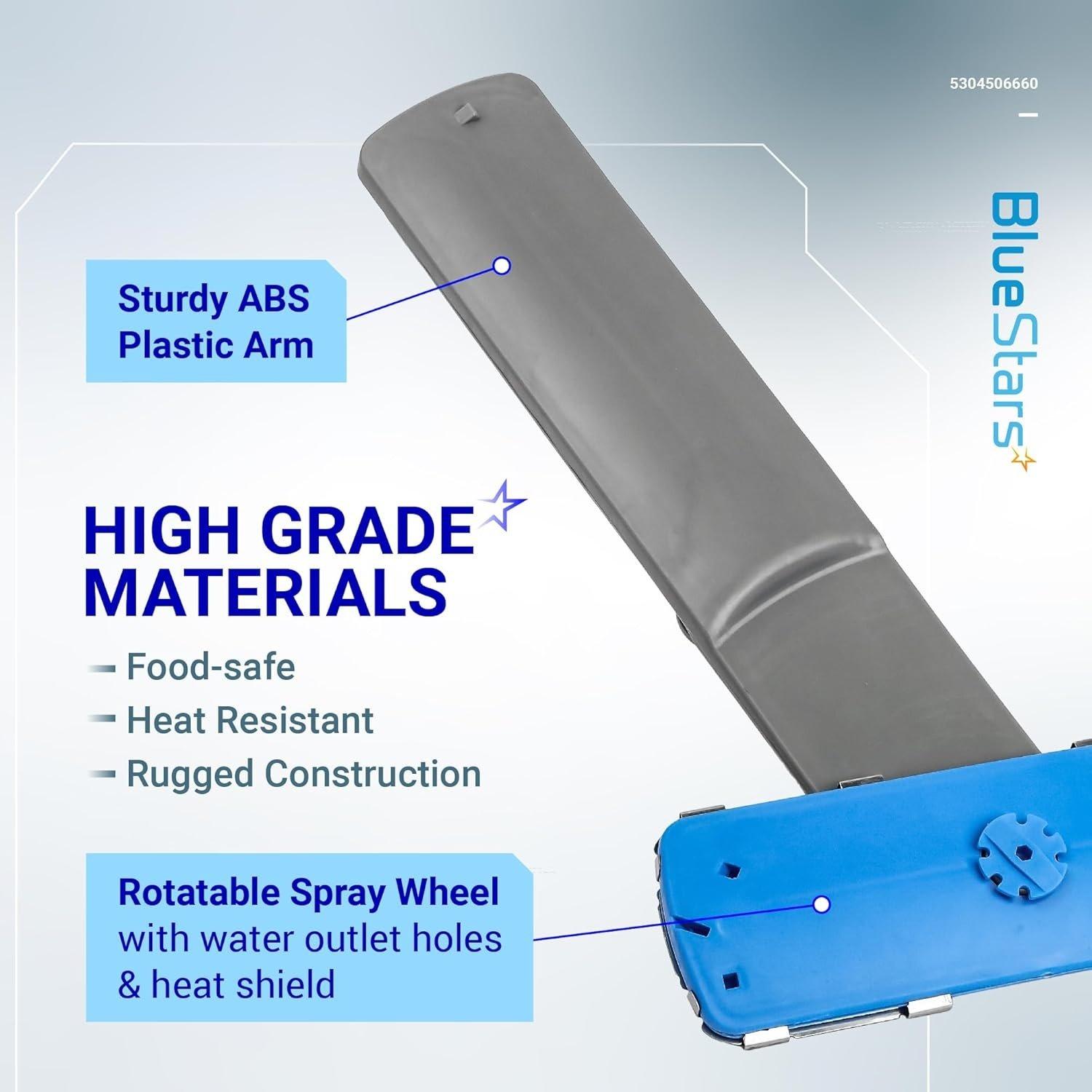

• Heat-Stabilized Polymer:Constructed from high-durability, food-grade plastic that resists warping and cracking under high-temperature sanitize and heated dry cycles.
• Dynamic Balanced Rotation:The arm is balanced to ensure smooth, consistent rotation even under varying water pressures, preventing "dead zones" in the wash tub.
• Debris-Resistant Nozzles:Specifically shaped apertures designed to minimize the accumulation of hard water minerals and food particles within the arm.

Replaces / Cross-Reference Part Numbers

• 5304506660
• 5304496886
• 5304496936
• 5304506532
• AP6038456
• PS11770512
• EAP11770512

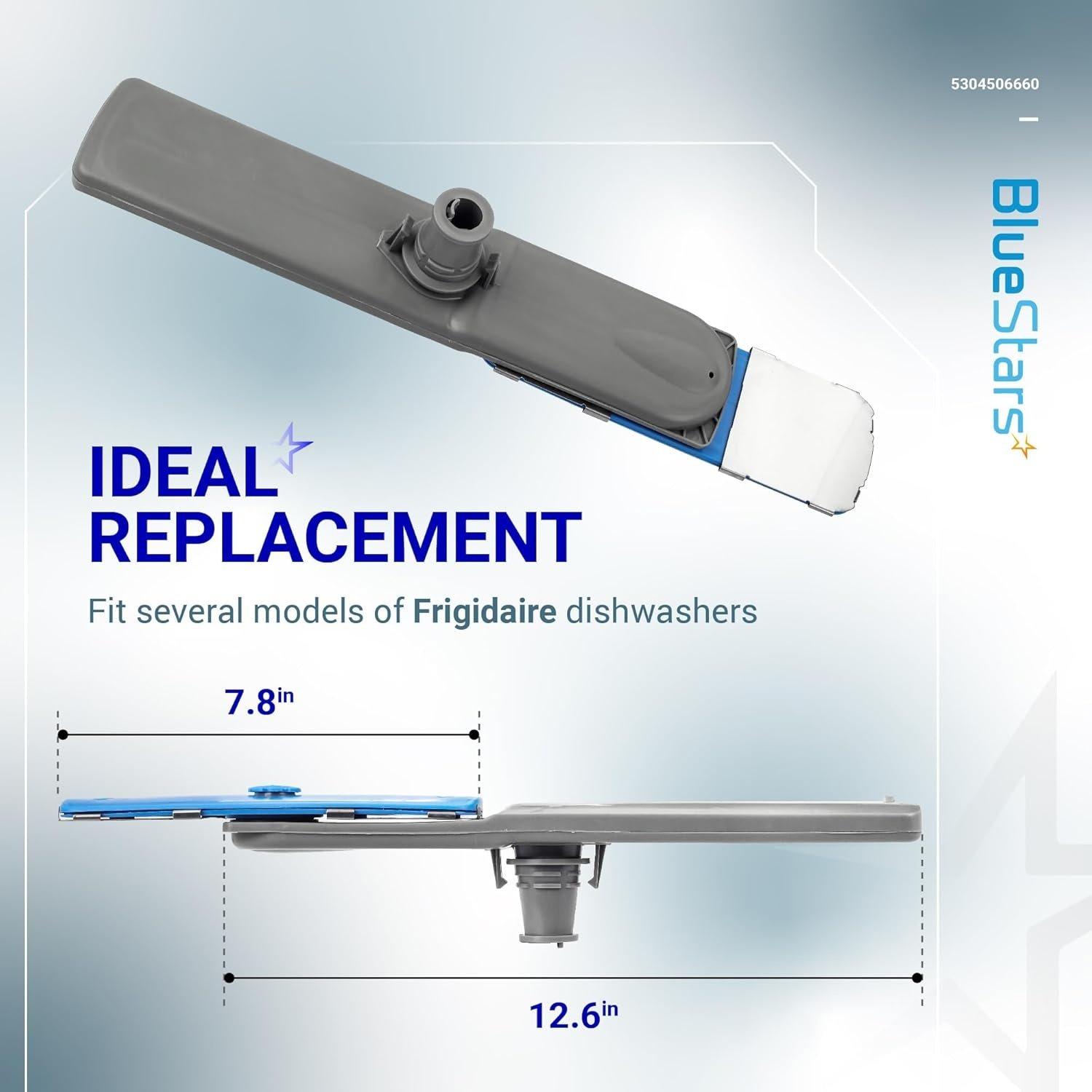

Compatibility & Fitment

• Frigidaire Models:LFID2426TF5A, FFID2426TS1A, FFID2426TD, LFID2426TF, FGID2466QF.
• Kenmore / Sears:Fits select 587-series dishwashers manufactured by Frigidaire (e.g., 587.15113K90).
• Crosley:Compatible with select XID series models utilizing the 5304 series spray assembly.

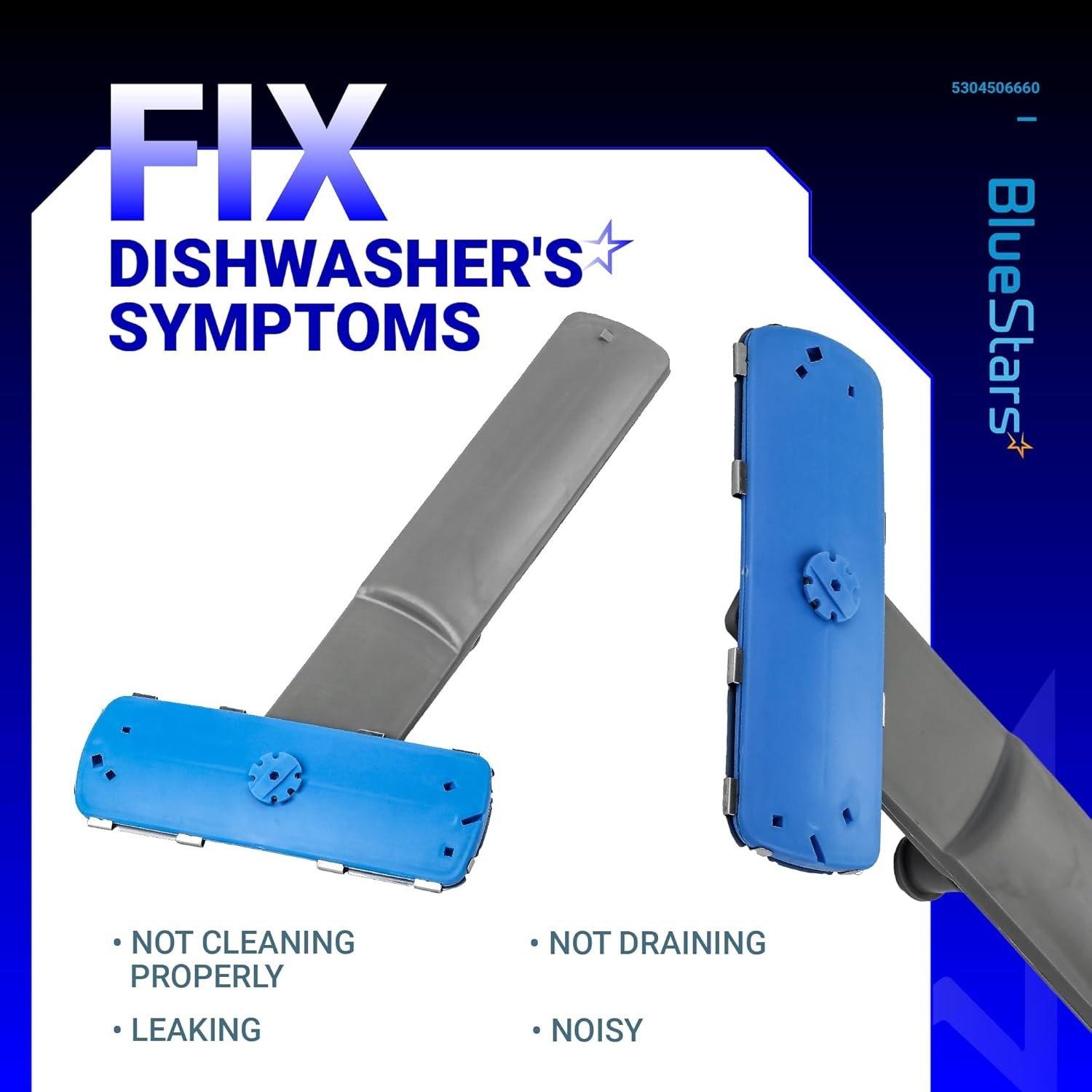

When to Replace

• Poor Cleaning Results:Dishes in the lower rack remain dirty or have a "gritty" residue, indicating the arm is not spinning or the jets are clogged.
• Visible Cracks:The plastic housing has split along the seam, causing a loss of water pressure and preventing the arm from rotating.
• Blocked Nozzles:Hard water deposits or food debris have permanently plugged the spray holes.
• Melting Damage:The arm has dropped onto the heating element, causing visible melting or deformation.
• Wobbling:The central hub is worn out, causing the arm to tilt and hit the dish rack or the heating element.

Installation Tips

• Safety First:Turn off the dishwasher. Remove the lower dish rack to gain full access to the bottom of the tub.
• Tool-Free Removal:Most models allow the arm to be removed by unscrewing the center nut (often clockwise/reverse thread) or by simply pulling upward to release it from the support post.
• Hub Inspection:Inspect the spray arm support and the glass trap/filter area for debris before installing the new arm.
• Secure Seating:Snap the new arm onto the support post and ensure it spins freely by hand before replacing the rack.
• Maintenance:To prevent future clogs, periodically check the nozzles and rinse the arm under warm water to clear any trapped particles.
