Description

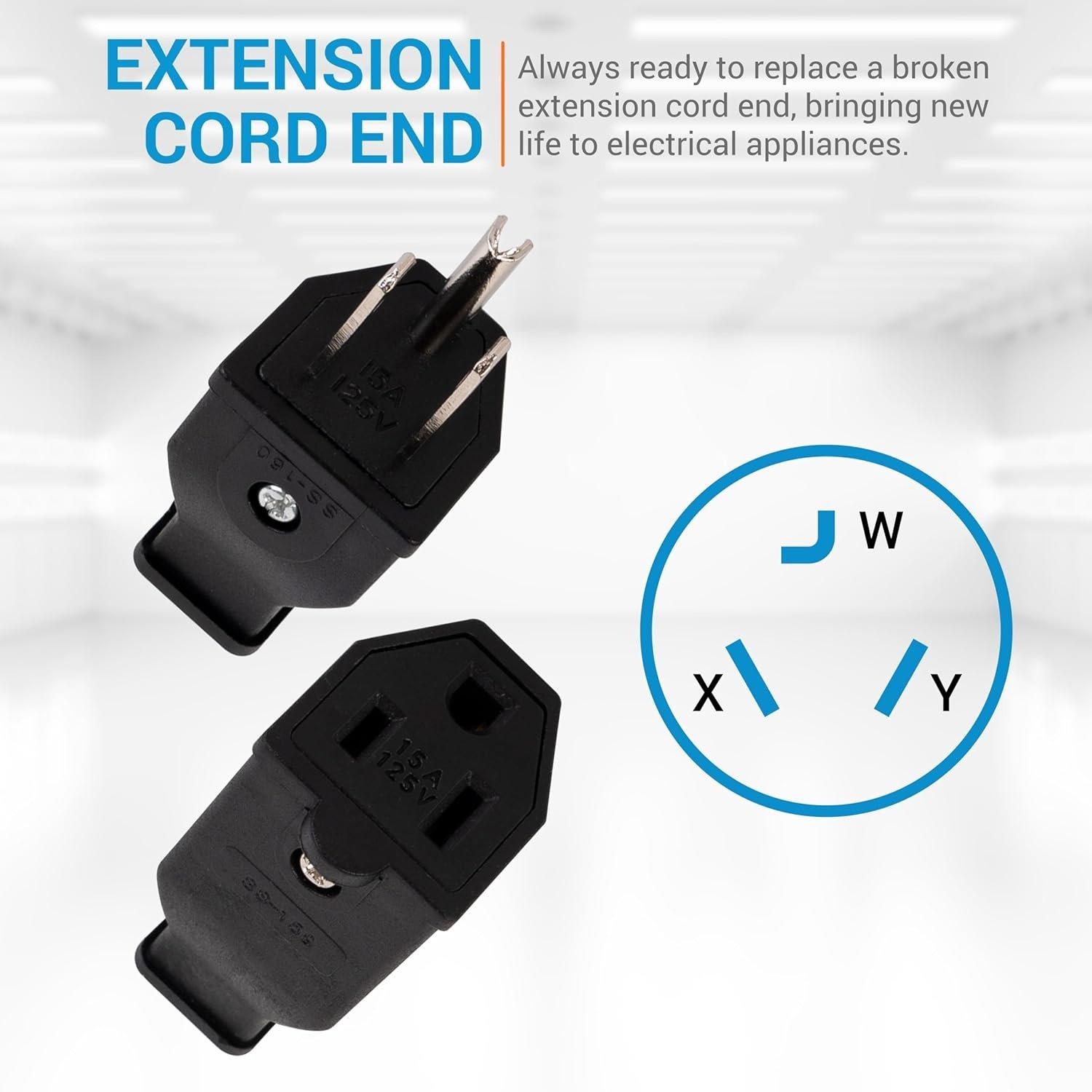

Set of 10 (20 Pieces) Extension Cord Plugs 125V 15A 2 Pole 3 Wire

Key Features

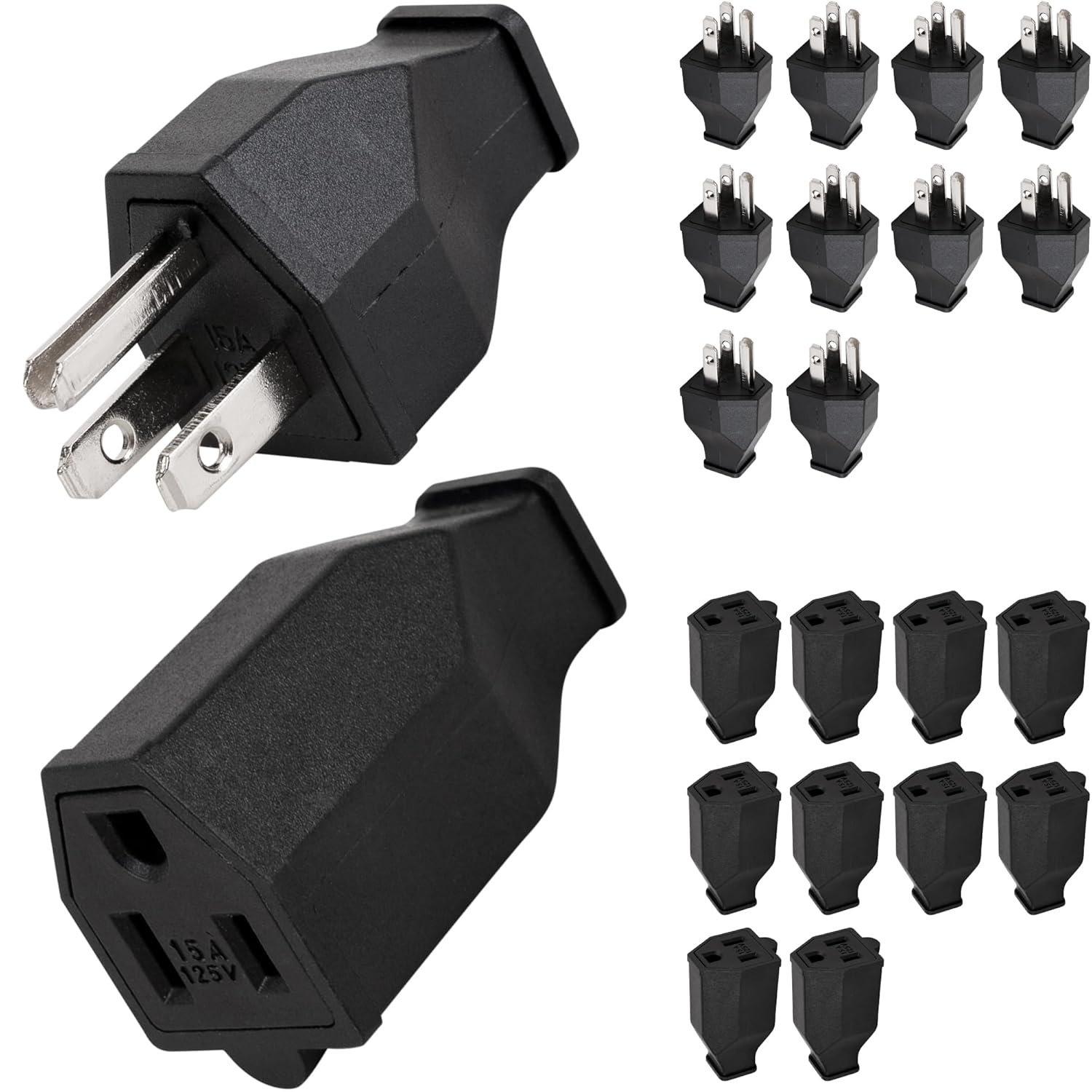

  • Package Contents: 10 male plugs and 10 female connectors.

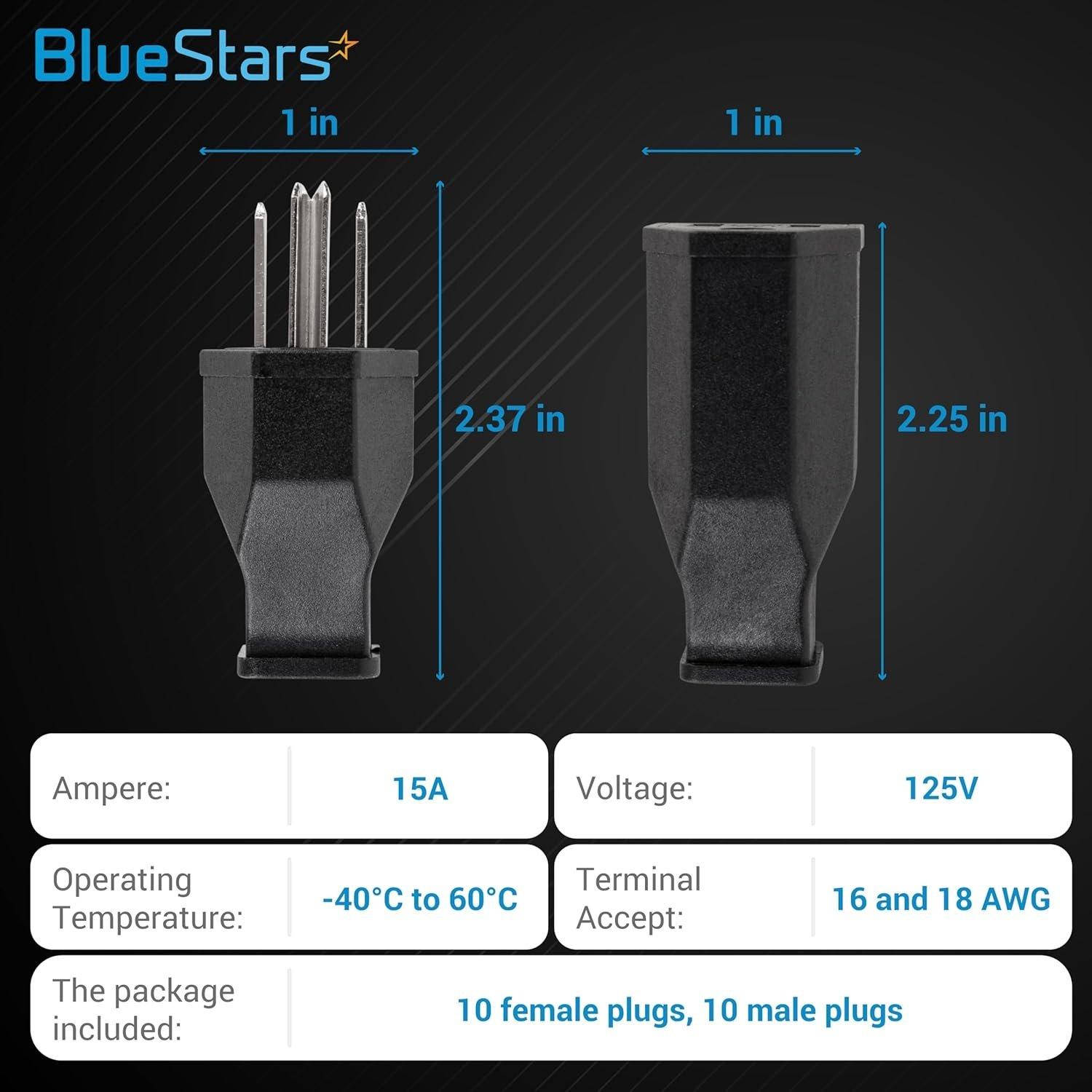

  • Electrical Rating: 125V, 15A, 1875W.
  • Configuration: NEMA 5-15P (male) and NEMA 5-15R (female).
  • Type: 2-pole, 3-wire, grounding.
  • Design: Straight blade for standard outlets.

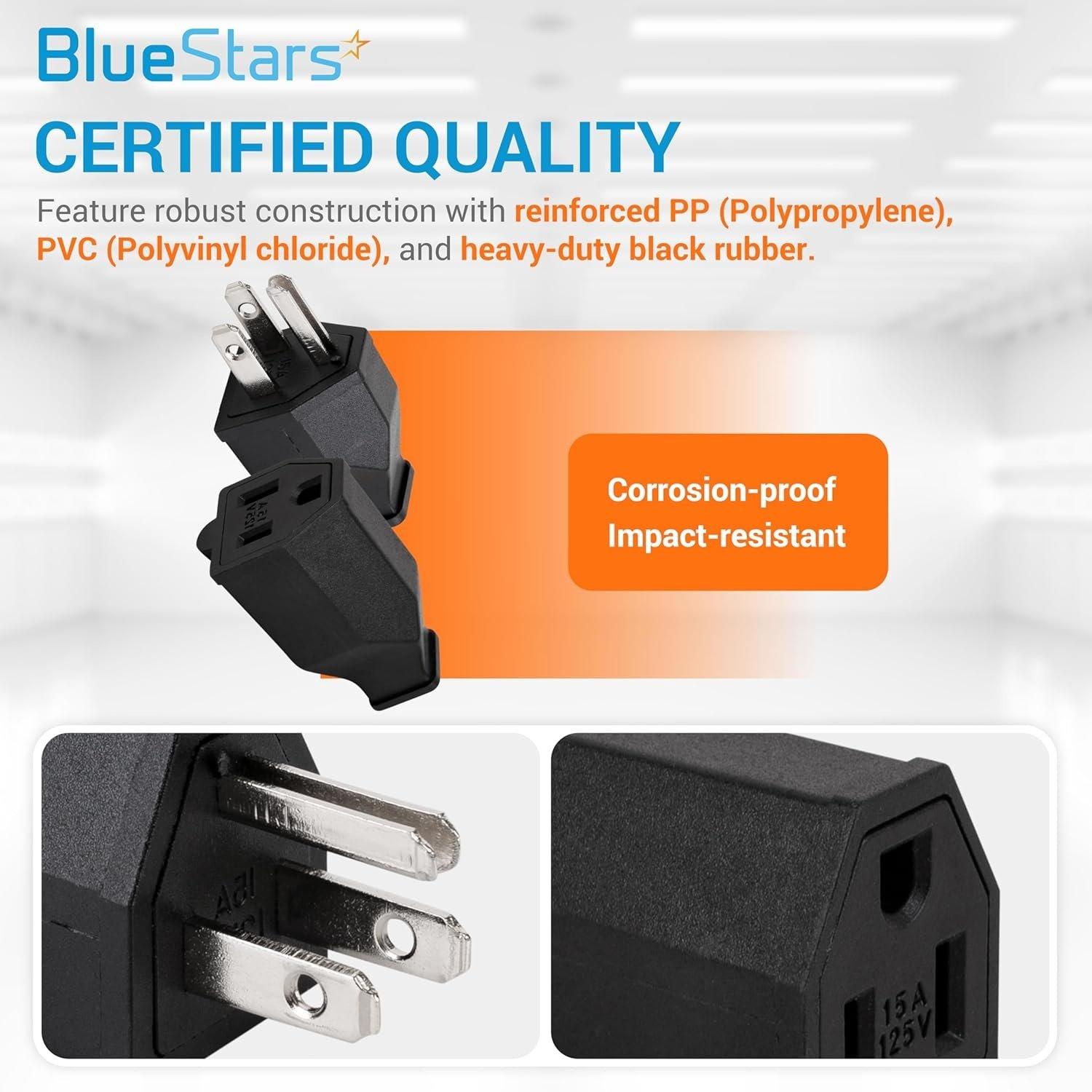

  • Construction: Heavy-duty housing for durability and impact resistance.

Replaces / Cross-Reference Part Numbers

  • Universal replacement for any standard NEMA 5-15P plug or NEMA 5-15R connector.
  • Interchangeable with existing 15A, 125V, 3-wire cord ends.

Compatibility & Fitment

  • Designed for 16 AWG, 14 AWG, or 12 AWG 3-conductor round power cords.
  • Suitable for cord types such as SJ, SJO, SJT, SJTO, SJOOW, and SJTW.
  • Ideal for repairing existing extension cords or creating custom-length cords for tools and appliances.

When to Replace

  • Visible damage such as cracks or chips in the housing.
  • Bent, loose, or corroded electrical prongs.
  • Signs of overheating, melting, or discoloration on the plug body.
  • Exposed internal wiring at the point of connection.
  • Intermittent or unreliable power connection.

Installation Tips

  • Always disconnect the cord from the power source before installation.
  • Strip the outer cord jacket and inner wires to the specified lengths.

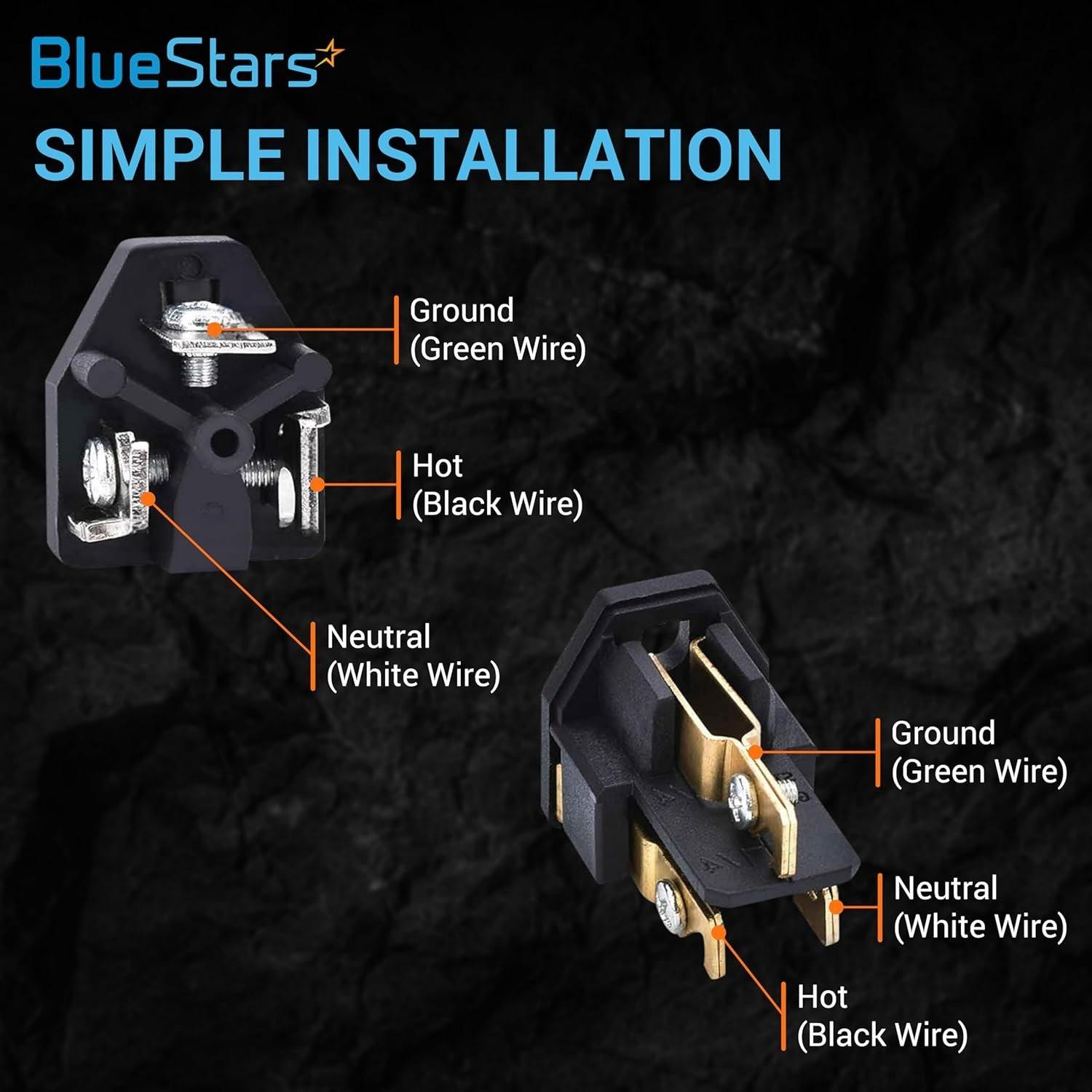

  • Connect wires to the correct terminals: green to ground (G), white to neutral (W), and black to hot/live.
  • Ensure terminal screws are tightened securely on the bare copper wire.
  • Firmly secure the cord clamp around the outer jacket to provide strain relief and prevent wires from pulling loose.
