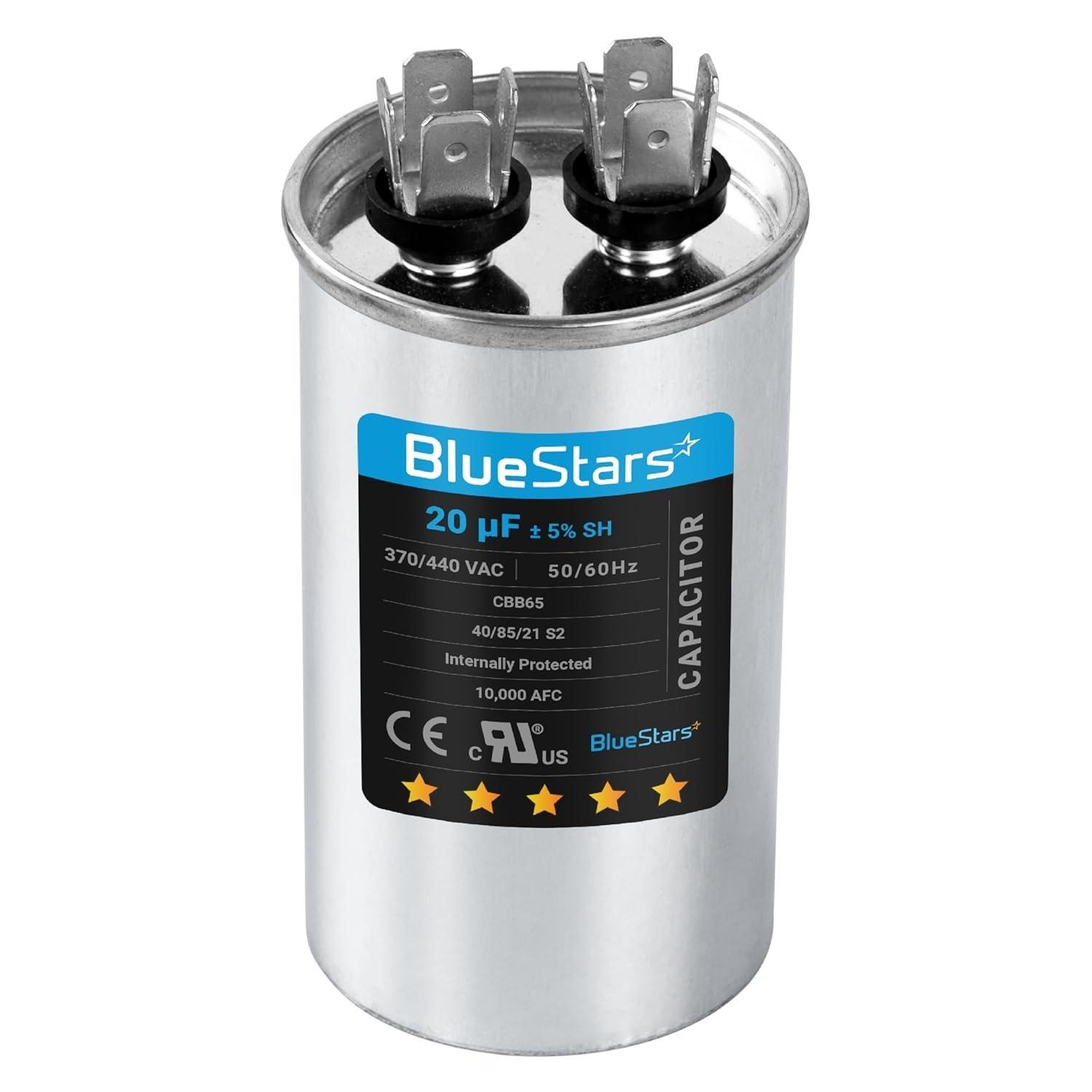

[Lifetime Warranty] 20 uF MFD ±5% 370/440 VAC CBB65 Multi-Purpose Motor Run Round Capacitor 10000AFC - Compatible with Air Conditioner, Heat Pump

20 MFD uf ± 5% MFD 370 V VAC or 440 Volt Multi-Purpose Motor Run Round Capacitor

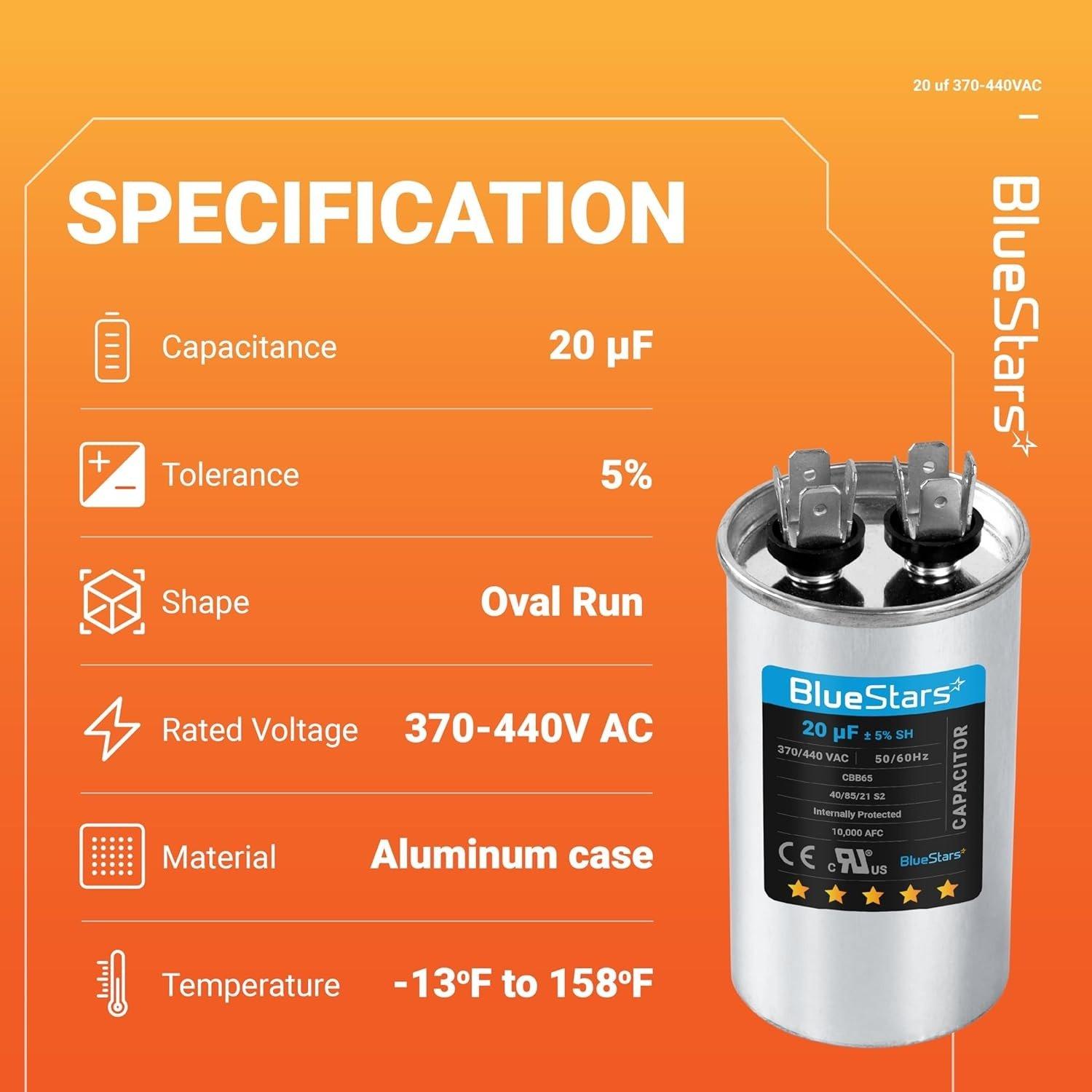

Key Features

• Capacitance: 20 Microfarad (MFD)
• Tolerance: ±5%
• Voltage Rating: Dual 370V or 440V AC
• Frequency: 50/60 Hz
• Shape: Round

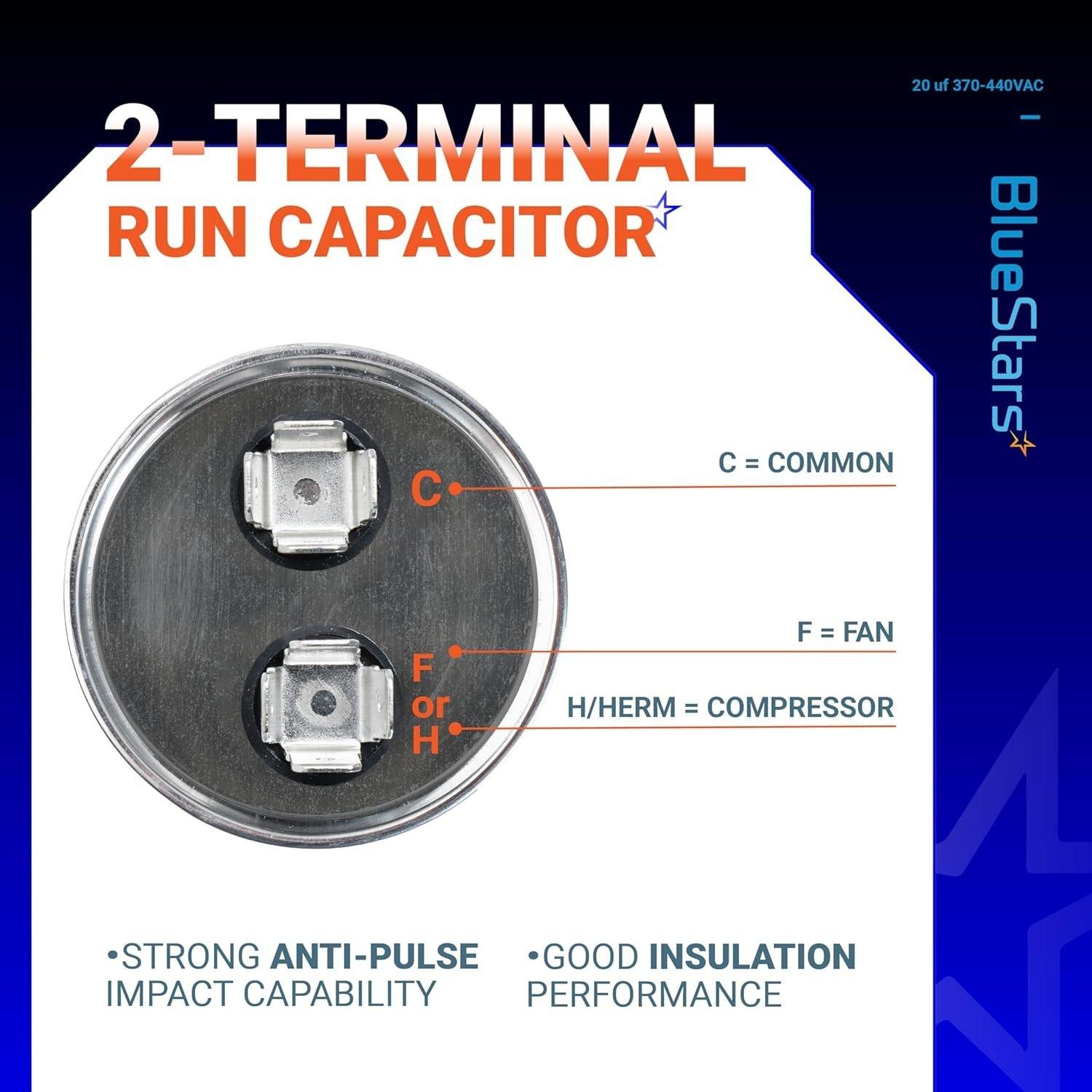

• Terminal Type: 1/4 inch male quick-connect
• Operating Temperature Range: -40°C to +70°C

Replaces / Cross-Reference Part Numbers

• Replaces any single-value 20 MFD round run capacitor with a 370V or 440V rating.
• Commonly replaces parts with numbers such as C320, C420, PRCF20, CBB65, and 97F series.

Compatibility & Fitment

• Suitable for use in single-phase motors, HVAC systems, air conditioners, heat pumps, compressors, and fan motors.
• The dual voltage rating allows this capacitor to replace both 370 VAC and 440 VAC models.

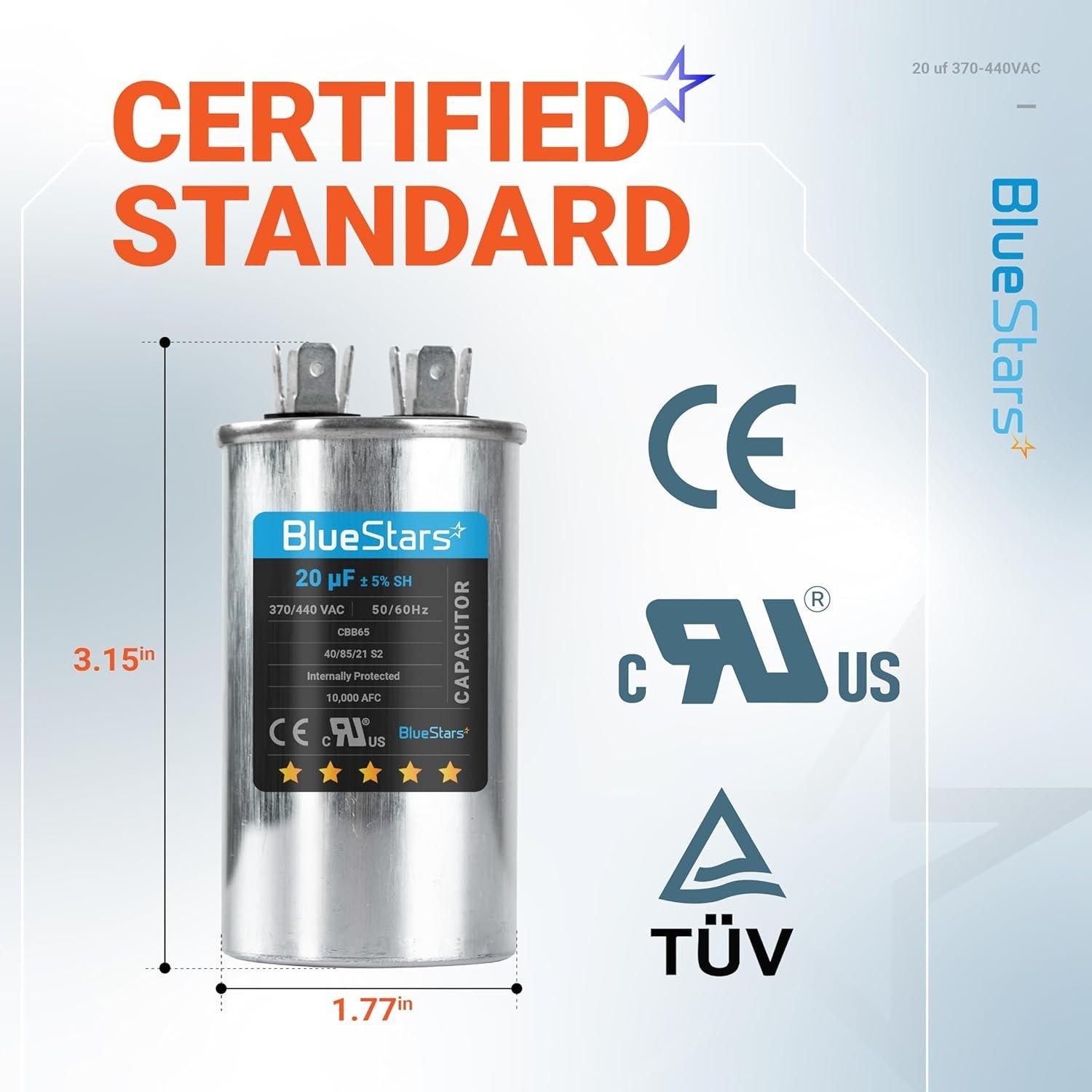

• Physical dimensions and terminal configuration are designed for broad compatibility with original equipment.

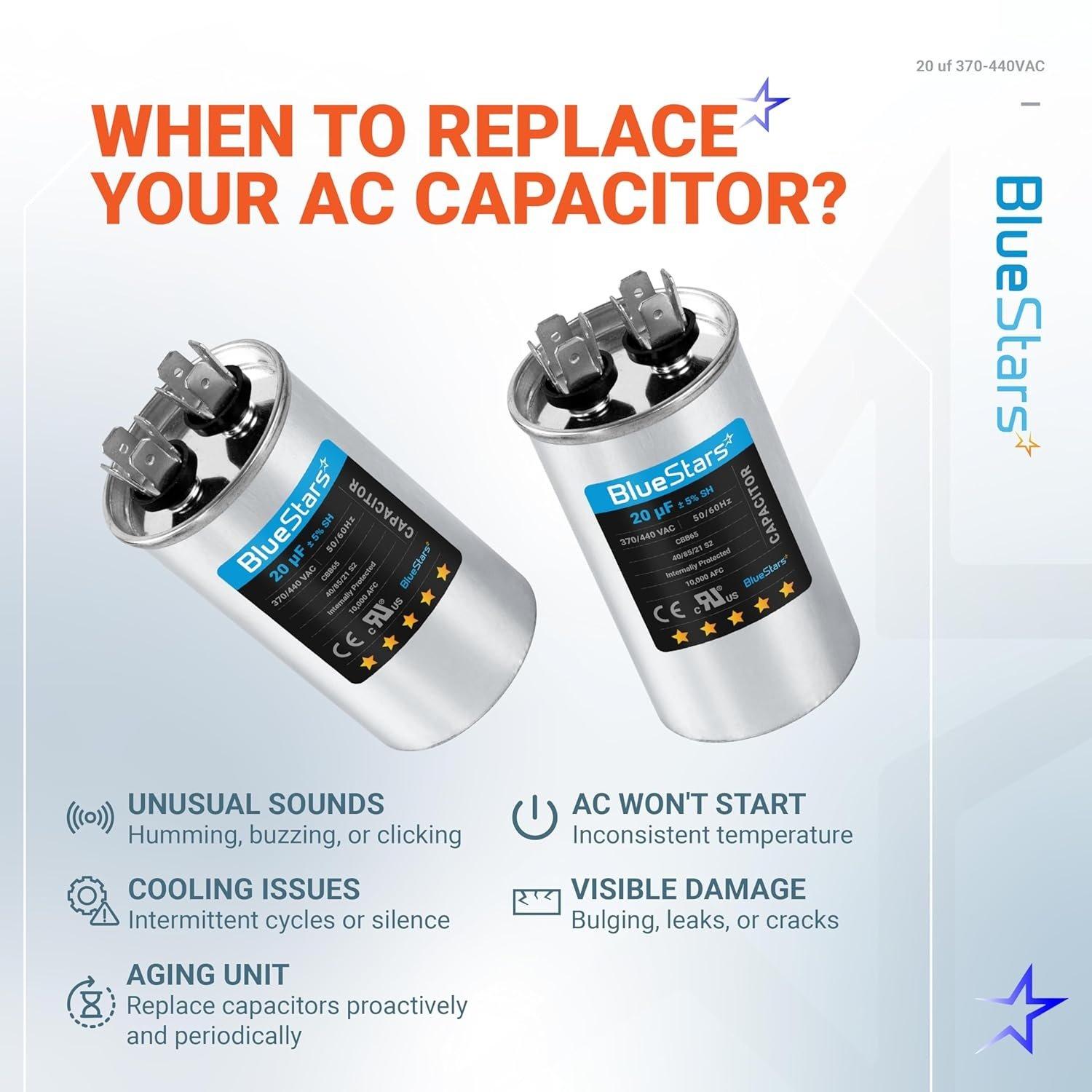

When to Replace

• Motor hums but does not start.
• Compressor or fan motor runs intermittently or overheats.
• Visible damage to the existing capacitor, such as swelling, bulging, or leaking oil.
• Capacitance measurement is outside the component's rated tolerance (±5%).

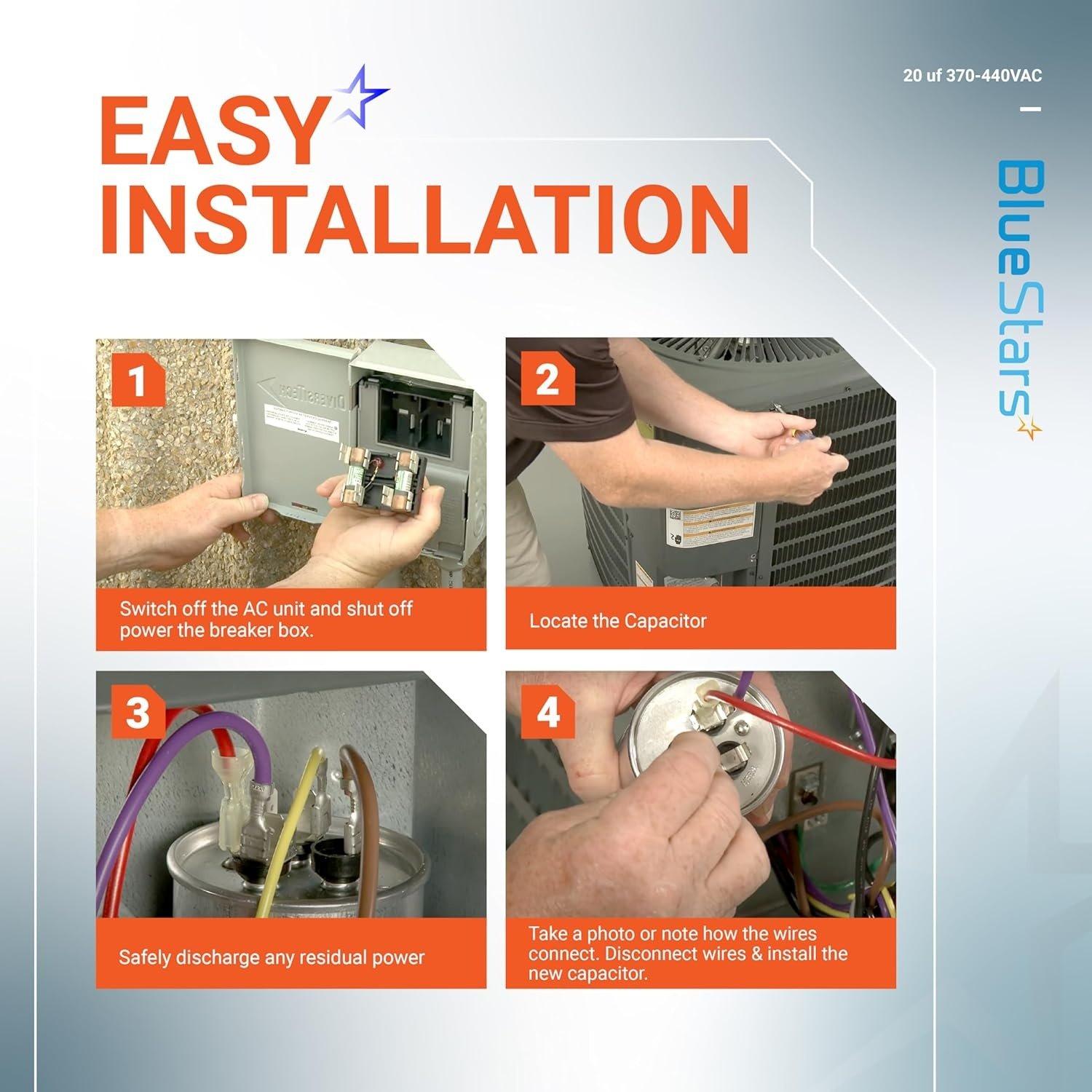

Installation Tips

• Disconnect all electrical power to the unit before beginning service.
• Safely discharge the existing capacitor by shorting the terminals with a properly insulated tool.

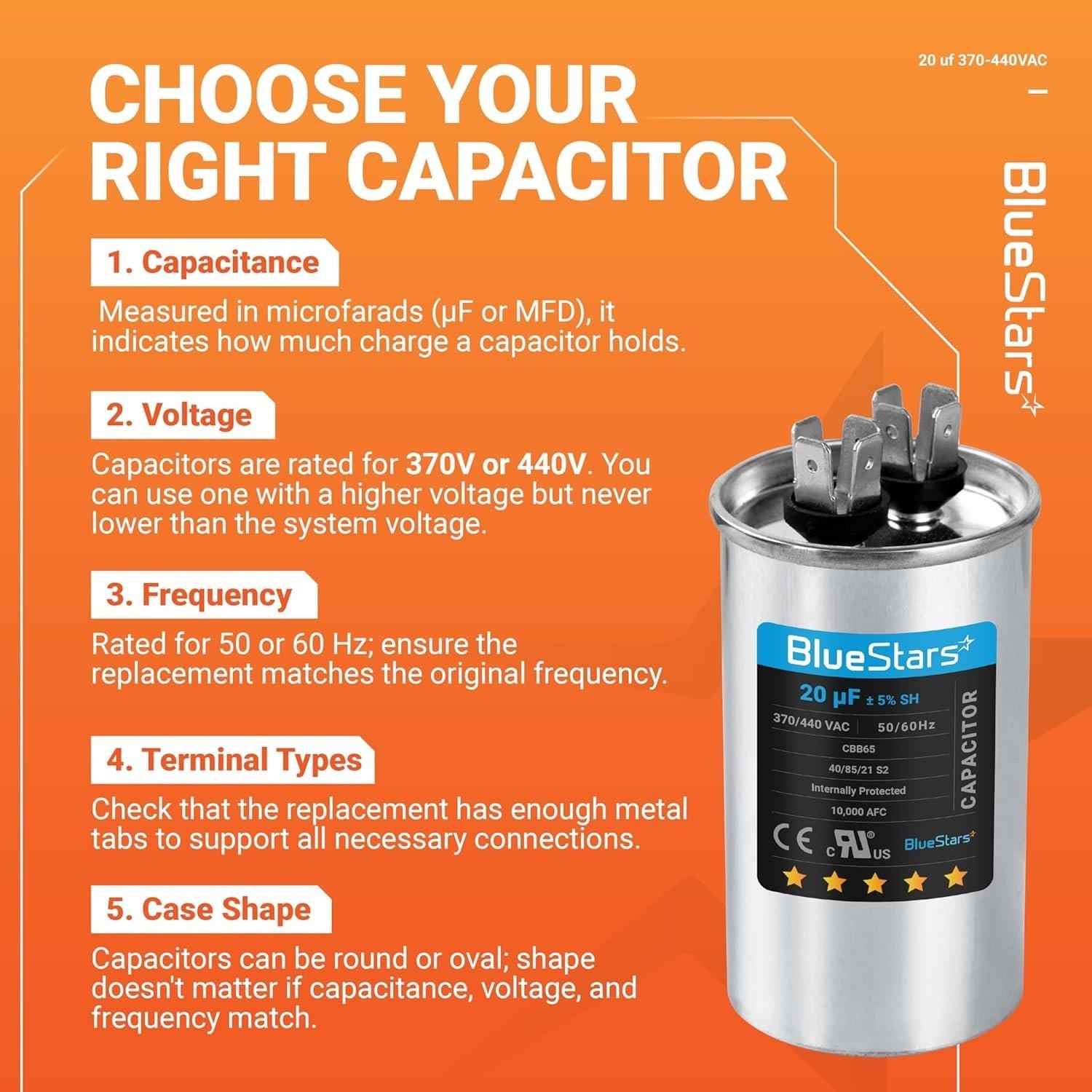

• Confirm the MFD rating and voltage of the new capacitor match the unit's requirements.
• Note the wire positions on the original capacitor's terminals before removal to ensure correct installation.
