[Lifetime Warranty] 725-1426 Starter Solenoid

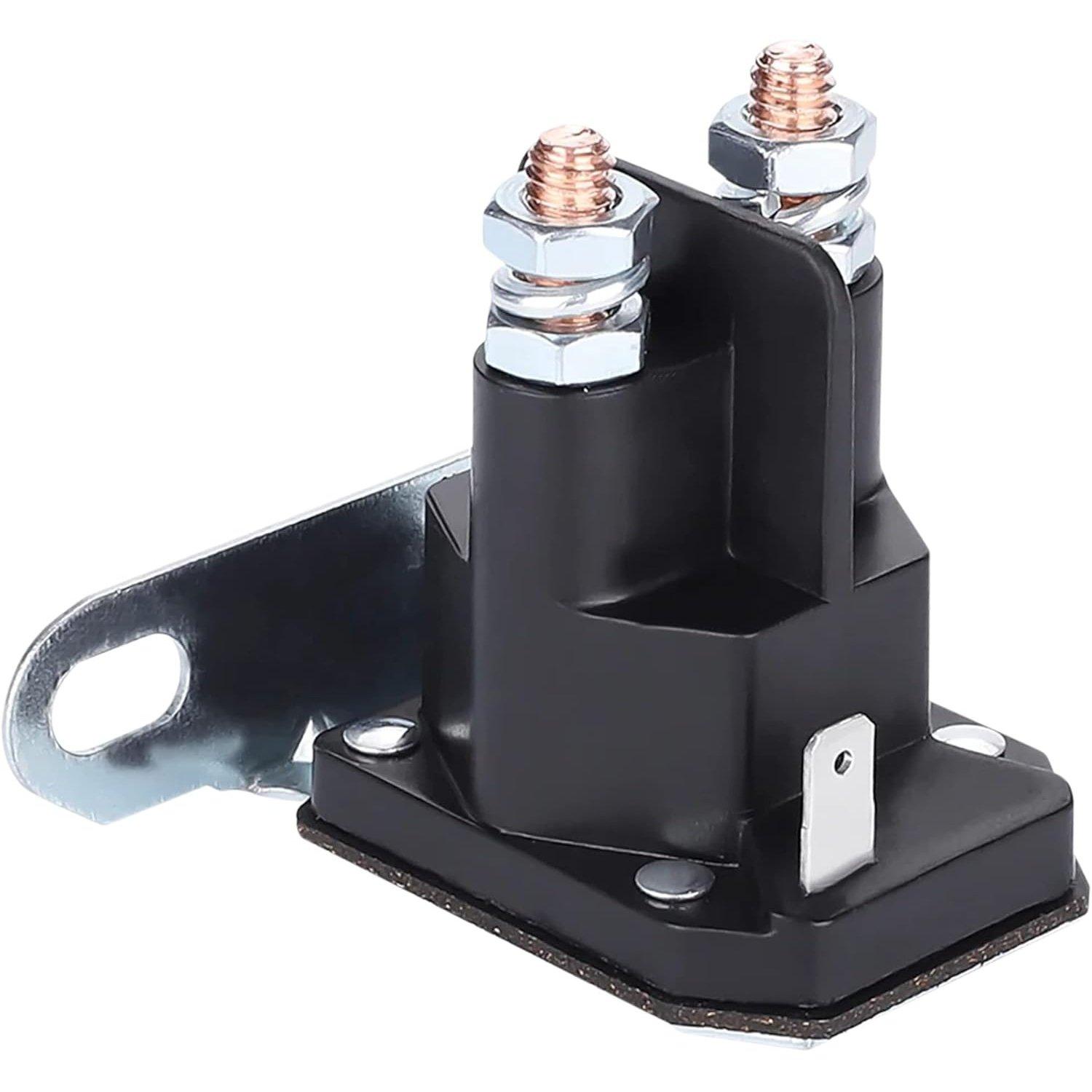

725-1426 Starter Solenoid

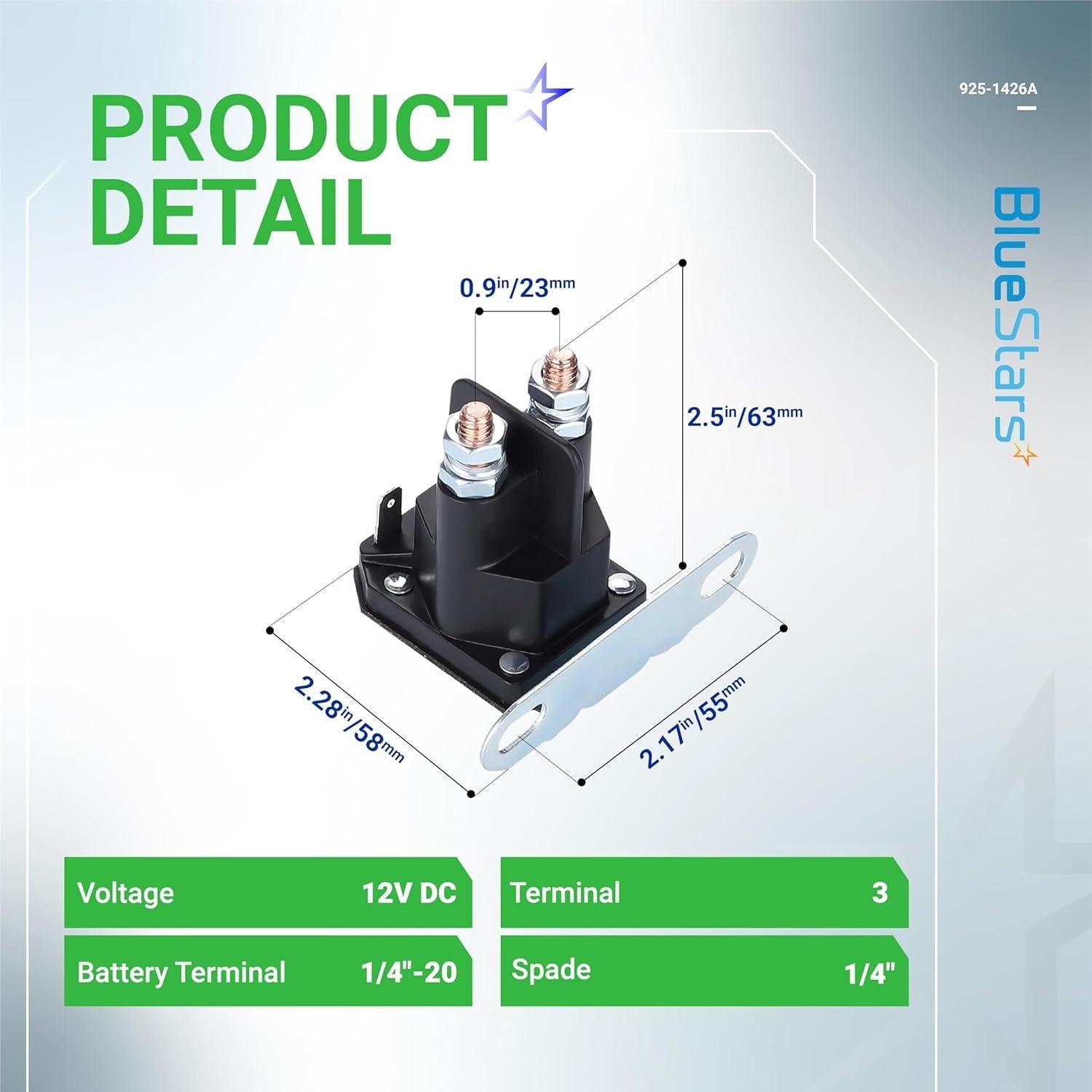

Key Features

• Voltage: 12V

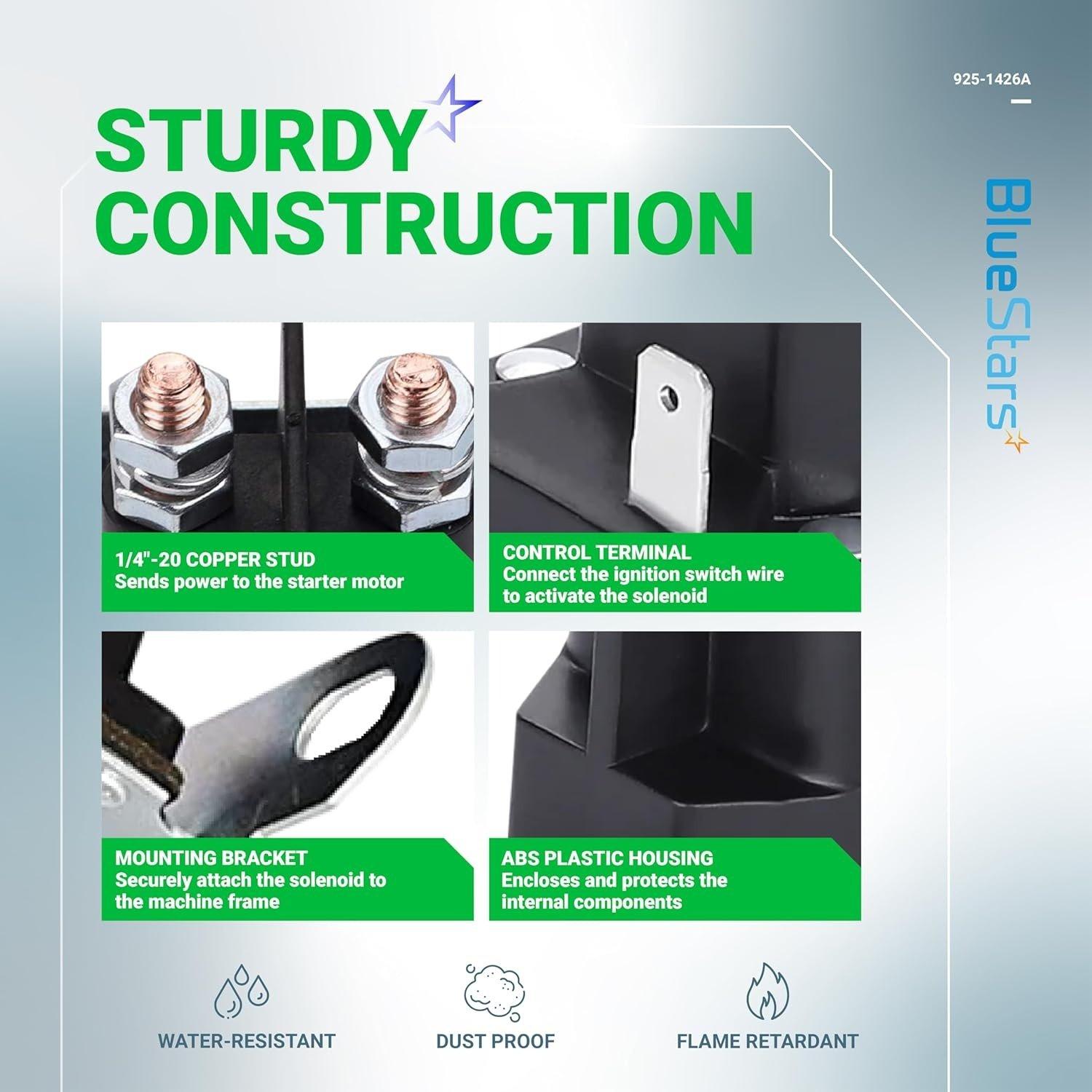

• Configuration: Two large terminals for battery and starter connections, one small terminal for the ignition switch
• Function: Acts as a relay to engage the starter motor

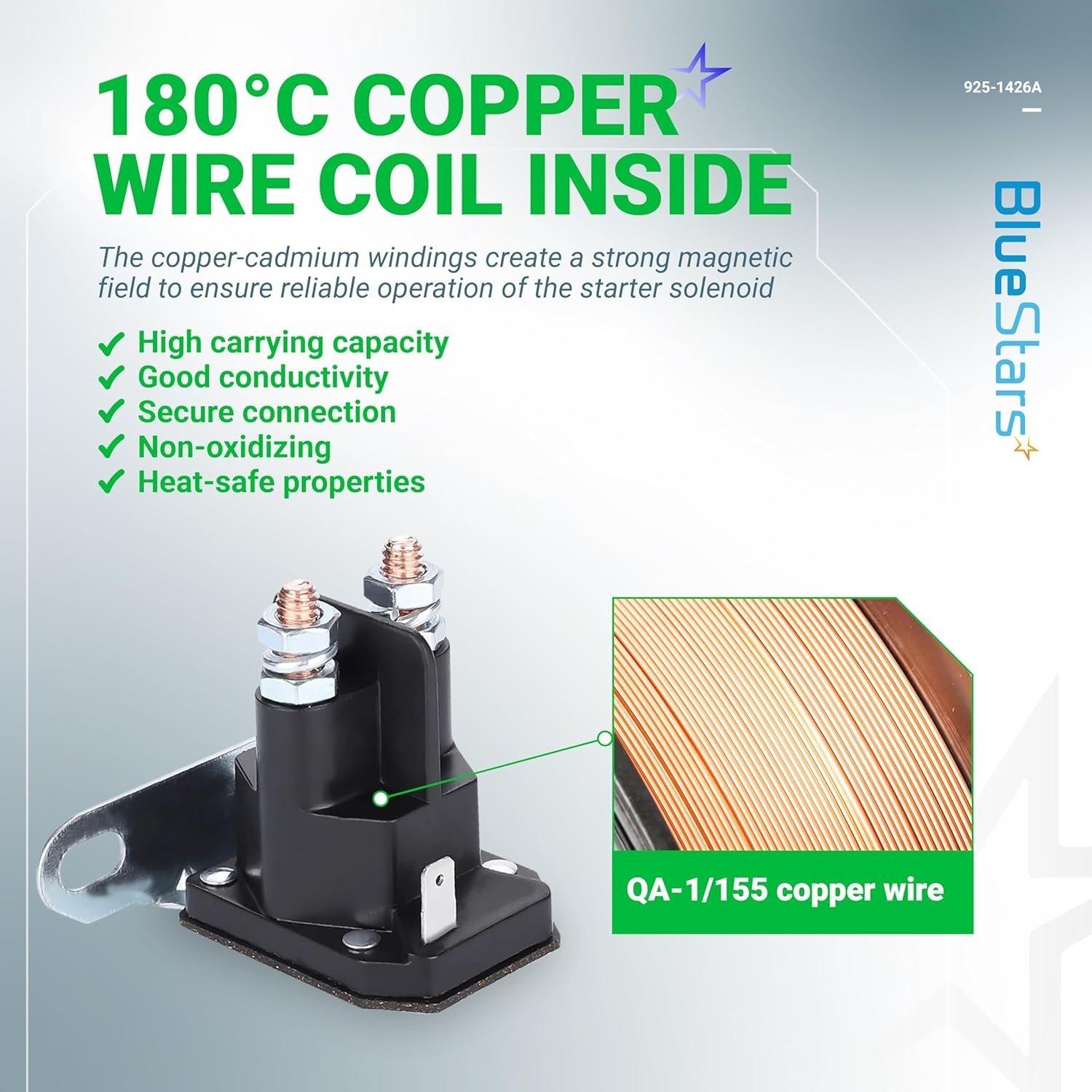

• Construction: Durable metal housing

Replaces / Cross-Reference Part Numbers

• MTD: 725-1426, 925-1426, 925-1426A

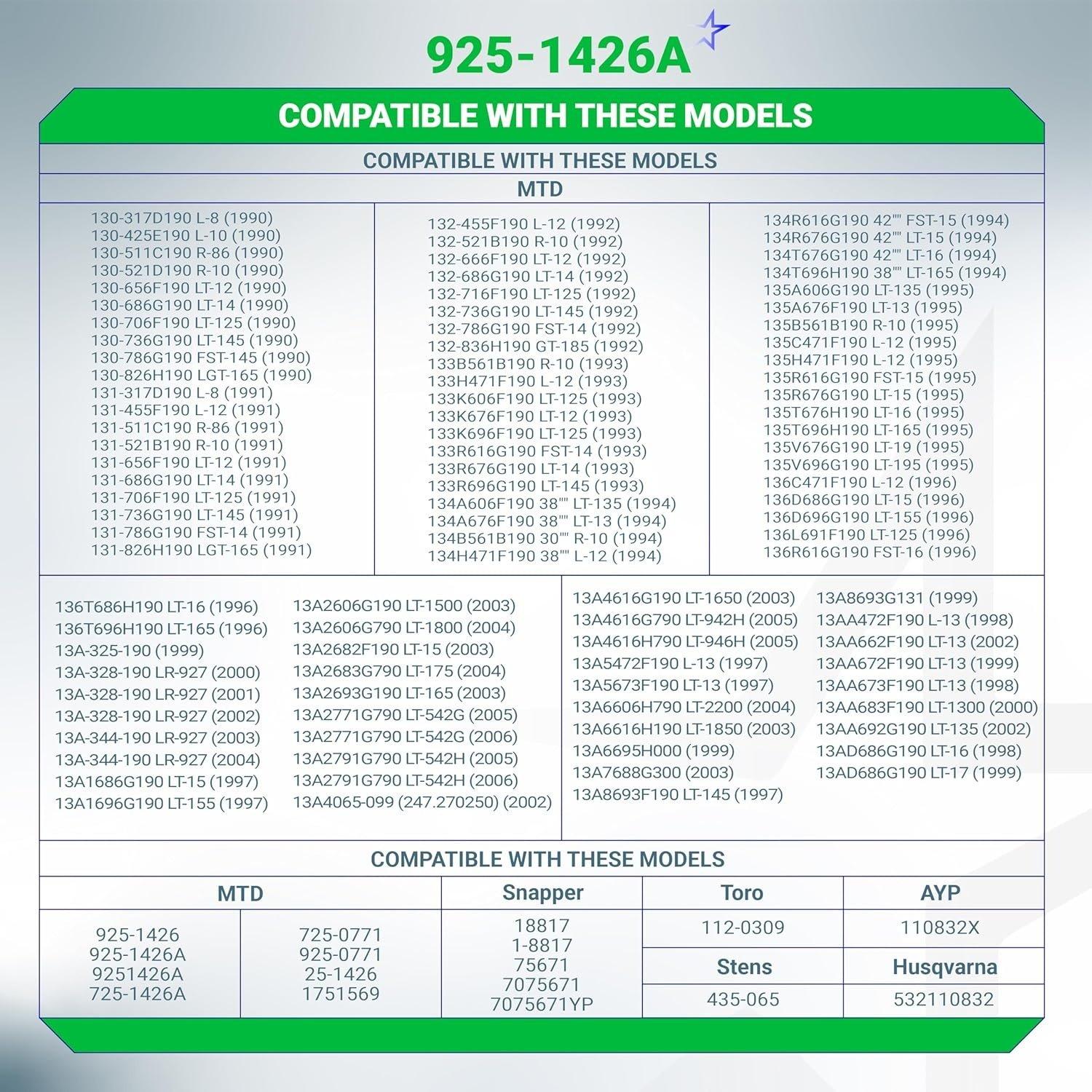

Compatibility & Fitment

• Fits lawn tractors and zero-turn mowers from MTD, Cub Cadet, Troy-Bilt, Bolens, Huskee, Yard Machines, and Yard-Man
• Specifically designed for many MTD front and rear engine rider models manufactured from 1990 to 1994

When to Replace

• Engine does not crank or makes a single, audible click when the key is turned
• Starter motor runs continuously, even after the key is released
• Intermittent or no response from the ignition system

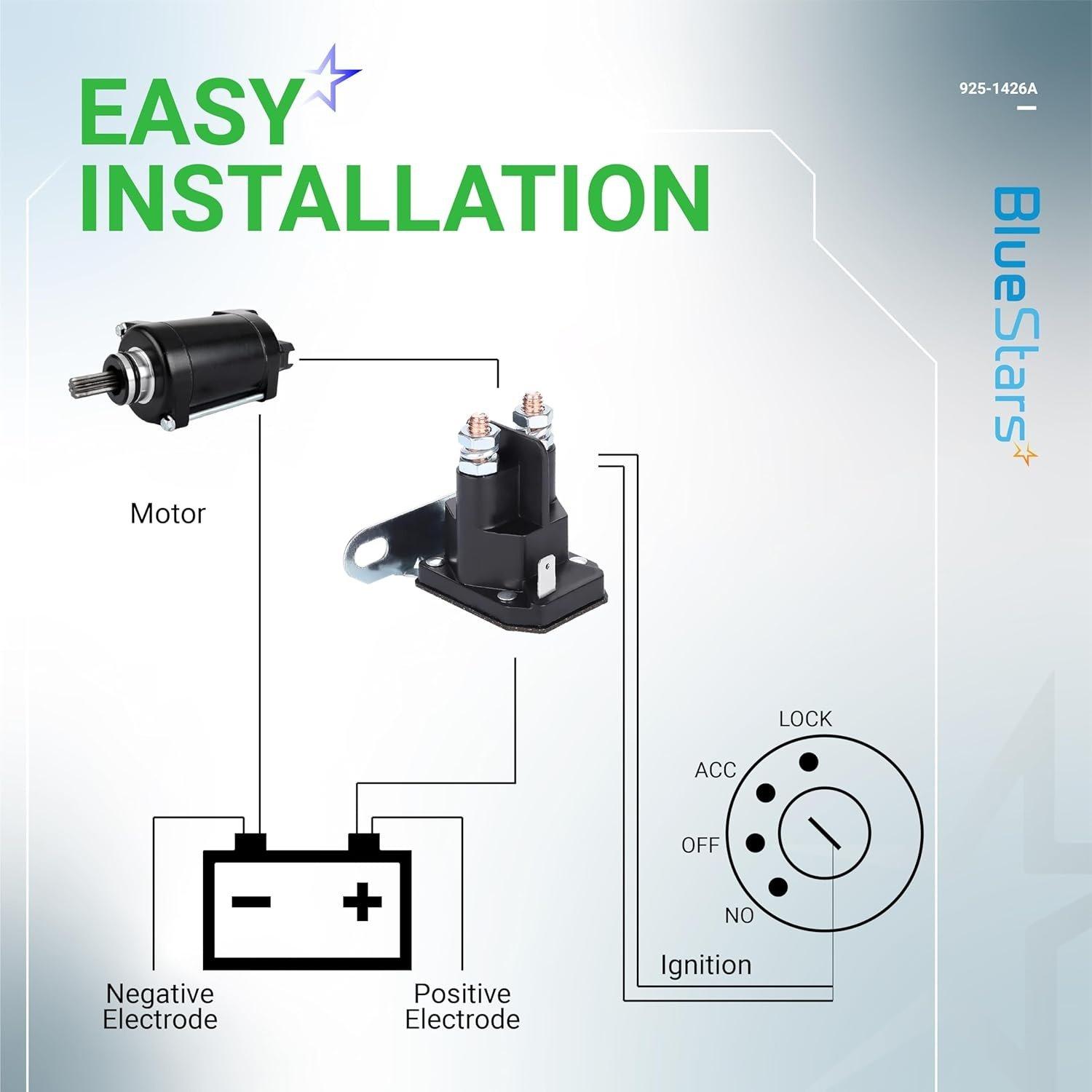

Installation Tips

• Disconnect the negative battery terminal before beginning installation
• Photograph or label the wiring configuration on the old solenoid before removal
• Ensure all terminals and wire connections are clean and secure to prevent electrical issues
• Confirm correct wire placement on the new solenoid before reconnecting the battery
