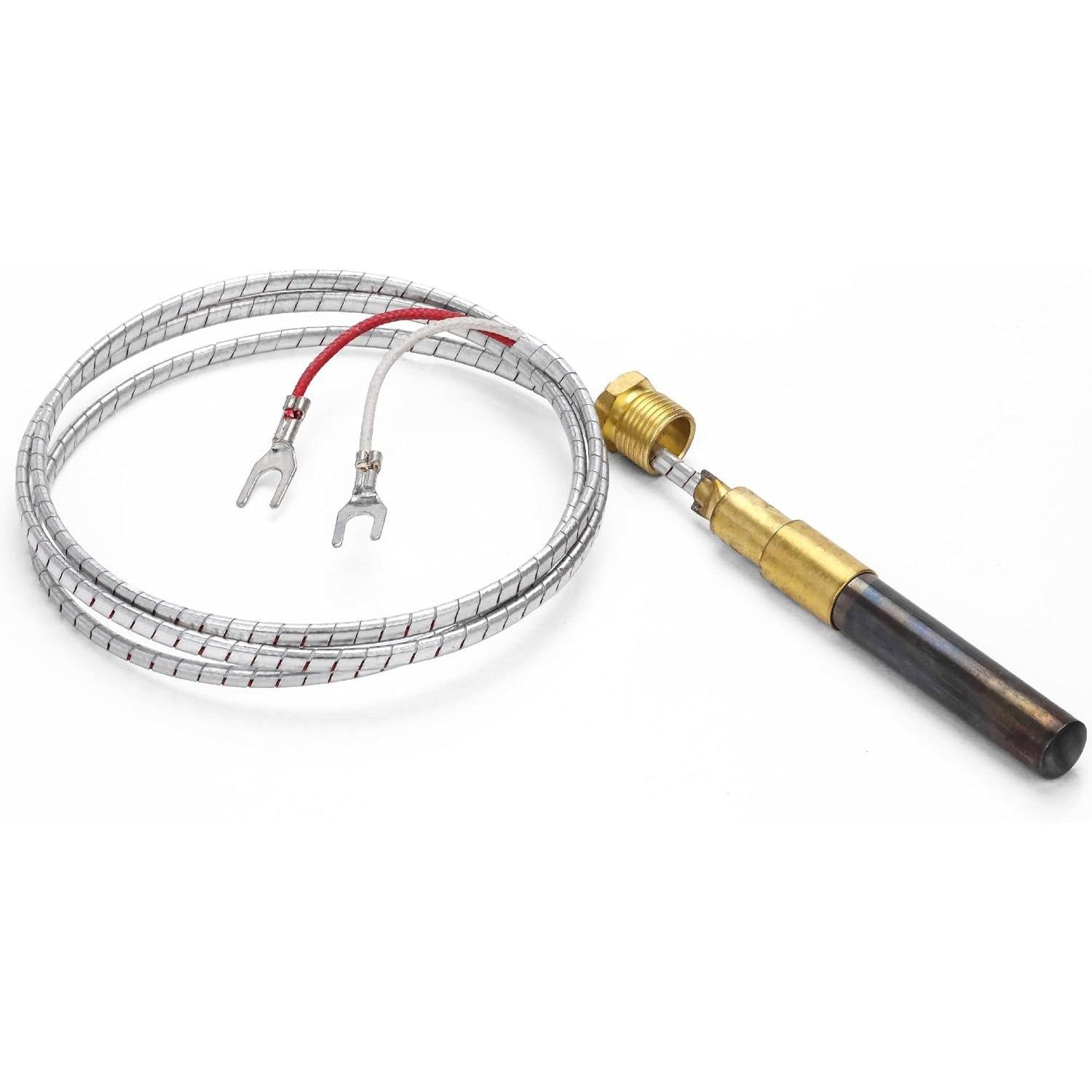

[Lifetime Warranty] 1950-001 Robertshaw Thermopile 36" 250-750 Millivolts MV 2 Lead with PG9 Adapter

1950-001 Robertshaw Thermopile 36" 250-750 Millivolts MV 2 Lead with PG9 Adapter

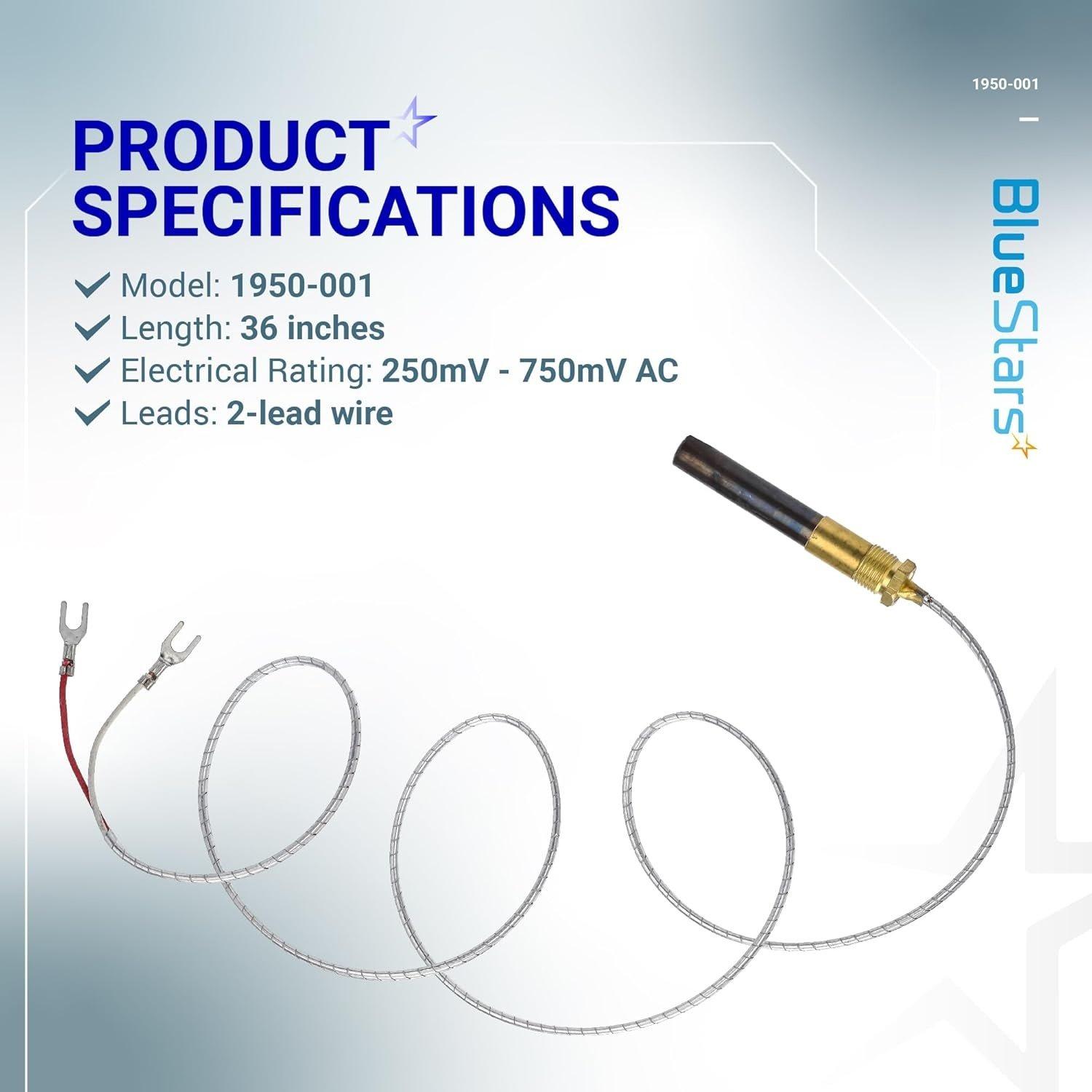

Key Features

• Length: 36 inches
• Voltage Output: 250-750 Millivolts (MV)
• Connection: 2-wire spade connectors
• Function: Pilot generator for self-powered gas control systems
• Includes: PG9 adapter for pilot burner connection

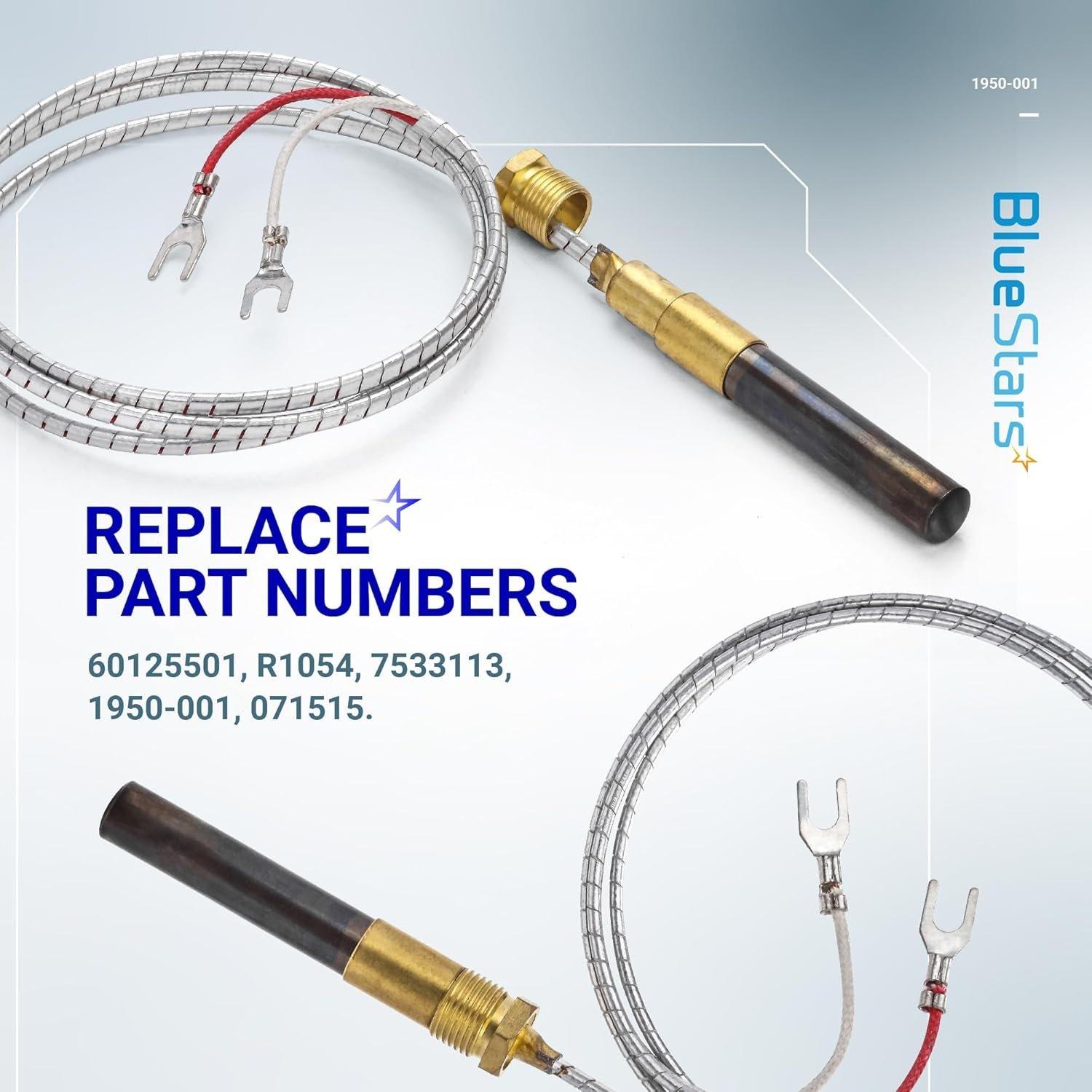

Replaces / Cross-Reference Part Numbers

• Robertshaw: 1950-001
• Series: TP-75

Compatibility & Fitment

• Designed for gas appliances with standing pilot ignition systems
• Compatible with gas control valves requiring a 2-wire thermopile with a 250-750 MV output
• The PG9 adapter facilitates connection to various pilot burner assemblies

When to Replace

• Pilot light fails to remain lit after the control knob is released
• Measured millivolt output is low or non-existent
• Main burner does not ignite or operates intermittently
• Visible signs of damage, corrosion, or burning on the thermopile tip or leads

Installation Tips

• Ensure the gas supply to the appliance is shut off before beginning installation
• Position the thermopile tip so it is fully engulfed in the pilot flame for maximum voltage generation
• Connect the two spade leads securely to the designated "TH" and "TP" terminals on the gas valve
• Use the PG9 adapter to mount the thermopile to the pilot burner assembly
• After installation, turn the gas supply back on and check all connections for leaks with a soap solution
