[Lifetime Warranty] 48-080 in-Line Filter Screen Assembly

48-080 in-Line Filter Screen Assembly

Key Features

• Filters water entering the cleaner, capturing debris before it reaches internal components.

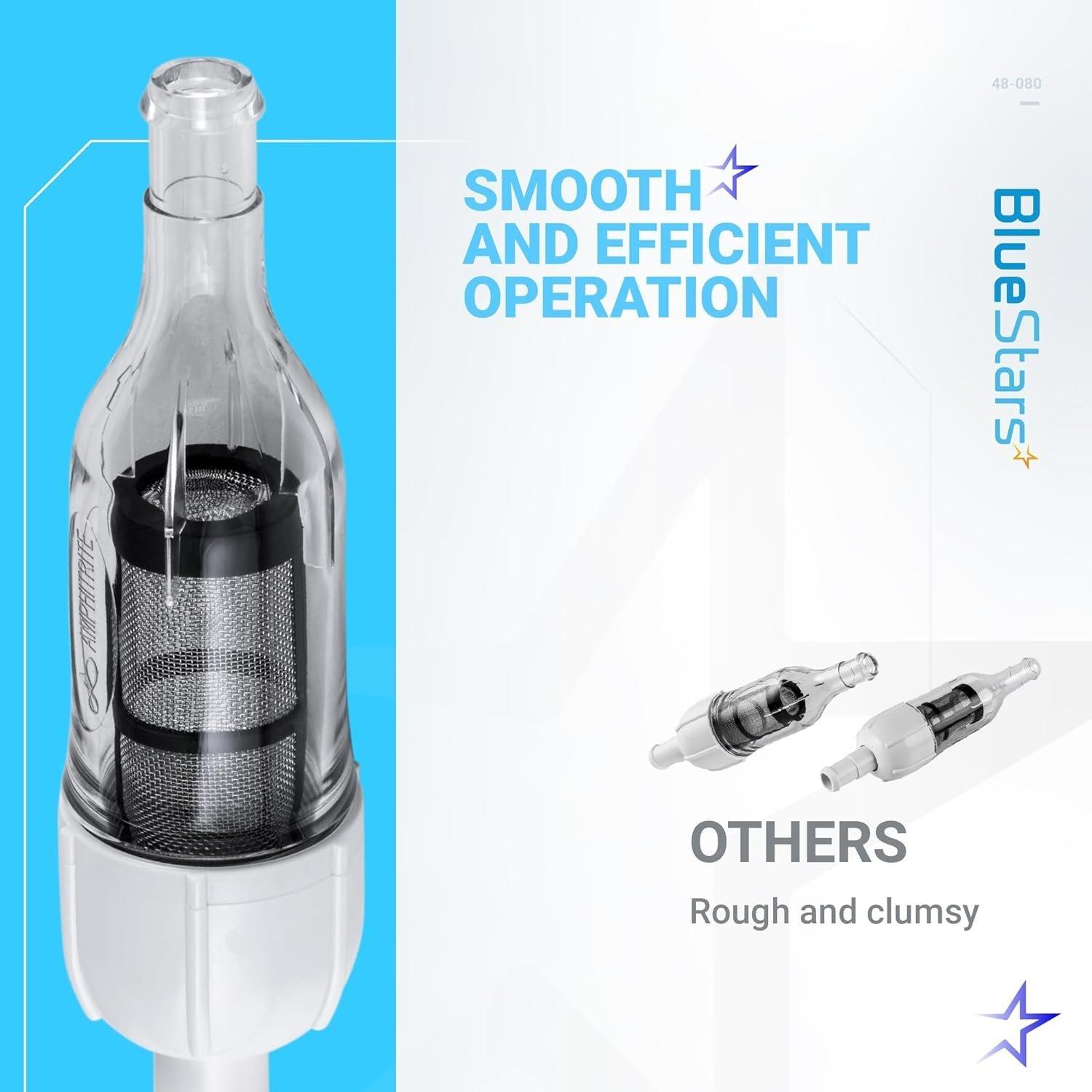

• Transparent housing allows for quick visual inspection of the filter screen.
• Connects two sections of the feed hose and acts as a swivel to prevent tangling.
• Includes filter housing, internal screen, and O-ring seal.

Replaces / Cross-Reference Part Numbers

• 48-080

Compatibility & Fitment

• Fits Zodiac Polaris pool cleaner models: 180, 280, 380, 480 PRO, 3900 Sport, Quattro P40/Sport, 280 TankTrax, Vac-Sweep 280, and Vac-Sweep 380.

When to Replace

• Housing is cracked, leaking, or visibly damaged.
• Internal screen is torn or permanently clogged.
• Threads are stripped, preventing a secure connection.
• Reduced water flow to the cleaner is observed due to blockage.

Installation Tips

• Shut off the pool's booster pump before beginning installation.
• Cut the feed hose at the proper length from the pool wall connection.
• Insert the hose ends into the filter assembly and tighten the pressure fitting nuts.
• Ensure the O-ring is seated correctly to prevent leaks.

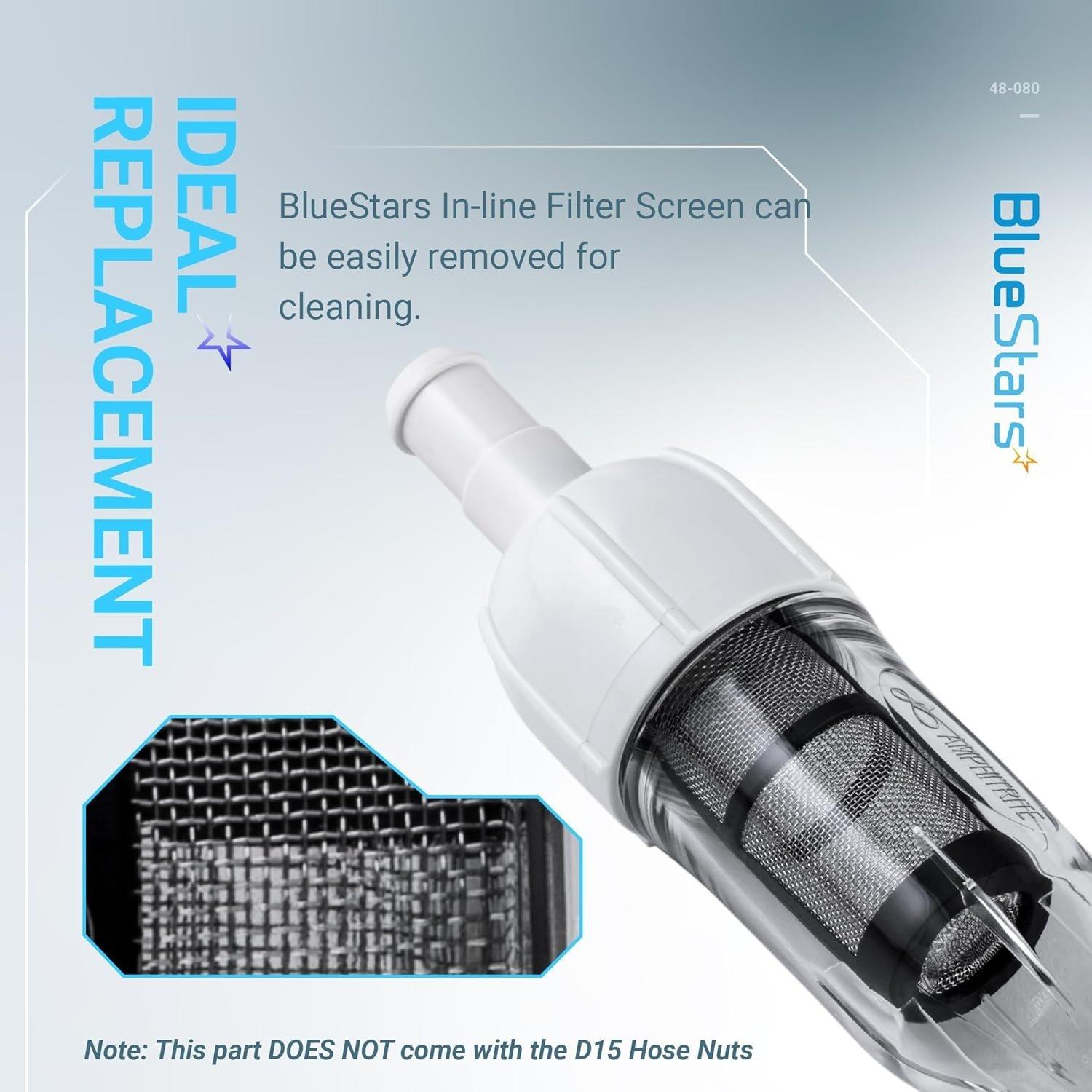

• Unscrew the clear housing periodically to rinse and clean the internal screen.
