[Lifetime Warranty] 6-500-00 Pool Cleaner Universal Wall Fitting (UWF) Connector

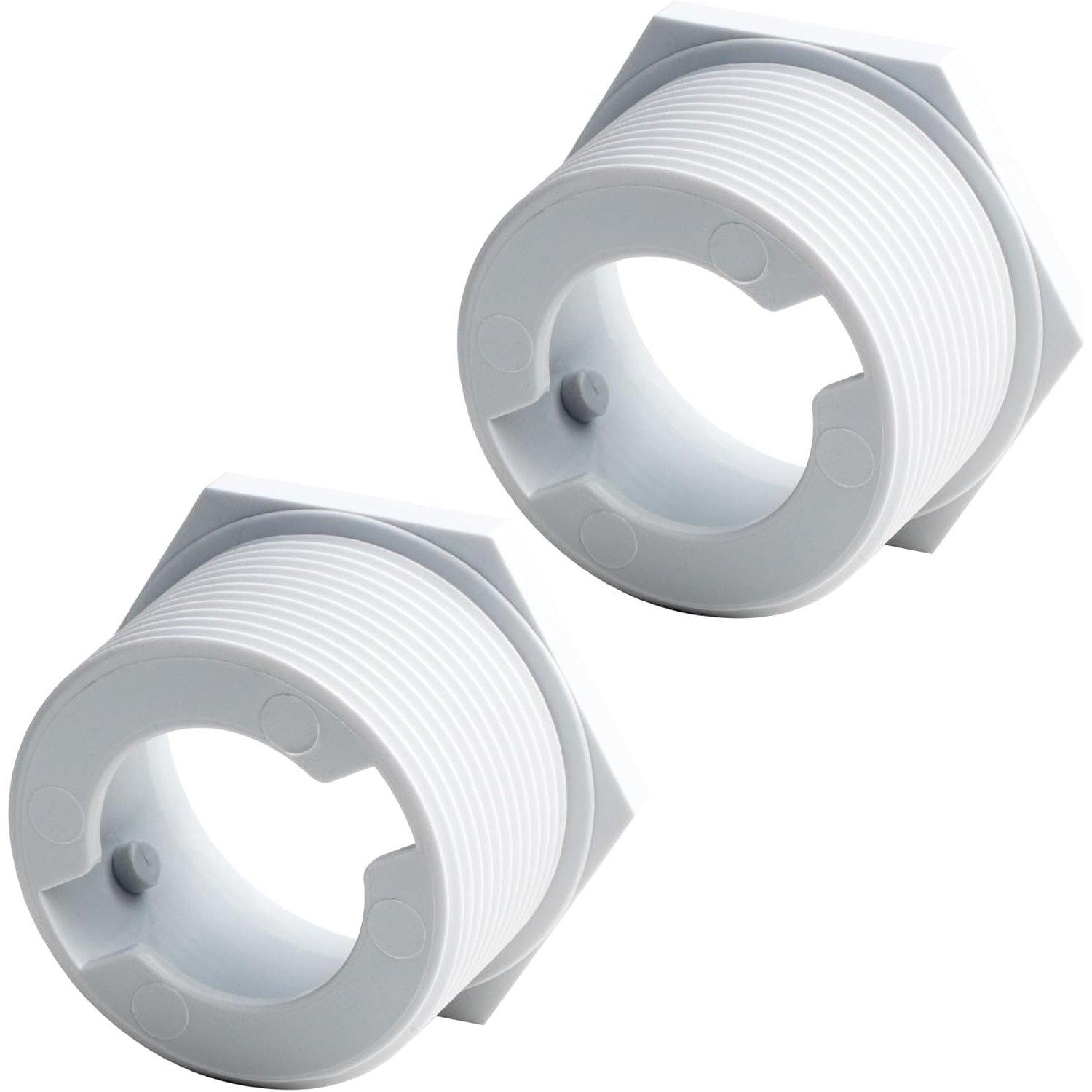

6-500-00 Pool Cleaner Universal Wall Fitting (UWF) Connector

Key Features

• Connects the pressure-side cleaner hose to the pool's water return line.
• Facilitates easy hose attachment and removal with a quick-disconnect mechanism.
• Threads into standard 1.5-inch female threaded return ports.

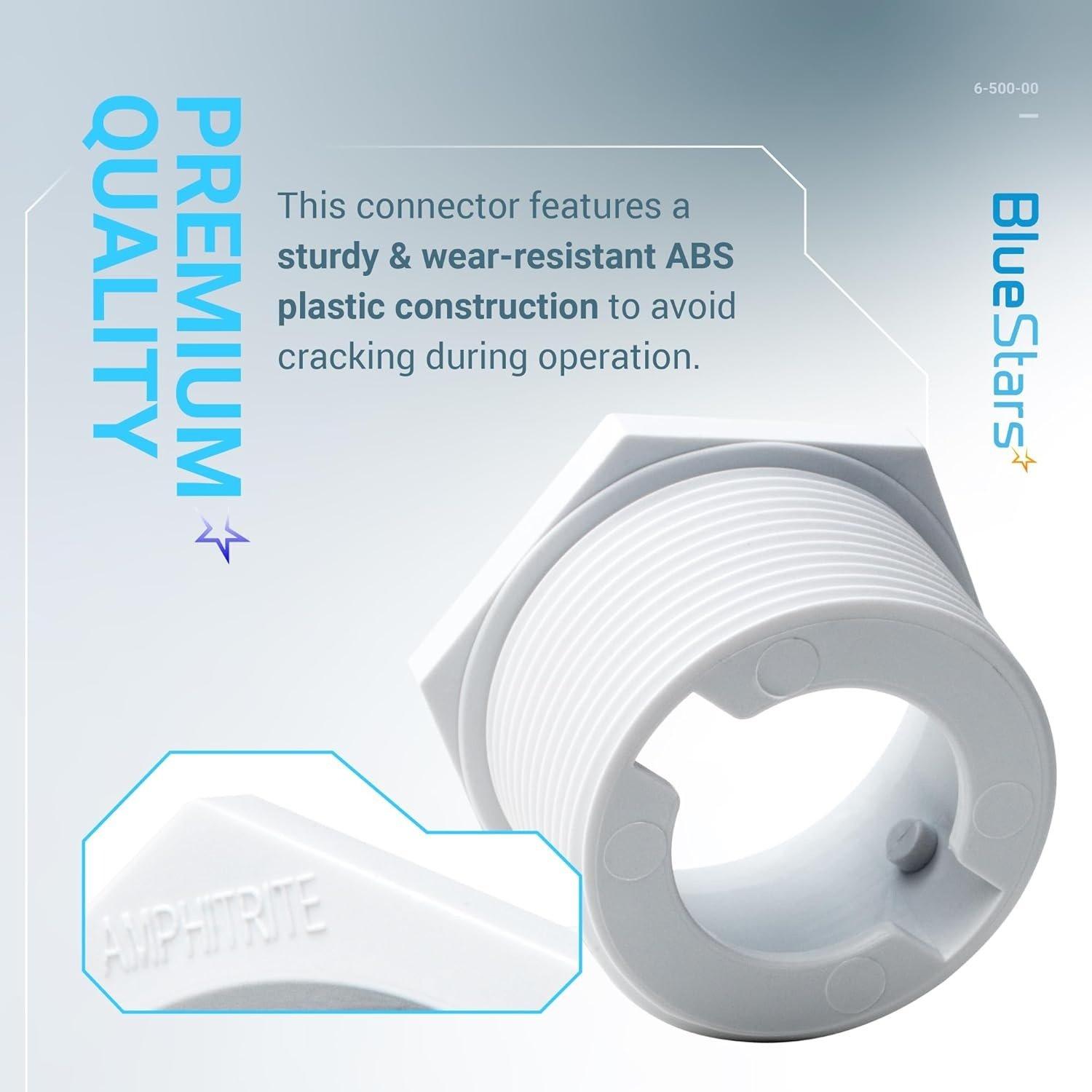

• Constructed from durable, chemical-resistant polymer.

Replaces / Cross-Reference Part Numbers

• Zodiac Polaris: 6-500-00

Compatibility & Fitment

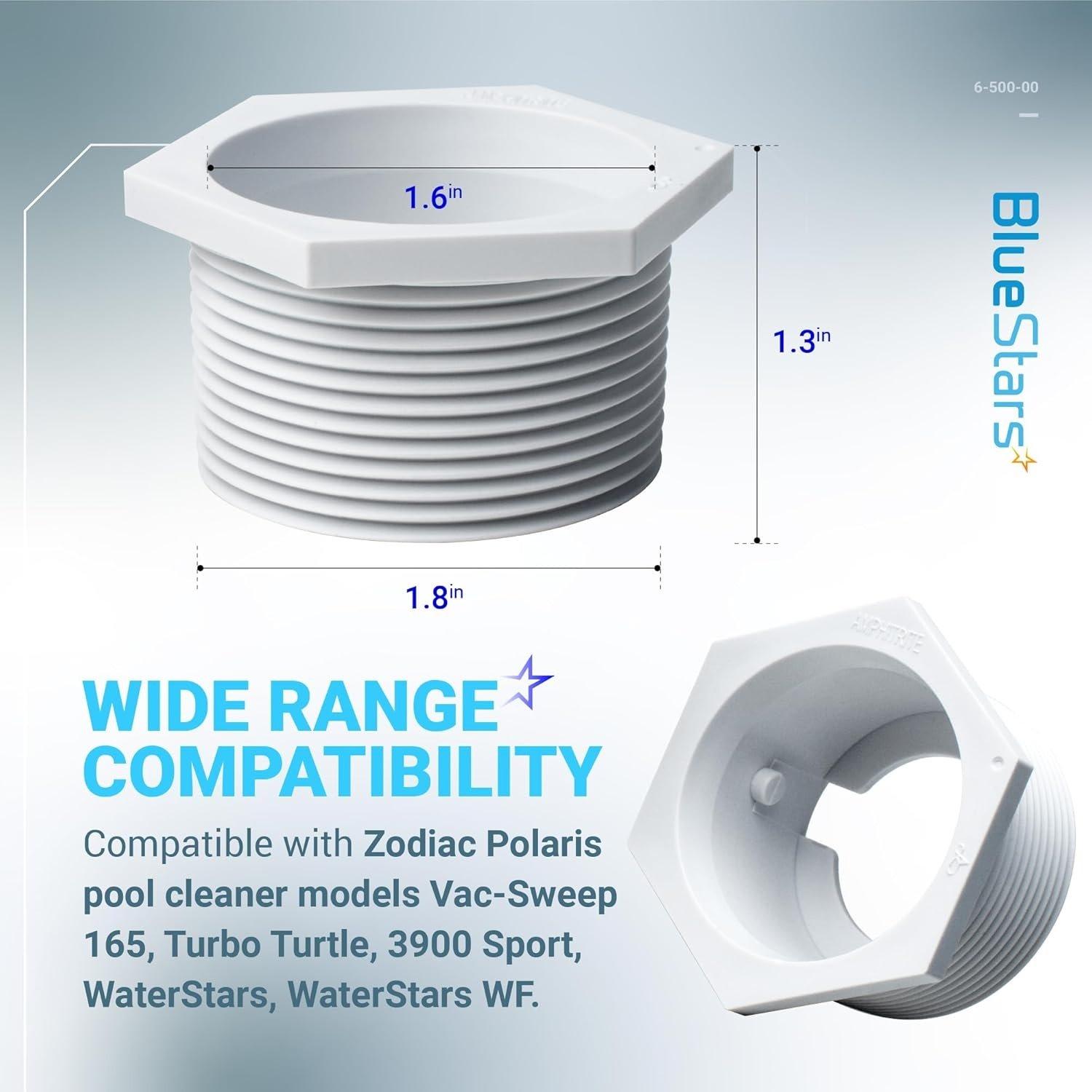

• Fits Zodiac Polaris Models:65, 165, 180, 280, 280 Tank Trax, 360, 380, 3900 Sport, 480 Pro
• Port Requirement:Standard 1.5-inch female threaded return line

When to Replace

• Visible cracks, discoloration, or physical damage on the fitting.
• Water leaks at the wall connection point.
• Threads are stripped, preventing a secure connection.
• The cleaner hose no longer locks into place or disconnects unintentionally.

Installation Tips

• Ensure the pool pump is turned off before installation.
• Unscrew the old fitting from the pool wall.
• Apply a suitable thread sealant or PTFE tape to the new fitting's threads for a watertight seal.
• Hand-tighten the new fitting into the wall port. Do not overtighten.
• Restart the pump and inspect the connection for leaks.
