[Lifetime Warranty] 9-100-3008 Pool Cleaner UWF Connector Assembly Disconnect 9-100-3006 Fitting 6-550-00 Filter Screen 6-504-00

9-100-3008 Pool Cleaner UWF Connector Assembly Disconnect 9-100-3006 Fitting 6-550-00 Filter Screen 6-504-00

Key Features

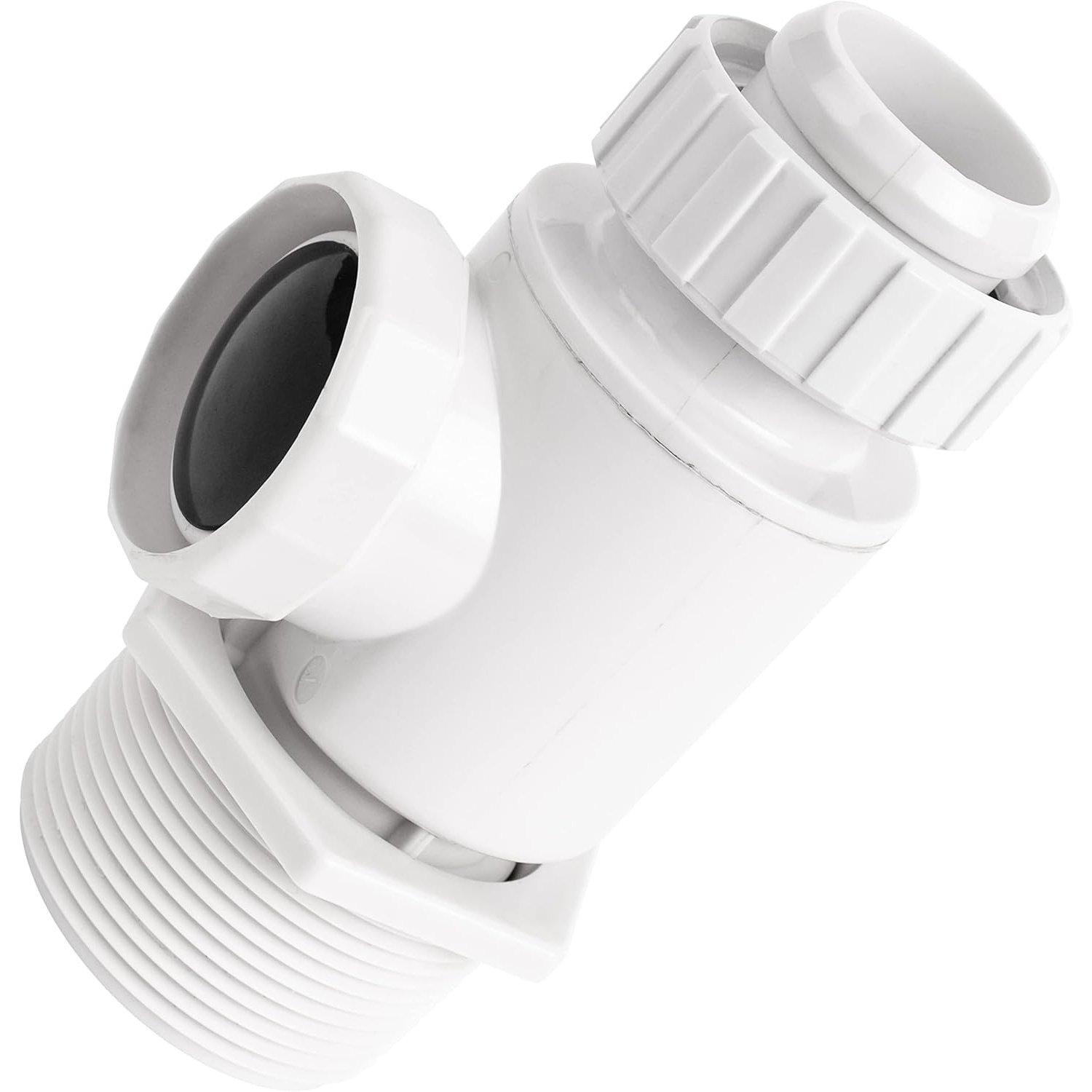

• Complete Universal Wall Fitting (UWF) assembly for pressure-side pool cleaners.
• Connects the cleaner hose to the dedicated return line in the pool wall.
• Features a quick-release mechanism for easy hose detachment.
• Includes an integrated screen to filter debris from the water line.

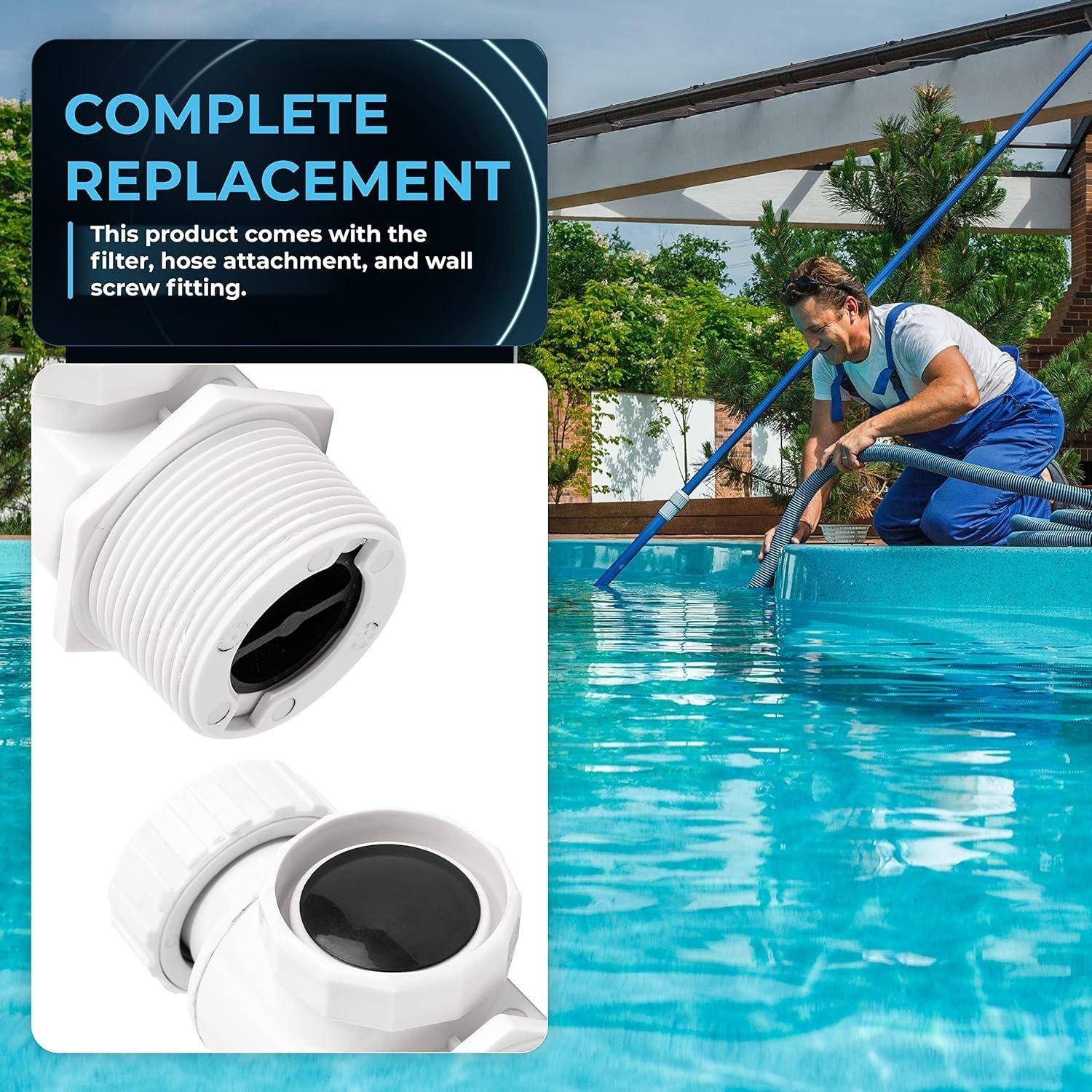

• Kit includes: 1x UWF Connector Assembly (9-100-3008), 1x Quick Disconnect (9-100-3006), 1x Universal Wall Fitting (6-550-00), 1x Filter Screen (6-504-00).

Replaces / Cross-Reference Part Numbers

• UWF Connector Assembly: 9-100-3008, 9-100-9001
• Quick Disconnect: 9-100-3006
• Wall Fitting: 6-550-00
• Filter Screen: 6-504-00

Compatibility & Fitment

• Brand: Zodiac Polaris

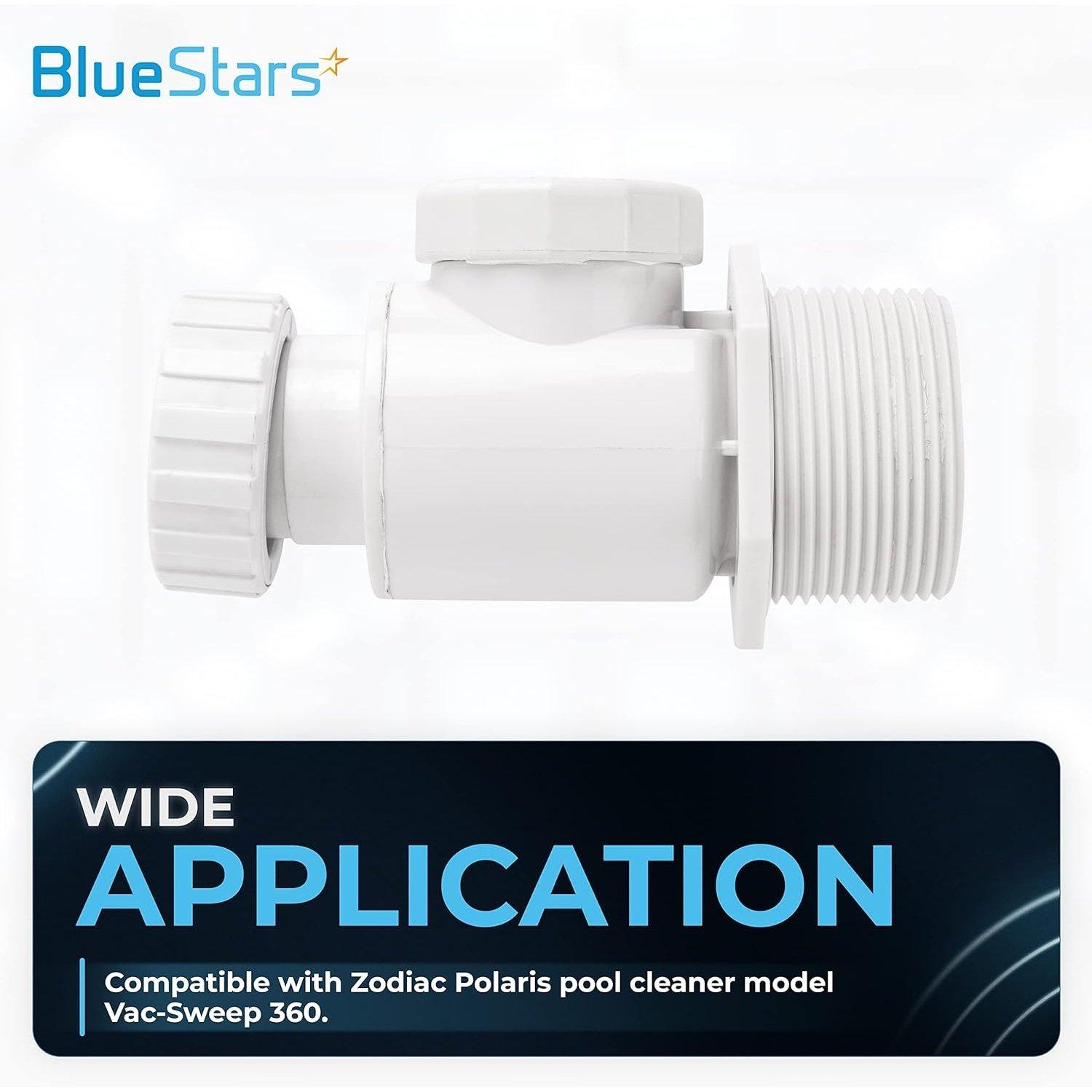

• Designed for model: 360
• Also compatible with models: F1, F1B, TR36P
• The included Filter Screen (6-504-00) also fits models: 180, 280, 380, 65, 165

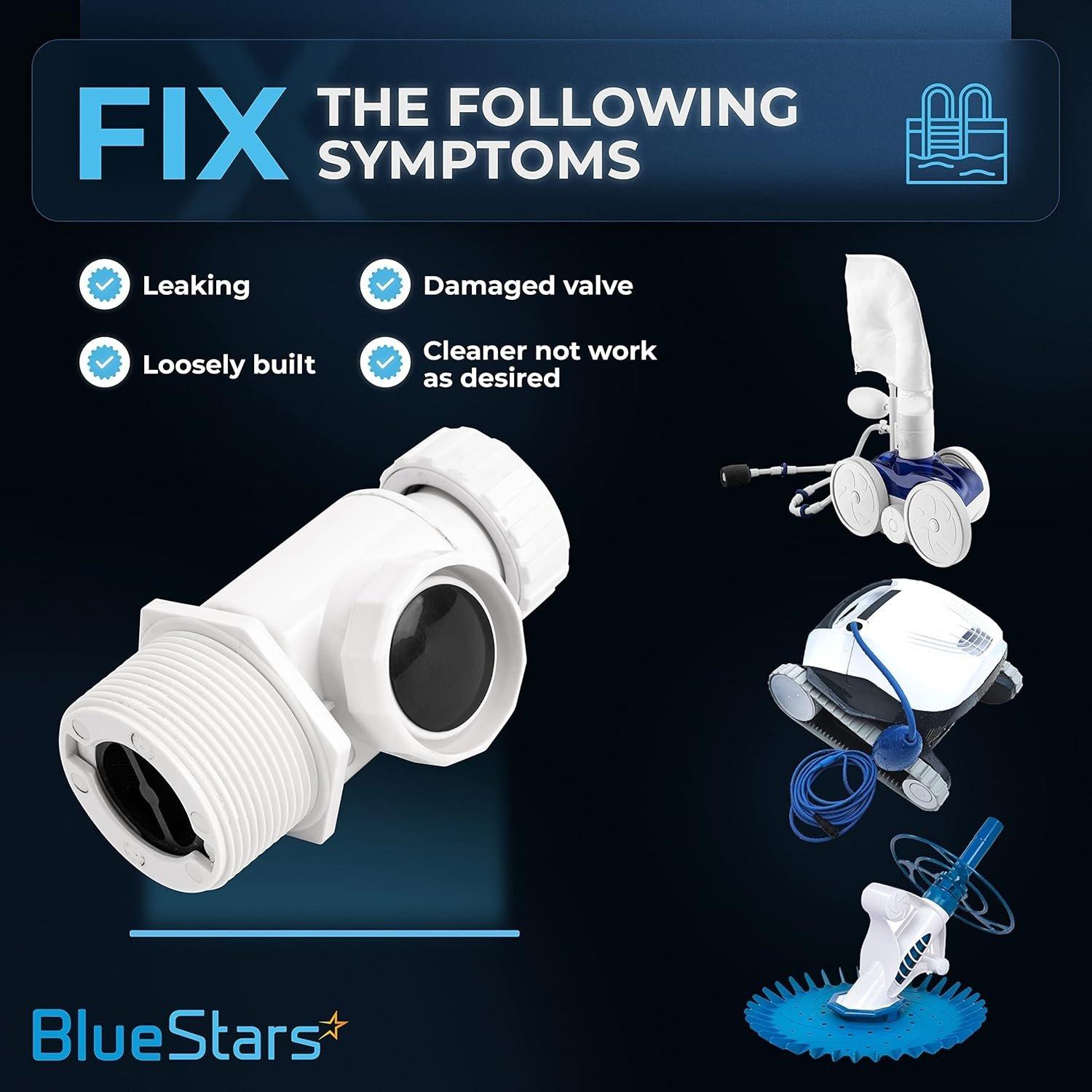

When to Replace

• Visible cracks, damage, or discoloration on the plastic housing.
• Water leaks at the wall connection point.
• The quick disconnect fitting fails to lock or release properly.
• Reduced water pressure to the cleaner due to a clogged or damaged filter screen.

Installation Tips

• Turn off the pool pump before installation or removal.
• Unthread the old assembly from the pool wall return line.
• Ensure threads on the pool wall fitting are clean before installing the new part.
• Hand-tighten the new assembly to the wall fitting to create a secure seal. Do not over-tighten.
• After installation, turn the pump on and check for leaks.
