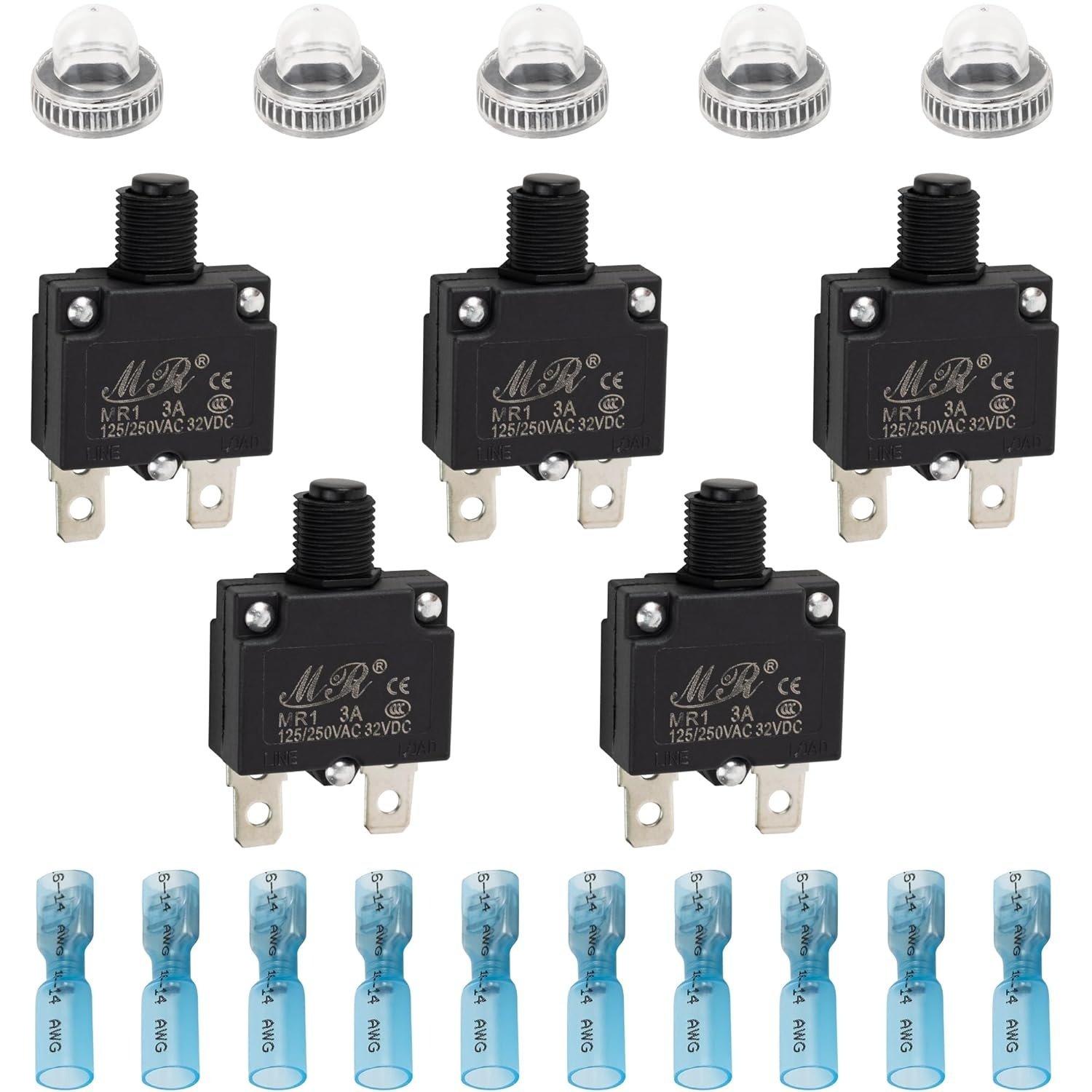

[Lifetime Warranty] 3Amp Thermal Circuit Breaker 125/250V - Pack of 5 image 0

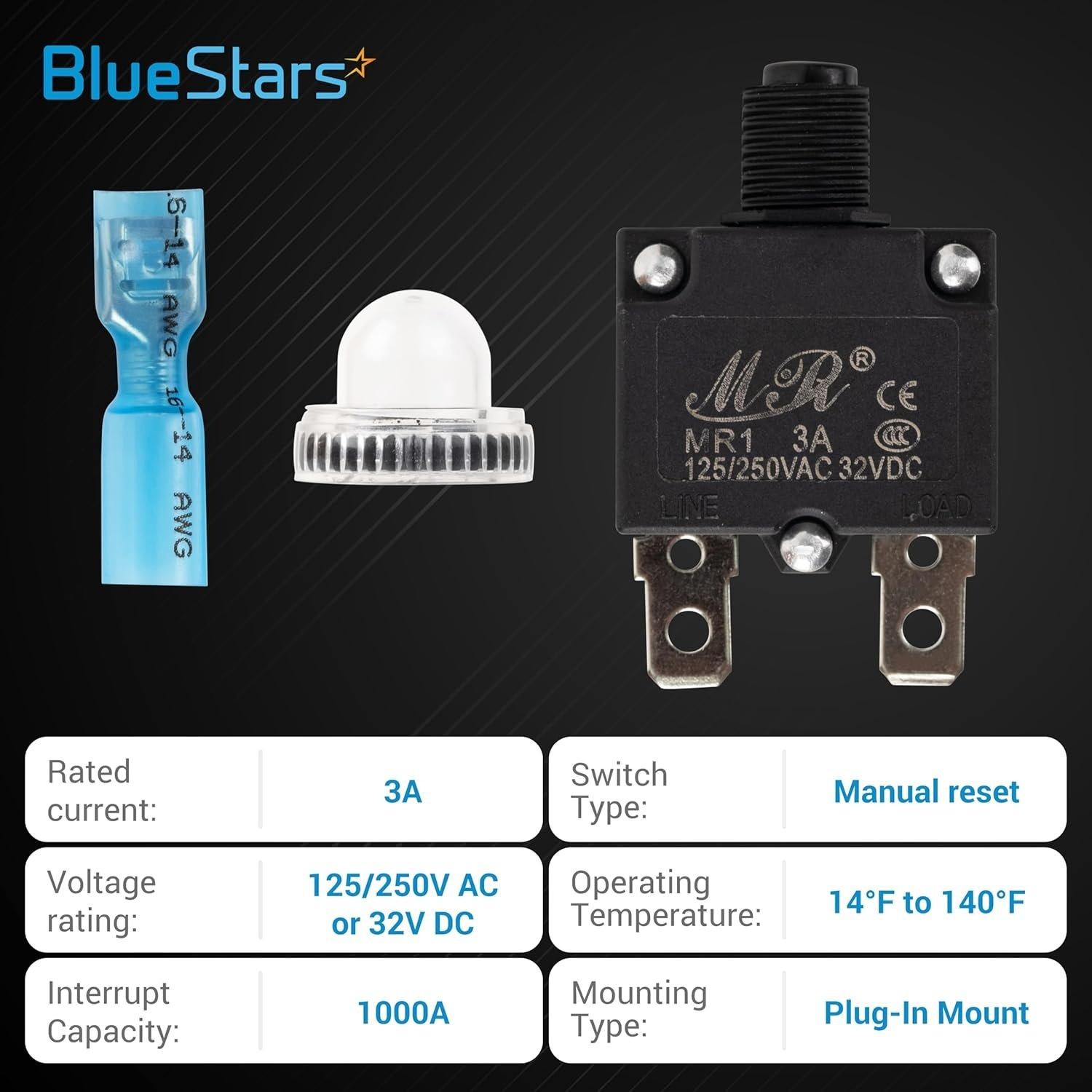

[Lifetime Warranty] 3Amp Thermal Circuit Breaker 125/250V - Pack of 5 image 1
[Lifetime Warranty] 3Amp Thermal Circuit Breaker 125/250V - Pack of 5 image 2

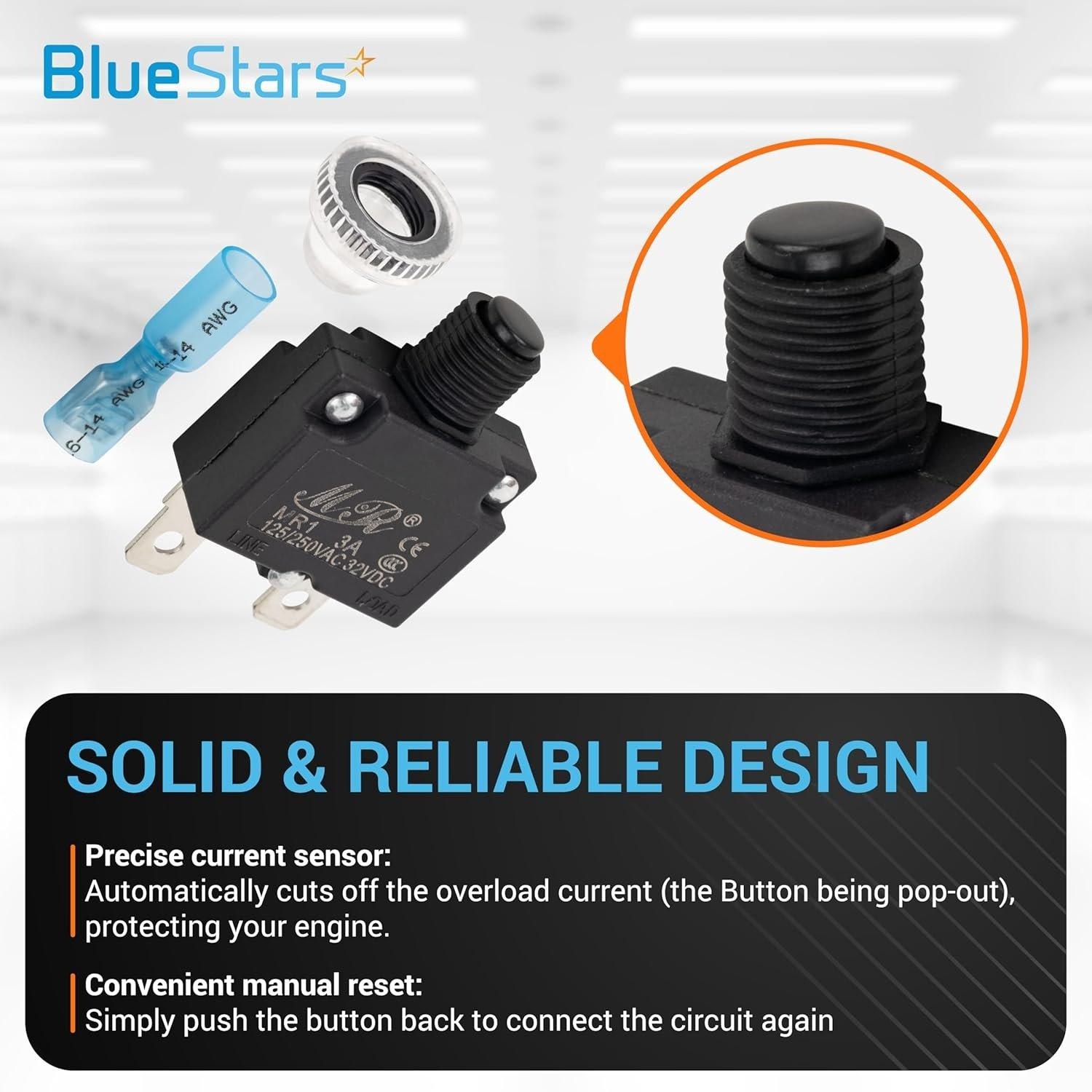

[Lifetime Warranty] 3Amp Thermal Circuit Breaker 125/250V - Pack of 5 image 3
[Lifetime Warranty] 3Amp Thermal Circuit Breaker 125/250V - Pack of 5 image 4

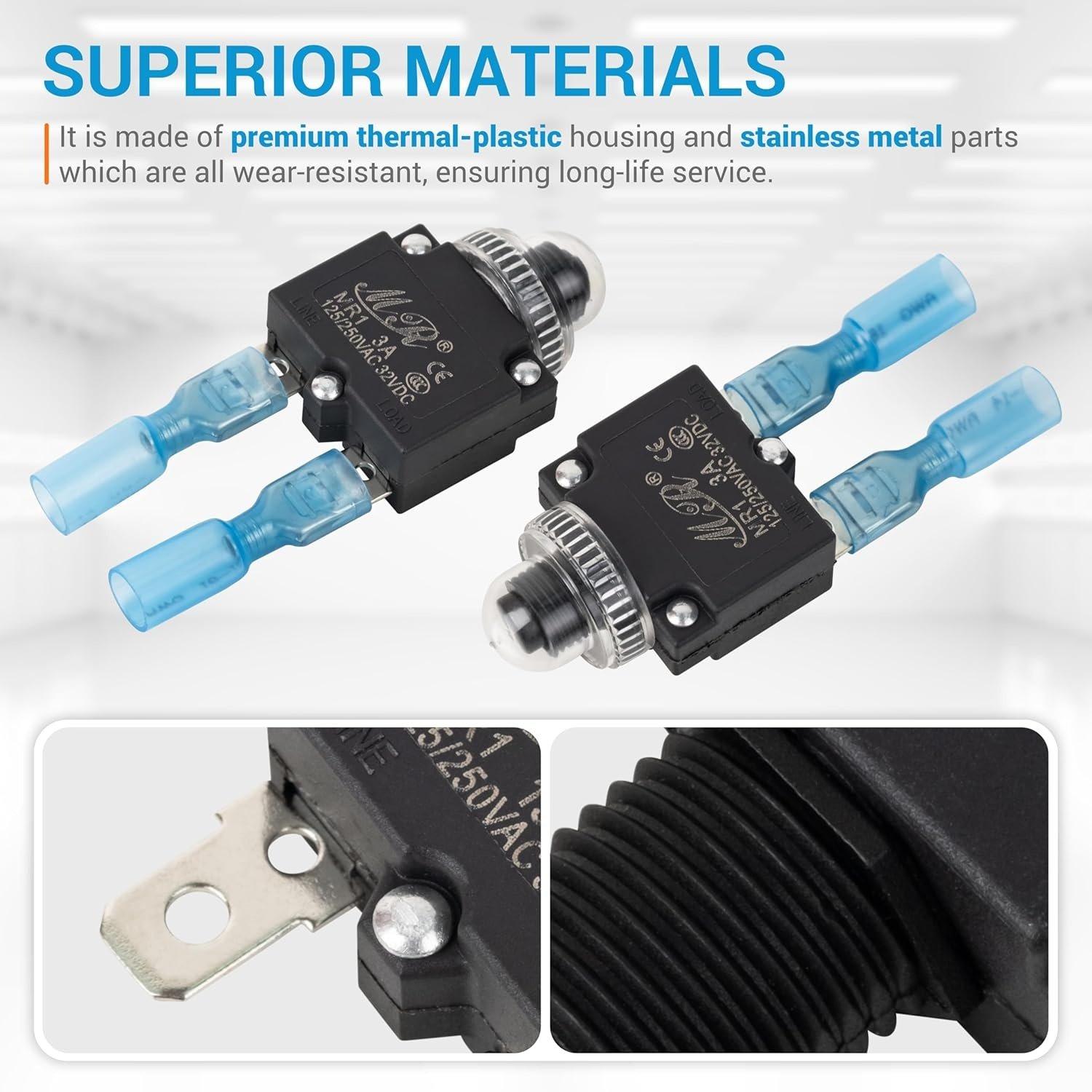

[Lifetime Warranty] 3Amp Thermal Circuit Breaker 125/250V - Pack of 5 image 5
[Lifetime Warranty] 3Amp Thermal Circuit Breaker 125/250V - Pack of 5 image 6
AZ00179298

[Lifetime Warranty] 3Amp Thermal Circuit Breaker 125/250V - Pack of 5

Difficulty Icon: Normal
Normal
15 - 20 minutes

$11.16

$12.39

Save $1.23
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

5-pack 3Amp Thermal Circuit Breaker 125/250V

Key Features

  • Quantity: 5 circuit breakers per pack
  • Current Rating: 3A
  • Voltage Rating: 125/250V AC, 32V DC
  • Frequency: 50/60Hz
  • Type: Single pole, thermal overload protector
  • Reset Mechanism: Manual push-to-reset button
  • Terminals: Quick connect
  • Mounting Type: Panel mount with threaded body and nut

Replaces / Cross-Reference Part Numbers

  • Direct replacement for any thermal circuit breaker with matching 3A, 125/250V AC, and 32V DC electrical ratings and physical dimensions.

Compatibility & Fitment

  • Suitable for a wide range of applications requiring overcurrent protection.
  • Commonly used in power strips, surge protectors, uninterruptible power supplies (UPS), and motor-driven appliances.
  • Fits many small household and commercial appliances such as blenders, meat grinders, garbage disposals, and coffee makers.
  • Applicable for low-voltage DC circuits in automotive, marine, and industrial equipment.

When to Replace

  • The existing breaker trips constantly under a normal, non-overloaded condition.
  • The reset button fails to engage or stay in the reset position.
  • There is visible damage to the breaker body, such as cracks, discoloration, or burn marks.
  • The breaker fails to interrupt the circuit during a known overcurrent event.

Installation Tips

  • Disconnect all electrical power to the equipment before starting the installation.
  • Verify that the voltage and amperage ratings of this breaker match the specifications required by your device.
  • Ensure the quick connect terminals are firmly attached to the circuit wires for a secure connection.
  • Insert the breaker into the panel opening and secure it using the included threaded nut.
  • If you are not comfortable with electrical work, consult a qualified professional.
