AZ00180825

[Lifetime Warranty] RP19804 Pressure Balance Shower Cartridge

Sold 294

Difficulty Icon: Easy
Easy
15 - 20 minutes

Out of Stock
This item is no longer available. Please contact our customer service for more information
puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

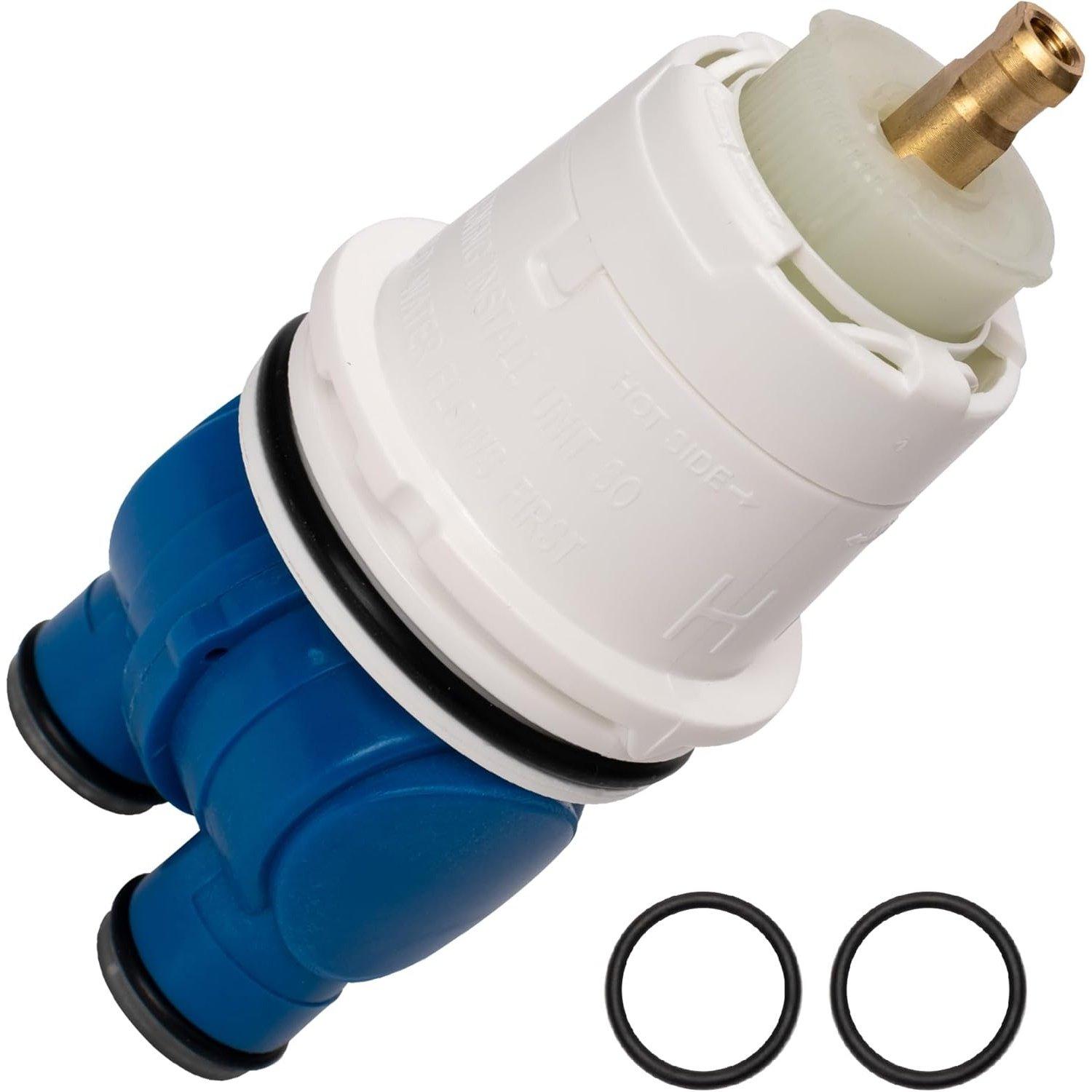

RP19804 Pressure Balance Shower Cartridge

Key Features

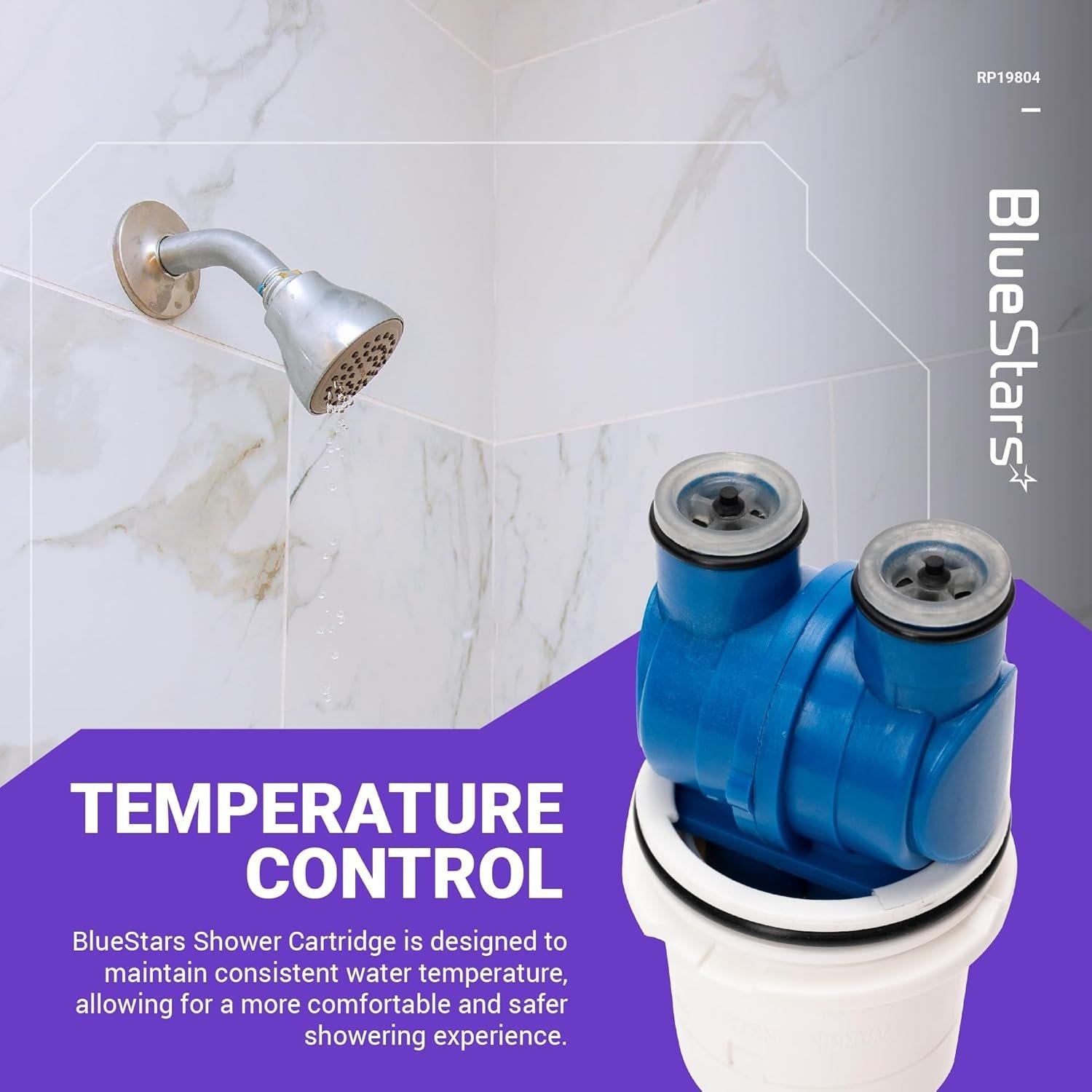

  • Maintains a balance of hot and cold water pressure.
  • Regulates water temperature to within a safe range of ±3.6° F (±1.7° C).

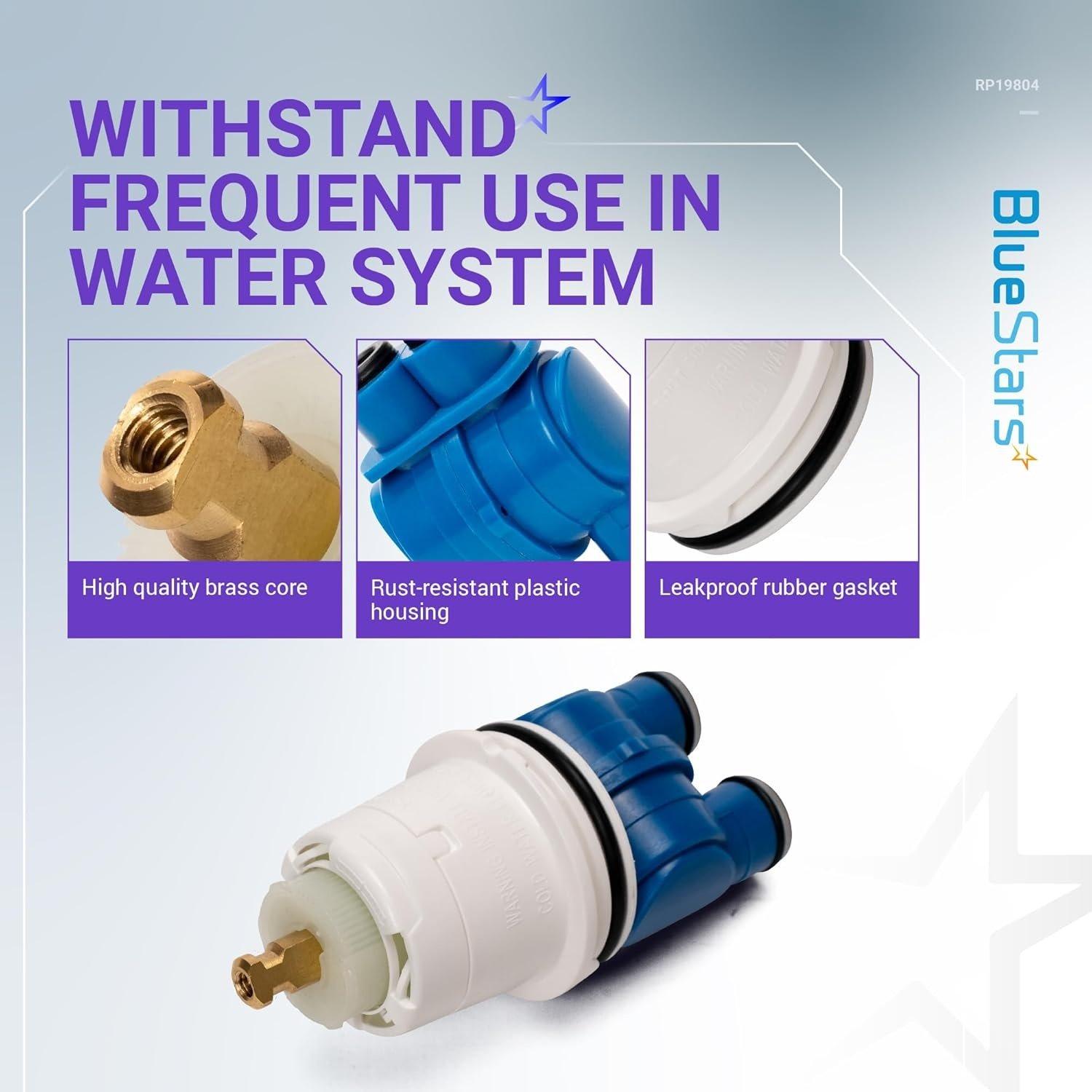

  • Durable plastic construction for reliable performance.
  • Designed for single-handle tub and shower faucet controls.

Replaces / Cross-Reference Part Numbers

  • Replaces OEM part number RP19804.

Compatibility & Fitment

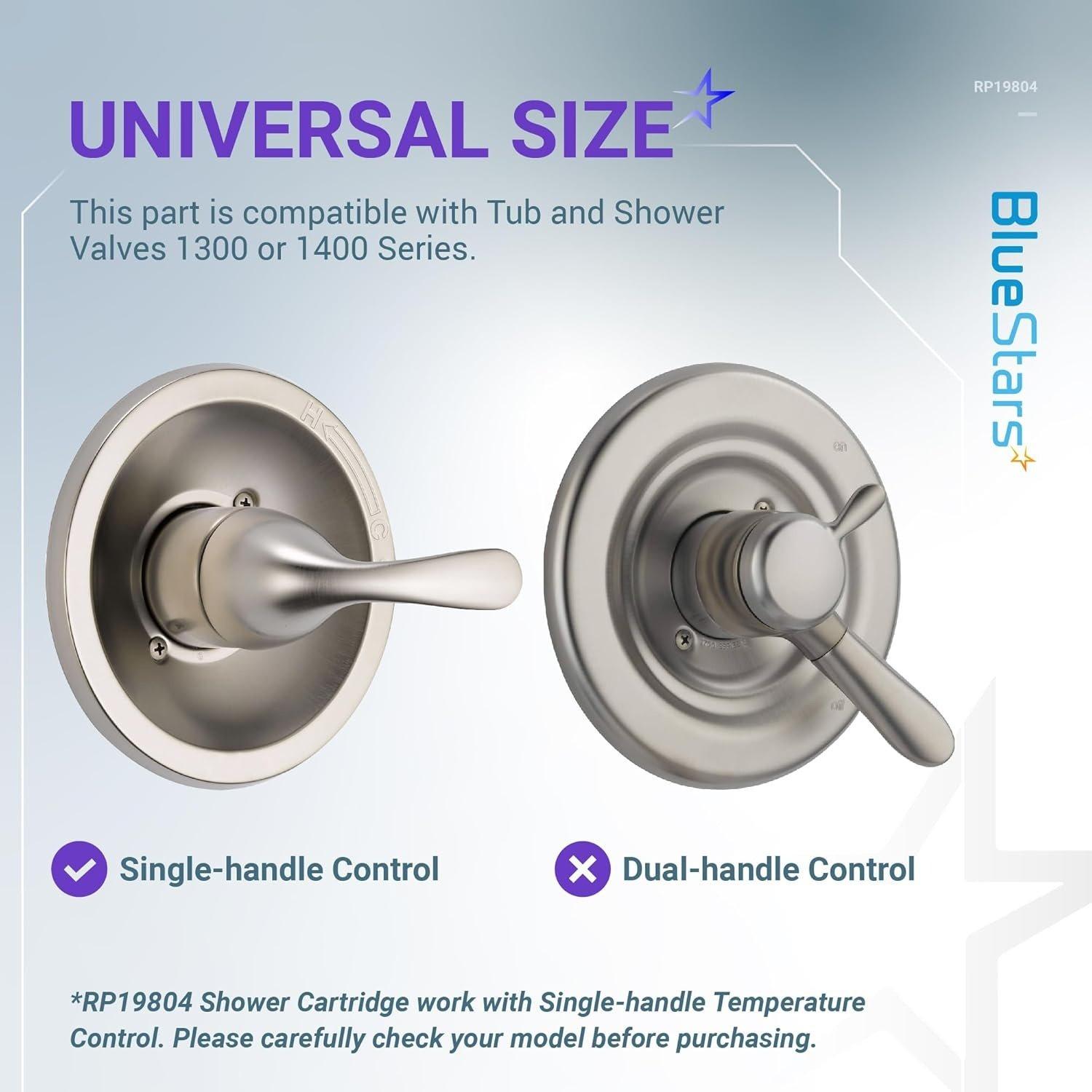

  • Fits Delta 1300 and 1400 series tub and shower valves.
  • For single-handle pressure balance valves manufactured from 1993 to mid-2007.
  • Verify visual match with your existing cartridge before ordering.

When to Replace

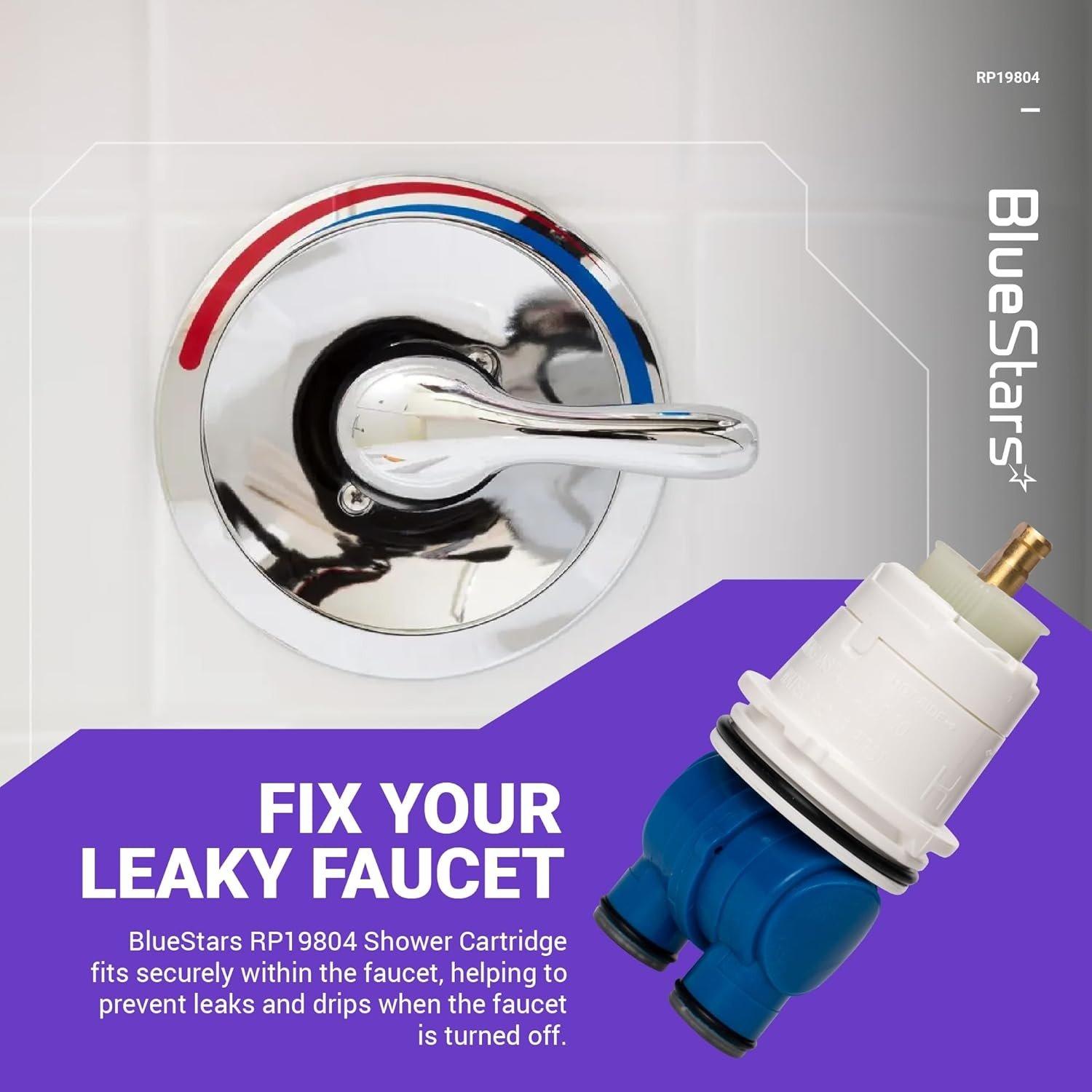

  • Leaking or dripping from the faucet when in the off position.
  • Difficulty achieving or maintaining a consistent water temperature.
  • Reduced water flow or pressure from the shower head or spout.
  • Handle is difficult to turn or does not shut off completely.

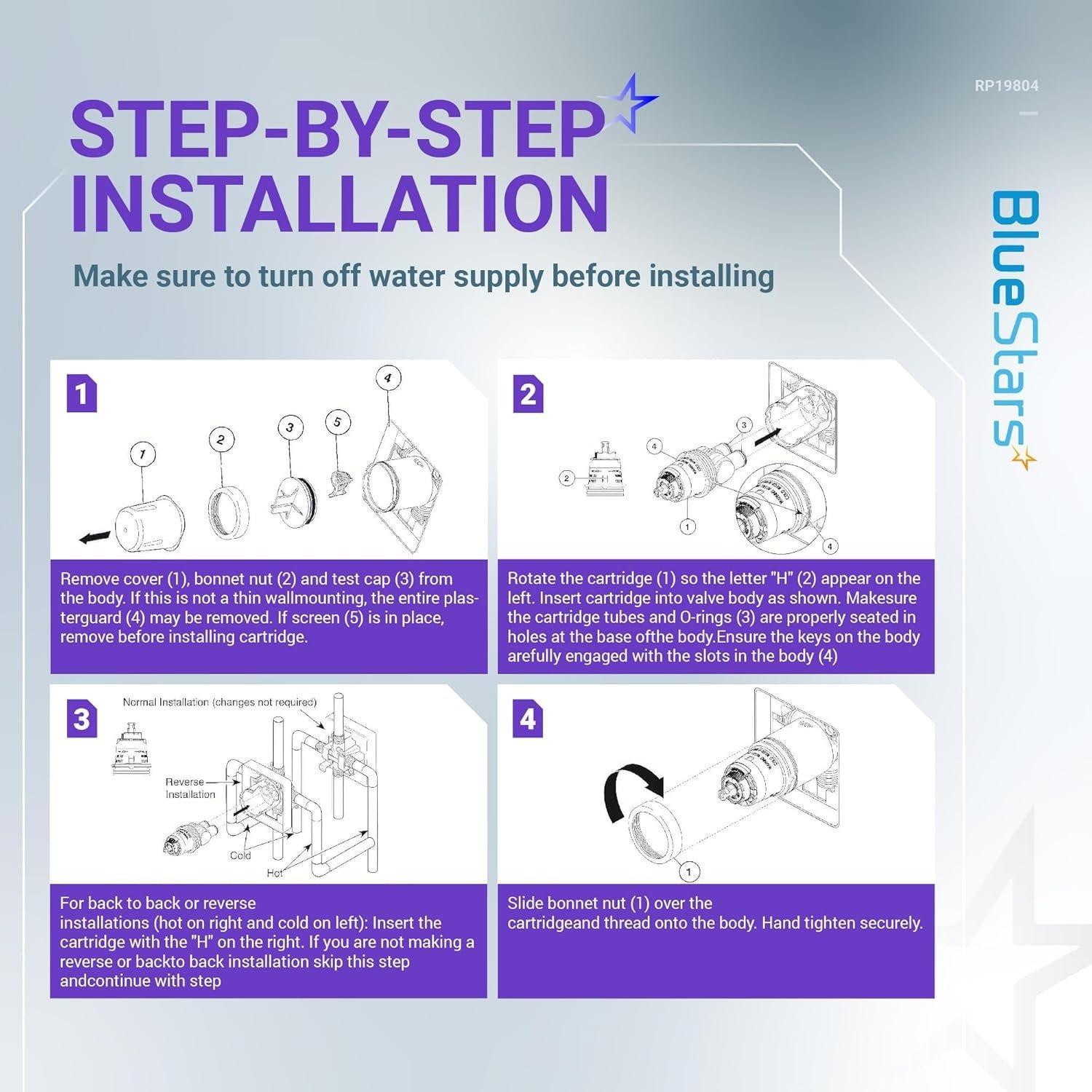

Installation Tips

  • Shut off the main water supply to the shower before beginning work.
  • Note the orientation of the old cartridge before removal to ensure correct installation.
  • Flush the valve body by turning the water on for a few seconds to clear any debris.
  • Lightly apply a silicone-based grease to O-rings for easier installation and a better seal.
  • Secure the bonnet nut until snug, but do not over-tighten.
