AZ00181359
2 Pcs 52114 Oil Filter for Hydro-Gear 52114 Toro Exmark 109-3321
Easy
More than one hour
$22.23
$24.69
Save $2.46
In Stock
Fast delivery
Confirm the fit for your model
Find your model number and check it here to see if the part fits.
Description
Description

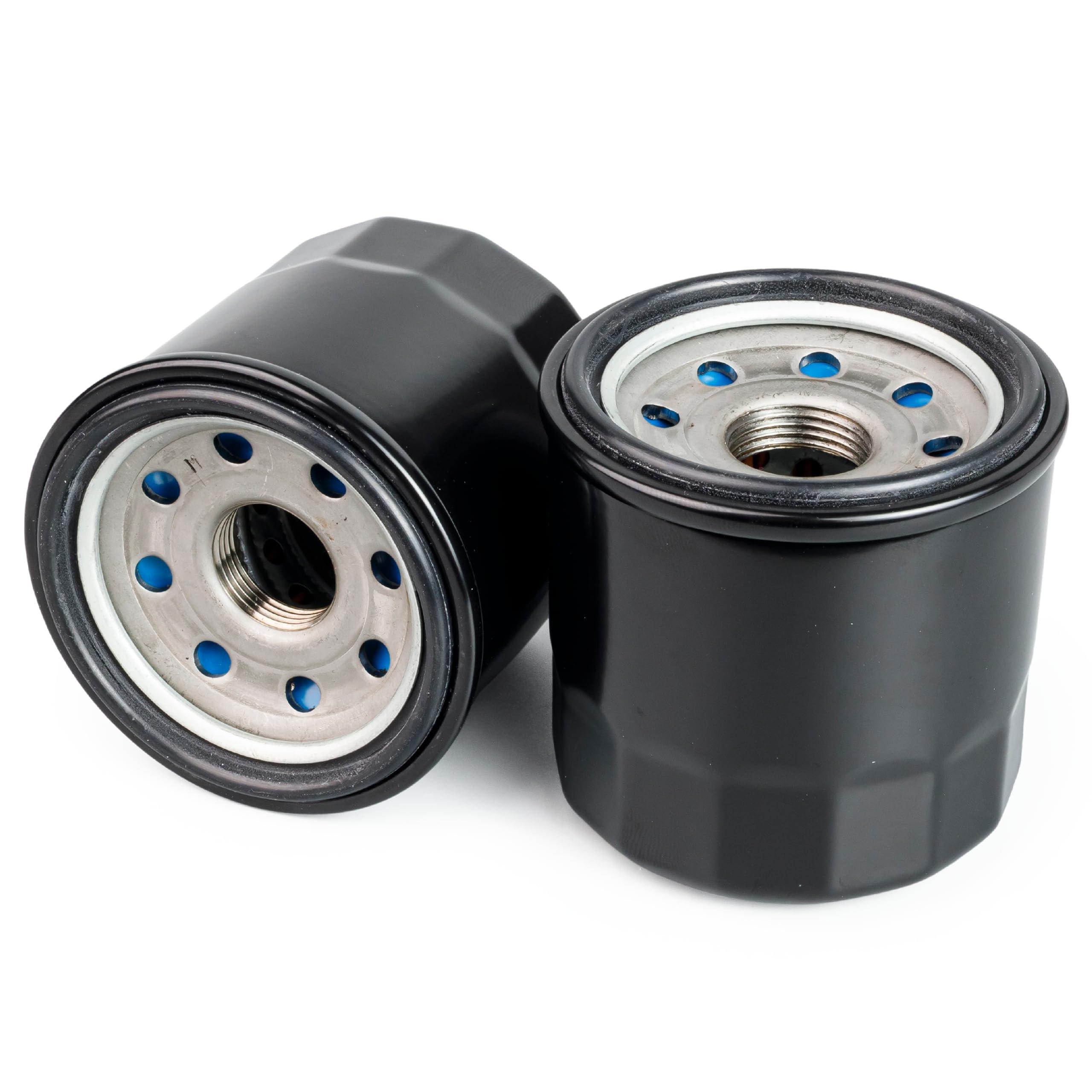

2 Pcs 52114 Oil Filter for Hydro-Gear 52114 Toro Exmark 109-3321
Key Features
- Replacement spin-on filter for compatible lawn mower hydraulic and transaxle systems.
- Includes 2 filters.

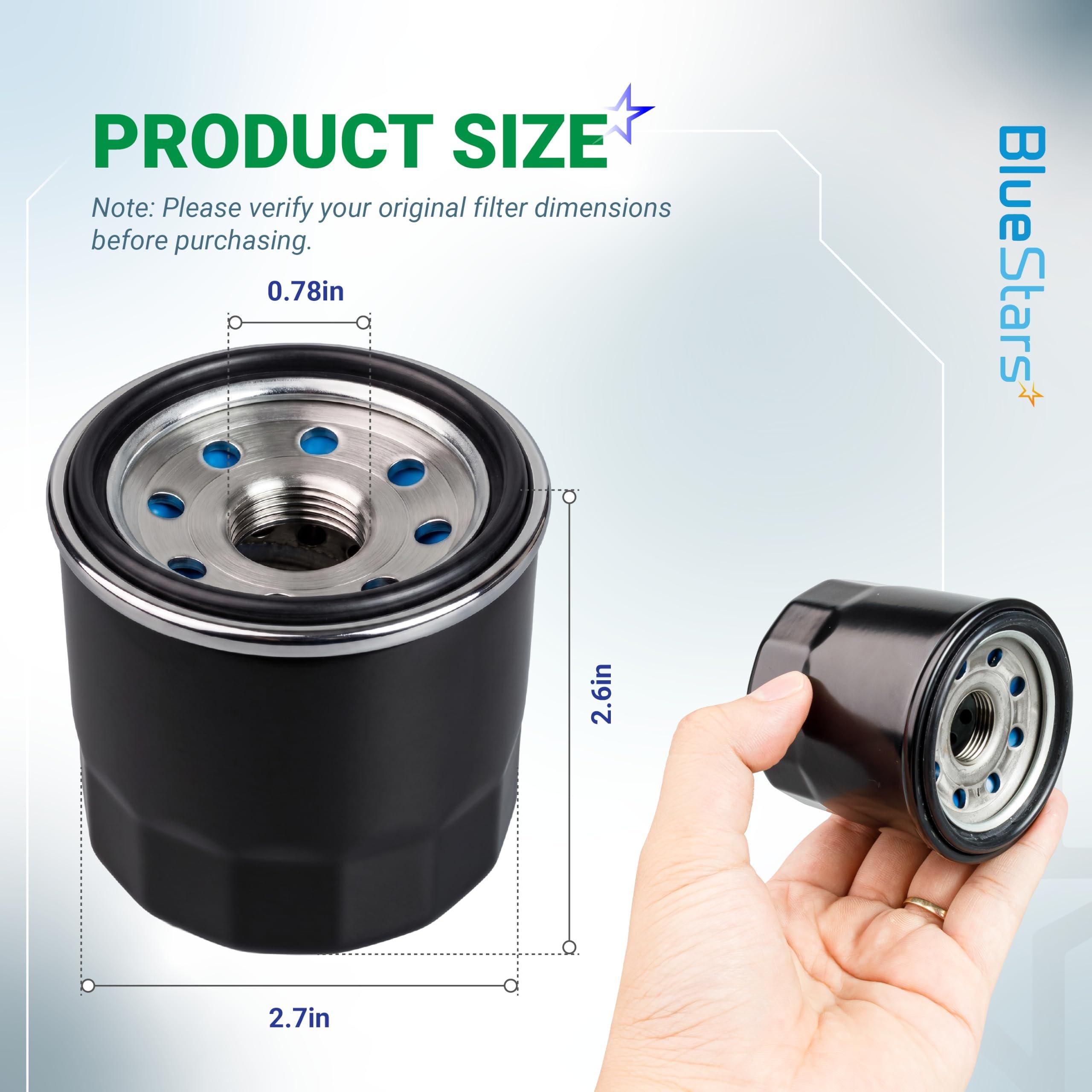

- Approximate dimensions: 2.6 inches in height, 2.7 inches in outside diameter, and 0.78 inches in inner thread diameter.

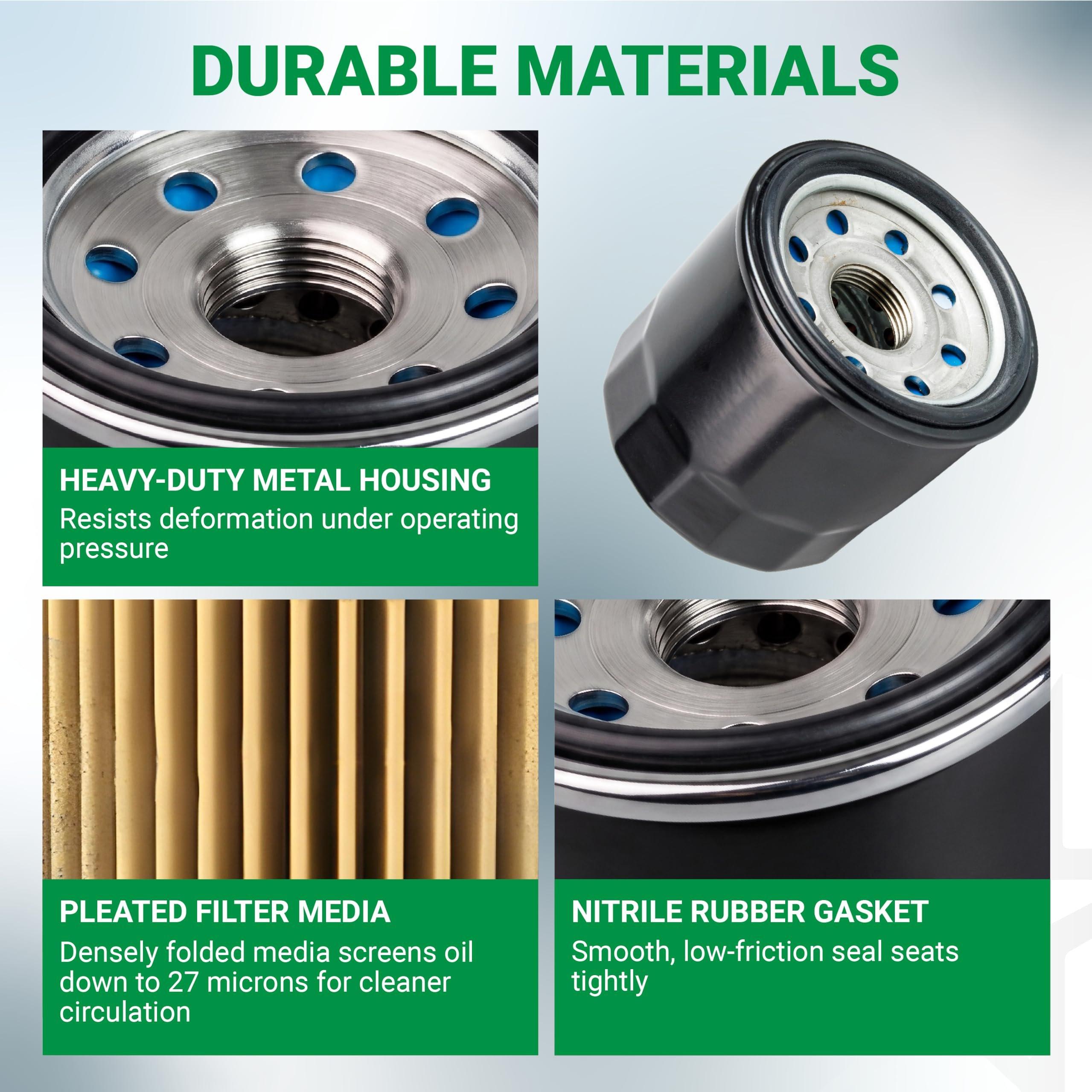

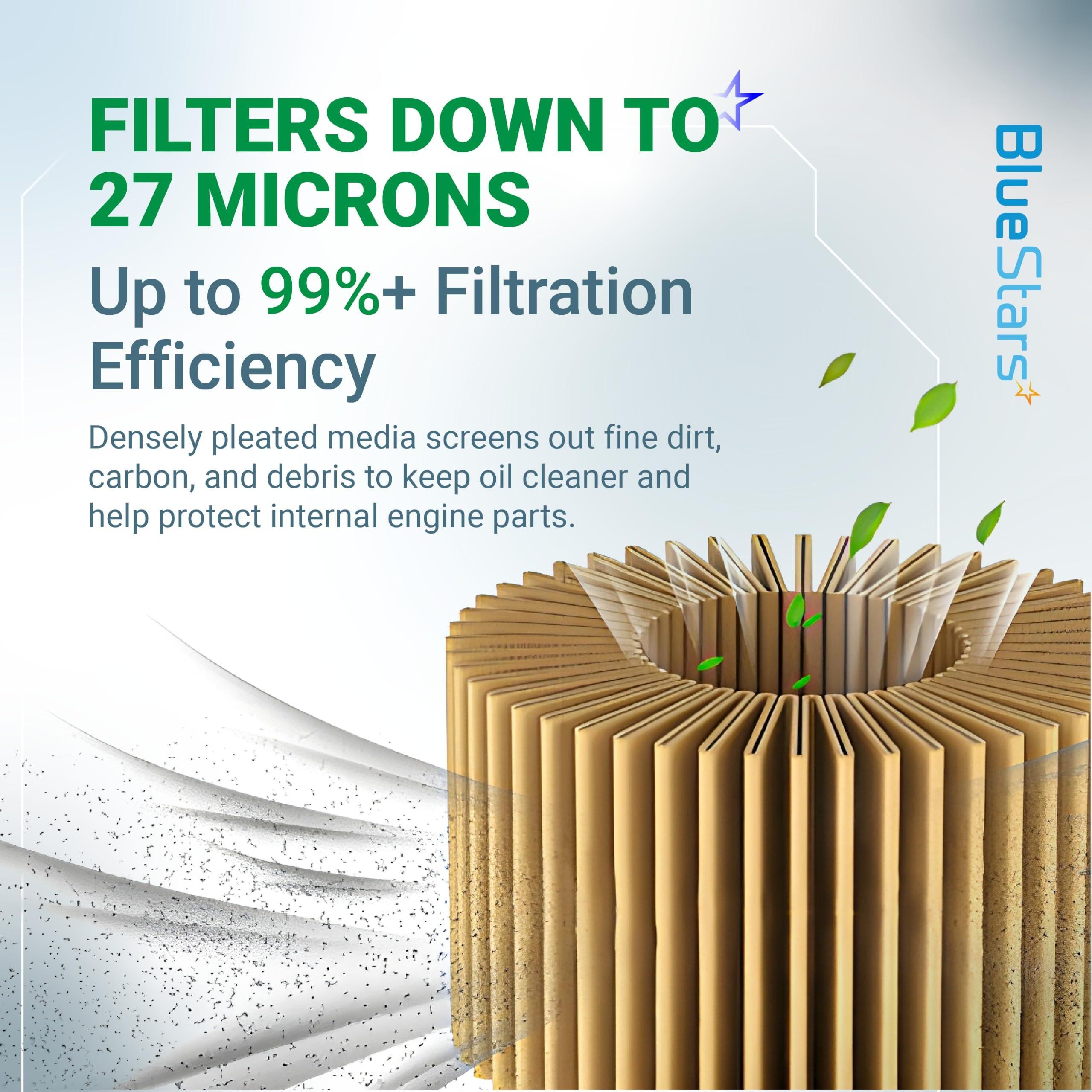

- Heavy-duty steel housing and high-density synthetic filter media support filtration under high operating temperatures and oil pressure.
- Rubber backflow valve, inner support core, and sealing gasket help maintain oil flow and prevent leaks when correctly installed.

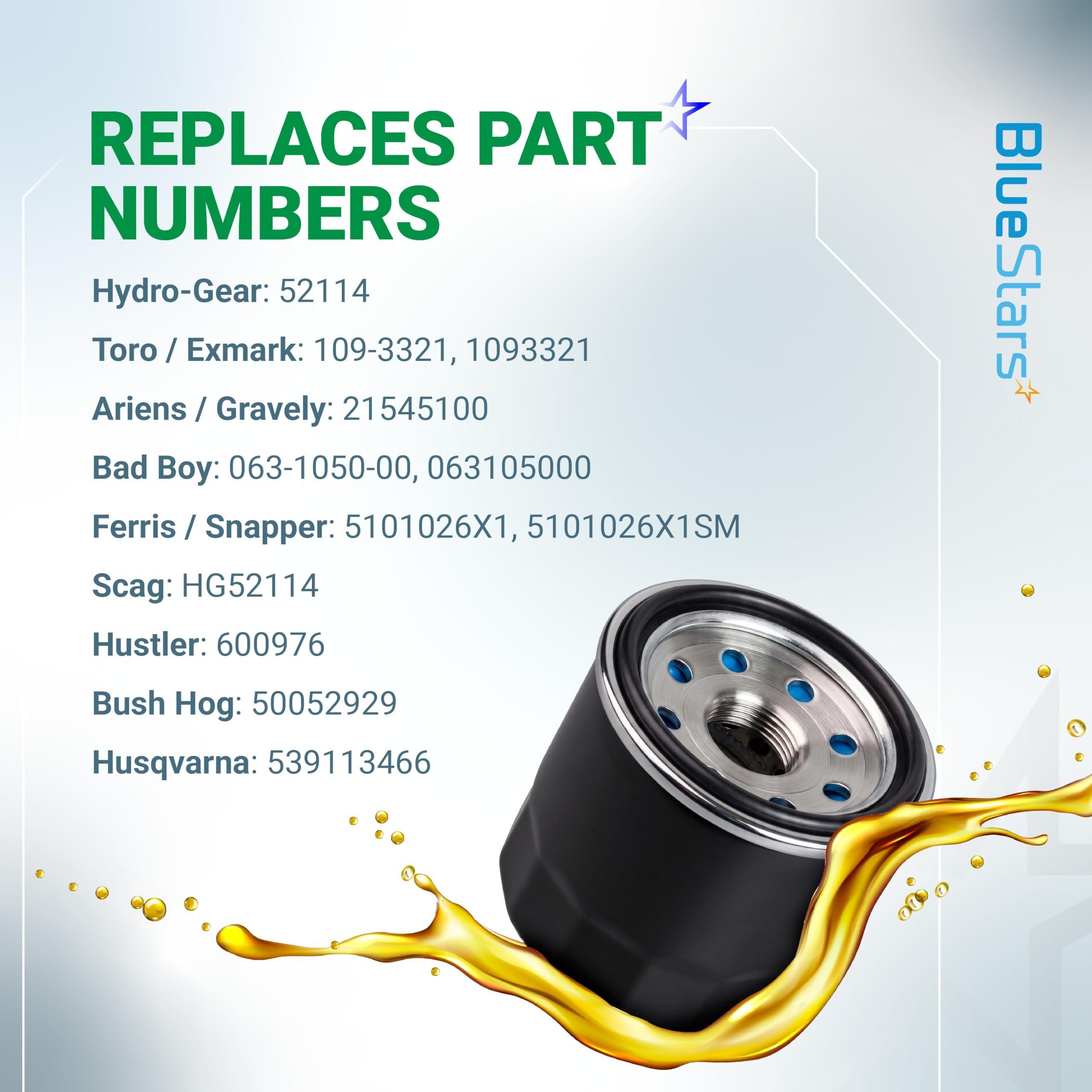

Replaces / Cross-Reference Part Numbers
- Hydro-Gear 52114
- Scag HG52114
- Toro and Exmark 109-3321
- Ariens and Gravely 21545100
- Bad Boy 063-1050-00
- Ferris and Snapper 5101026X1
- Snapper 5101026X1SMSUPER
- Hustler 600976
- Bush Hog 50052929
- Husqvarna 539113466
- Additional equivalent numbers: 21545100, 063-1050-00, 600976, and 539113466
Compatibility & Fitment
This filter fits compatible lawn mower hydraulic and transaxle applications from Hydro-Gear, Toro, Exmark, Ariens, Gravely, Bad Boy, Ferris, Snapper, Hustler, Bush Hog, Scag, and Husqvarna. Verify the mower or transmission model number before ordering. Similar-looking spin-on filters may use different thread sizes or gasket diameters.
When to Replace
- Replace the filter at the service interval specified for the mower or transmission.

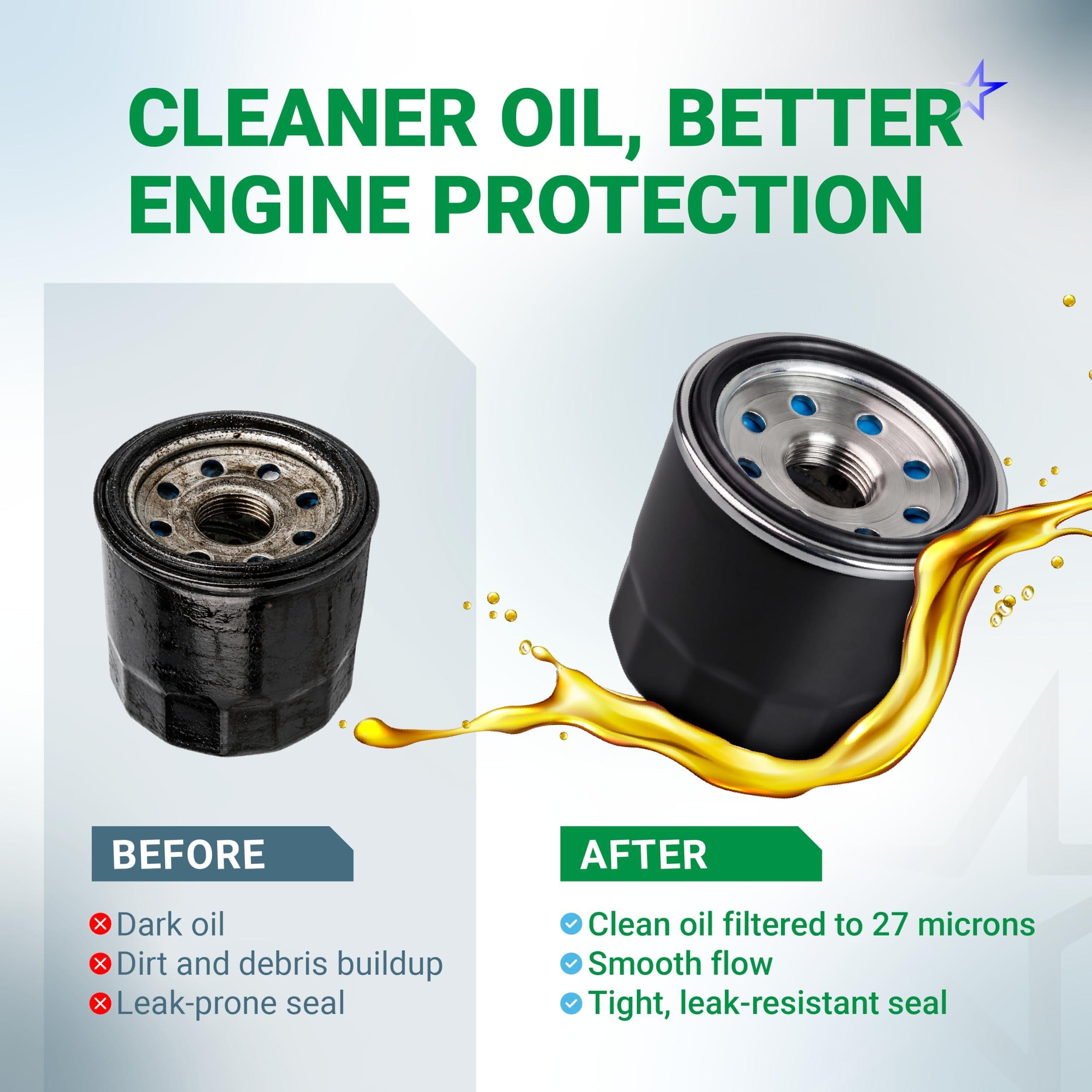

- A clogged or contaminated filter can restrict lubricant flow and affect hydraulic system operation.
- Replace the filter if the housing, gasket, or seal shows damage, or if oil leaks appear around the mounting surface.
- Use a new filter after servicing contaminated lubricant or when maintenance records show that the existing filter is overdue.
Installation Tips
- Turn off the engine, allow the equipment to cool, and wear protective gloves before servicing.
- Place suitable protection beneath the filter to catch oil, then unscrew the old filter with a filter wrench if necessary.
- Clean the mounting surface and confirm that the old gasket has been removed.
- Lubricate the new gasket with fresh oil, install the filter, and hand-tighten it firmly until properly seated.
- Check the filter and surrounding area for leaks after installation. The replacement procedure typically takes under 10 minutes when the filter is accessible.
Product Grade
Replacement Part
Vehicle Service Type
Lawn Mower
Outside Diameter
2.7
Unit Count
2 Count
Item Highlight
Hydro-Gear Commercial Hydraulic 52114 Ariens 21545100 Bad Boy 063-1050-00 Ferris 5101026X1 Hustler 600976 for Hydro Transaxle
Model Number
109-3321
Compatible With Vehicle Type
Lawn Mower
Part Interchange Info
Replaces Hydro-Gear 52114, Scag HG52114, Toro & Exmark 109-3321, Ariens & Gravely 21545100, Bad Boy 063-1050-00, Ferris & Snapper 5101026X1, Hustler 600976, Bush Hog 50052929, and Husqvarna 539113466. Verify mower or transmission model number before ordering as similar-looking filters may have different thread sizes.
Automotive Fit Type
Vehicle Specific Fit
Oem Equivalent Part Number
21545100 063-1050-00 600976 539113466
