[Lifetime Warranty] 285753A Direct Drive Motor Coupling Kit & 4 Packs 80040 Washer Agitator Dogs Kit - Compatible with Whirlpool Kenmore Washers - Replaces 1195967 280152 285612 285770 3366877

285753A Direct Drive Motor Coupling Kit & 4-pack 80040 Washer Agitator Dogs Kit

Key Features

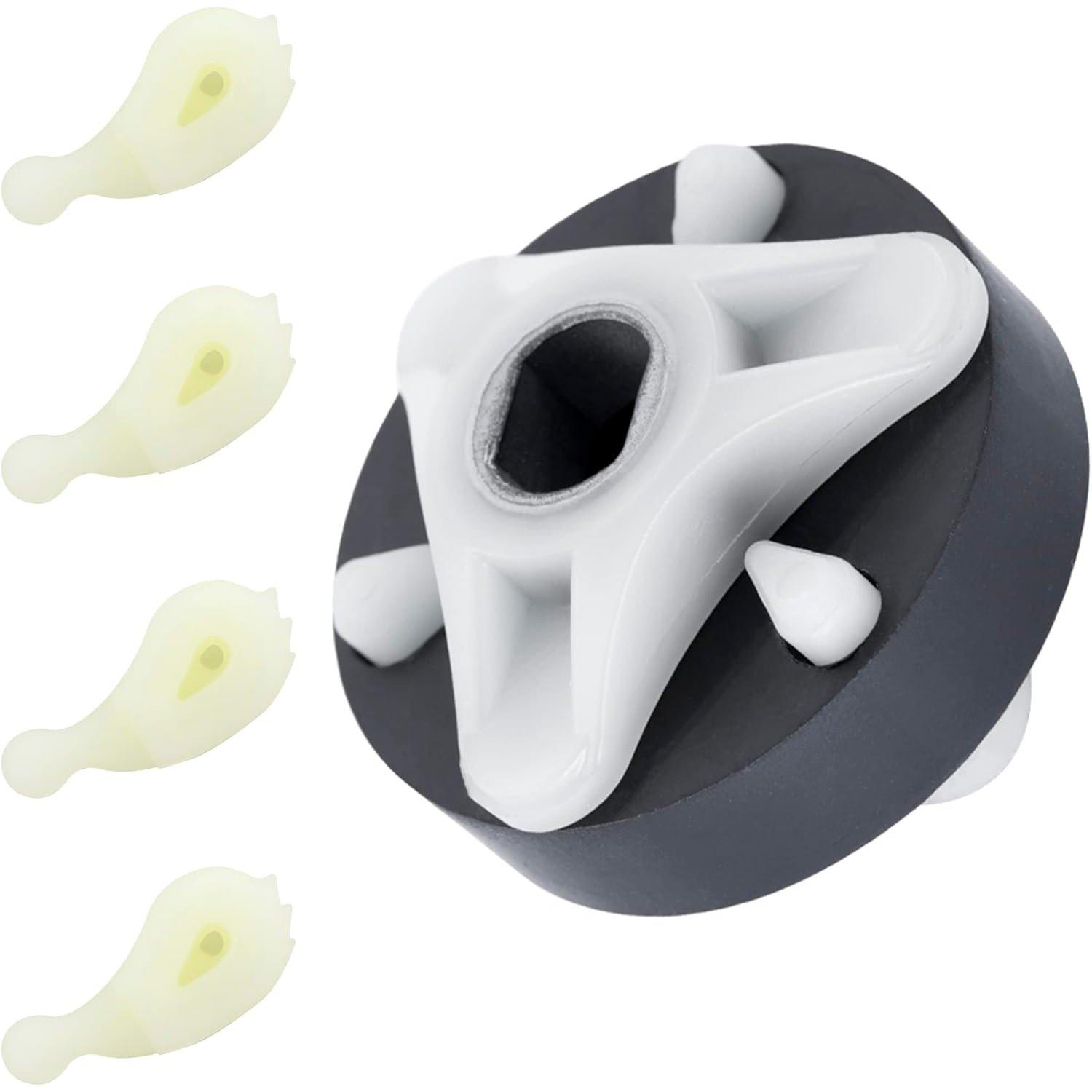

• Complete kit includes one motor coupling assembly and four agitator dogs.

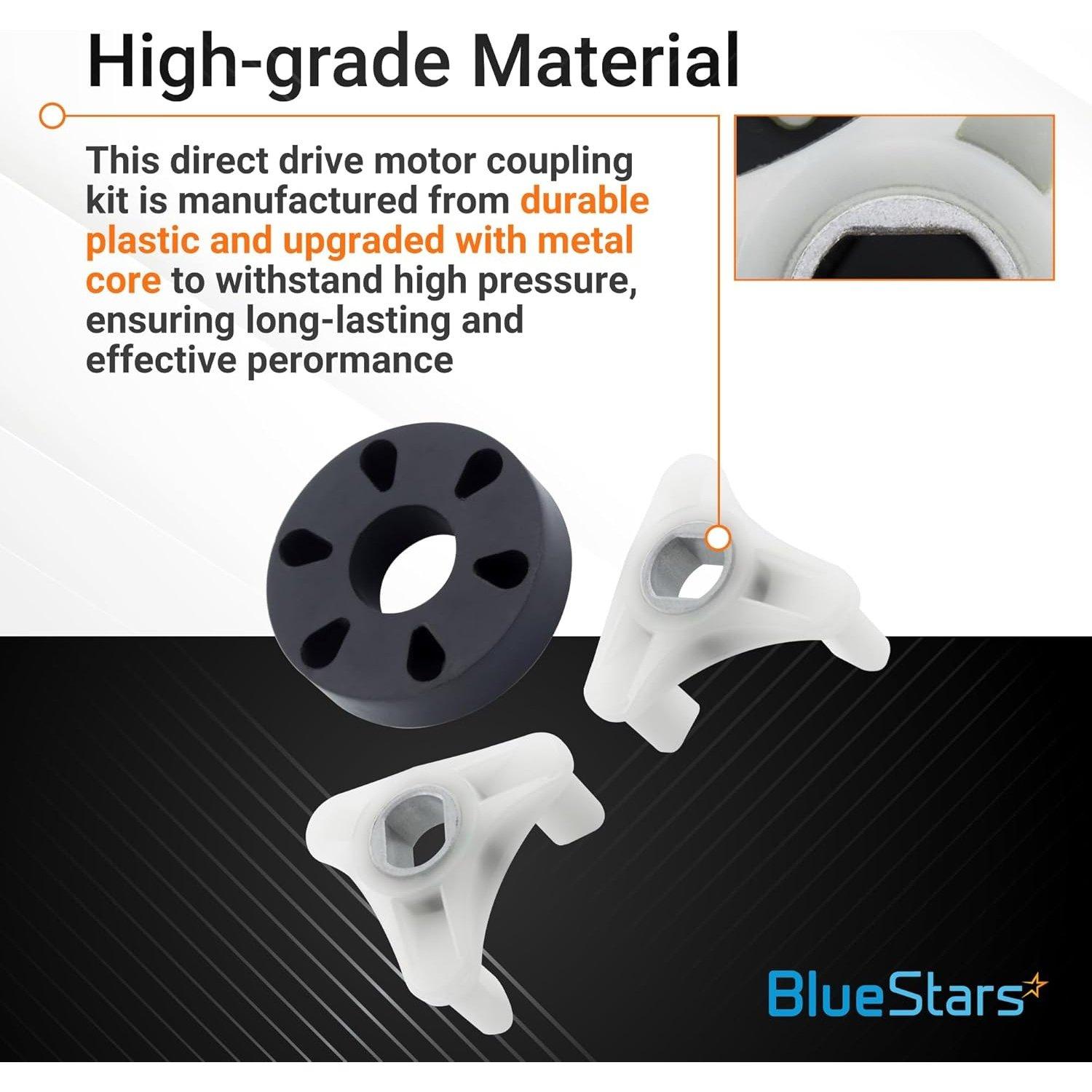

• Motor coupling features a reinforced metal core for increased durability.
• Directly connects the motor to the transmission in direct-drive washing machines.

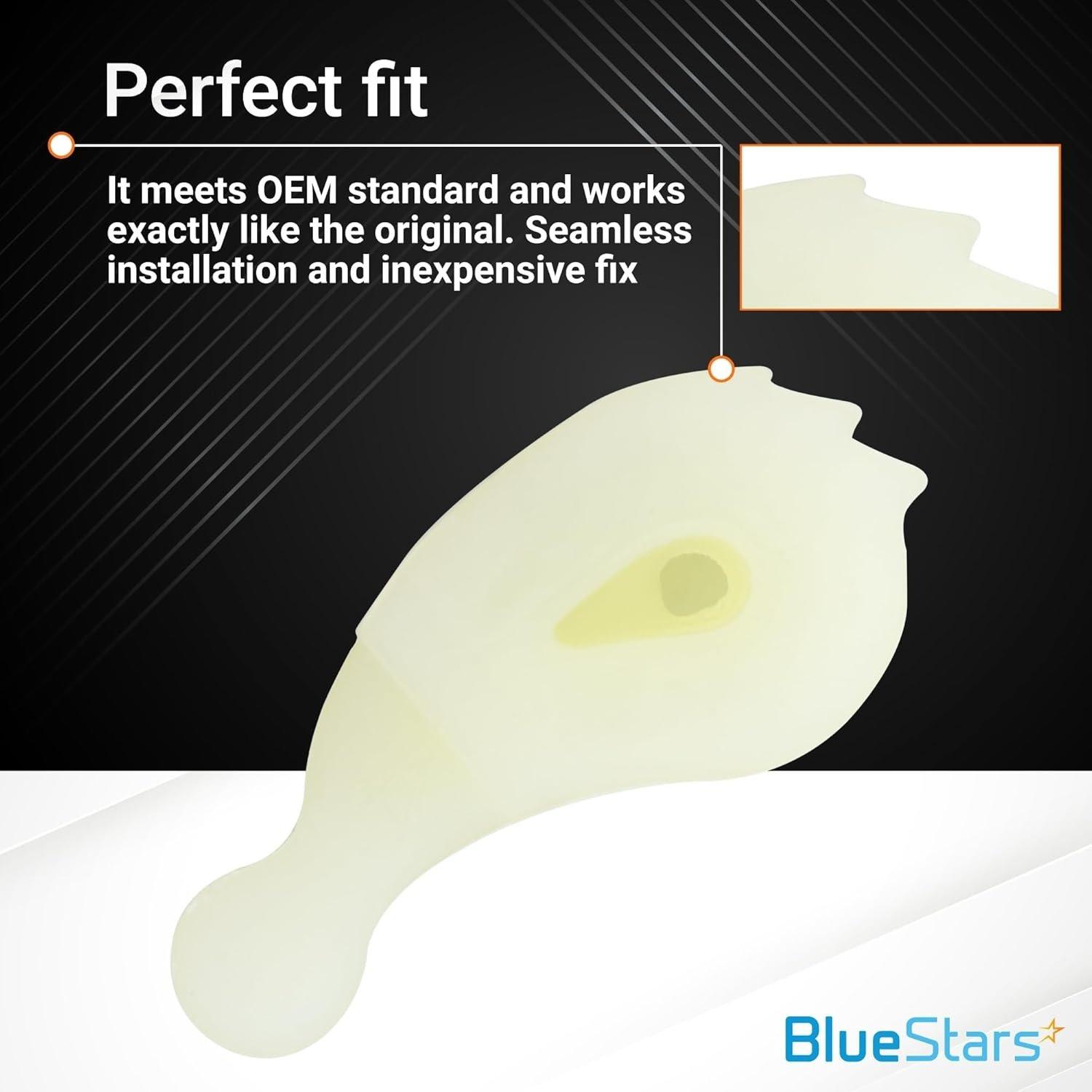

• Agitator dogs engage the upper portion of the agitator for effective wash action.

Replaces / Cross-Reference Part Numbers

• Motor Coupling (replaces 285753A):1195967, 280152, 285140, 285753, AP3963893, PS1485646, AH1485646, EA1485646
• Agitator Dogs (replaces 80040):285612, 285770, 3109, 3366877, 387091, AP3119063, PS388034, AH388034, EA388034

Compatibility & Fitment

• Designed for direct-drive, top-load washing machines.

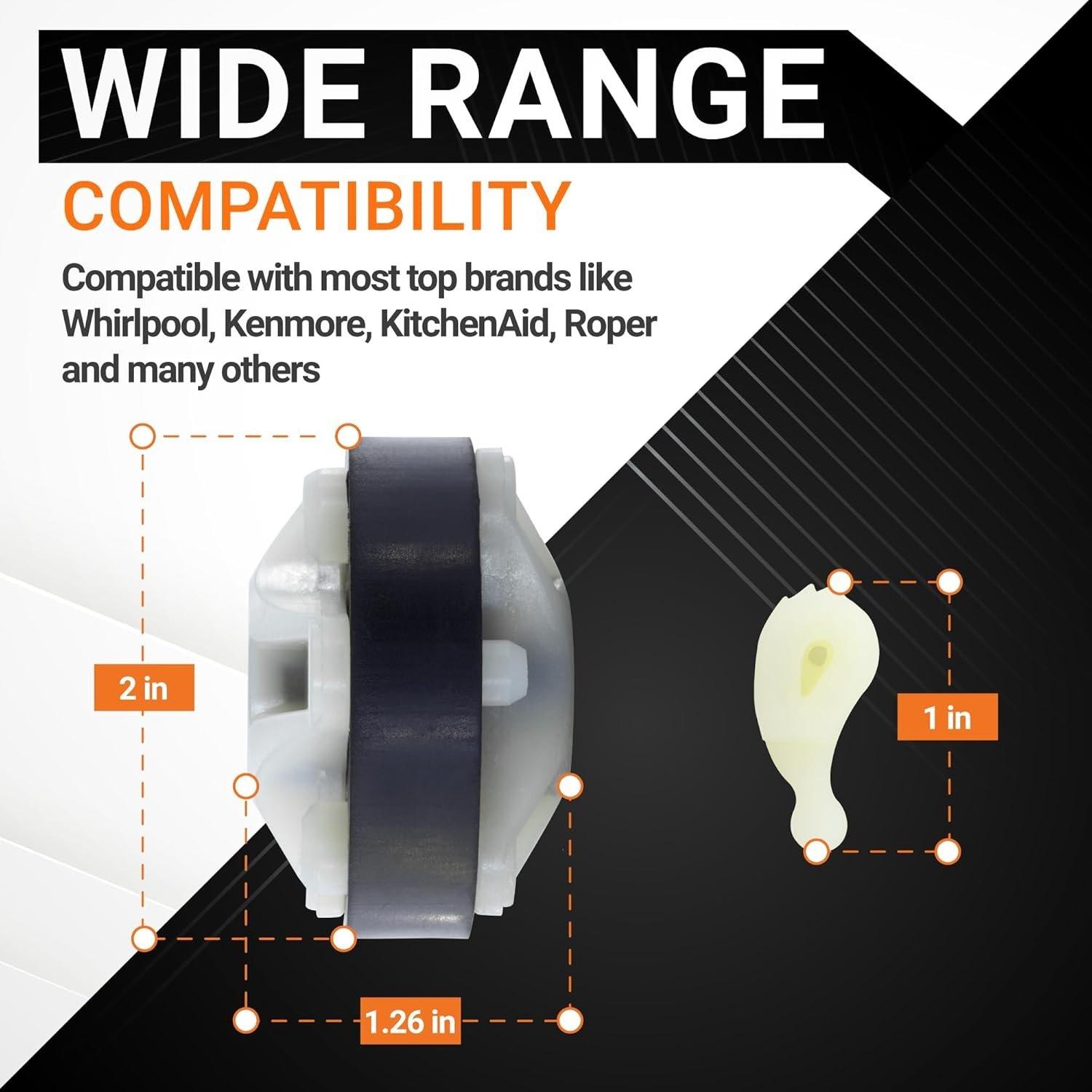

• Compatible with specific models from brands including Whirlpool, Kenmore, KitchenAid, and Roper.

When to Replace

• Motor Coupling:Replace if the motor runs but the basket does not spin or agitate. A loud noise from the motor area often precedes failure.
• Agitator Dogs:Replace if the bottom of the agitator moves but the top part is stationary or moves weakly, leading to ineffective cleaning.

Installation Tips

• Disconnect the washer from all power and water supplies before starting service.
• Accessing the motor coupling typically requires removing the washer cabinet.
• Note the orientation of existing parts before removal to ensure correct assembly.
• Ensure the new agitator dogs are seated properly to allow for correct one-way directional movement.
