[Lifetime Warranty] 725-04659 925-04659 Ignition Switch with Key 5 Terminals

725-04659 925-04659 Ignition Switch with Key 5 Terminals

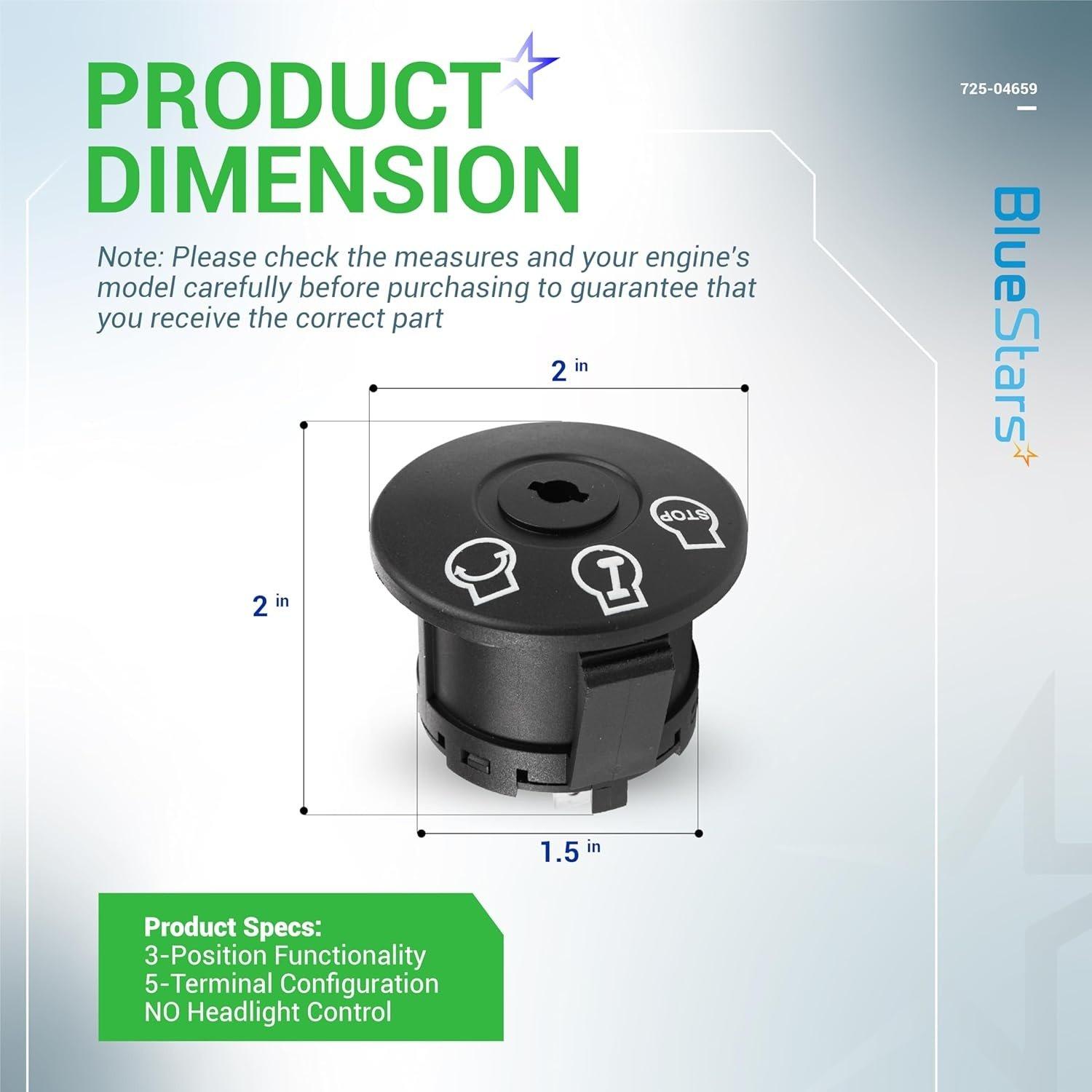

Key Features

• Electrical Specification: 5-terminal connection
• Switch Type: 3-position rotary switch
• Operational Functions: Stop, Run/On, Start
• Connector Style: Plug-in for direct replacement

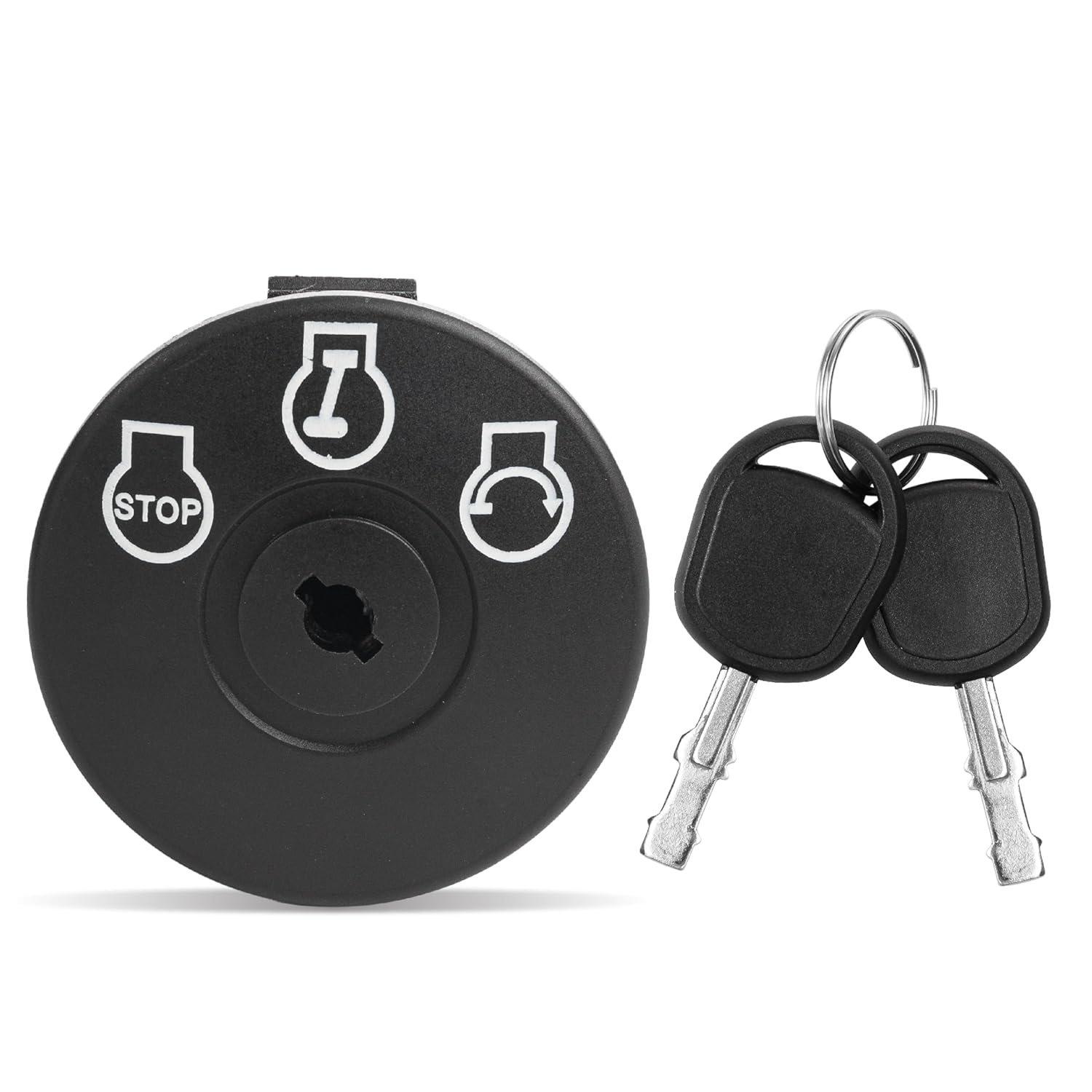

• Includes: Ignition switch and a set of two keys

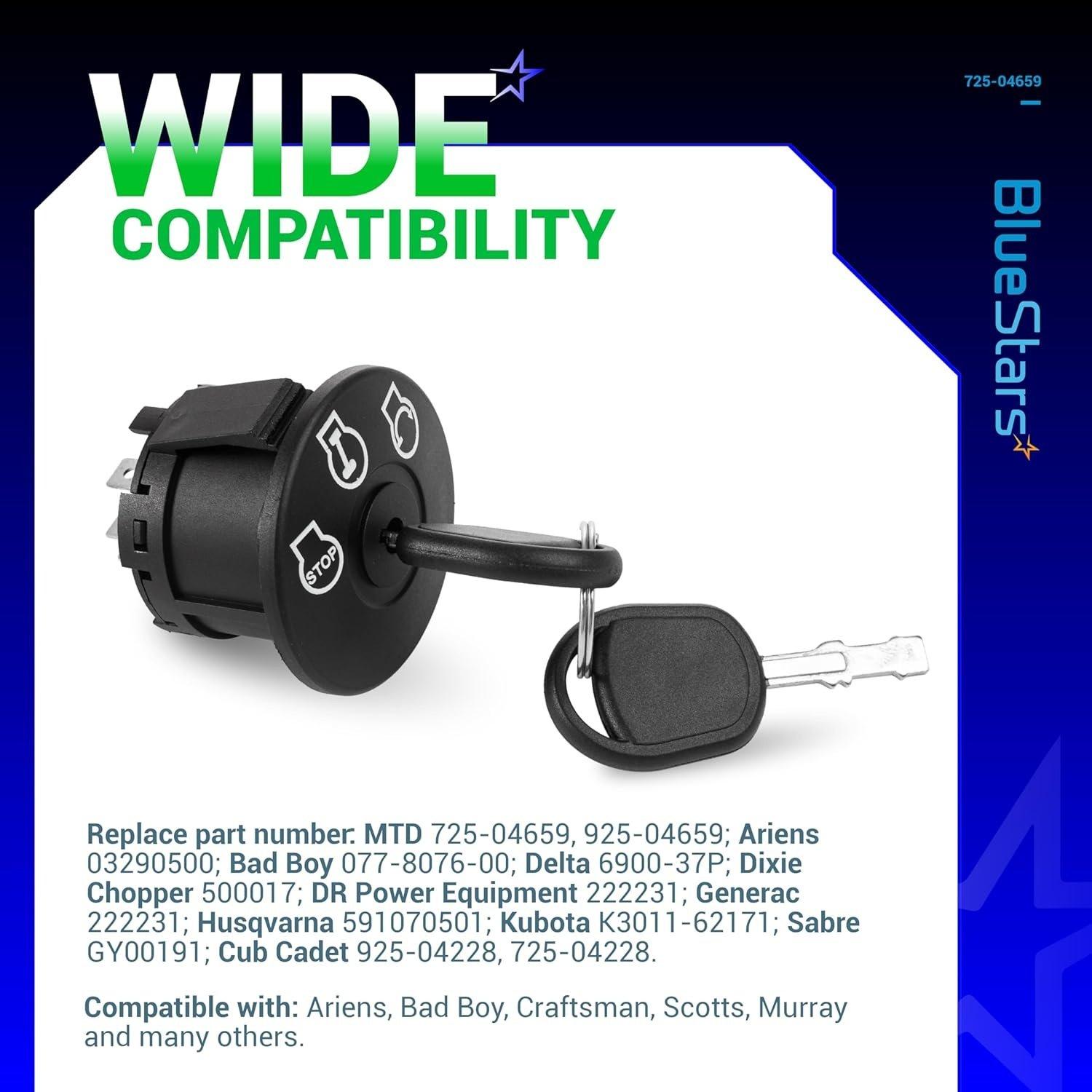

Replaces / Cross-Reference Part Numbers

• 725-04659
• 925-04659
• 03290500
• GY00191

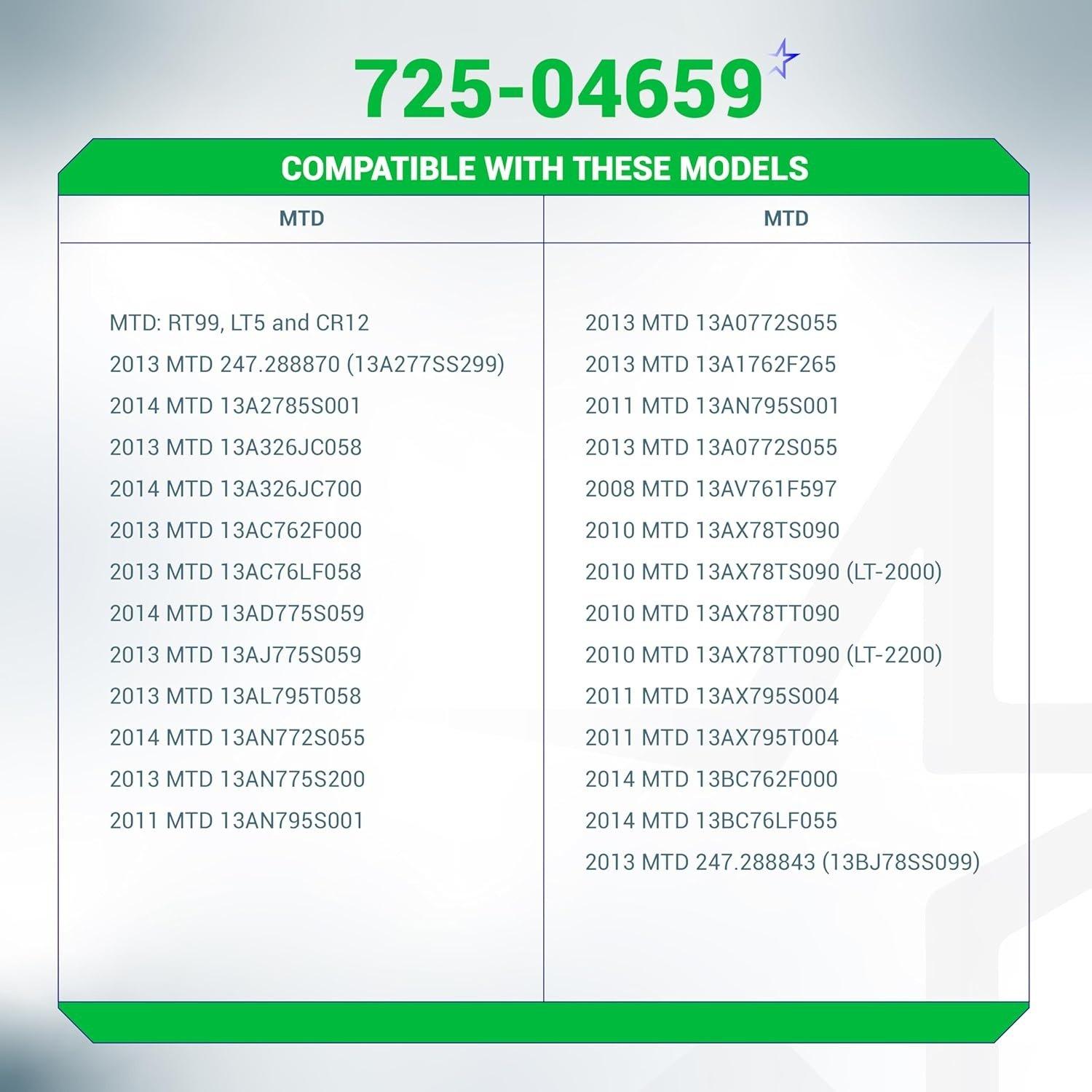

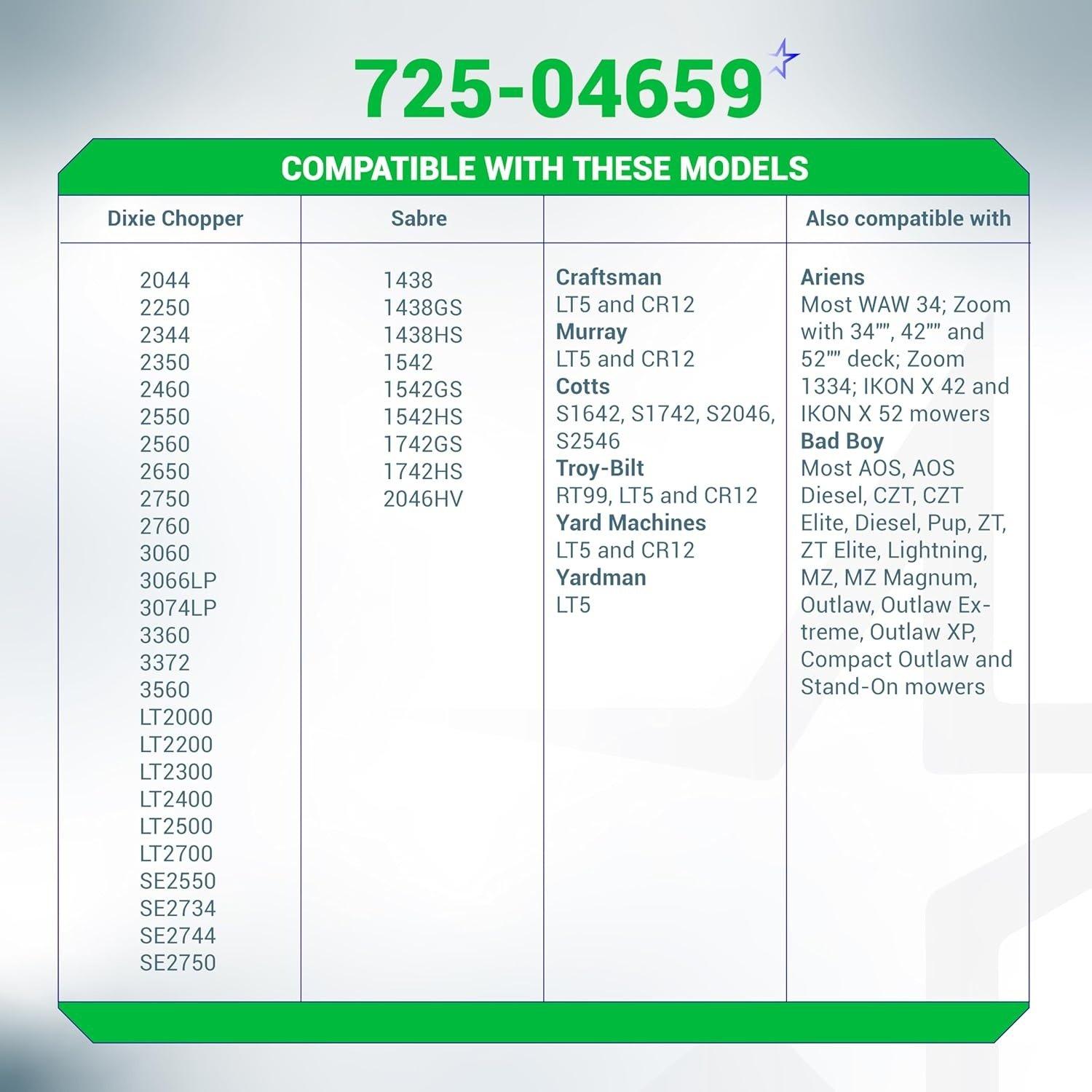

Compatibility & Fitment

• Fits various riding lawn mowers, lawn tractors, and zero-turn mowers.
• Compatible with equipment from manufacturers including MTD, Cub Cadet, Troy-Bilt, Craftsman, Murray, Ariens, Gravely, Bad Boy, Dixie Chopper, and John Deere.
• Example models include Craftsman LT5 and Murray CR12. Always verify fitment by part number.

When to Replace

• Engine fails to crank or start.
• Intermittent starting issues or loss of power during operation.
• Key is stuck, broken, or difficult to turn in the switch.
• No electrical power to the mower's dashboard or accessories.
• Visible corrosion, melting, or physical damage to the switch housing or terminals.

Installation Tips

• Disconnect the negative battery terminal before beginning installation.
• Label or photograph the wire positions on the old switch before removal.
• Ensure the new switch is securely mounted in the dashboard panel.
• Attach each wire to the corresponding terminal on the new switch.
• Reconnect the battery and test all switch positions before operating the equipment.
