[Lifetime Warranty] CJX2-1210 3 Pole Contactor 25 Amp 220 VAC Coil - Fits Relays, Air Conditioner, Heat Pump

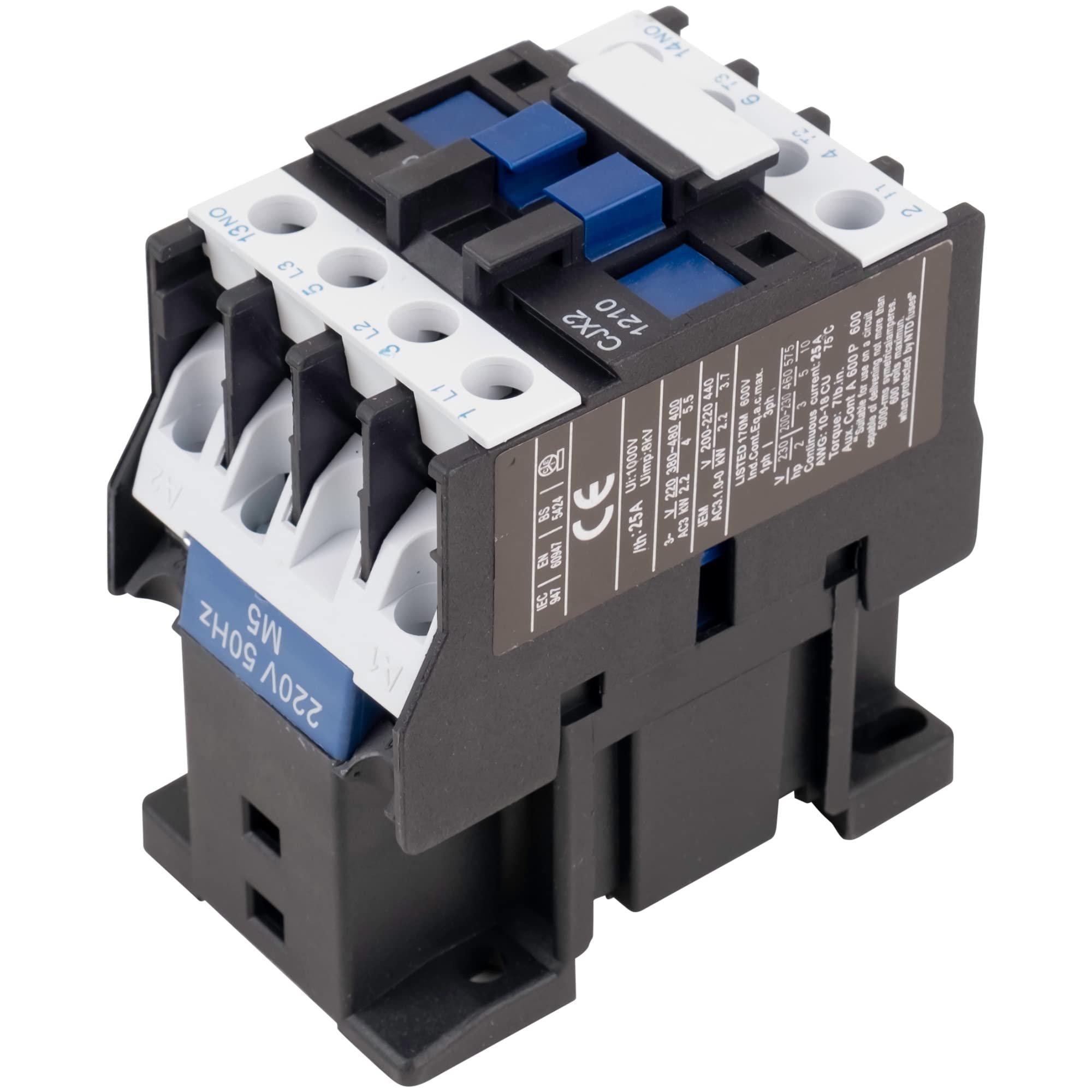

CJX2-1210 3 Pole Contactor 25 Amp 220VAC Coil by BlueStars

Key Features

• Model: CJX2-1210
• Current Rating: 25 Amps
• Coil Voltage: 220V AC
• Frequency: 50/60Hz
• Configuration: 3 Pole with 1 Normally Open (NO) auxiliary contact
• Rated Insulation Voltage: 660V
• Application: Controls high-current loads such as motors and compressors

Replaces / Cross-Reference Part Numbers

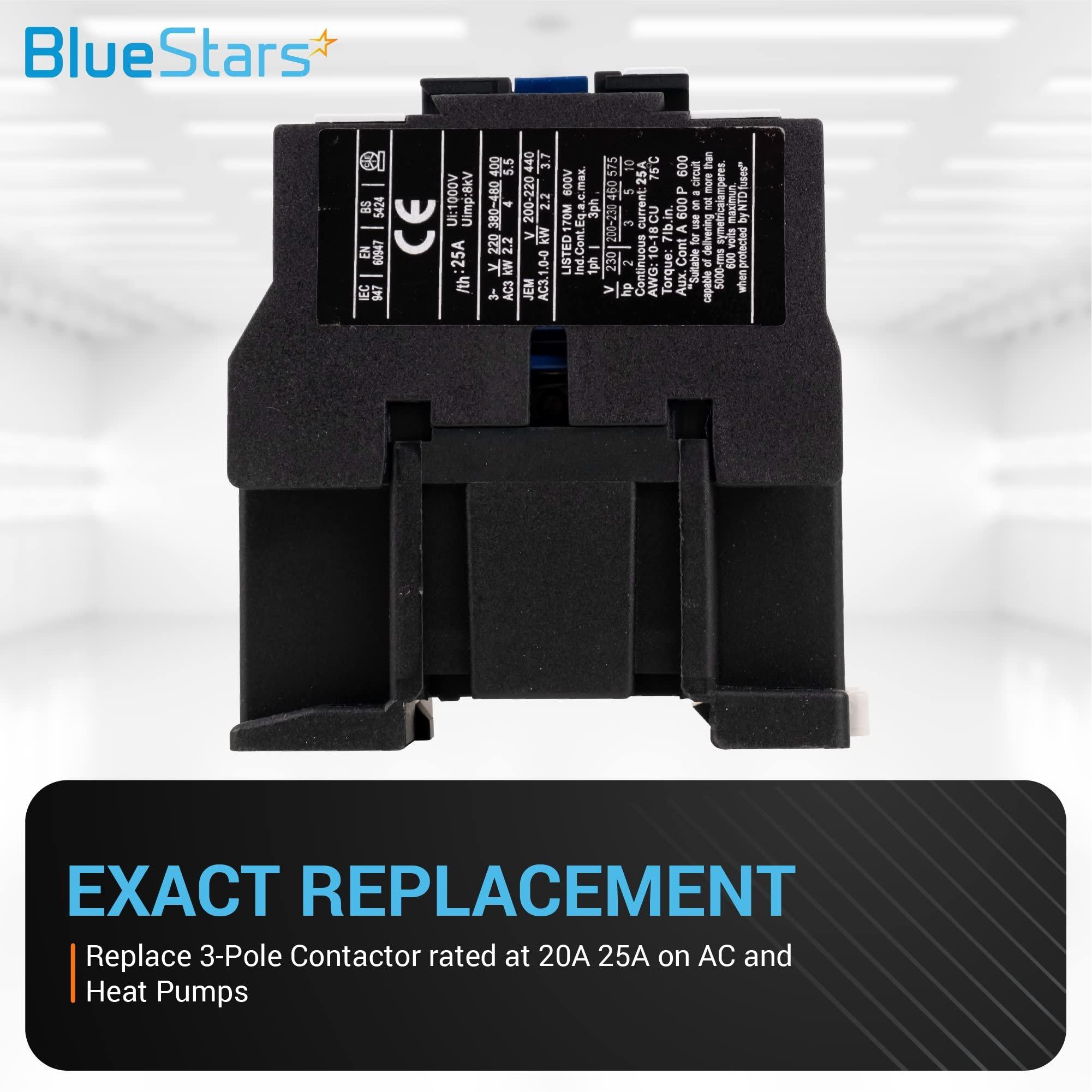

• Direct replacement for 3-pole contactors with matching 25 Amp and 220V AC coil specifications.
• Can be used to substitute for 20A or 25A rated 3-pole contactors in compatible systems.

Compatibility & Fitment

• Designed for use in HVAC, refrigeration, and motor control systems.
• Fits a wide range of residential and commercial air conditioners, heat pumps, and compressors.

When to Replace

• The outdoor unit fails to turn on or runs intermittently.
• A loud humming or buzzing sound is heard from the unit without the compressor or fan starting.
• Visible signs of damage, such as burnt terminals, pitting on contacts, or melted housing.
• The contactor's internal switch is physically stuck in the open or closed position.

Installation Tips

• Disconnect all electrical power to the system before beginning installation.
• Verify that the voltage and amperage specifications match the original part and system requirements.
• Photograph or label the wire placement on the old contactor before removal to ensure correct wiring.
• Confirm all terminal connections are clean and securely tightened to prevent arcing or overheating.
