[Lifetime Warranty] 4/5/6 Positions Terminal Strip Blocks 600V 15A - Pack of 6

6-pack 4/5/6 Positions Terminal Strip Blocks 600V 15A

Key Features

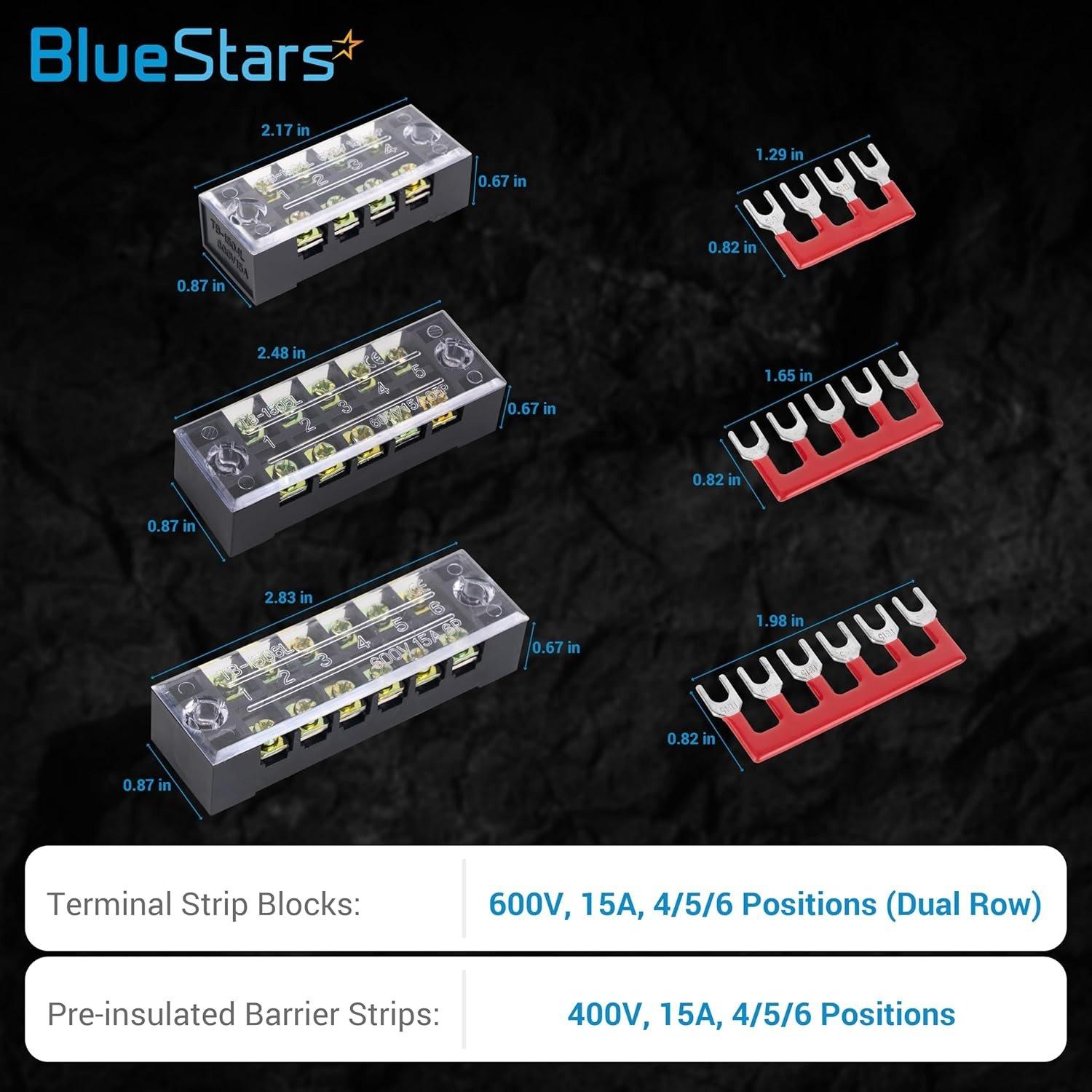

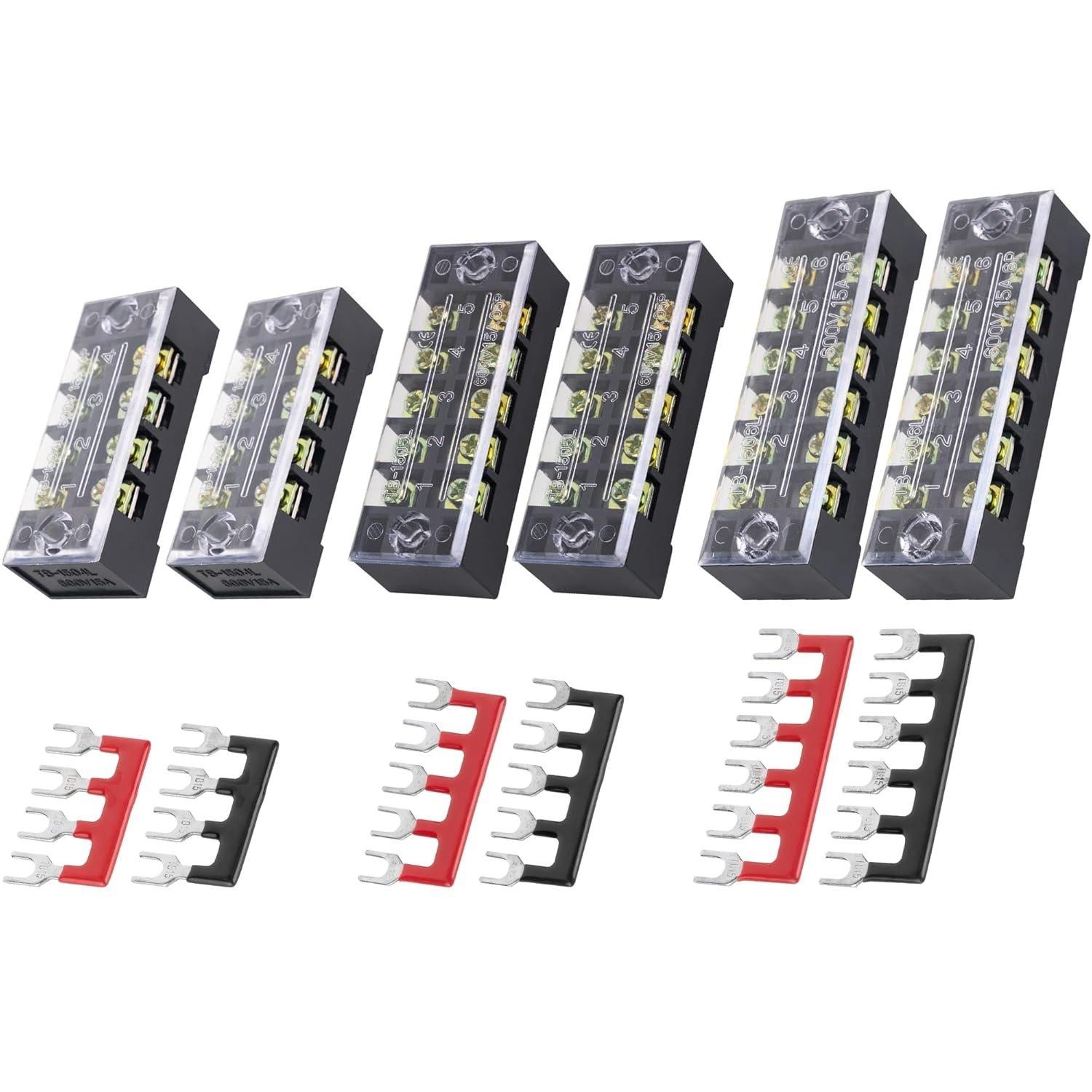

• Package Contents: 2x 4-position, 2x 5-position, and 2x 6-position terminal blocks

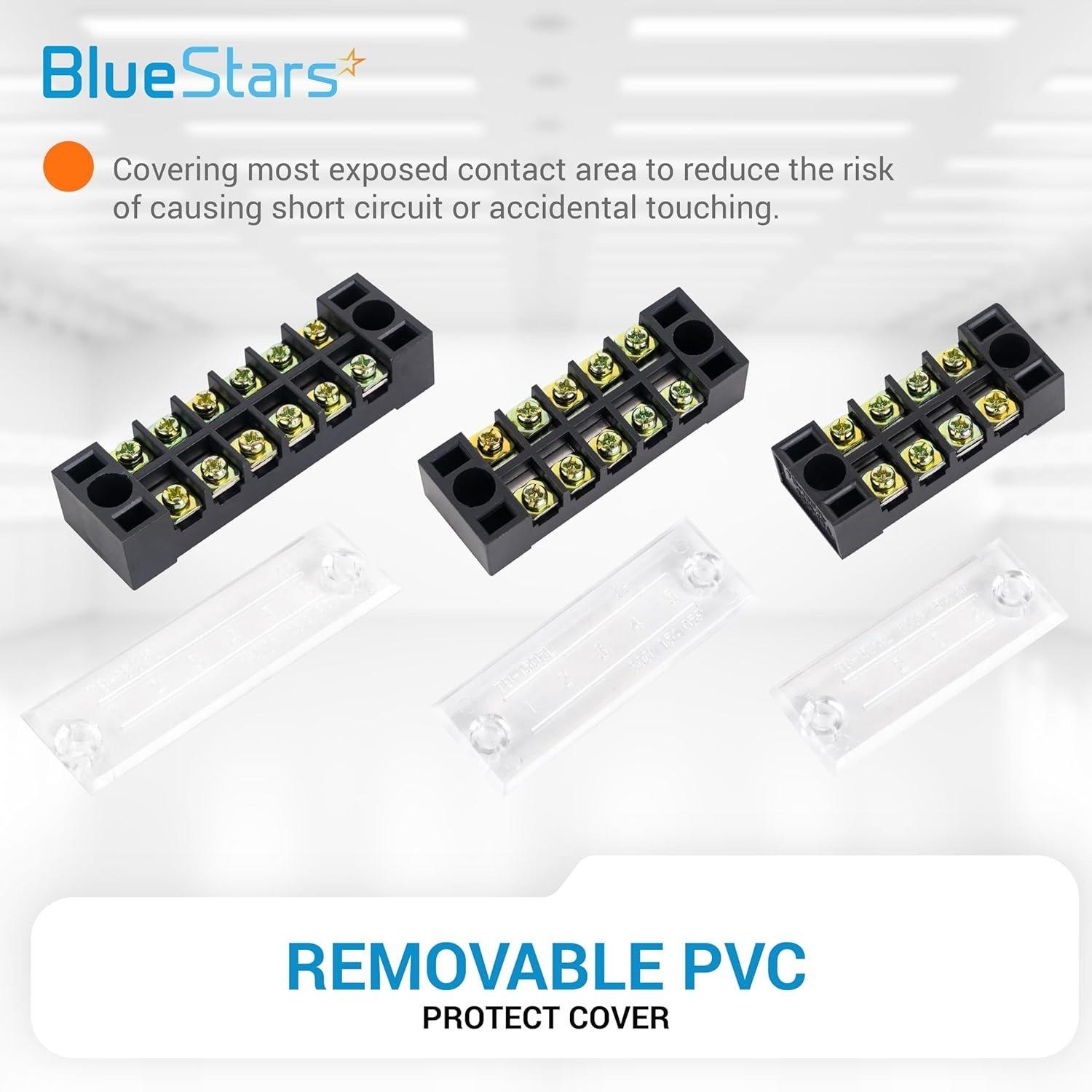

• Included Accessories: Matching pre-insulated terminal jumpers and transparent protective covers
• Terminal Block Rating: 600V, 15A
• Jumper Strip Rating: 400V, 15A
• Construction: Dual-row screw terminal design

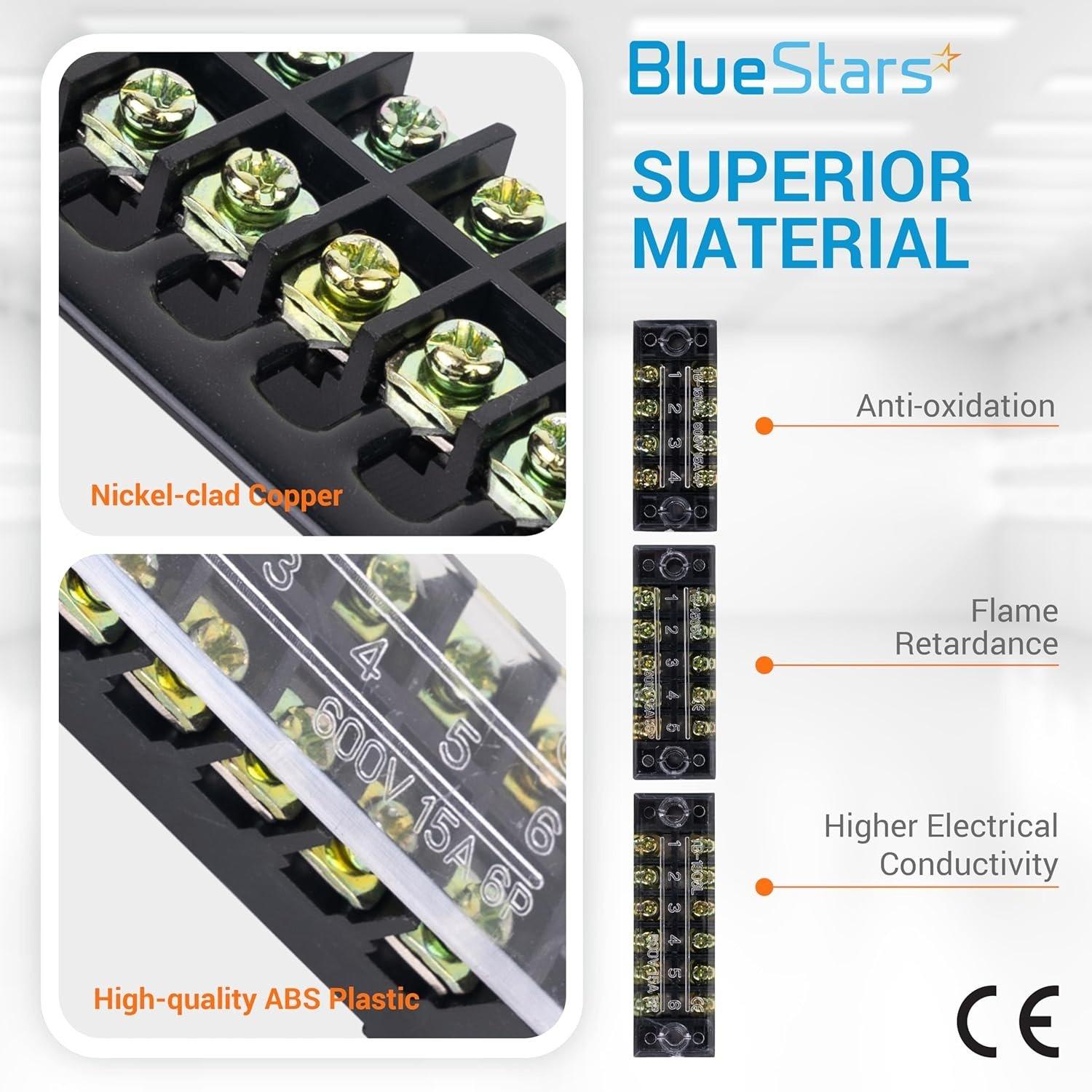

• Materials: Polycarbonate base with nickel-plated copper contacts

Replaces / Cross-Reference Part Numbers

• General purpose component for new installations or custom electrical projects. Not a direct replacement for a specific OEM part number.

Compatibility & Fitment

• Suitable for a wide range of electrical wiring applications requiring a junction point for multiple circuits.
• Designed for use in circuits not exceeding 600V and 15A.

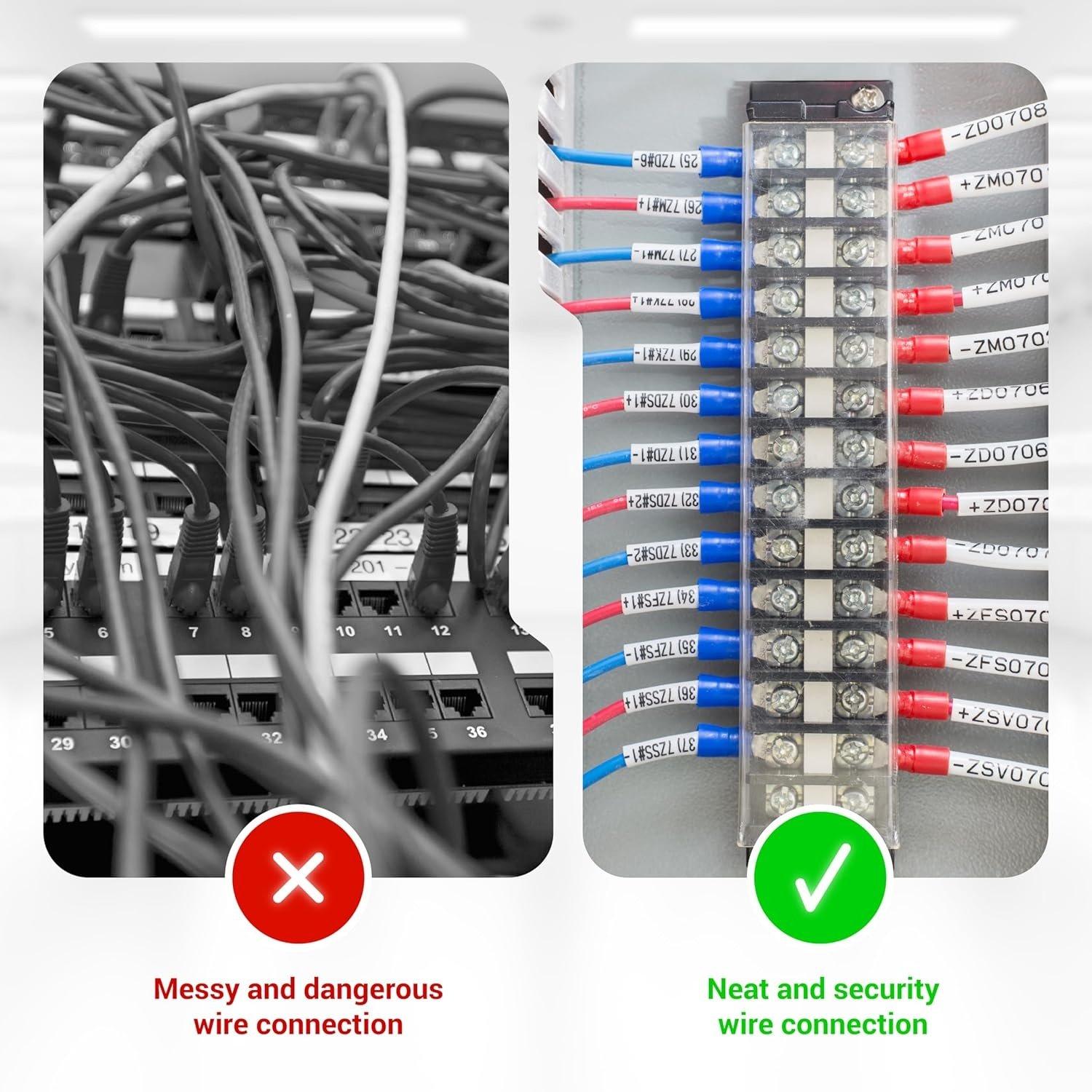

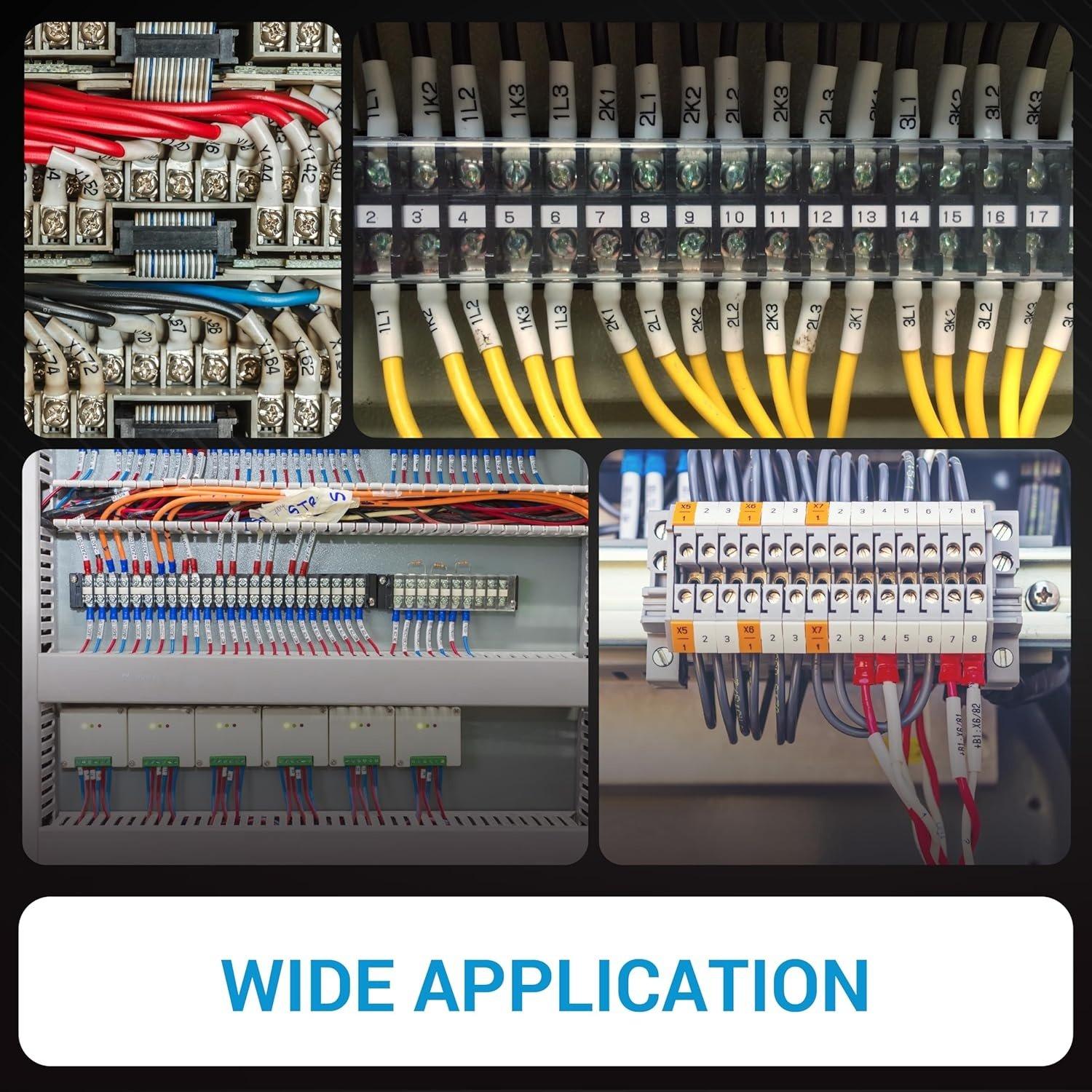

• Ideal for organizing wiring in control panels, machinery, automotive, marine, and household projects.

When to Replace

• Visible signs of heat damage, such as melted or discolored housing.
• Cracked or broken terminal block housing.
• Corroded terminals or connection points.
• Stripped screw heads or threads that prevent a secure wire connection.

Installation Tips

• Disconnect all power sources before beginning installation.
• Select wire gauge appropriate for the current load, up to 15A.
• Strip wire insulation to a length that allows the conductor to fully seat in the terminal without exposing bare wire.
• Secure wires by tightening the terminal screws to a firm torque. Do not overtighten.
• Install jumpers between adjacent positions as needed for common connections.
• Snap the clear protective cover into place after all connections are made and verified.
