[Lifetime Warranty] 5 Positions Terminal Strip Blocks 600V 15A and 400V 15A 6 Positions Pre-Insulated Terminals Barrier Strip

5 Positions Terminal Strip Blocks 600V 15A and 400V 15A 6 Positions Pre-Insulated Terminals Barrier Strip

Key Features

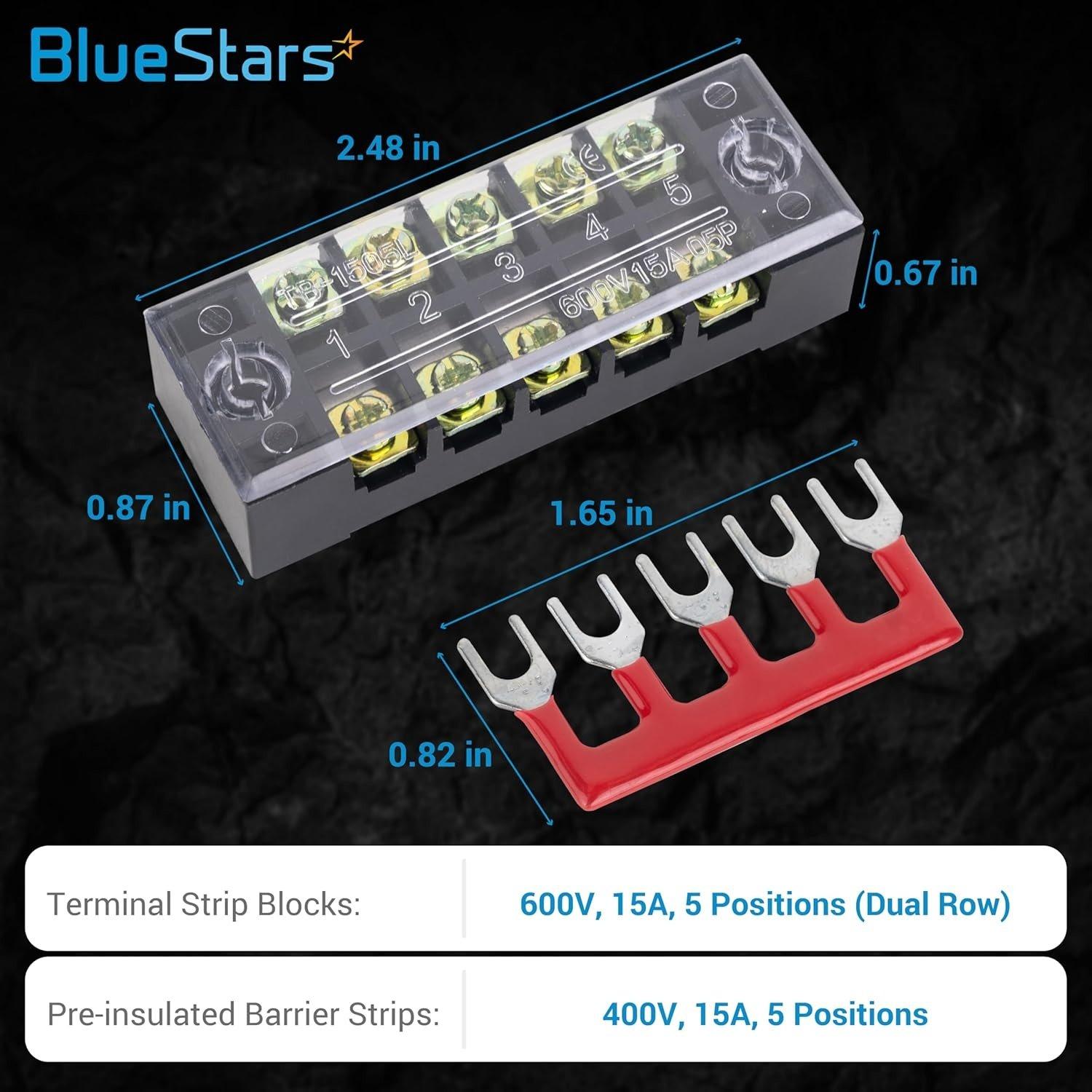

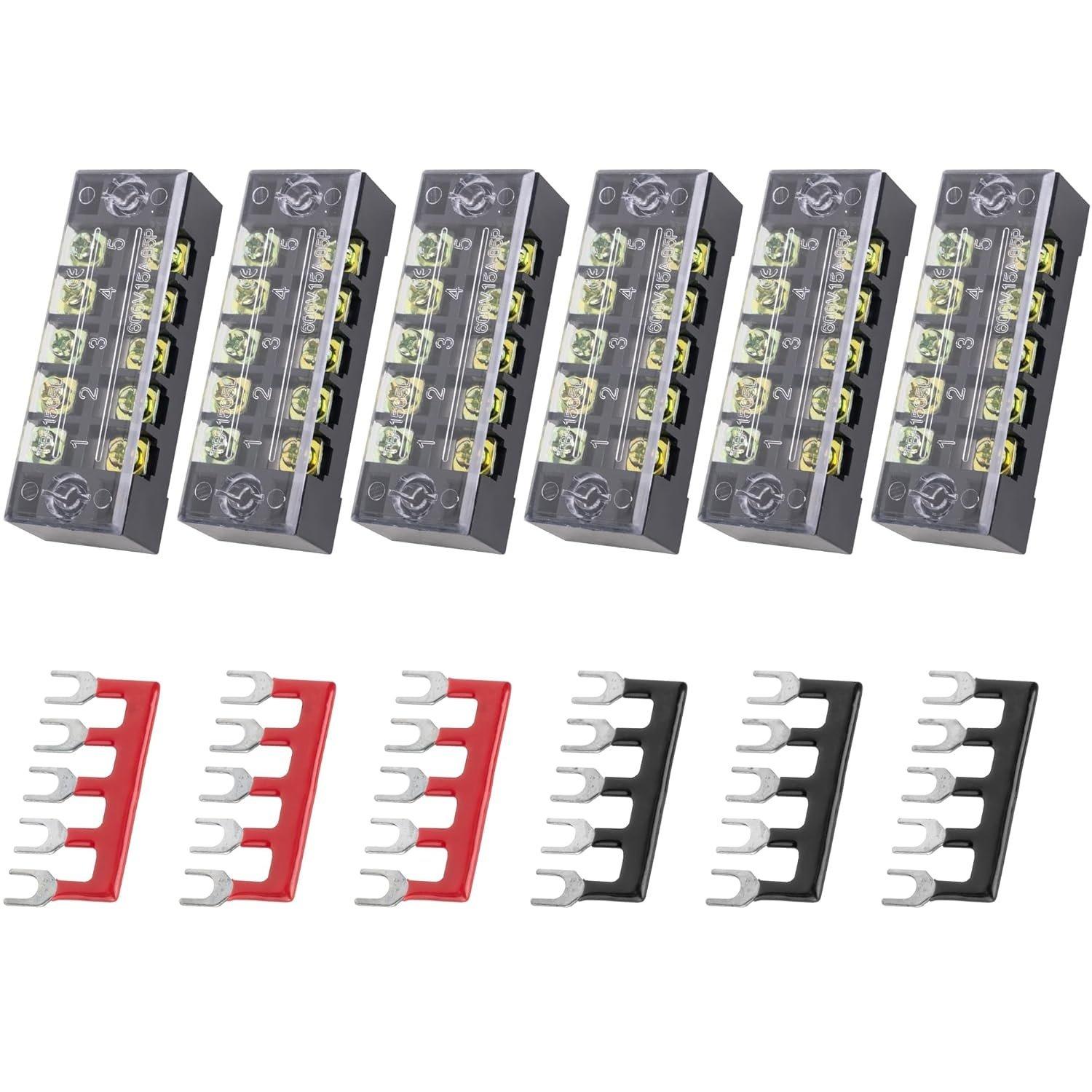

• Package includes 5-position terminal blocks and 6-position pre-insulated barrier strips.
• Terminal Block Rating: 600V, 15A
• Barrier Strip Rating: 400V, 15A
• Dual-row screw terminal block design.

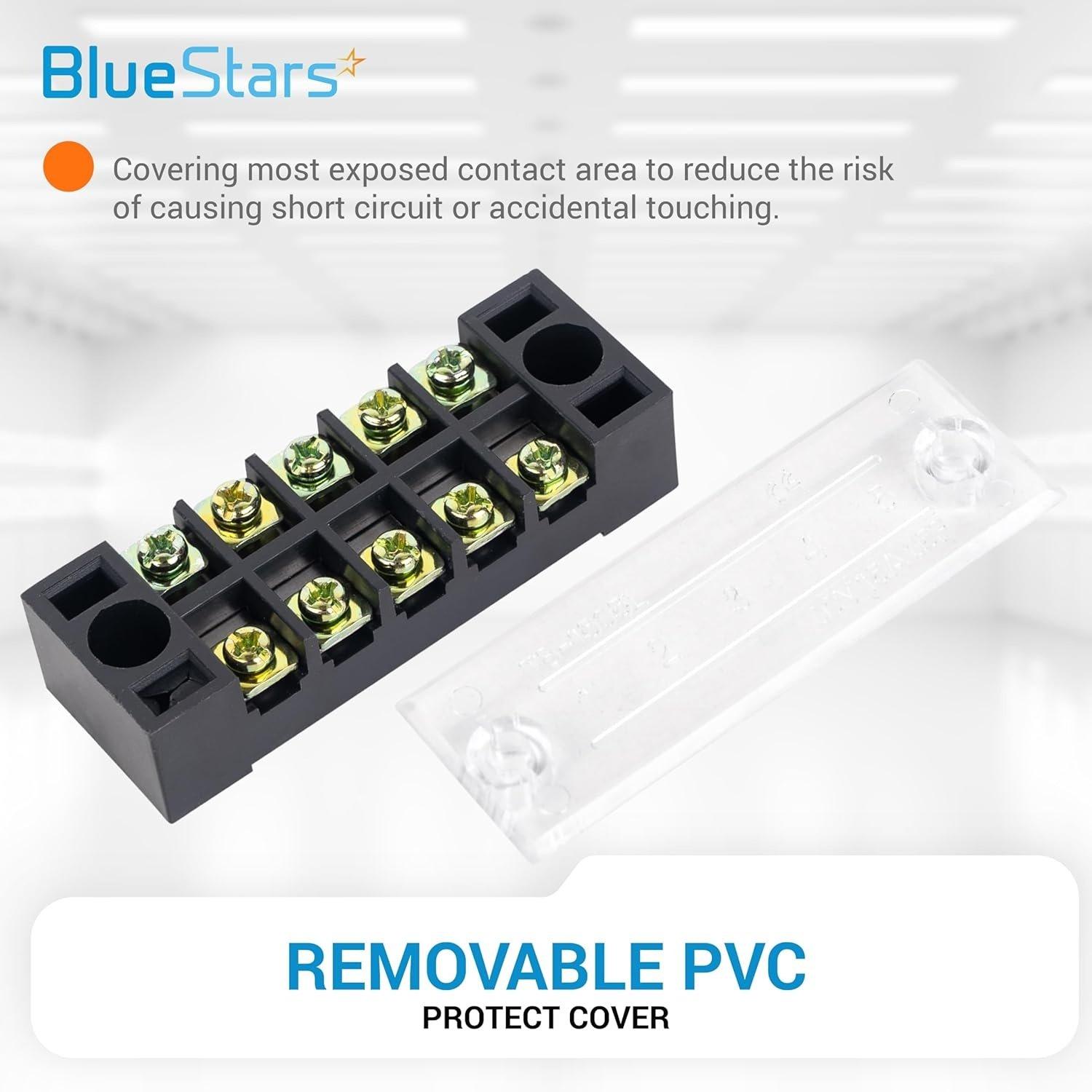

• Includes a removable, transparent plastic cover for protection.
• Each block has two mounting holes for secure installation.
• Pre-insulated jumper strips allow for commoning of adjacent terminals.

Replaces / Cross-Reference Part Numbers

• General purpose component for replacing terminal blocks and barrier strips with matching electrical ratings (voltage, amperage) and physical dimensions.

Compatibility & Fitment

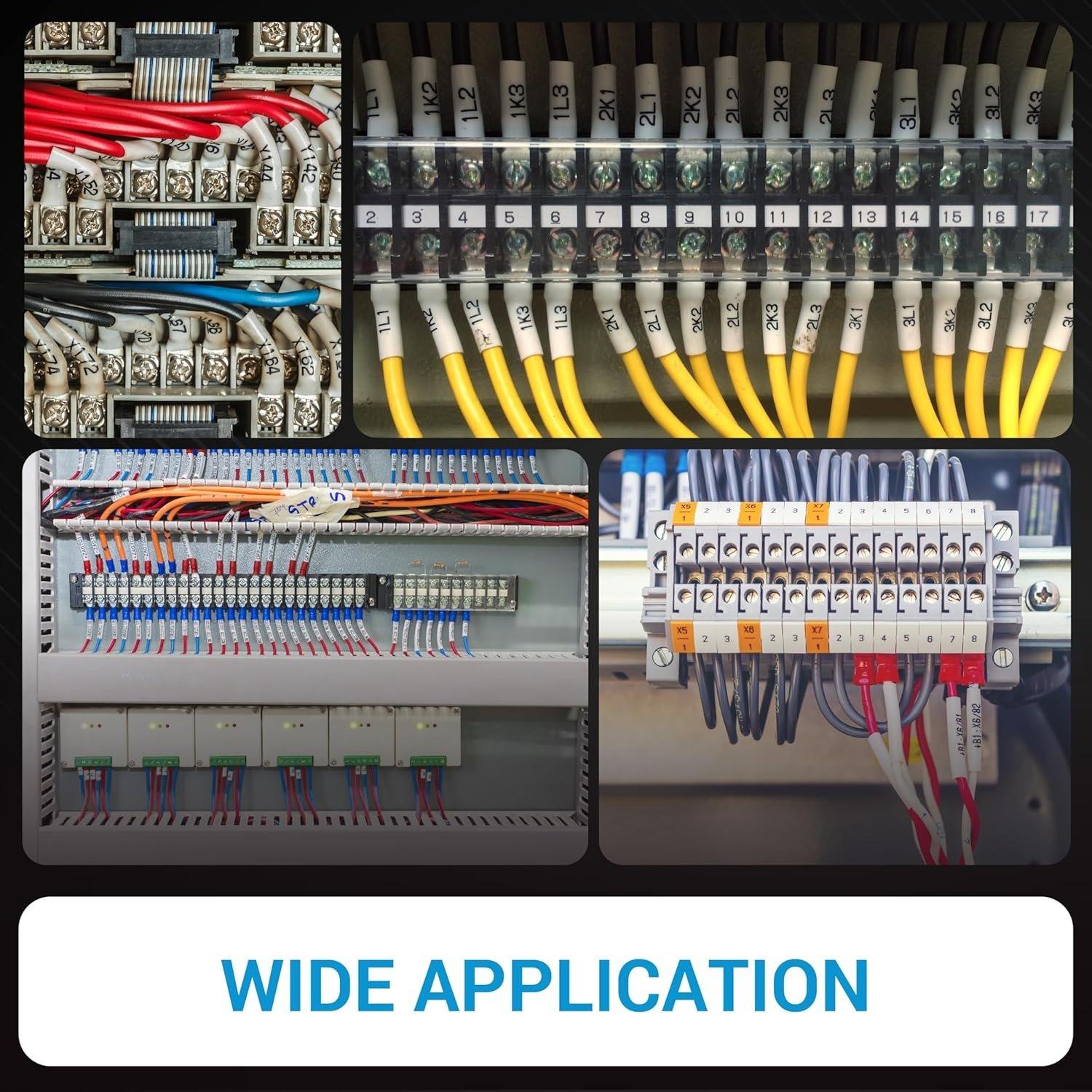

• Suitable for a wide range of wiring applications in electronics, machinery, and power distribution.
• Used in industrial equipment, automotive, marine, and home electrical projects.
• Compatibility is determined by the project's required voltage, current, wire gauge, and number of terminal positions.

When to Replace

• Visible signs of heat damage, such as discoloration or melting.
• Cracked or broken plastic housing.
• Corroded or damaged metal terminals.
• Stripped screw heads that no longer secure wires properly.
• During equipment overhauls or wiring upgrades.

Installation Tips

• Always disconnect all power sources before beginning installation.
• Use the mounting holes at each end to fasten the block securely to a stable surface.
• Strip wire insulation to the appropriate length to ensure a solid connection without exposed wire.
• Tighten screw terminals to a firm torque to secure wires, but avoid over-tightening.
• Verify all connections are secure before re-applying power.
