[Lifetime Warranty] 5304522796 Microwave Door Latch - Compatible with Frigidaire Electrolux Gibson Kelvinator Westinghouse Kenmore - Replace AP6979662 4977138 OEM20938991 PS12746282 EAP12746282

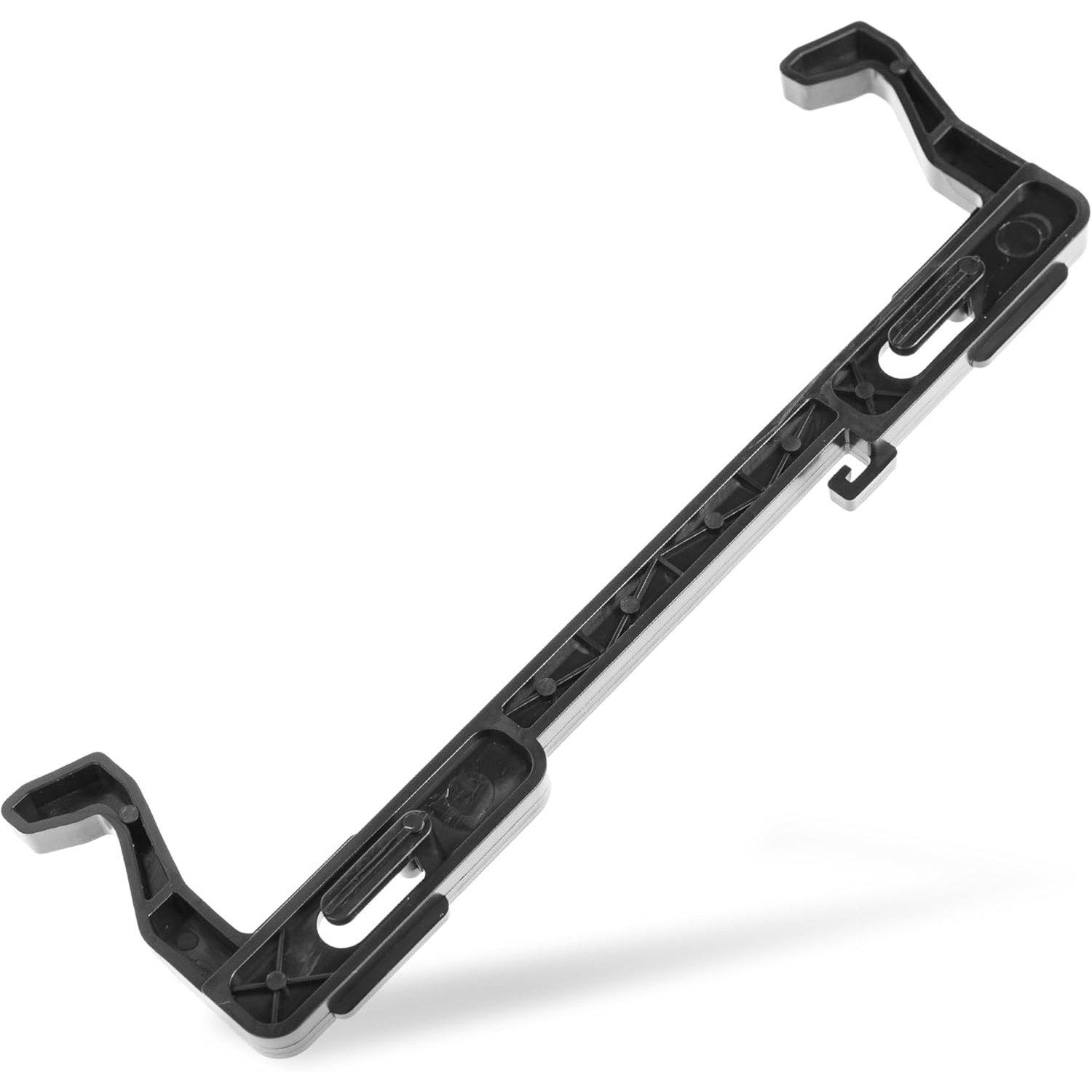

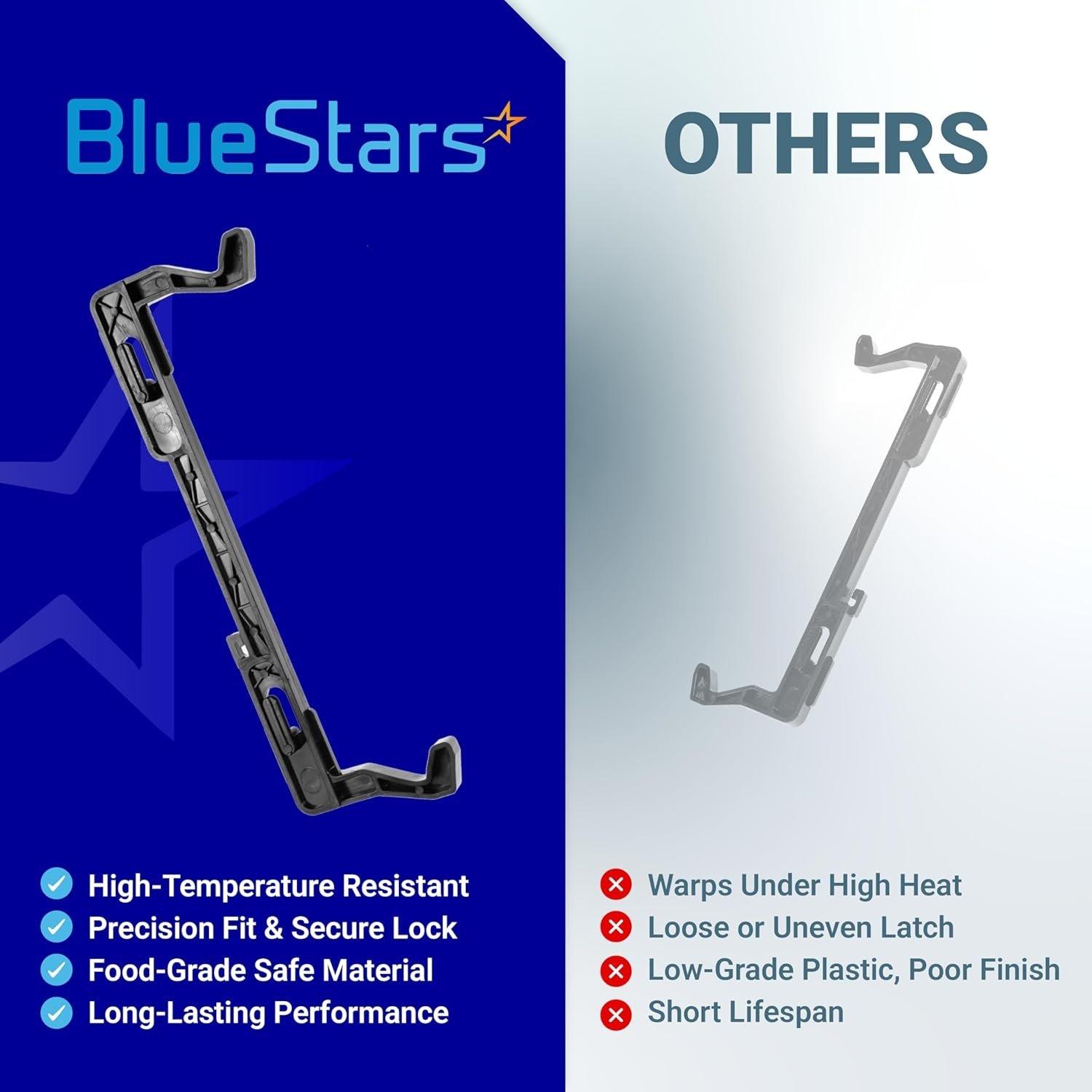

5304522796 Microwave Door Latch

Key Features

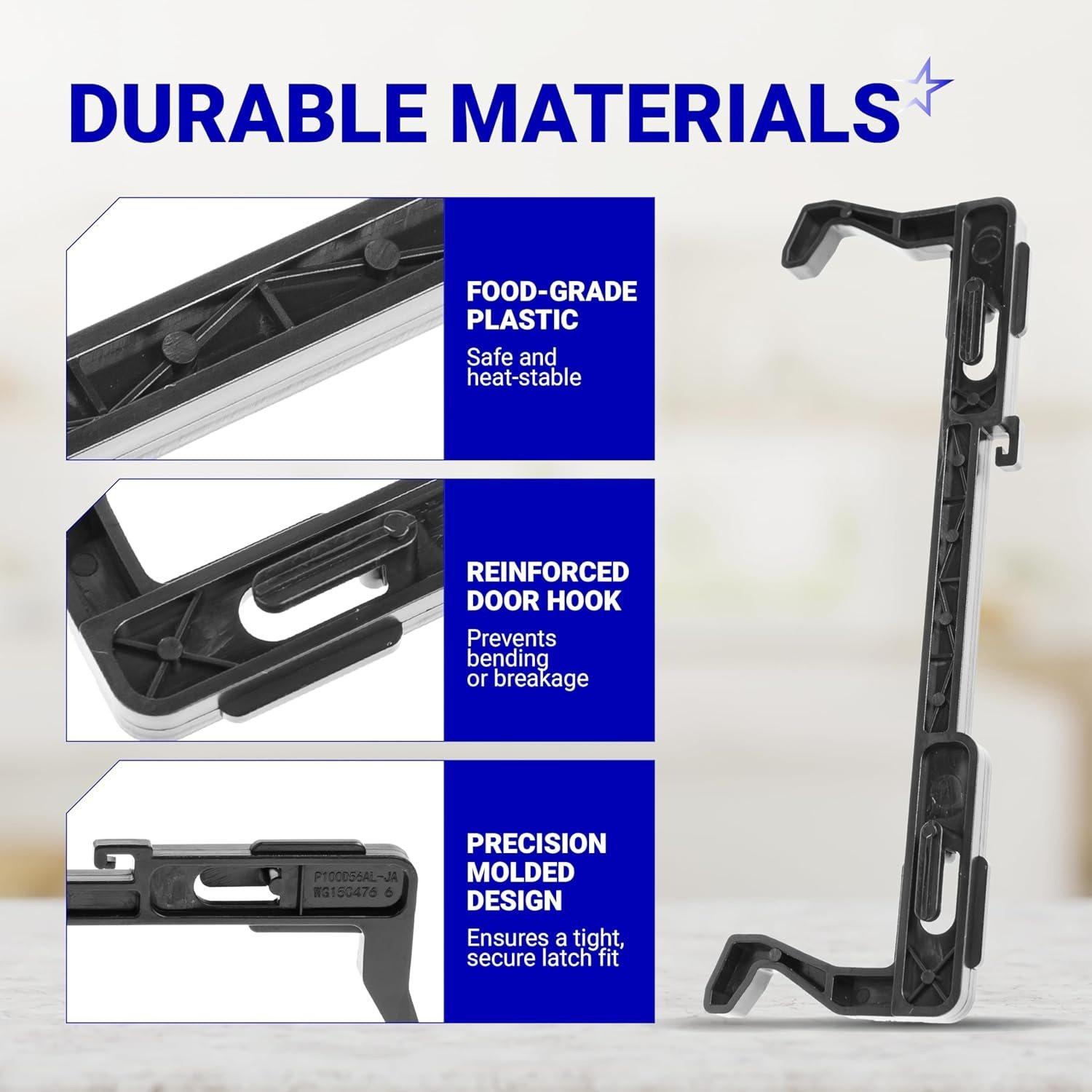

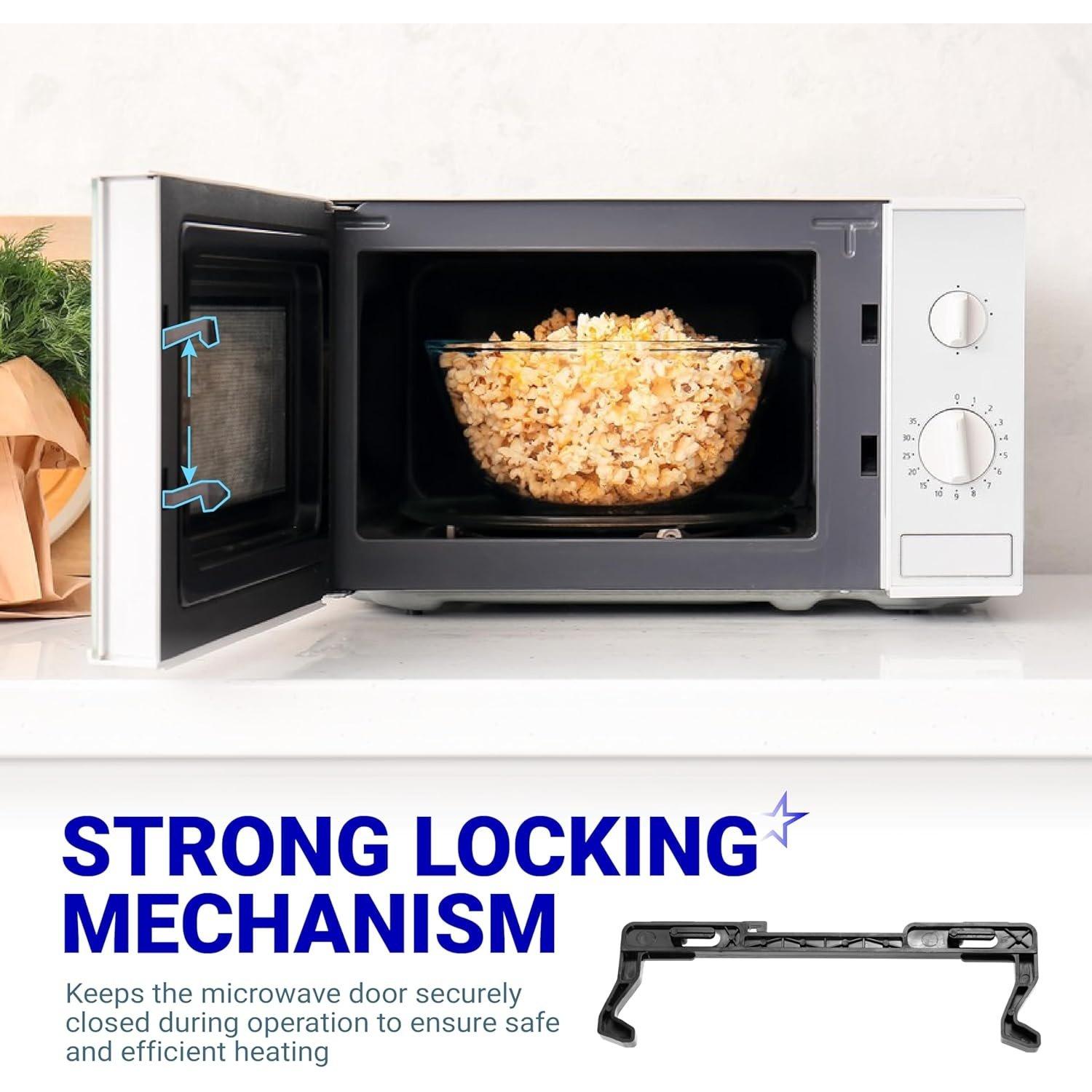

• Dual-Hook Safety Design:Features two precision-molded hooks that engage with the microwave's door switches to ensure a secure, microwave-tight seal.
• High-Temperature Strength:Manufactured from heat-stabilized, reinforced polymer designed to maintain its shape and tension despite frequent exposure to steam and heat.
• Spring-Tension Ready:Includes a dedicated attachment point for the door spring, ensuring the latch snaps back into the "locked" position immediately upon closing.
• Precision Switch Engagement:Engineered to the exact tolerances required to trigger the internal safety interlock switches, preventing microwave operation when the door is open.

Replaces / Cross-Reference Part Numbers

• 5304522796
• AP6979662
• 4977138
• OEM20938991
• PS12746282
• EAP12746282
• 5304509433

Compatibility & Fitment

• Frigidaire:Fits a wide range of Gallery and Professional series models (e.g., FGMV175QF, FFMV164LS, FGMV176NT).
• Electrolux:Compatible with many EI30 and EW30 series over-the-range units.
• Kenmore / Sears:Fits various 790-series microwaves (e.g., 790.80323310, 790.80333310).
• Gibson, Kelvinator, & Westinghouse:Compatible with select units utilizing the 5304 series latch configuration.

When to Replace

• Microwave Won't Start:The light turns on and the timer counts down, but the microwave won't heat because the latch isn't fully engaging the safety switches.
• Broken Hooks:One or both of the plastic hooks have snapped off, preventing the door from staying closed.
• Door "Sagging":The door doesn't sit flush with the frame, often caused by a warped or worn latch assembly.
• Stuck Door:The door button or handle is pressed, but the door fails to pop open because the latch is jammed.
• Intermittent Shut-off:The microwave stops mid-cycle if the door is bumped, suggesting the latch is no longer holding the safety switches securely.

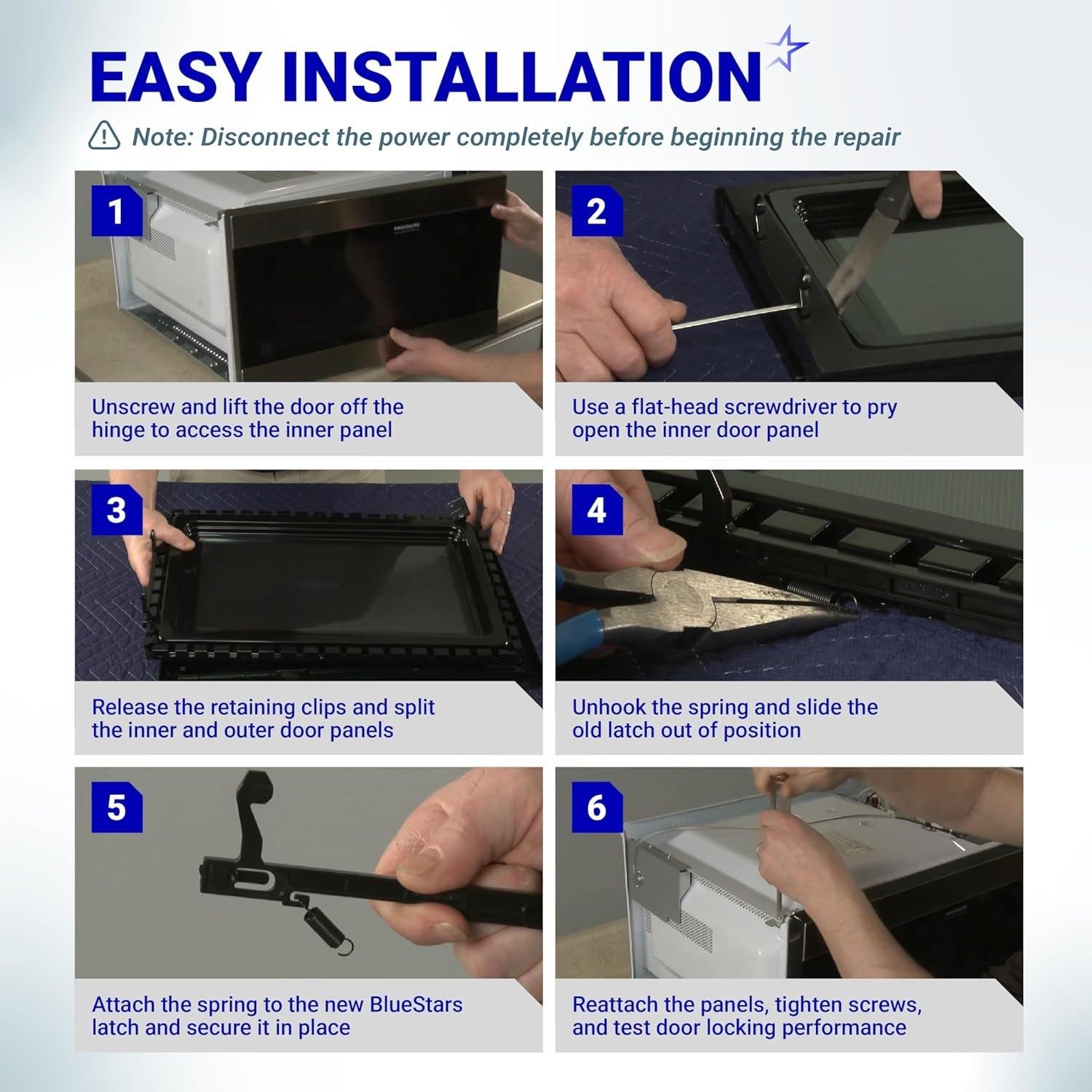

Installation Tips

• Safety First:Microwaves can store a lethal electrical charge even when unplugged. Unplug the unit and wait at least 15-30 minutes before beginning the repair.
• Accessing the Latch:You will typically need to remove the inner door trim (choke cover). Use a thin putty knife or a plastic pry tool to gently pop the plastic clips without scratching the finish.
• Spring Transfer:Note the orientation of the small tension spring attached to the old latch. It is easiest to attach the spring to the new latch before snapping the latch back into the door frame.
• Switch Check:Once the new latch is installed, manually verify that the hooks move freely and that the spring pulls them back into position.
• Final Alignment:Before snapping the trim back on, close the door to ensure the latch aligns perfectly with the slots in the microwave cabinet.
