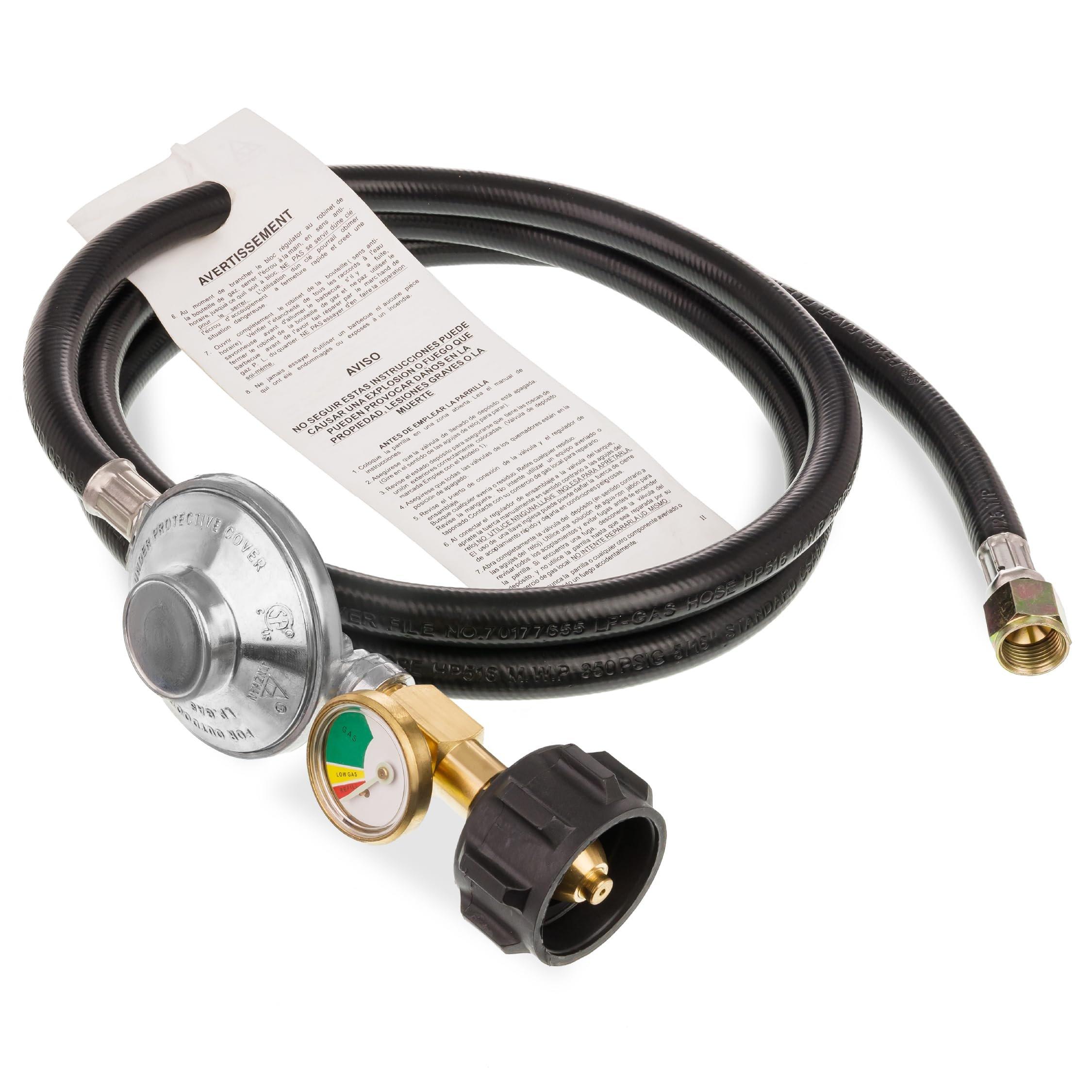

[Lifetime Warranty] [CSA Certified] 6 Feet Propane Hose Regulator with Gauge - Universal Regulator for Weber Charbroil Nexgrill Cuisinart Grill, Patio Heater and Fire Pit, Low Pressure 3/8" Female Flare Nut

[CSA Certified] 6 Feet Propane Hose Regulator with Gauge - Universal Regulator for Weber Charbroil Nexgrill Cuisinart Grill, Patio Heater and Fire Pit, Low Pressure 3/8" Female Flare Nut

Key Features

• Length: 6 feet
• Hose Diameter: 5/16 inch

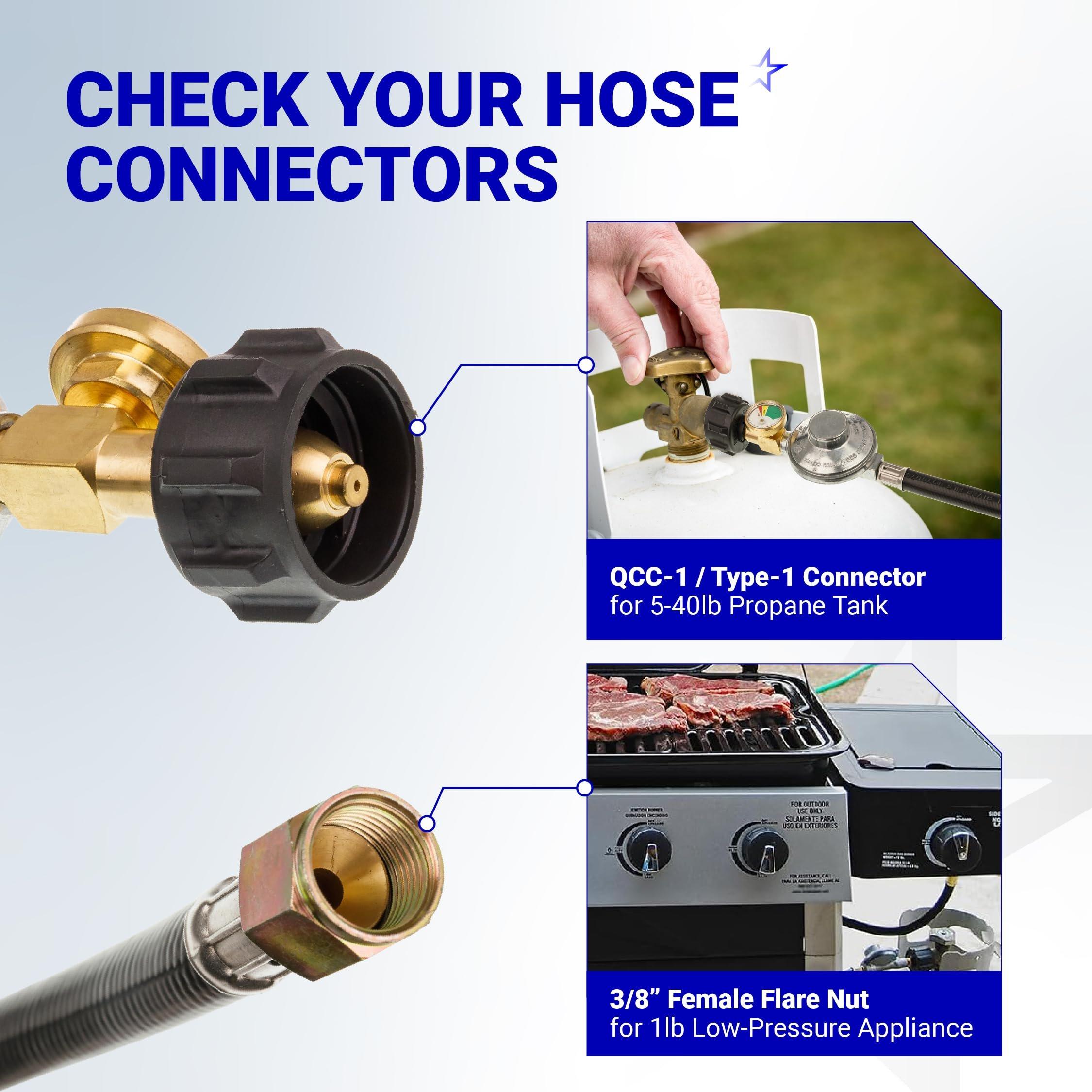

• Tank Connection: QCC1 / Type 1 for standard propane tanks
• Appliance Connection: 3/8-inch female flare nut (5/8"-18UNF thread)
• Pressure Type: Low pressure

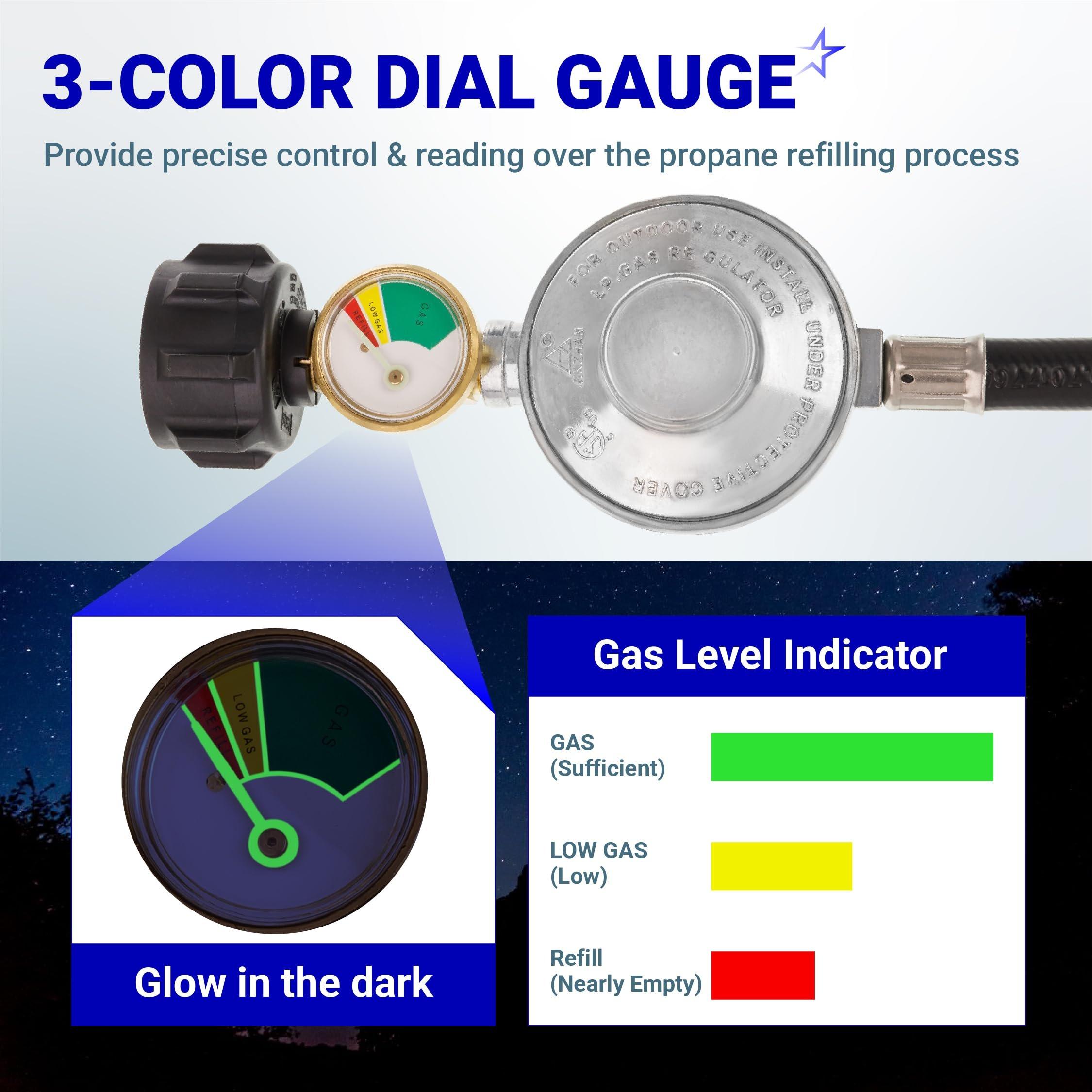

• Integrated color-coded gauge for monitoring fuel levels

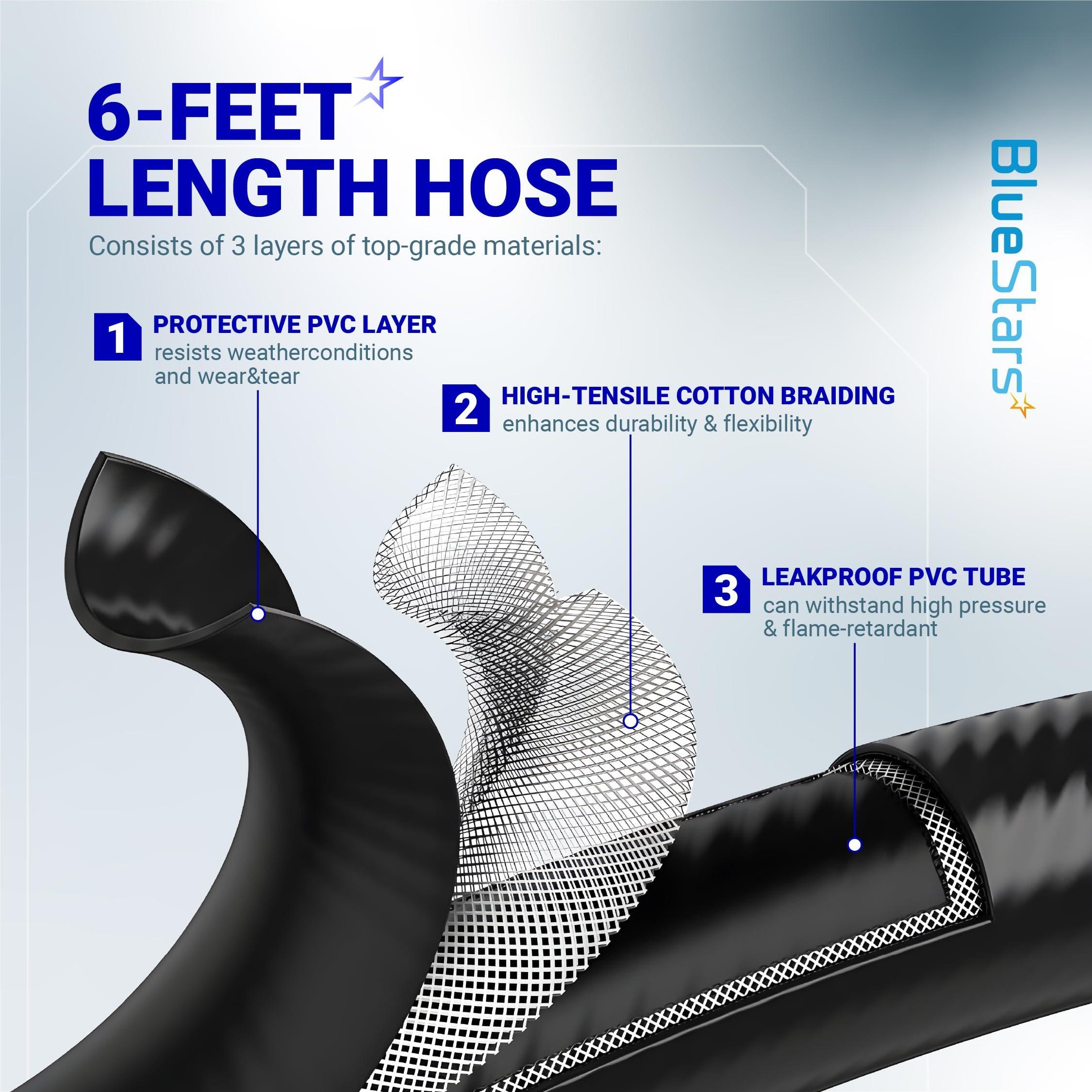

• Materials: Weather-resistant rubber hose with solid brass fittings
• Certification: CSA C-US Certified (No. 70034682) to ANSI/UL 569 and CSA 8.3-2015(R2020) standards

Replaces / Cross-Reference Part Numbers

• Serves as a universal replacement for low-pressure regulators with a 3/8-inch female flare connection, including models similar to 711-0003.

Compatibility & Fitment

• Fits most gas grills, patio heaters, and fire pits requiring a low-pressure regulator.
• Compatible Brands: Weber, Char-Broil, Nexgrill, Cuisinart, Napoleon, and others.
• Specific Models: Fits Weber Genesis 300 series and other grills with a 3/8-inch male flare inlet.
• Connects to any standard QCC1/Type 1 propane tank.

When to Replace

• Visible signs of damage, such as cracks, abrasions, or brittleness on the hose.
• Inconsistent flame height, low heat output, or burners that will not stay lit.
• Persistent smell of propane after tightening connections.
• Corroded or damaged brass fittings.
• Positive result (bubbles form) during a soapy water leak test.

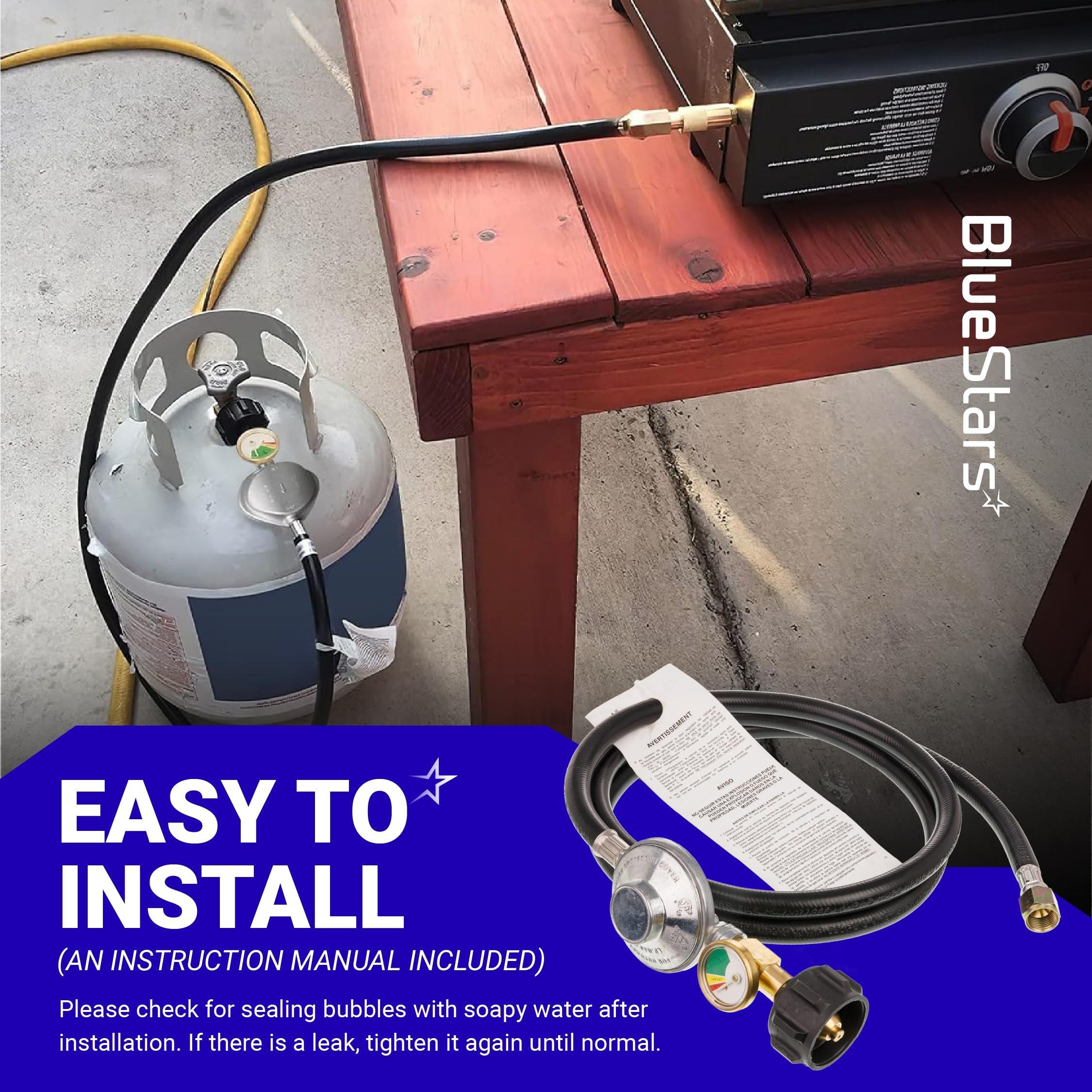

Installation Tips

• Ensure the propane tank valve is fully closed before beginning installation.
• Hand-tighten the QCC1 connector to the tank; do not use tools on this connection.
• Use a wrench to tighten the 3/8-inch flare nut onto the appliance's male fitting for a secure seal.
• After installation and before use, apply a soapy water solution to all connections to check for leaks.
• Position the hose to avoid sharp bends, direct contact with hot surfaces, or placement in high-traffic pathways.
