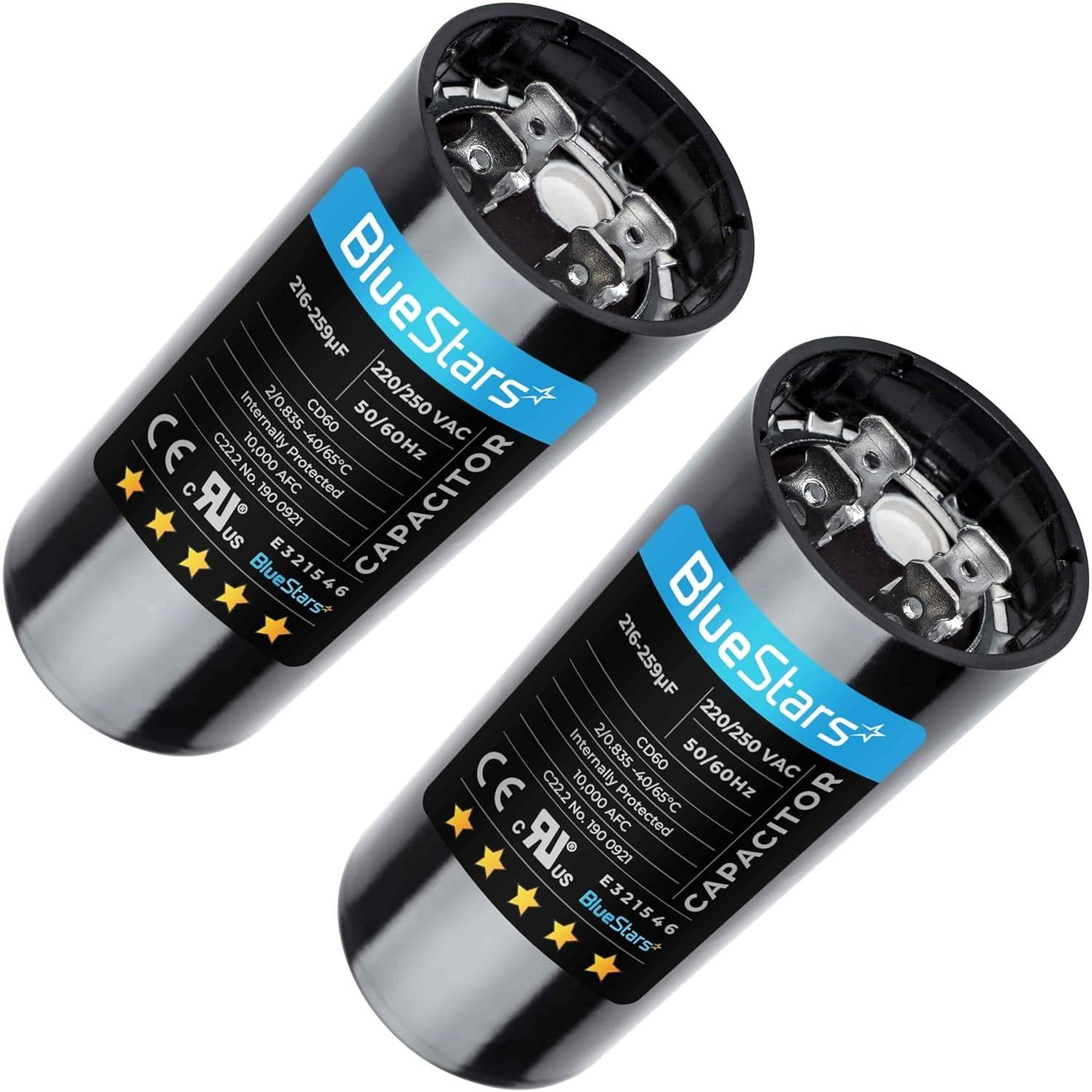

[Lifetime Warranty] 216-259 uF MFD 220-250 VAC Round Start Capacitor - Fits AC Motor Run, Fan Start, Heat Pump - Pack of 2

216-259 uF/MFD 220-250V Round Start Capacitor - Pack of 2

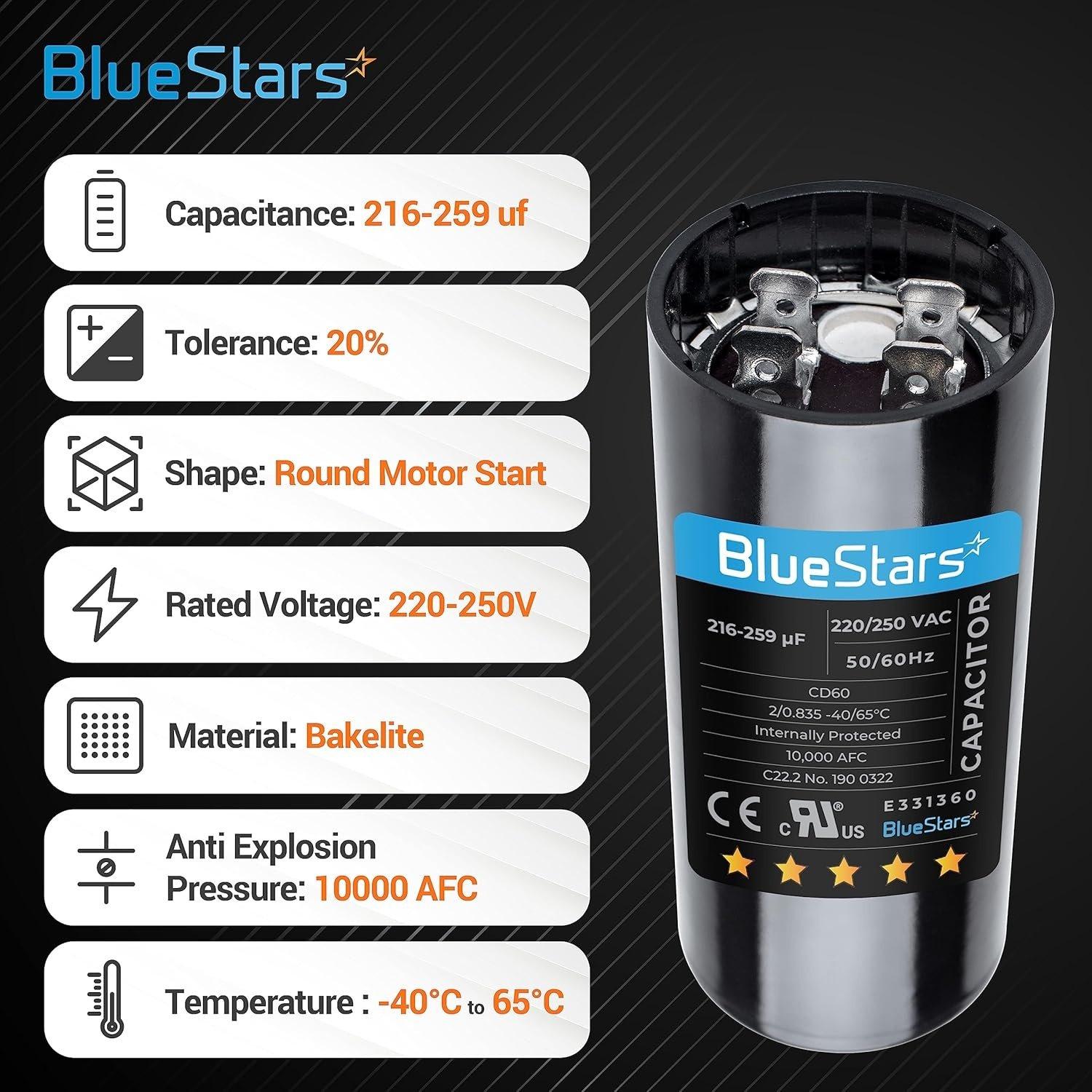

Key Features

• Quantity: 2 capacitors
• Capacitance: 216-259 µF/MFD
• Voltage Rating: 220-250 VAC
• Frequency: 50/60 Hz
• Capacitance Tolerance: ±20%
• Terminals: 1/4 inch dual male spade
• Shape: Round

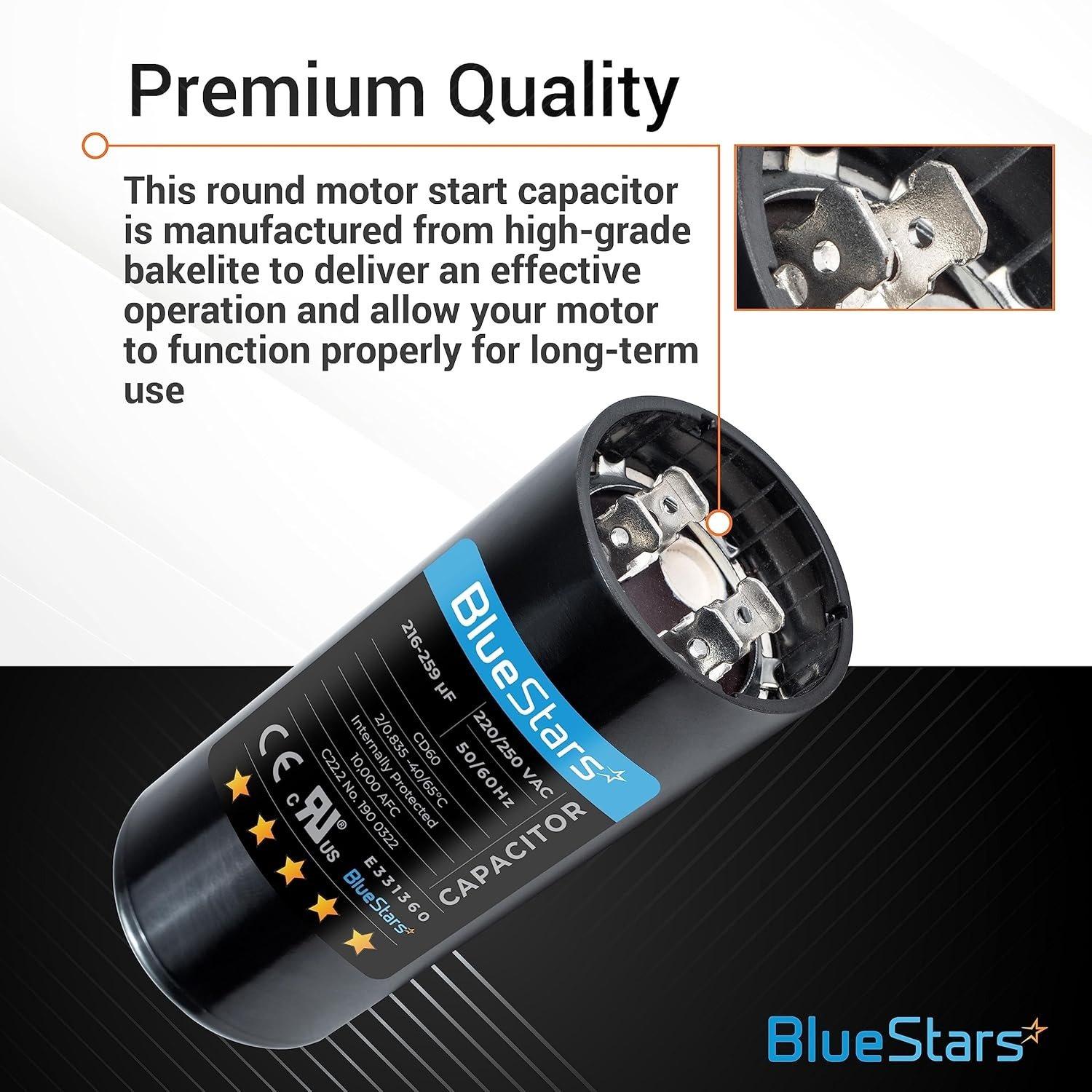

• Housing: Moisture and oil-resistant molded case

Replaces / Cross-Reference Part Numbers

• SC0080
• CS216-259X220
• CD60 (type)
• Replaces any start capacitor with matching capacitance and voltage specifications.

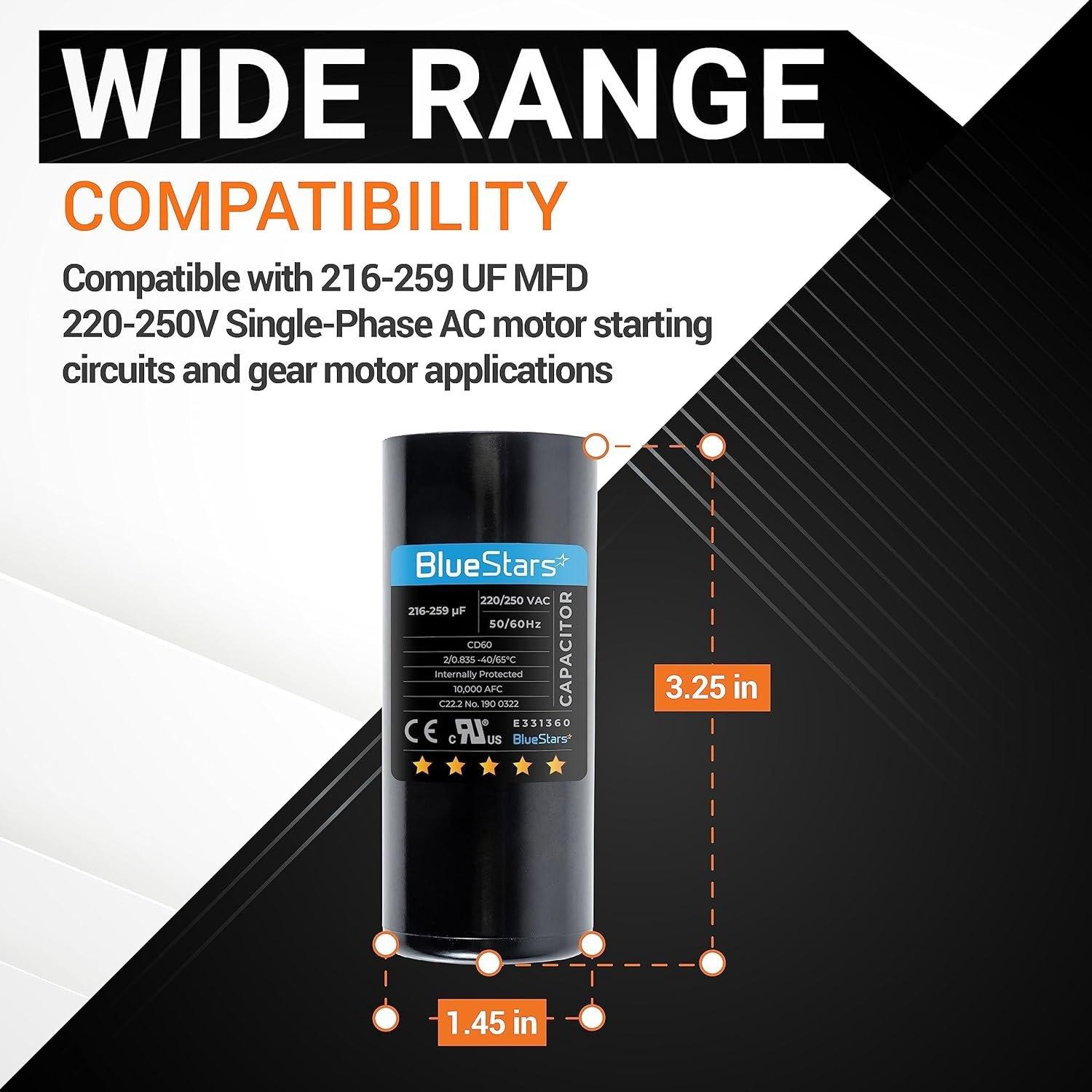

Compatibility & Fitment

• Designed for single-phase AC motor starting applications.
• Suitable for HVAC units, air compressors, well pumps, fans, and other electric motors.
• Compatible with systems requiring a start capacitor rated for 216-259 MFD and 220V, 230V, or 250V.

When to Replace

• Motor hums but fails to start or experiences slow start-up.
• Circuit breaker trips when the motor attempts to start.
• Visible damage to the existing capacitor, such as bulging, cracking, or fluid leakage.
• Capacitance measures outside the specified tolerance range when tested.

Installation Tips

• Disconnect all electrical power to the equipment before installation.

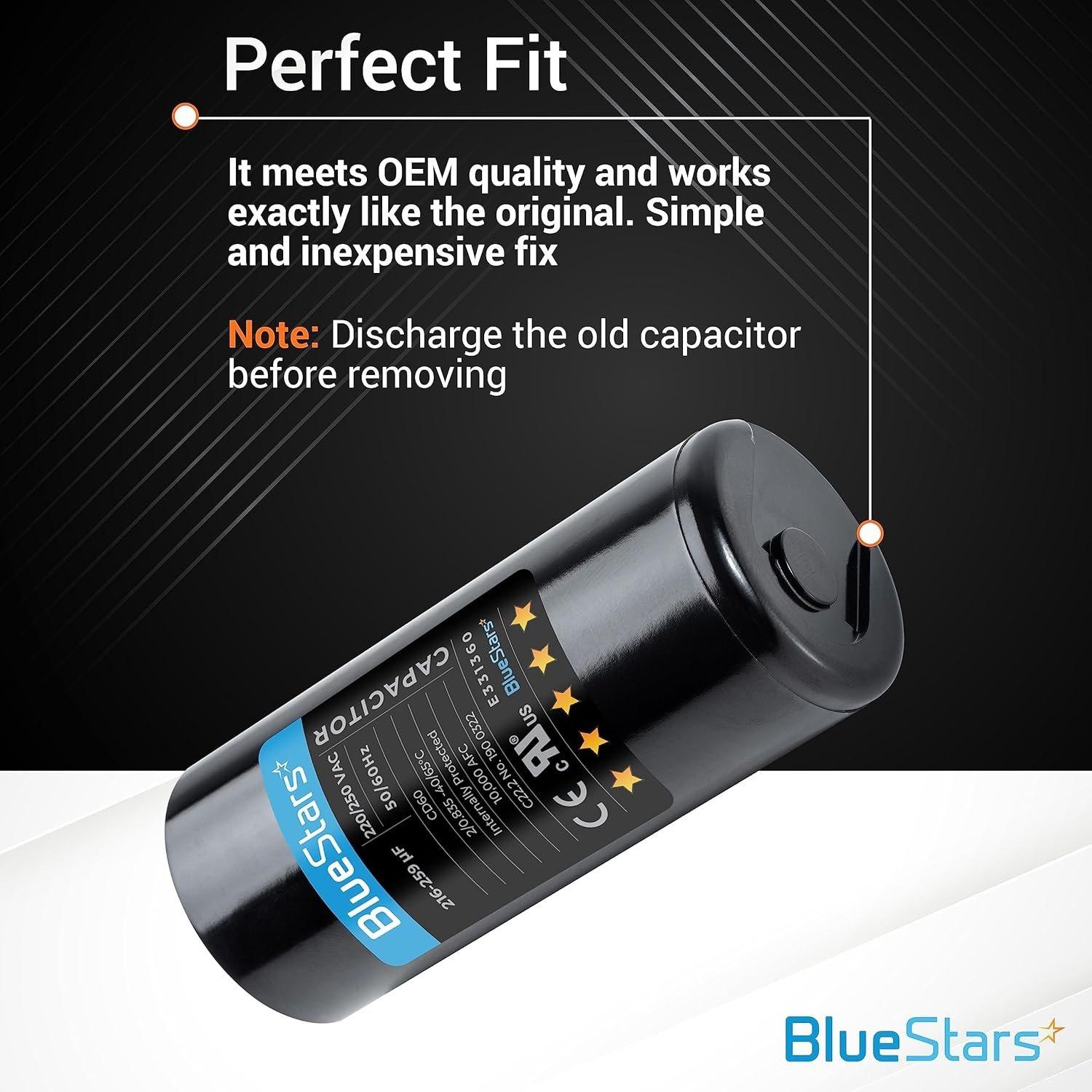

• Safely discharge the old capacitor by shorting the terminals with a resistor or an insulated tool.
• Confirm the µF/MFD and voltage ratings match the component being replaced.
• Connect wires to terminals. AC start capacitors are non-polarized; wire order does not matter.
• Secure the capacitor with the original mounting bracket.
