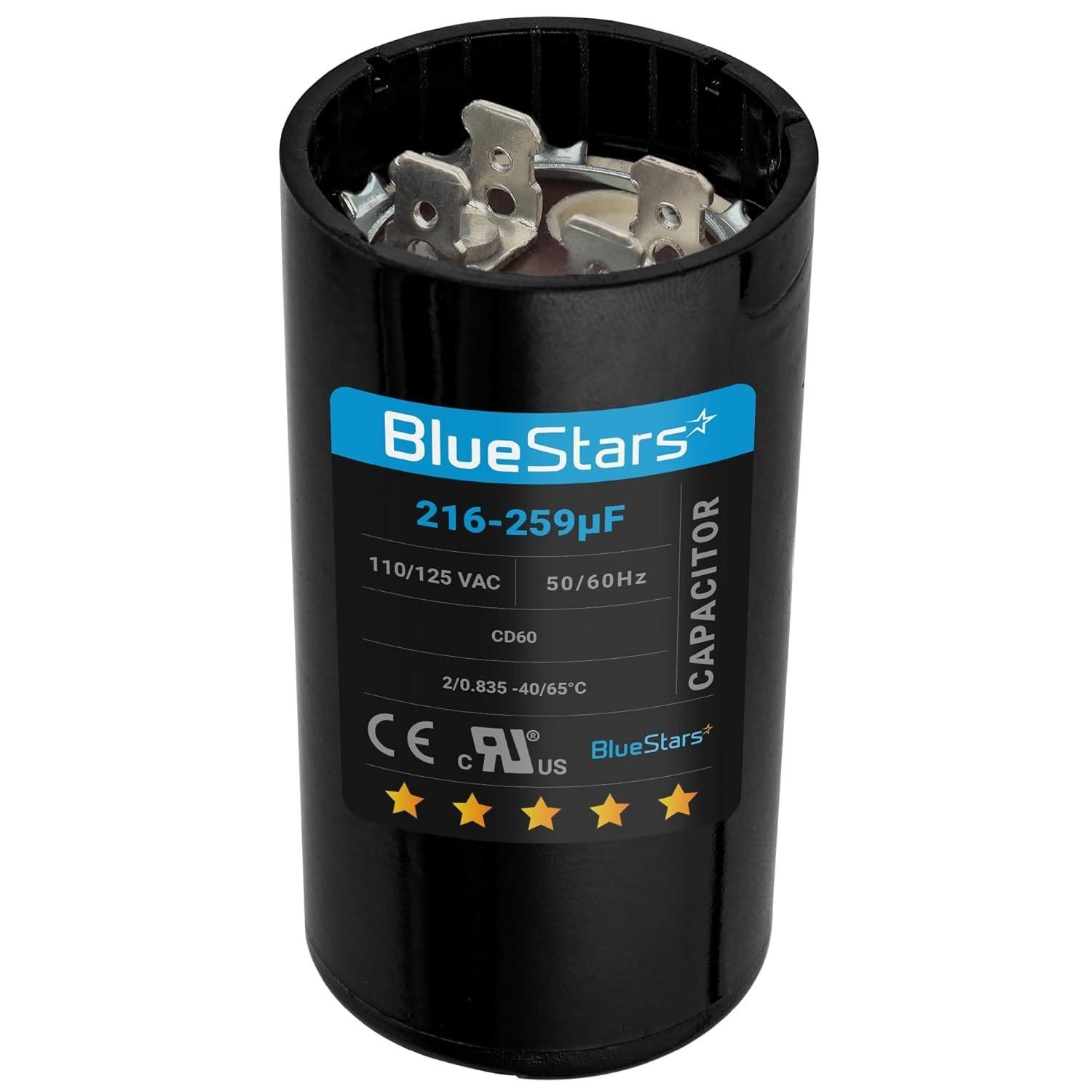

[Lifetime Warranty] 216-259 uF MFD 110-125 VAC CD60 Round Start Capacitor - Fits AC Motor Run, Fan Start, Heat Pump

216-259 uF/MFD 110-125V Round Start Capacitor

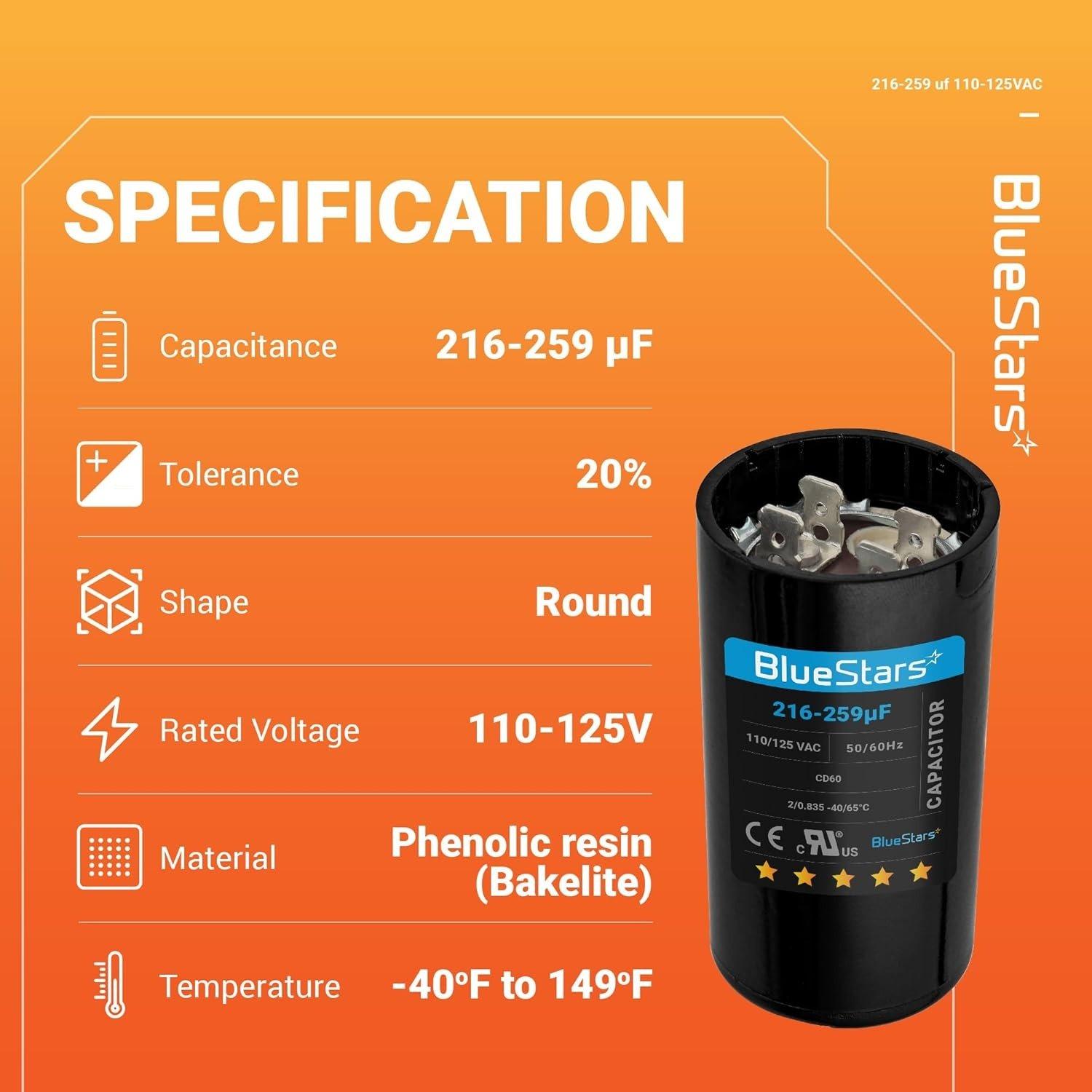

Key Features

• Capacitance: 216-259 Microfarad
• Voltage Rating: 110-125V AC
• Frequency: 50/60 Hz
• Operating Temperature: -40°C to +65°C (-40°F to +149°F)
• Capacitance Tolerance: -0% / +20%
• Terminals: 1/4 inch quick connect

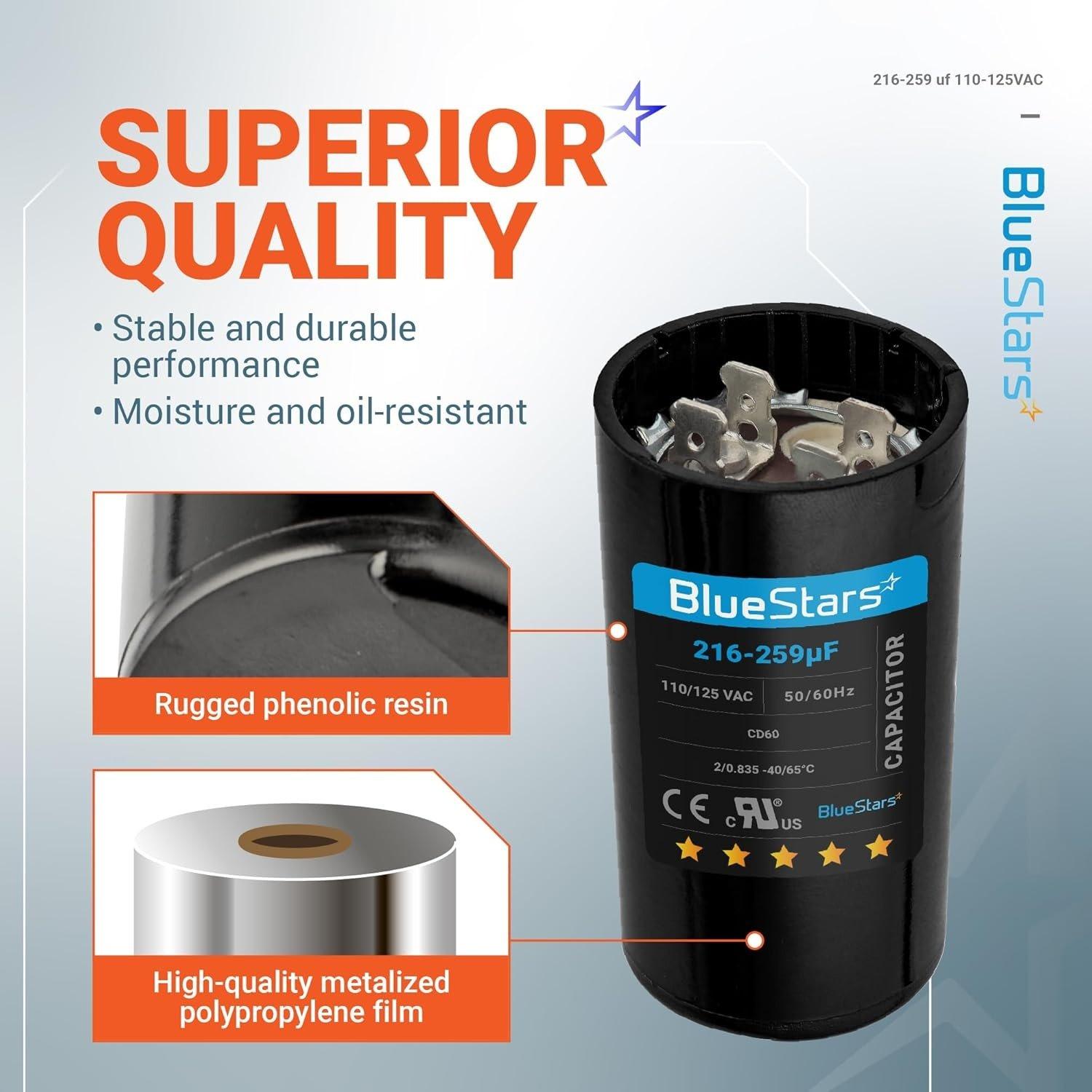

• Case Material: Plastic / Phenolic Resin
• Shape: Round

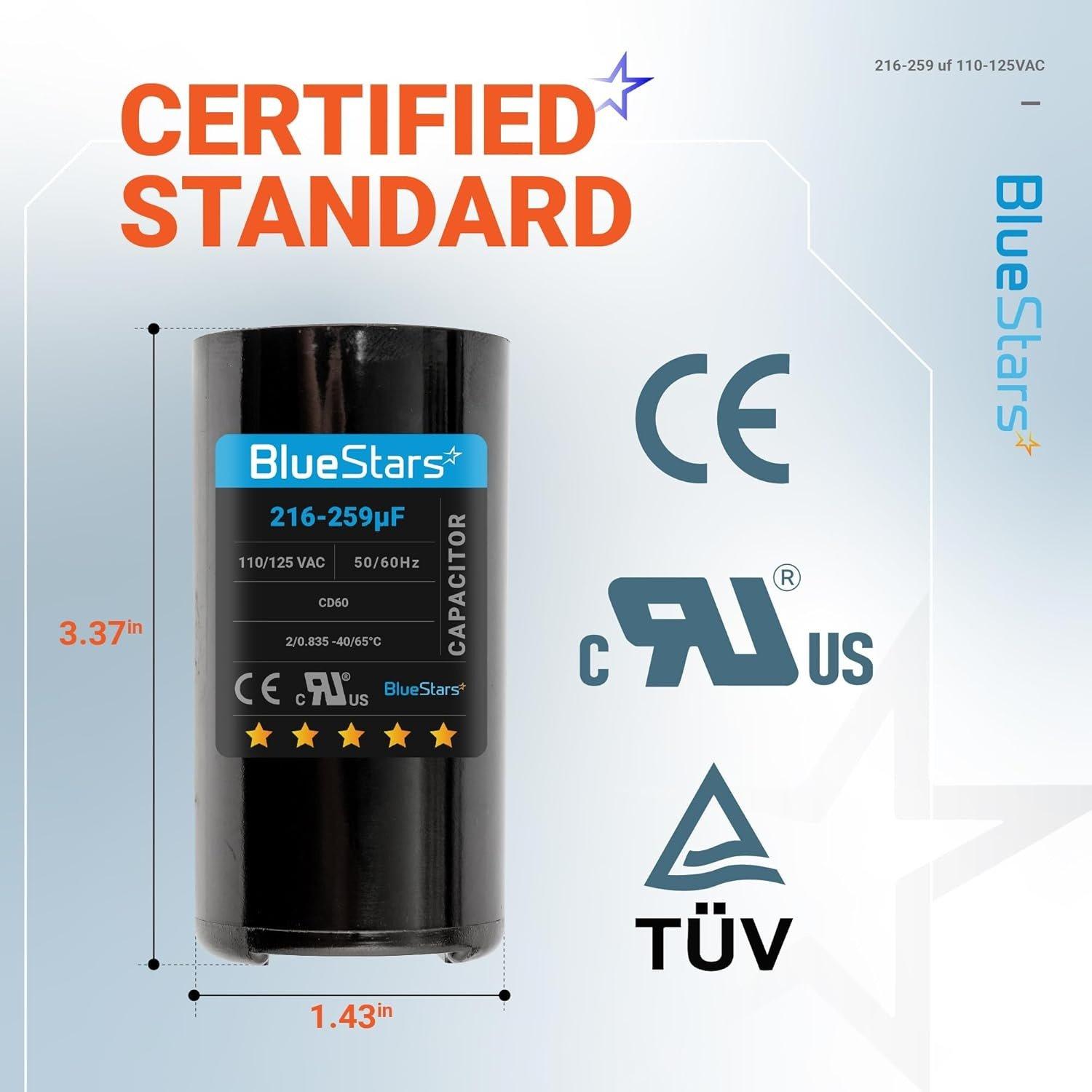

• Dimensions: 1.44 in. Diameter x 2.75 in. Height

Replaces / Cross-Reference Part Numbers

• CD60
• 460-552

Compatibility & Fitment

• Designed for single-phase motor starting applications.
• Commonly used in HVAC units, air conditioners, compressors, and water pumps requiring a capacitor with matching specifications.

When to Replace

• Motor hums but fails to start or starts slowly.
• Capacitor shows physical damage such as bulging, cracking, or leaking fluid.
• Multimeter test shows capacitance reading outside the 216-259 uF range.

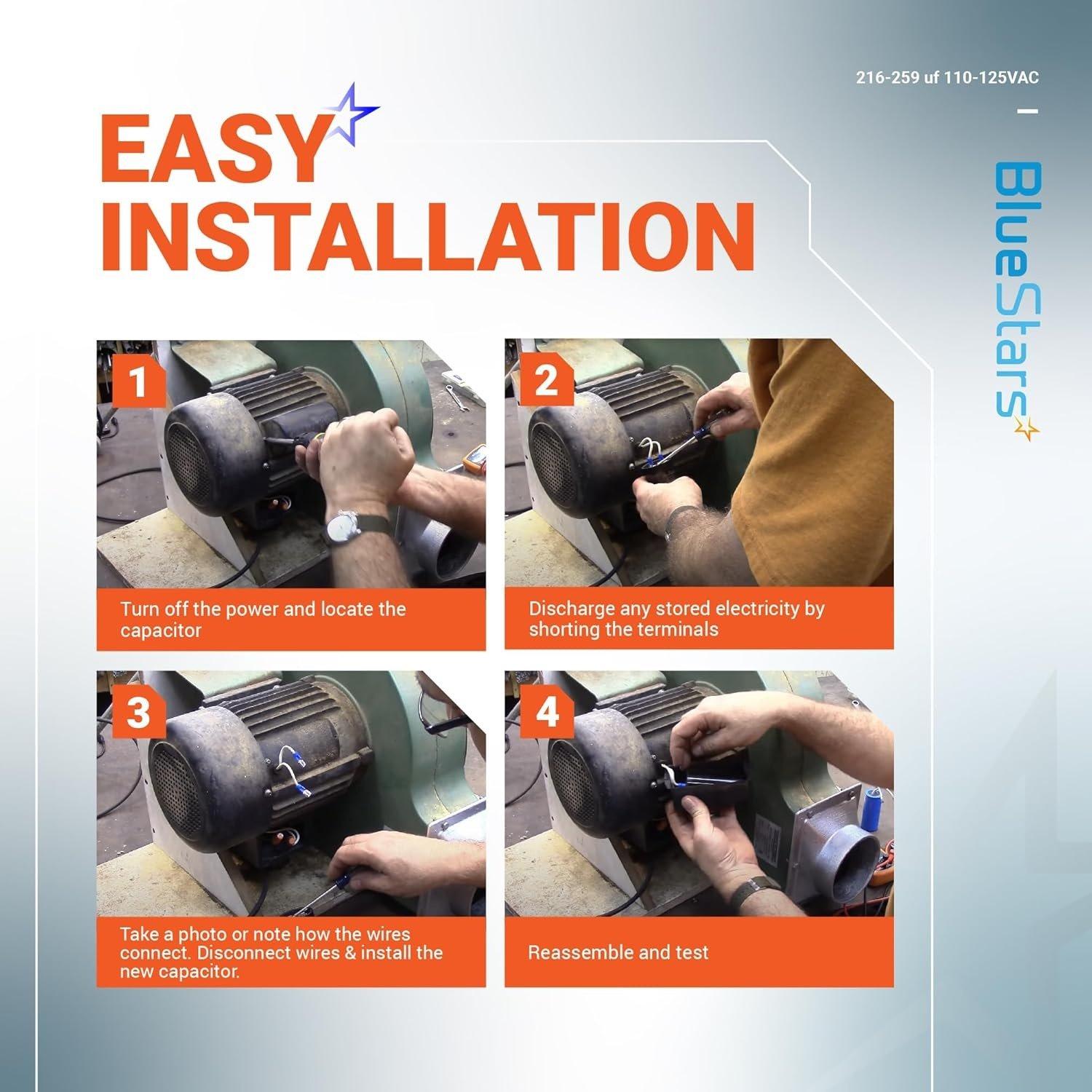

Installation Tips

• Disconnect all electrical power to the unit before servicing.
• Safely discharge the existing capacitor by shorting the terminals with an insulated screwdriver.
• Verify that the voltage and uF/MFD ratings of the new capacitor match the original component.
• Note the wire placement on the old capacitor terminals before disconnecting.
