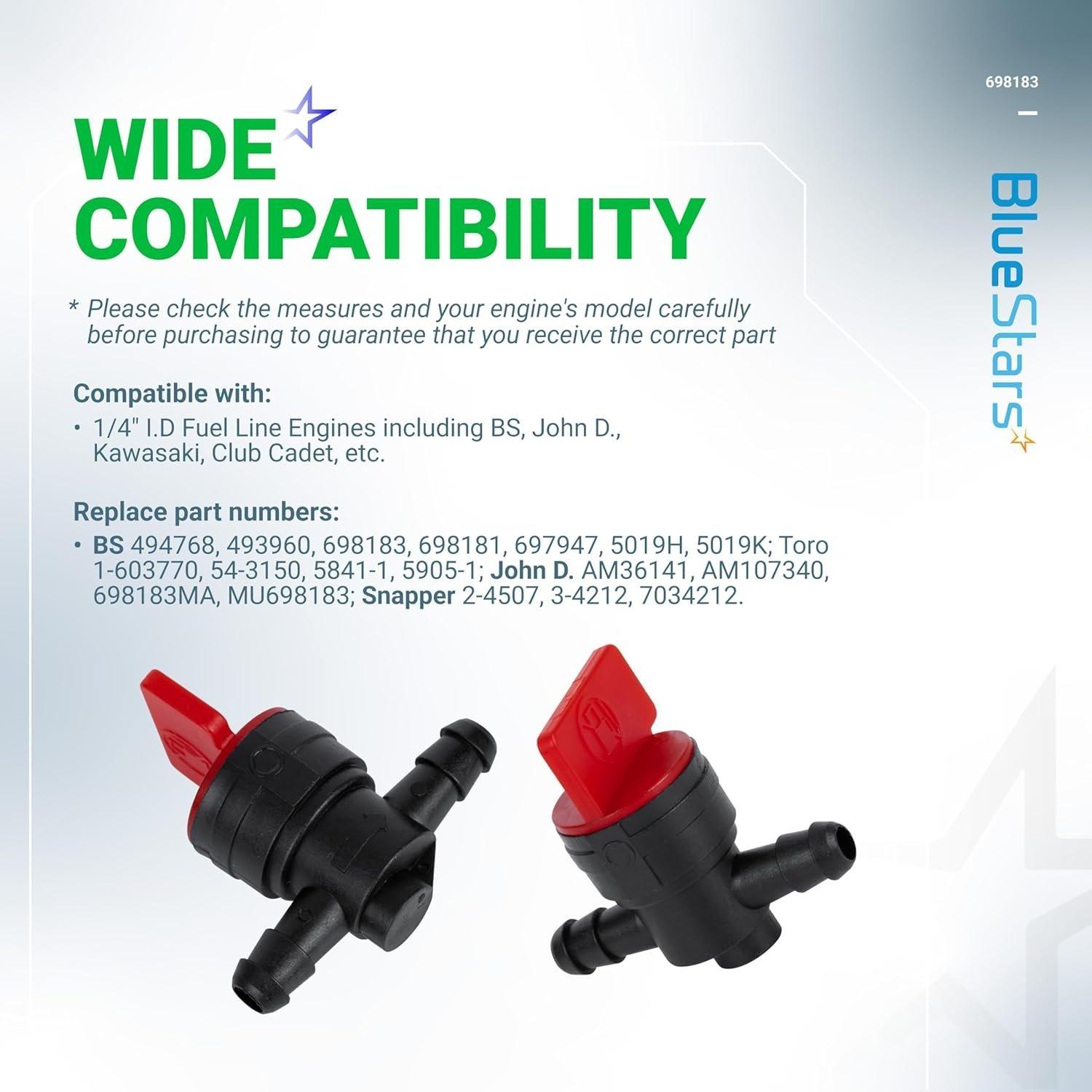

[Lifetime Warranty] 494768 698183 1/4" Inline Fuel Shut Off Valve with Clamp - Compatible with BS 493960 John Deere AM36141 AM107340 Toro 54-3150 1-603770 Oregon 07-406 Stens 120-212 Lawn Mower Tractor - Pack of 10

494768 698183 1/4" Inline Fuel Shut Off Valve with Clamp - Pack of 10

Key Features

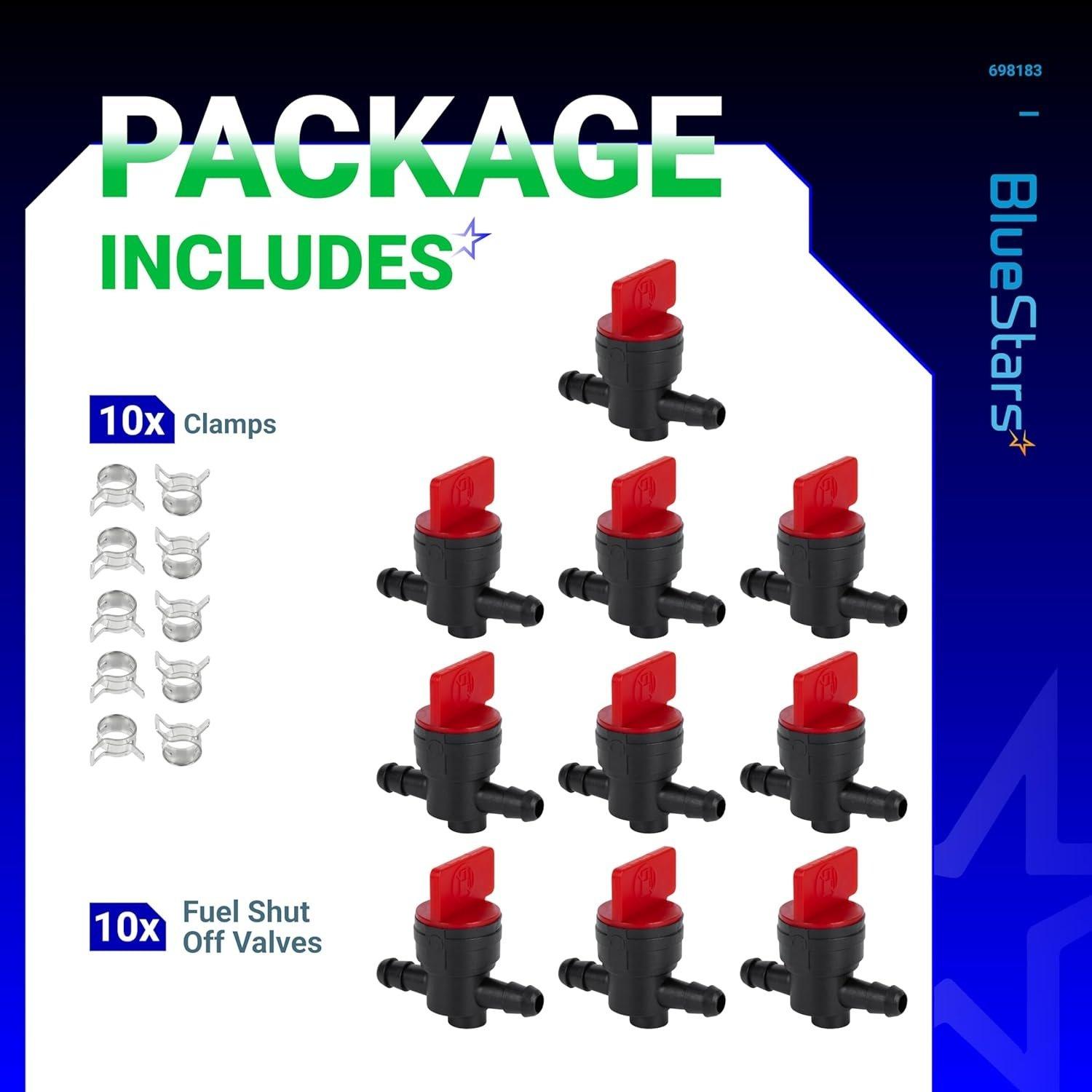

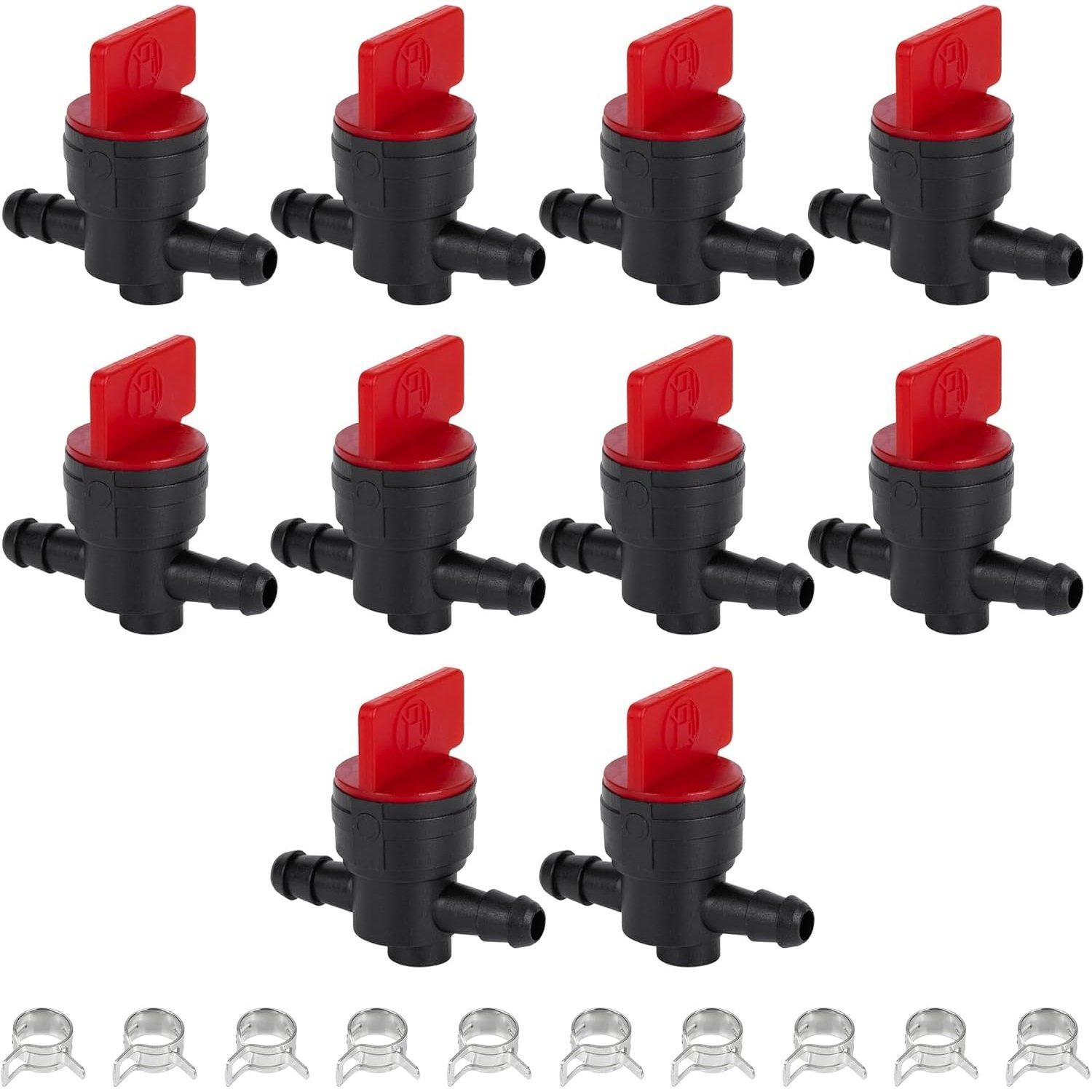

• Package includes 10 fuel shut-off valves and 20 clamps.

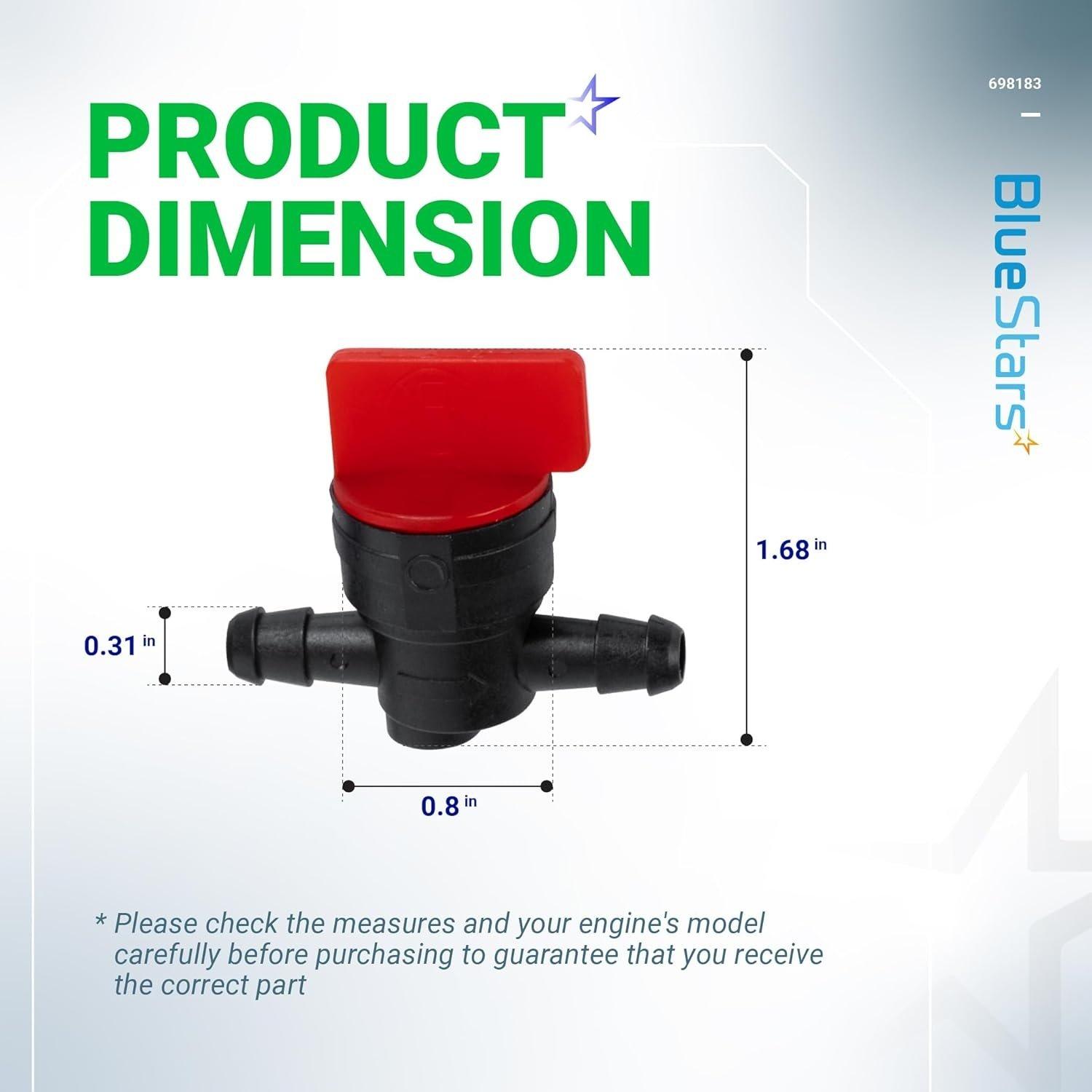

• For use with 1/4 inch inner diameter fuel line.
• Features a 90-degree rotational on/off handle for simple operation.

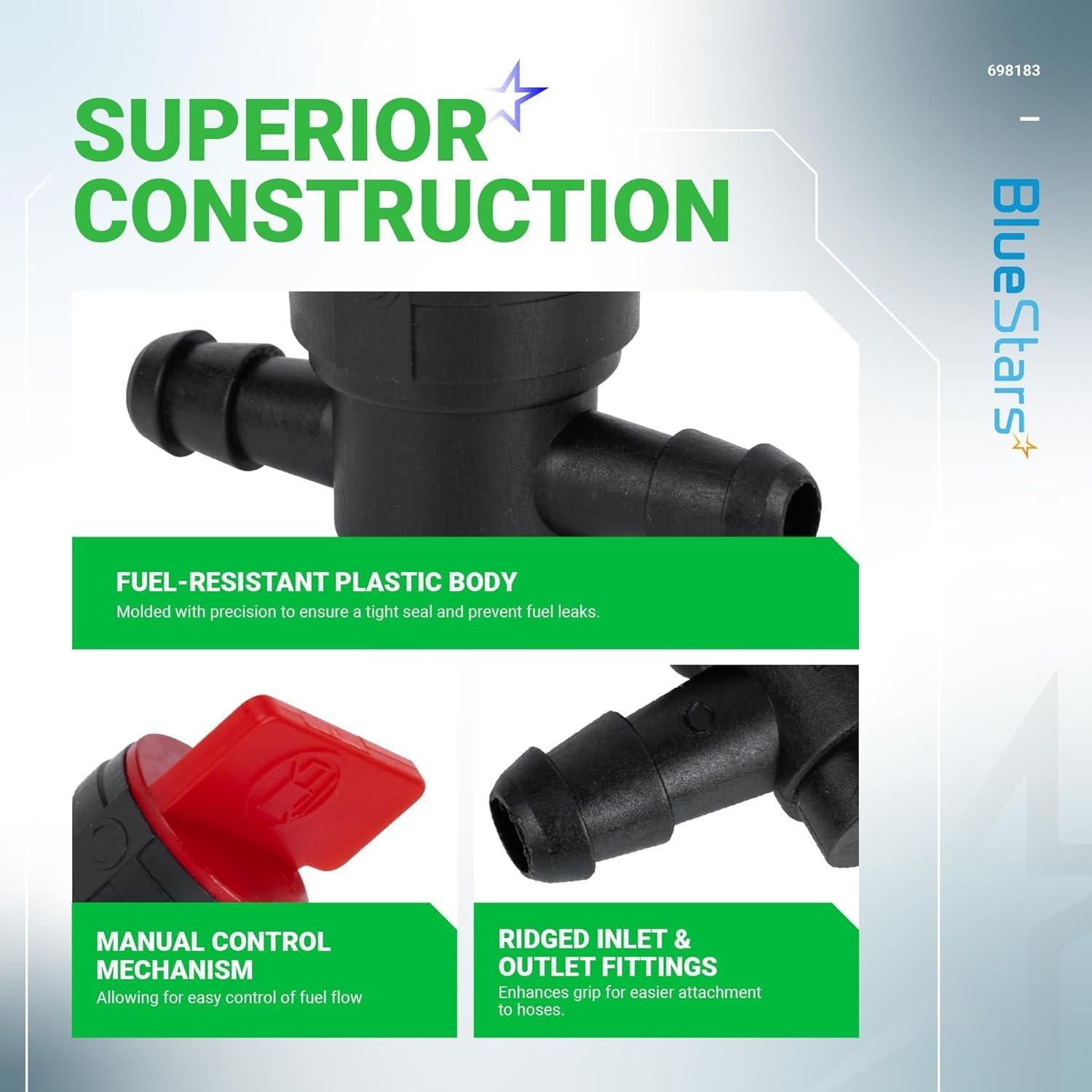

• Constructed from impact-resistant plastic and metal components.
• Provides a positive seal to prevent fuel flow when closed.

Replaces / Cross-Reference Part Numbers

• BS: 494768, 698183, 493960, 698181, 697947, 5019H, 5019K
• John Deere: AM36141, AM107340, AM1008356
• Toro: 54-3150, 1-603770
• Snapper / Murray: 7034212YP
• Oregon: 07-406
• Stens: 120-212

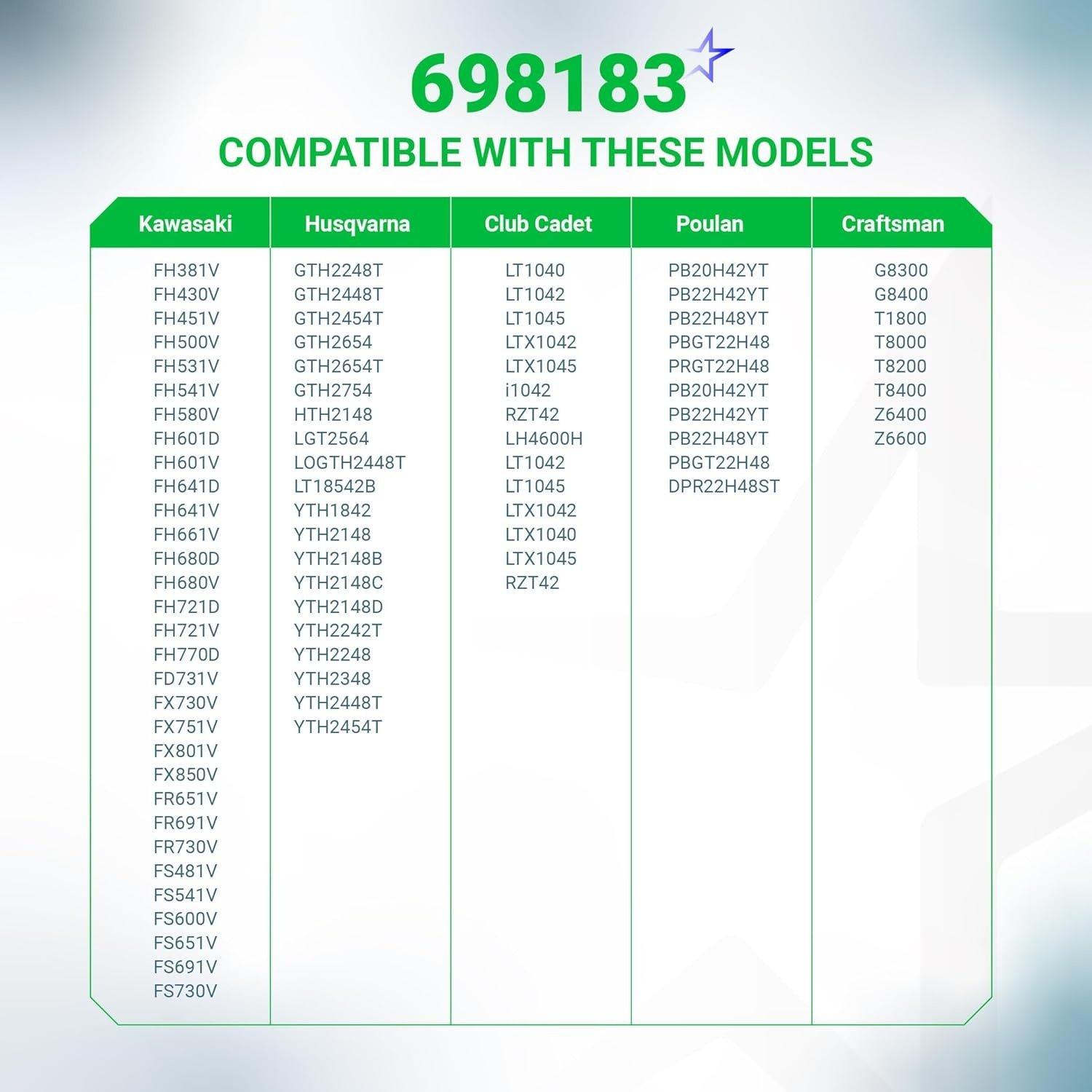

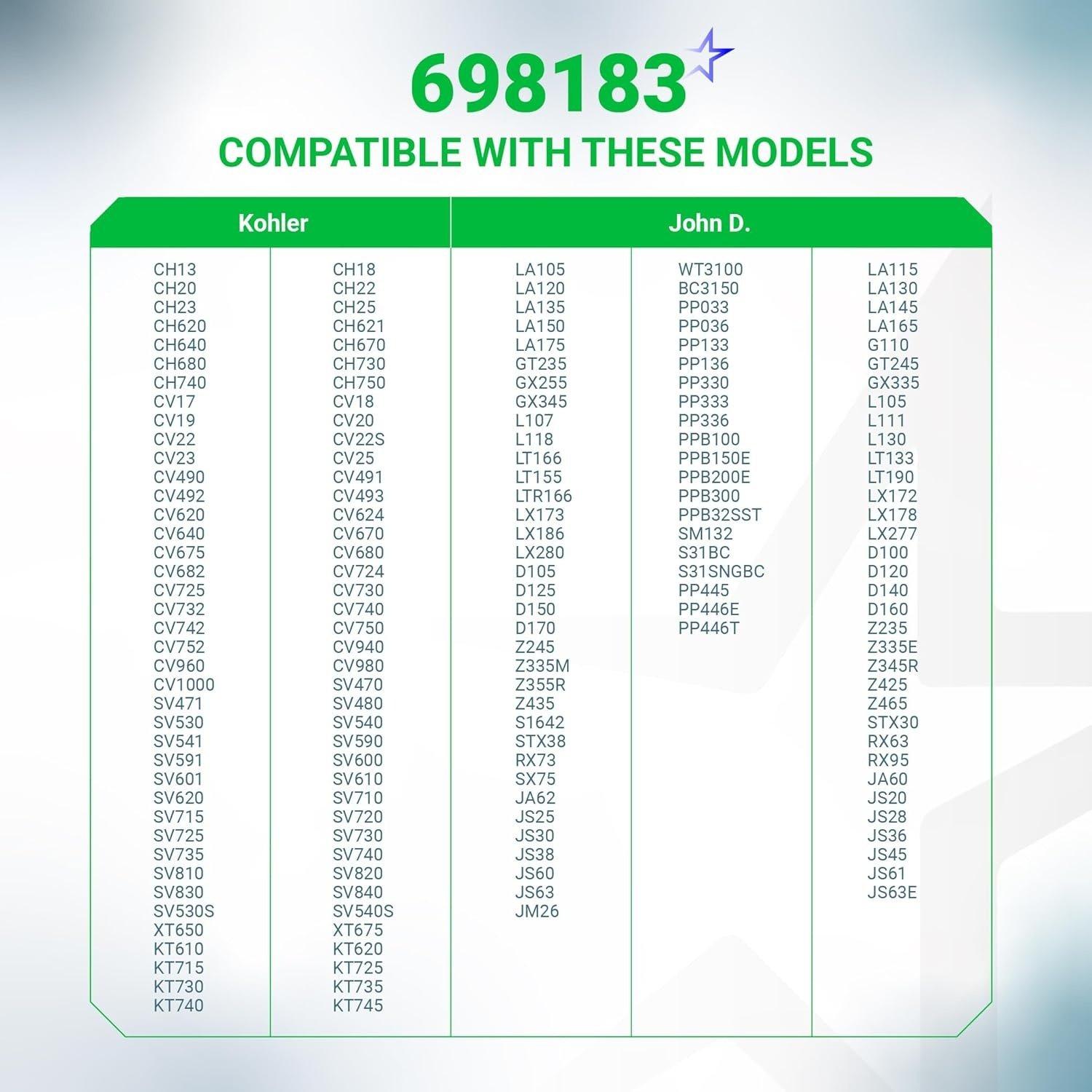

Compatibility & Fitment

• Universal fit for small engines on lawn mowers, tractors, generators, and other outdoor power equipment.
• Designed for any fuel system using a 1/4 inch (6.35mm) inner diameter fuel line.

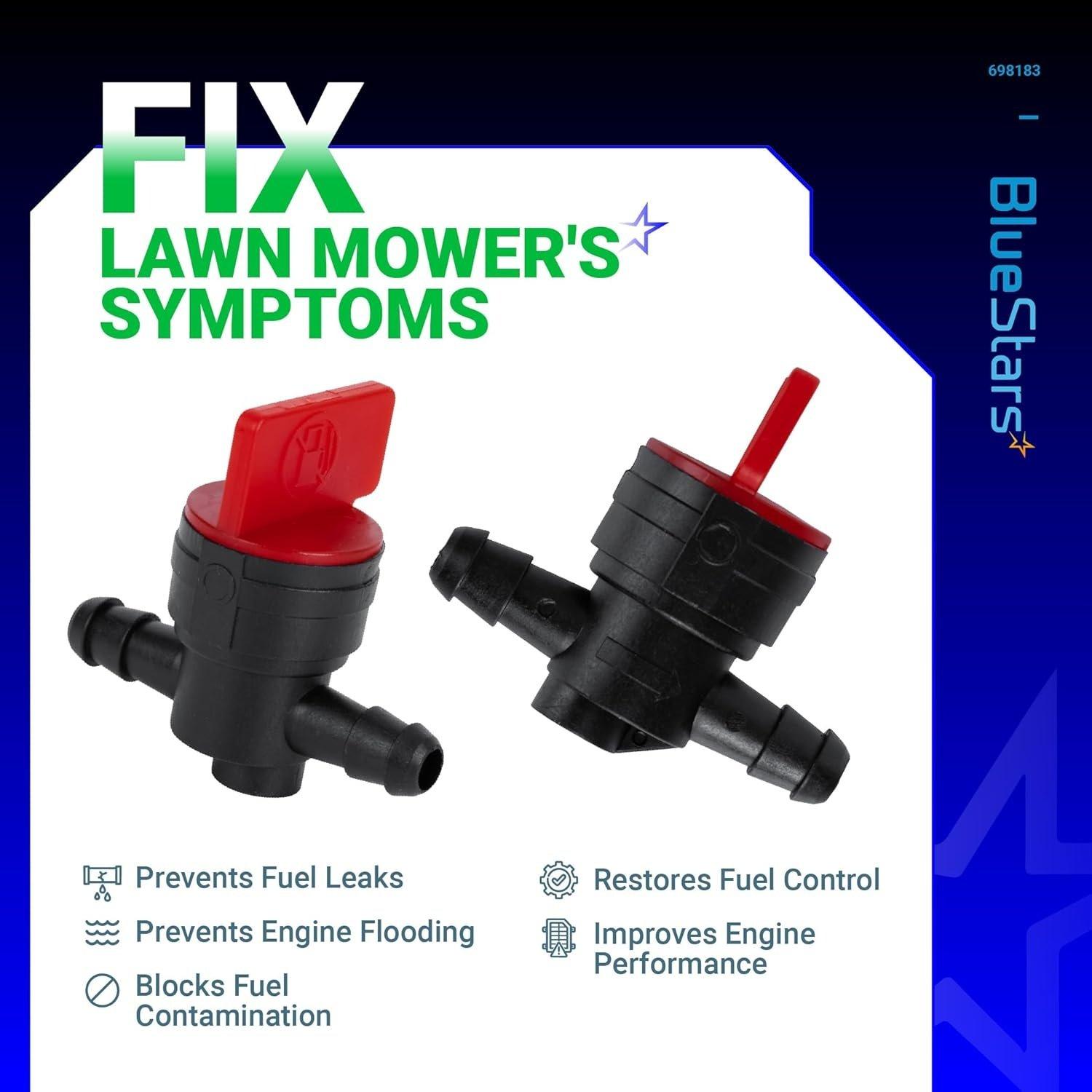

When to Replace

• Existing valve is leaking fuel from the body, handle, or connections.
• Valve body is cracked, brittle, or shows signs of physical damage.
• Handle is broken or difficult to turn.
• Valve fails to completely stop or permit the flow of fuel.

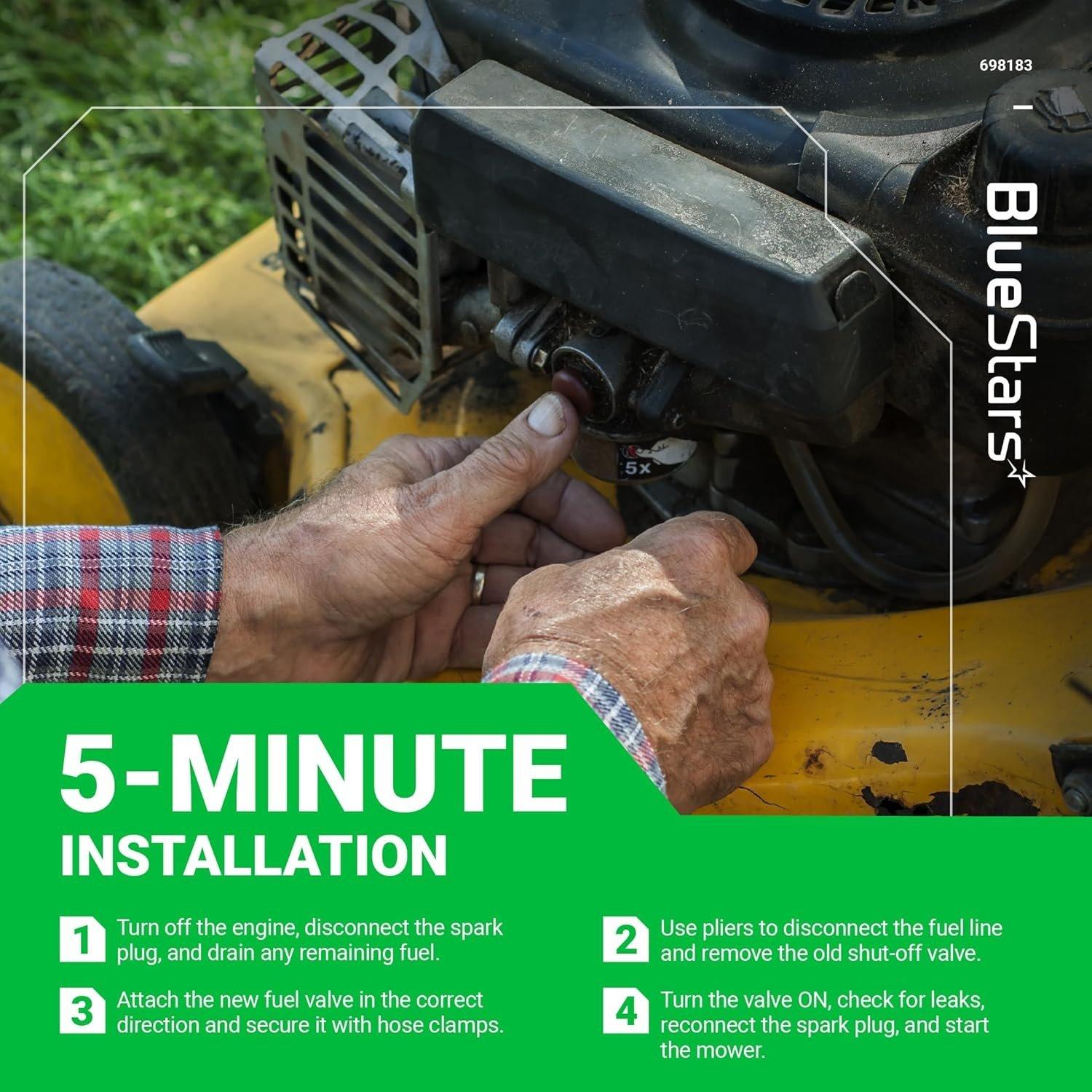

Installation Tips

• Work in a well-ventilated area away from ignition sources.
• Use a clamp on the fuel line upstream of the valve or drain the fuel tank to prevent spills.
• Note the fuel flow direction arrow on the new valve and install it pointing towards the carburetor.
• Position the included clamps approximately 1/4 inch from the end of the hose on each nipple for a secure fit.
• After installation, check for leaks before starting the engine.
