AZ00212109

[Lifetime Warranty] W11117302 Dryer Lint Screen Grille - Compatible With Some Whirlpool, Kenmore, Maytag Dryers - Replaces 8544723, W10685670, WP8544723, 4538922, AP6245906, PS12114312, EAP12114312

Sold 28

Difficulty Icon: Easy
Easy
More than 30 minutes

$33.93

$37.69

Save $3.76
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.

Description

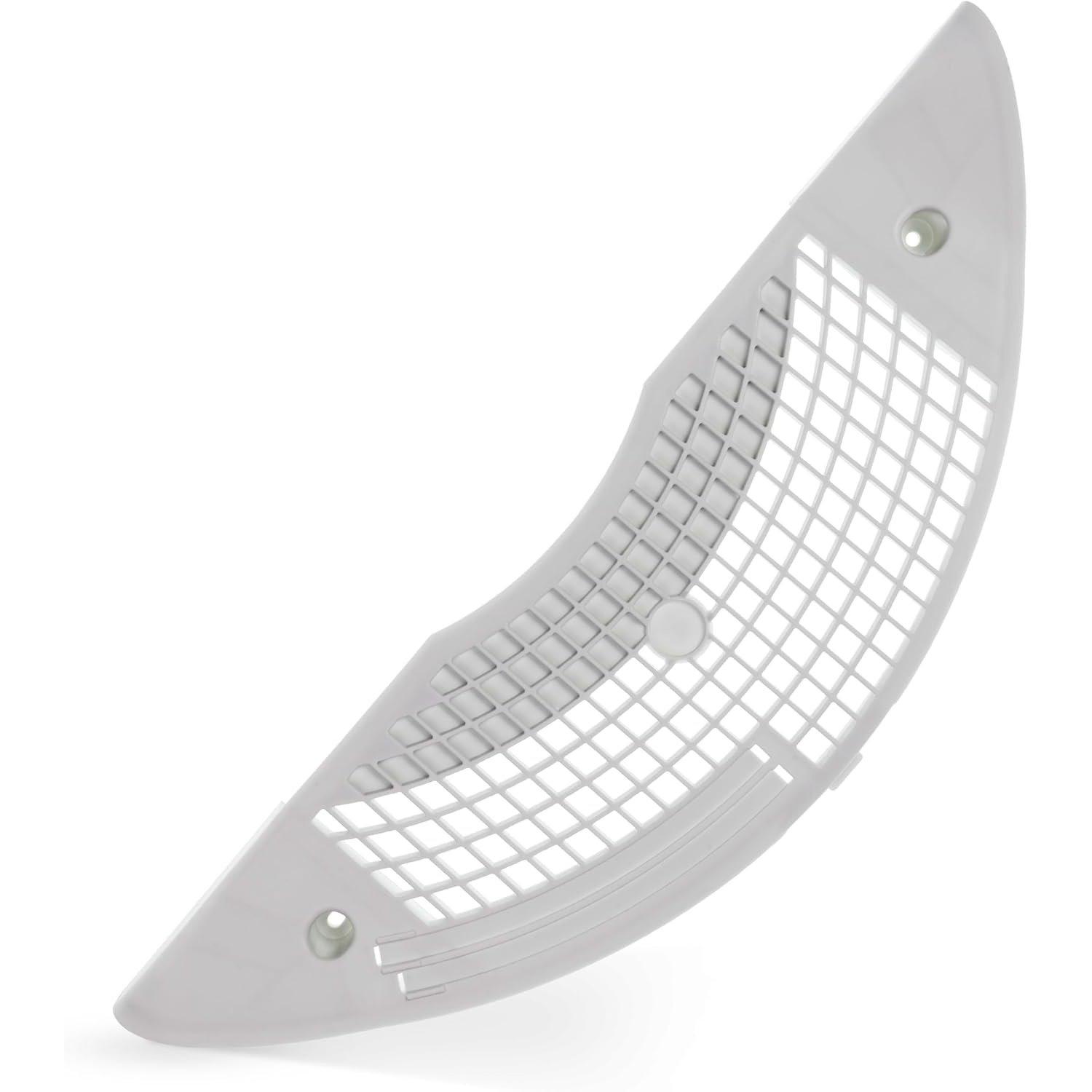

W11117302 Dryer Lint Screen Grille

Key Features

  • Direct replacement for the air duct grille covering the lint screen housing.

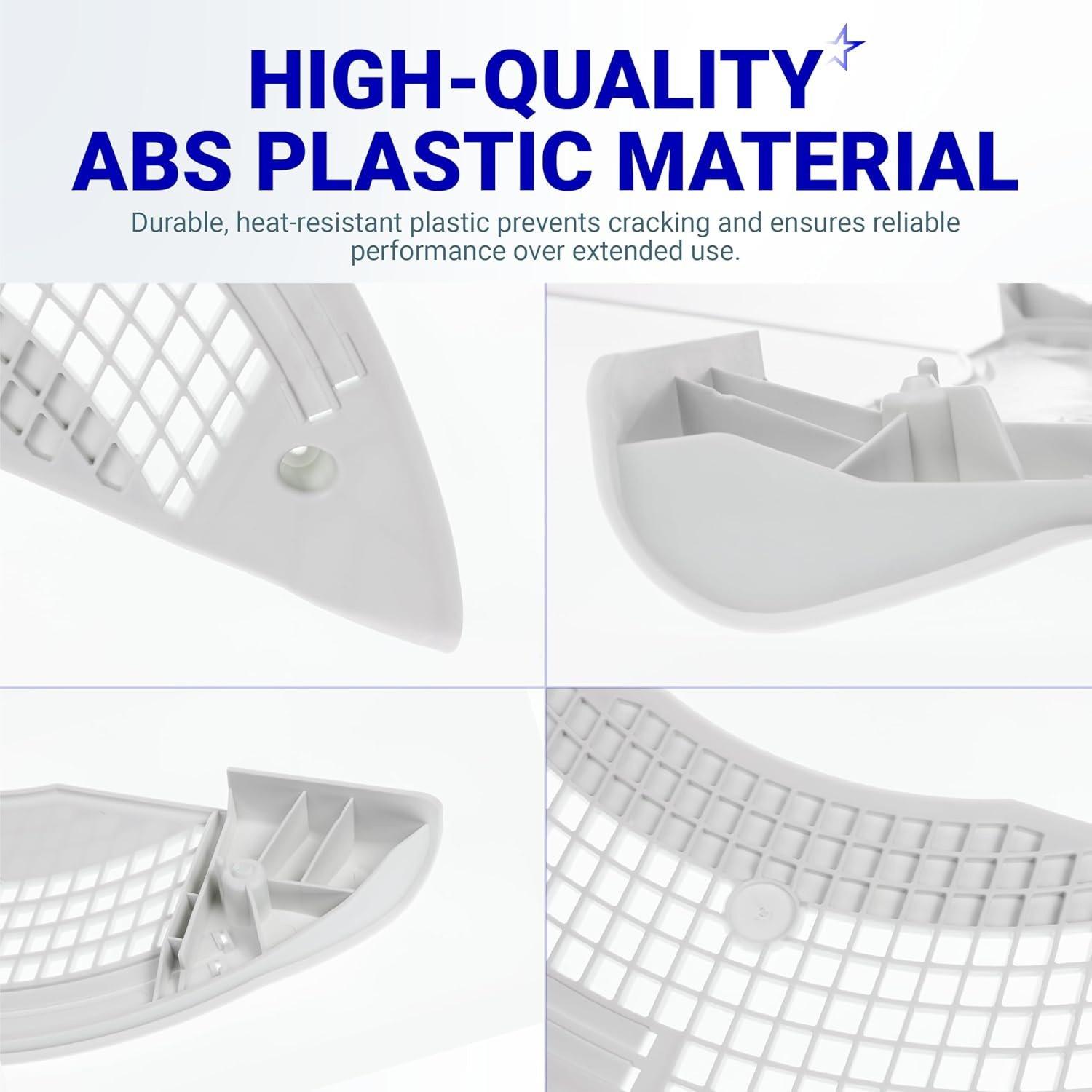

  • Constructed from durable white plastic.

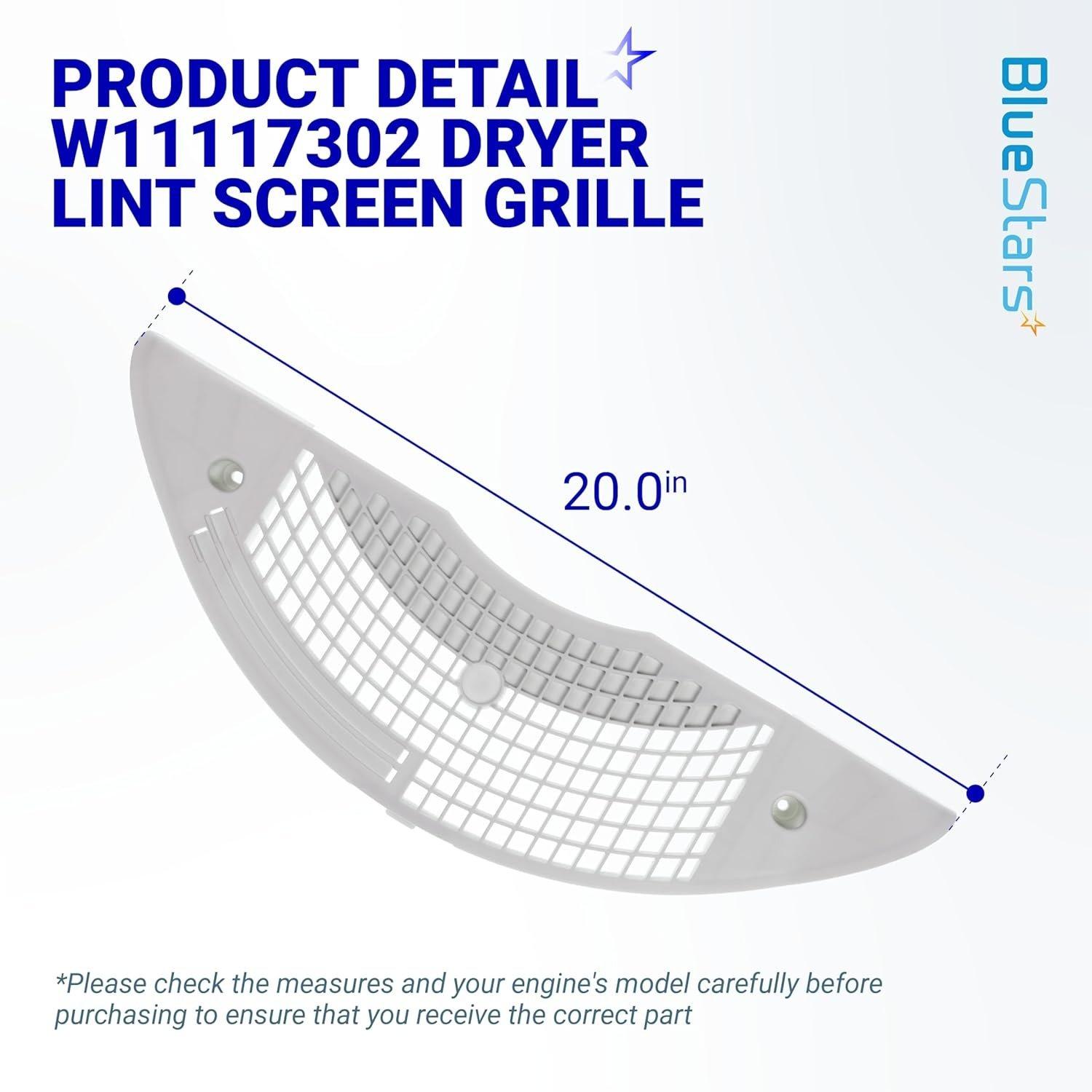

  • Approximate dimensions: 21 inches x 7 inches.
  • Prevents clothing and other items from falling into the lint trap channel.

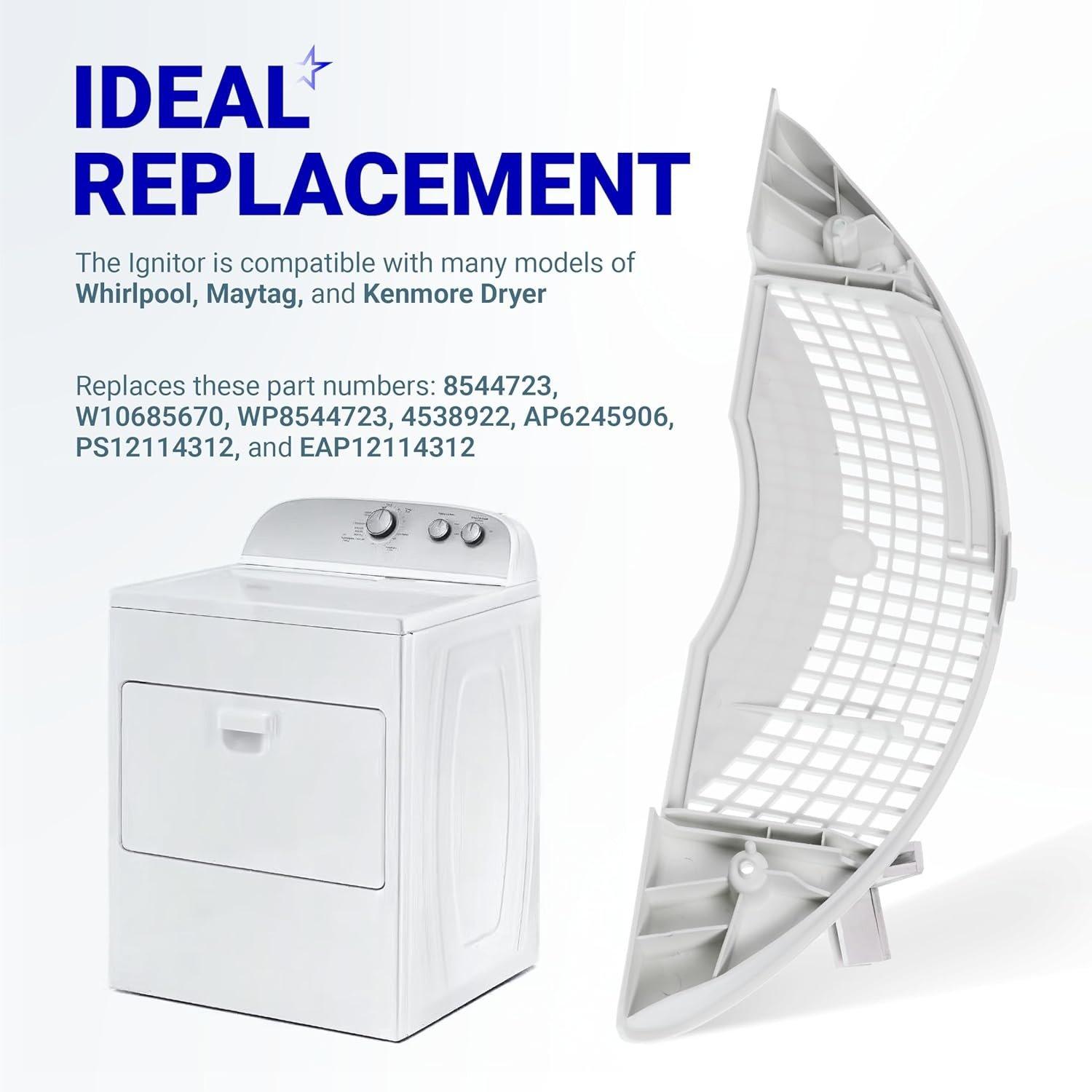

Replaces / Cross-Reference Part Numbers

  • W11117302
  • 8544723
  • W10685670
  • WP8544723
  • 4538922
  • AP6245906
  • PS12114312
  • EAP12114312

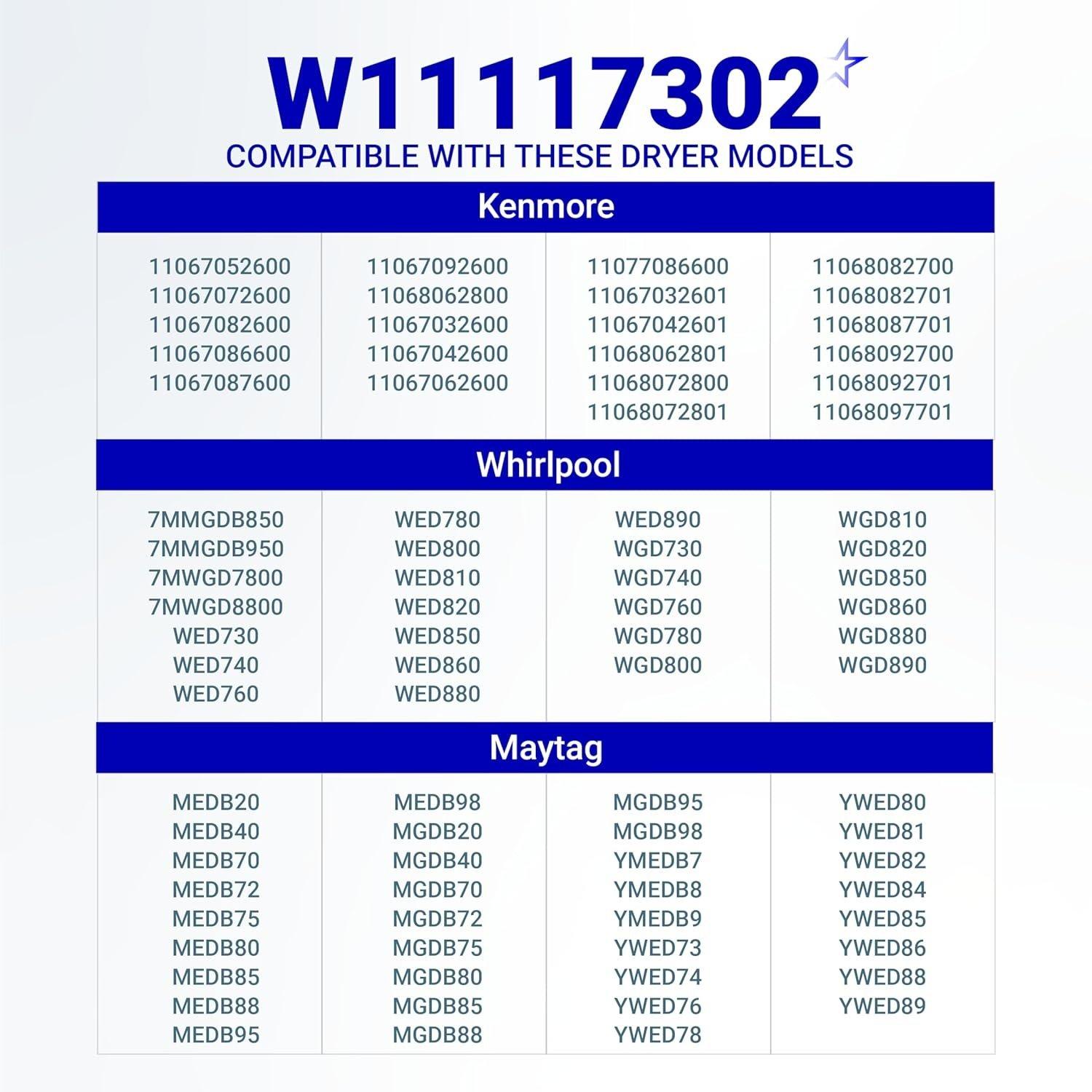

Compatibility & Fitment

Designed to fit specific dryer models manufactured by Whirlpool, Kenmore, and Maytag. Verify compatibility with your dryer's model number before ordering.

When to Replace

  • The existing grille is cracked, broken, or warped.
  • The grille is missing, exposing the lint screen duct.
  • Clothing is snagging on the damaged edges of the grille.

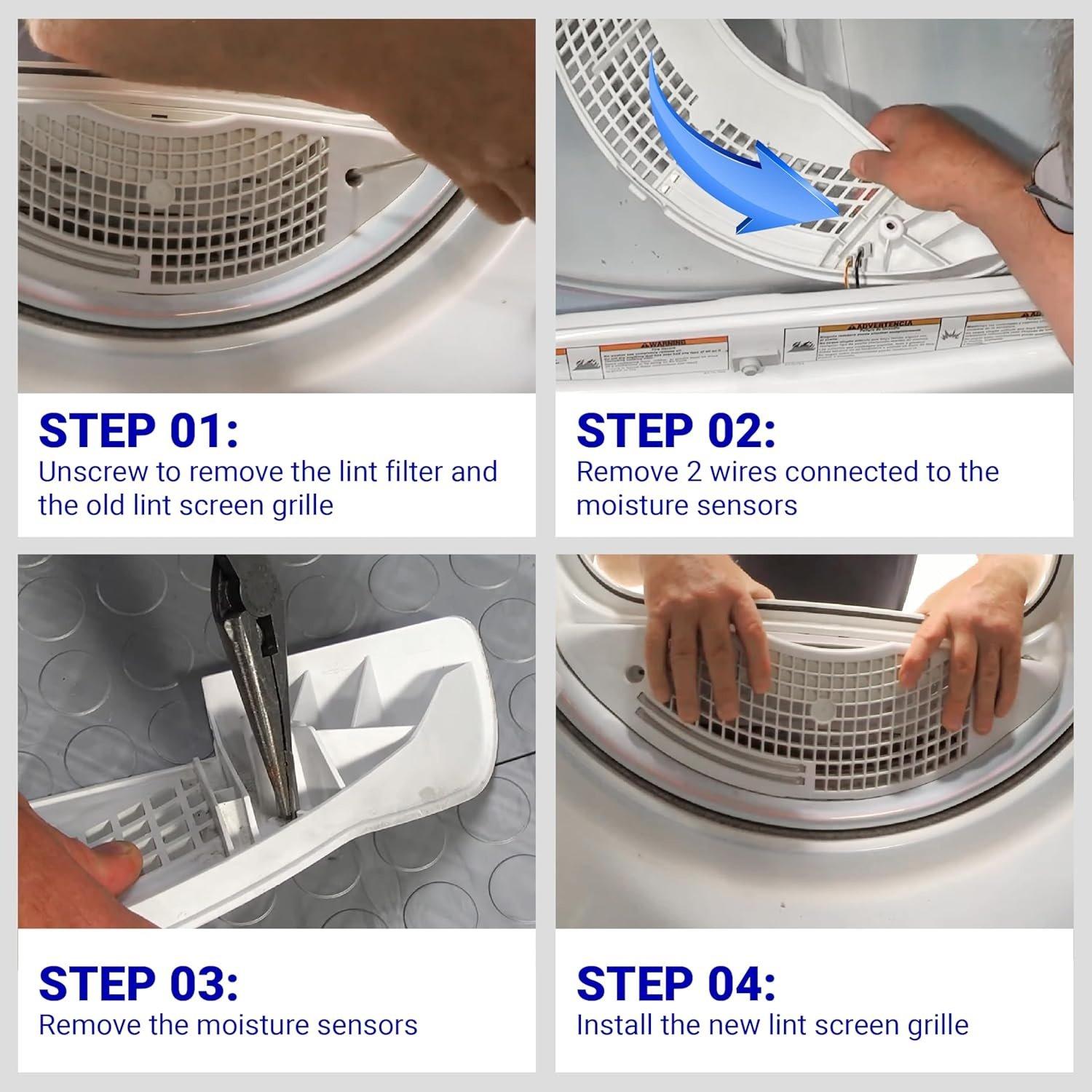

Installation Tips

  • Disconnect the dryer from the power supply before beginning installation.
  • Remove the lint screen from the dryer.
  • Pry the old grille cover off, if it is still in place.
  • Align the new grille and press firmly to snap it into position.
  • Re-insert the lint screen.
Part Number
W11117302
Batteries Included?
No
Item Model Number
W11117302
