AZ00213493
2-Pack of WE12X27300 Washer Drive Belt Compatible with GE Washer GUD24ESSM1WW GUD27ESPM1DG GUD27ESSM0WW Replaces 4587578 AP6328196 PS12342956 EAP12342956 253C1275P001 5PJ587SJ161
Normal
15 - 20 minutes
Out of Stock
Confirm the fit for your model
Find your model number and check it here to see if the part fits.
Description
Description

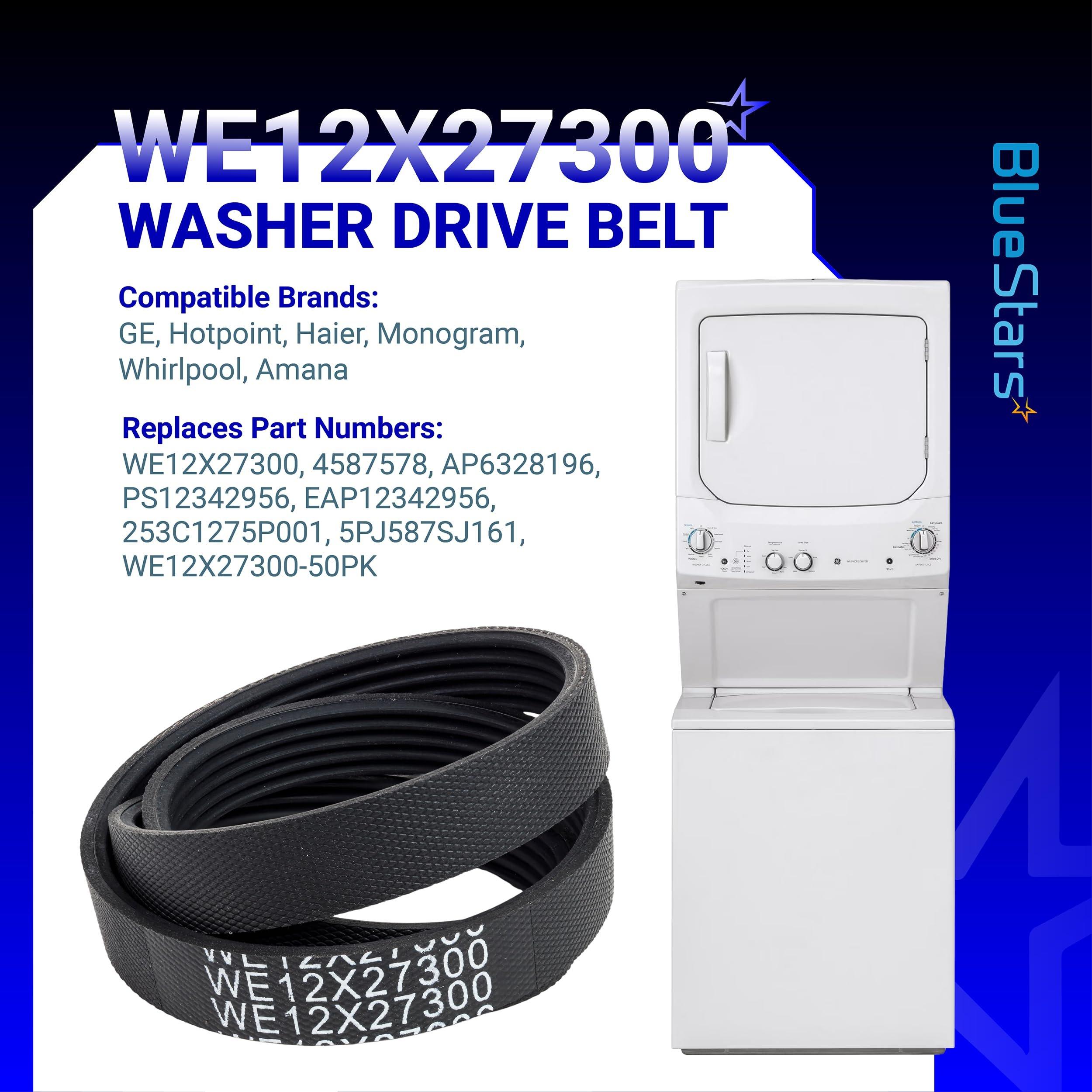

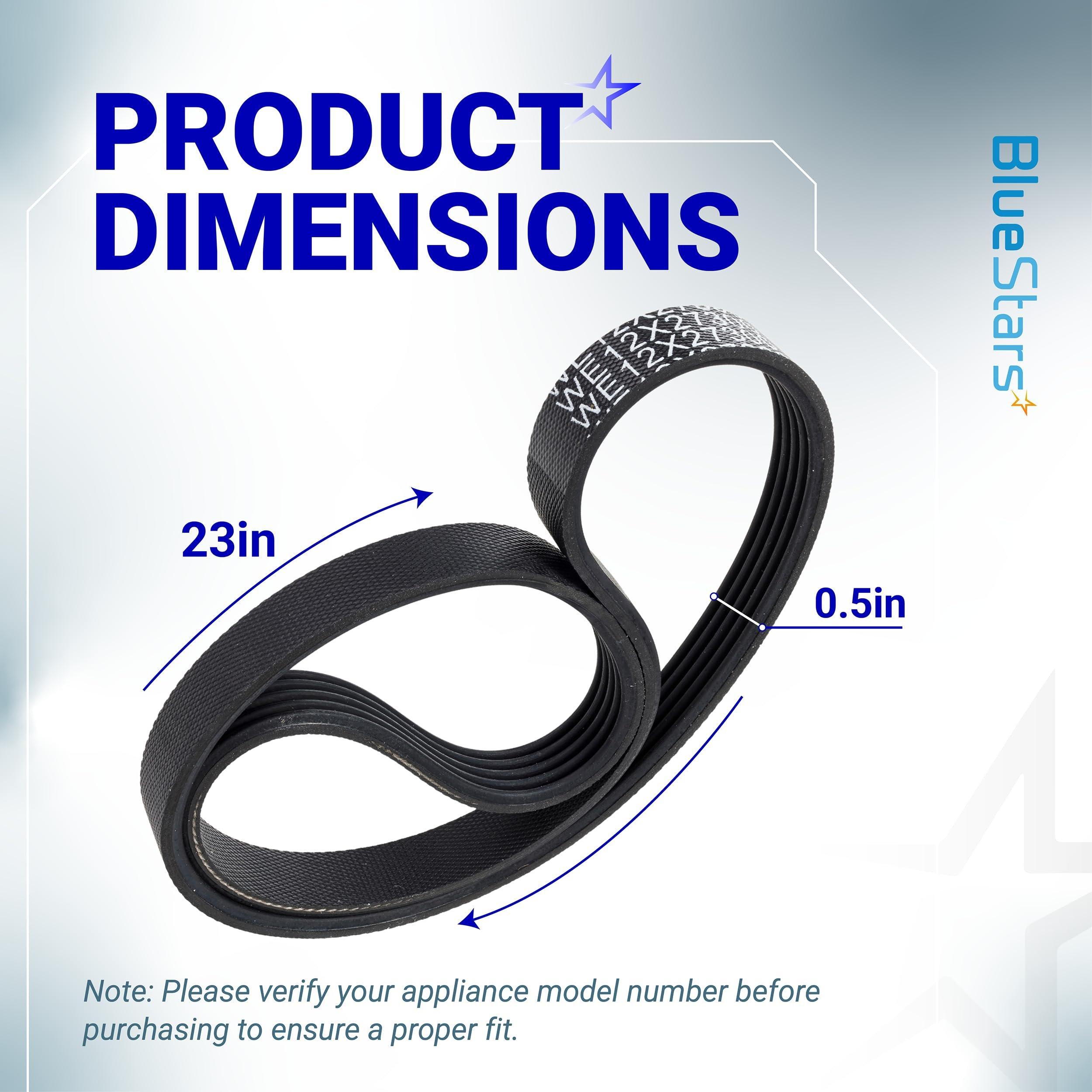

2-Pack WE12X27300 Washer Drive Belt
Key Features

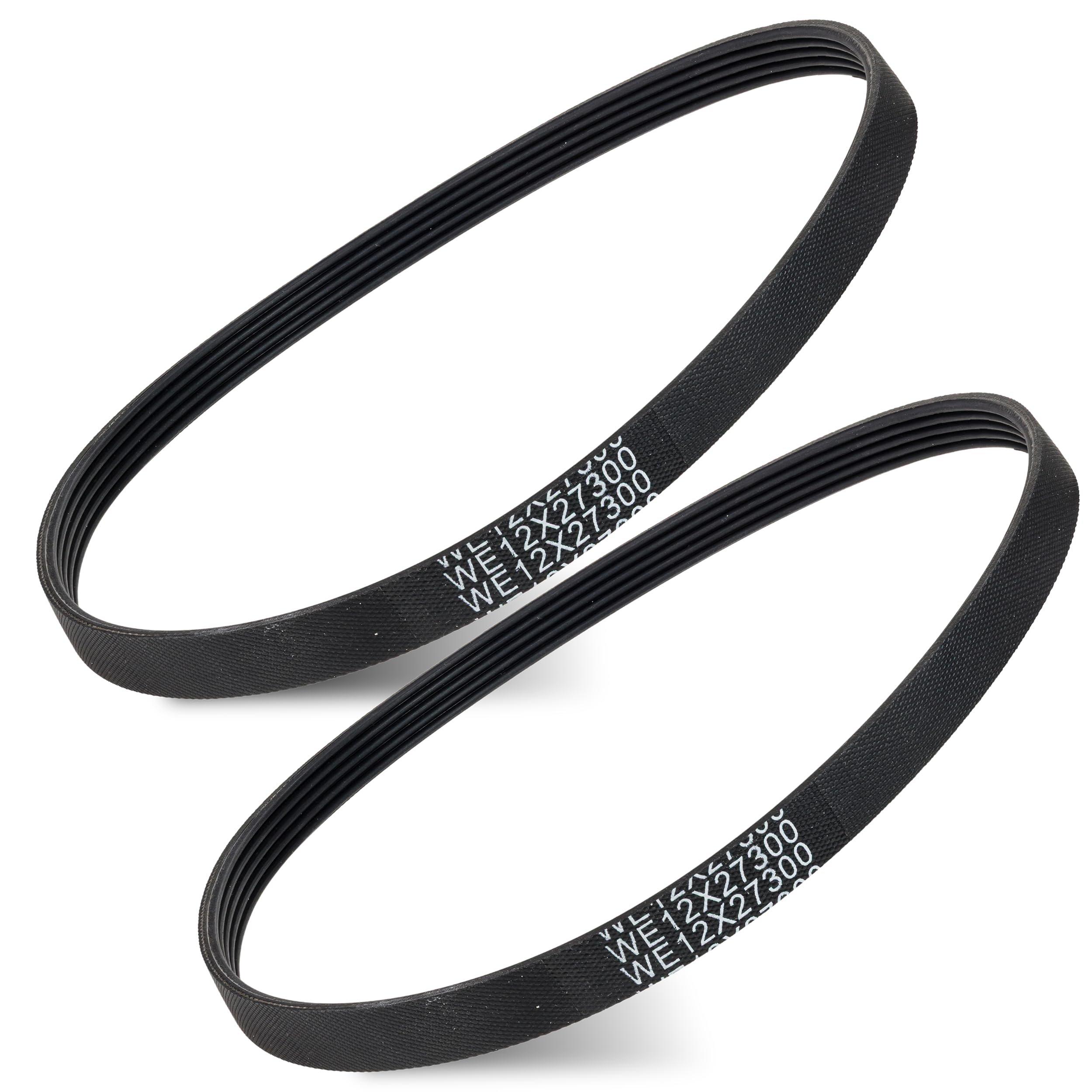

- Two washer drive belts for GE laundry center and combination washer units.

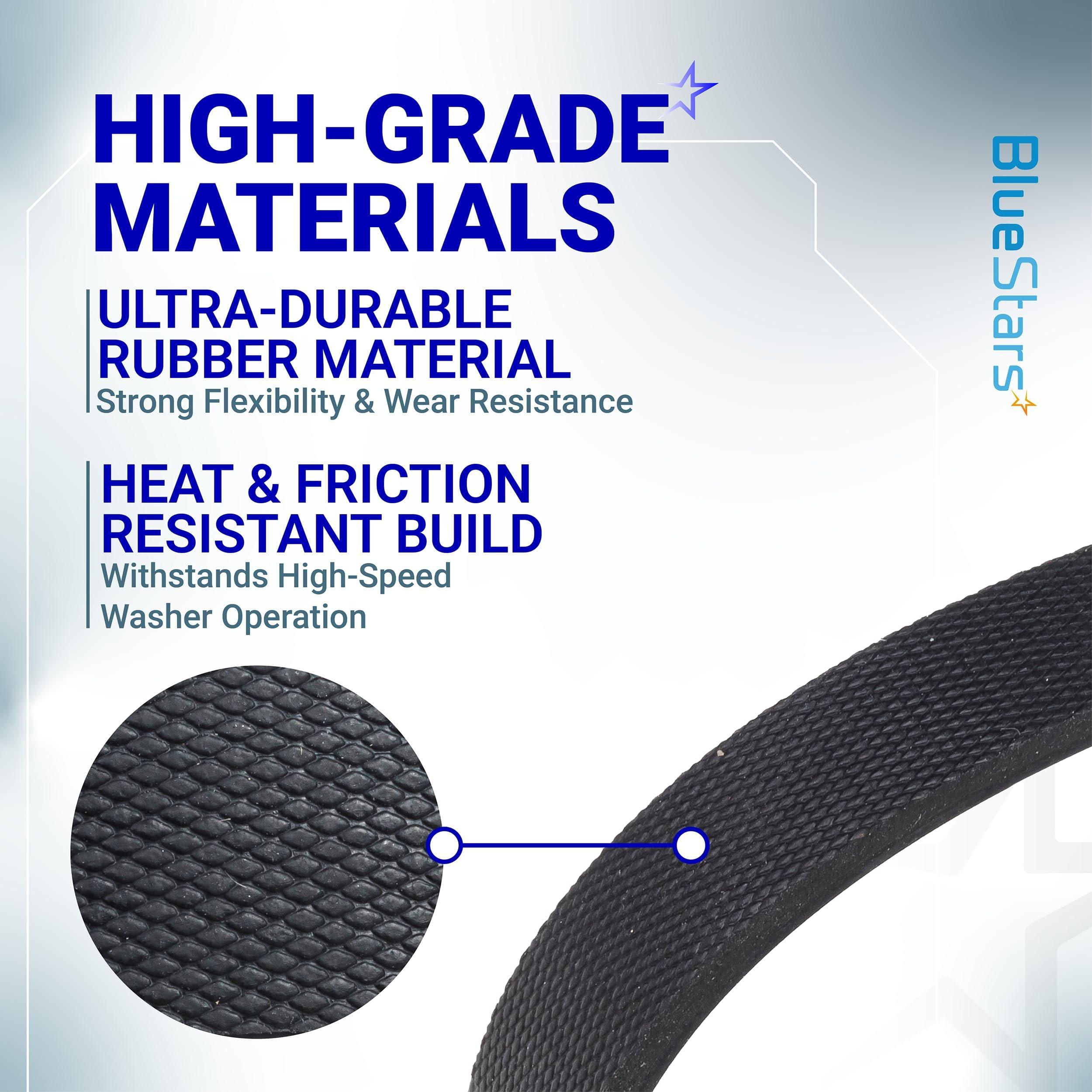

- Heat-resistant neoprene construction with high tensile strength for drive-system service.

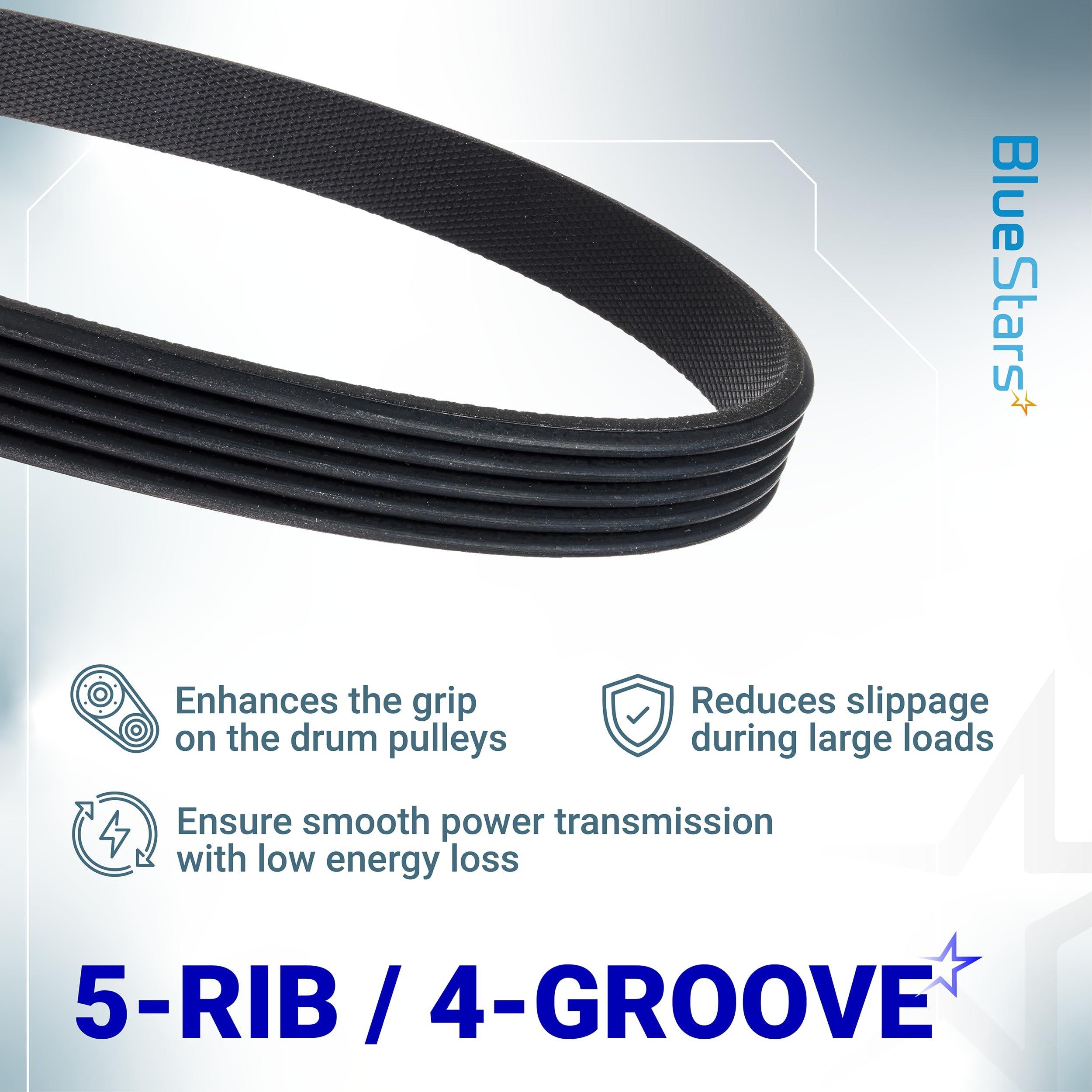

- Designed to transfer motor power to the washer drive system with low energy loss and high torque.
- Item model number: WE12X27300.
- Listed part number: WD21X25468.
- No batteries are included or required.
- Lifetime protection covers defects or issues with the product.
Replaces
This belt replaces the WE12X27300 drive belt used on compatible GE washer models. Verify the complete model number before ordering, including the final digits and letters.
Cross-Reference Part Numbers
- WE12X27300
- WE12X27300-50PK
- WD21X25468
- 4587578
- AP6328196
- PS12342956
- EAP12342956
- 253C1275P001
- 5PJ587SJ161

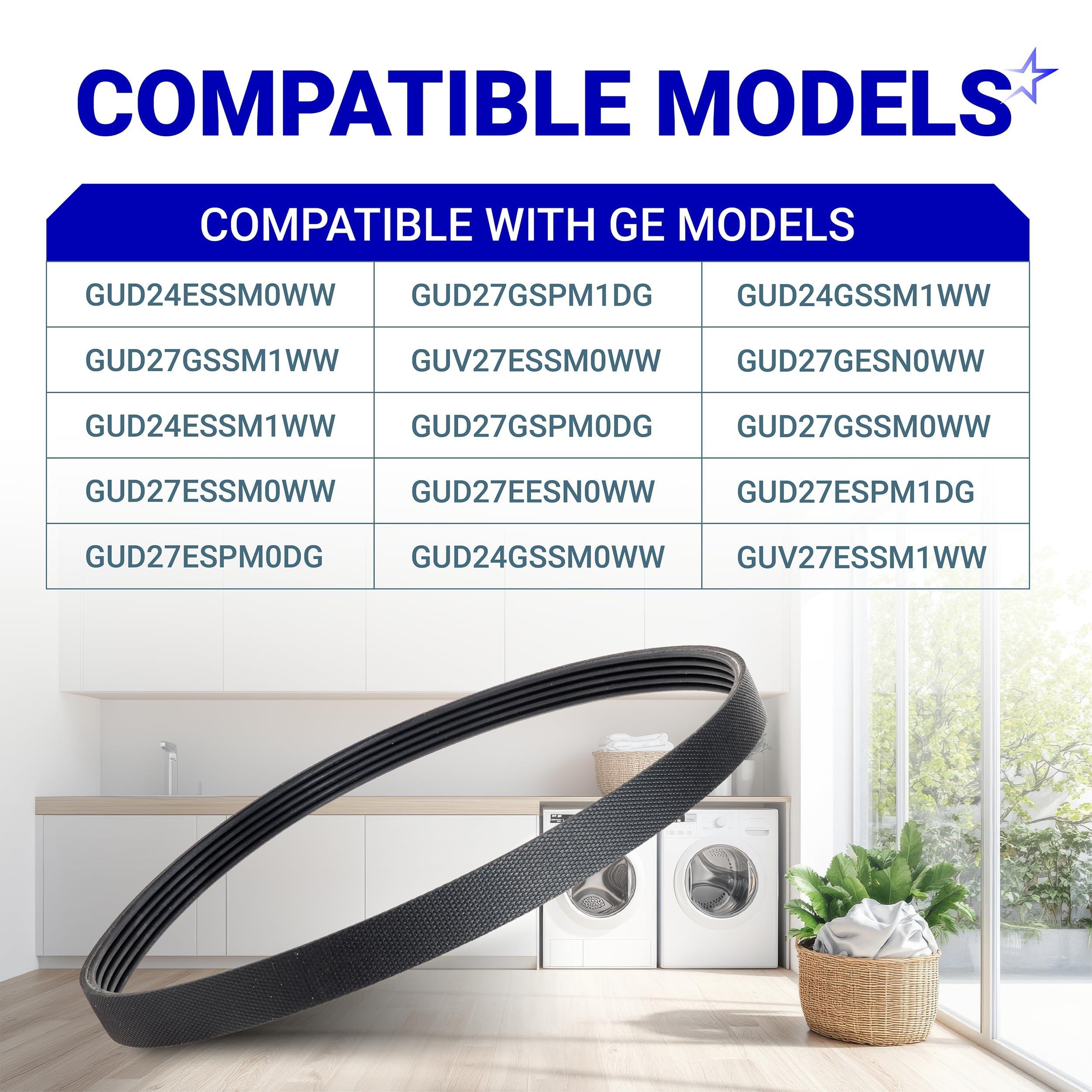

Compatibility & Fitment
Compatible with the following GE washer and laundry center models:
- GUD27GSSM0WW
- GUD27GSPM1DG
- XUD27GSSM0WW
- GUD27GSSM1WW
- GUD27EESN0WW
- GUD27ESPM0DG
- GUD27EEPV0DG
- GUD27GESN0WW
- GUV27ESSM1WW
- GUD27ESSM0WW
- GUD24ESSM1WW
- GUD27GSSM2WW
- GUD27ESPM1DG
- GUD24GSSM1WW
- GUD24GSSM0WW
- VTW565ASV0WB
- GUD27GSPM0DG
- XUD27GSSM1WW
- XUD27ESSM0WW
- XUD27ESSM1WW
- GUV27ESSM0WW
- GUD24ESSM0WW
When to Replace
Replace the washer drive belt when the washer motor runs but the drum or agitator does not turn correctly, or when the belt slips, squeals, shows cracking, becomes glazed, or has stretched. Repeated belt failure can also indicate an overloaded washer, a seized pulley, restricted movement, or worn drive components. Inspect the pulleys and surrounding components before fitting the replacement belt.

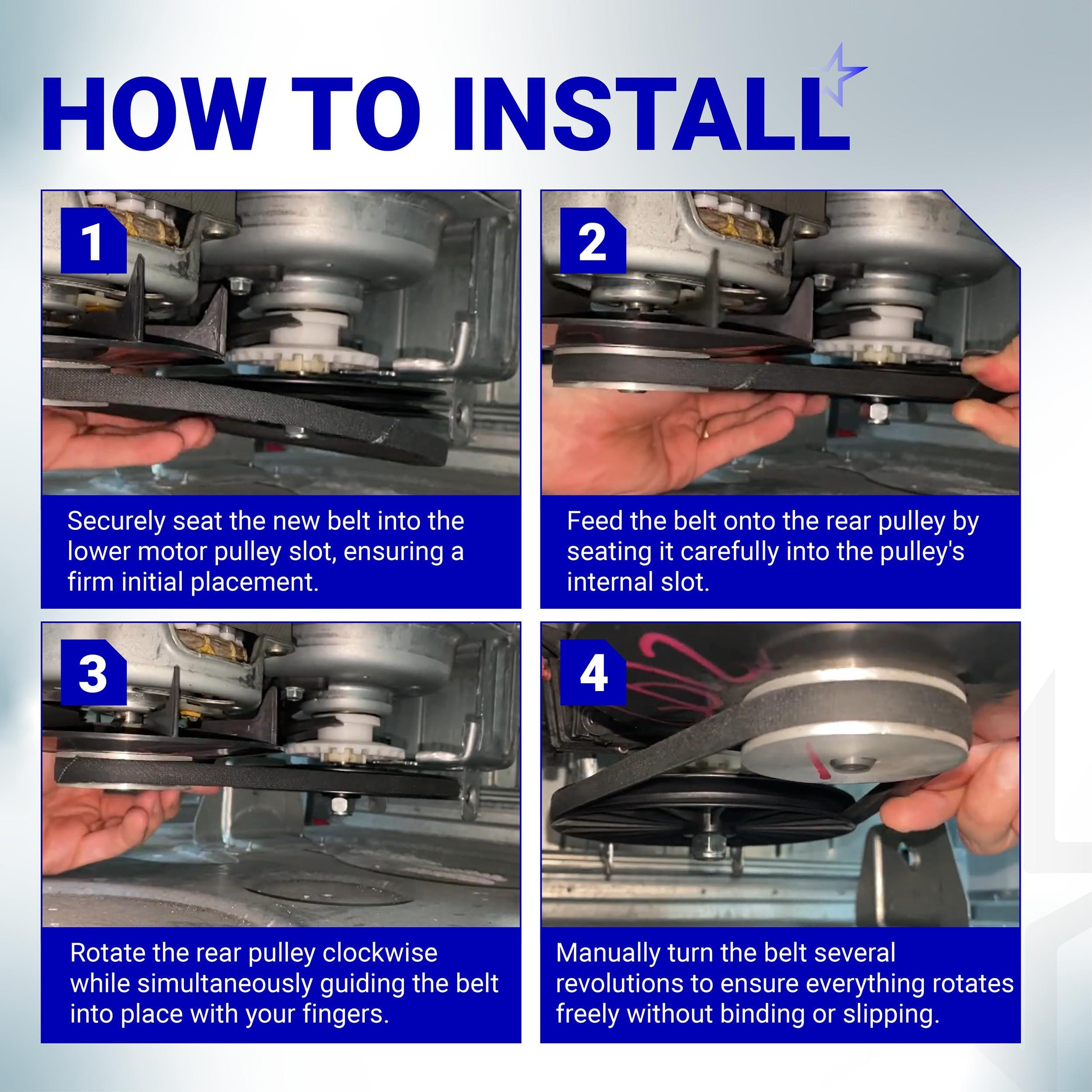

Installation Tips
- Disconnect power before servicing the washer.
- Use the correct screwdriver or nut driver for the cabinet or access-panel fasteners.
- Remove the worn belt and inspect the motor pulley, driven pulley, and belt path for damage or obstruction.
- Route the new belt around the pulleys according to the washer’s original belt path, then rotate the pulley by hand to confirm that the belt tracks correctly.
- Allow approximately 30 to 60 minutes for installation, depending on model access and cabinet design.
- Run a short test cycle and listen for slipping, rubbing, or unusual pulley noise before returning the washer to normal use.
Part Number
WD21X25468
Batteries Included?
No
Batteries Required?
No
