AZ00215736
55 uF/MFD 370-440VAC Round Run Start Capacitor
Sold 601
Normal
More than 30 minutes
$15.21
$16.89
Save $1.68
In Stock
Fast delivery
Confirm the fit for your model
Find your model number and check it here to see if the part fits.
Description
Description
55 uF/MFD 370-440VAC Round Run Start Capacitor
Key Features
- Capacitance: 55 Microfarad (µF/MFD)
- Voltage Rating: 370V or 440V AC
- Tolerance: ±6%
- Frequency: 50/60 Hz
- Shape: Round

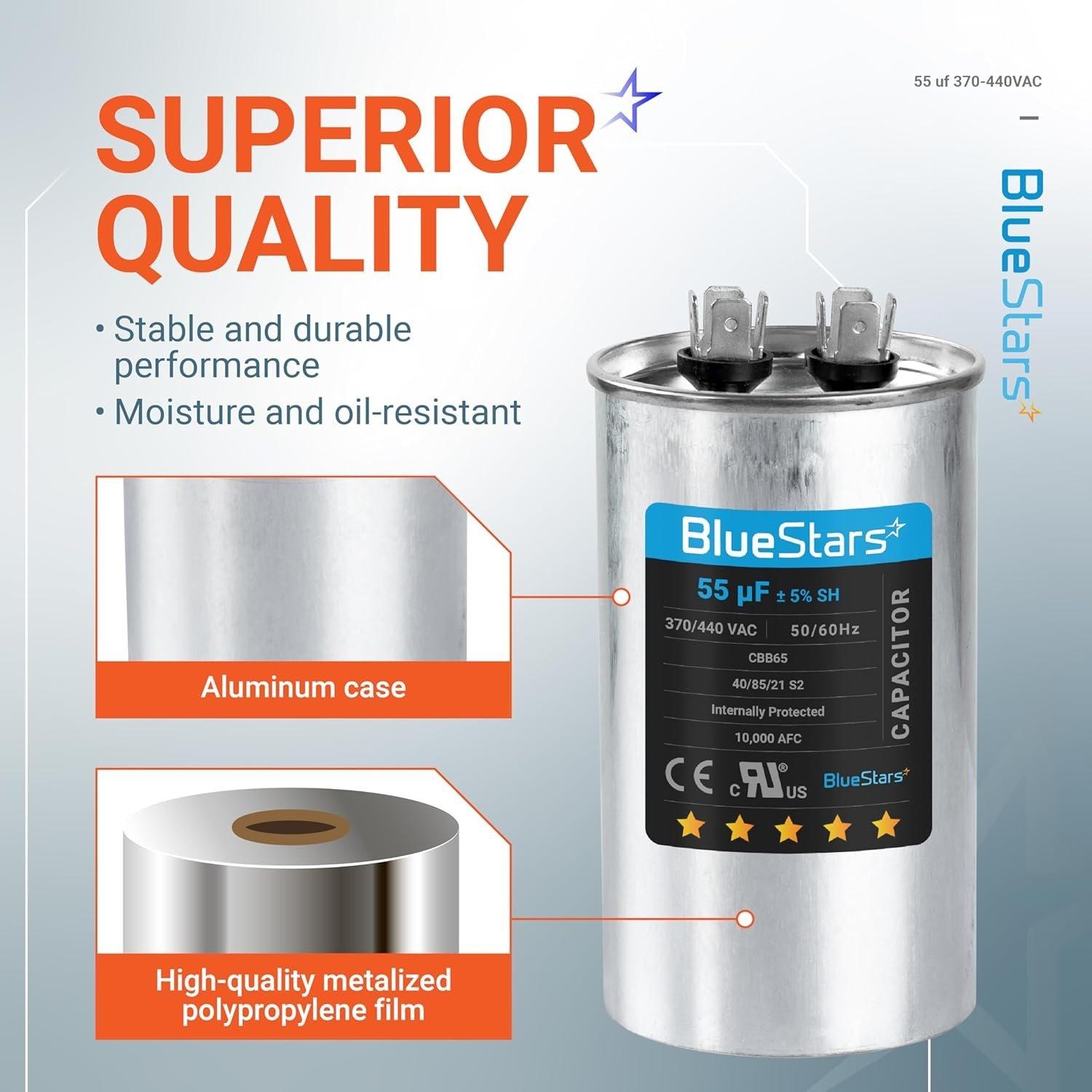

- Construction: Oil-filled metal can

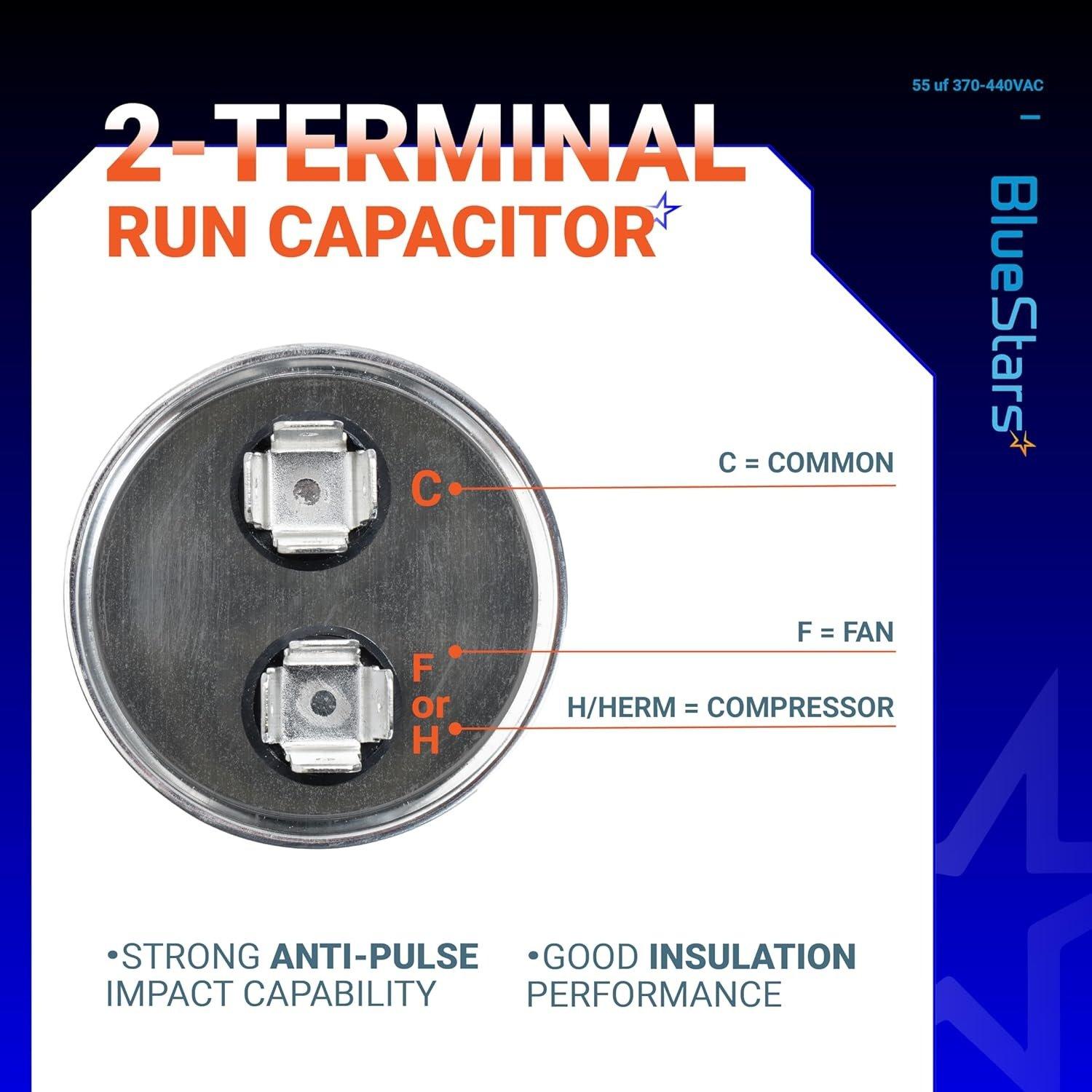

- Terminals: ¼ in. male quick-connect
- Safety: Contains no Polychlorinated Biphenyls (PCBs)
- Protection: Features an internal pressure-sensitive interrupter
- Operating Temperature: -40°C to +70°C
Replaces / Cross-Reference Part Numbers
- C355R
- C455R
- 97F9042
- 97F9010
- 12752
Compatibility & Fitment
- Designed for continuous duty in motor run applications.
- Used in air conditioner condensers, heat pumps, furnace blowers, and other single-phase AC motors.
- Compatible with systems specifying either a 370VAC or 440VAC capacitor. A 440VAC capacitor can safely replace a 370VAC unit.
When to Replace
- The motor hums but will not start or struggles to start.
- The fan or compressor fails to turn on.
- Visible signs of damage, such as a swollen or bulging top, cracks, or leaking oil.
- Capacitance measures outside the specified tolerance range when tested with a multimeter.
Installation Tips
- Disconnect all electrical power to the equipment before servicing.
- Safely discharge the existing capacitor by shorting the terminals with a properly insulated tool.
- Confirm that the capacitance (MFD/µF) and voltage ratings are appropriate for your application.
- Ensure terminals are connected securely. Polarity is not a factor for this type of AC capacitor.
