[Lifetime Warranty] WB2X8228 Element Receptacle and Wire Kit - Compatible With GE Hotpoint Kenmore Electric Ranges and Cooktops - Replaces AP2013499, PS242972, 250535, AH242972, EA242972, WB62X5358 - Pack of 2

WB2X8228 Element Receptacle and Wire Kit - Pack of 2

Key Features

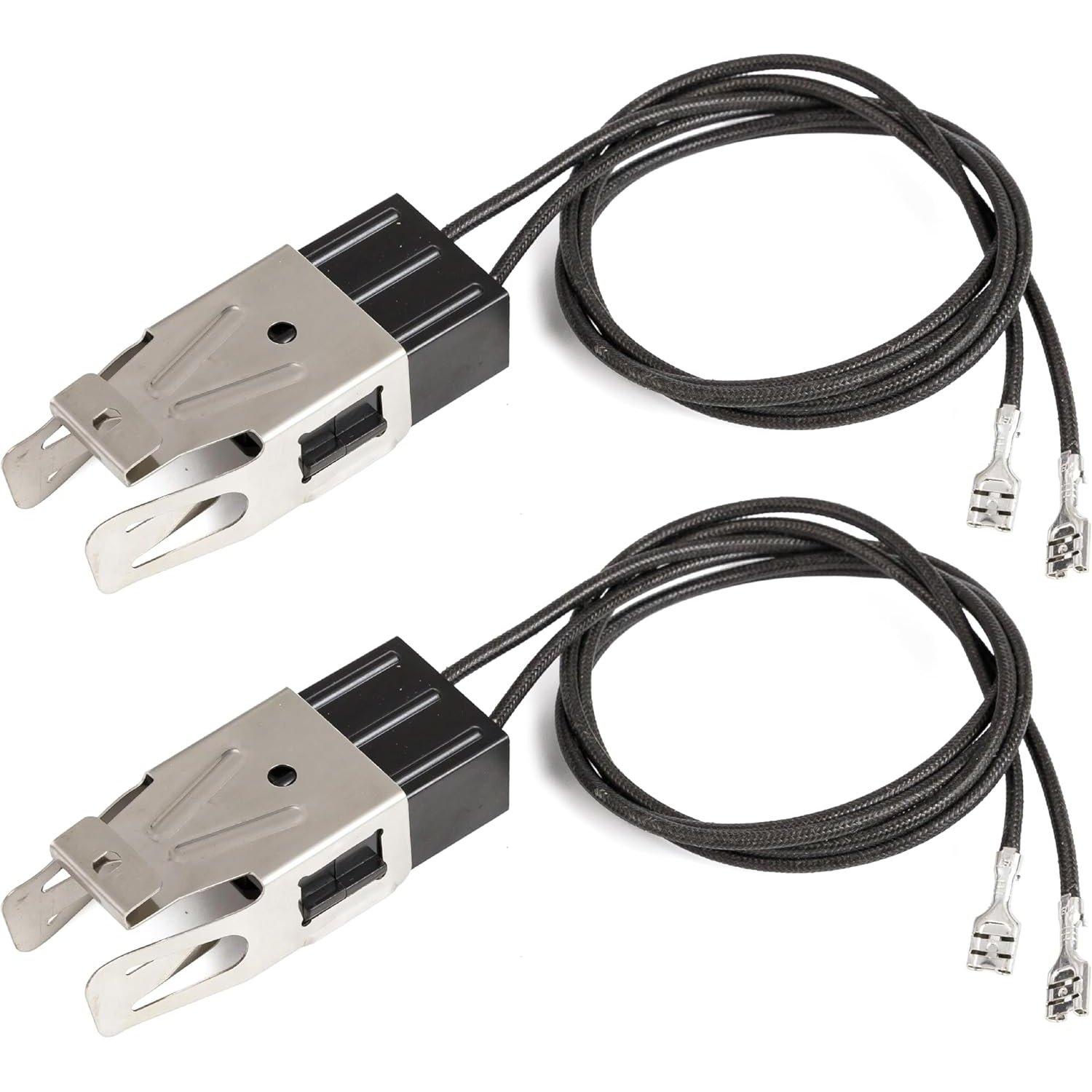

• Package contains two (2) receptacle and wire kits.

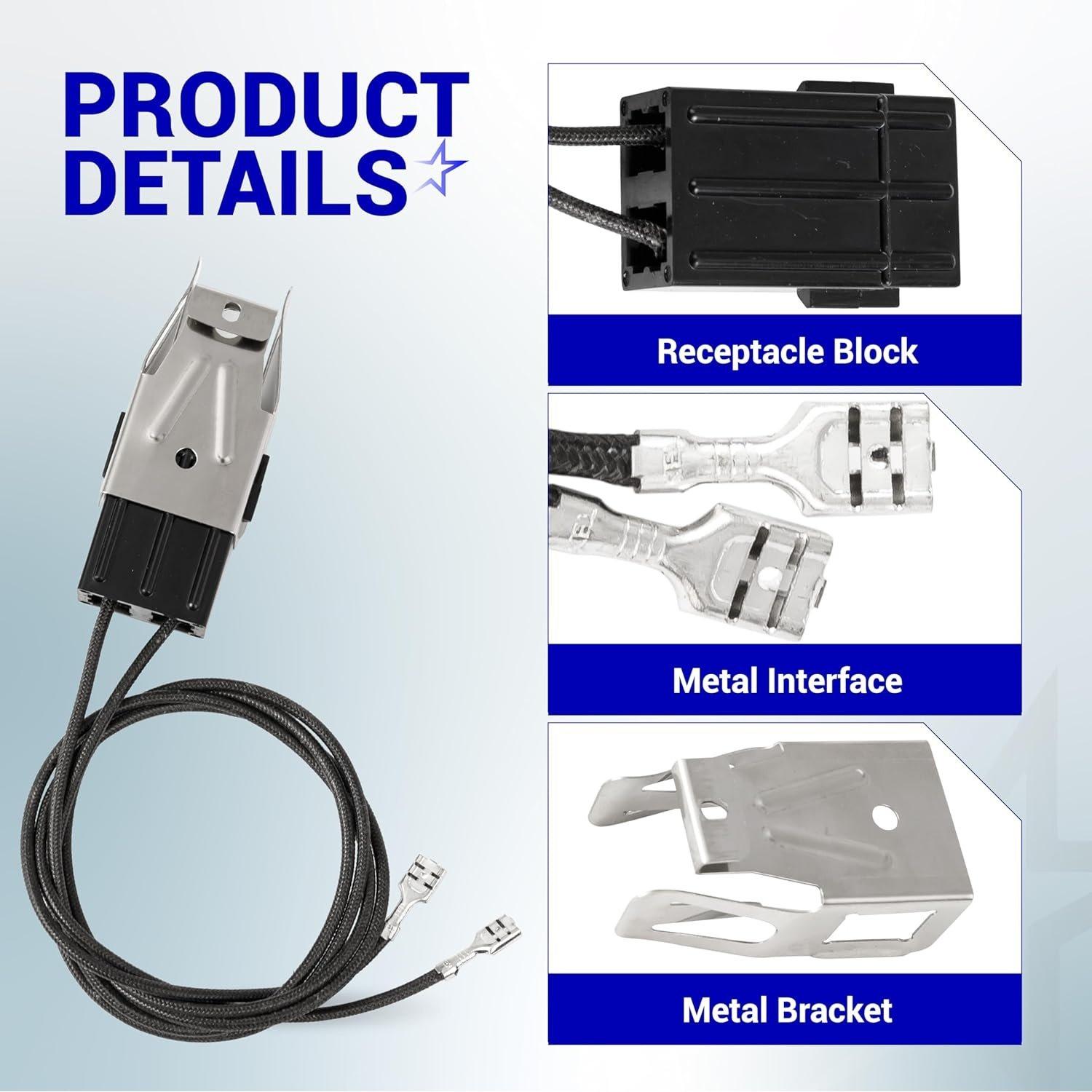

• Each kit includes one terminal block, two high-temperature wires, and two mounting brackets.
• Connects the surface heating element to the cooktop's internal wiring harness.

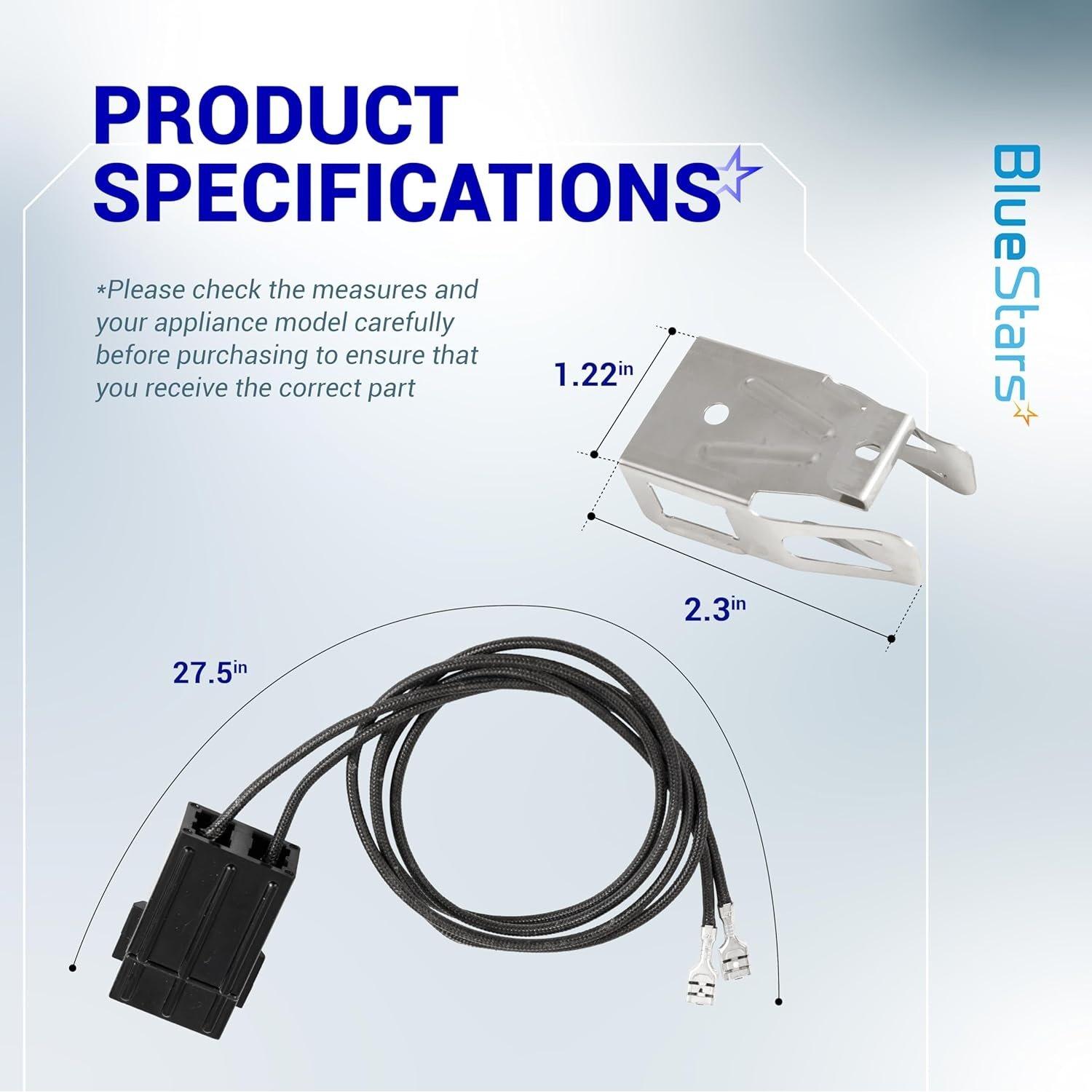

• Terminal Block Dimensions: 1.875 in L x 1.375 in W x 0.75 in H.
• Constructed with heat-resistant plastic and metal components for durability.

Replaces / Cross-Reference Part Numbers

• WB2X8228
• AP2013499
• PS242972
• 250535
• AH242972
• EA242972
• WB62X5358

Compatibility & Fitment

• Designed for use with select electric ranges and cooktops from major brands.
• Compatible Brands: General Electric (GE), Hotpoint, Kenmore.
• Confirm fitment by matching your appliance's original part number to the numbers listed.

When to Replace

• Surface element fails to heat or heats intermittently.
• Visible signs of burning, melting, or arcing on the existing receptacle block.
• Connection terminals are corroded, broken, or provide a loose fit for the element prongs.

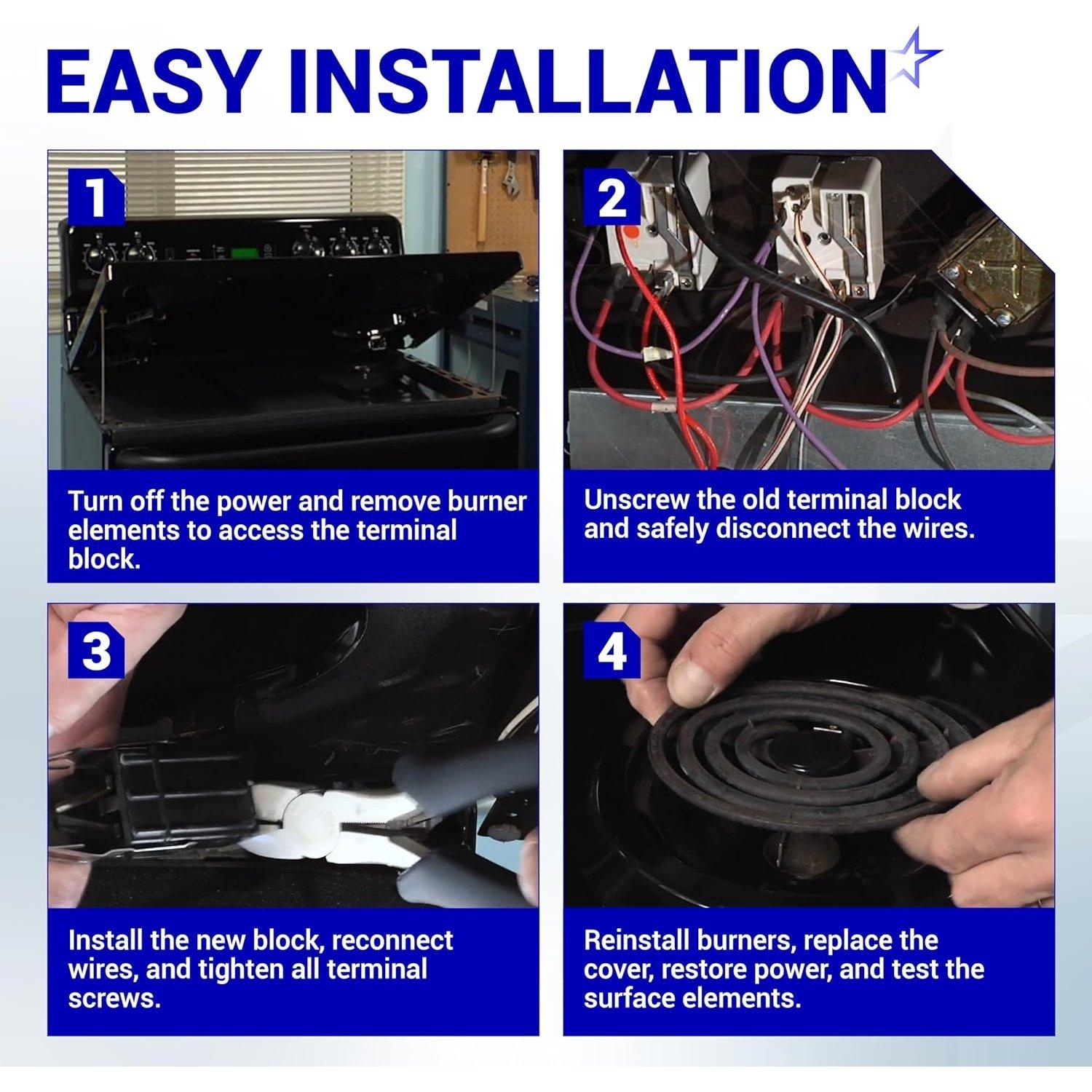

Installation Tips

• Disconnect the appliance from the power supply before starting repairs.
• Photograph the original wire connections before removing the old receptacle.
• Transfer wires from the old part to the new one, one at a time, to maintain correct orientation.
• Ensure all electrical connections are tight and secure to prevent future damage.
