[Lifetime Warranty] 3392519 Dryer Thermal Fuse - Compatible with Whirlpool Kenmore Dryers G4AP0500 - Replaces AP6008325 3388651 694511 80005 PS11741460 - Pack of 6

3392519 Dryer Thermal Fuse - Pack of 6

Key Features

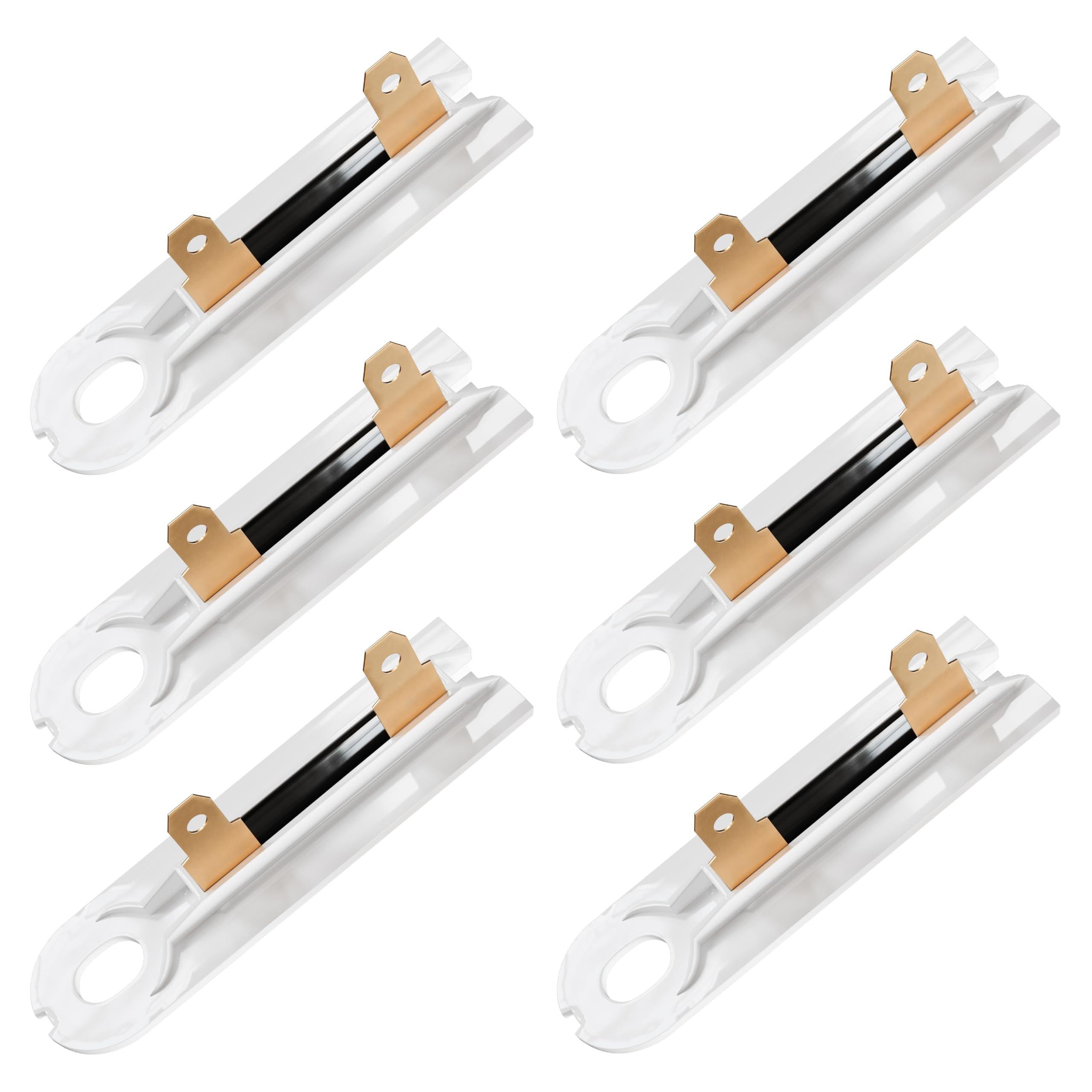

• Quantity: 6 fuses
• Function: Non-resettable thermal safety fuse
• Trip Temperature: 196°F (91°C)
• Terminals: Two 3/16 inch wire terminals
• Location: Mounts on the blower housing to monitor exhaust temperature

Replaces / Cross-Reference Part Numbers

• 3392519
• WP3392519
• AP6008325
• PS11741460
• 3388651
• G4AP0500
• SET401

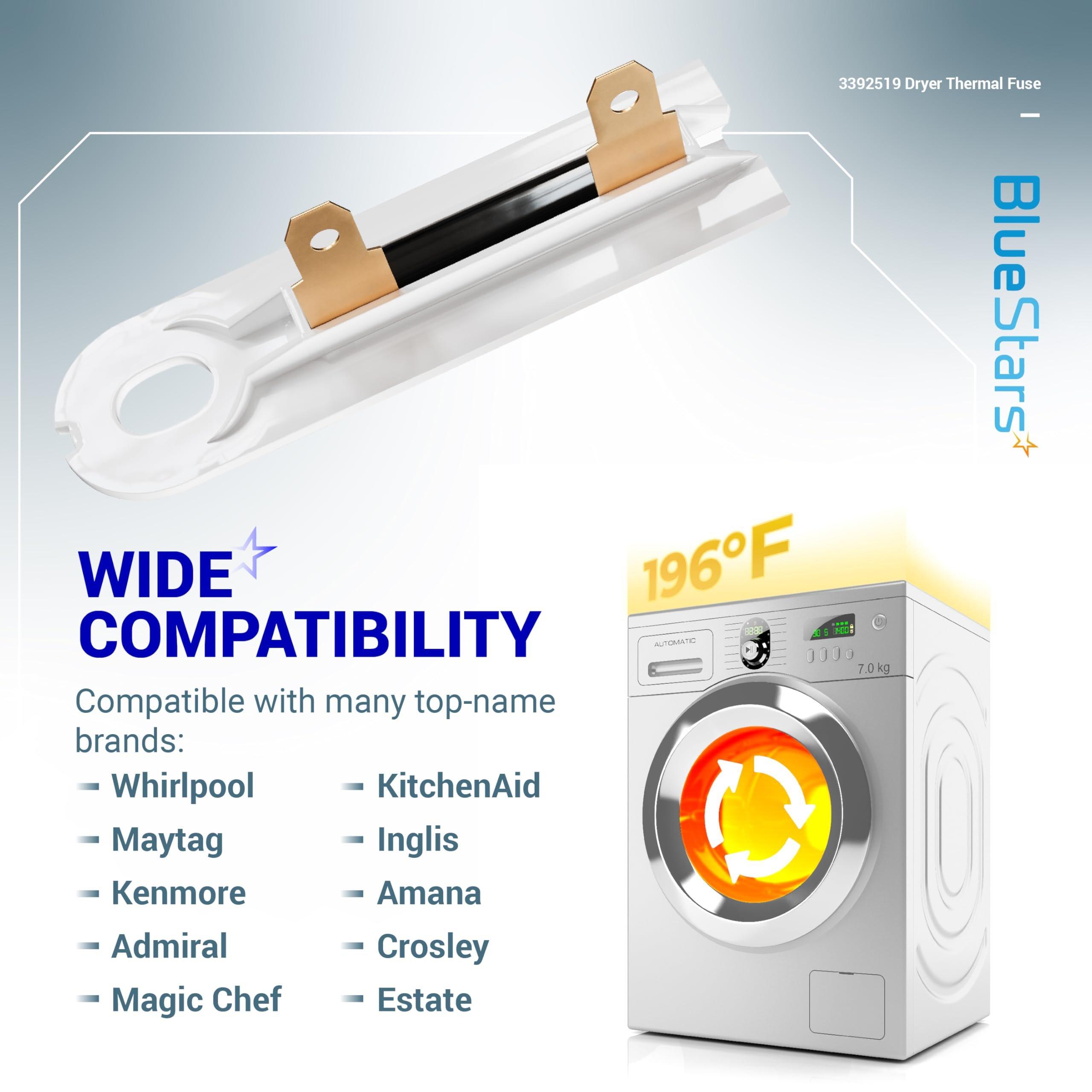

Compatibility & Fitment

• Designed for many clothes dryer models from brands including Whirlpool, Kenmore, KitchenAid, Roper, Maytag, and Amana.
• Always verify fitment with your appliance's model number before ordering.

When to Replace

• Dryer will not start
• Dryer stops heating
• Fuse shows no continuity when tested with a multimeter

Installation Tips

• Disconnect the dryer from its power supply before servicing.
• A blown thermal fuse often indicates an underlying problem, such as a clogged exhaust vent.
• Inspect and clean the entire dryer venting system from the lint trap to the exterior vent cap to prevent repeat failure.
