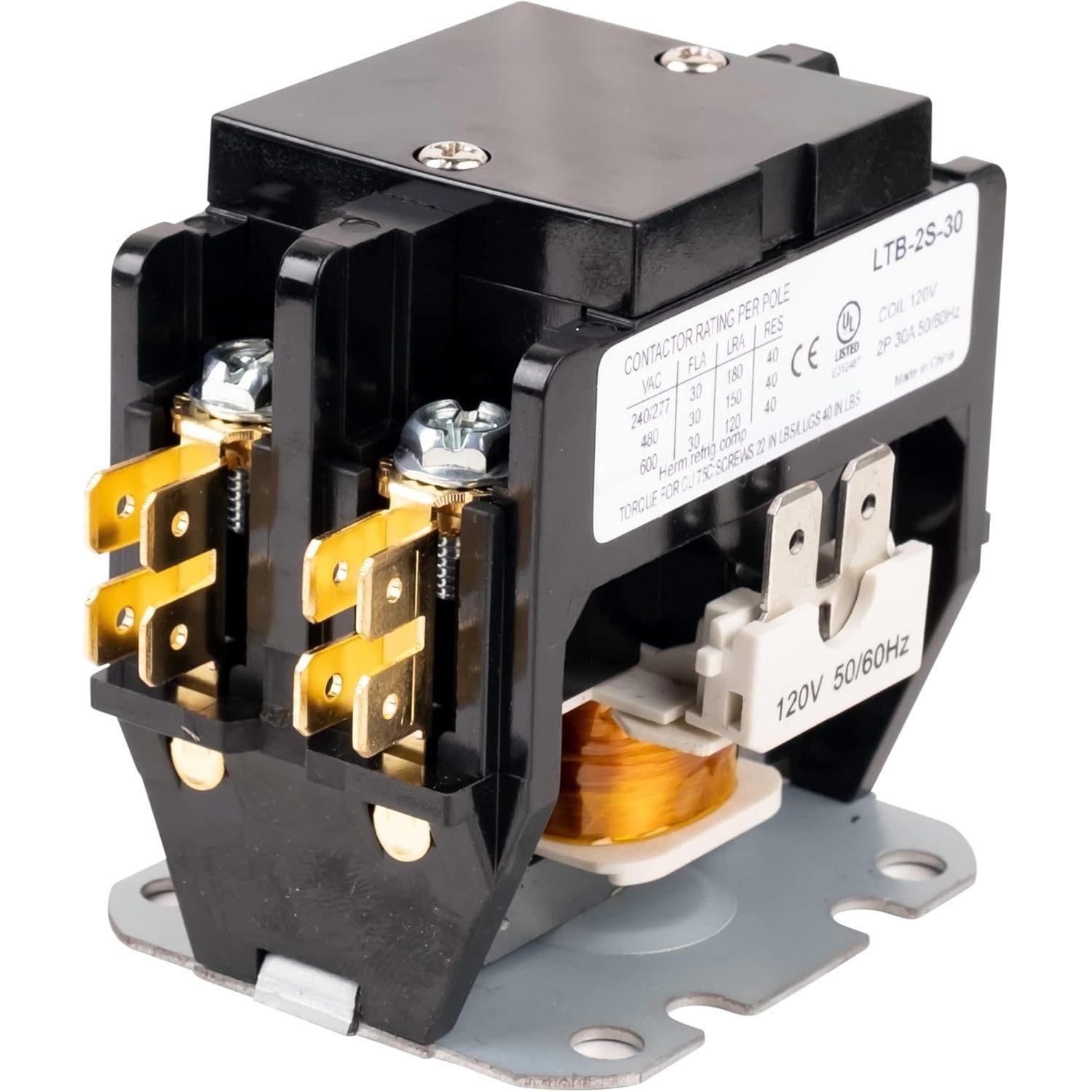

[Lifetime Warranty] 2 Pole Contactor 30 Amp 120VAC Coil

2 Pole Contactor 30 Amp 120VAC Coil - Compatible with Relays, Air Conditioner, Heat Pump, Refrigeration Systems

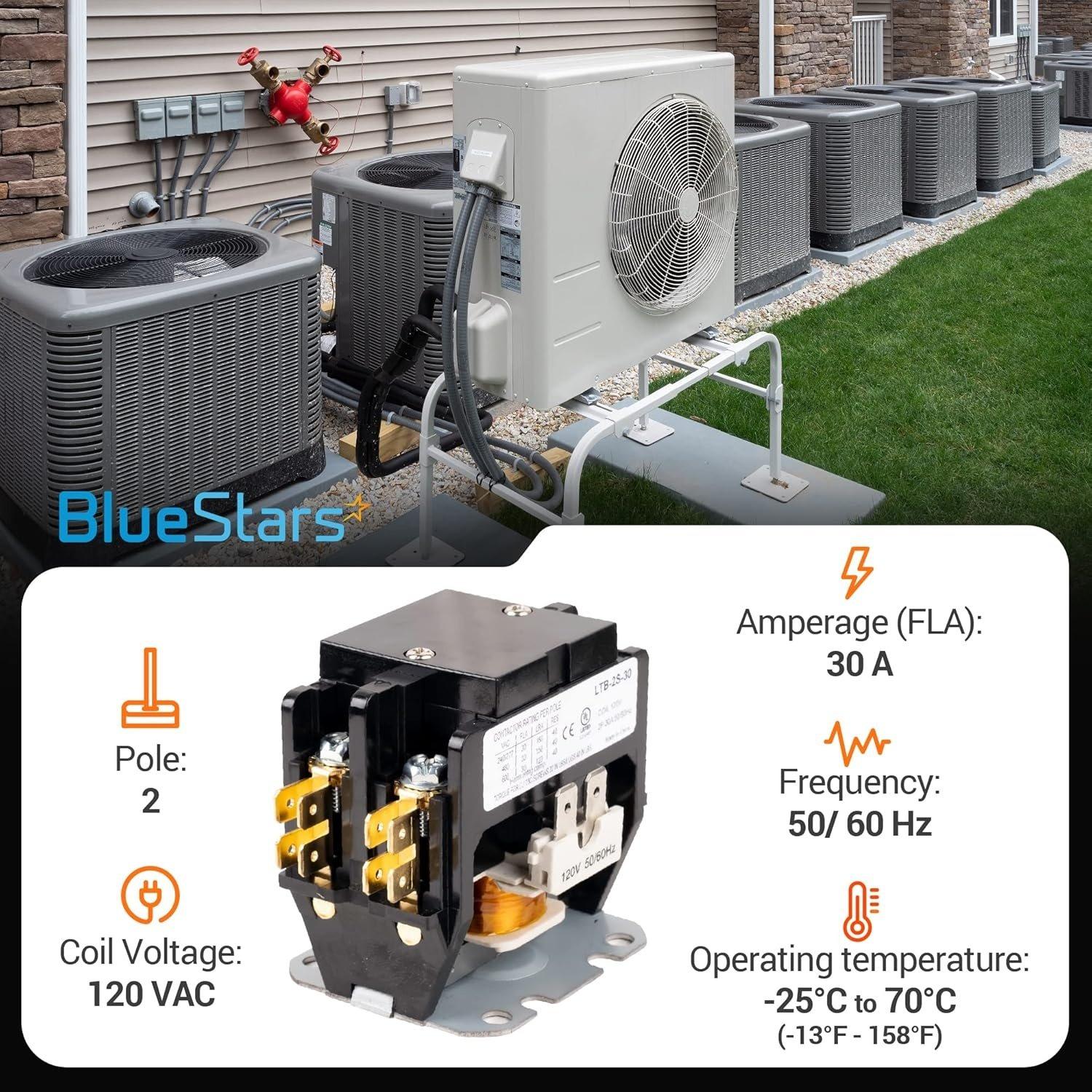

Key Features

• Coil Voltage: 120VAC
• Full Load Amperage (FLA): 30A
• Poles: 2 (Double Pole)

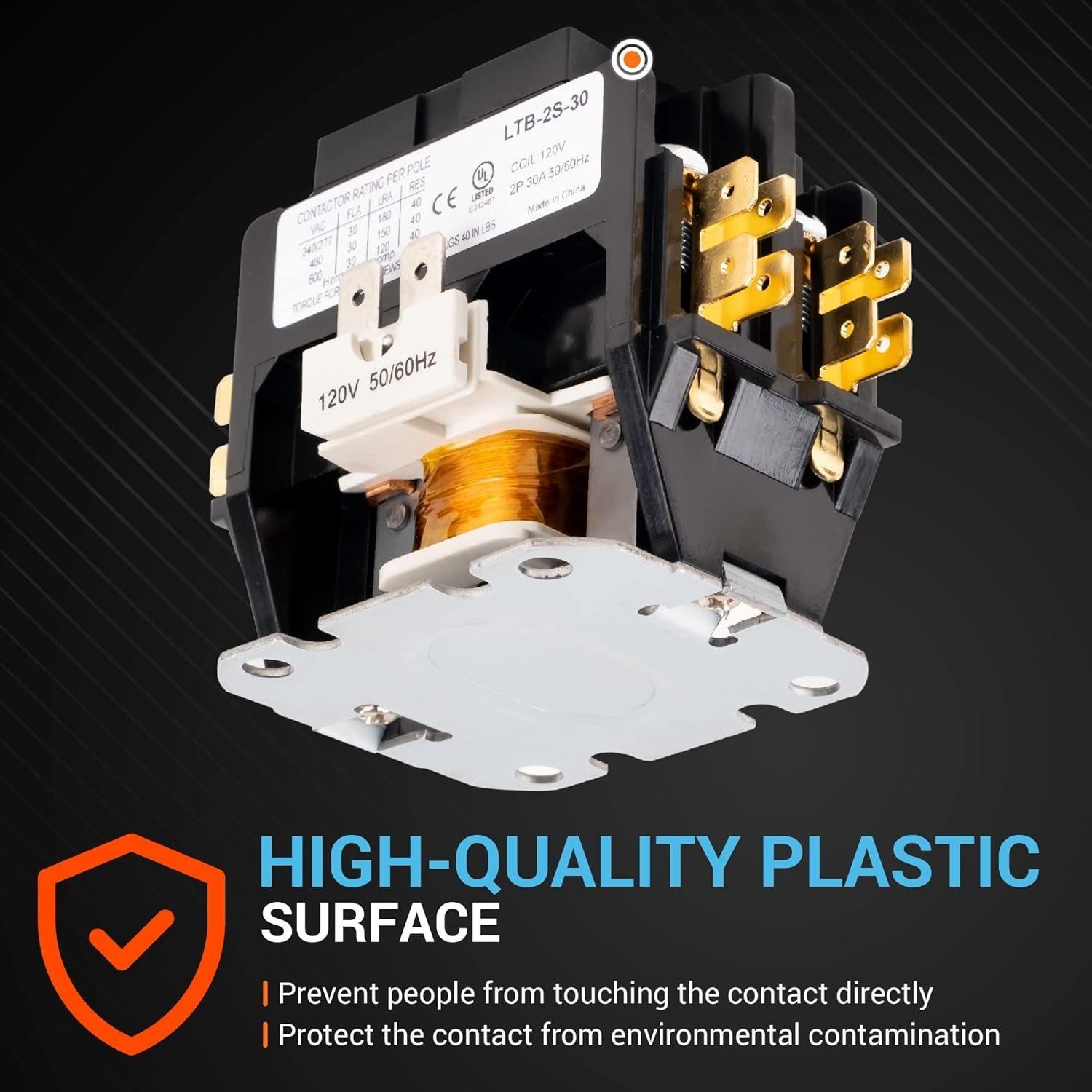

• Terminals: High-conductivity copper lugs
• Function: Electrically controlled switch for high-current loads like compressors and fan motors.
• Mounting: Standard footprint, compatible with DIN rail mounting.

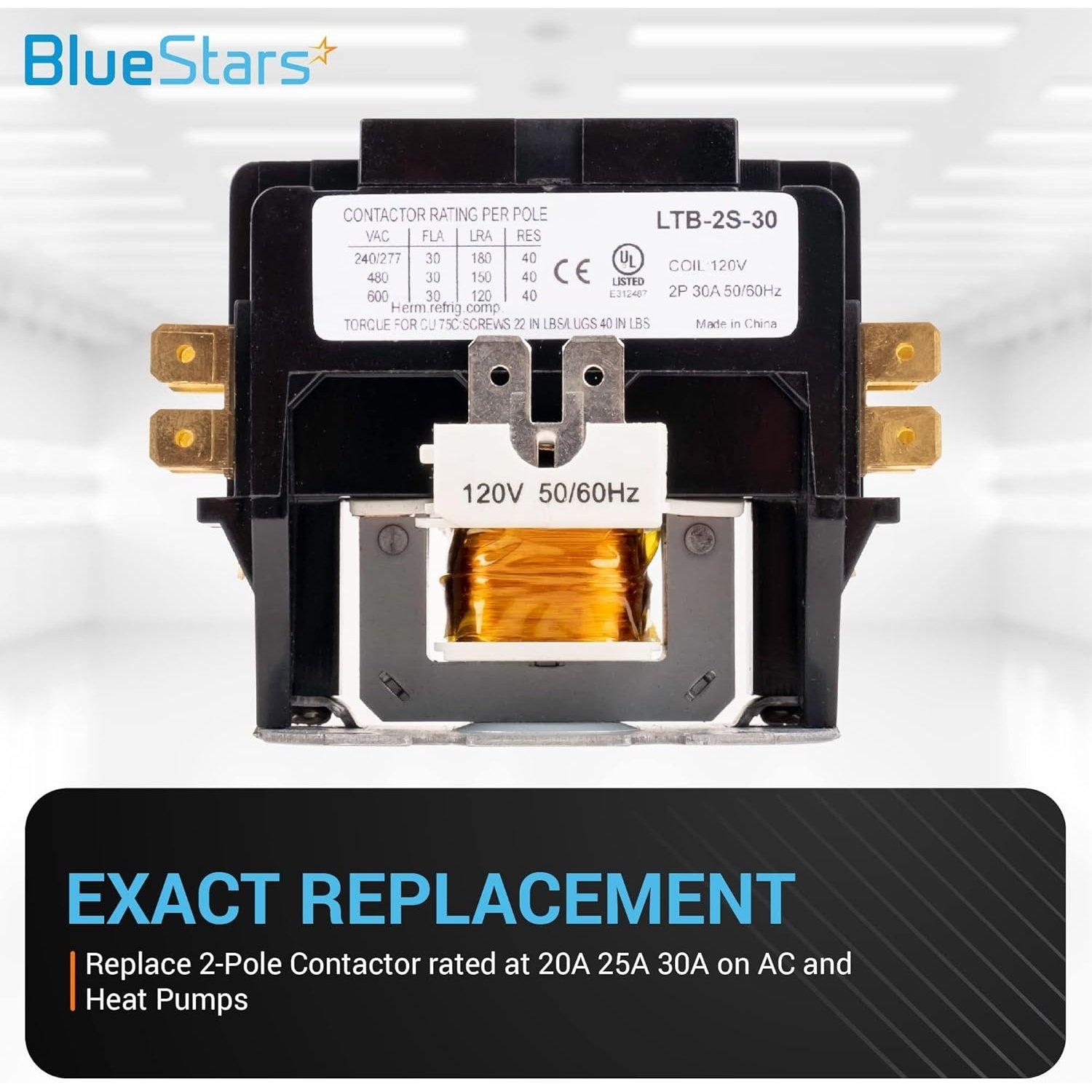

Replaces / Cross-Reference Part Numbers

• Carrier: C230B
• Replaces any 2-pole contactor with a 120VAC coil rated for 30 amps or less (e.g., 20A, 25A).
• Can be used as a functional replacement for single-pole contactors.

Compatibility & Fitment

• Designed for residential and light commercial HVAC equipment.
• Applications: Central air conditioners, heat pumps, refrigeration systems, and other motor control circuits.
• System Requirement: Must be used in systems that provide a 120VAC control signal voltage.

When to Replace

• Compressor or condenser fan fails to turn on.
• Visible pitting, burning, or melting on the contact points.
• Loud buzzing or chattering sound from the contactor when energized.
• The unit remains on even when the thermostat is satisfied.
• Coil tests open or fails to pull the plunger in when 120VAC is applied.

Installation Tips

• Disconnect all electrical power to the HVAC unit before beginning installation.
• Verify the system's control circuit voltage is 120VAC to match the contactor's coil rating.
• Label or photograph wire placement on the old contactor before disconnecting.
• Ensure all electrical connections are tightened securely to the specified torque to prevent overheating.
