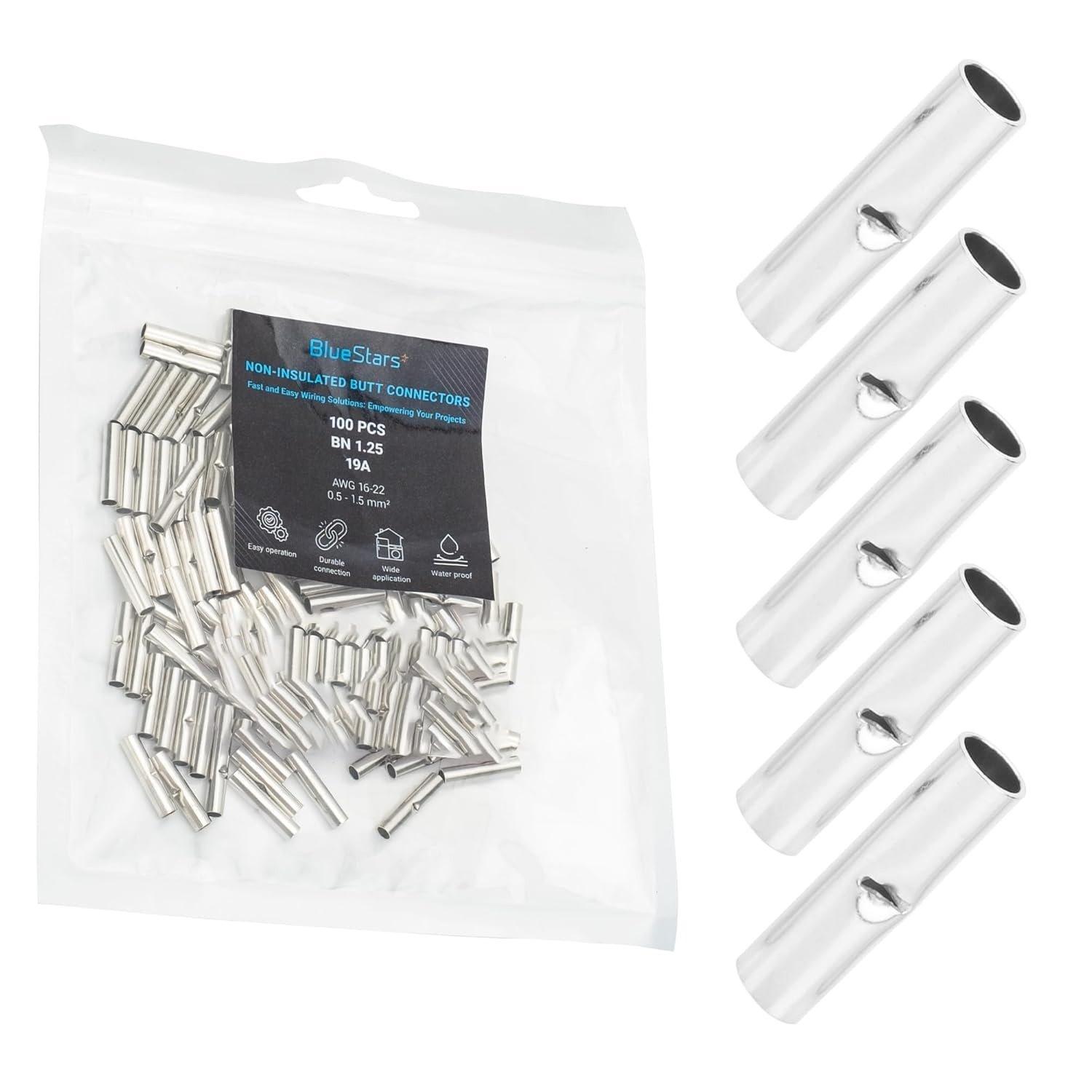

[Lifetime Warranty] 100 PCS Non-Insulated Butt Connectors, Butt Splice Connectors

100 PCS Non-Insulated Butt Connectors, Butt Splice Connectors

Key Features

• Package Quantity: 100 connectors
• Type: Non-insulated butt splice

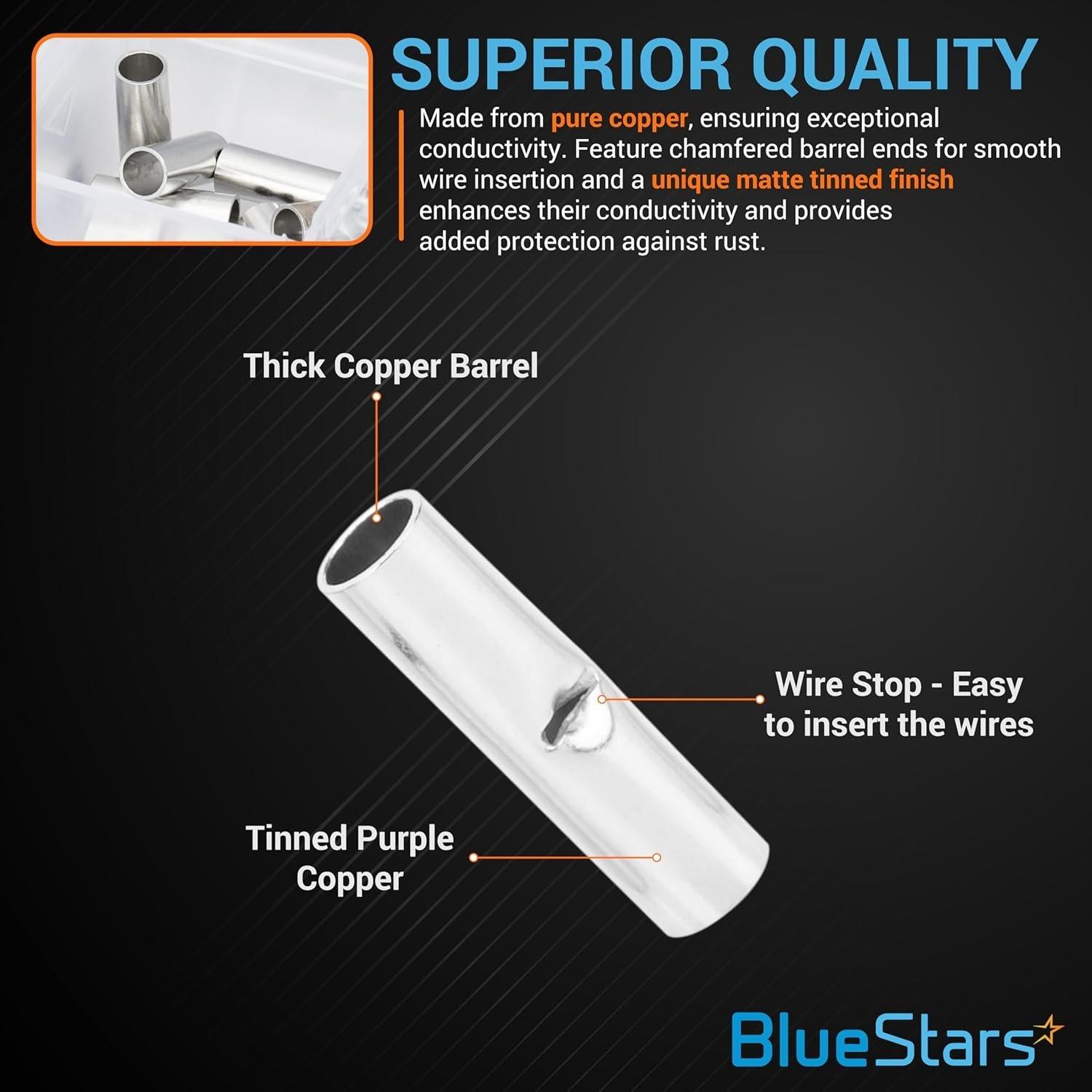

• Construction: High-conductivity tinned copper for corrosion resistance
• Design: Seamless barrel with a center wire stop for correct wire positioning and secure crimps
• Application: Joins wires end-to-end for repairs, extensions, or custom harness builds

Replaces / Cross-Reference Part Numbers

• BNT1

Compatibility & Fitment

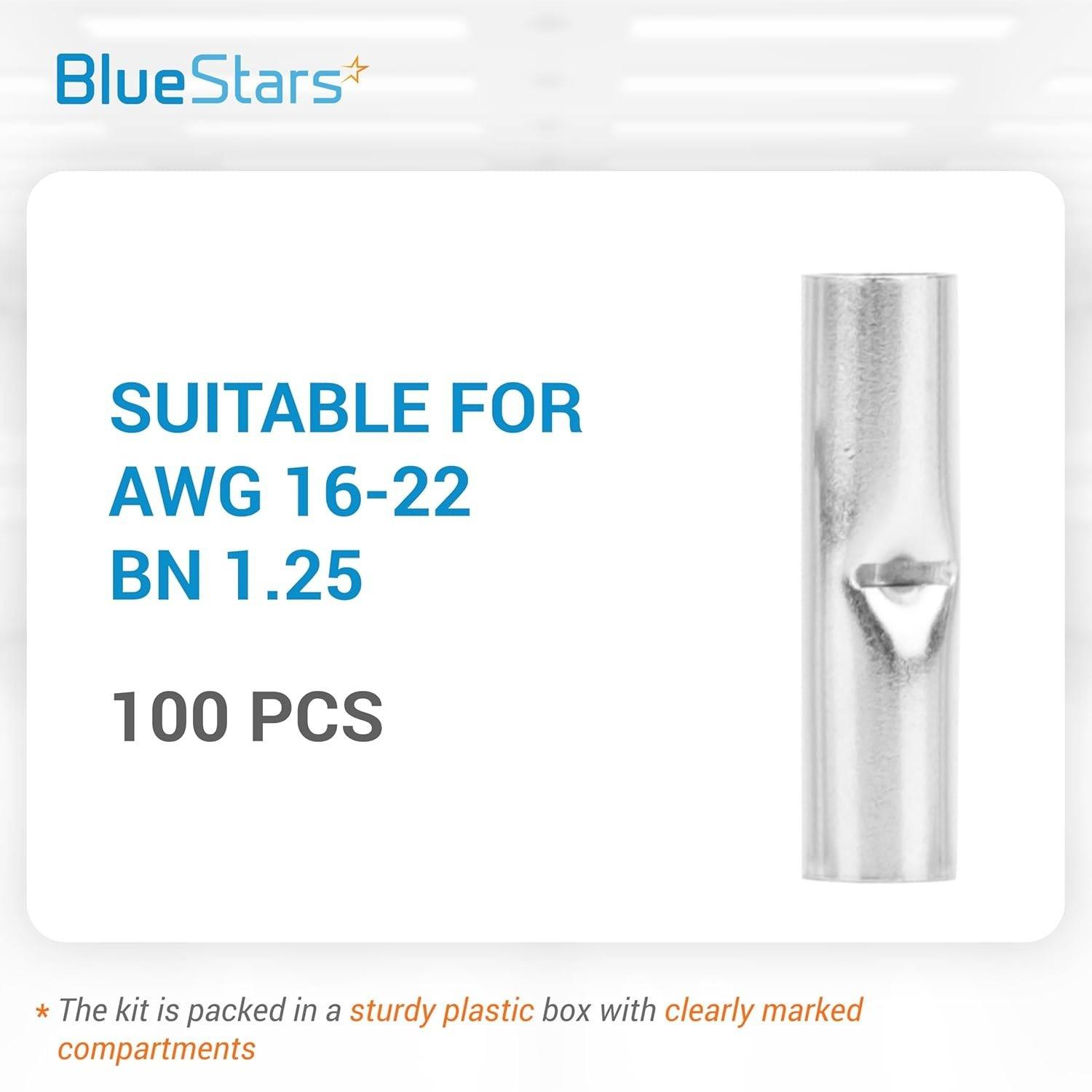

• Wire Gauge: 22-18 AWG
• Wire Type: For use with solid or stranded copper wire

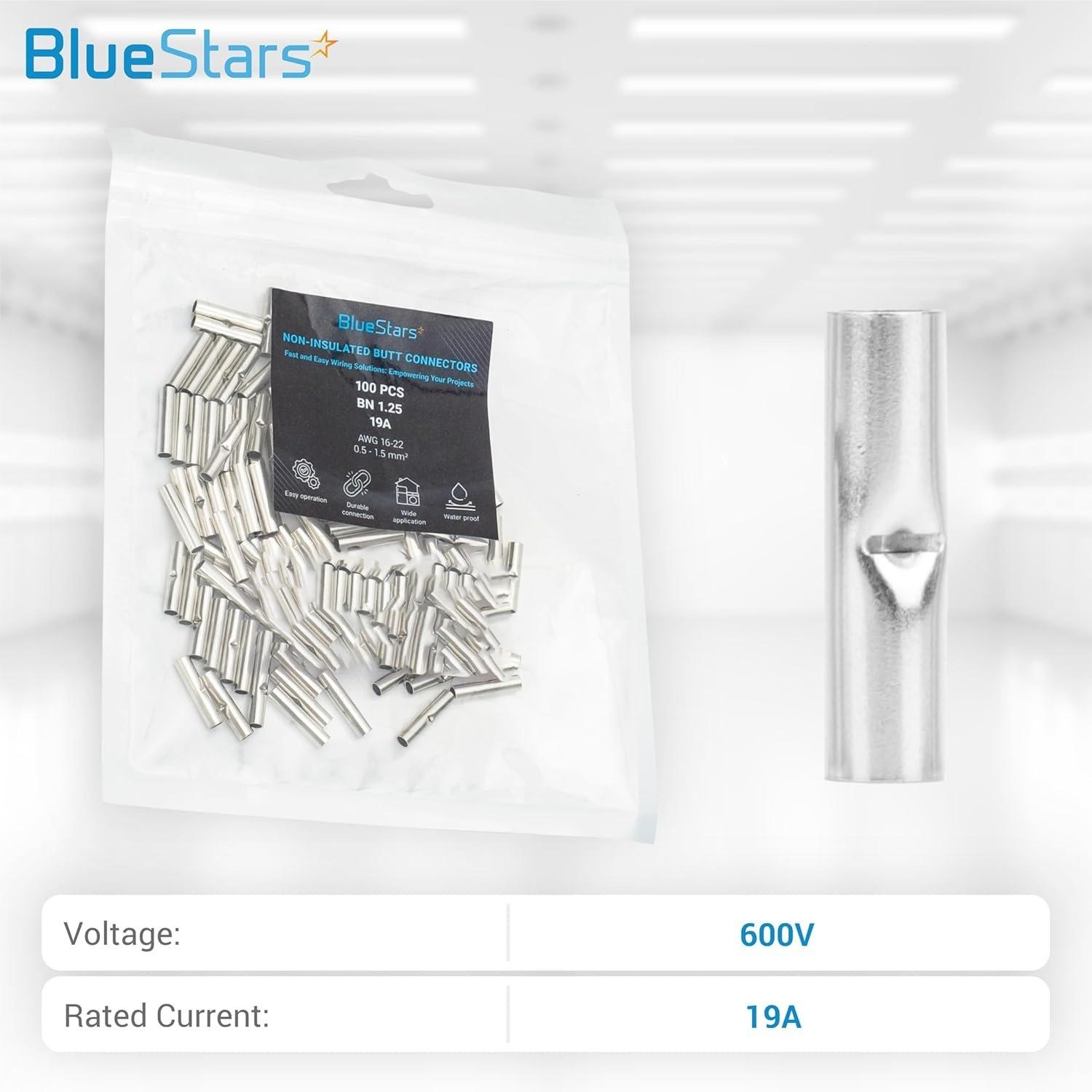

• Maximum Voltage: 600V
• Tool Requirement: Use with a standard crimping tool for non-insulated terminals

When to Replace

• To repair a broken or frayed wire
• To lengthen an existing wire run
• When building new or custom wiring harnesses
• To replace a faulty, corroded, or damaged existing connector

Installation Tips

• Strip approximately 1/4 inch (6-7mm) of insulation from each wire end.
• Insert one stripped wire into the connector until it contacts the center wire stop.
• Crimp the barrel securely onto the wire using the correct die on a crimping tool.
• Insert the second wire into the opposite end and repeat the crimping process.
• Verify the connection is secure by gently pulling on both wires.
• For added insulation and strain relief, cover the finished splice with heat shrink tubing.
