[Lifetime Warranty] 74004053 Range Top Burner Igniter - Compatible with Whirlpool & Maytag Ranges/Ovens/Stoves - Replaces 704111 AP4093621 PS2082000 7432P100-60 - Pack of 4

Sold 1,097

Difficulty Icon: Easy
Easy
More than 30 minutes

$14.04

$15.59

Save $1.55
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

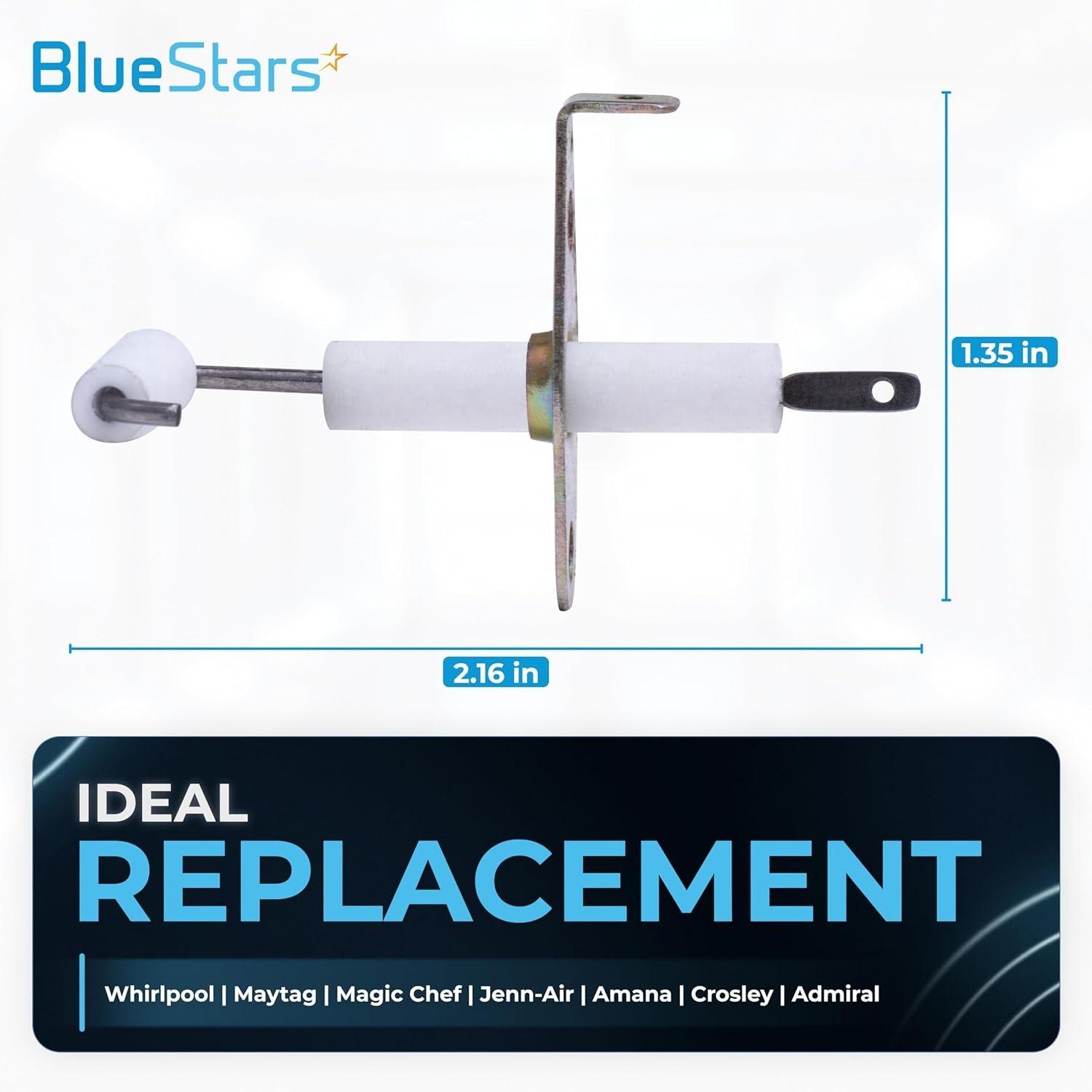

74004053 Range Top Burner Igniter - Pack of 4

Key Features

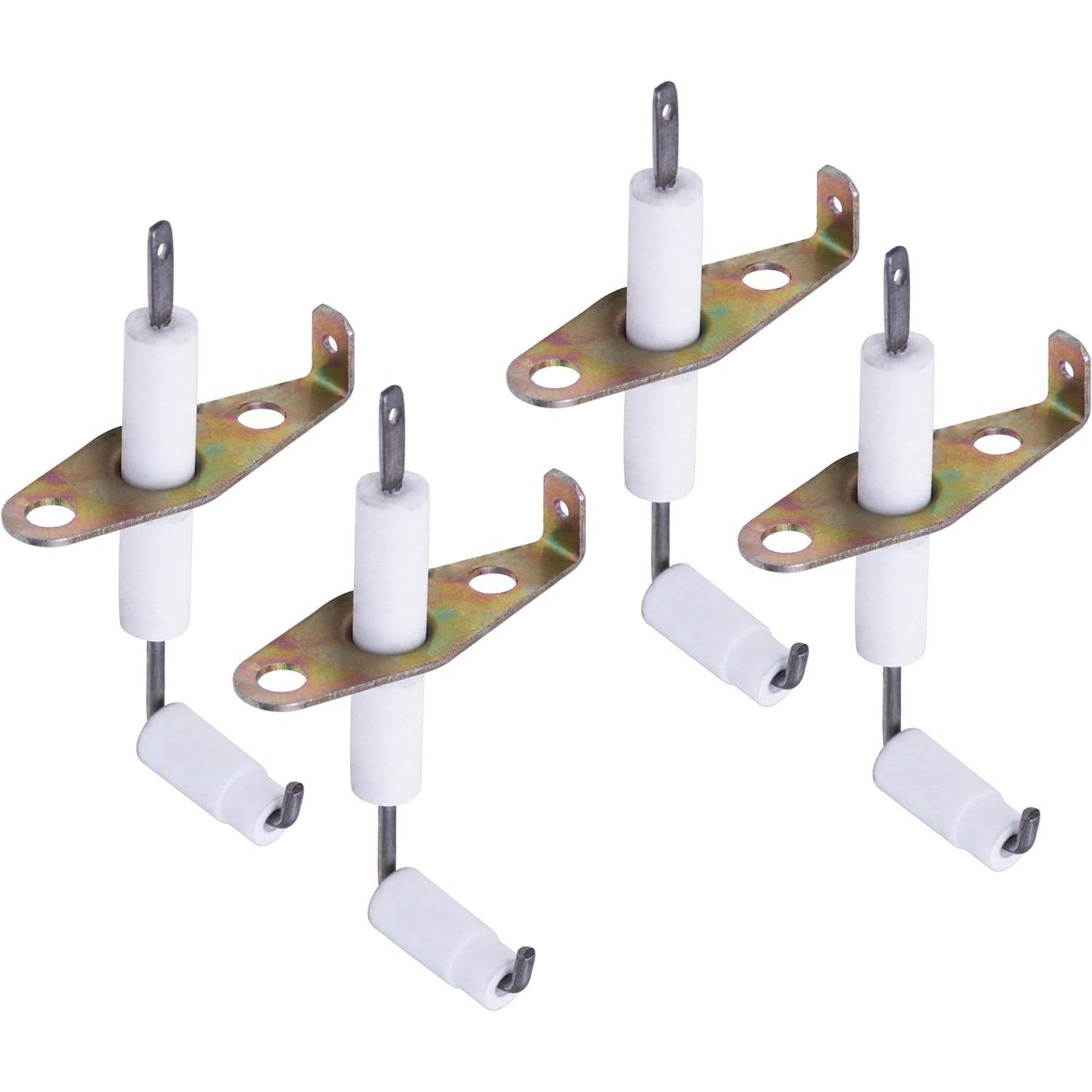

  • Package includes four (4) surface burner igniters.
  • Generates the spark to ignite gas on a range cooktop.
  • Also known as a stove top spark electrode.

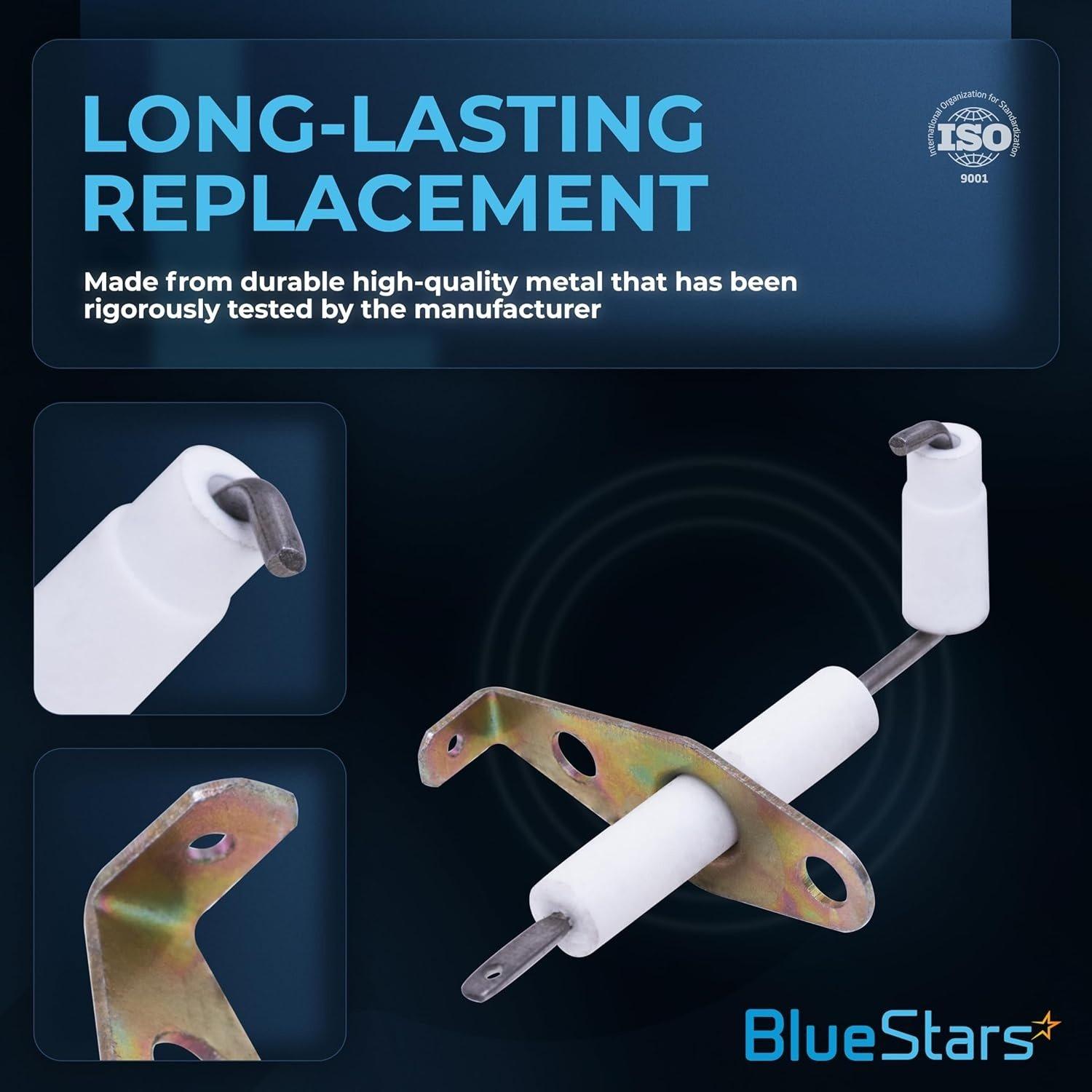

  • Constructed with a metal conductor and a ceramic insulator base.
  • Direct replacement for specified original equipment parts.

Replaces / Cross-Reference Part Numbers

  • 704111
  • 74004053VP
  • 7432P100-60
  • AH2082000
  • AP4093621
  • EA2082000
  • PS2082000

Compatibility & Fitment

  • Designed for use with select range, oven, and stove models from brands including Whirlpool and Maytag.
  • Confirm fitment with your specific model number before ordering.
  • Example compatible models include: 1003SAA, 31003SAW, 8351VD, 8351VQ.

When to Replace

  • The burner fails to light but gas can be smelled.
  • No clicking sound or spark is visible when turning on the burner.
  • The igniter sparks continuously even after the burner is lit.
  • The ceramic insulator is cracked or the metal electrode is broken.

Installation Tips

  • Disconnect the range from its power source and shut off the gas supply before beginning installation.
  • Handle the ceramic insulator with care to avoid cracking it.
  • Ensure the new igniter is clean and dry before installation.
  • Position the electrode tip correctly in relation to the burner head for a consistent spark.
