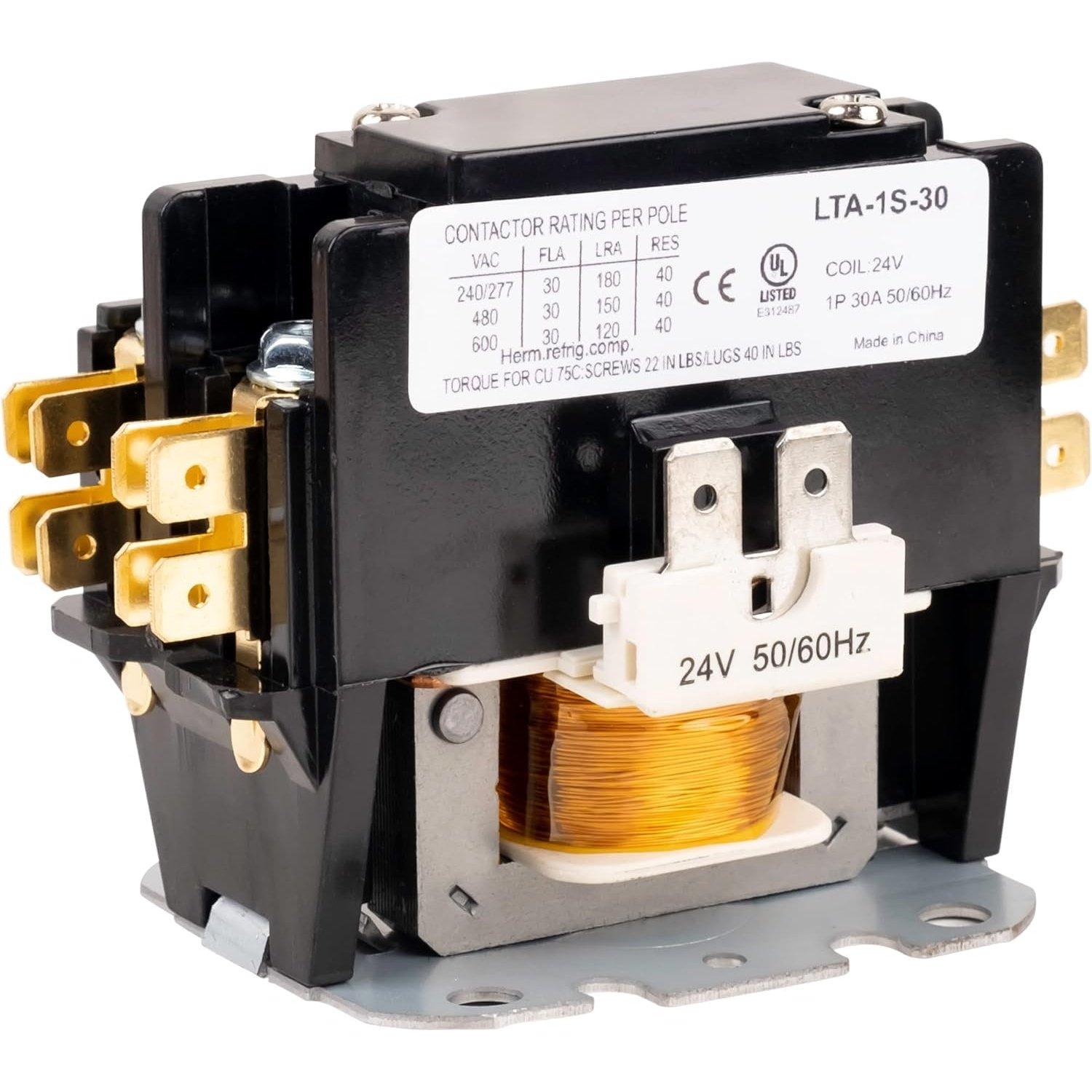

[Lifetime Warranty] C130A 1 Pole Contactor 30 Amp 24VAC Coil

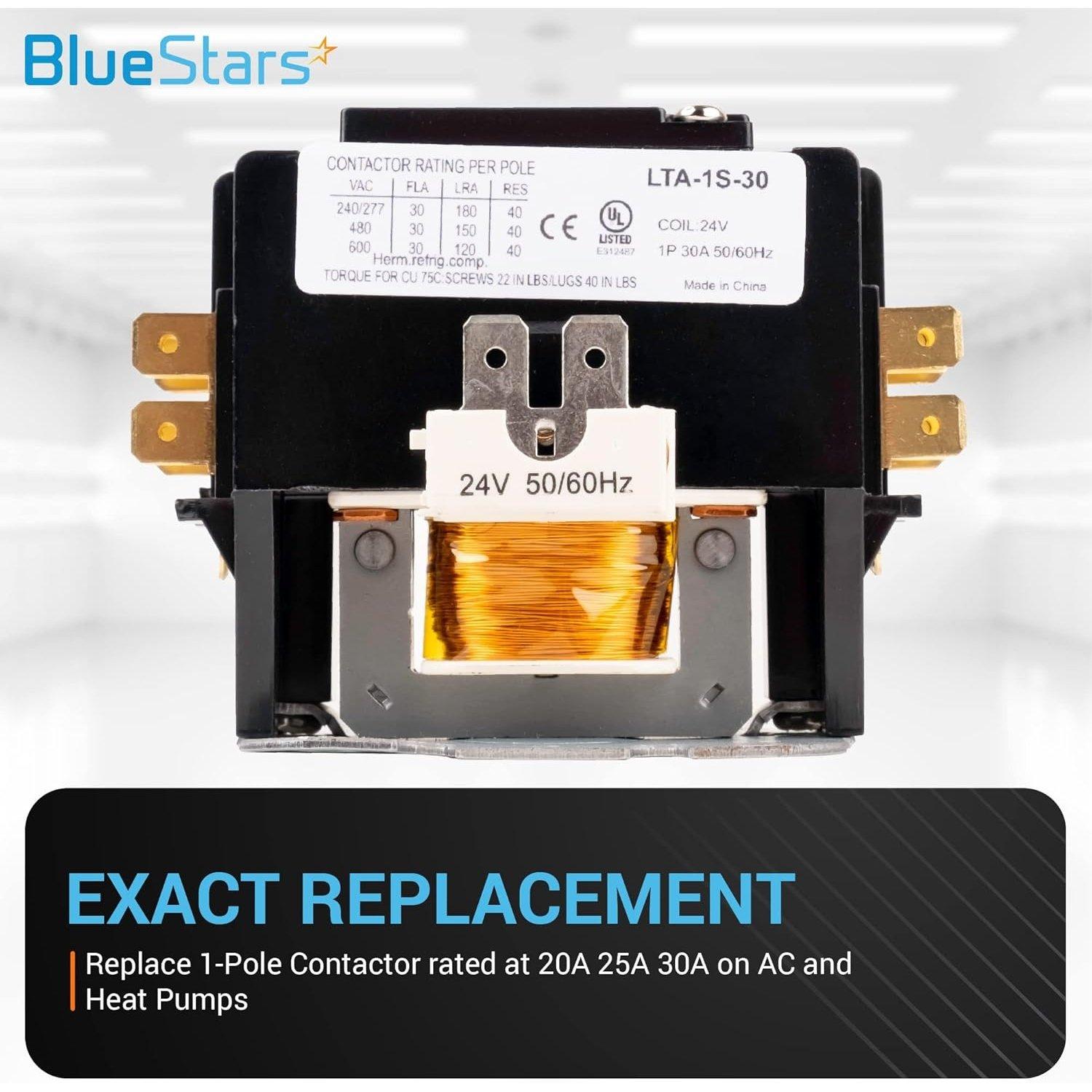

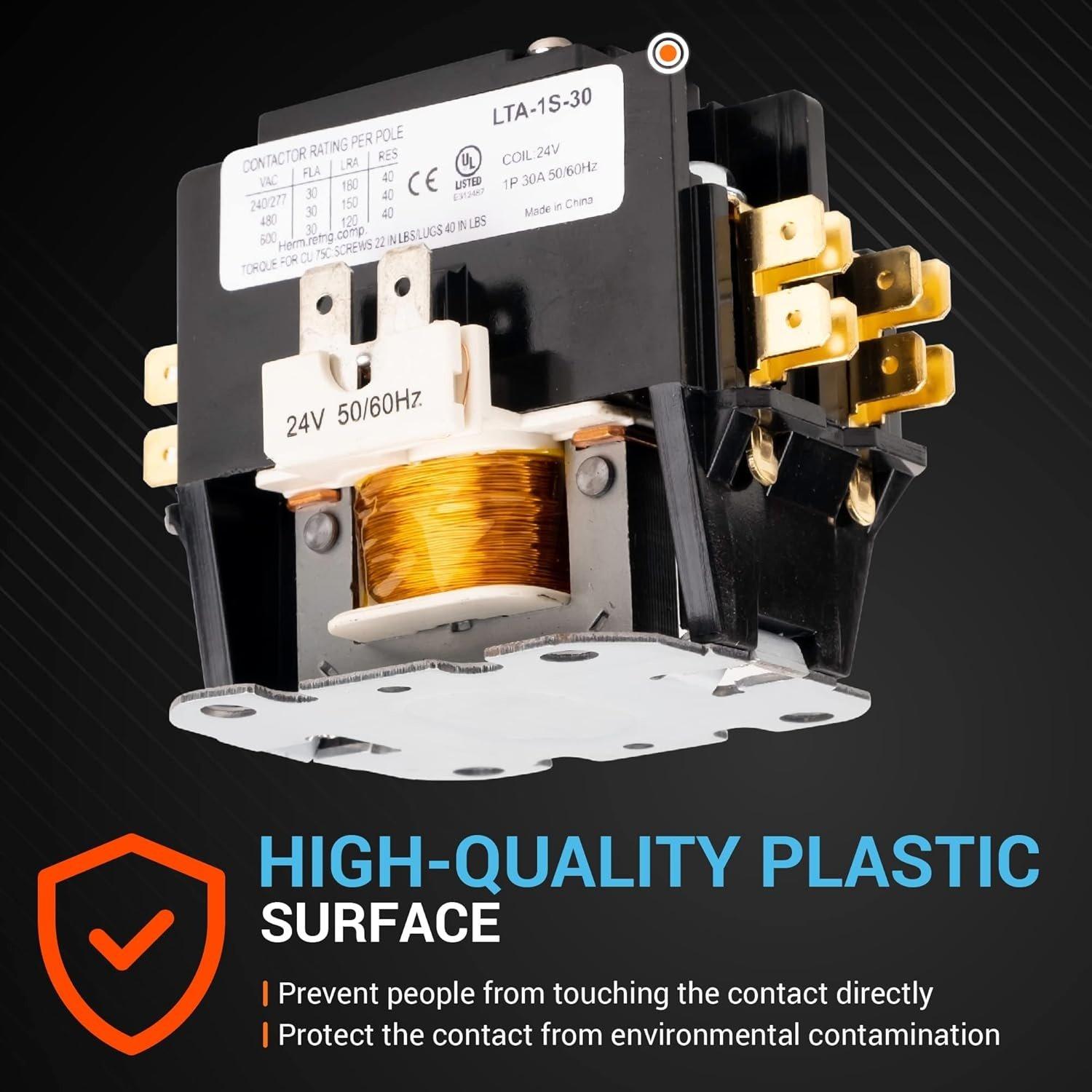

C130A 1 Pole Contactor 30 Amp 24VAC Coil

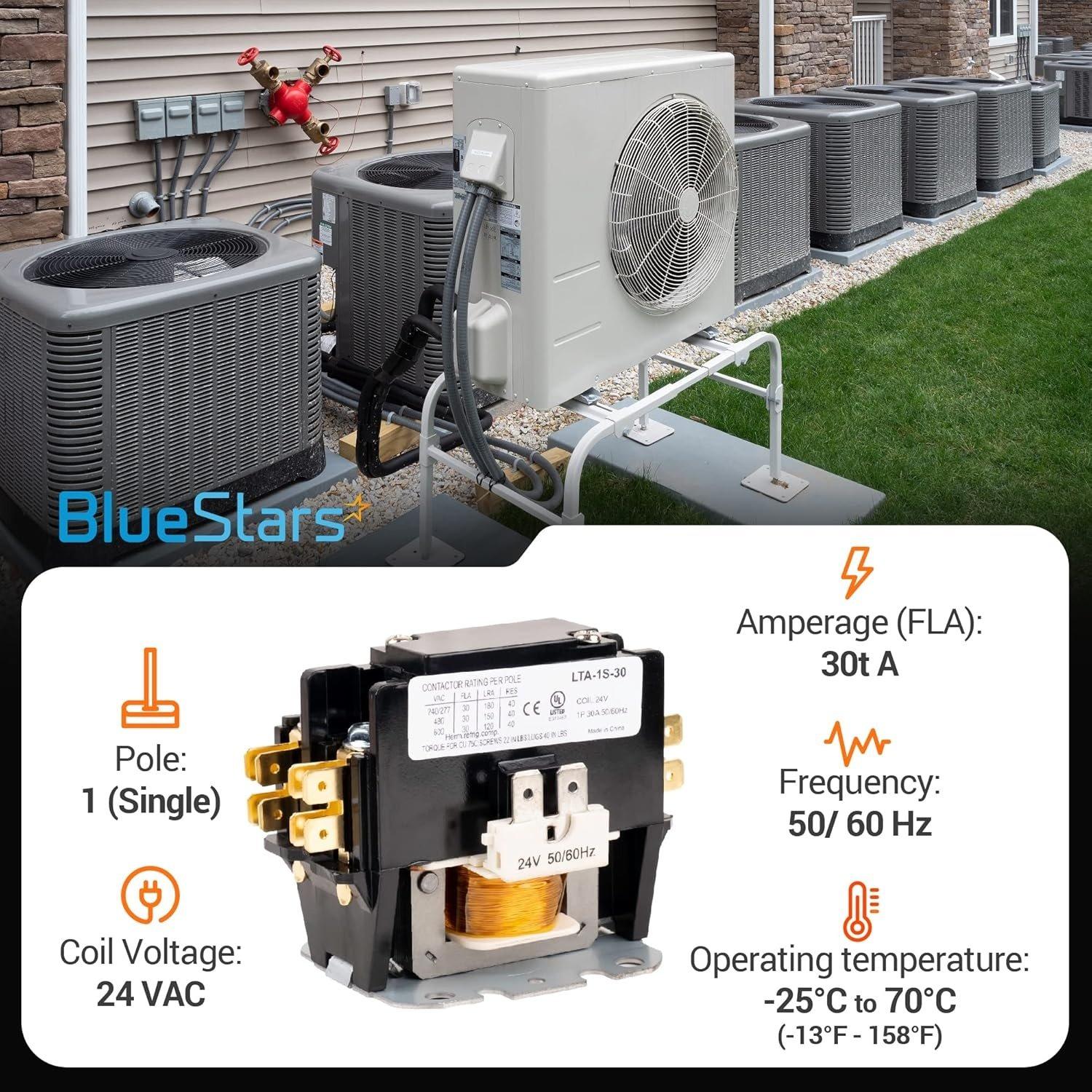

Key Features

• Poles: 1 Pole with Shunt
• Coil Voltage: 24VAC, 50/60 Hz
• Full Load Amps (FLA): 30A
• Resistive Amps: 40A
• Locked Rotor Amps (LRA):180A at 240VAC150A at 480VAC120A at 600VAC
• Insulation: Class B
• Terminals: Includes box lugs and spade terminals
• Mounting: Standard foot mount base

Replaces / Cross-Reference Part Numbers

• Packard: C130A, PC130A

Compatibility & Fitment

• Application: Definite purpose contactor for HVAC and electrical control systems.
• Commonly used in residential and light commercial air conditioning condensing units from 1.5 to 3.5 tons.

When to Replace

• The connected system fails to start or shut off.
• Visible damage, such as pitting, burns, or melted housing on the contacts.
• Loud buzzing, humming, or chattering noise during operation.
• The internal coil fails continuity testing.

Installation Tips

• Disconnect all electrical power to the unit before beginning installation.
• Verify the system control voltage matches the contactor's 24VAC coil rating.
• Ensure all wire connections are secure and tightened to manufacturer specifications to prevent overheating.
• Mount the contactor securely on a flat surface to minimize vibration.
